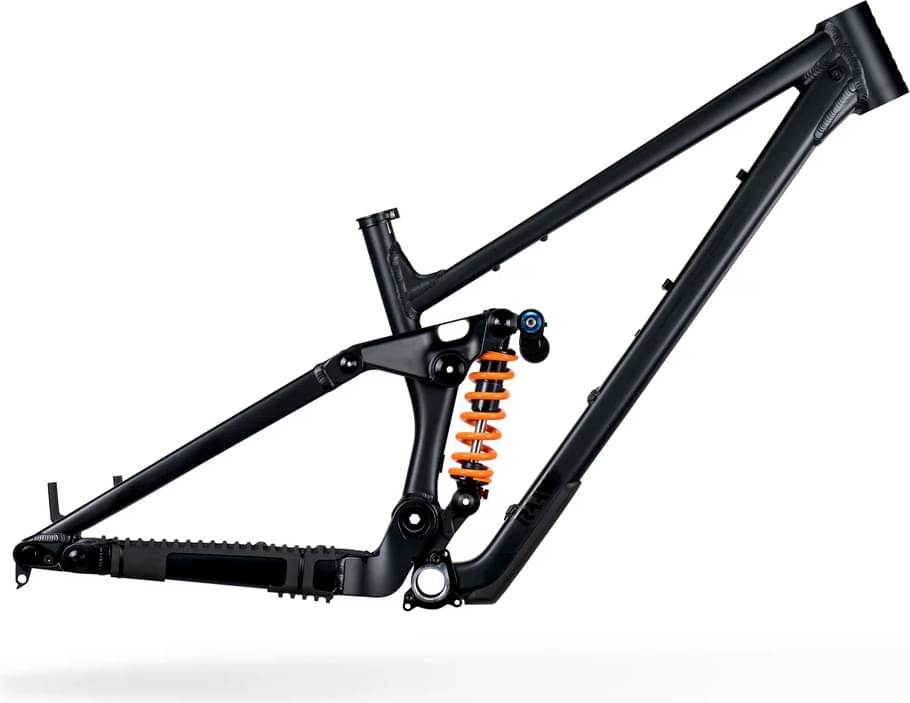

RAAW Madonna V3 Frame Kit 2025
2025 Mountain
Estimate price |
3,950$
Weight | 3.9 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Travel Rear 160mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
167cm - 180cm
LG
177cm - 190cm
XL
186cm - 199cm
XXL
195cm - 208cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL 6066 T6
Drivetrain
Shift Levers
One-by only, boost, 36t max (UDH / T-Type option)
Bottom Bracket
73mm BSA / ISCG05
Wheels
Rear Hub
148*12
Brakes
Brakes
203mm post mount
Cockpit
Headset
56 / 56 Zero stack
Seat
Seatpost
Yes
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.481 mm | 1.429 mm | 1.383 mm | 1.341 mm | 1.277 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 773 mm | 805 mm | 836 mm | 867 mm | 893 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 134 mm | 134 mm | 134 mm | 135 mm | 134 mm |
| Stack | 637 mm | 650 | 664 mm | 677 mm | 677 mm |
| Reach | 430 mm | 455 mm | 480 mm | 505 mm | 530 mm |
| Top Tube Length | 576 mm | 605 mm | 618 mm | 647 mm | 672 mm |
| Seat Tube Angle | 77 ° | 77 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 395 mm | 420 mm | 445 mm | 470 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm | 145 mm |
| Chainstay Length | 445 mm | 445 mm | 450 mm | 455 mm | 455 mm |
| Wheelbase | 1216 mm | 1248 mm | 1284 mm | 1320 mm | 1346 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 167 cm | 177 cm | 186 cm | 195 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 199 cm | 208 cm |
