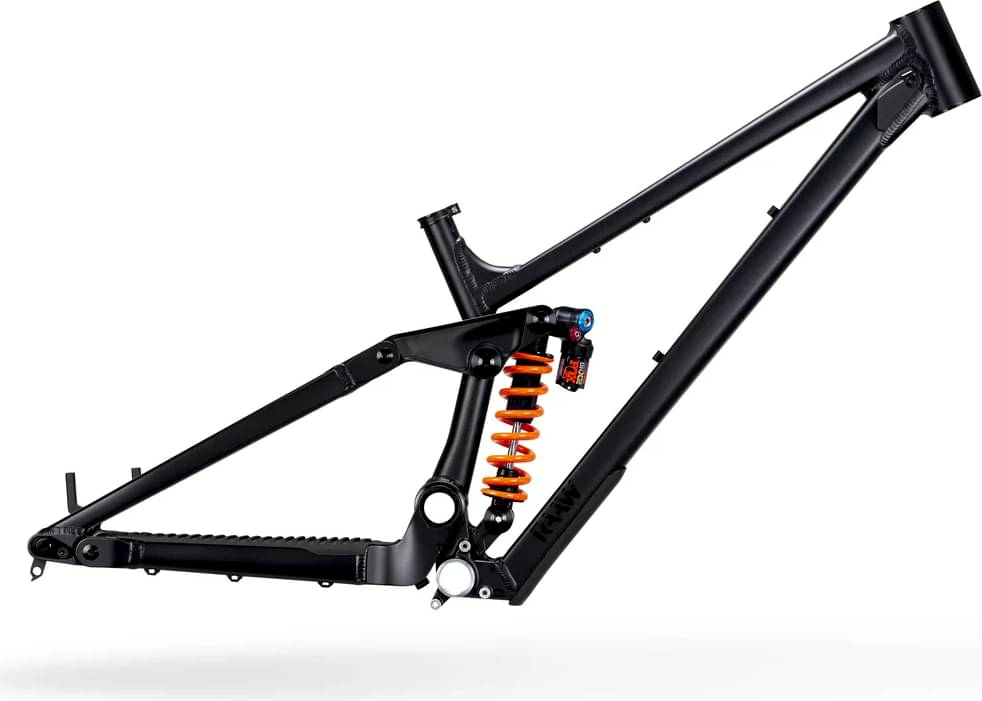

RAAW Yalla! V1 Frame Kit 2025
2025 Mountain
Estimate price |
4,089$
Weight | 4.2 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Travel Rear 198mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
167cm - 180cm
LG
177cm - 190cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL 6066 T6
Drivetrain
Shift Levers
One-by only, boost, 36t max
Bottom Bracket
83 mm BSA / ISCG05
Wheels
Rear Hub
157 x 12
Brakes
Brakes
203 mm Postmount
Cockpit
Headset
56 / 56 Zero stack
Seat
Seatpost
no
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.406 mm | 1.333 mm | 1.267 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 831 mm | 856 mm | 881 mm |
| Rake | 52 mm | 52 mm | 52 mm |
| Trail | 128 mm | 128 mm | 128 mm |
| Stack | 639.9 mm | 639.9 mm | 639.9 mm |
| Reach | 455 mm | 480 mm | 505 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm |
| Chainstay Length | 440 mm | 445 mm | 450 mm |
| Wheelbase | 1270 mm | 1300 mm | 1330 mm |
| Bottom Bracket Drop | 26 mm | 26 mm | 26 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 167 cm | 177 cm | 186 cm |
| Rider Max Height | 180 cm | 190 cm | 199 cm |
