Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Travel Front 100mm -
Fork RST DIRT
-
Suspension Hardtail -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RADIO “ASURA” frame, crmo top tube & down tube, 1020 hi-ten
Suspension Fork
RST “DIRT RA” 100mm travel
Drivetrain
Cassette
RADIO “ROOKIE” steel, 30t
Crank
RADIO “PRO” tubular 3pc crank crmo, 170mm, 8 spline
Bottom Bracket
Mid size, press fit, sealed bearing
Chain
SALT “AM” chain, WZ1 type
Pedals
RADIO “SLIM” Nylon Fibreglass Pedals
Wheels
Front Hub
RADIO “ROOKIE-DJ” disc hub, alloy, loose ball, 3/8?s crmo axle, 32h
Rear Hub
RADIO “ROOKIE-DJ” disc hub, alloy, sealed, 3/8?s crmo axle, 32h
Rims
Front: RADIO “DB32” rim, double wall, Rear: RADIO “DB32” rim, double wall
Tires
RADIO “DJ1131? tires, 2.0”, front & rear
Brakes
Brakes
TEKTRO “ARIES” mechanical disc brake, 160mm rotor, front & rear
Cockpit

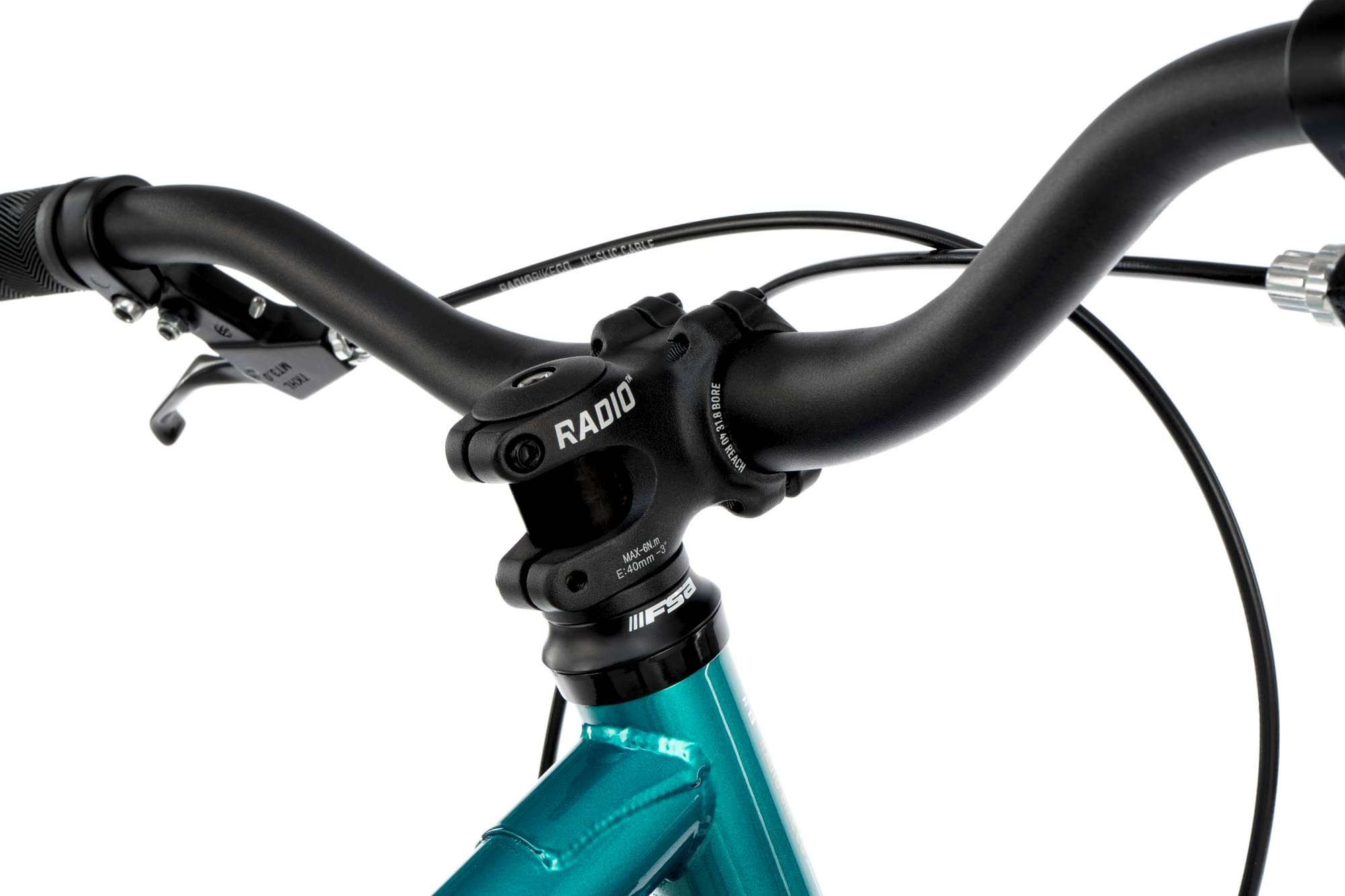

Stem
RADIO “ZOOM” frontload stem, alloy, 40mm reach
Handlebar
RADIO “ASURA” bar, 6061-T6 alloy, 31.8mm
Grips
RADIO “FREQUENCY XL” grips, flangeless, 160mm
Headset
FSA “NO.28” a-headset
Seat
Saddle
RADIO “DJ” medium padded combo seat
Seatpost
–
Fit data
Geometry
