Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RADIO “CEPTOR” frame, full crmo, oval & tapered chain stays
Suspension Fork
RADIO “CEPTOR” fork, full crmo, 24mm offset
Drivetrain
Cassette
RADIO “PRO” 6061-T6 alloy, 26t

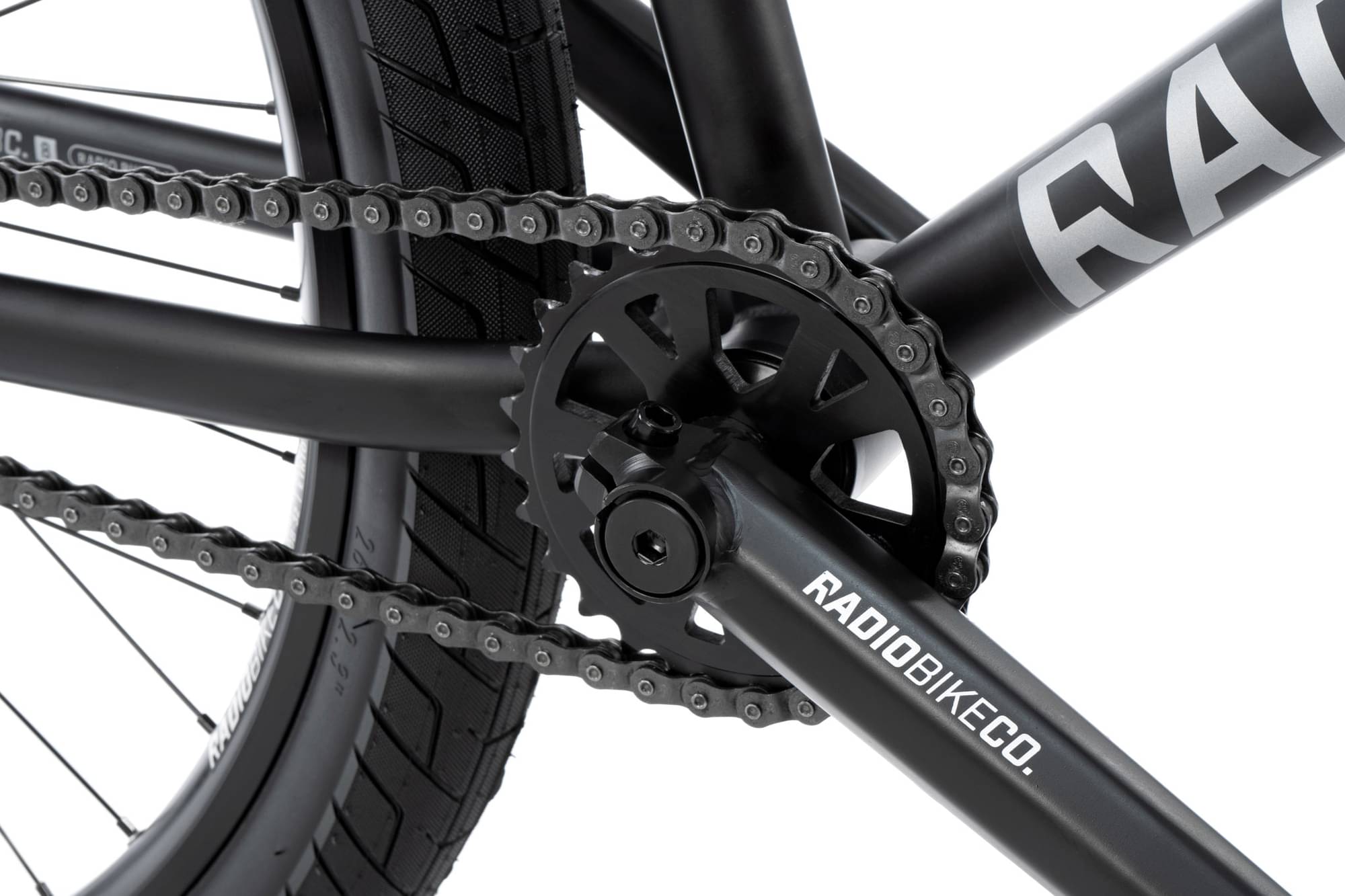

Crank
RADIO “PRO” tubular 3pc crank crmo, 170mm, 8 spline
Bottom Bracket
Mid size, press fit, sealed bearing
Chain
SALTPLUS “WARLOCK” half-link chain
Pedals
RADIO “SLIM” Nylon Fibreglass Pedals
Wheels
Front Hub

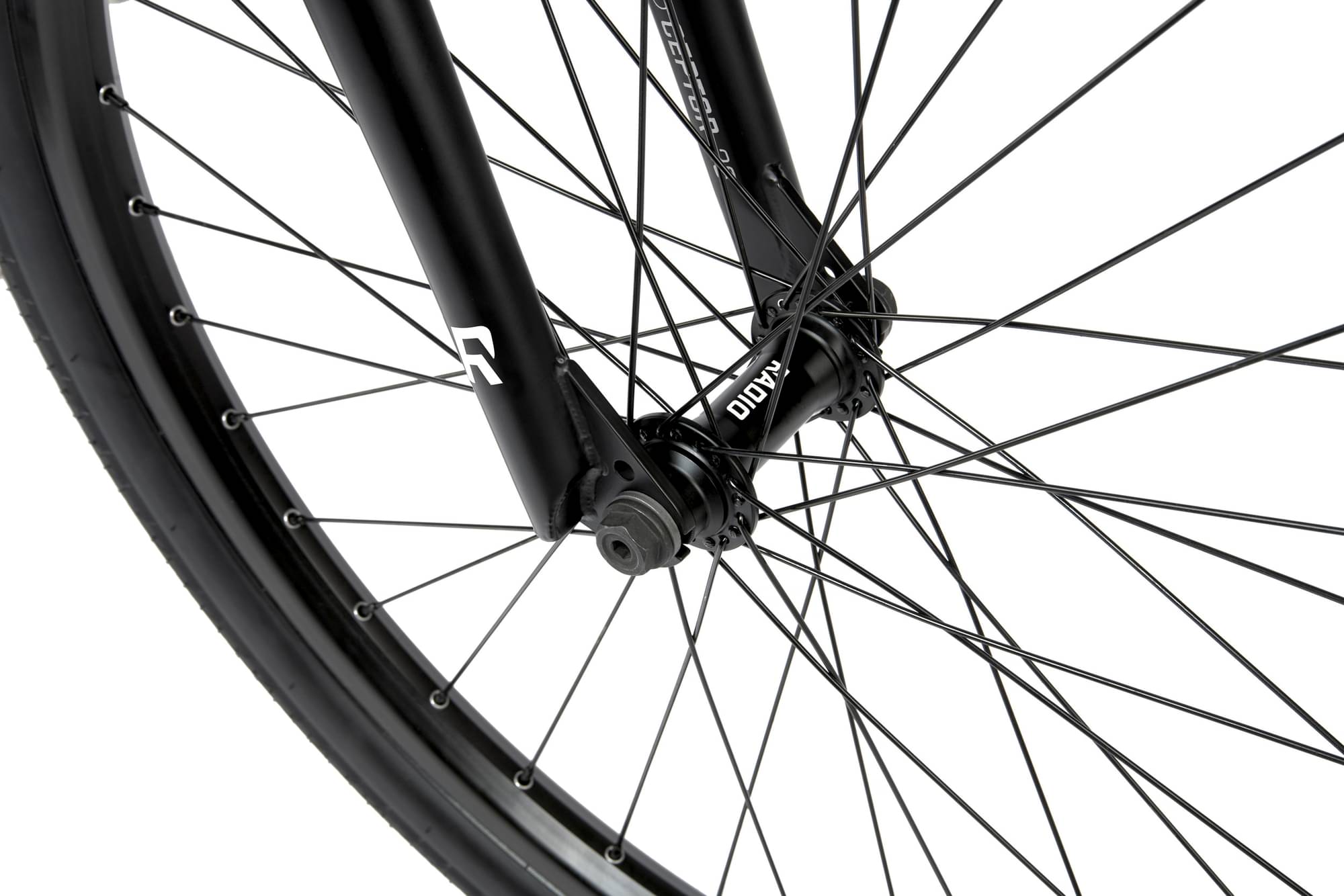

RADIO “PRO” alloy hub, sealed bearing, 3/8?s female, 36h
Rear Hub
RADIO “PRO” alloy cassette hub, 10t, sealed bearing, 14mm, 36h, 120mm OLD
Rims
Front: RADIO “FR32” rim, double wall, 36h, Rear: RADIO “FR32” rim, double wall, 36h
Tires
RADIO “HELIX” tires, 2.3?, front & rear
Brakes
Brakes
SALTPLUS “GEO XL” alloy u-brake
Cockpit
Stem

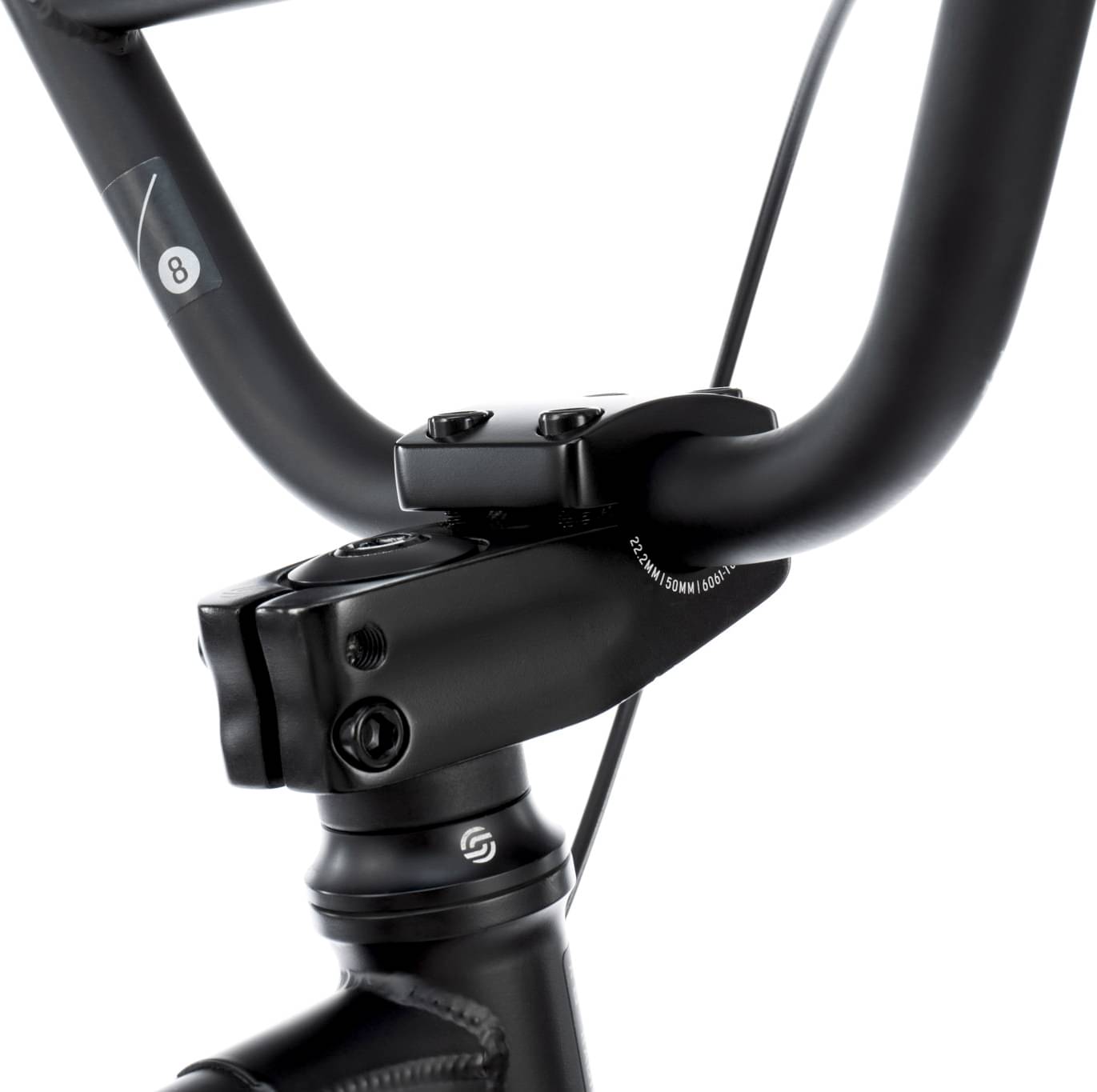

SALT “ZION” topload stem, 50mm reach
Handlebar

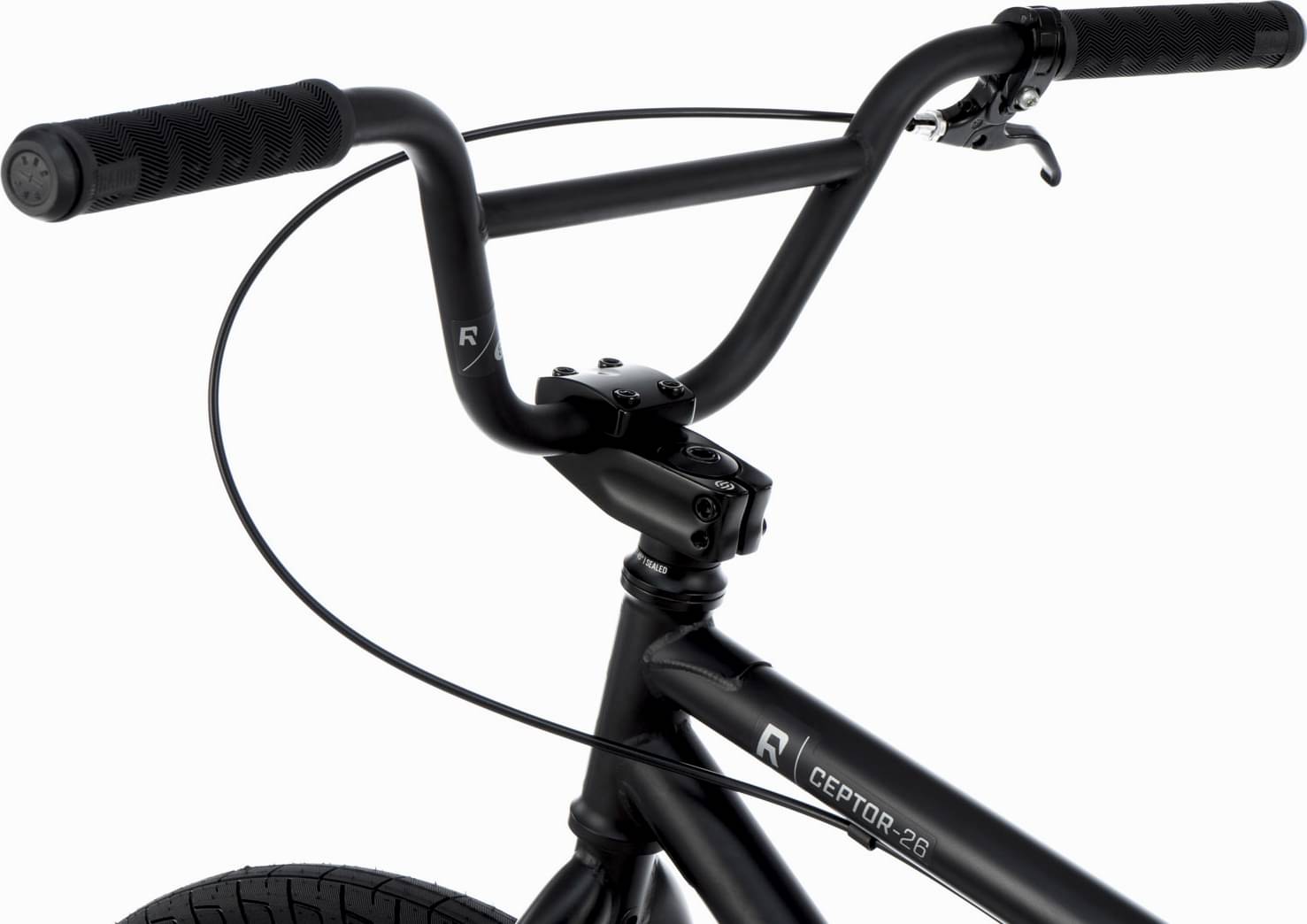

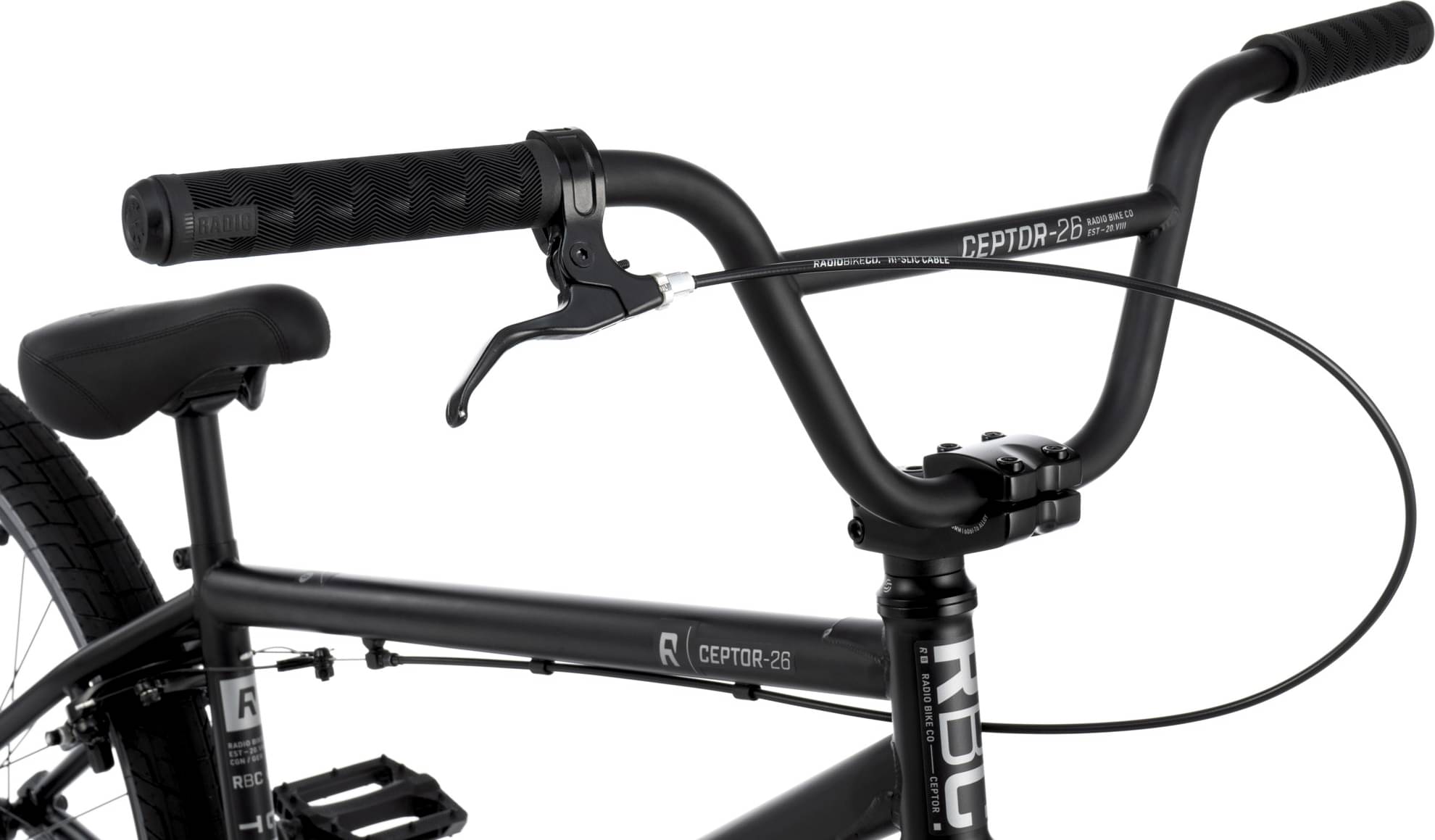

RADIO “CEPTOR” full crmo bar
Grips
RADIO “FREQUENCY XL” grips, flangeless, 160mm
Headset
SALT “PRO” int. headset, sealed bearing
Seat
Saddle

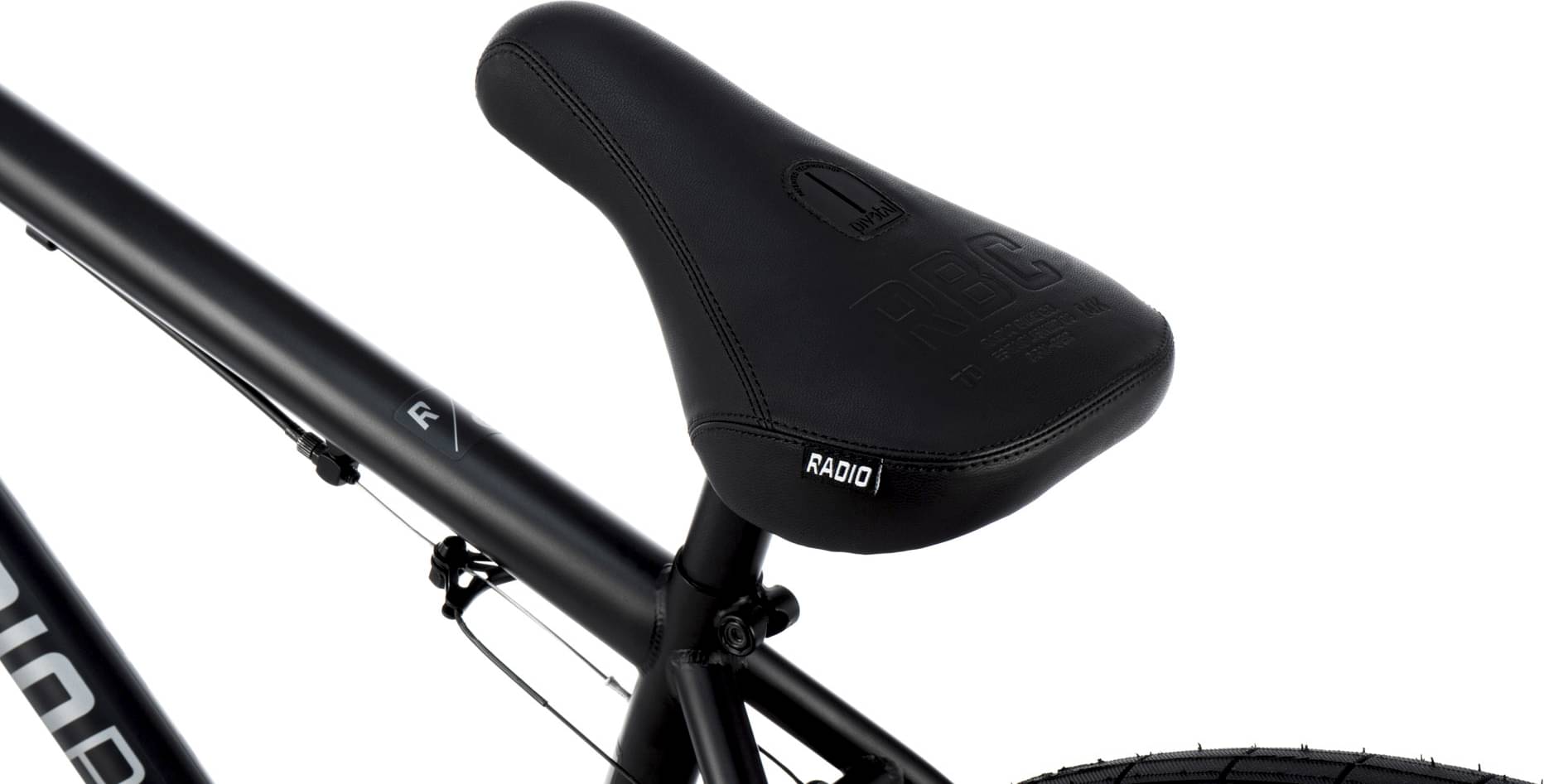

RADIO “CENTURY” Fat Pivotal seat
Seatpost
RADIO “PIVOTAL” seat post, alloy
Fit data
Geometry
