Bike summary
-
Category -
Frame Aluminum -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 alloy, forged dropouts with int. chaintensioner
Suspension Fork
cr-mo, 1? butted steerer tube, hi-ten fork legs, 23mm offset
Drivetrain
Cassette
RADIO alloy, 38t sprocket

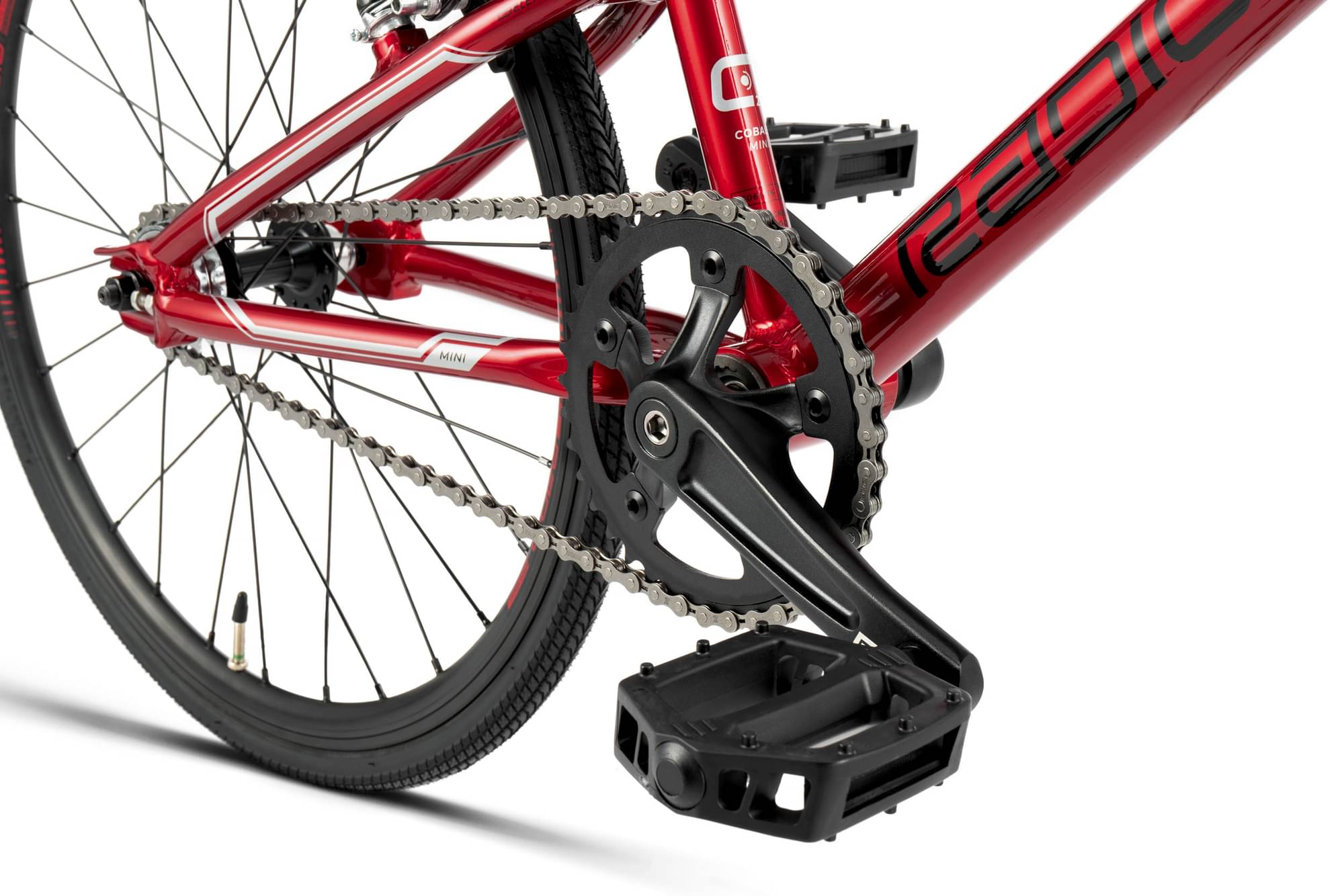

Crank
RADIO “Cobalt” forged alloy 3pc crank, 140mm long
Bottom Bracket
Radio, BSA square taper, sealed
Chain
KMC, Z6, 1/2? x 3/32?
Pedals
Radio, Cobalt Junior, nylon
Wheels

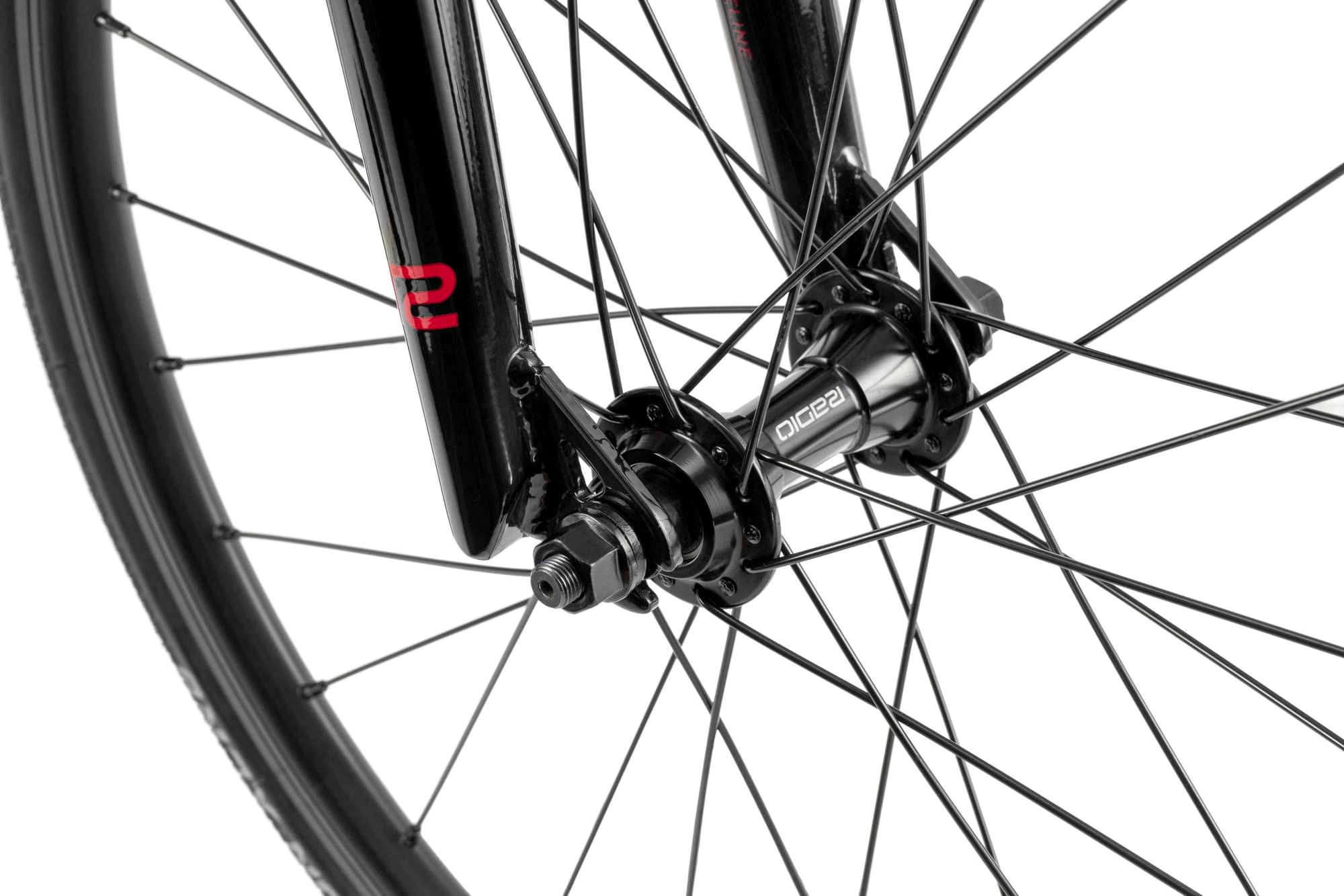

Front Hub
RADIO “Cobalt” alloy CNC hub, fully sealed, 3/8?s, 28h, crmo axle

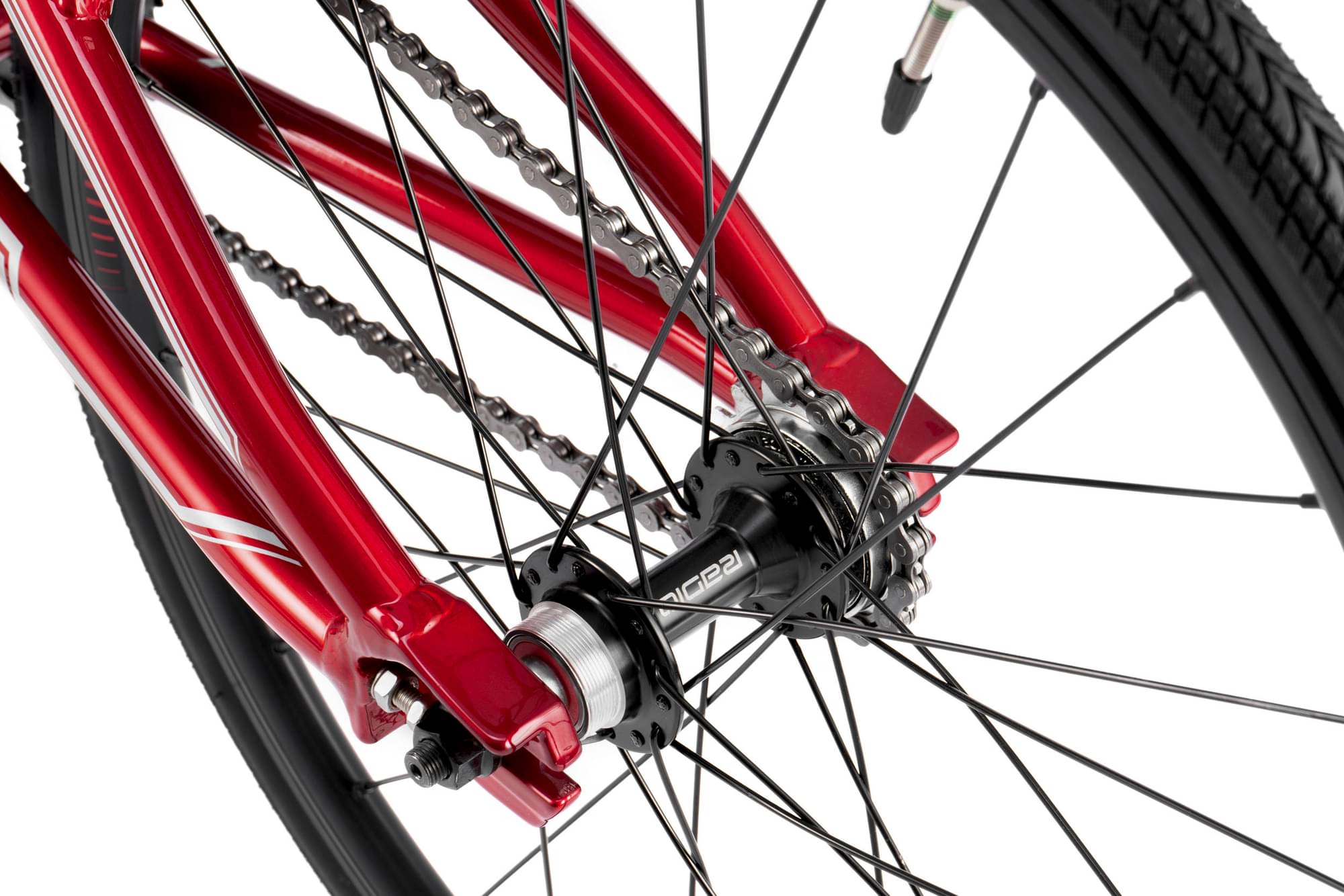

Rear Hub
RADIO “Cobalt” alloy CNC hub, fully sealed, 3/8?s, crmo axle, 28h, flip flop
Rims
Radio, A-M5, double wall, 28H, alloy f&r

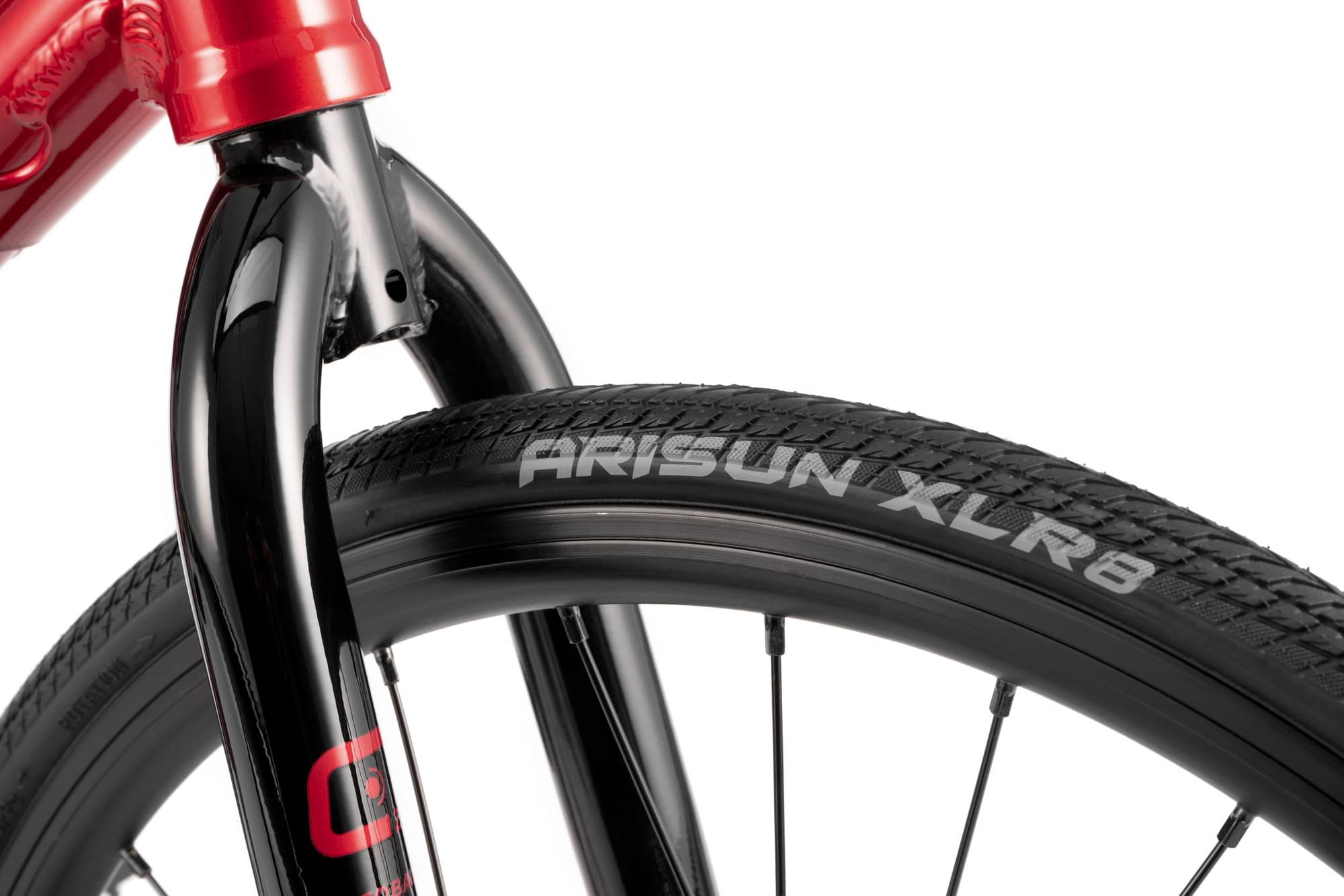

Tires
Arisun, XLR8, 20?x 1-1/8?
Brakes
Brakes
PROMAX “MV-87” alloy brake rear
Brake Levers
PROMAX “XL-378” alloy brake rear

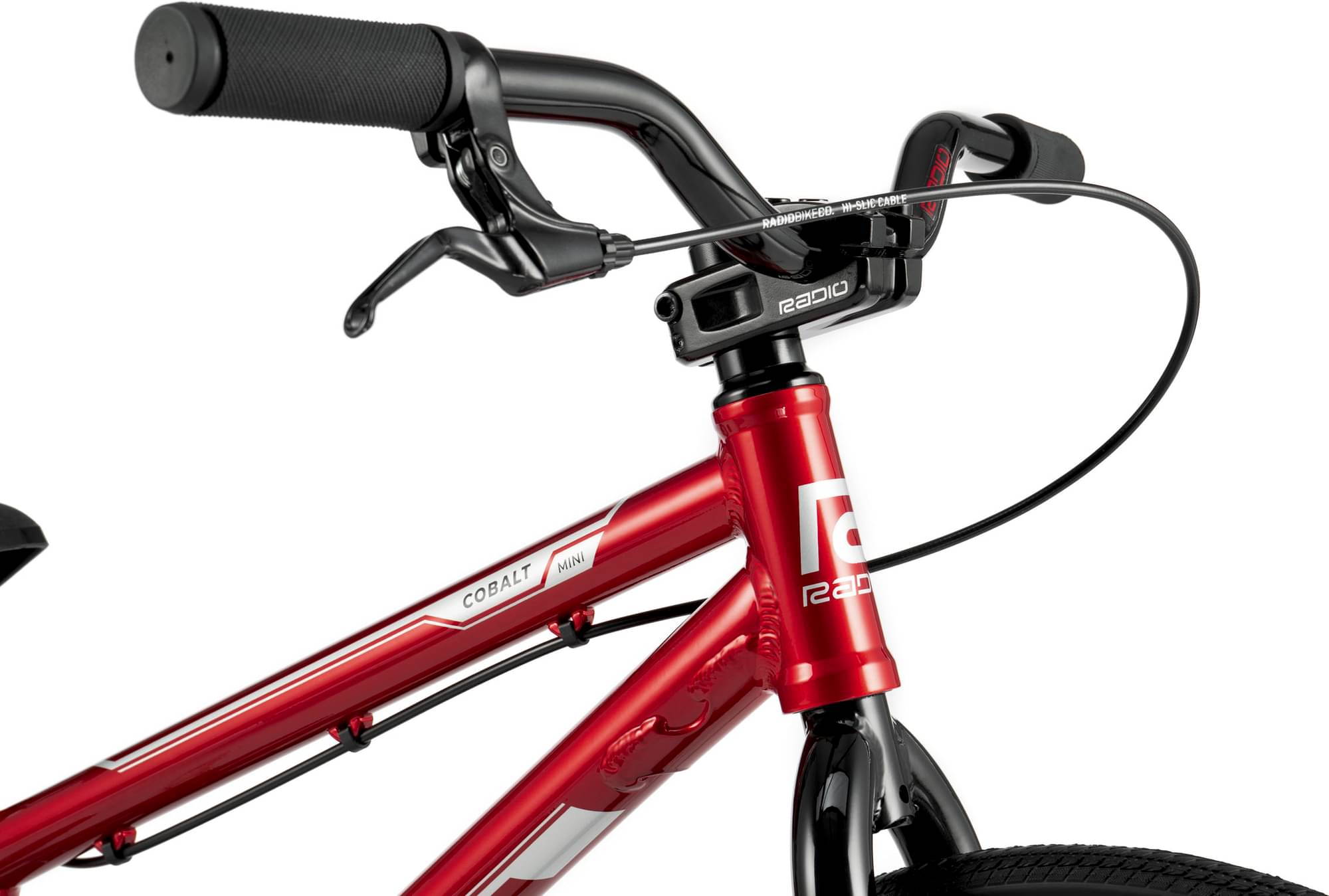

Cockpit
Stem
Radio, Cobalt-toploader, ext. 40mm, alloy
Handlebar
4130 seamless cr-mo
Grips
Radio, diamond knurling, closed end, flangeless, 102mm length
Headset
Radio, integrated headset, sealed, 1?
Seat

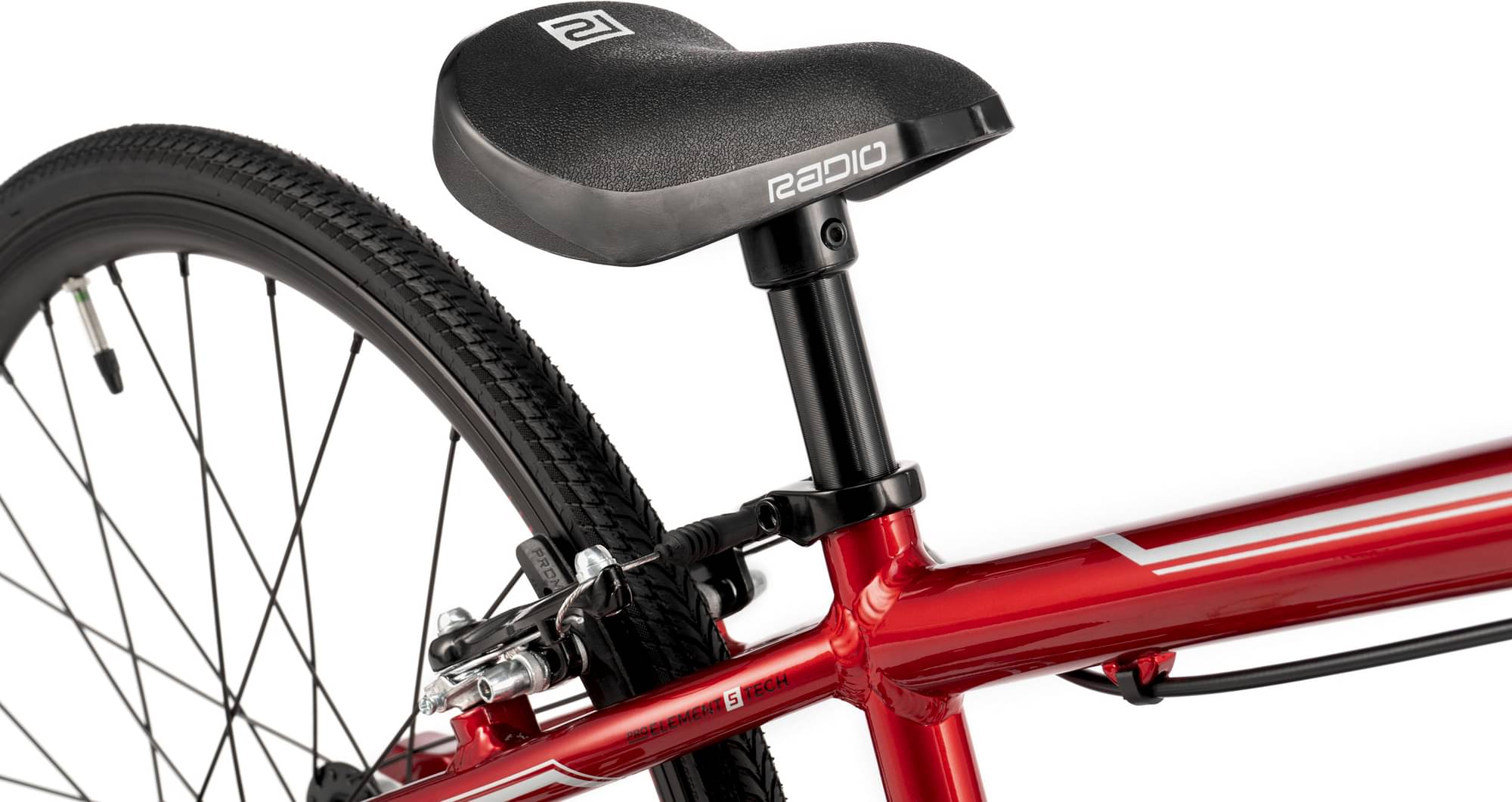

Saddle
RADIO “Mini” combo seat
Seatpost
Radio 22.2mm alloy
