Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

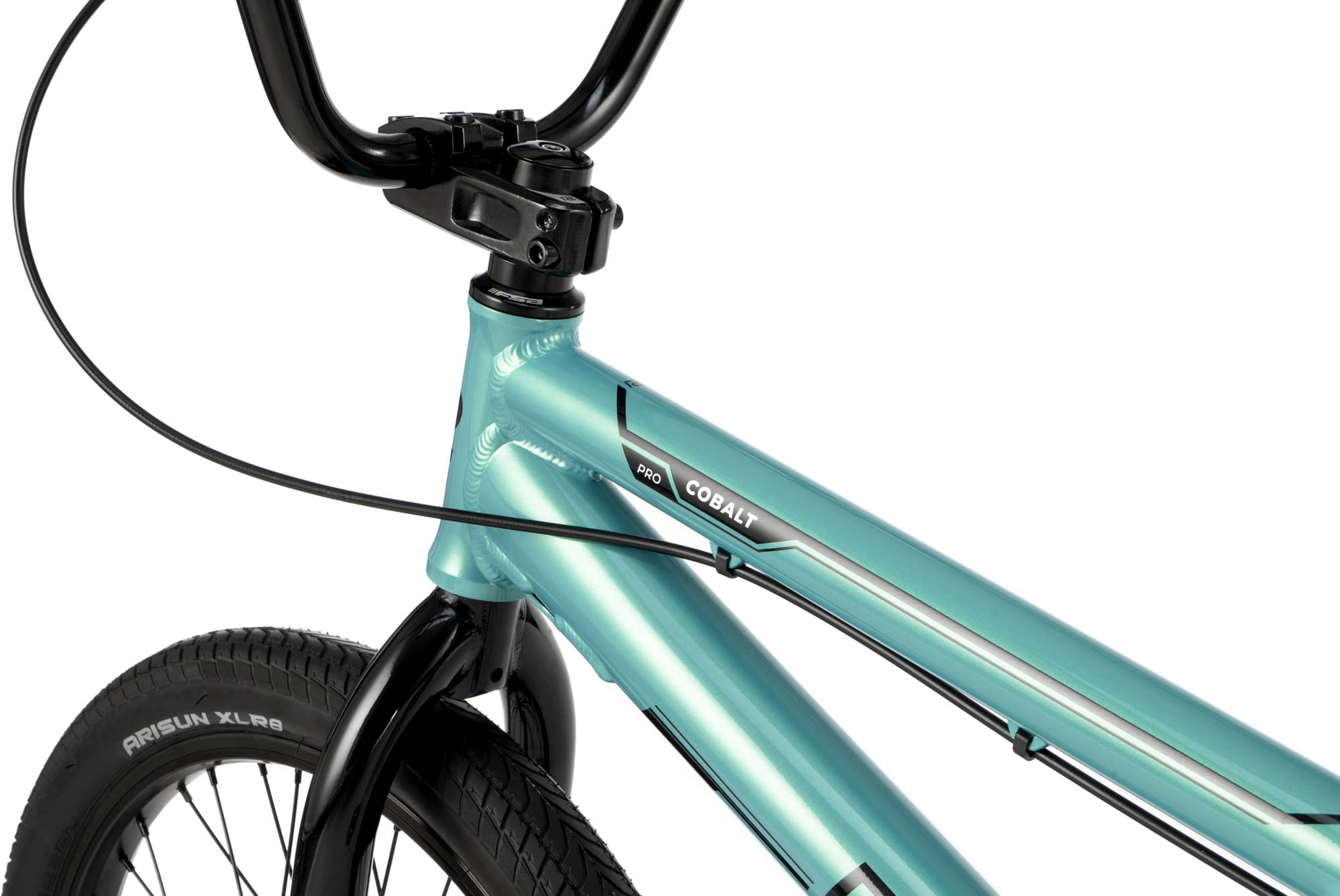

6061 T6 alloy, forged dropouts with int. chain tensioner
Suspension Fork
cr-mo, 1-1/8? butted steerer tube, cr-mo fork legs, 30mm offset
Drivetrain
Cassette
RADIO alloy, 44t sprocket
Crank

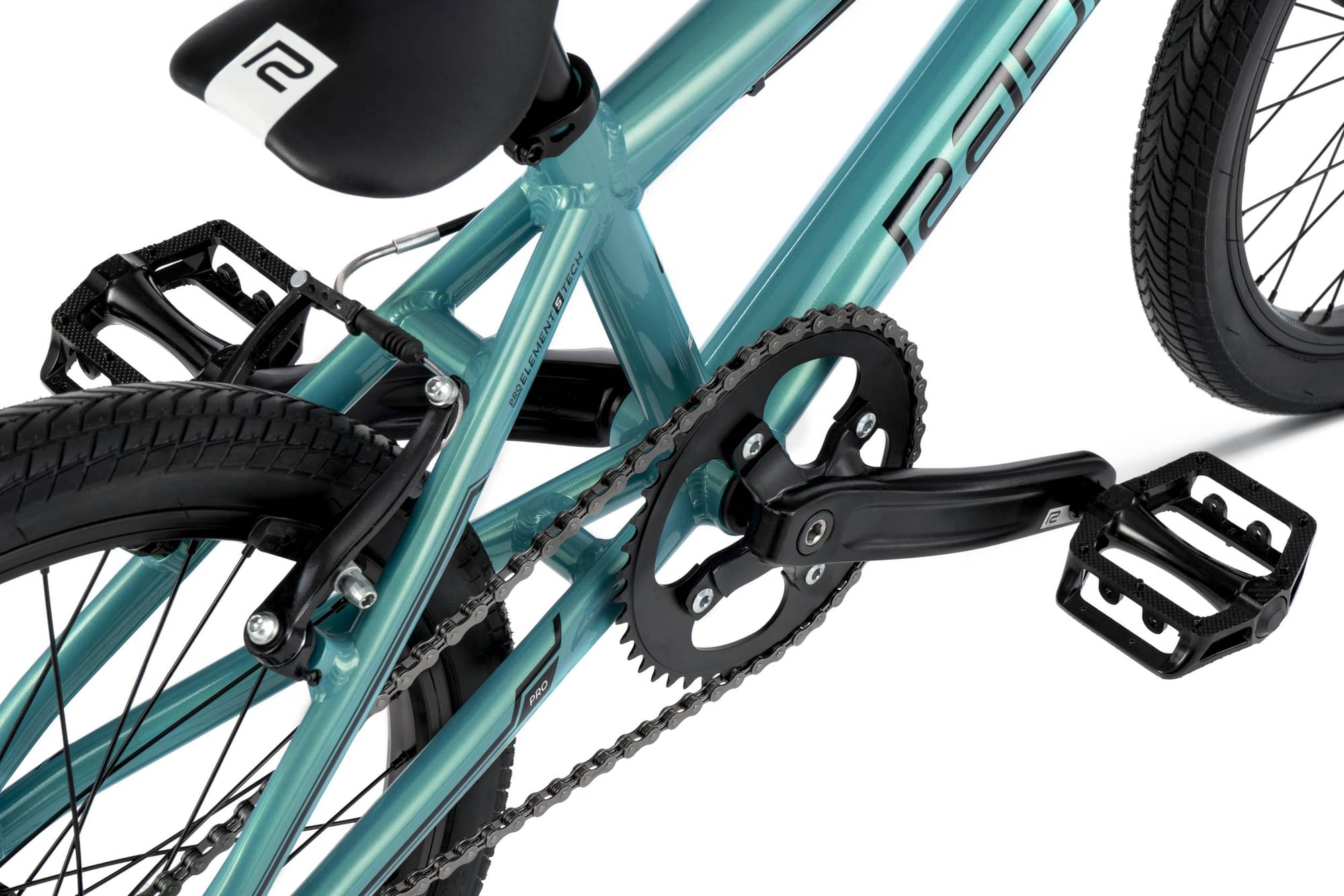

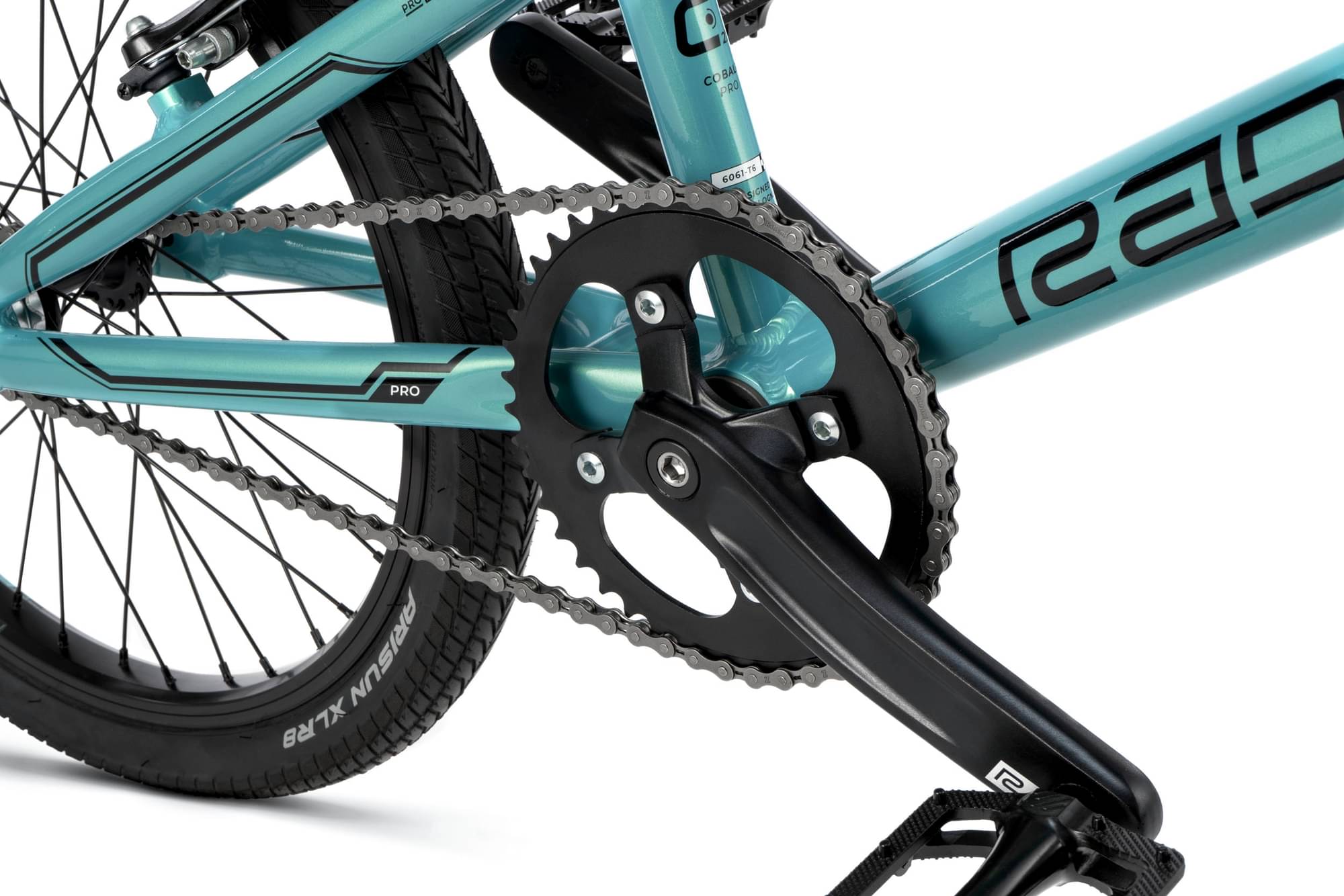

RADIO “Cobalt” forged alloy 3pc crank, 175mm long
Bottom Bracket
Radio, BSA square taper, sealed
Chain
KMC, Z6, 1/2? x 3/32?
Pedals
Radio, Cobalt Pro, alloy
Wheels
Front Hub
Radio, Cobalt, alloy cnc, fully sealed, 36h, 3/8? cr-mo axle
Rear Hub

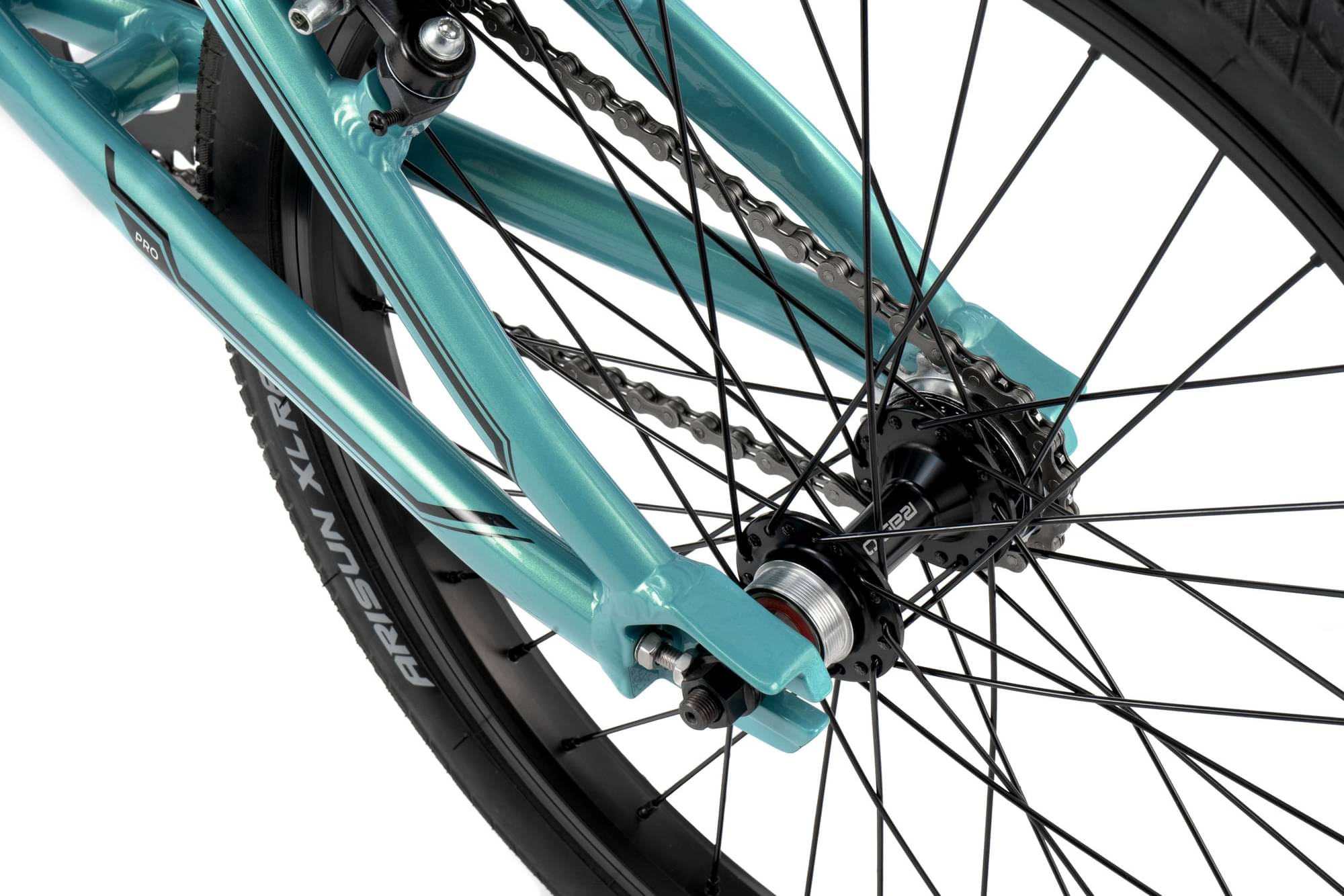

Radio, Cobalt, alloy cnc, fully sealed, 36h, flip flop, 3/8? cr-mo axle
Rims
Radio, BX-32, double wall, 36H, alloy f&r
Tires

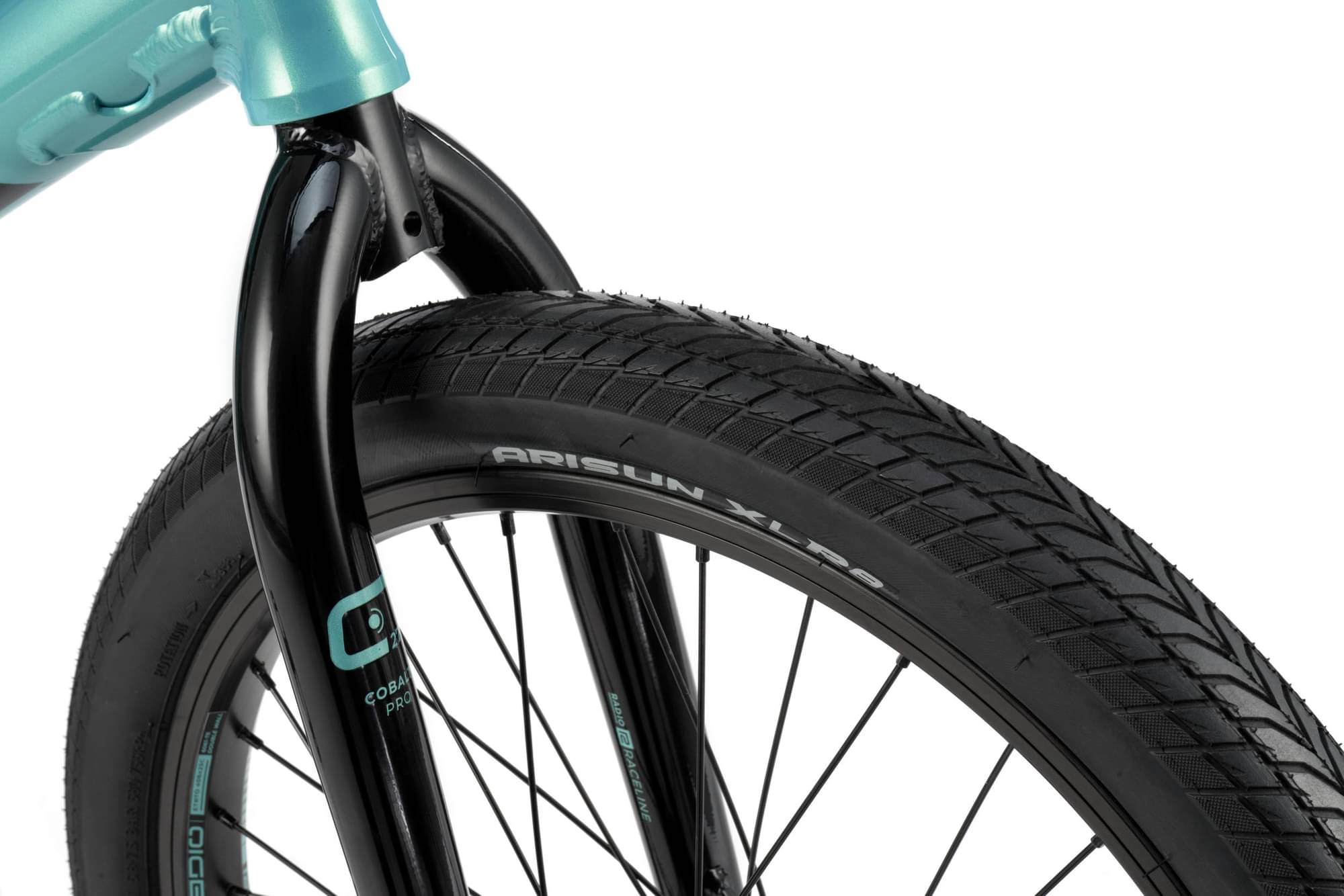

Arisun, XLR8, front 20?x1.95? / rear 20?x1.75?
Brakes
Brakes
PROMAX “TX-117” alloy brake rear
Brake Levers
PROMAX “XL-378” alloy brake rear
Cockpit
Stem

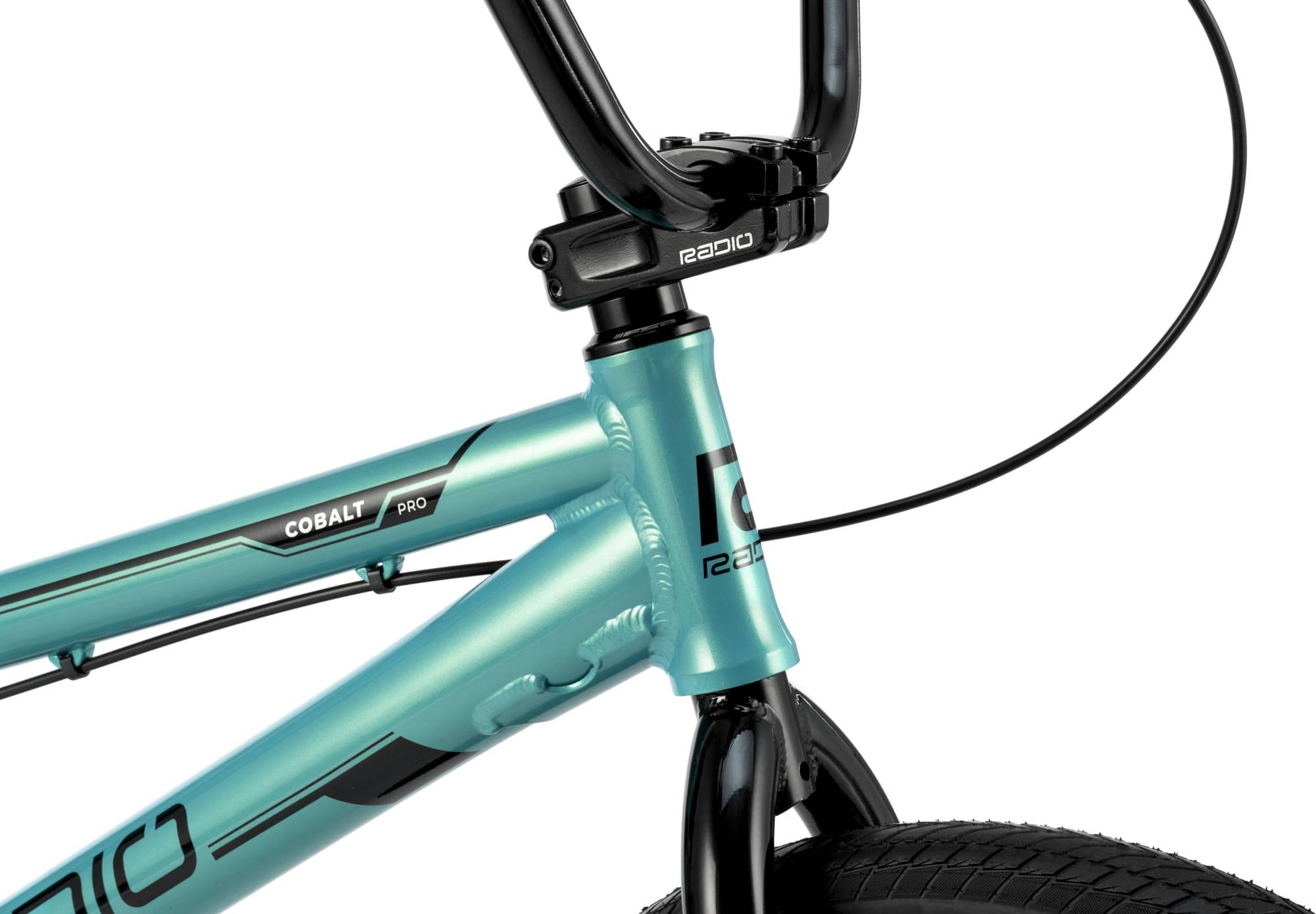

Radio, Cobalt-toploader, ext. 50mm, alloy
Handlebar
4130 seamless cr-mo
Grips
Radio, diamond knurling, closed end, flangeless, 130mm length
Headset
FSA, No.28, integrated headset, sealed, 1-1/8?
Seat
Saddle
Radio Cobalt Pro, combo seat
Seatpost
Radio 25.4mm alloy
