Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components

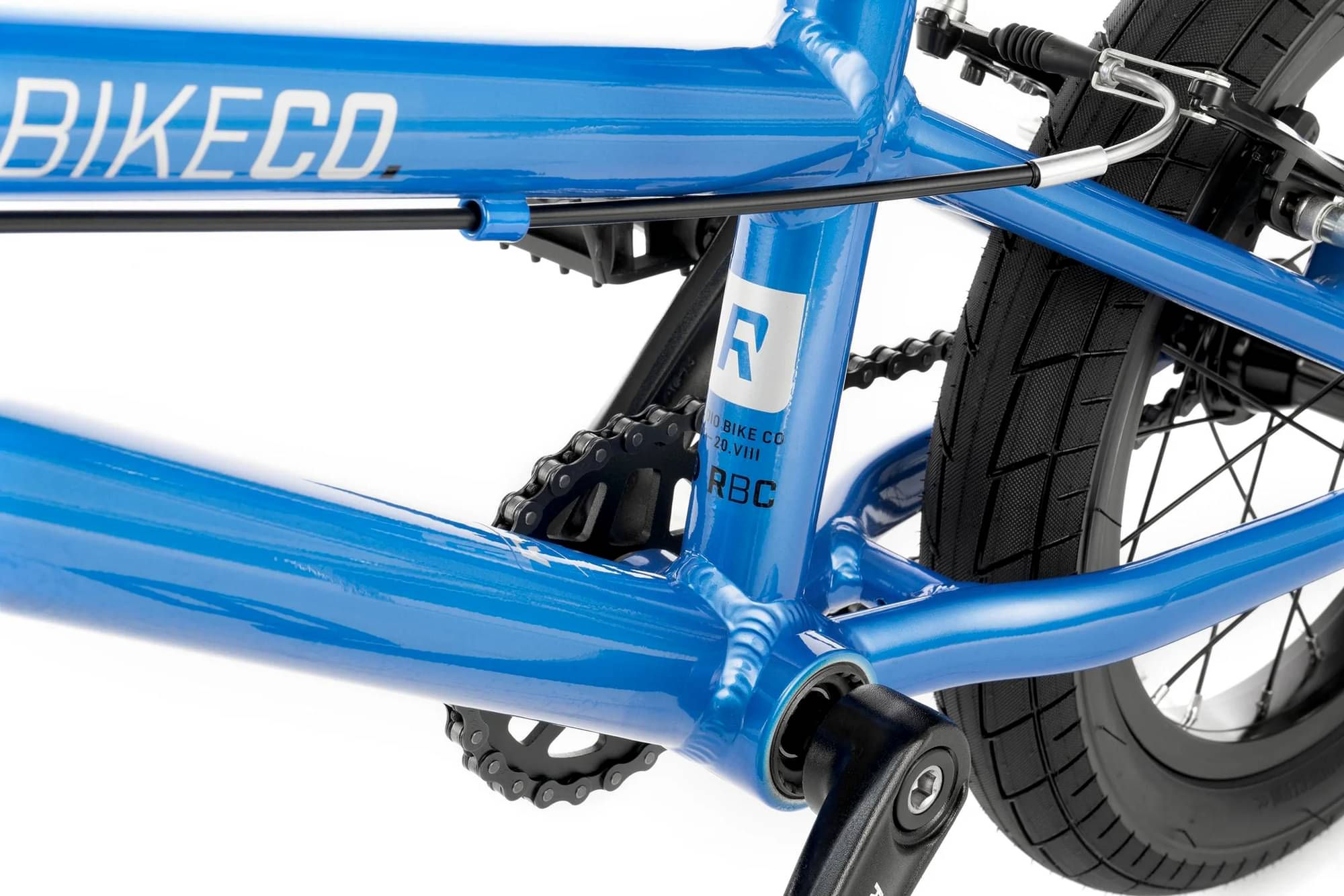

Frame
Frame

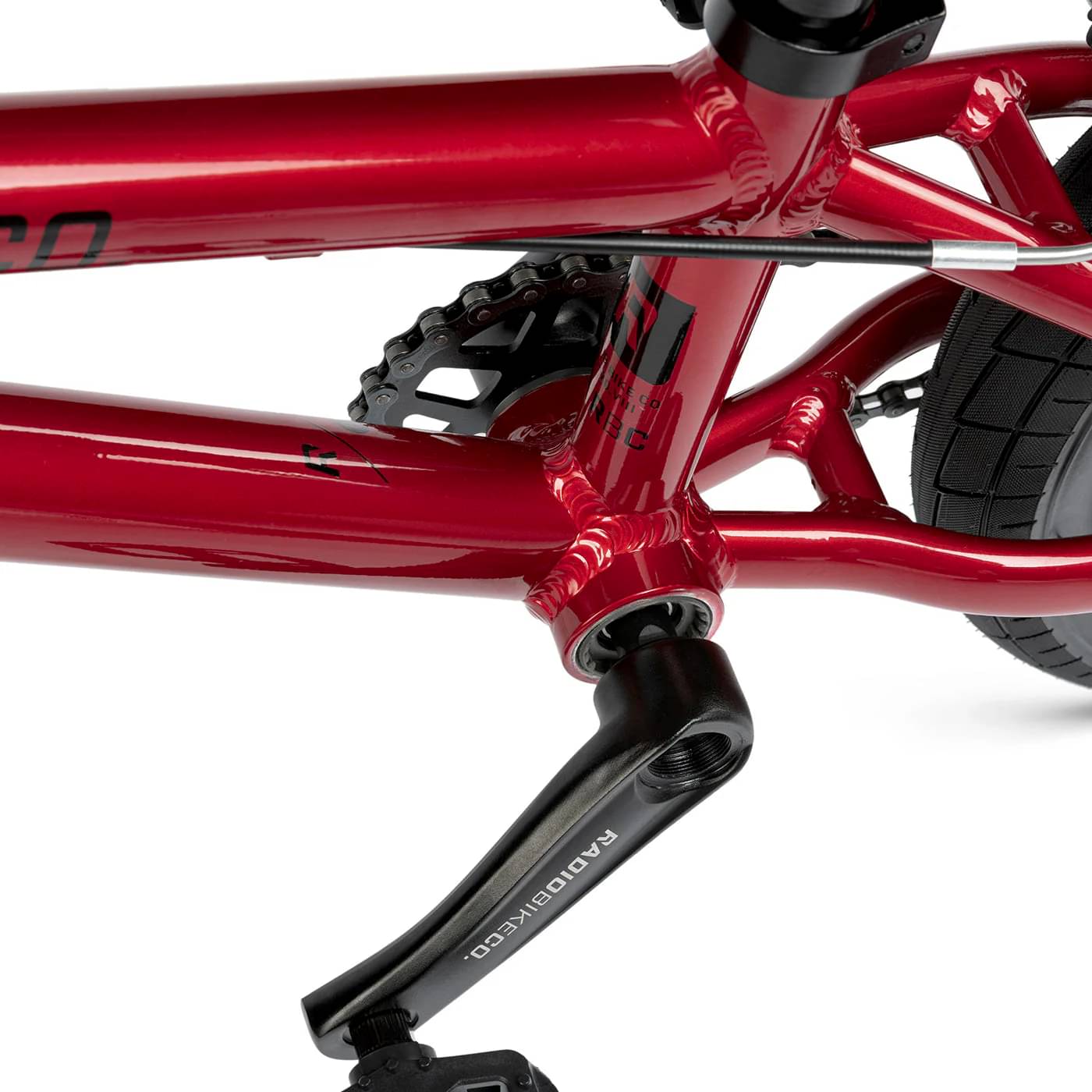

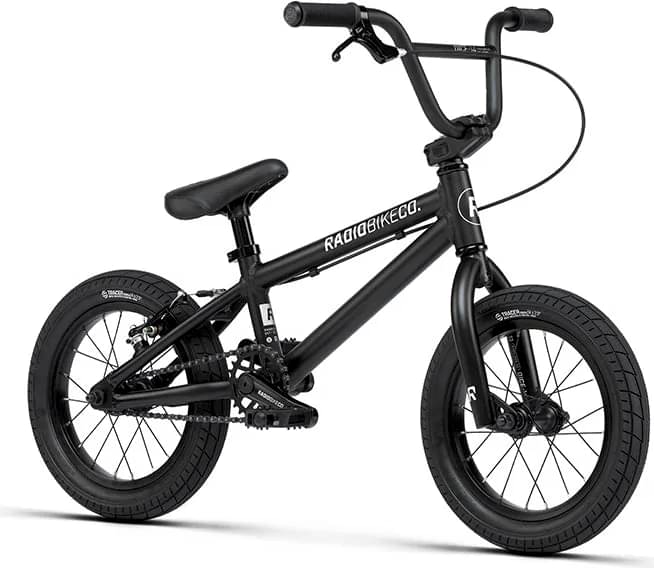

RADIO “DICE 14” frame, full 6061 alloy
Suspension Fork
RADIO “ROOKIE 14” fork, 1020 hi-ten, tapered legs
Drivetrain
Cassette

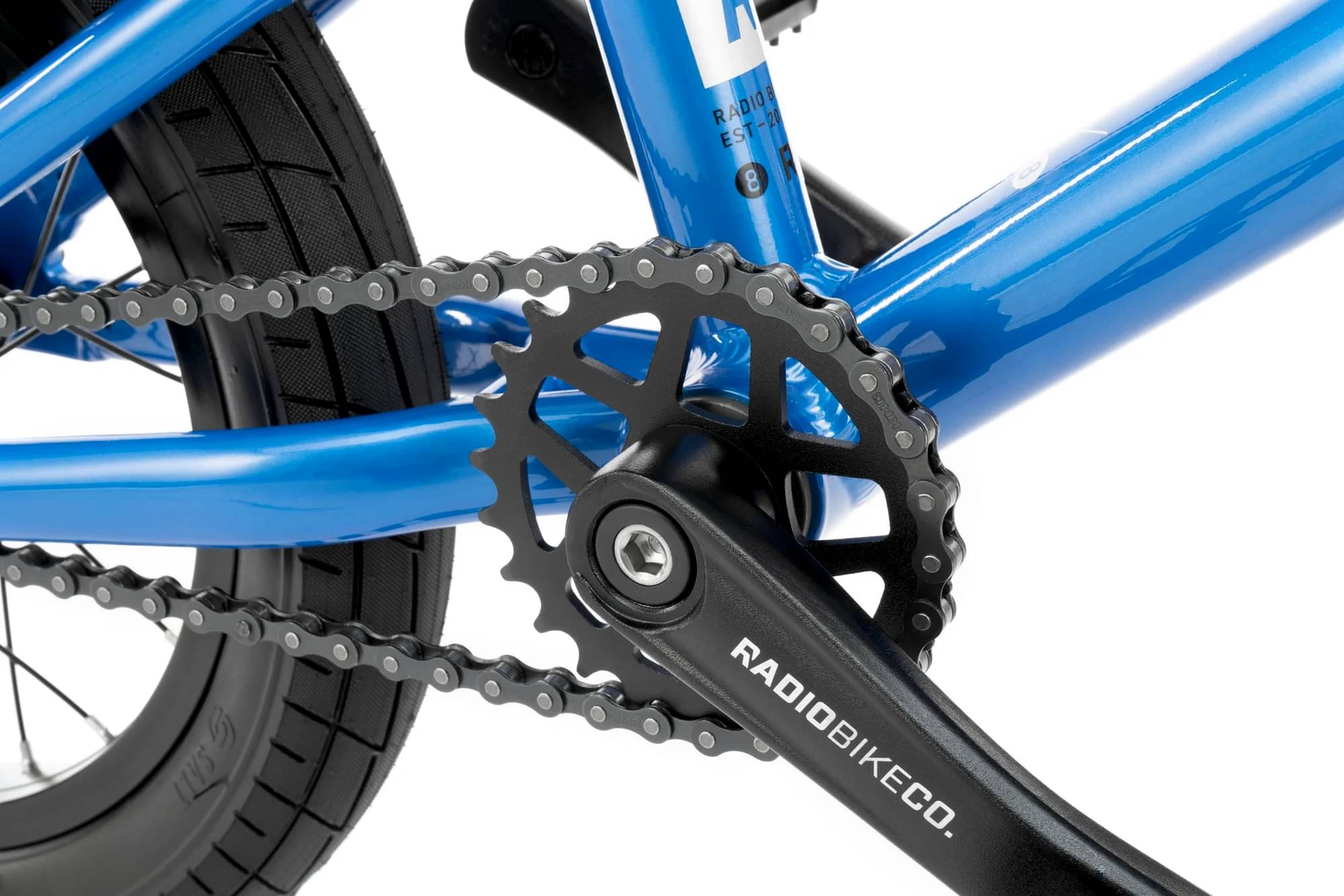

RADIO “JUNIOR” sprocket, steel, 25t

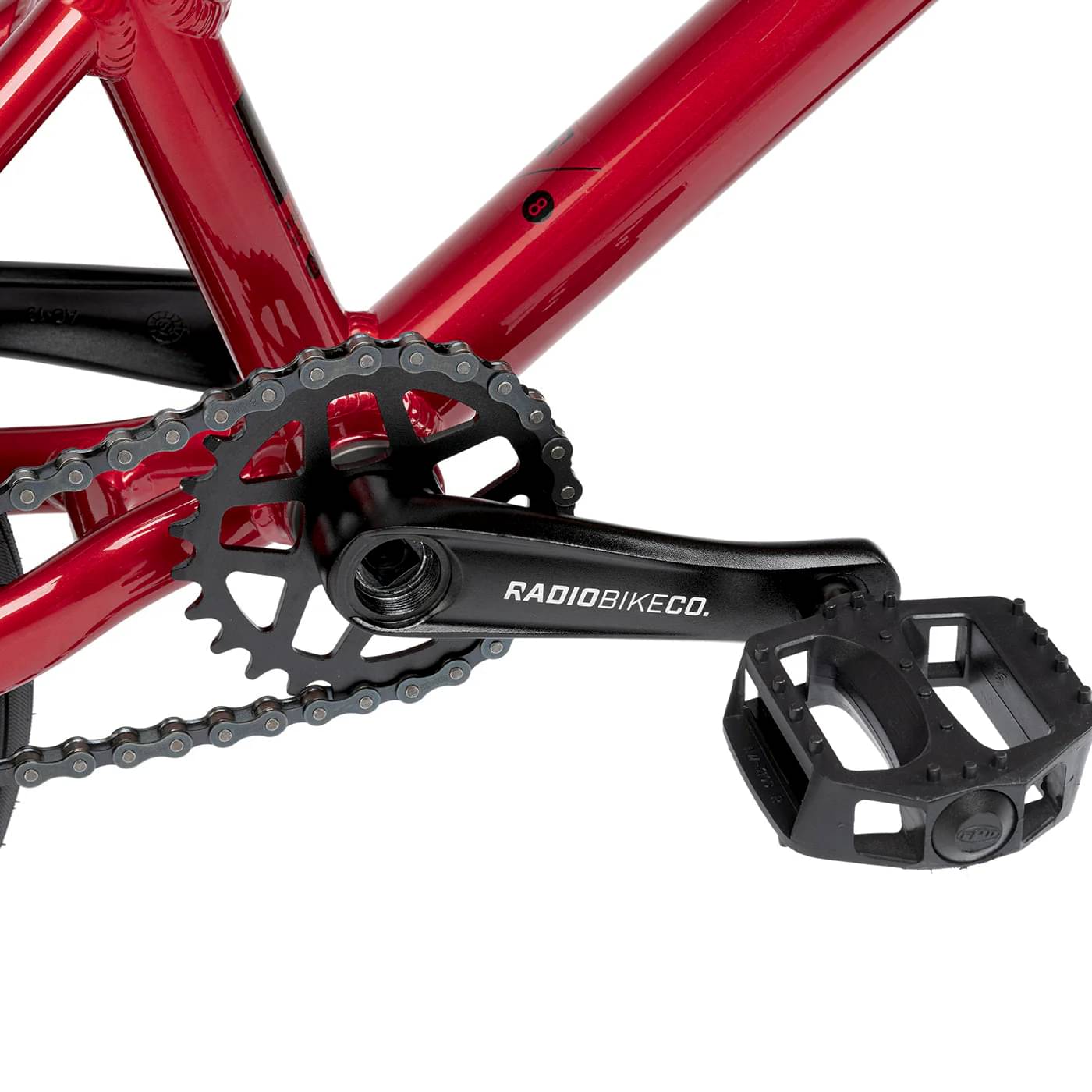

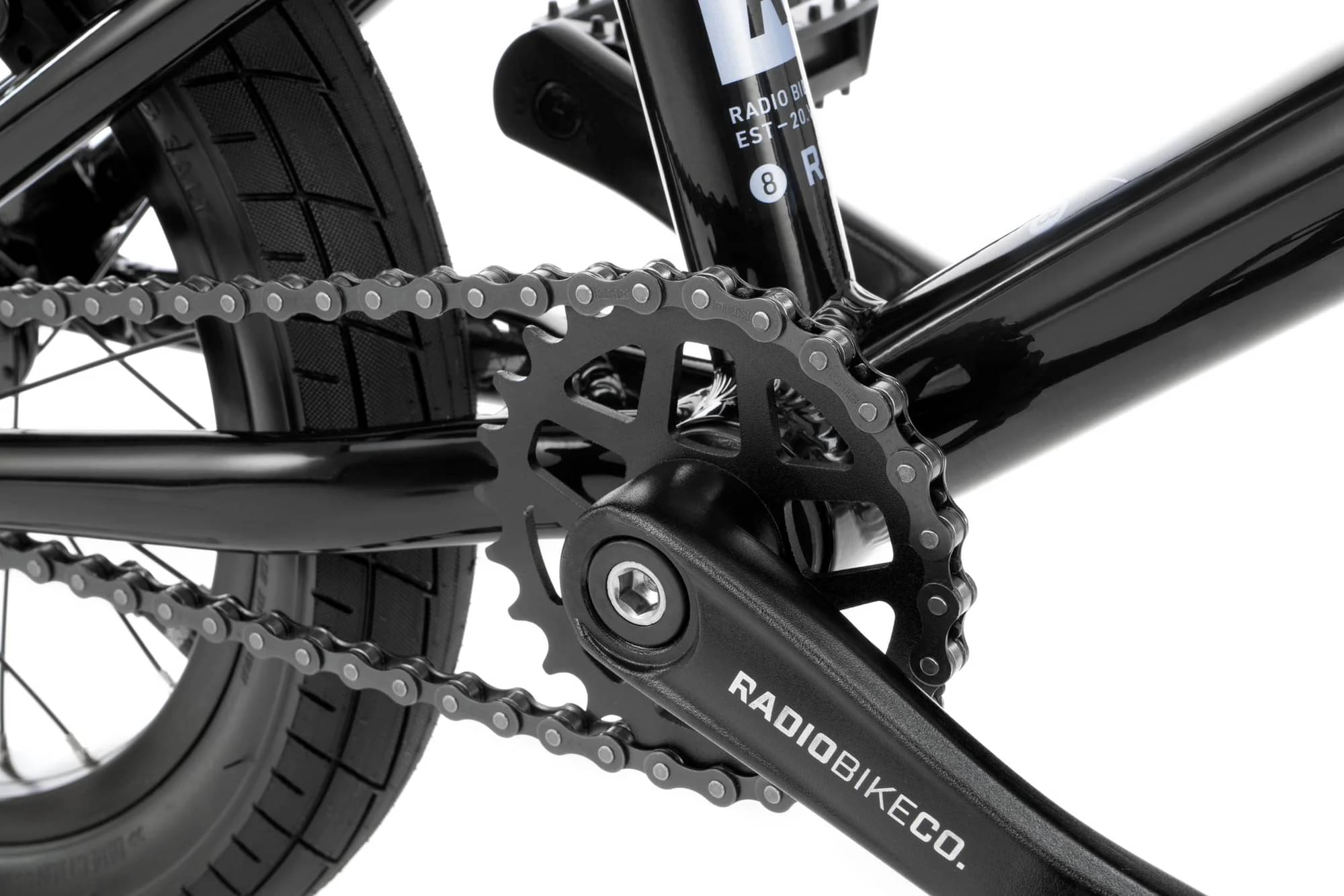

Crank

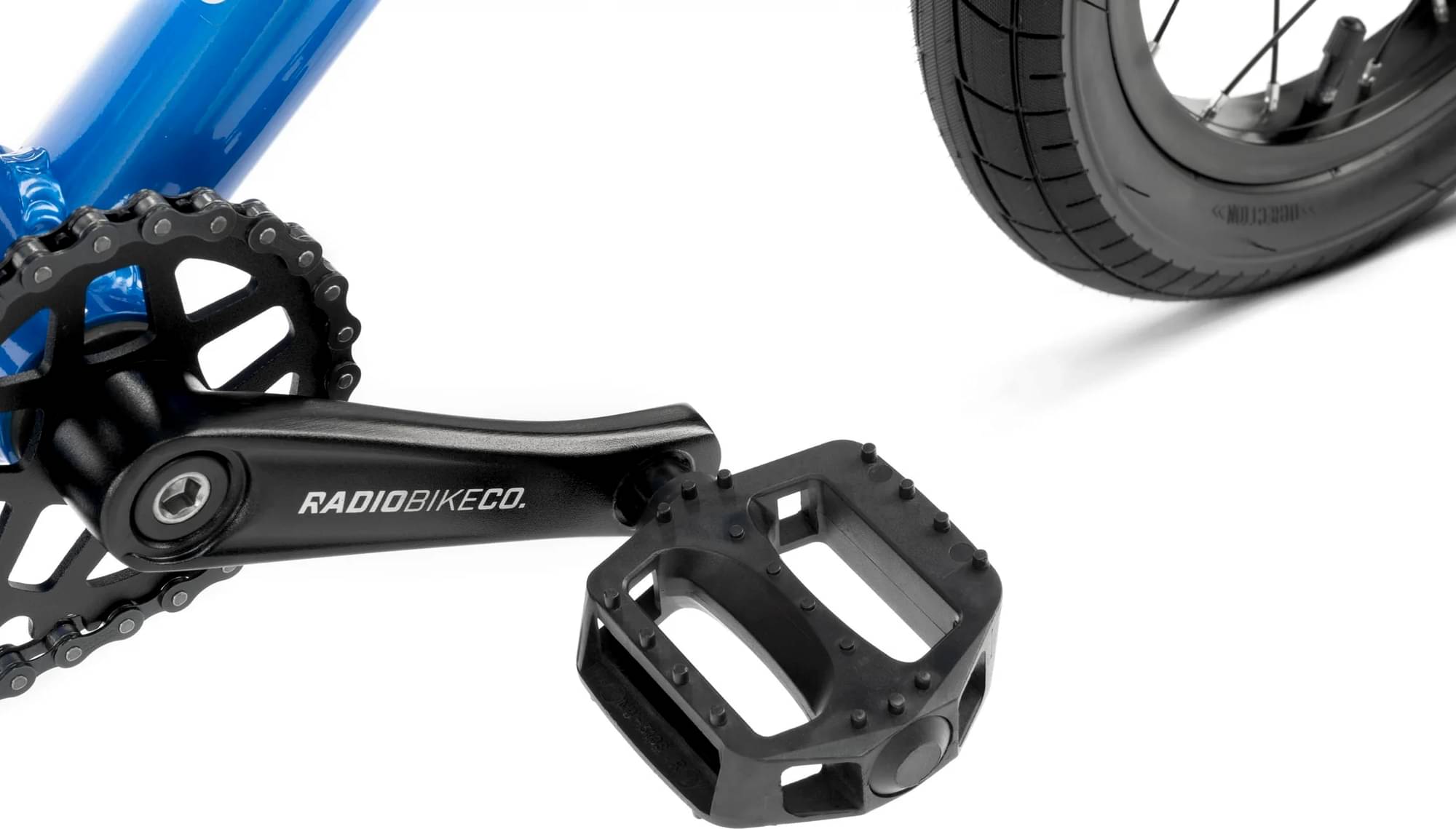

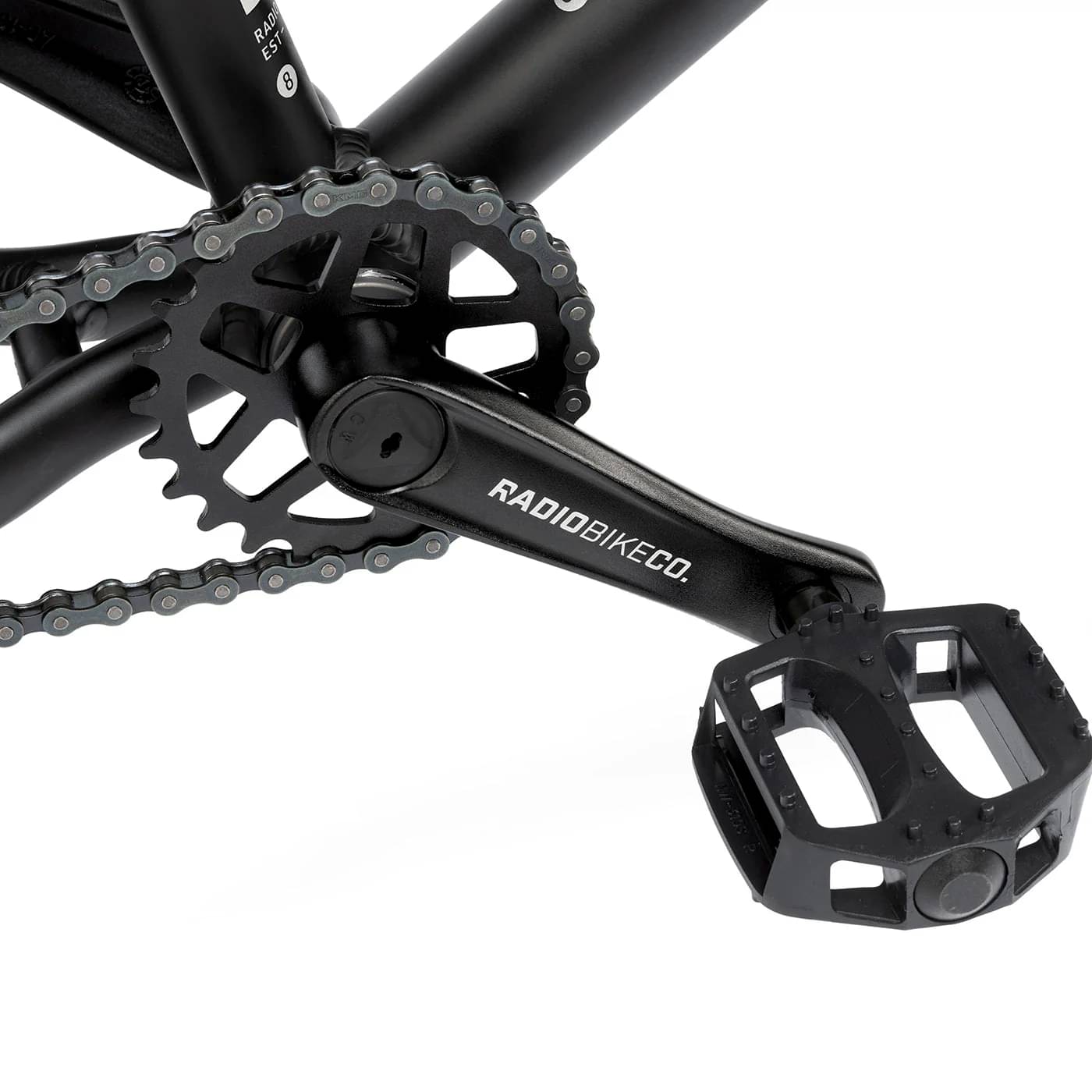

RADIO “JUNIOR 14” 3pc crank, forged alloy, 114mm
Bottom Bracket
BSA (68) bb set, 19mm, sealed, JIS taper
Chain
KMC “S1” chain

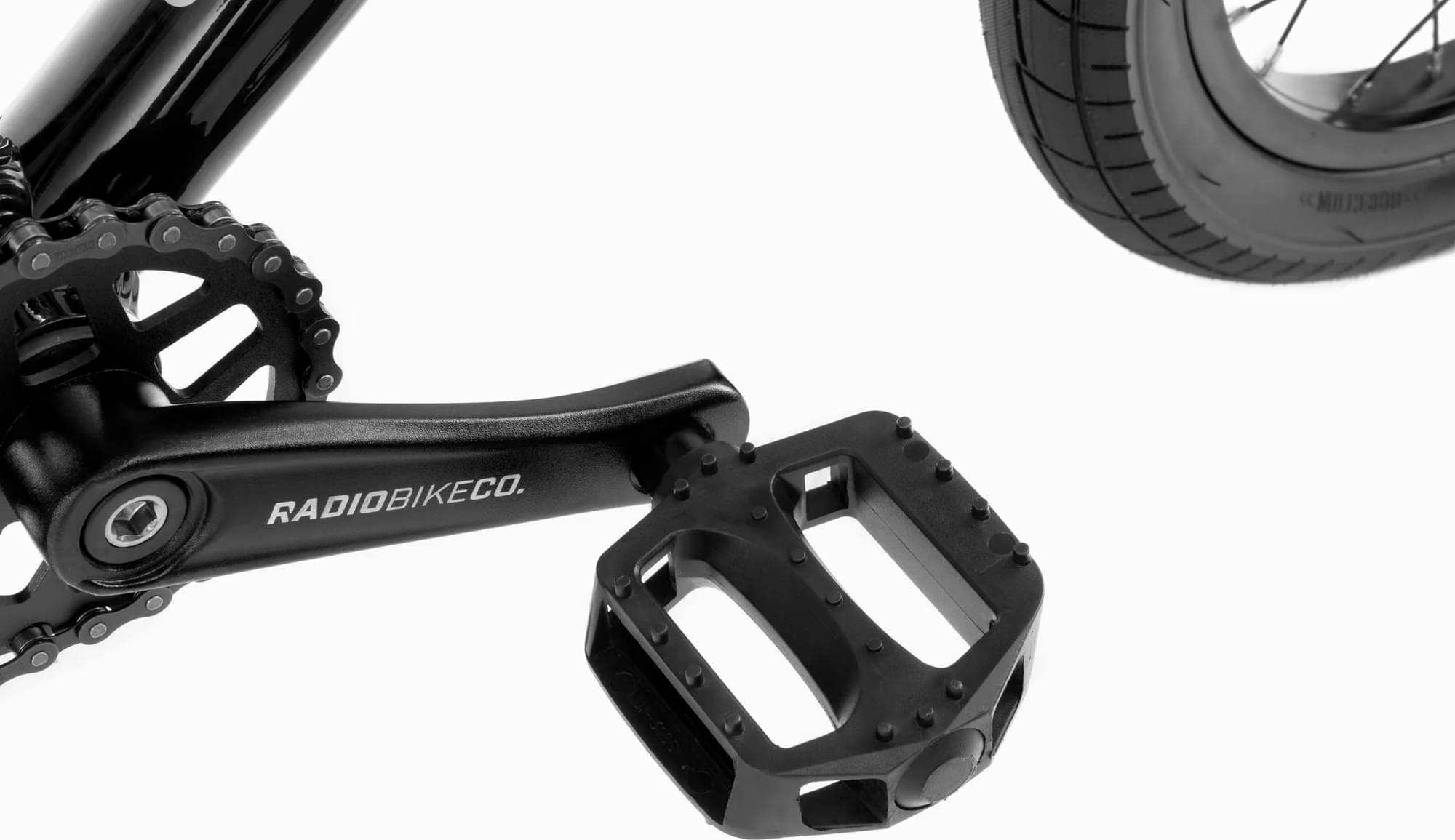

Pedals
RADIO “ROOKIE” pedals, nylon
Wheels

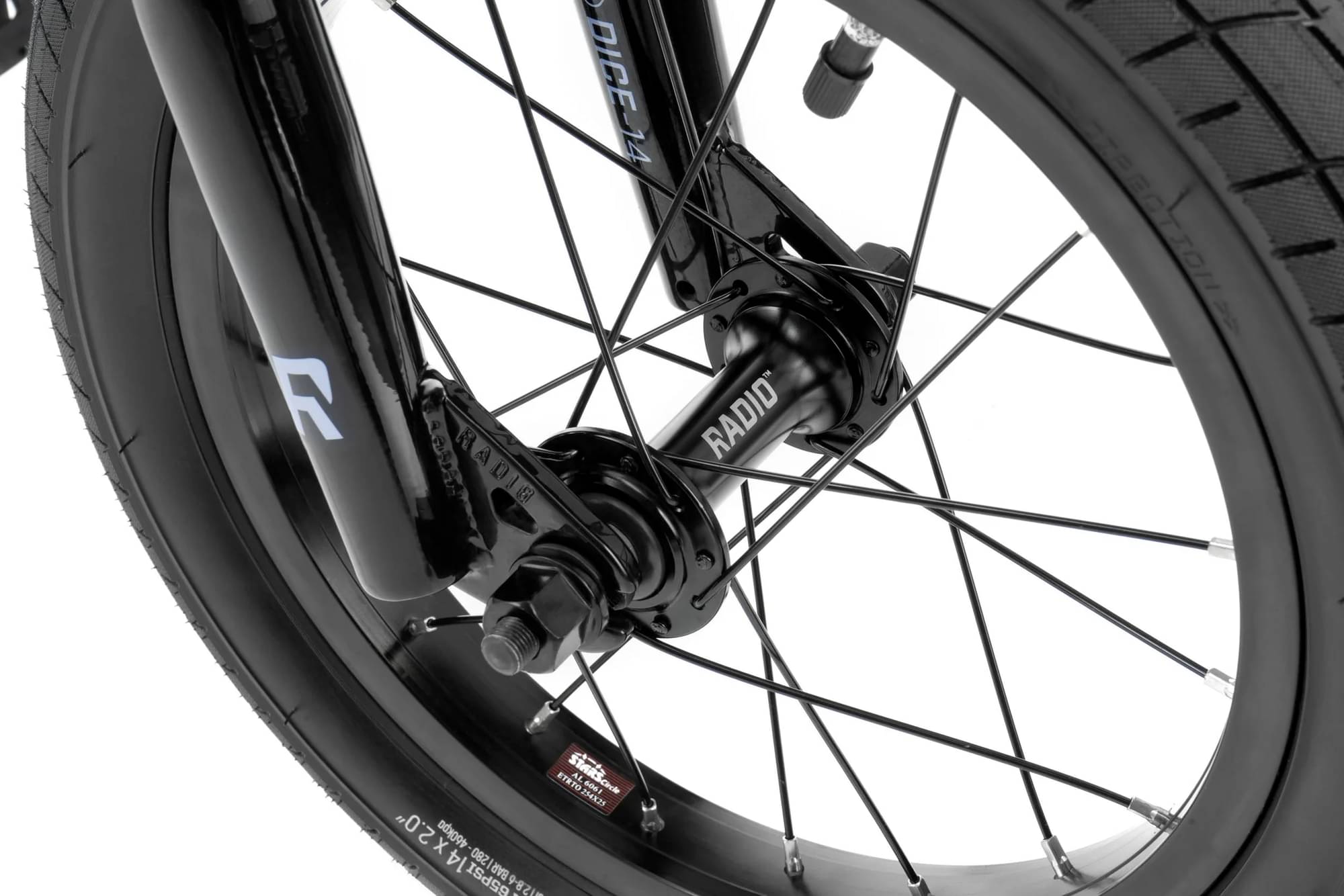

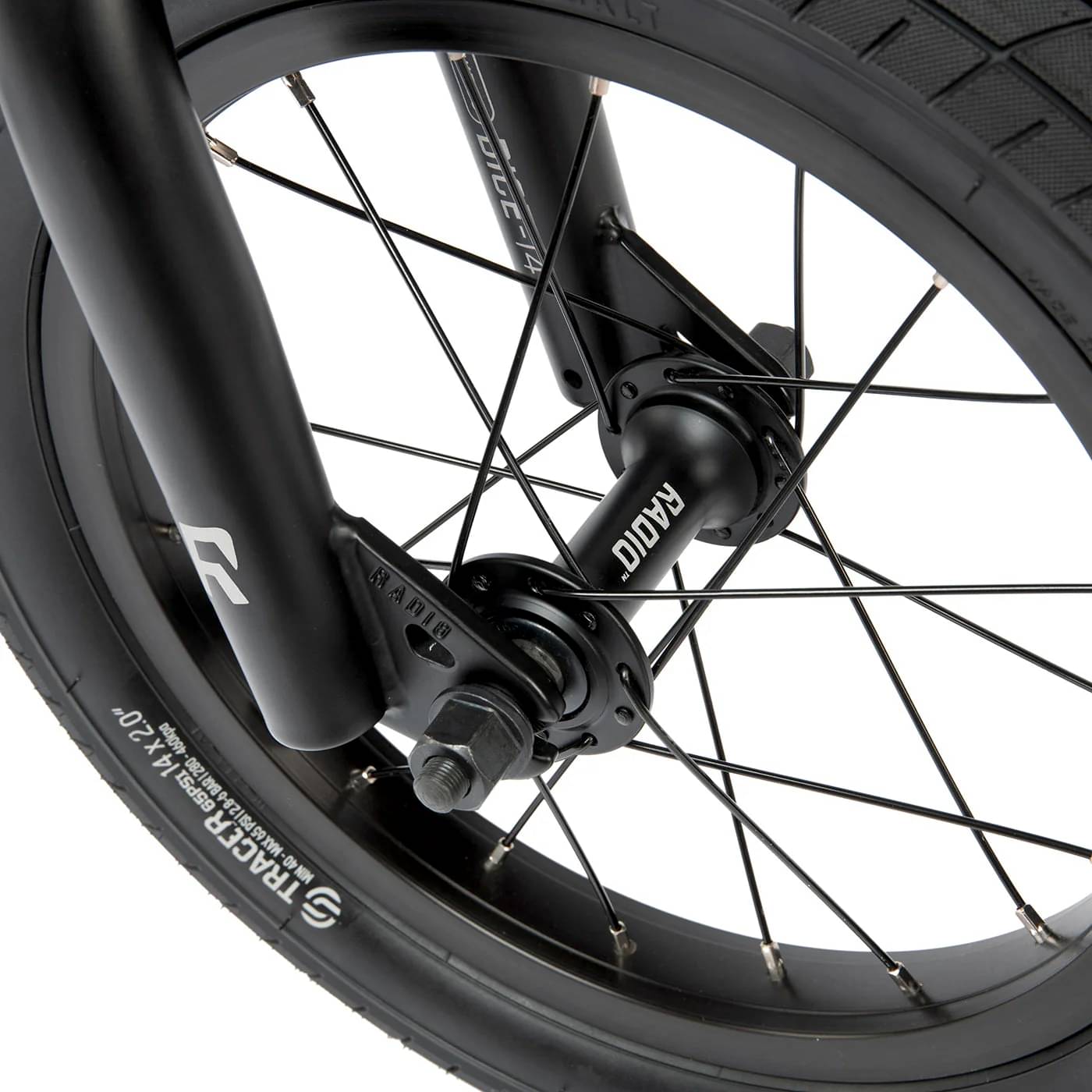

Front Hub

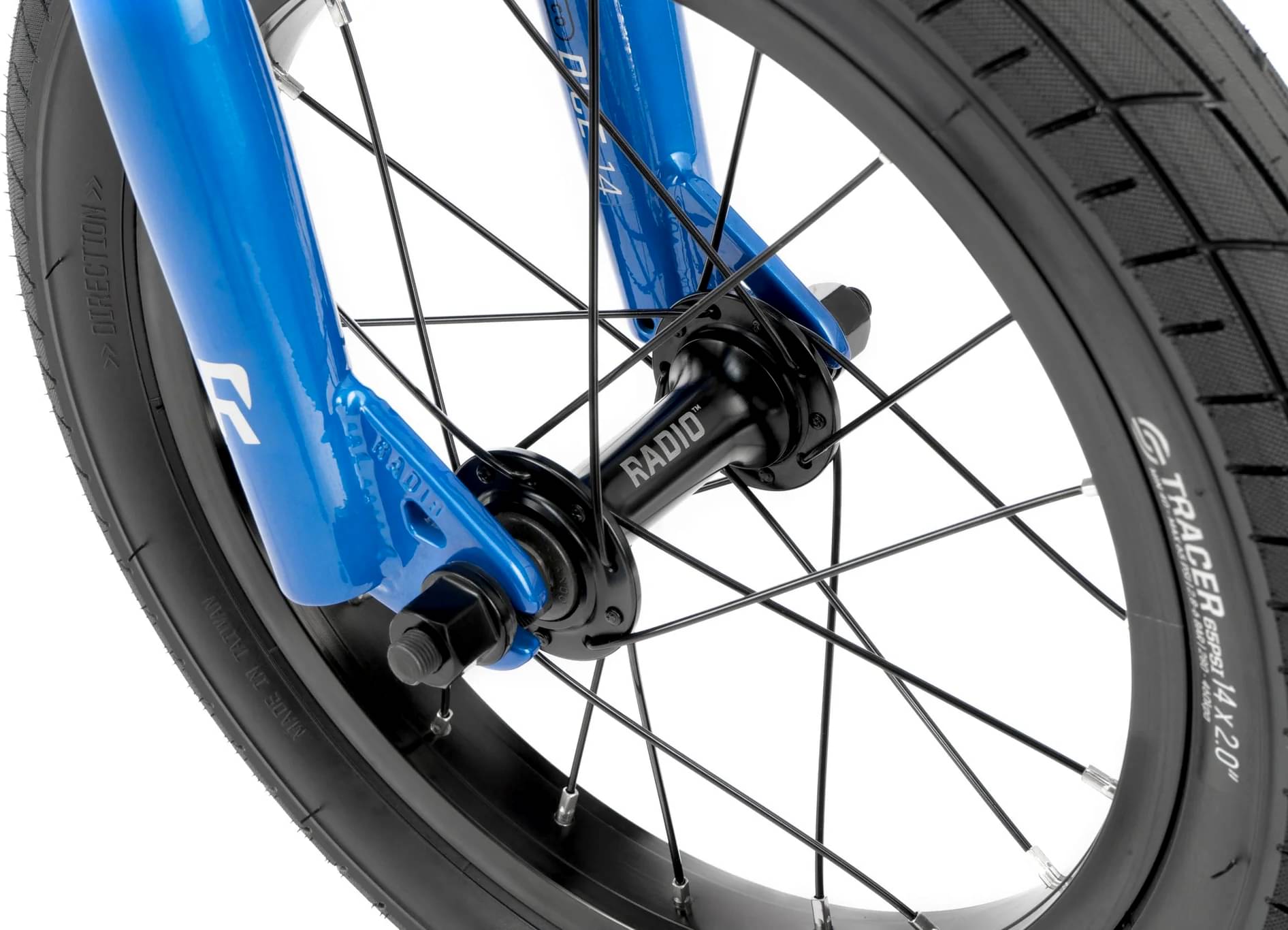

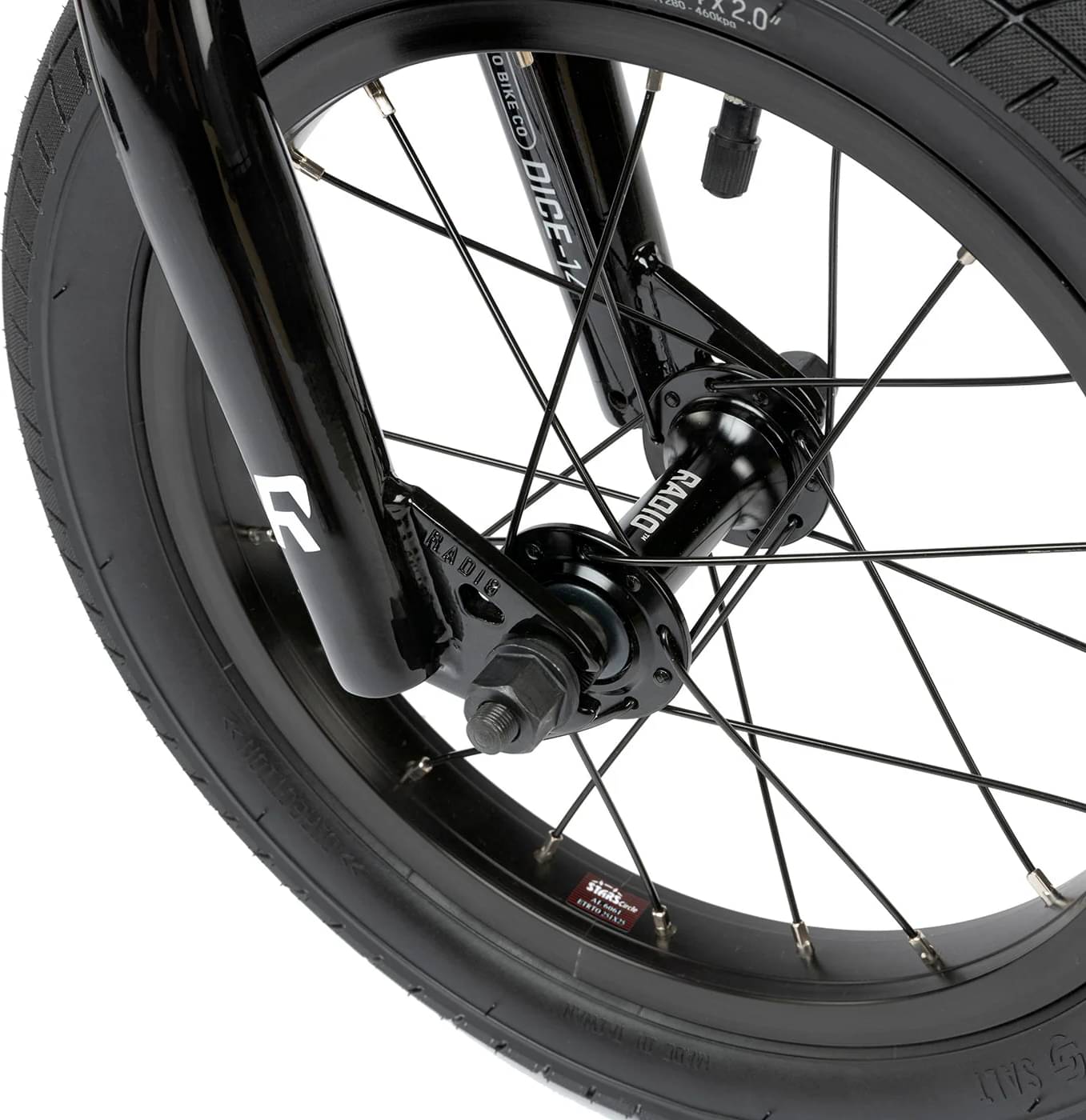

RADIO “AM” hub, alloy, loose ball, 3/8?s male axle, 20h

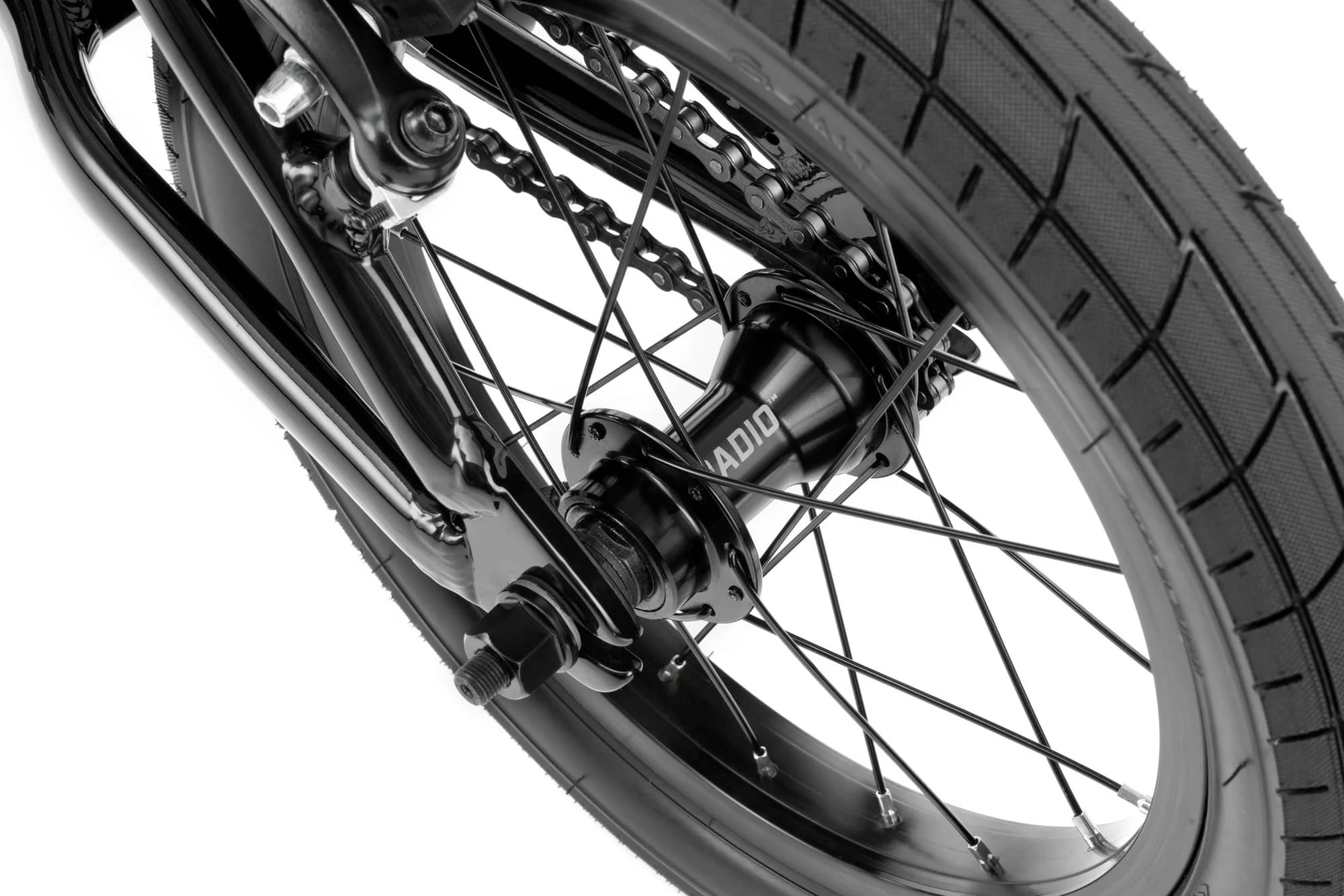

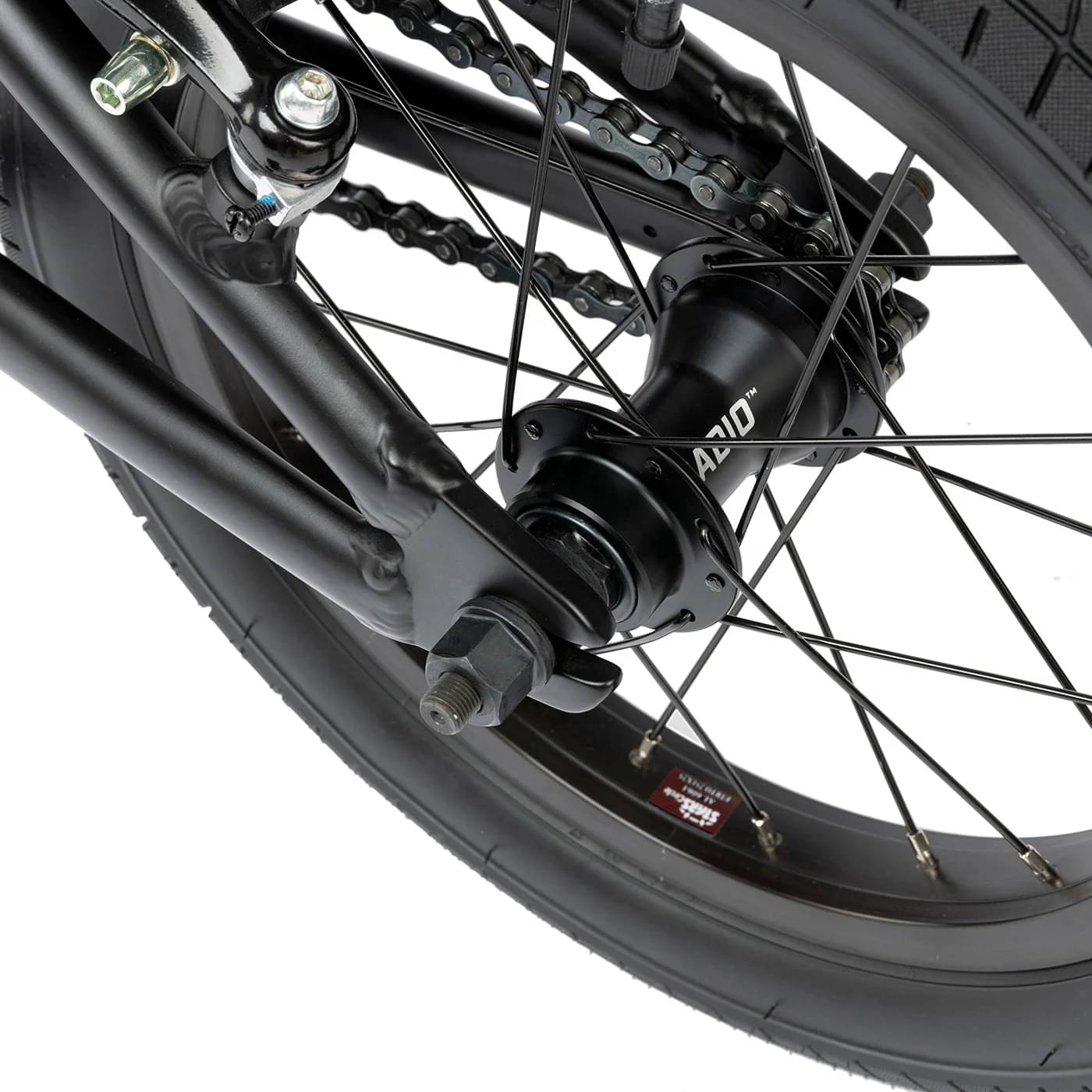

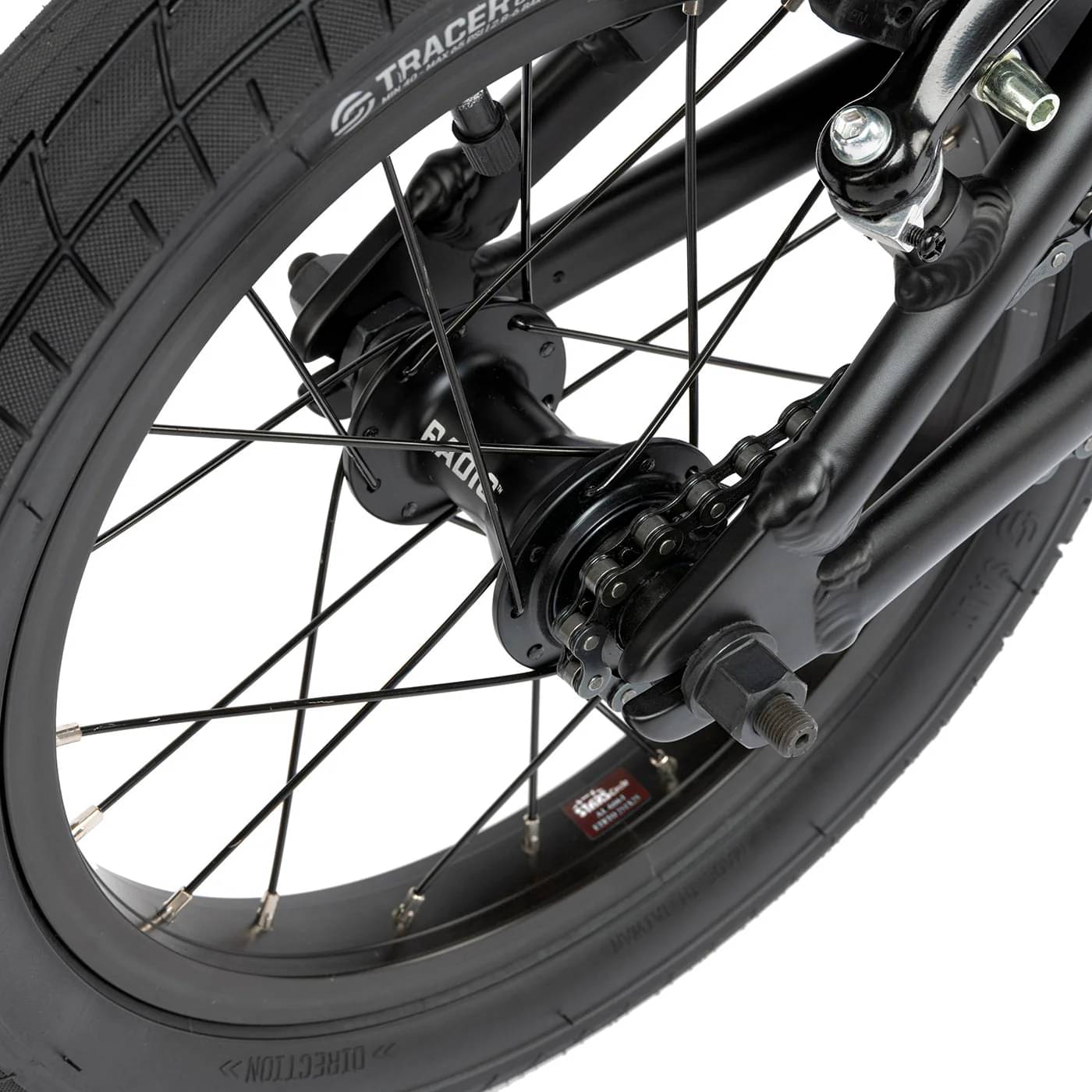

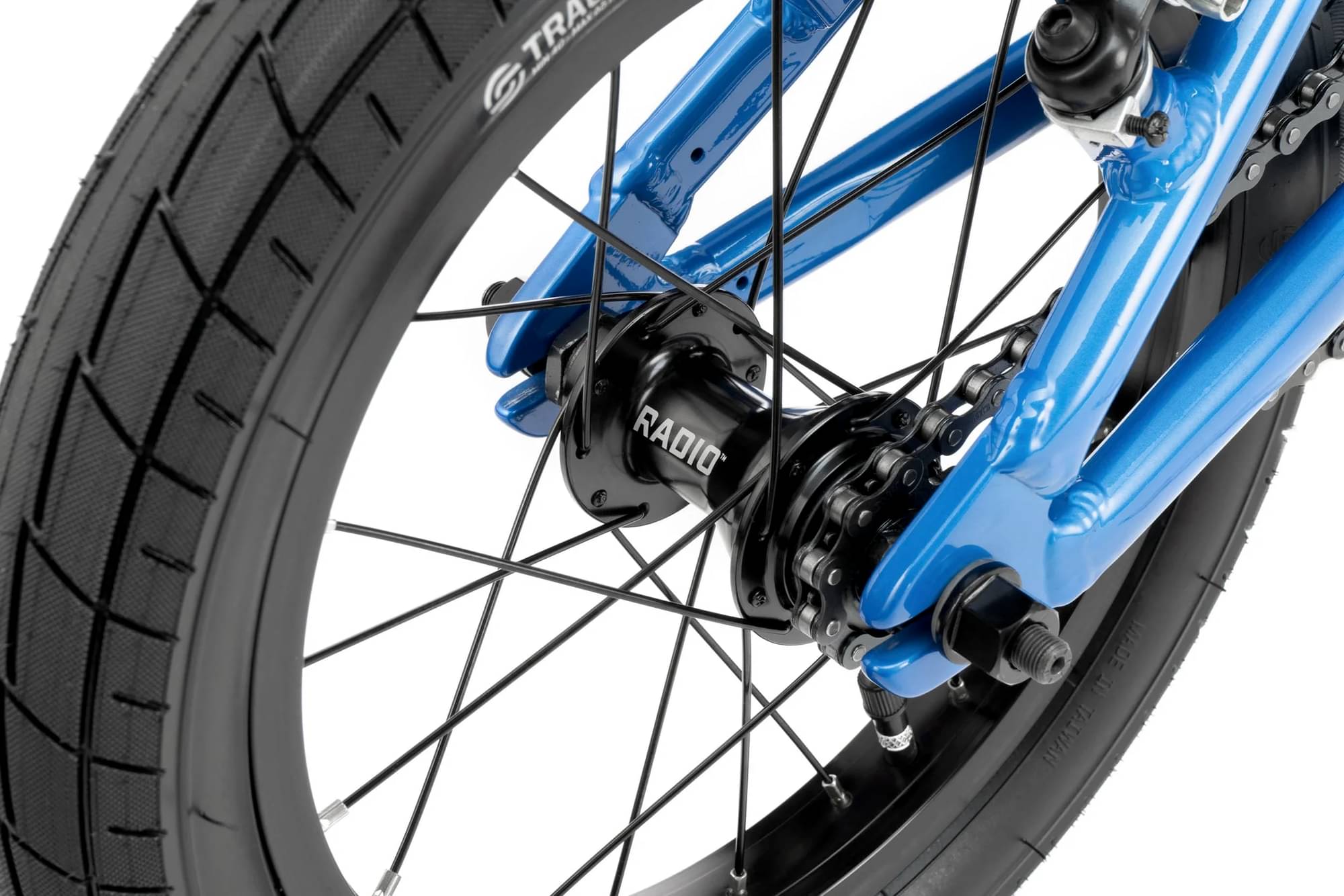

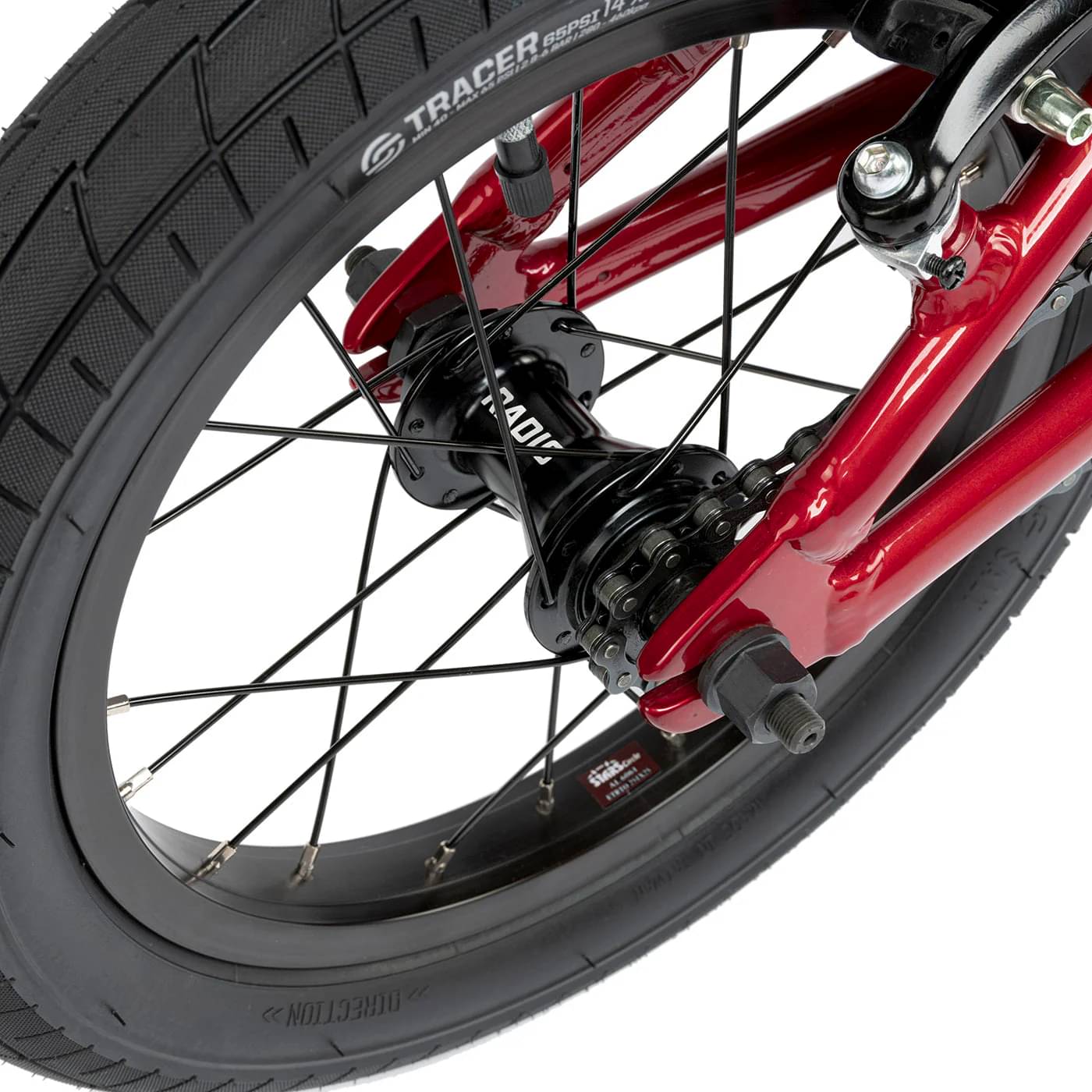

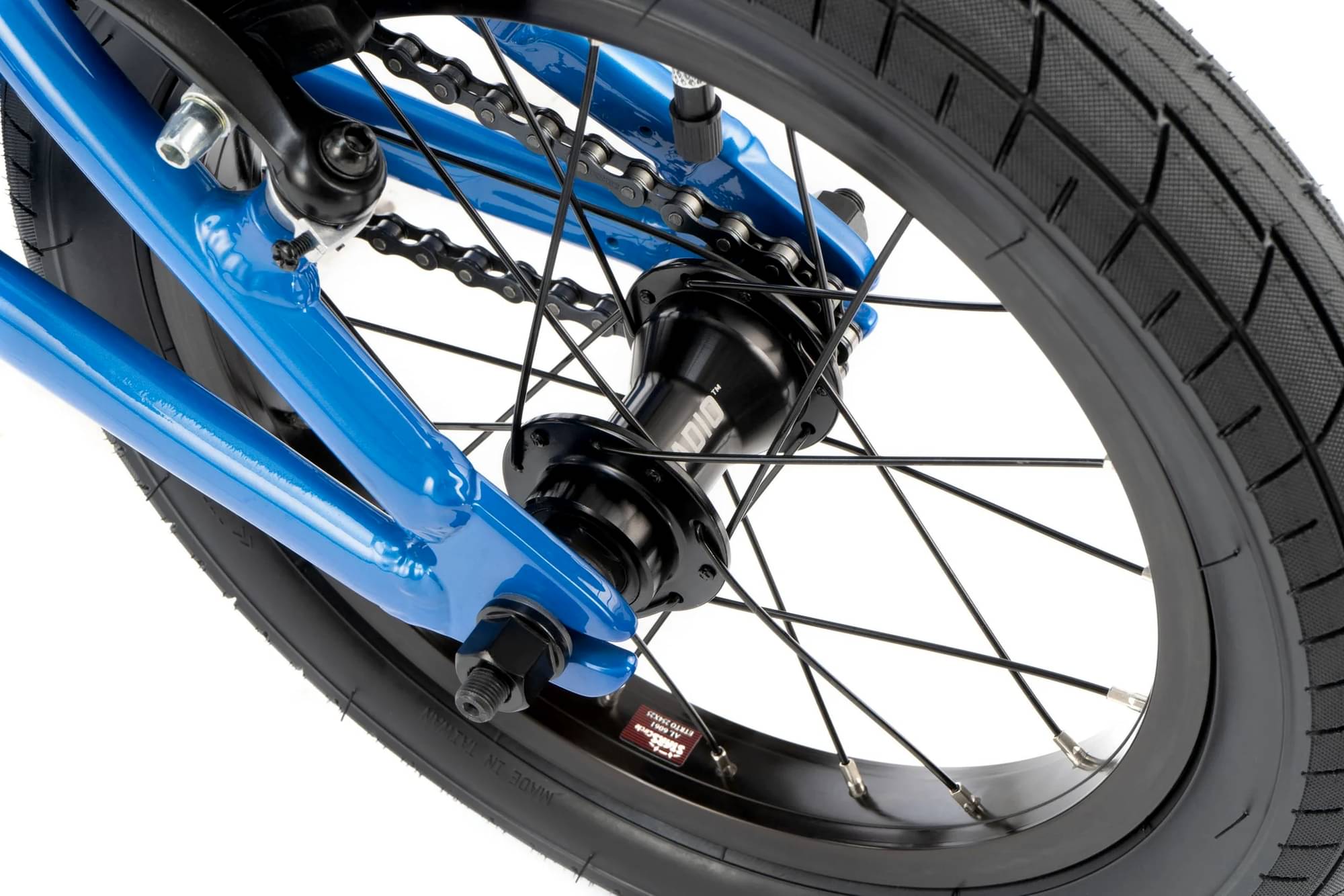

Rear Hub

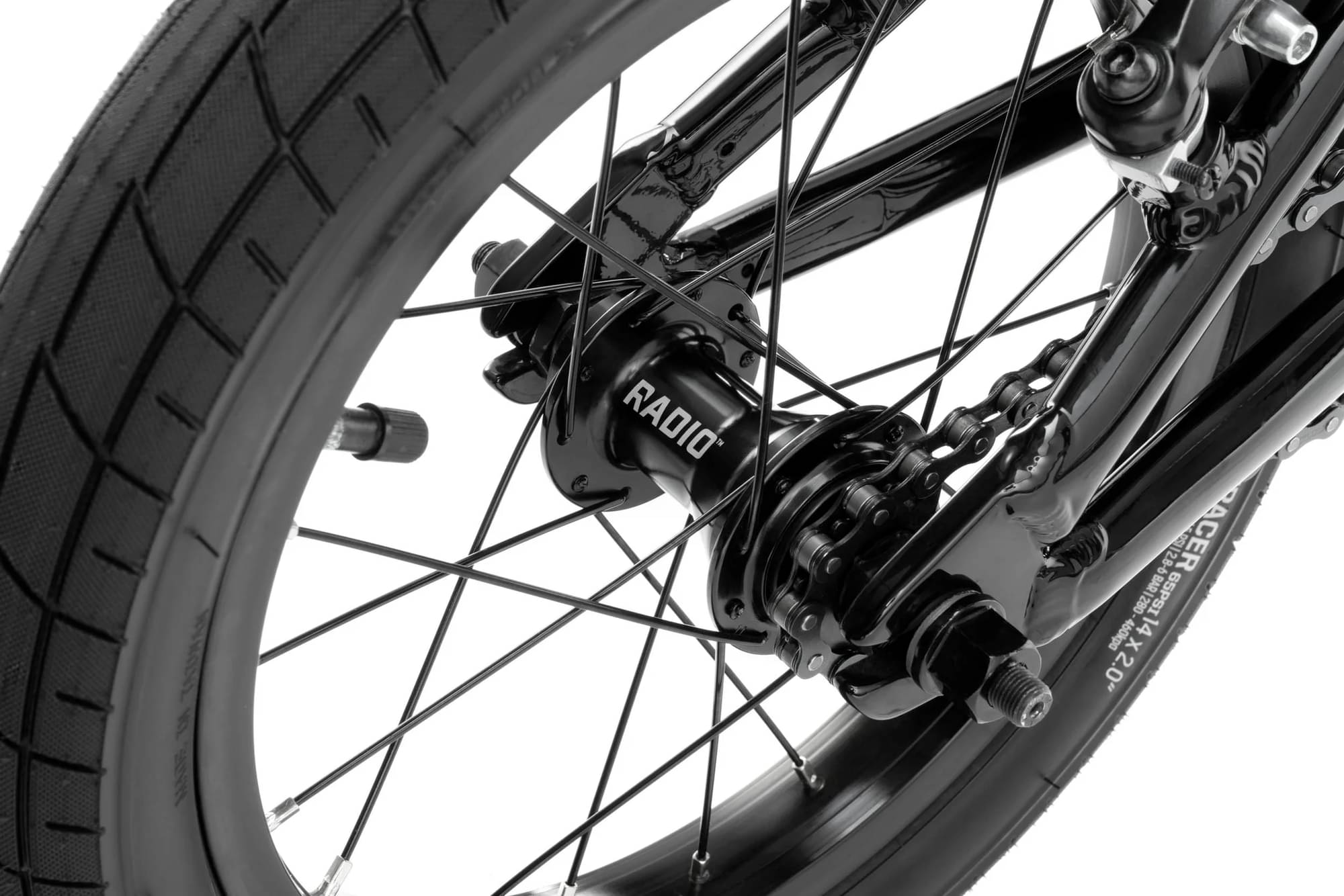

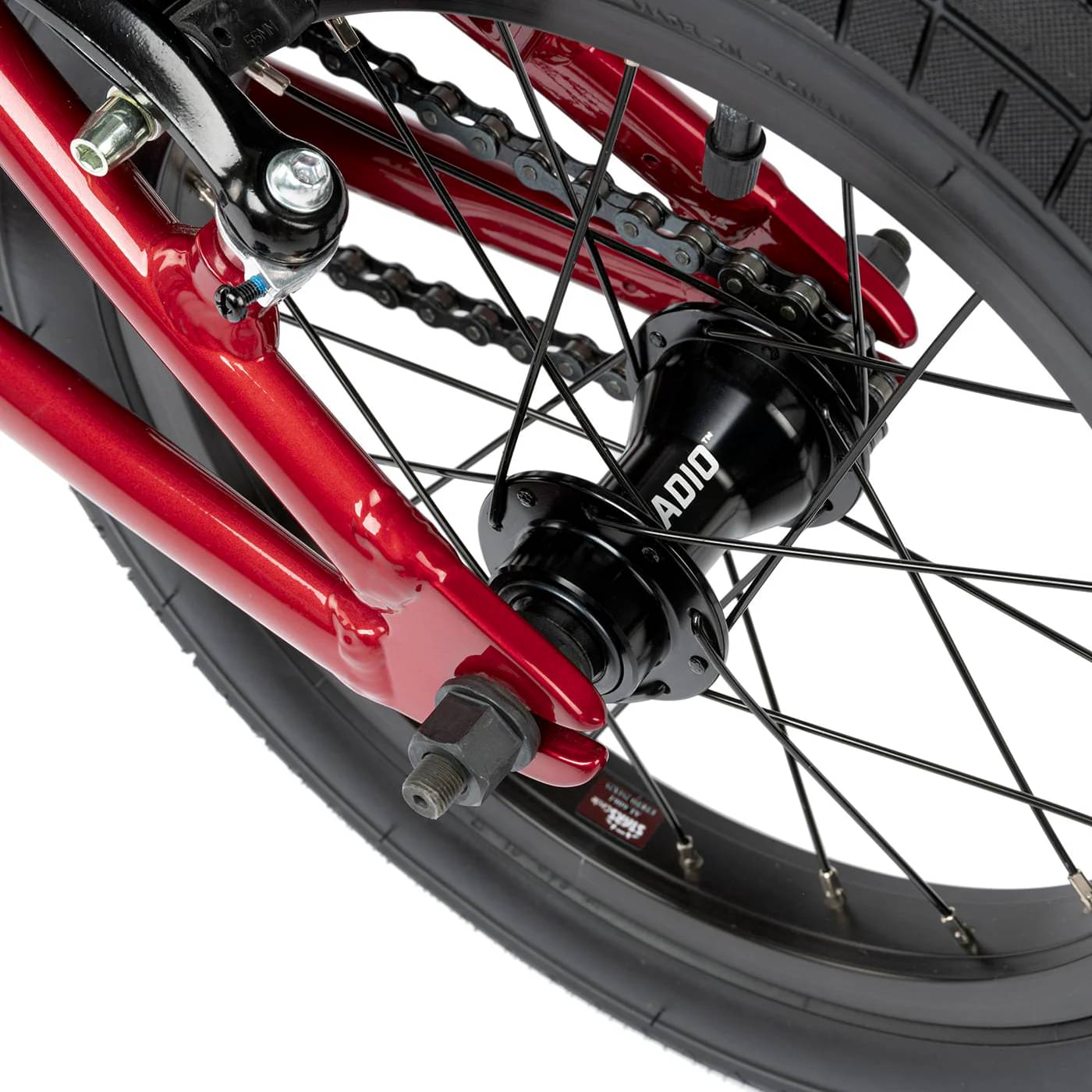

RADIO “AM” cassette hub, alloy, semi-sealed, 10t, 3/8?s axle, 20h
Rims
Front: RADIO “ROOKIE” rim, single wall, Rear: RADIO “ROOKIE” rim, single wall

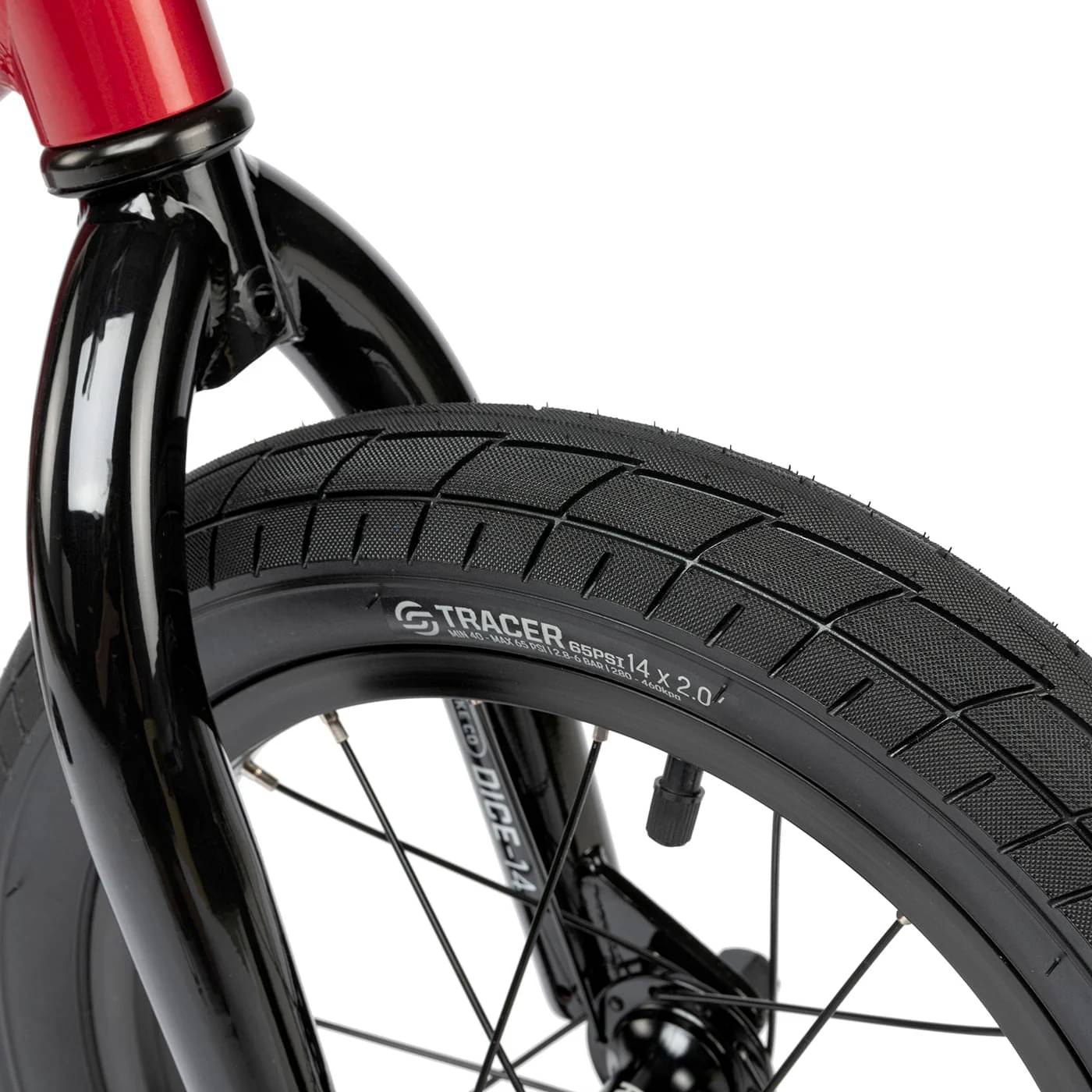

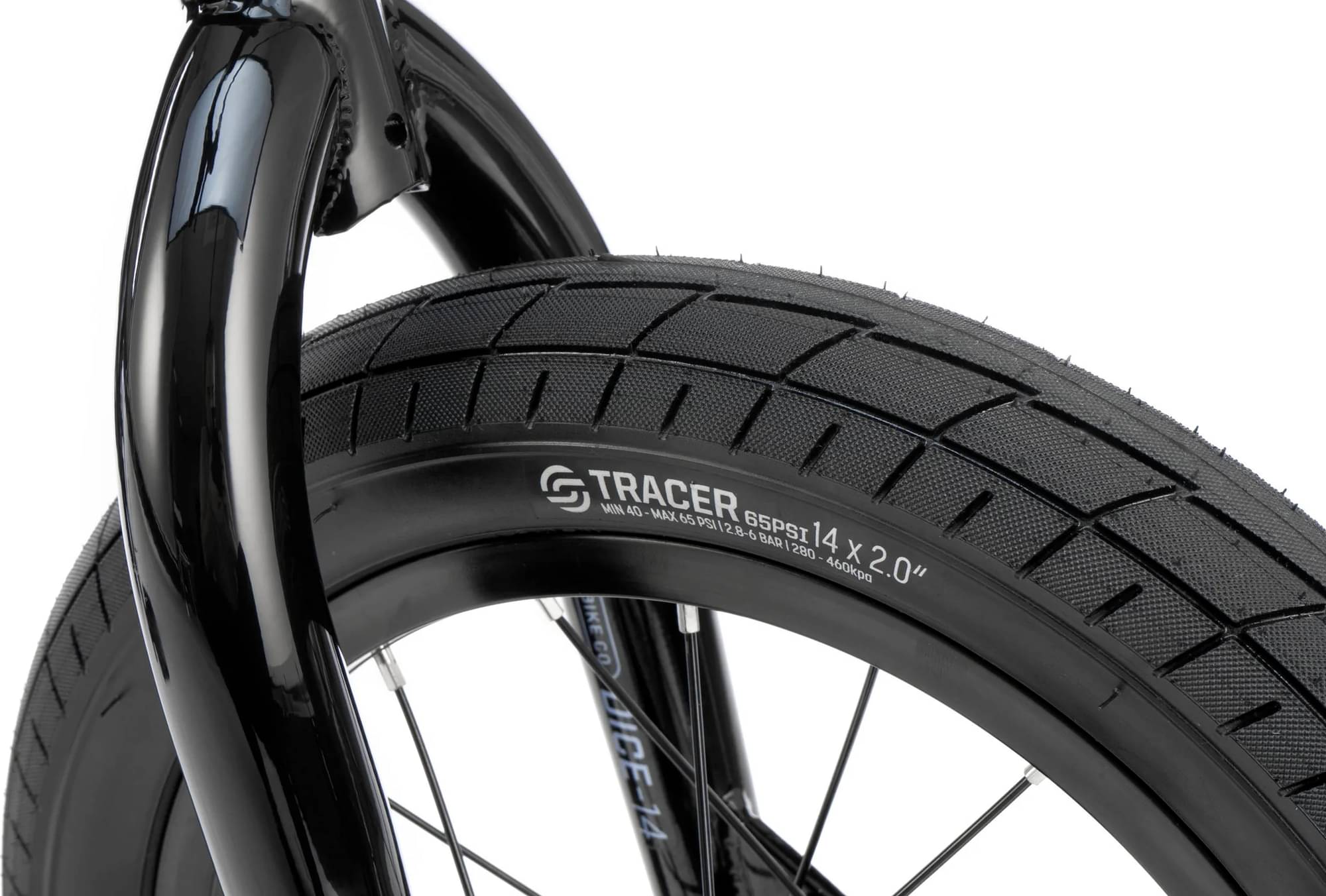

Tires

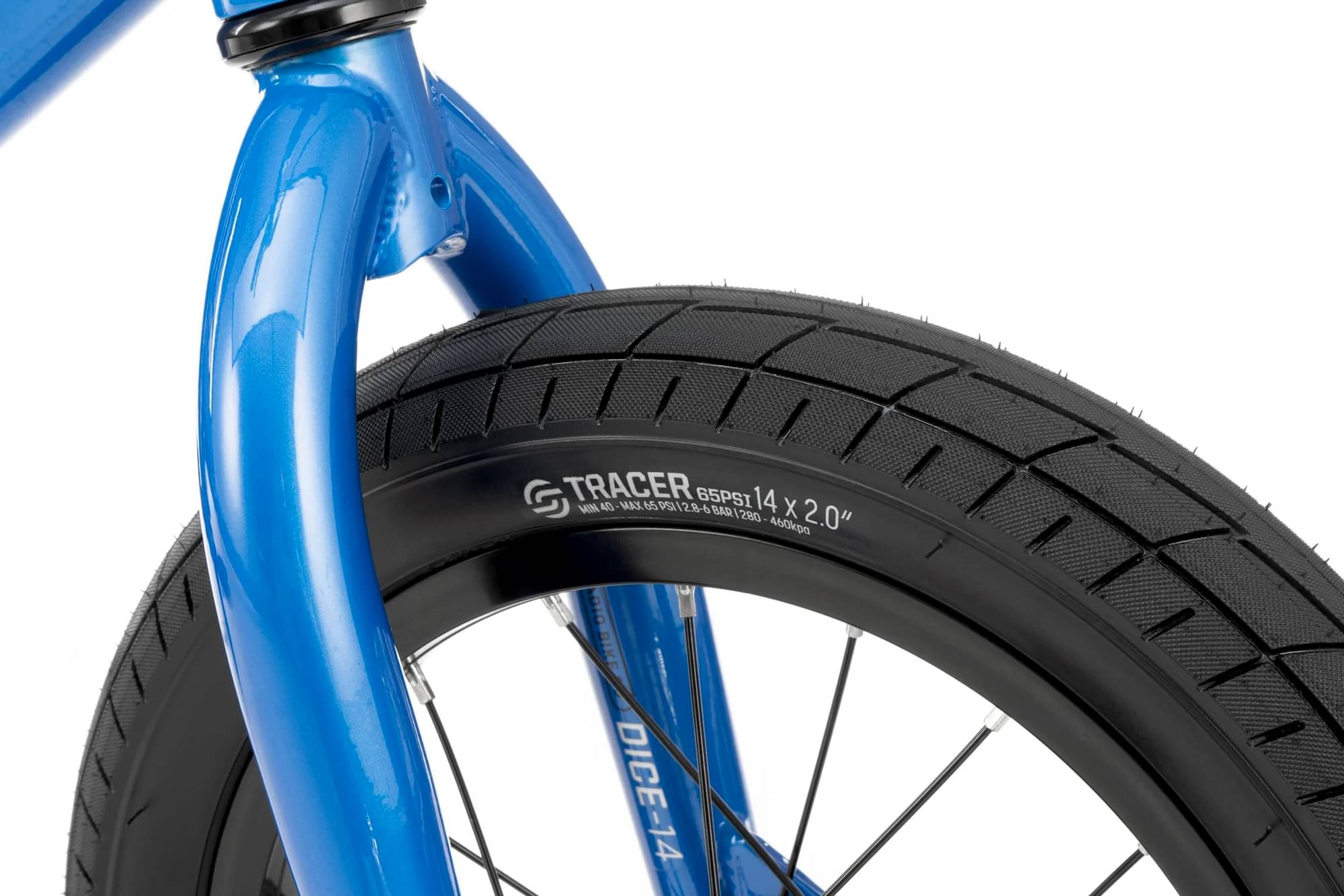

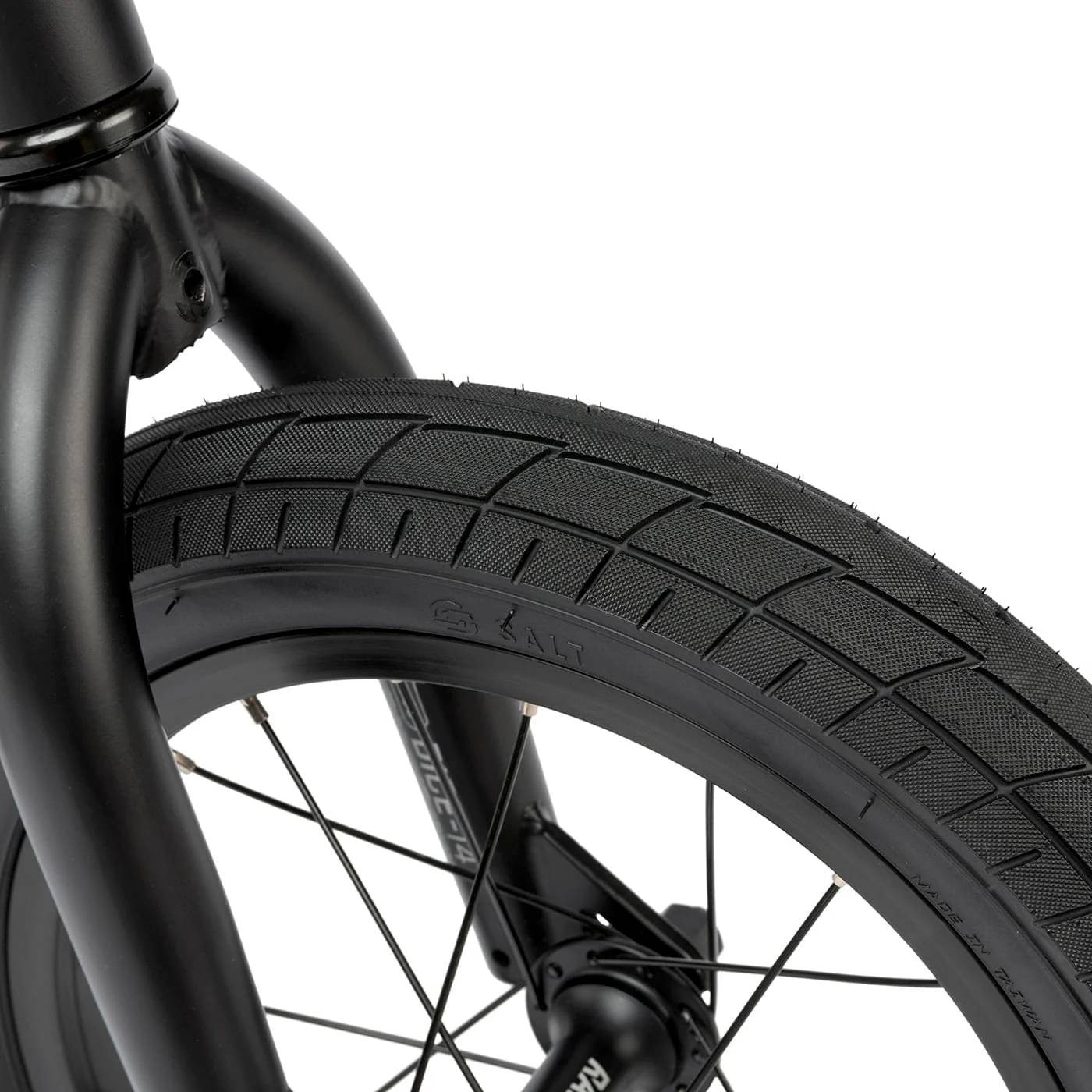

SALT “TRACER” tires, 2.0?, front & rear
Brakes

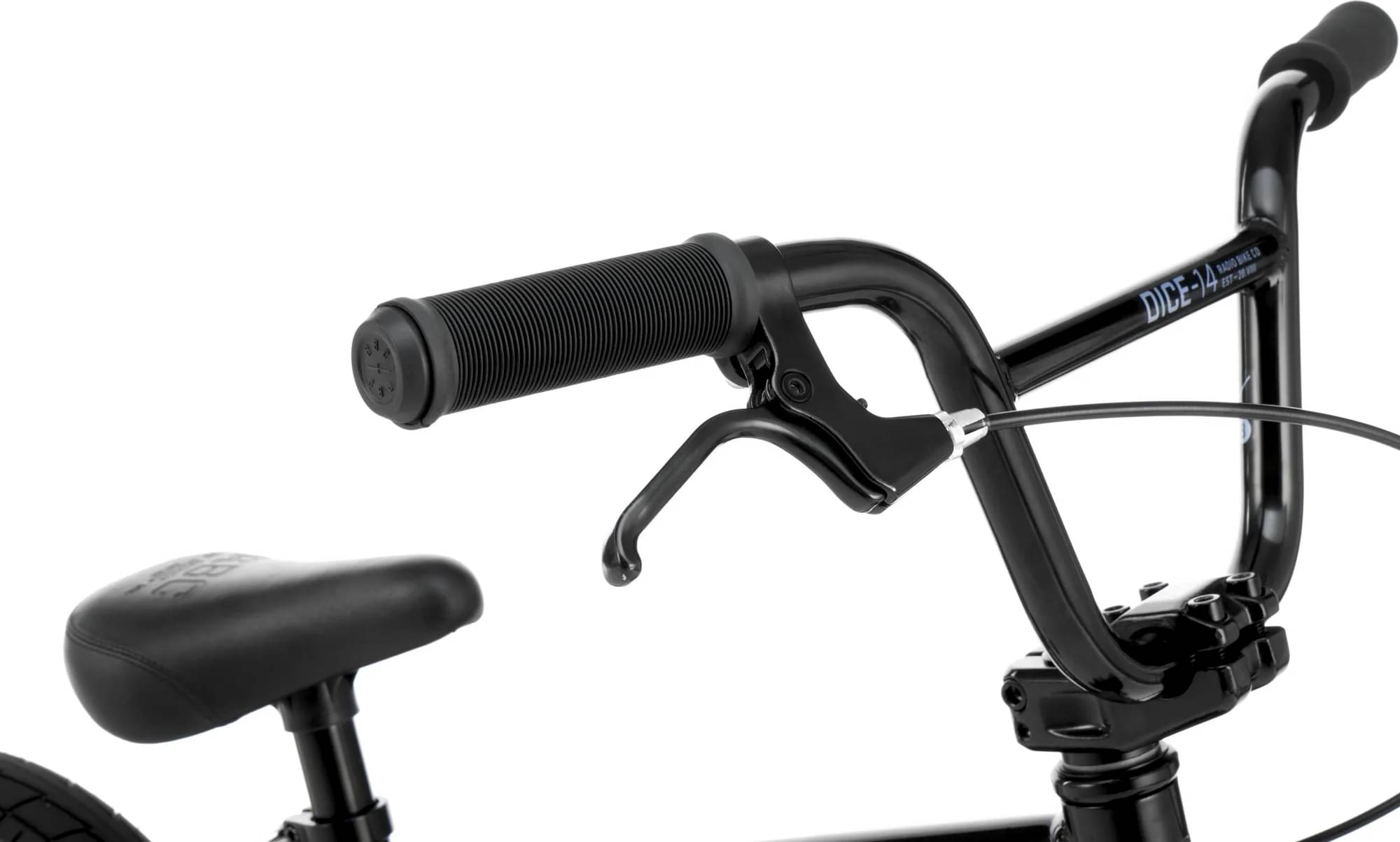

Brakes

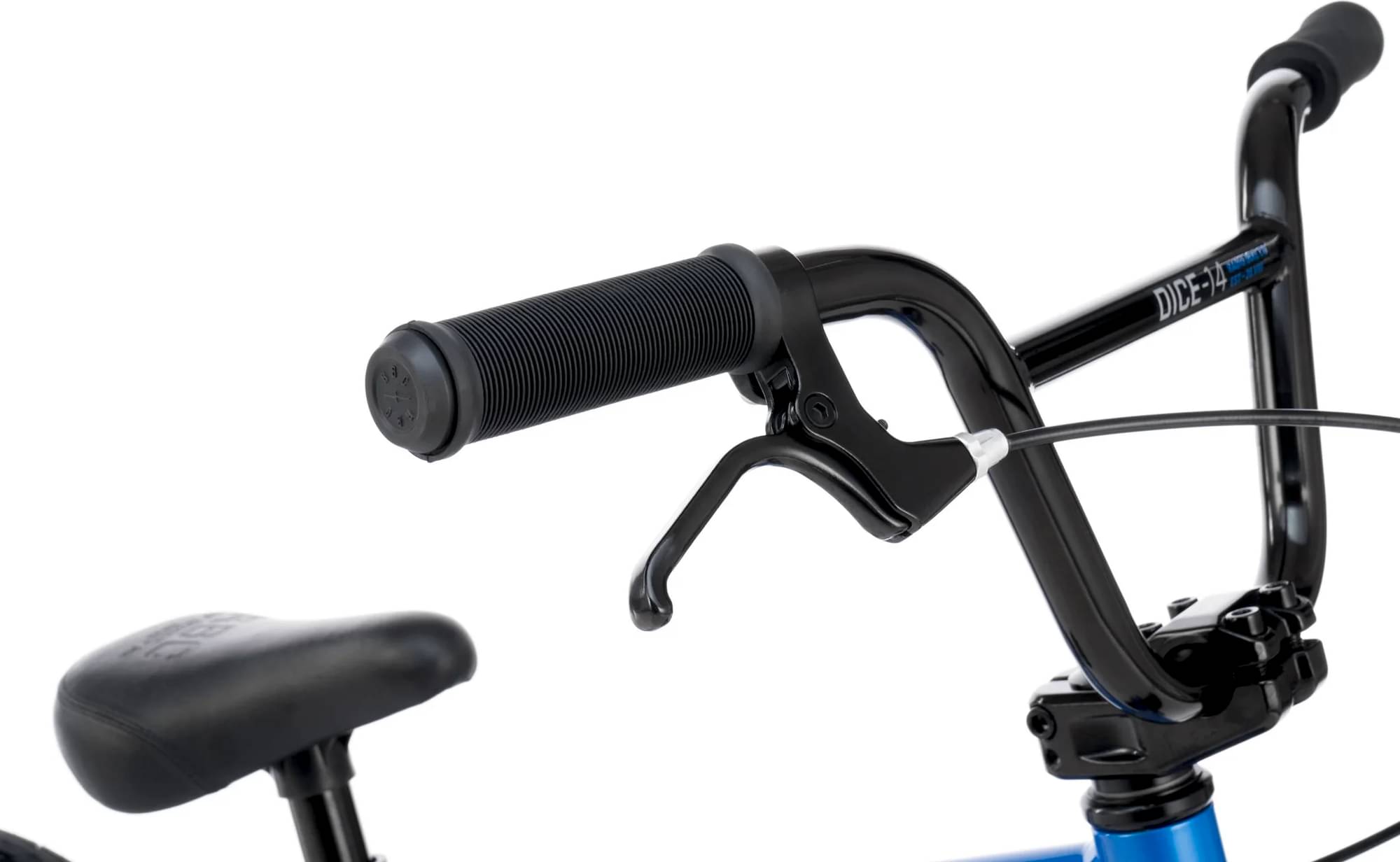

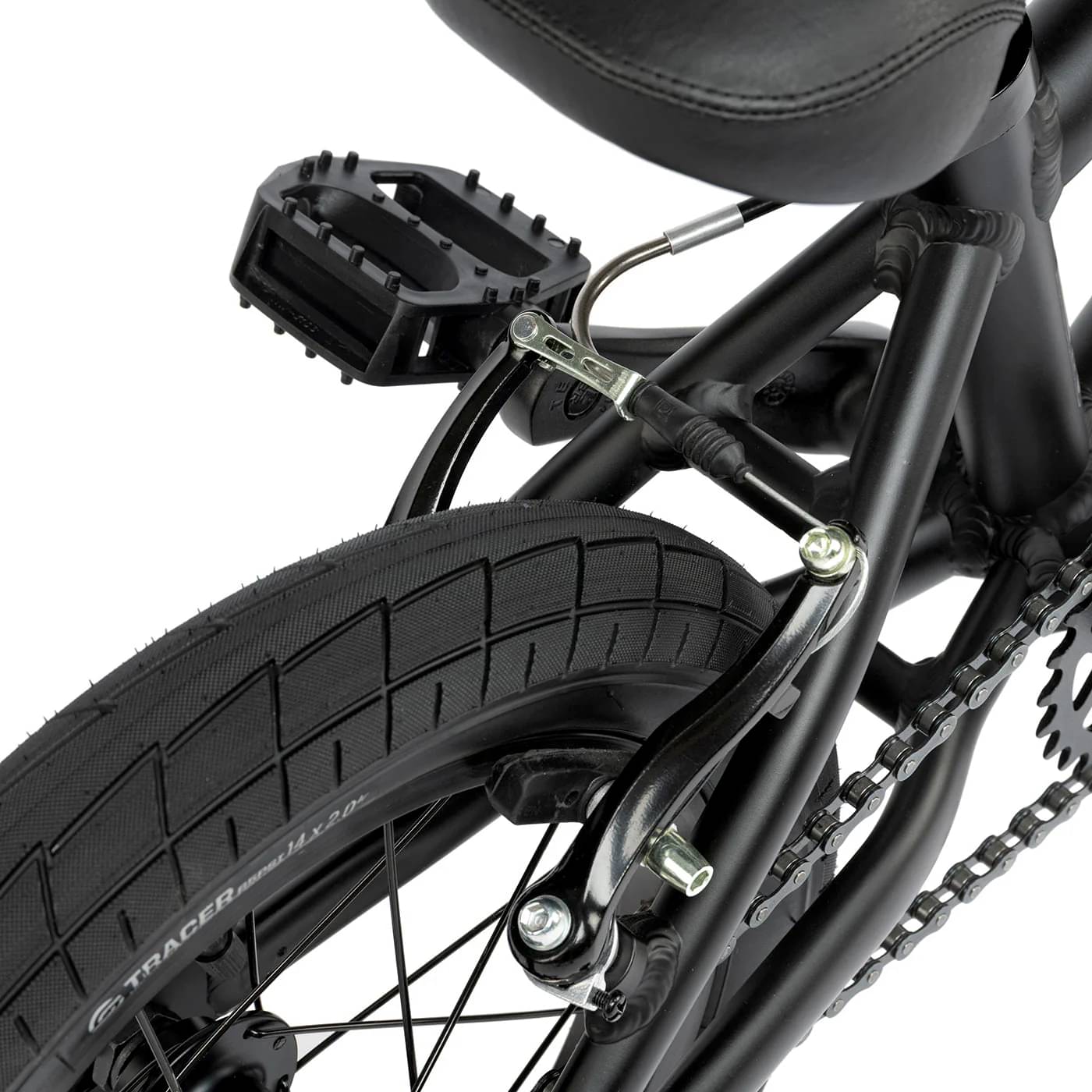

LEVER RADIO “JUNIOR 14” brake lever, alloy, front & rear
Cockpit

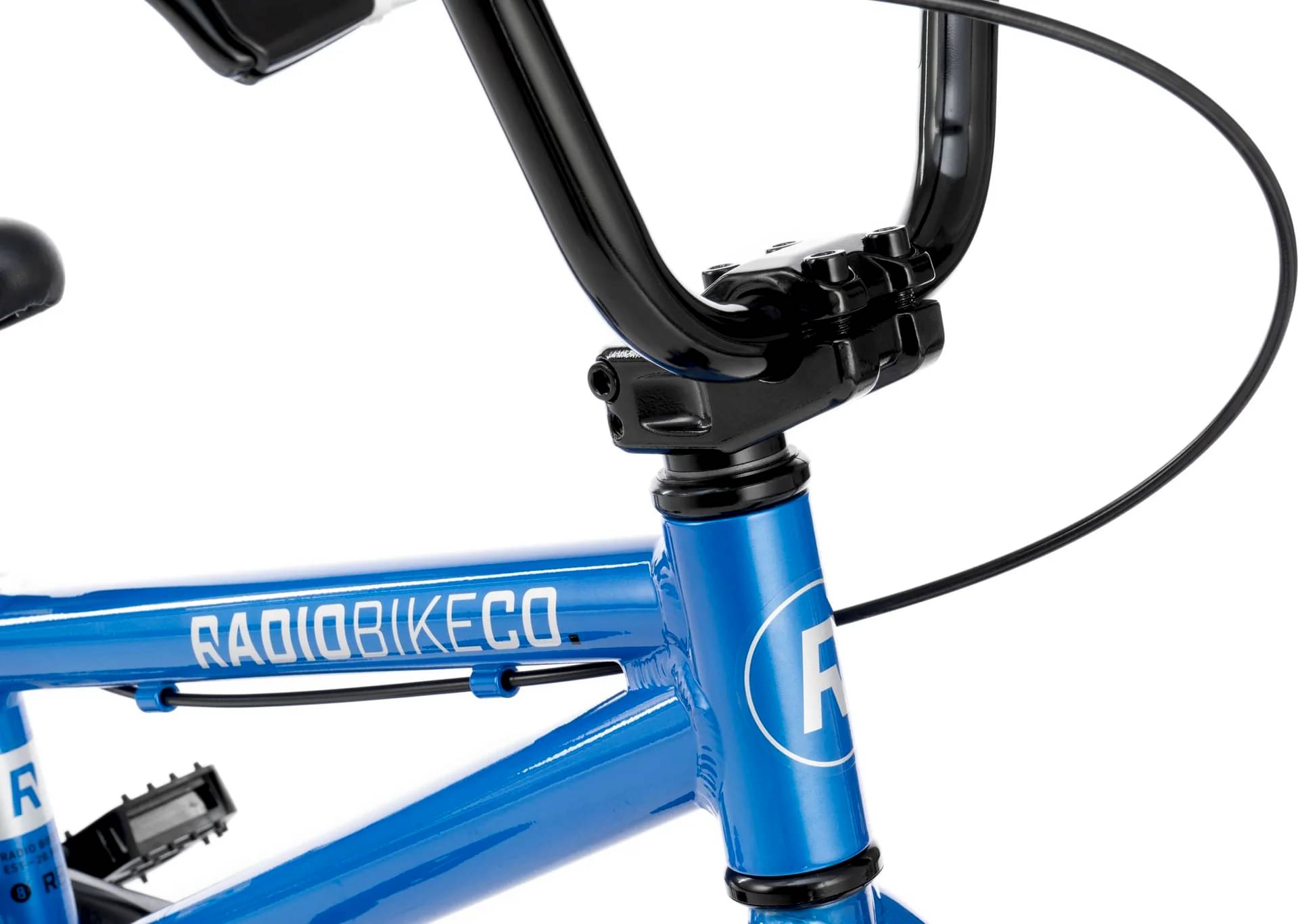

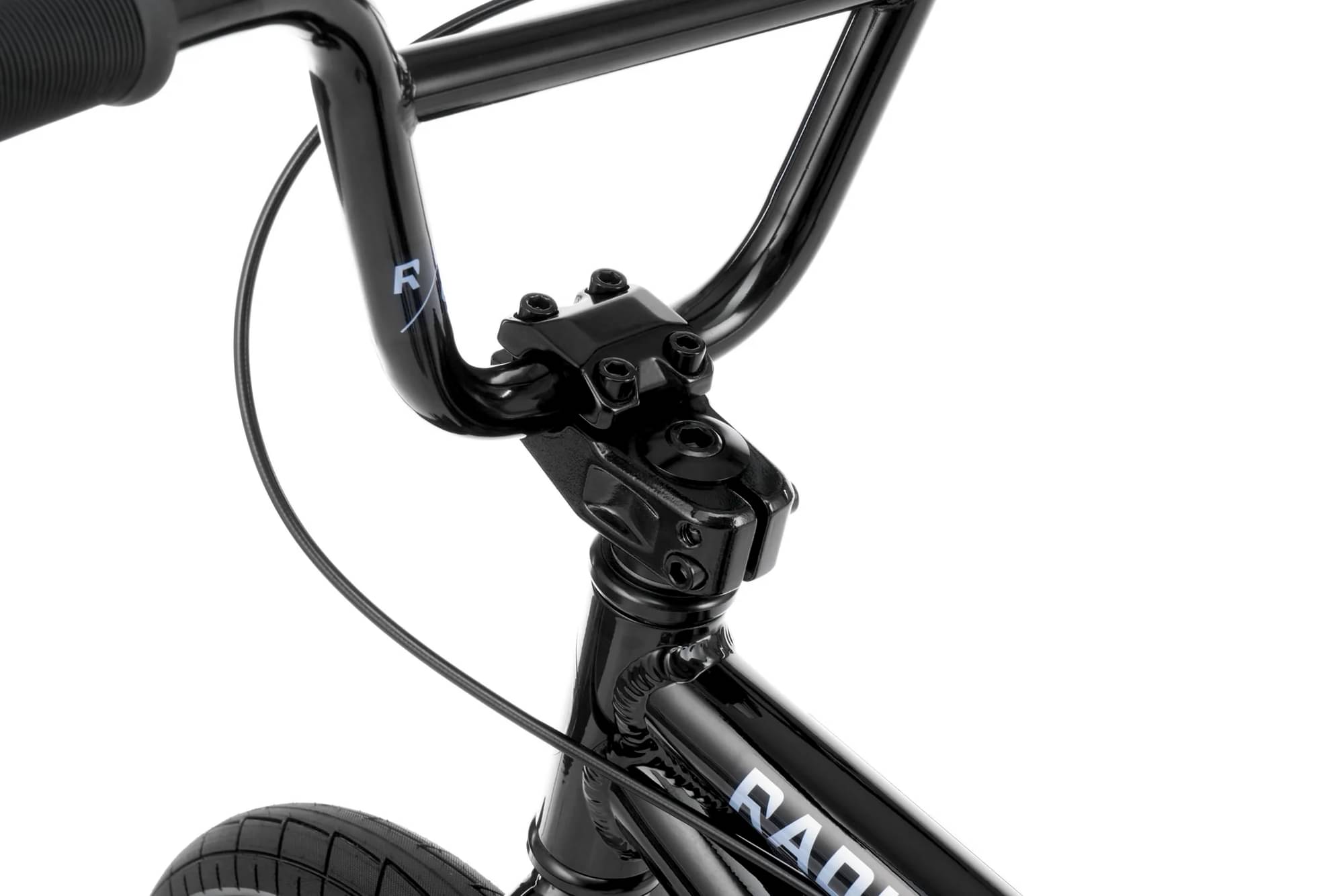

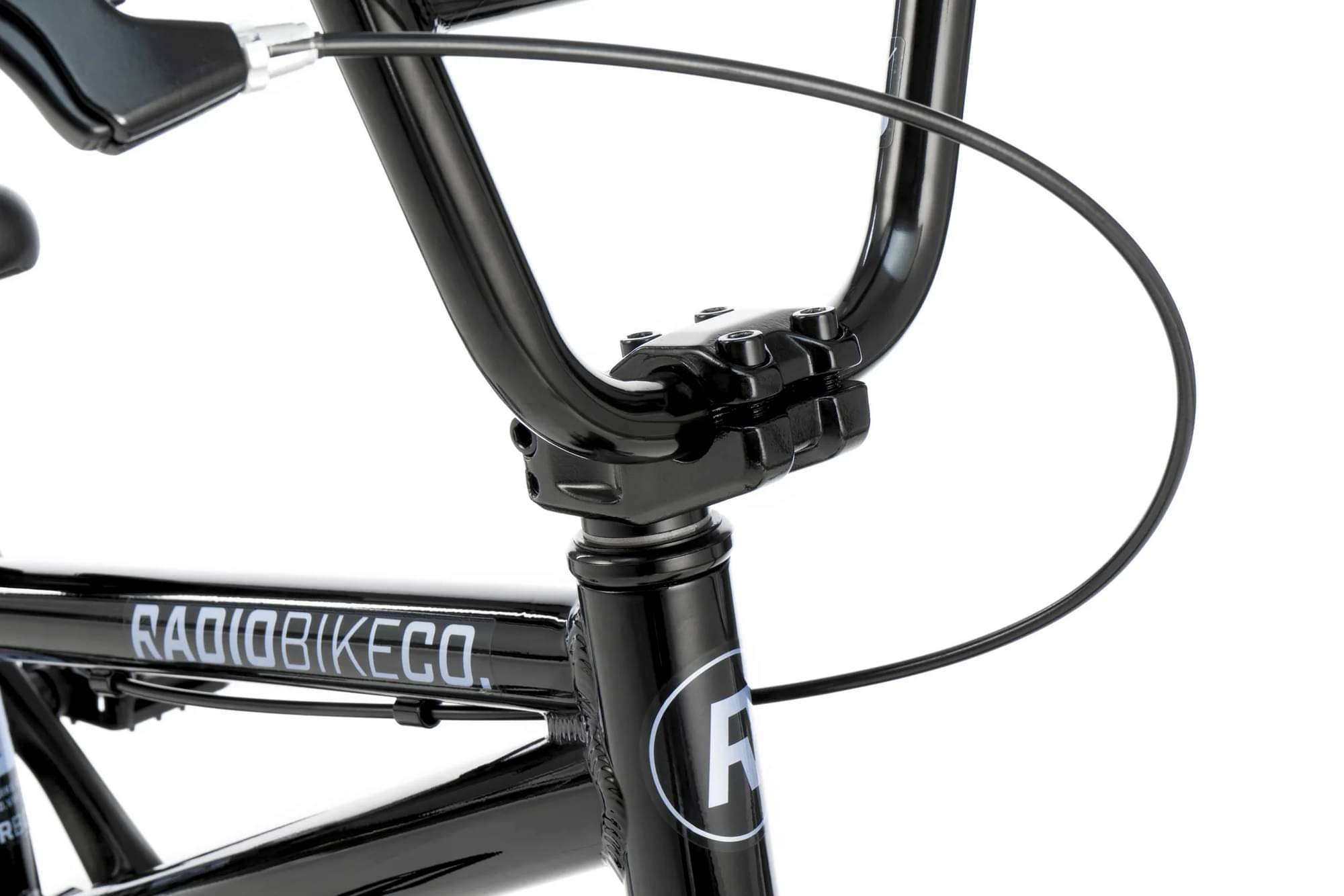

Stem

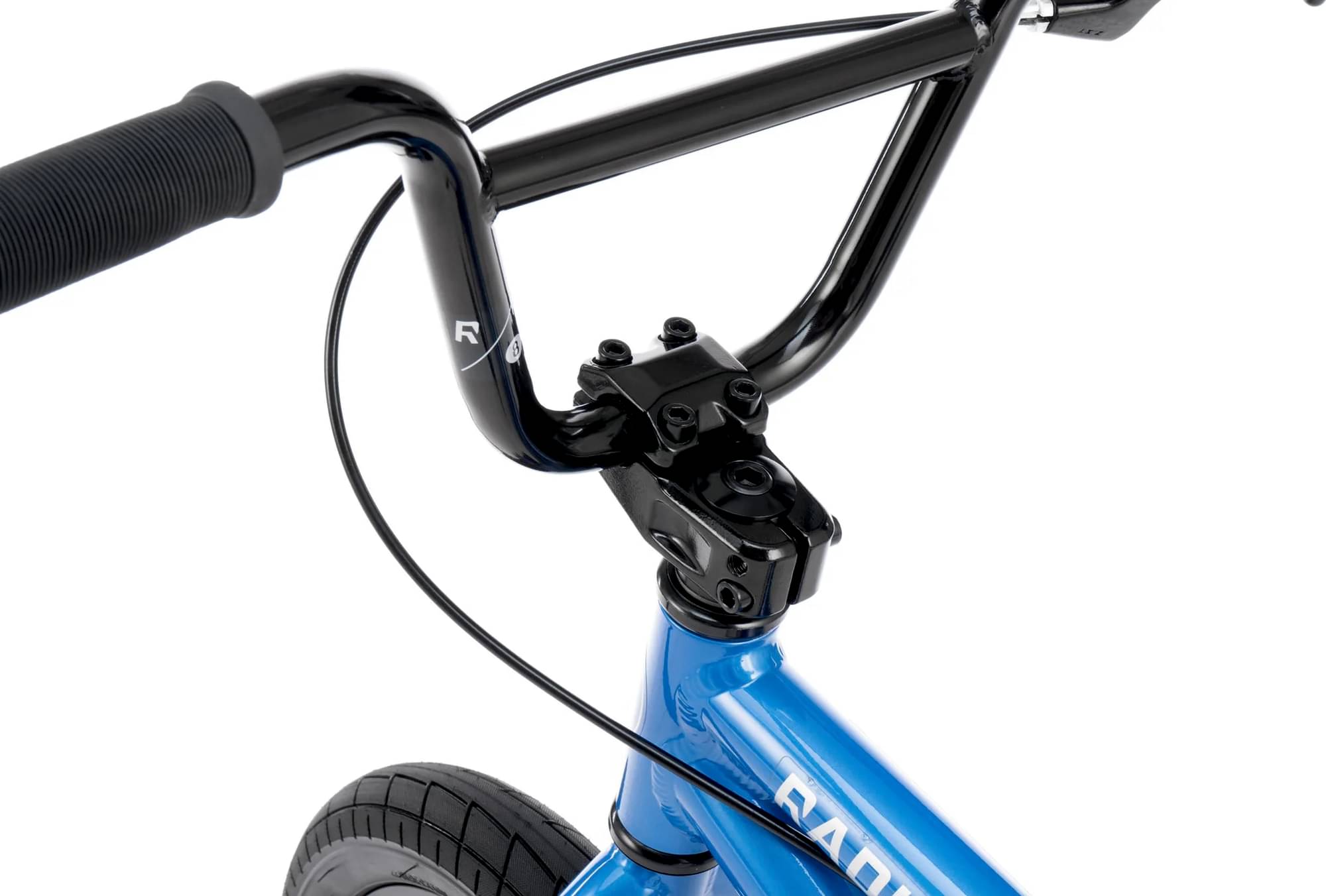

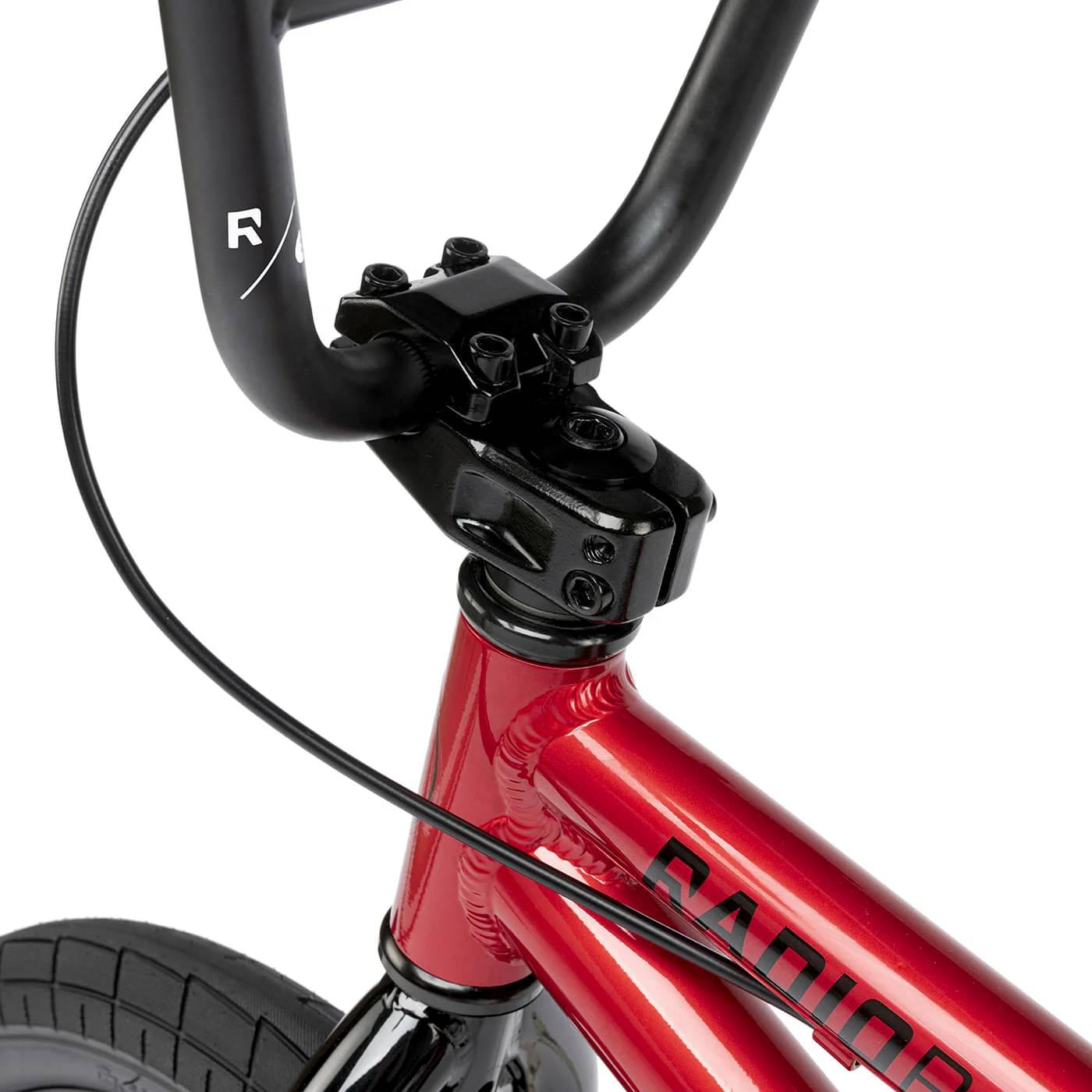

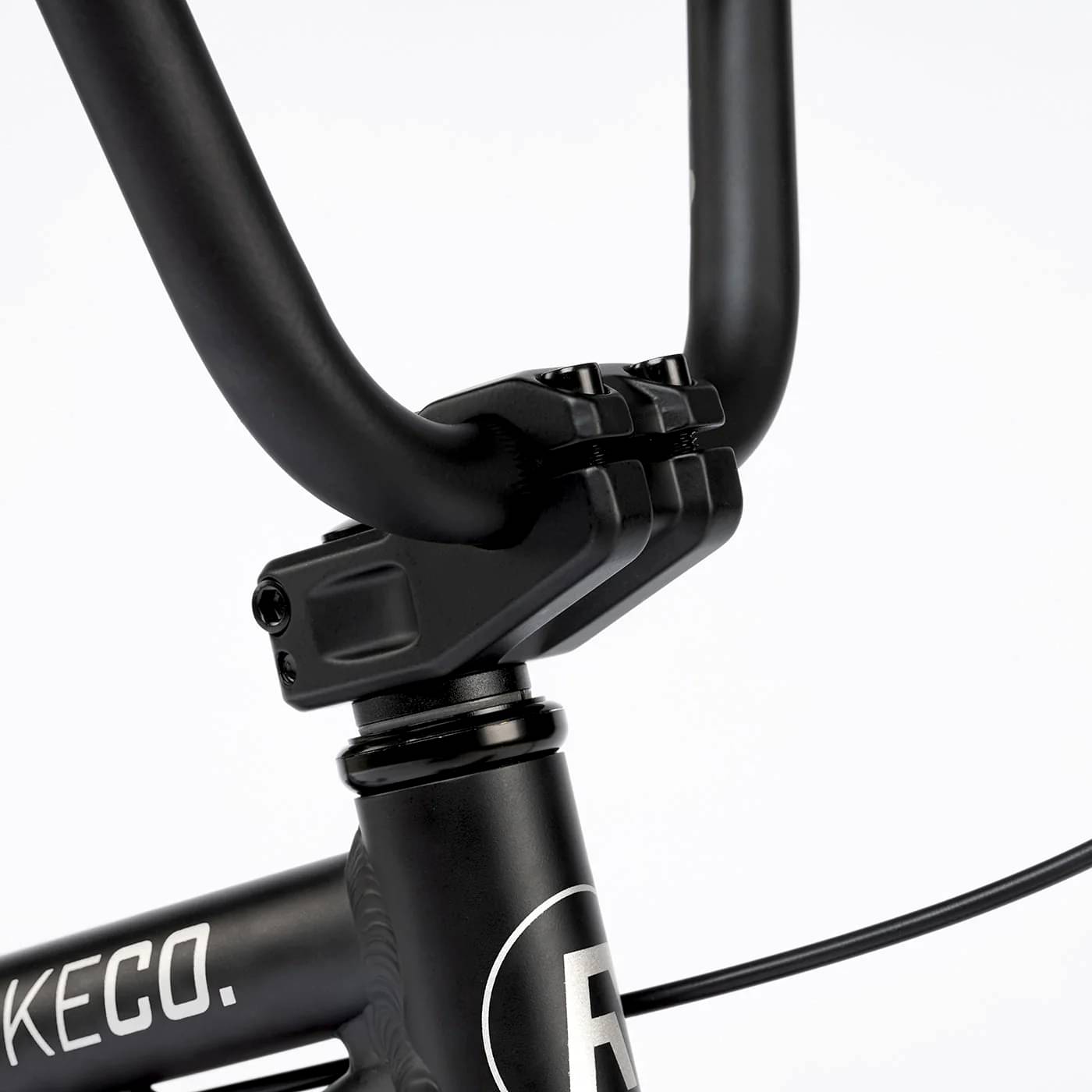

RADIO “JUNIOR” topload stem, 40mm reach
Handlebar
RADIO “ROOKIE 14” bar, 1020 hi-ten
Grips
RADIO “AM” grips, flangeless, 110mm
Headset
FSA “A-HEAD-SET” loose ball
Seat
Saddle

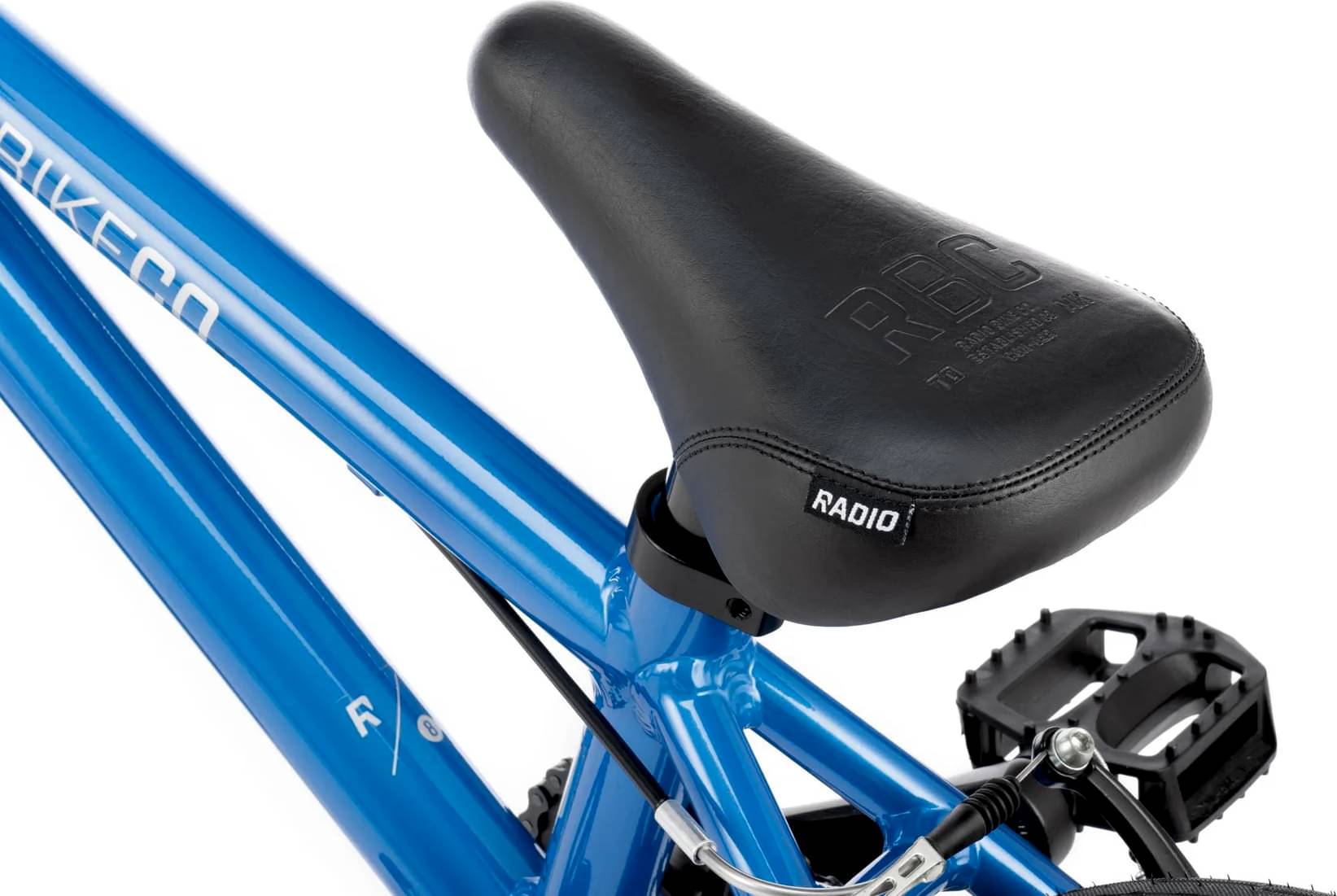

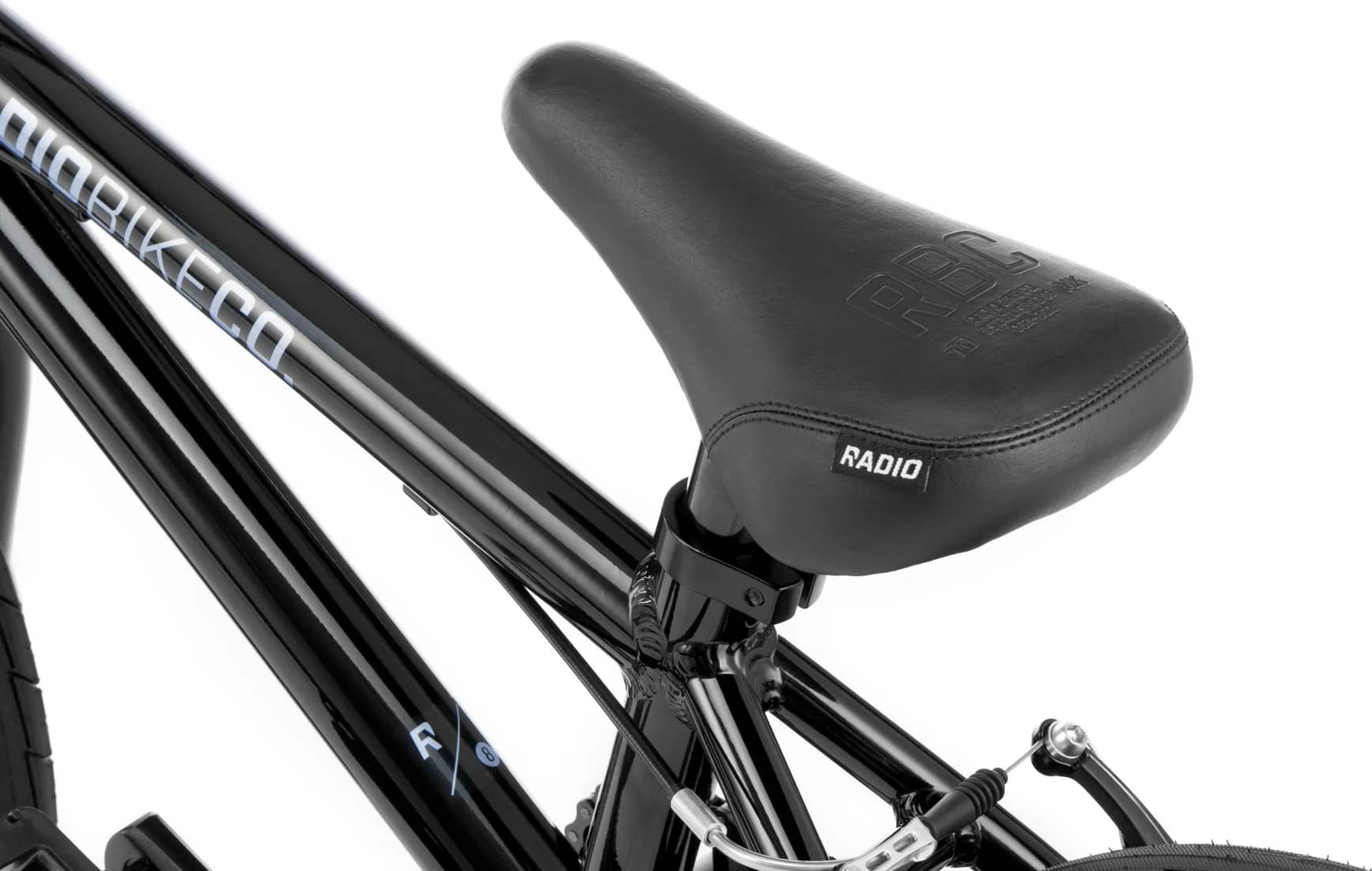

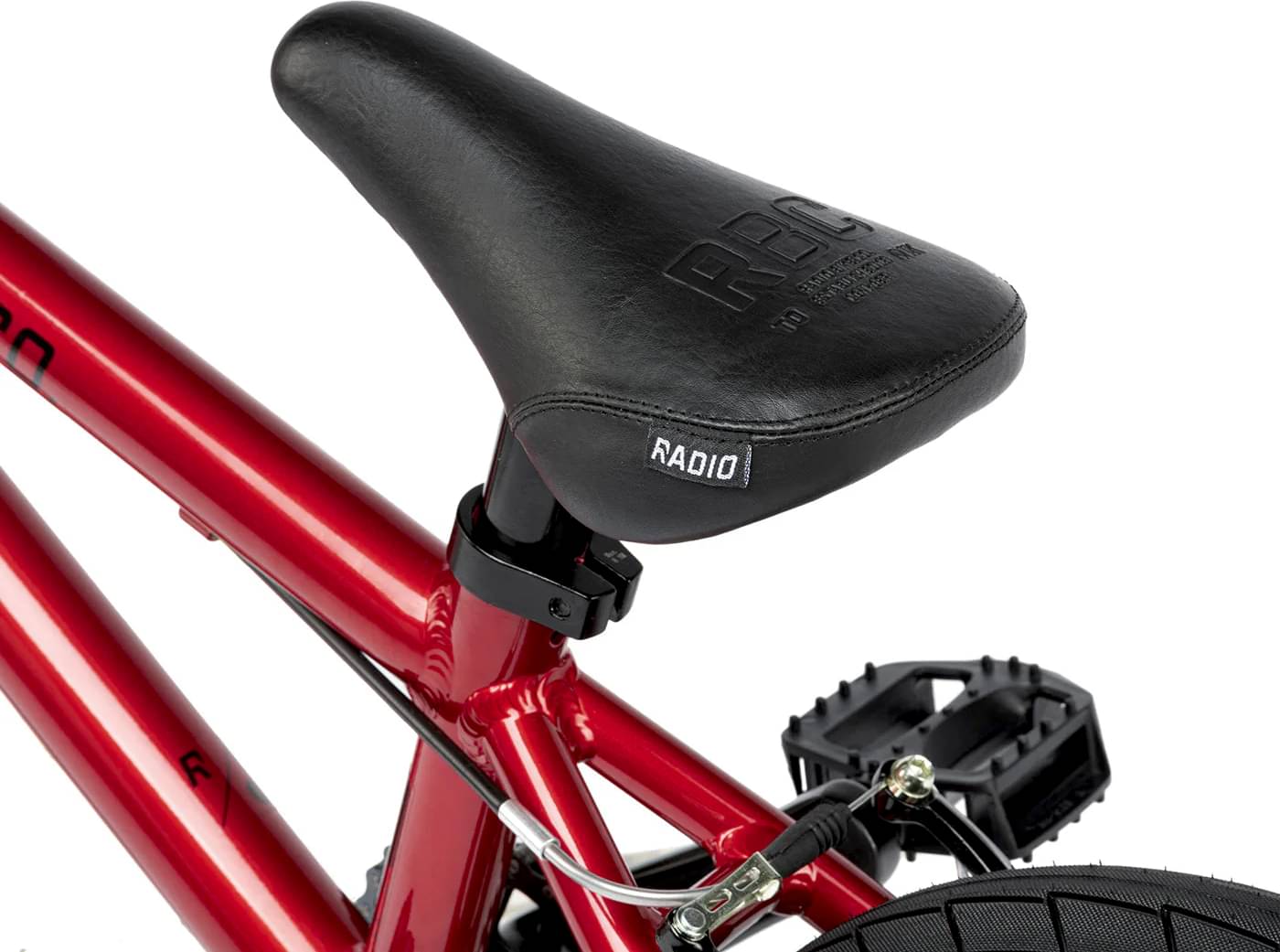

RADIO “ROOKIE” combo seat
Seatpost
–
Fit data
Geometry
