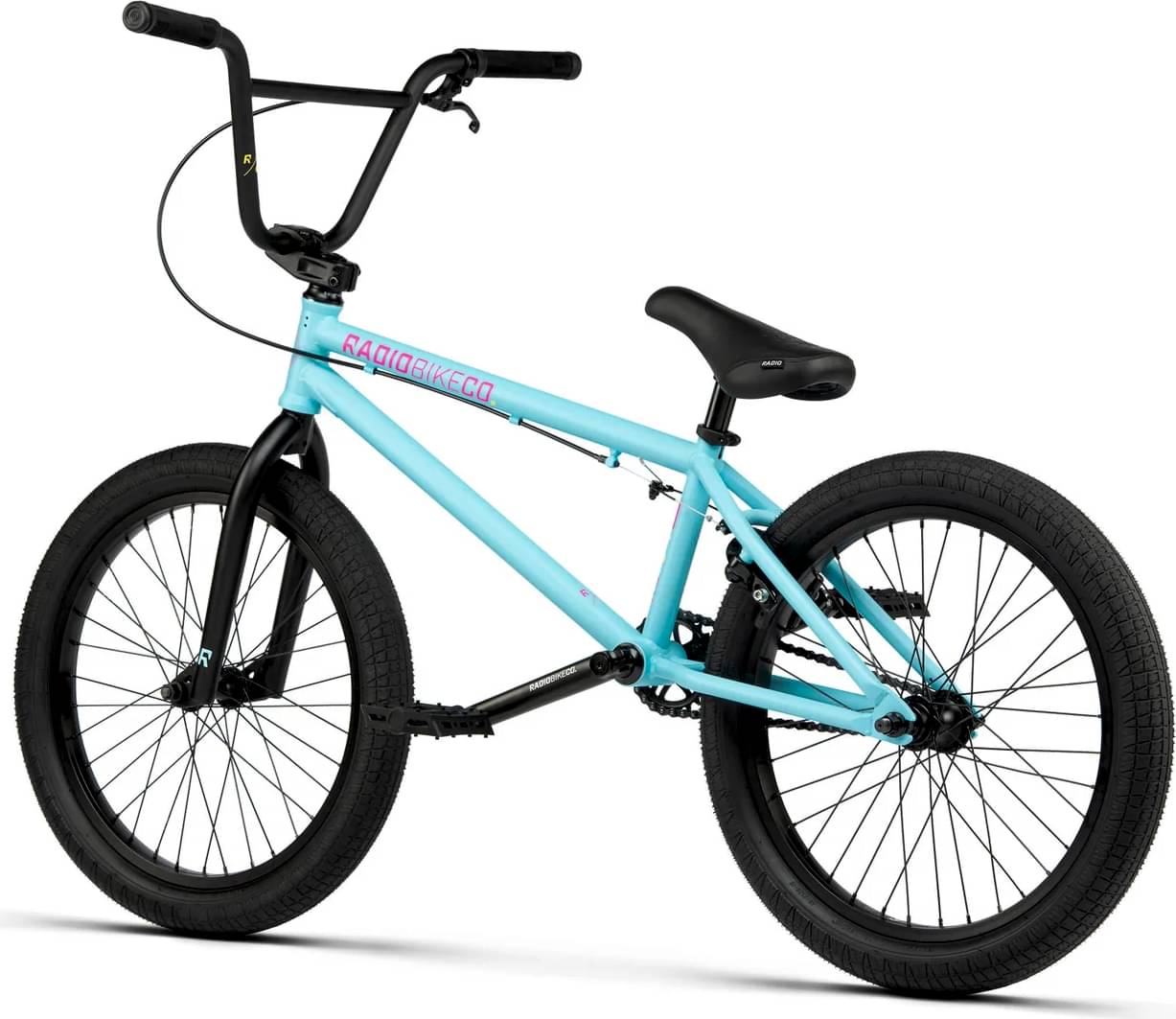

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components

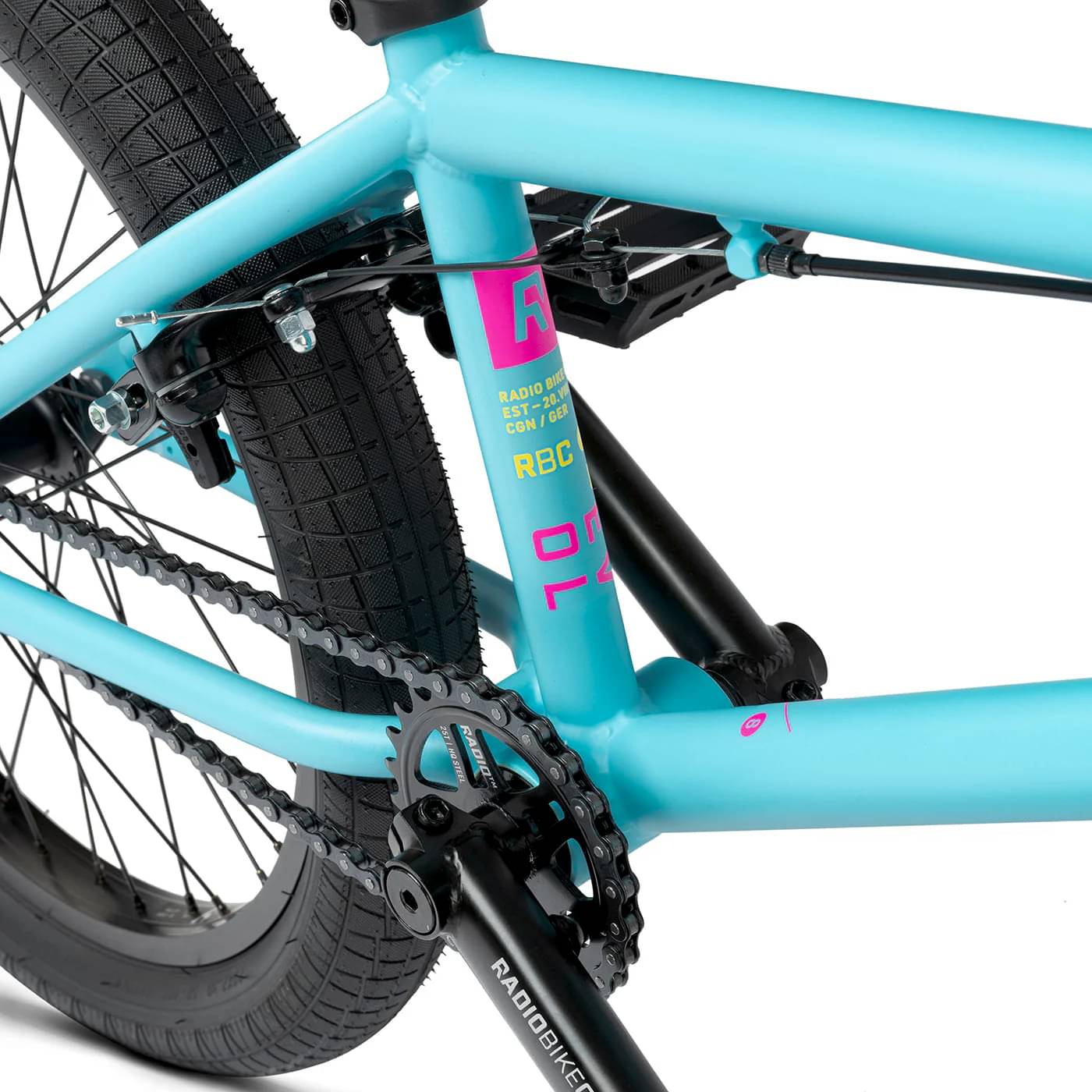

Frame
Frame
RADIO “EVOL” frame, crmo top tube, 1020 hi-ten

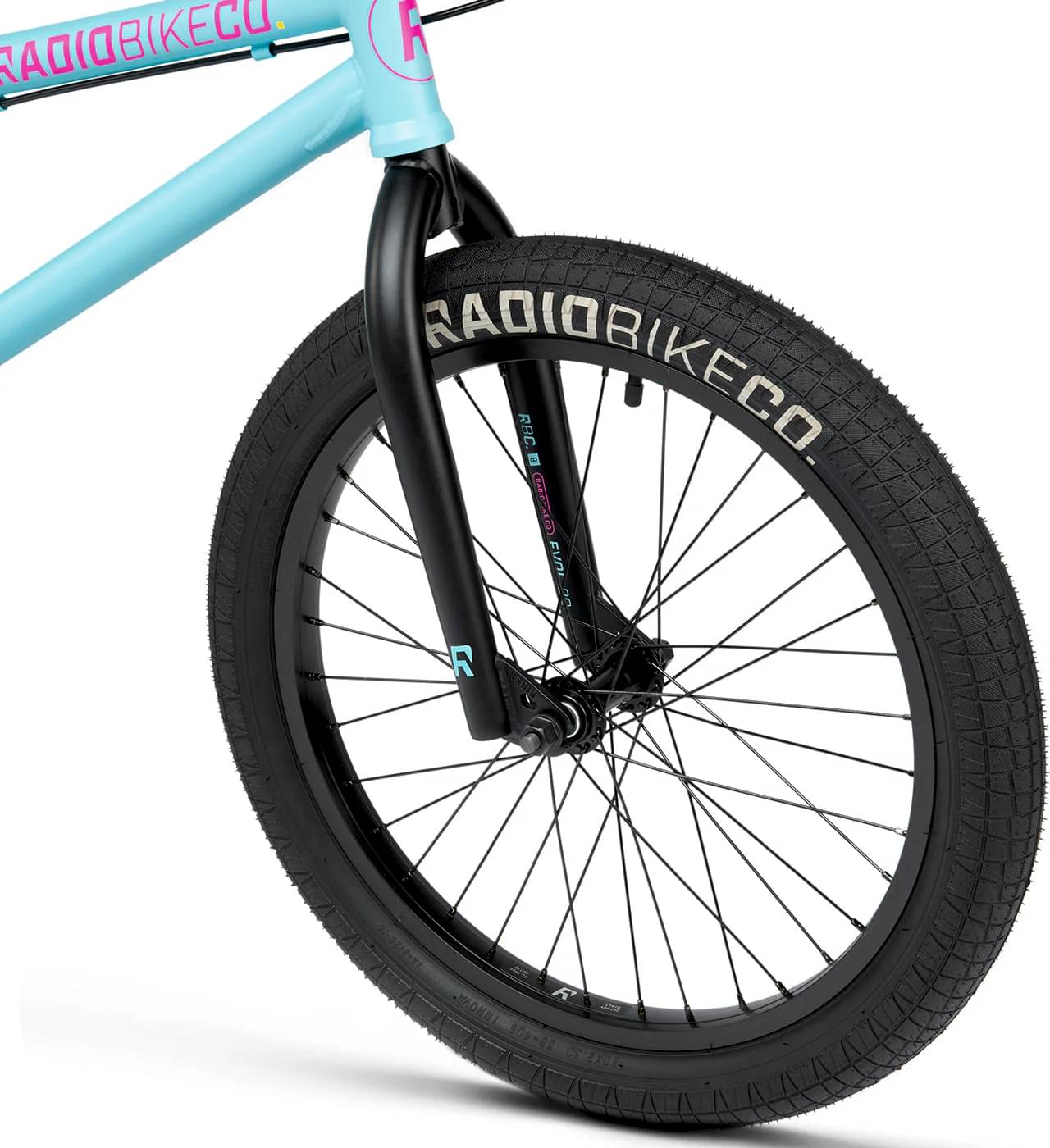

Suspension Fork
RADIO “AM” fork, 1020 hi-ten, crmo steerer, tapered legs

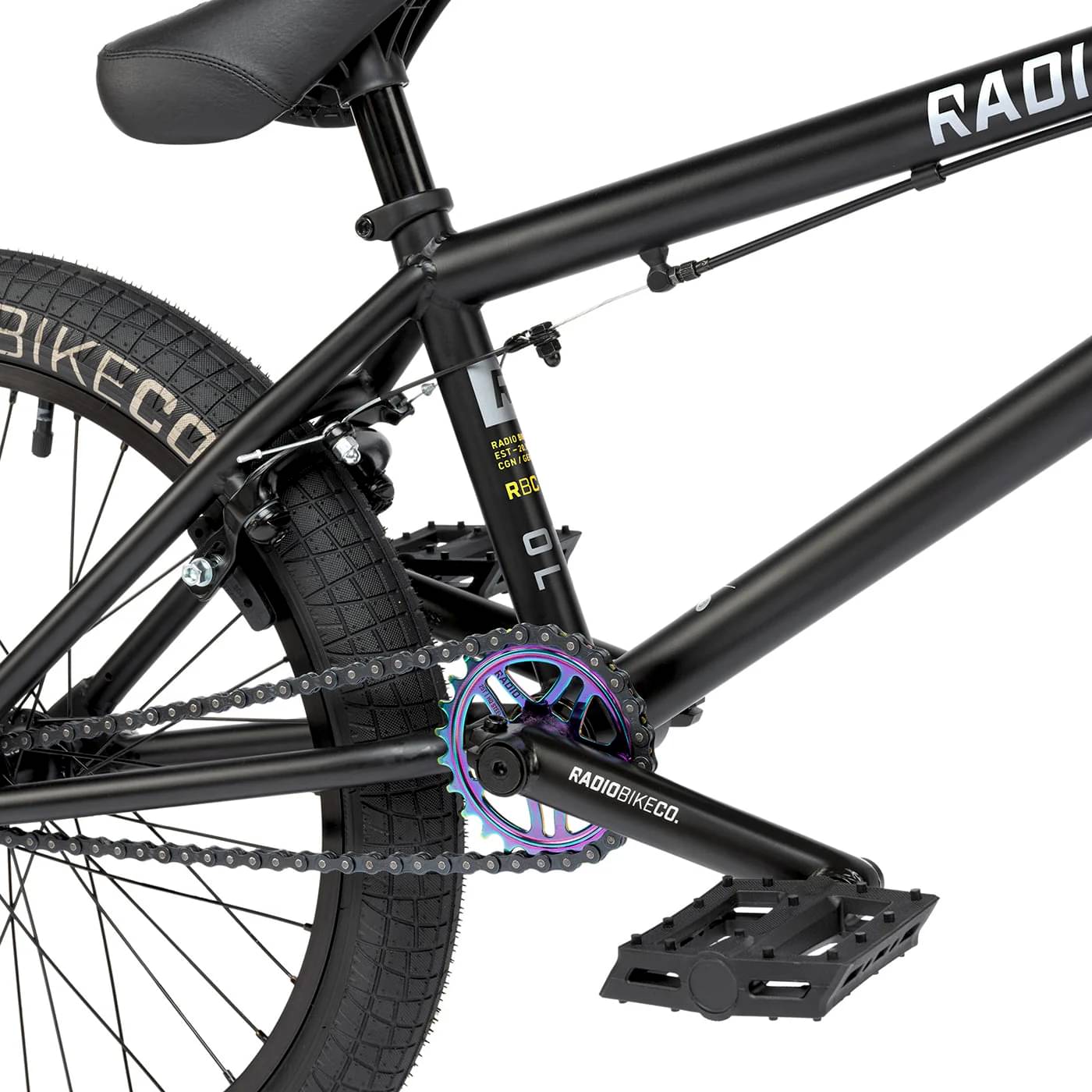

Drivetrain

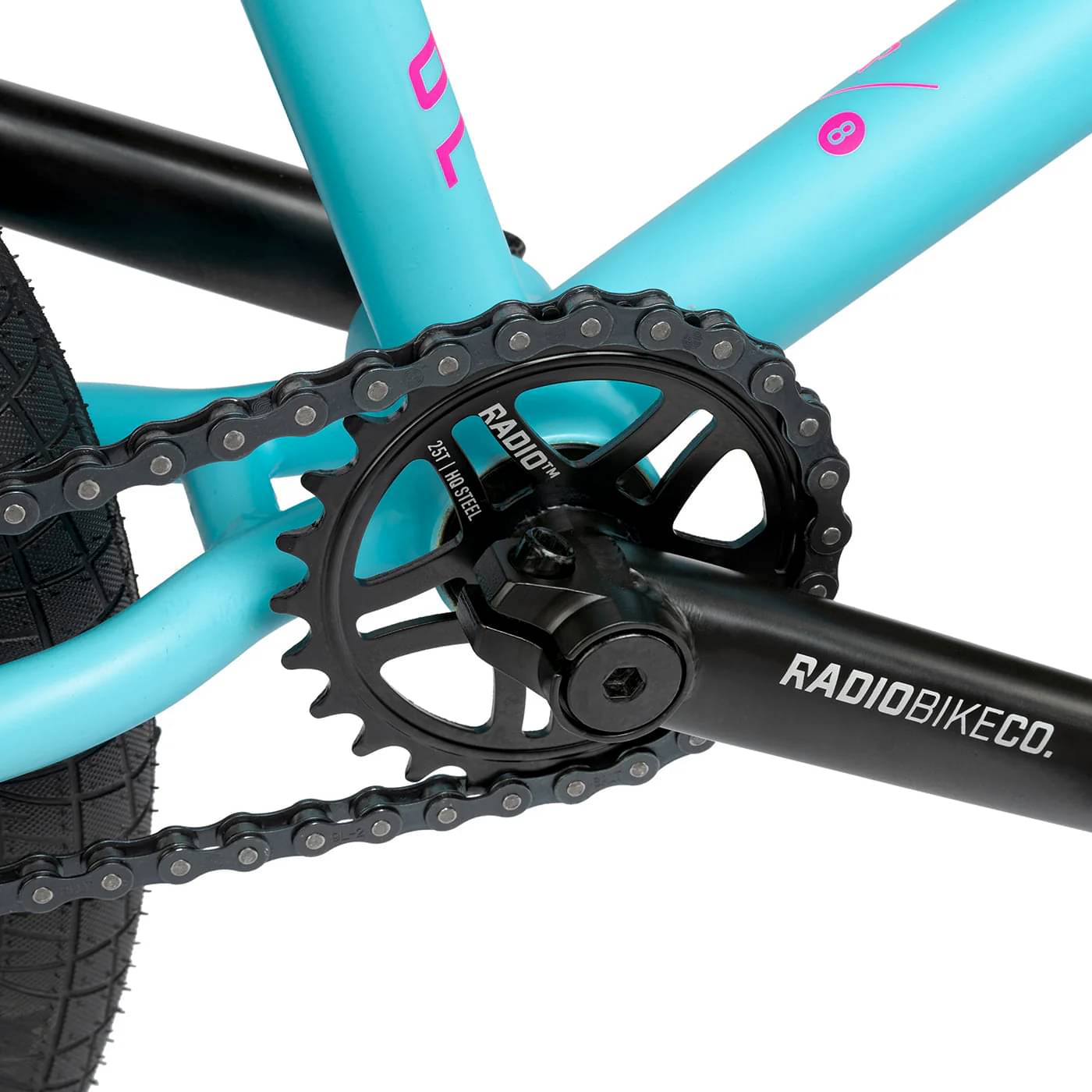

Cassette
RADIO “VISION” steel 25t sprocket

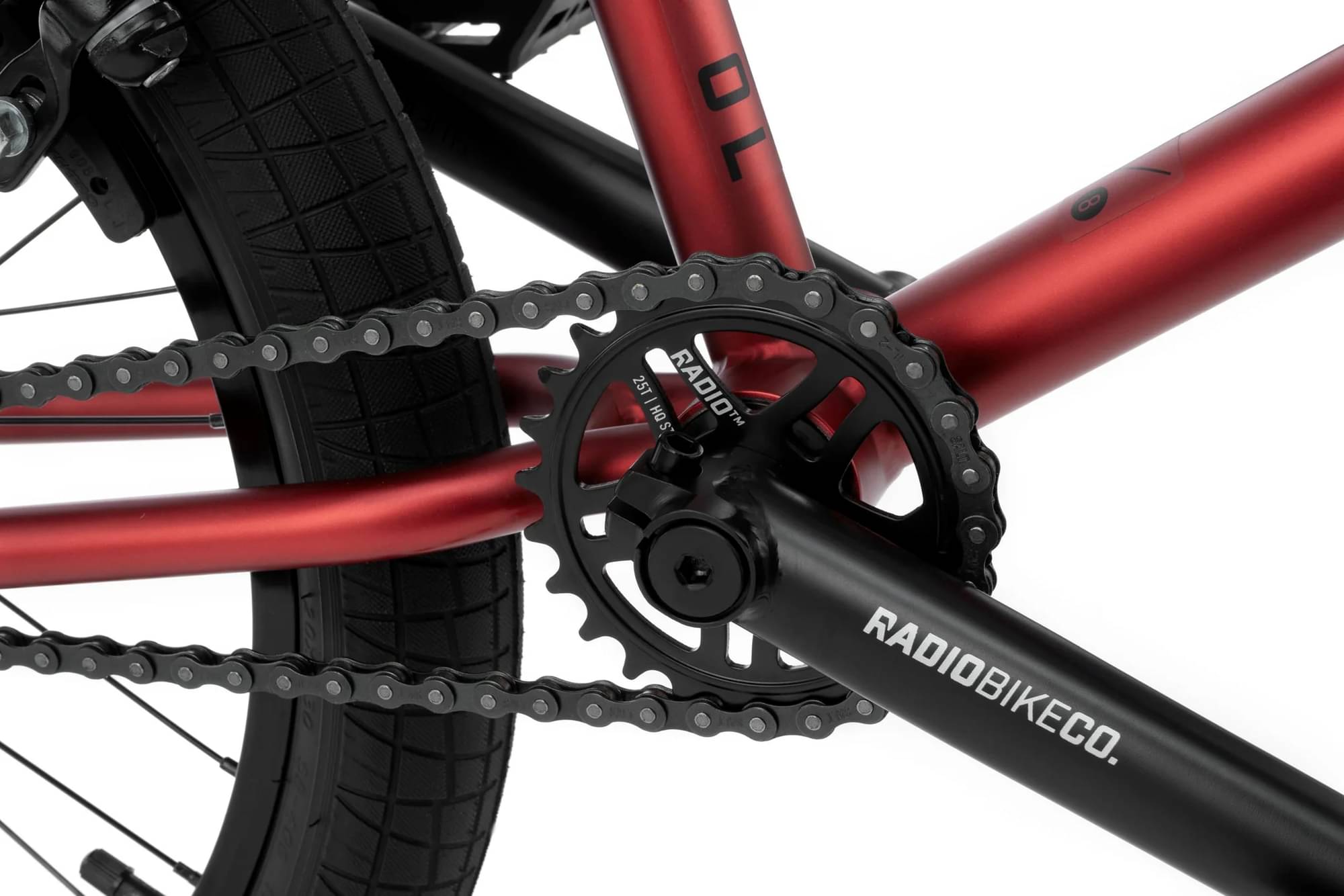

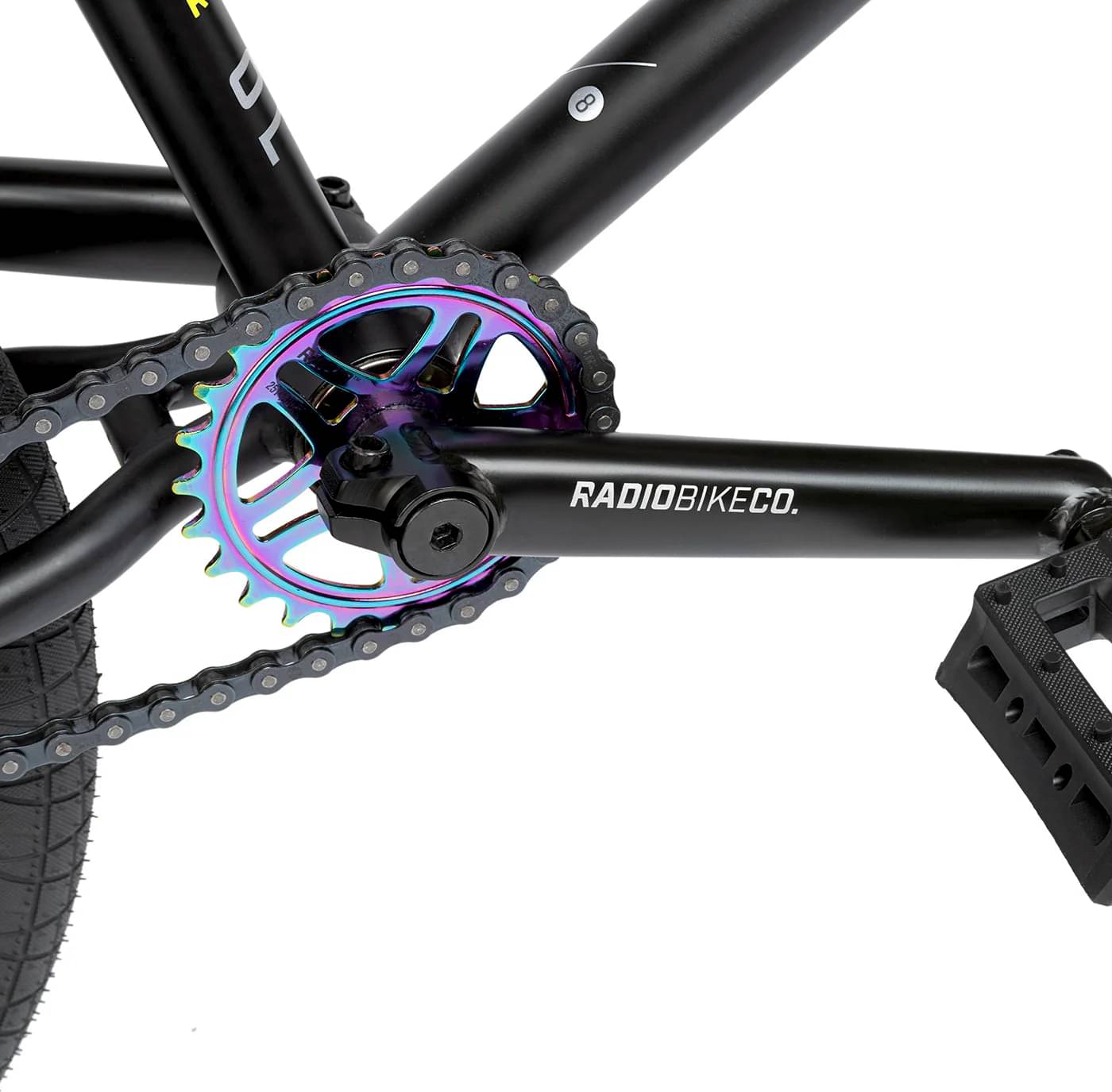

Crank
RADIO “ROOKIE” tubular 3pc crank crmo, 165mm, 8 spline
Bottom Bracket
Mid size, press fit, sealed bearing
Chain
SALT “AM” chain, WZ1 type

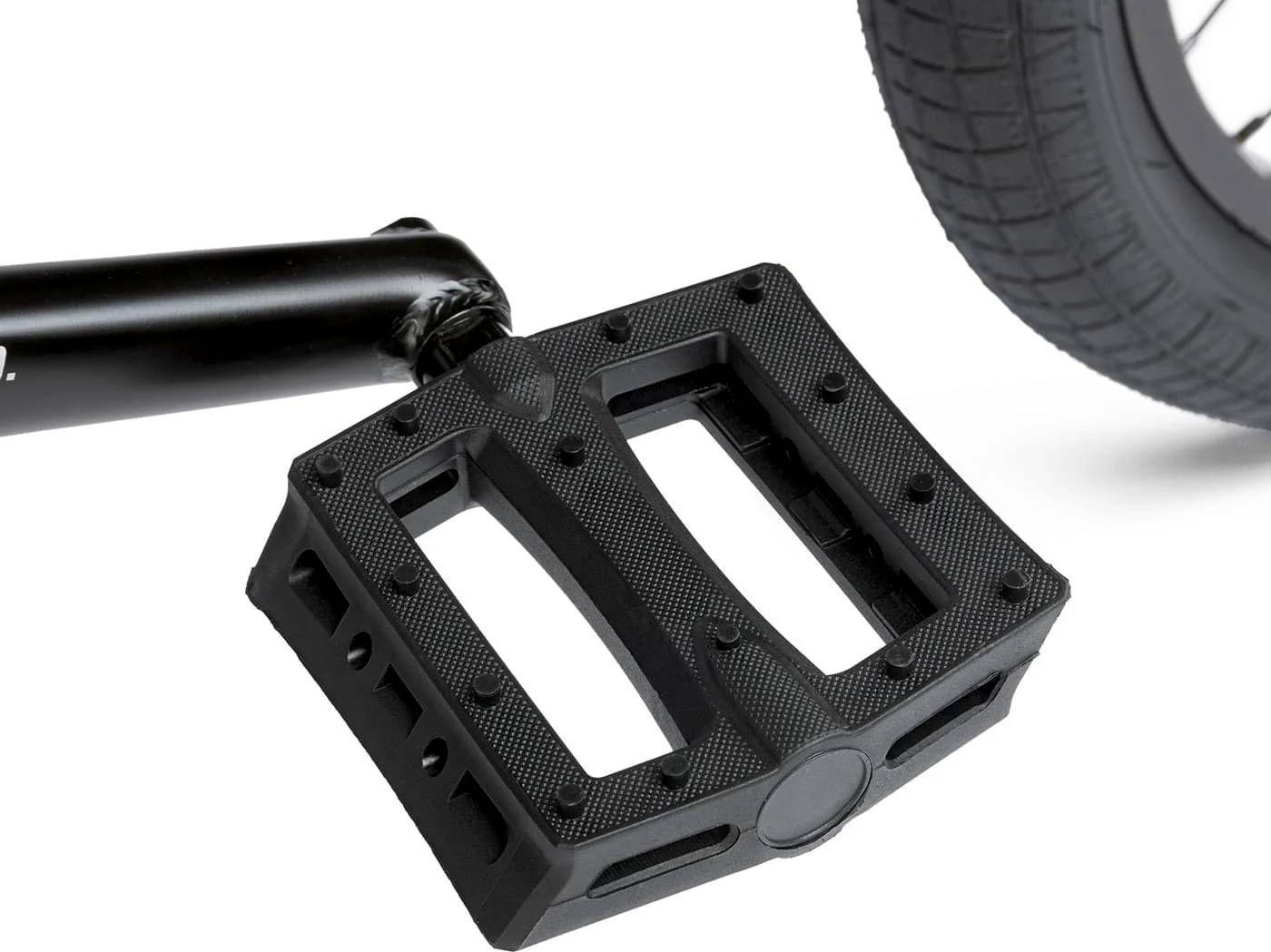

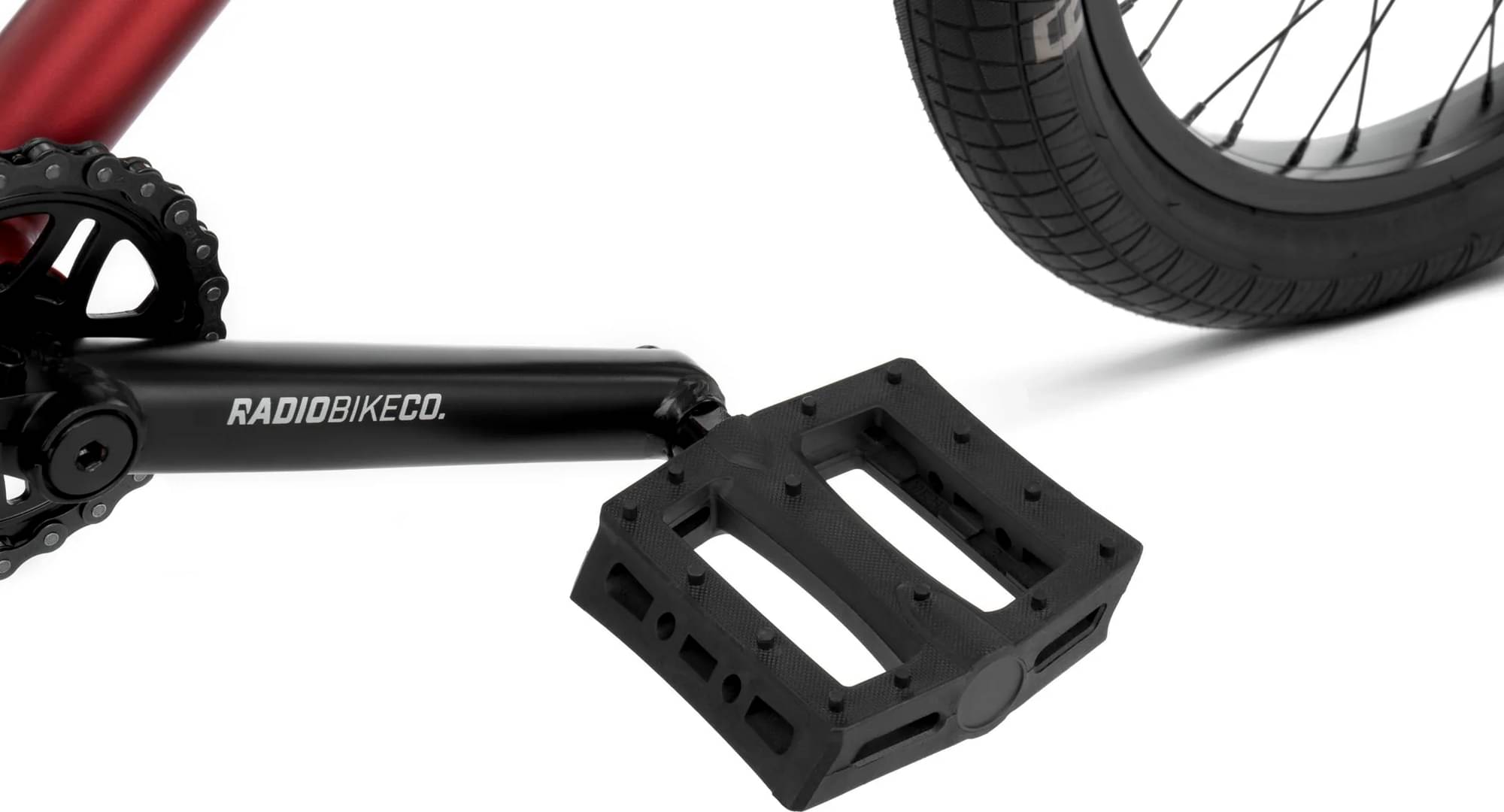

Pedals
RADIO “PRO” Nylon Fibreglass Pedals
Wheels

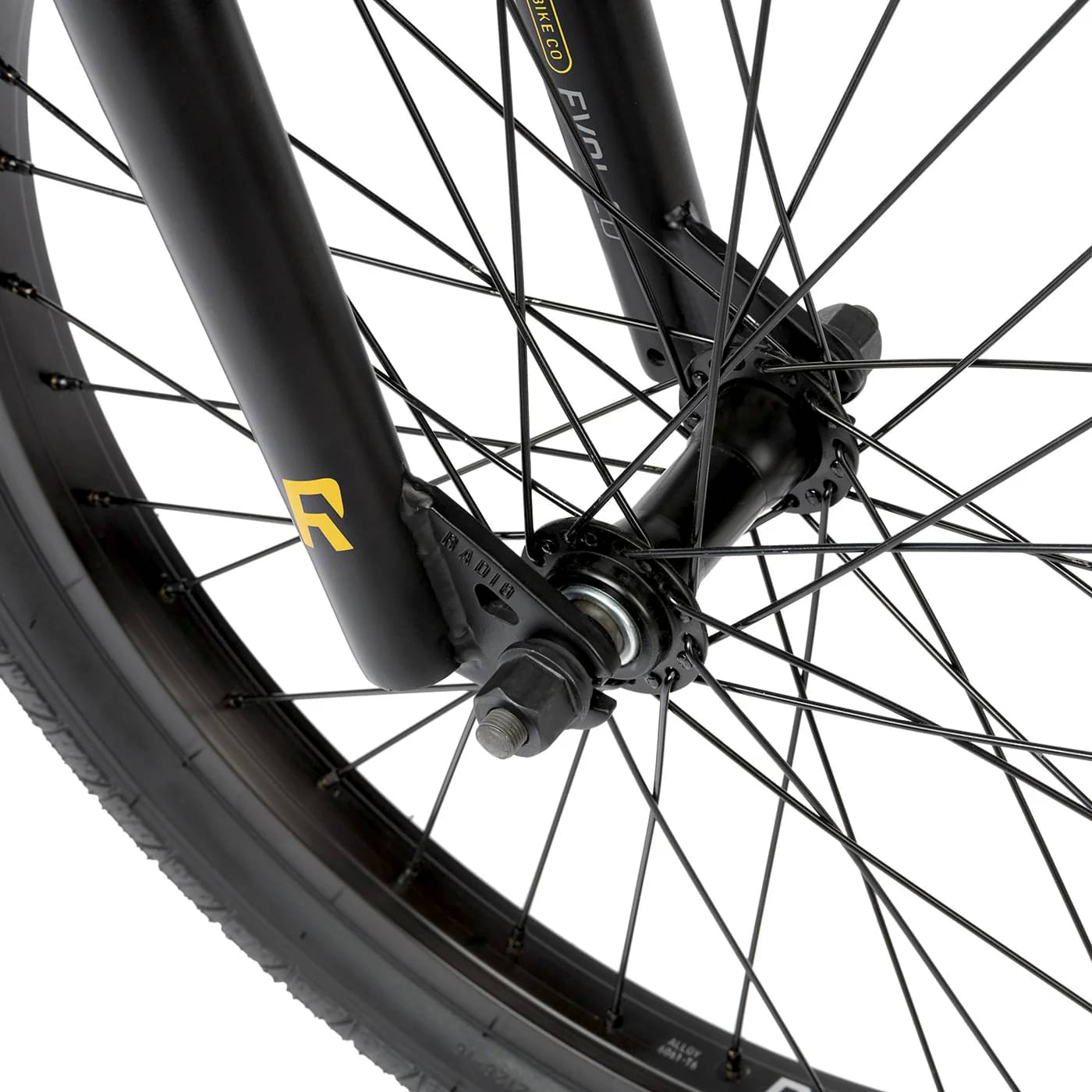

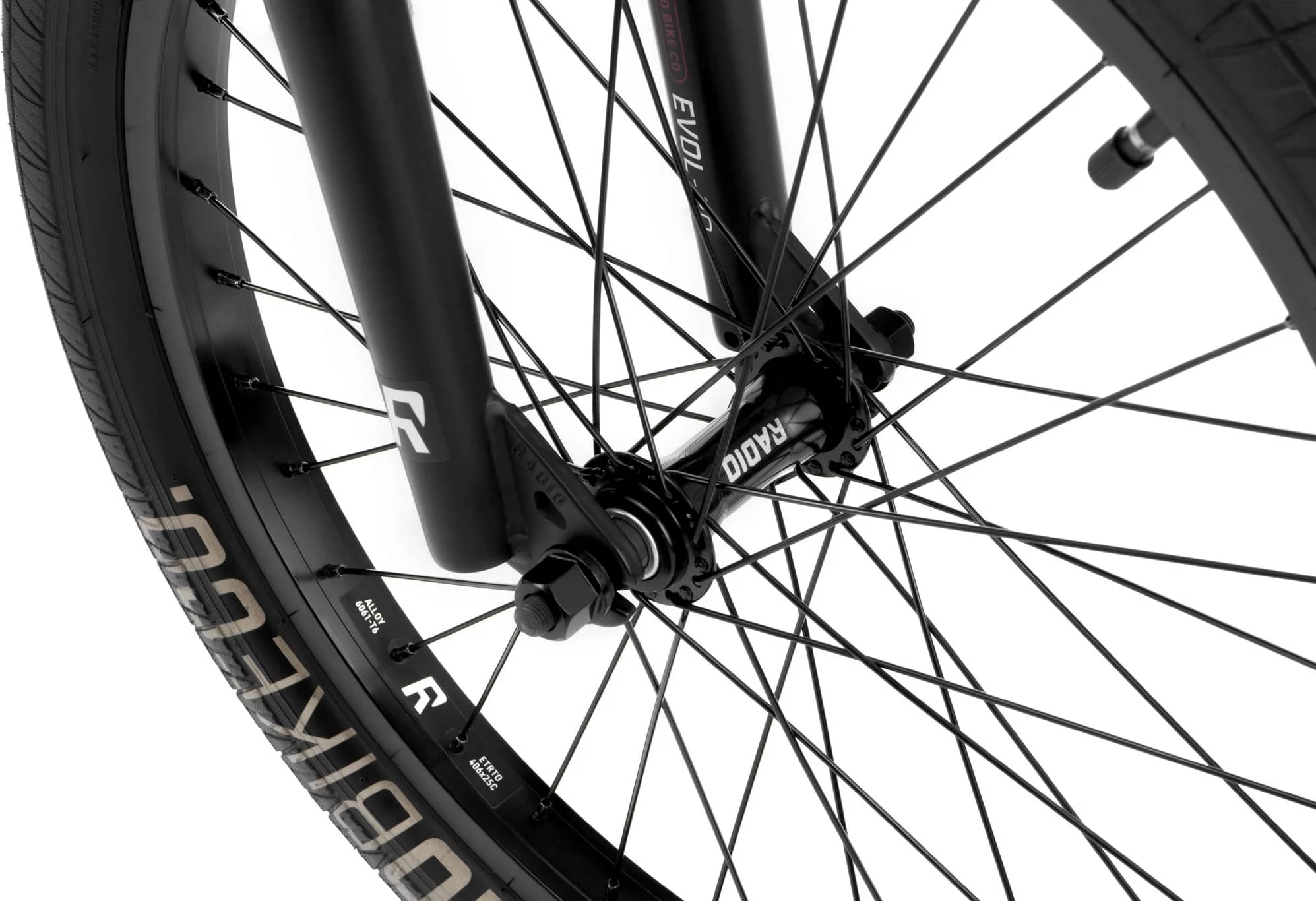

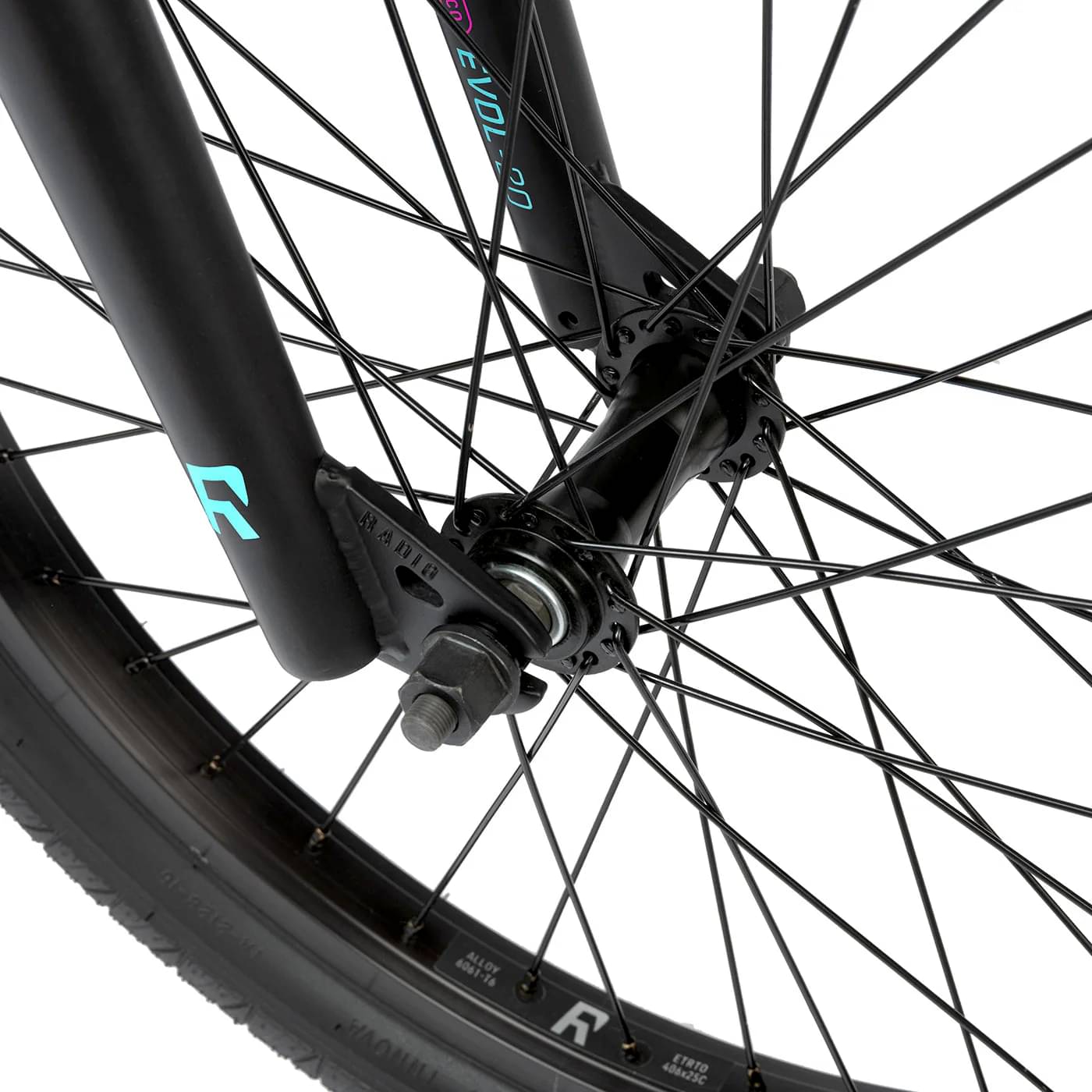

Front Hub
RADIO “Rookie” steel hub, lb, 3/8?s, 36h

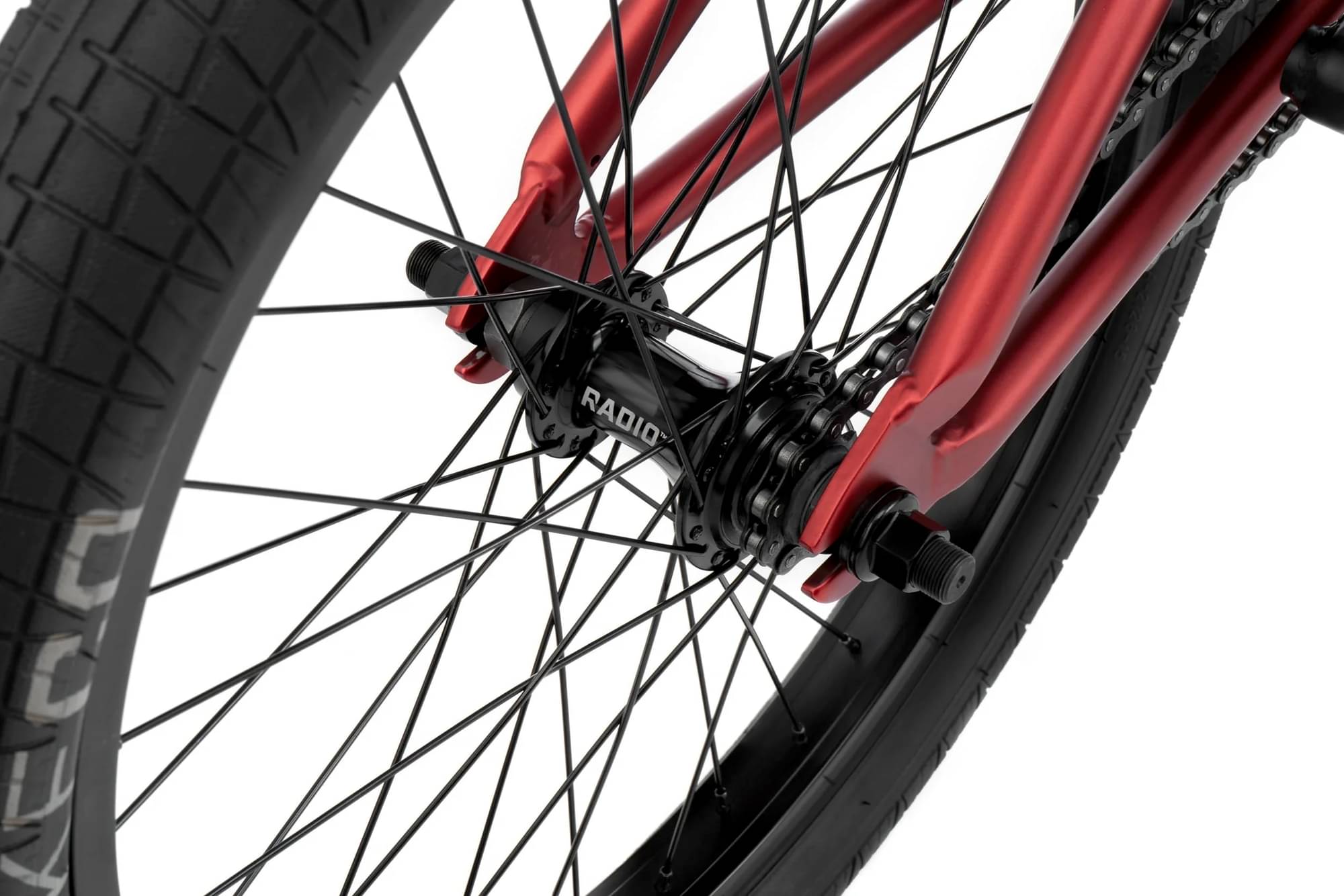

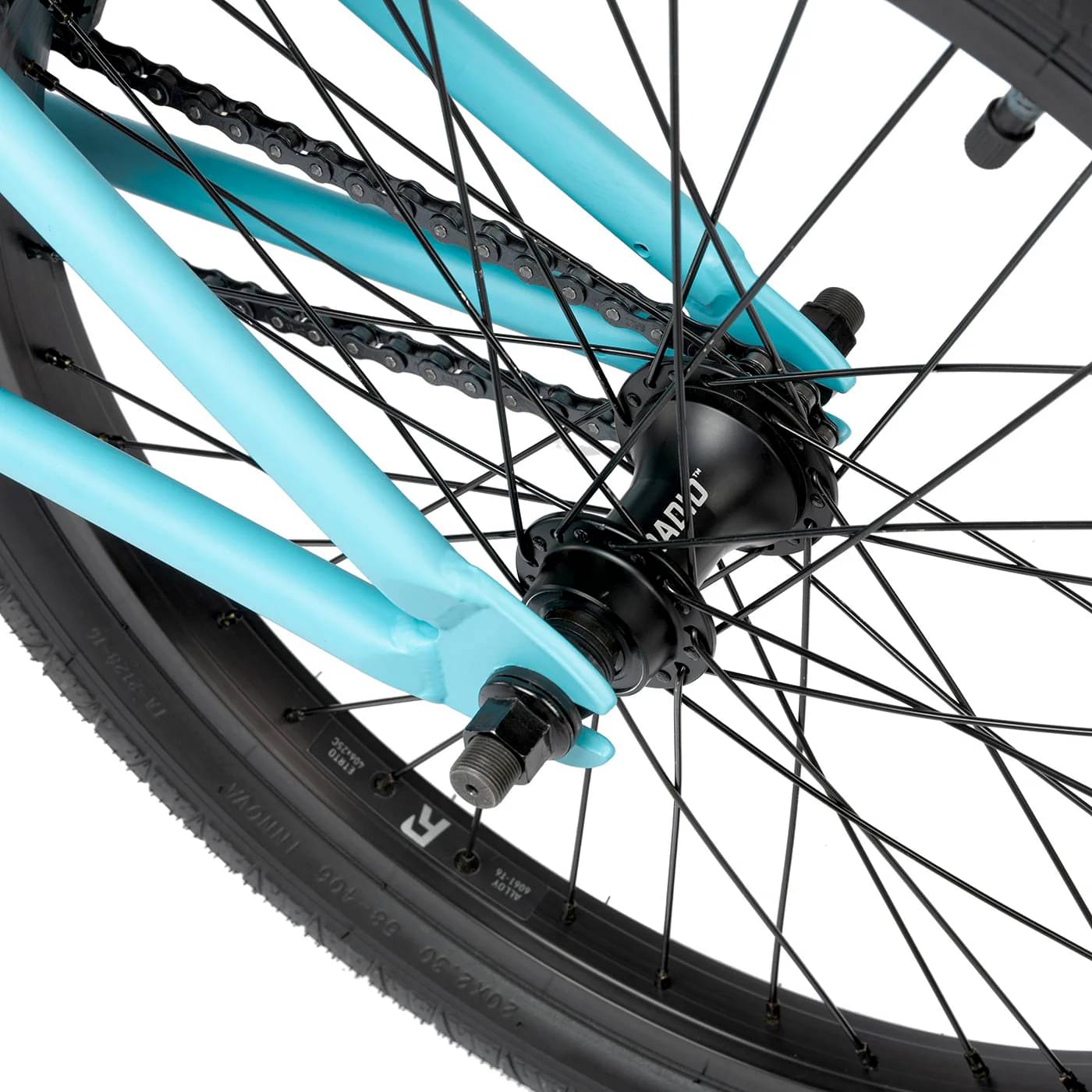

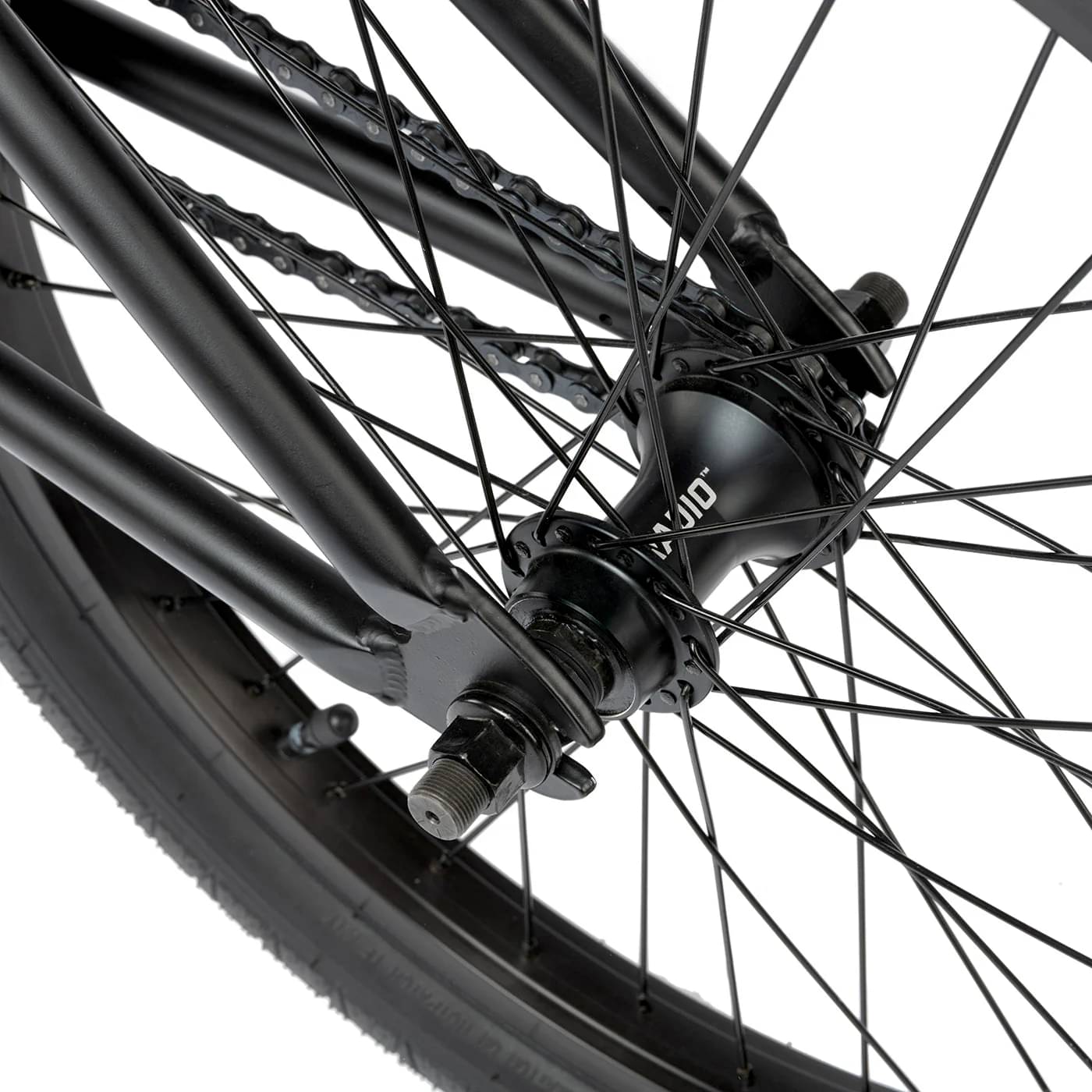

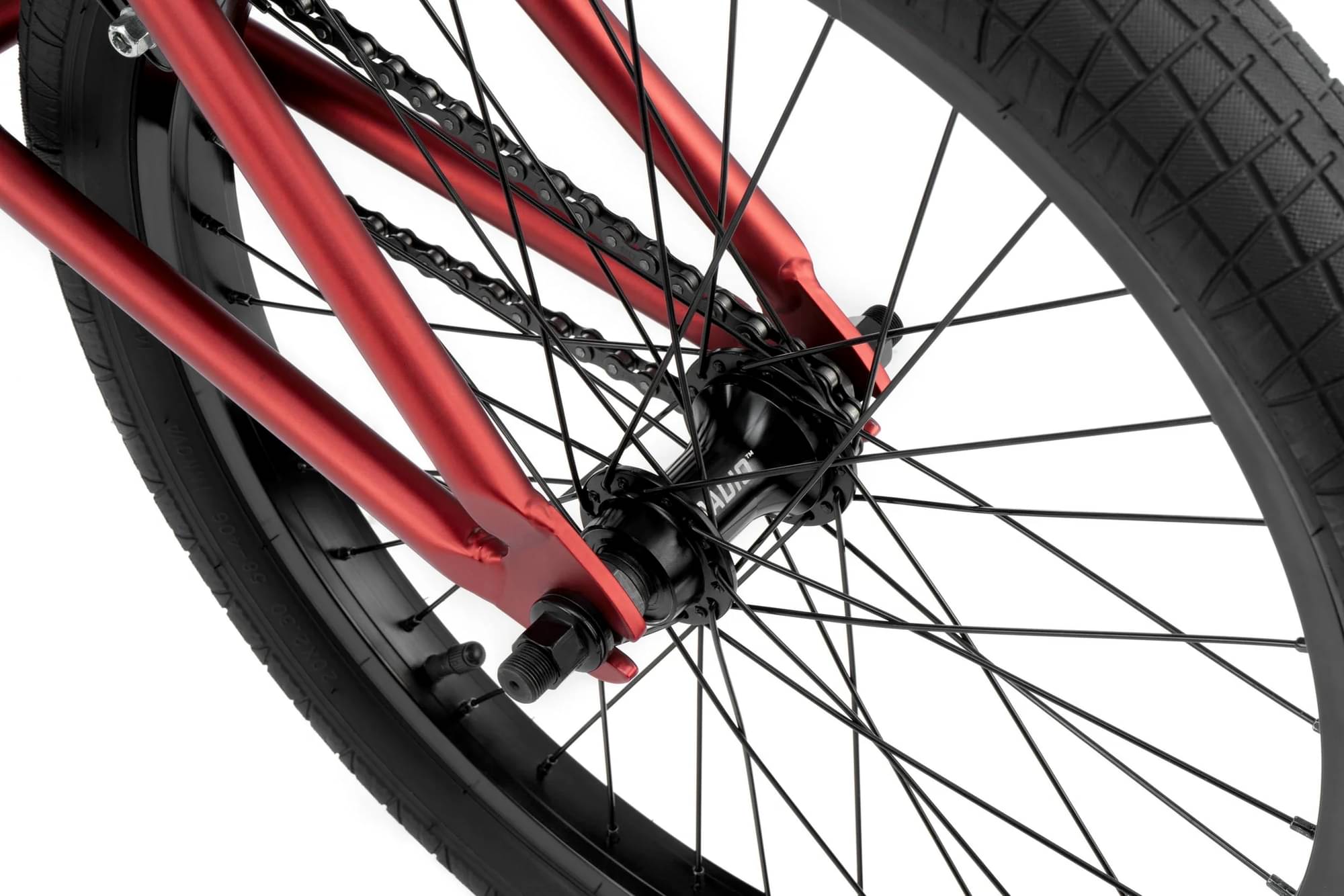

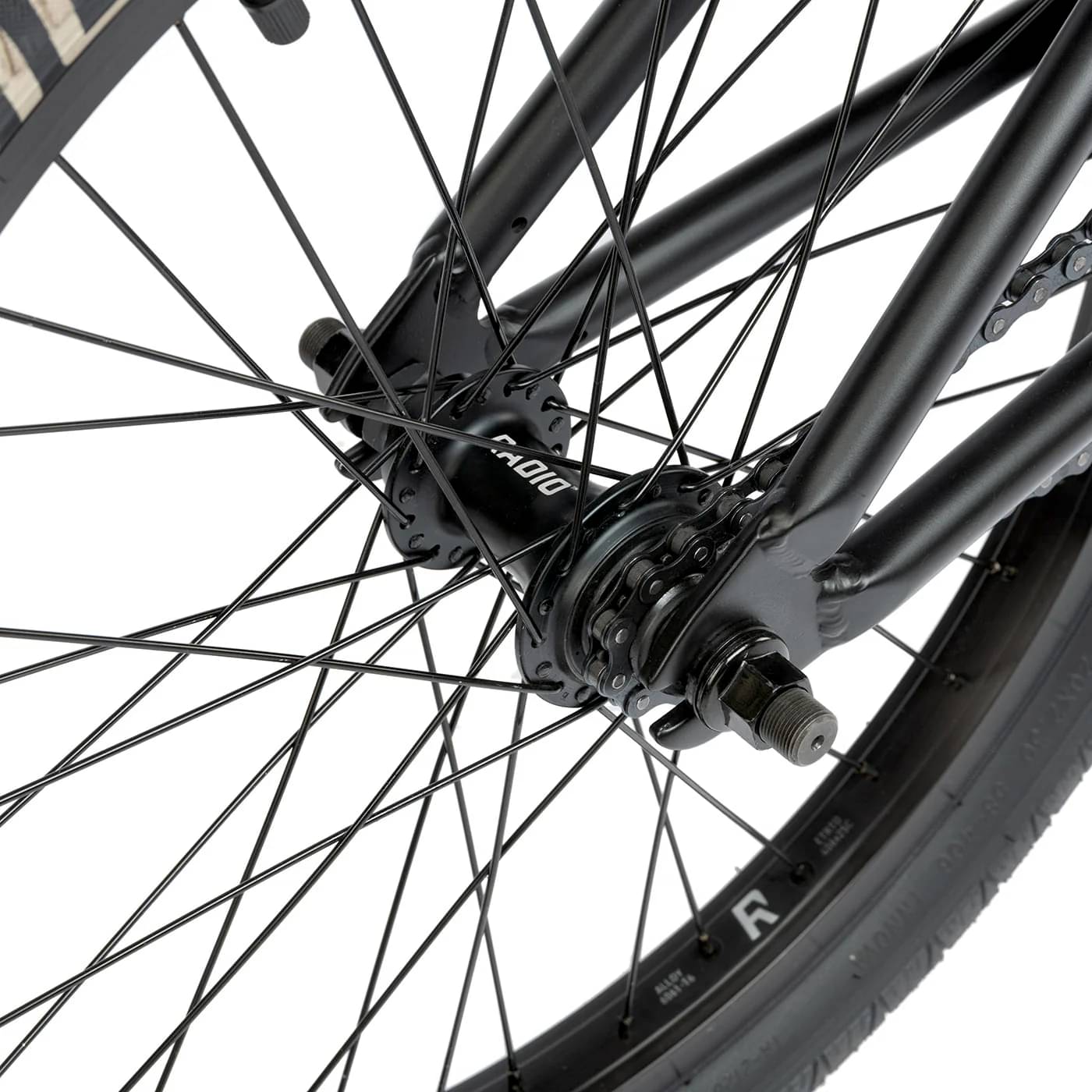

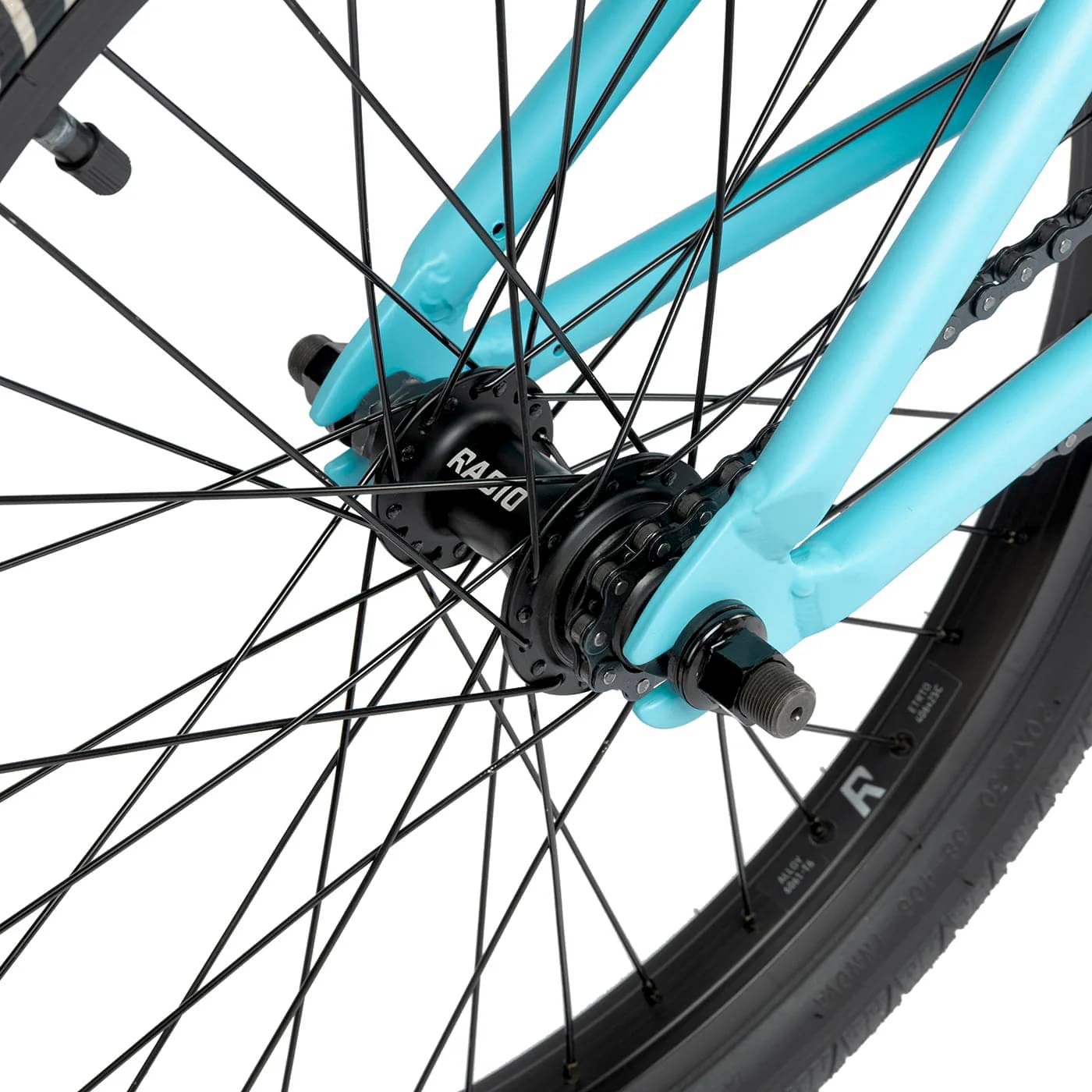

Rear Hub
RADIO “AM” cassette hub, alloy, semi-sealed, 9t, 14mm axle, 36h
Rims
Front: RADIO “ROOKIE” rim, single wall, 36h, Rear: RADIO “ROOKIE” rim, single wall, 36h

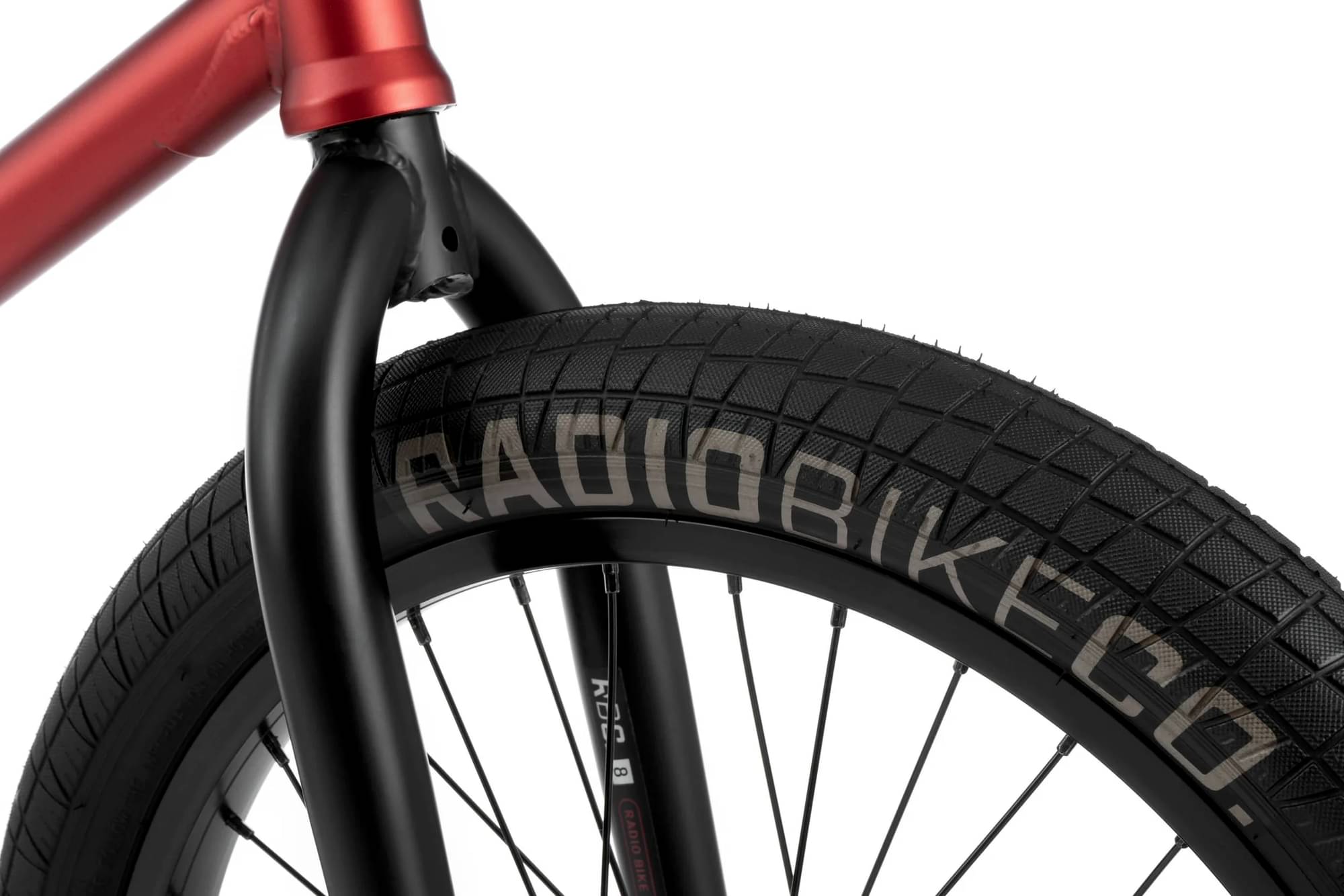

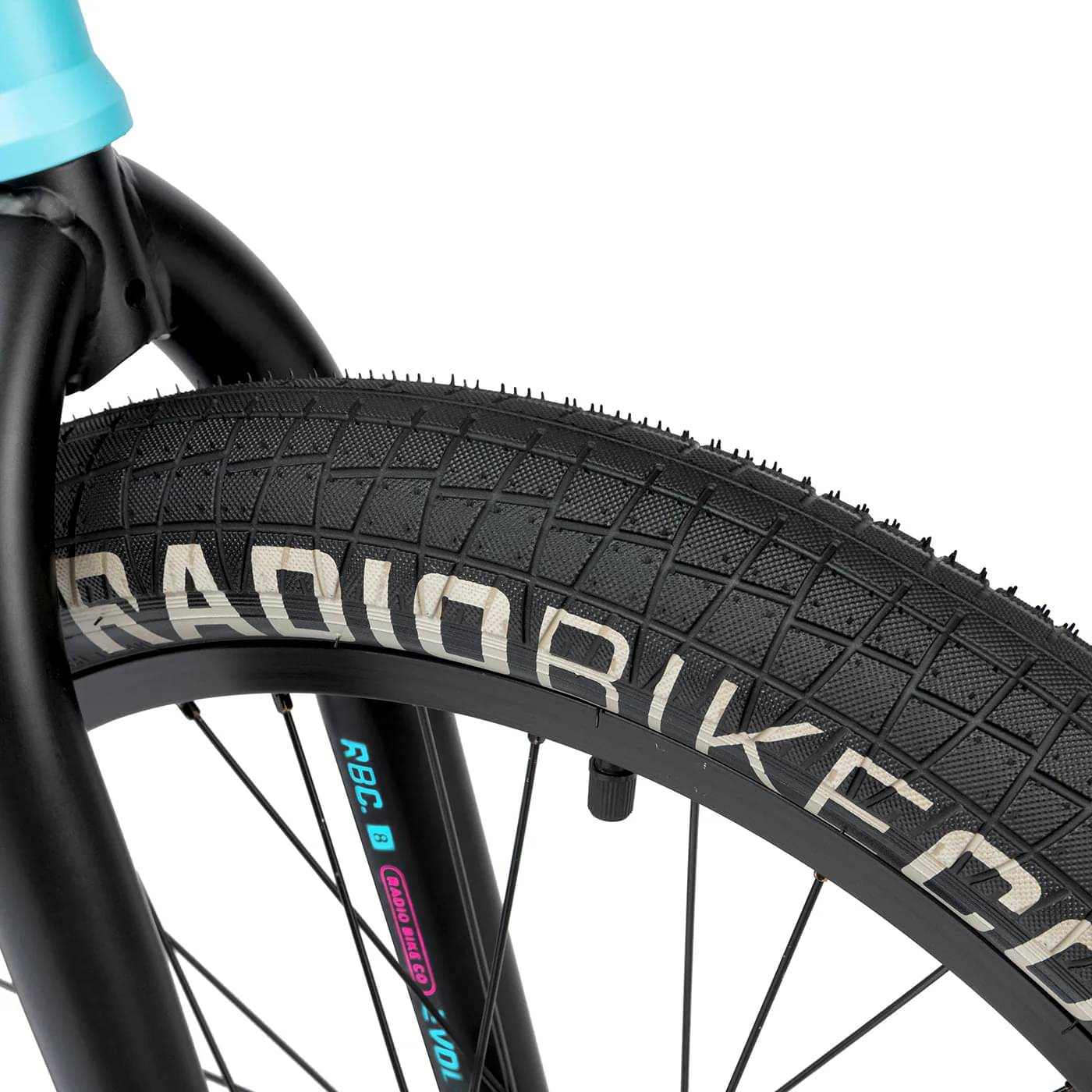

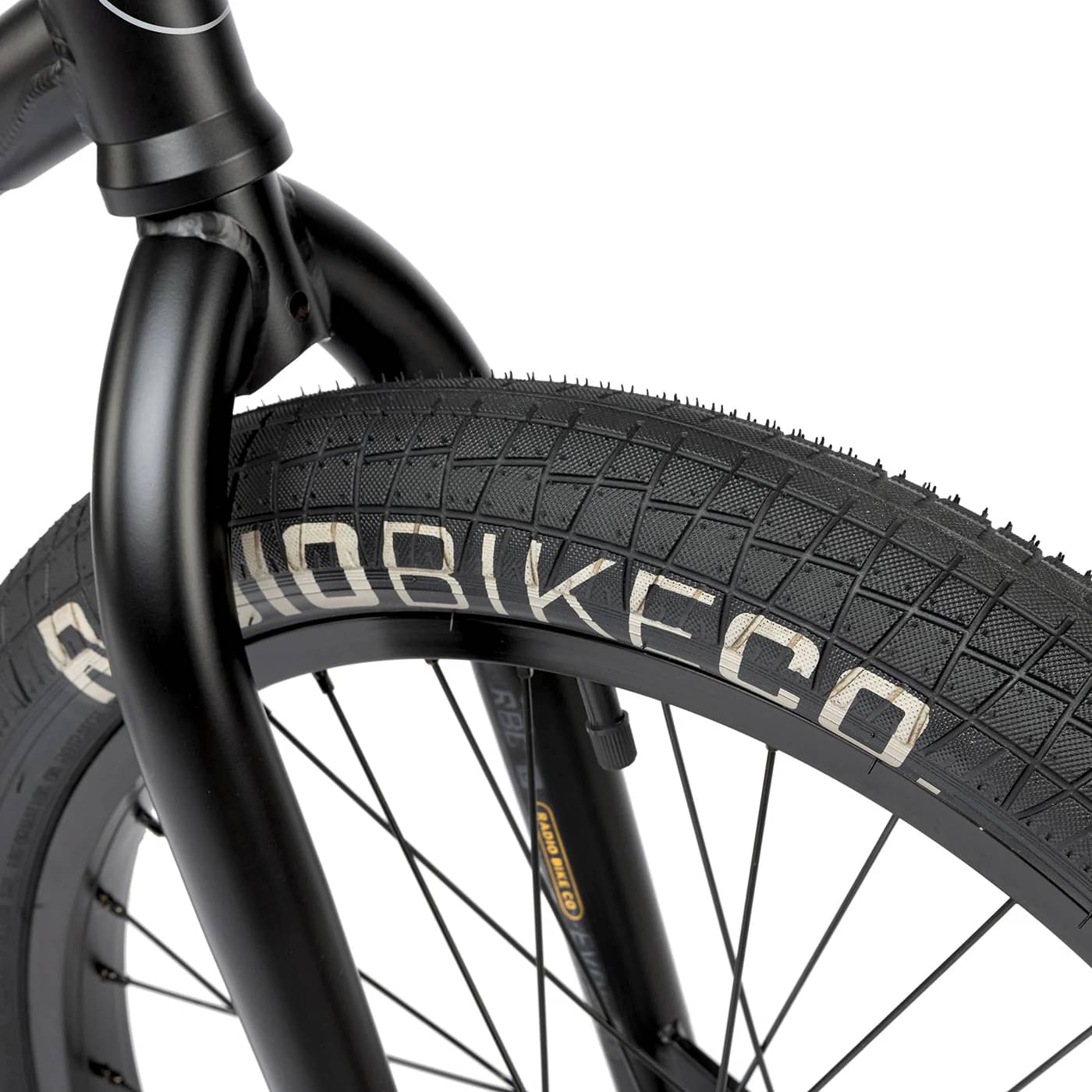

Tires
RADIO “ROOKIE” tires, 2.3? front & rear
Brakes
Brakes
RADIO “AM” alloy u-brake rear
Brake Levers
RADIO “AM” alloy brake lever
Cockpit

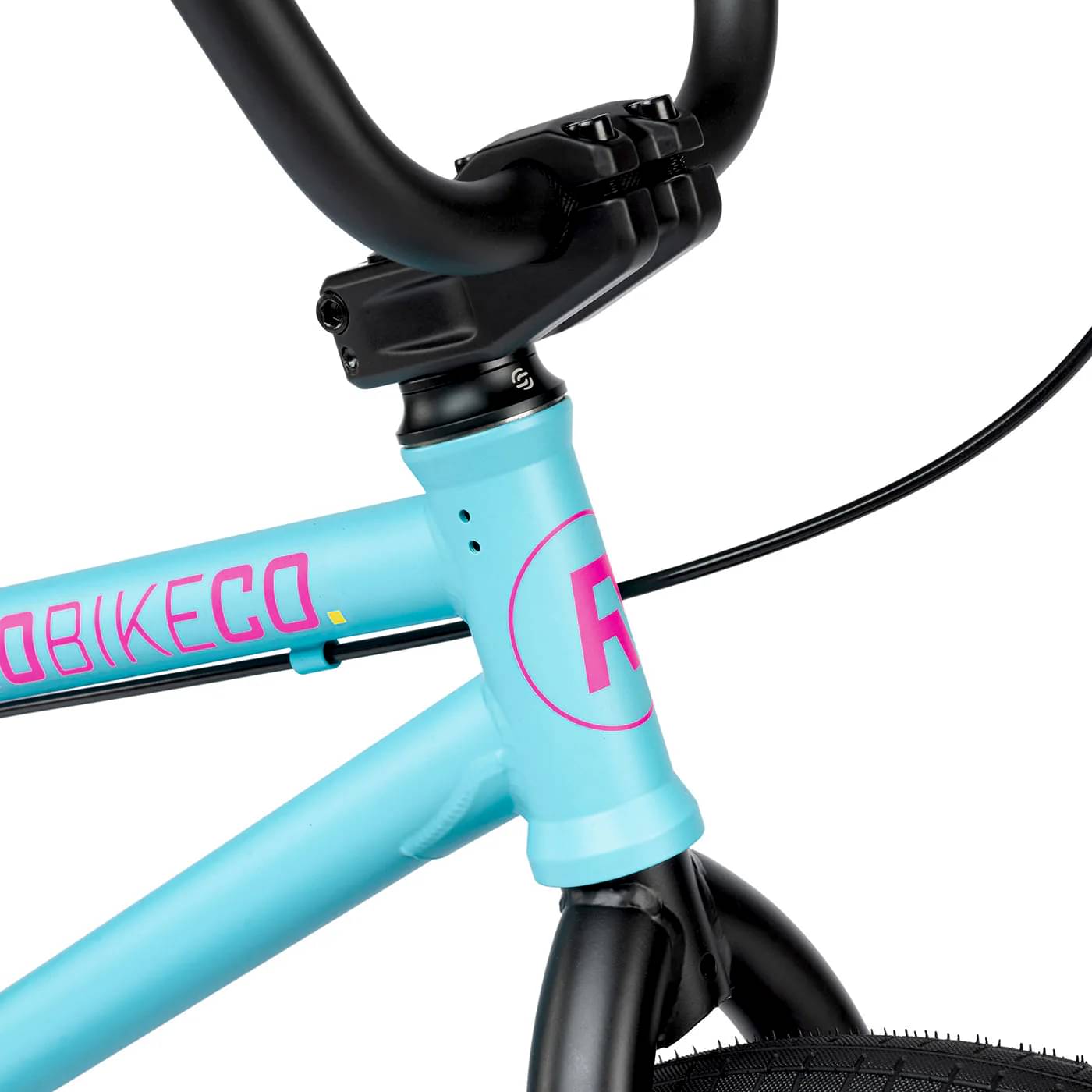

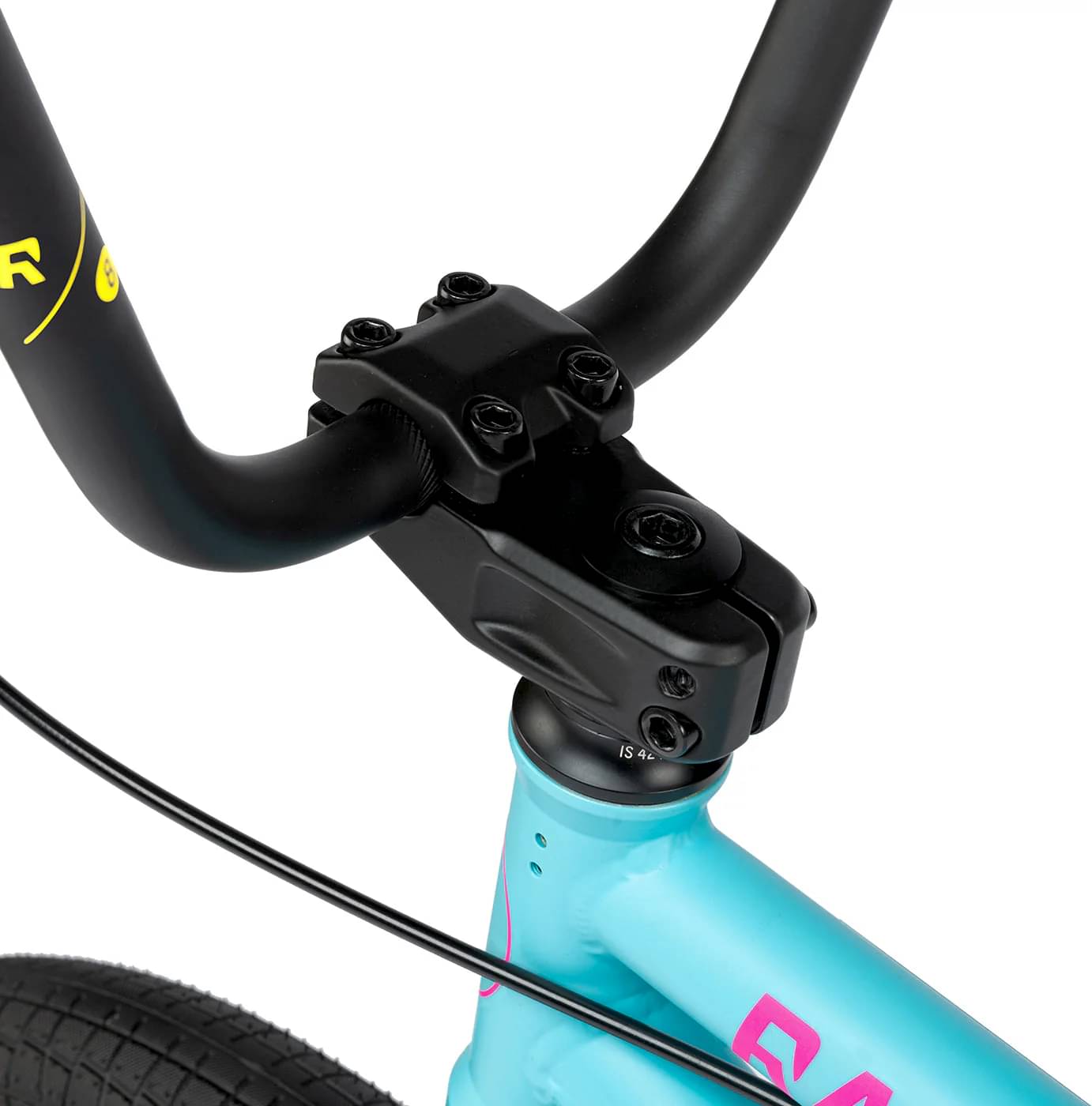

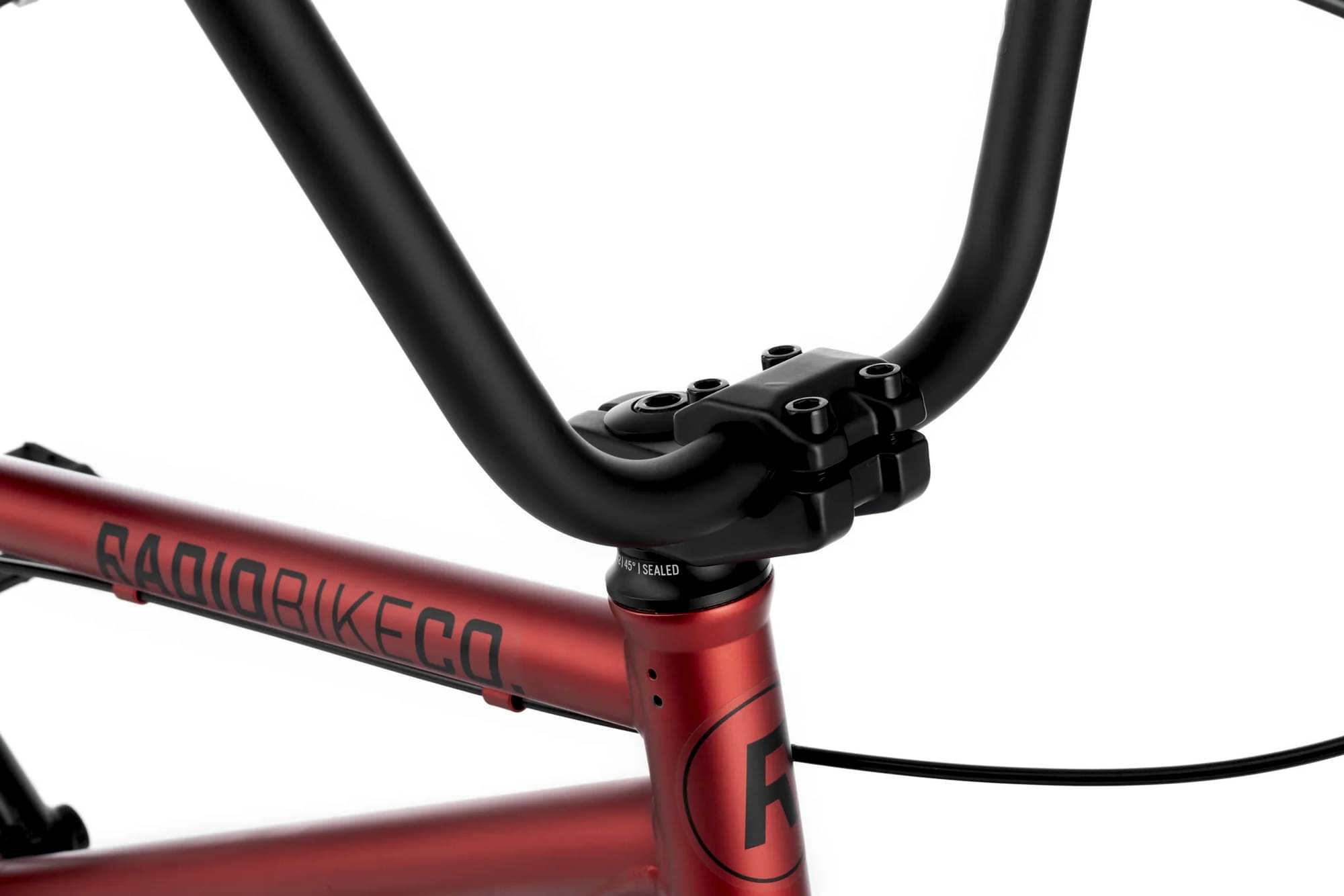

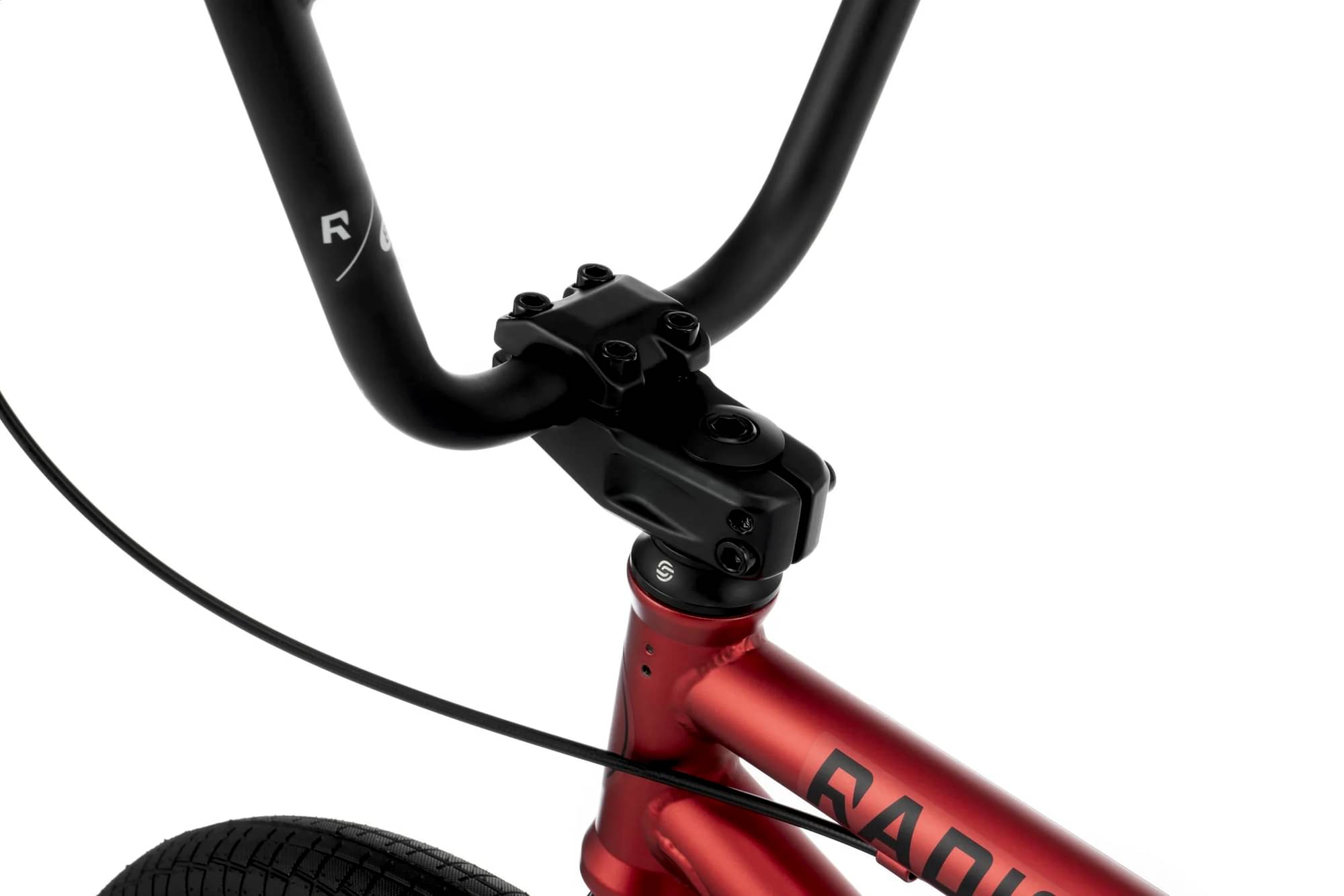

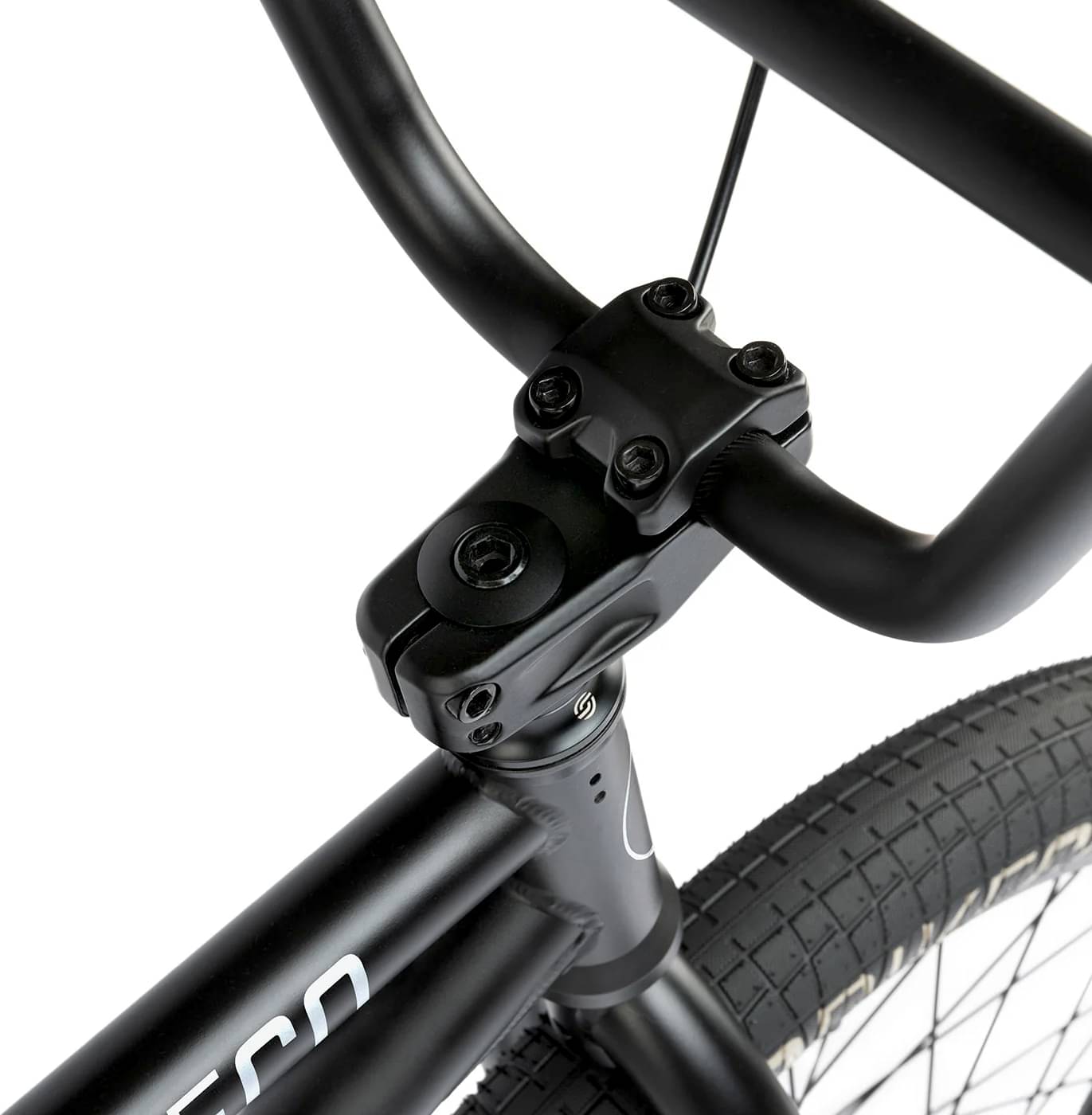

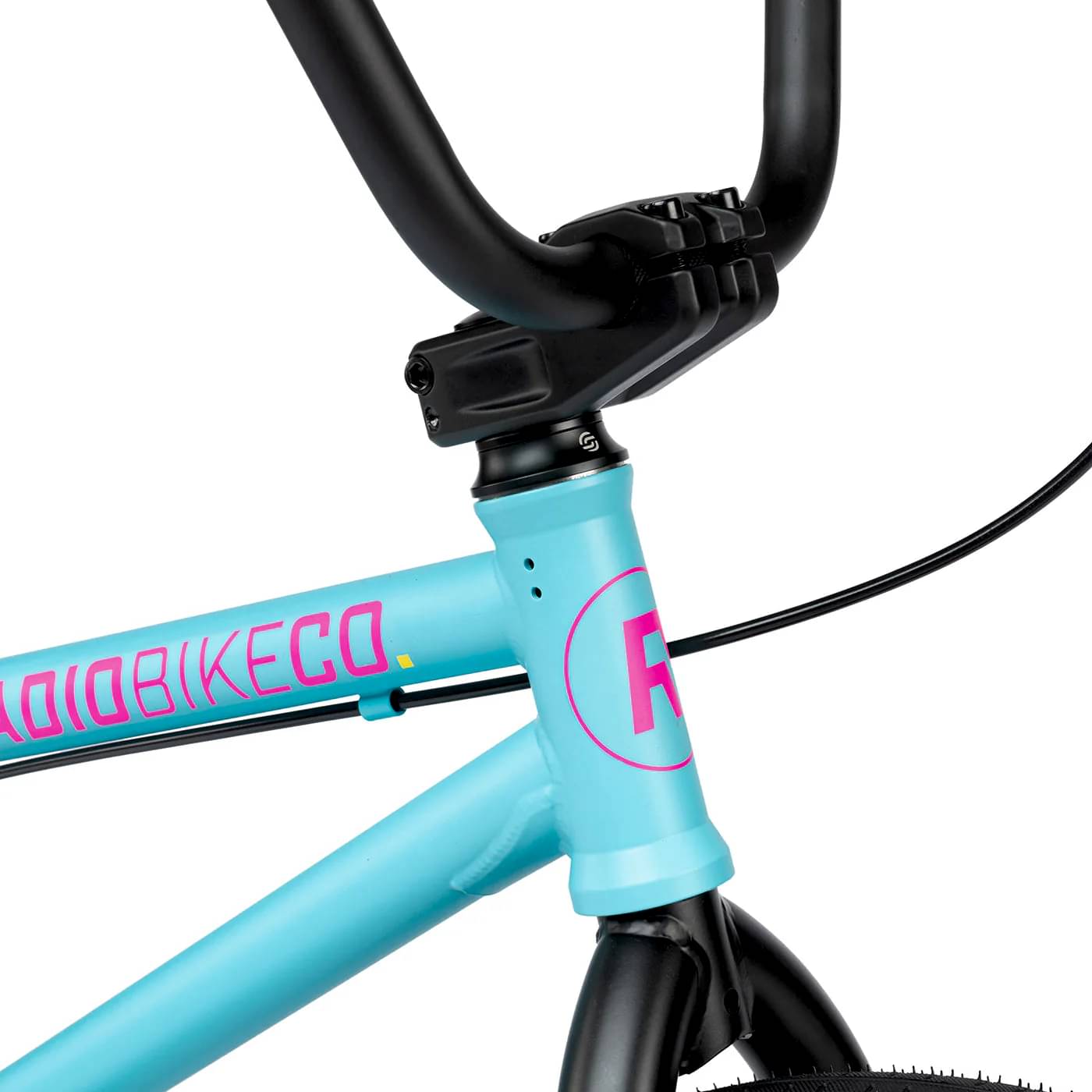

Stem
RADIO “AM” topload stem, 50mm reach

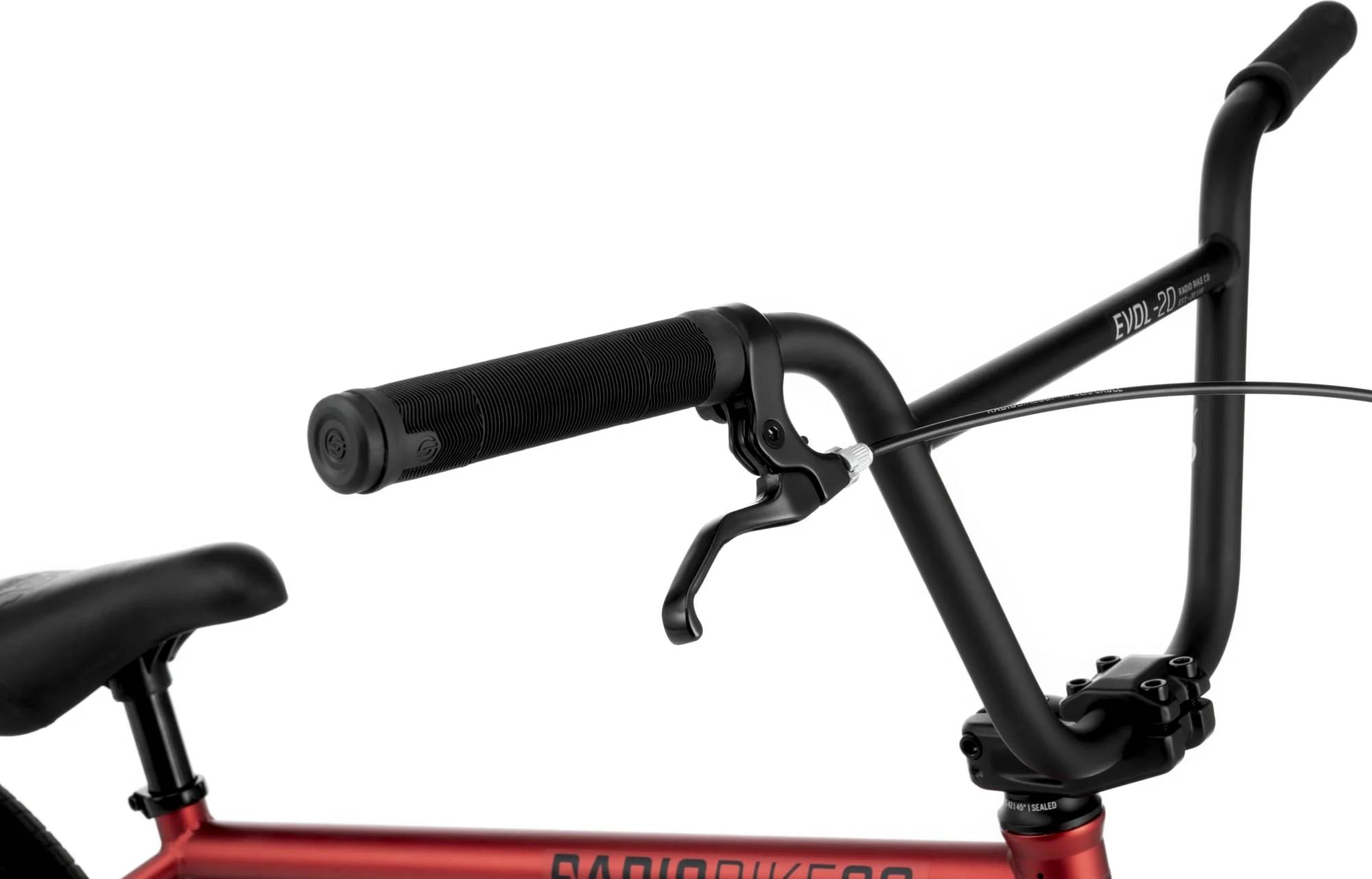

Handlebar
RADIO “AM 20” bar, 1020 hi-ten
Grips
SALT “EX” grips, flangless, 155mm
Headset
SALT “PRO” integ. headset, sealed ball
Seat

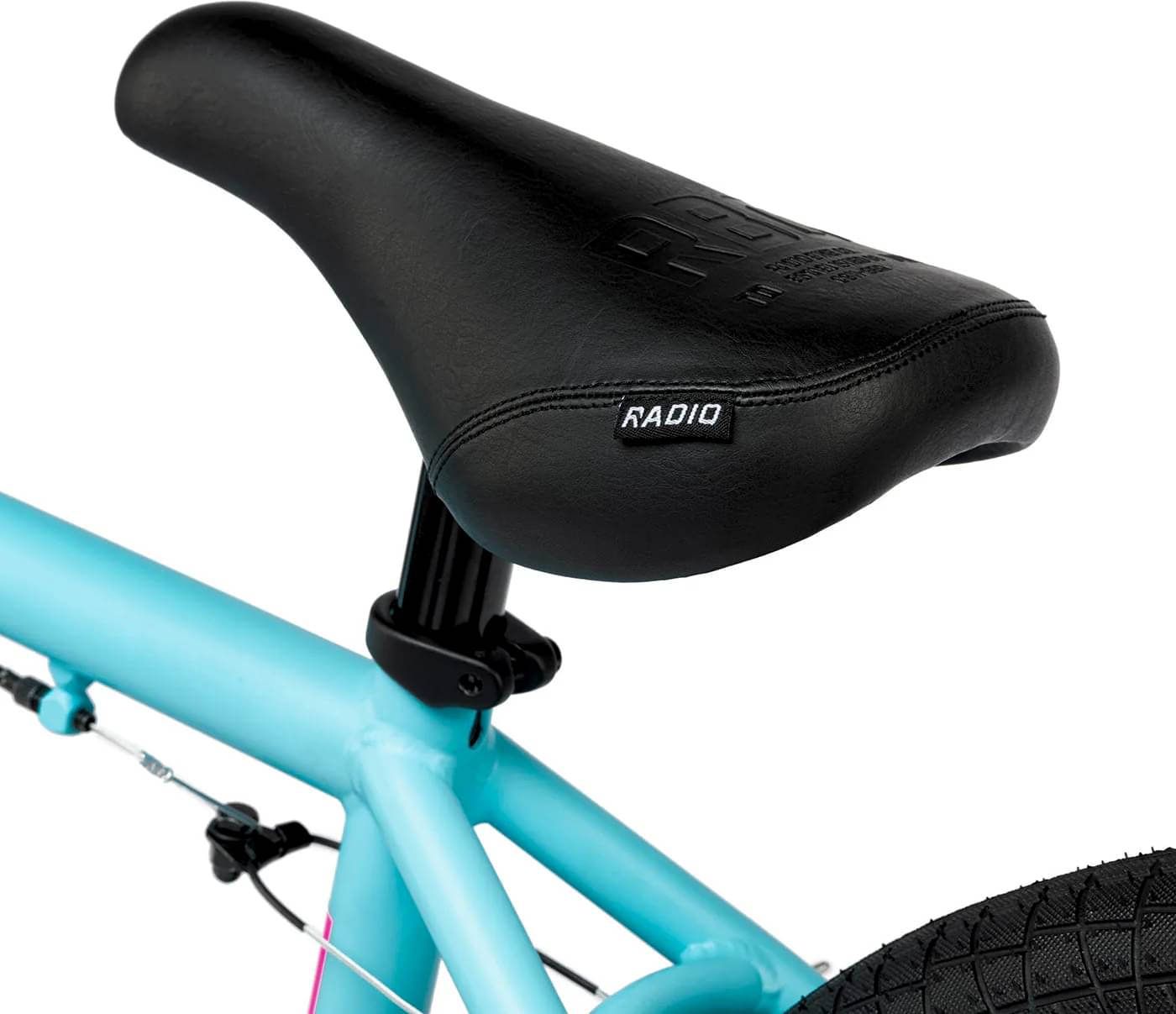

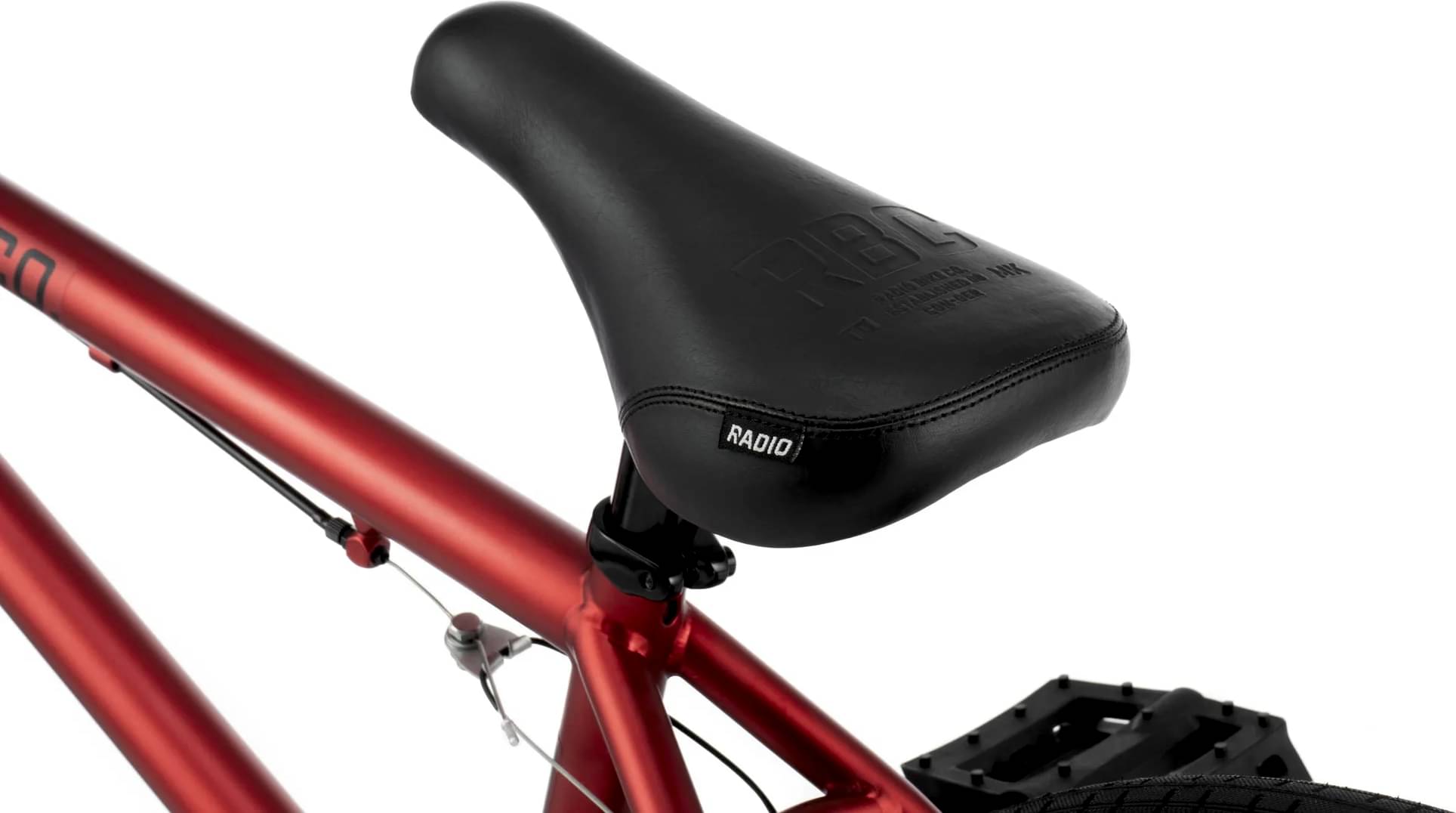

Saddle
RADIO “CENTURY” mid padded combo seat
Seatpost
–
Fit data
Geometry
