Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RST OMEGA
-
Suspension Hardtail -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

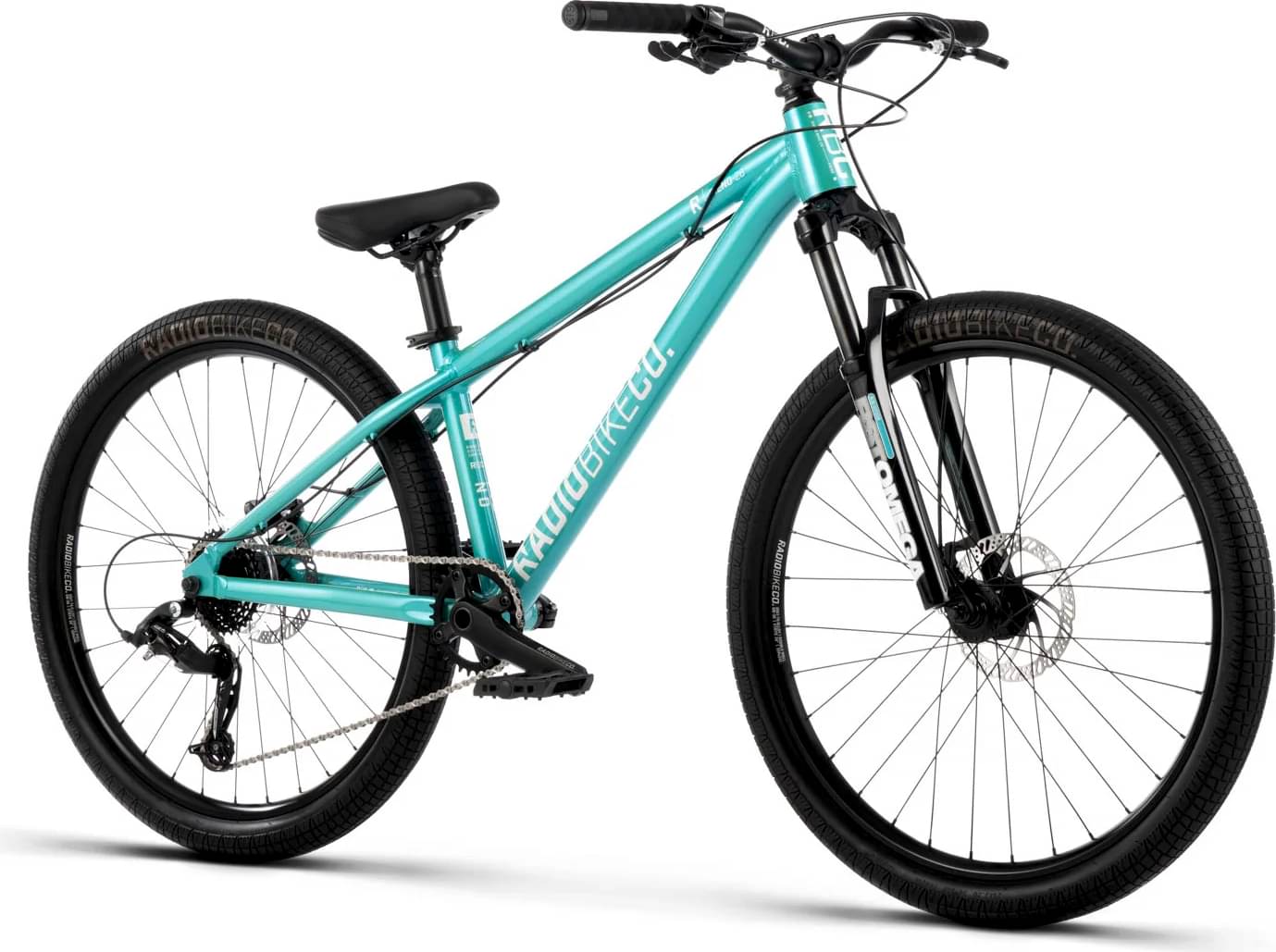

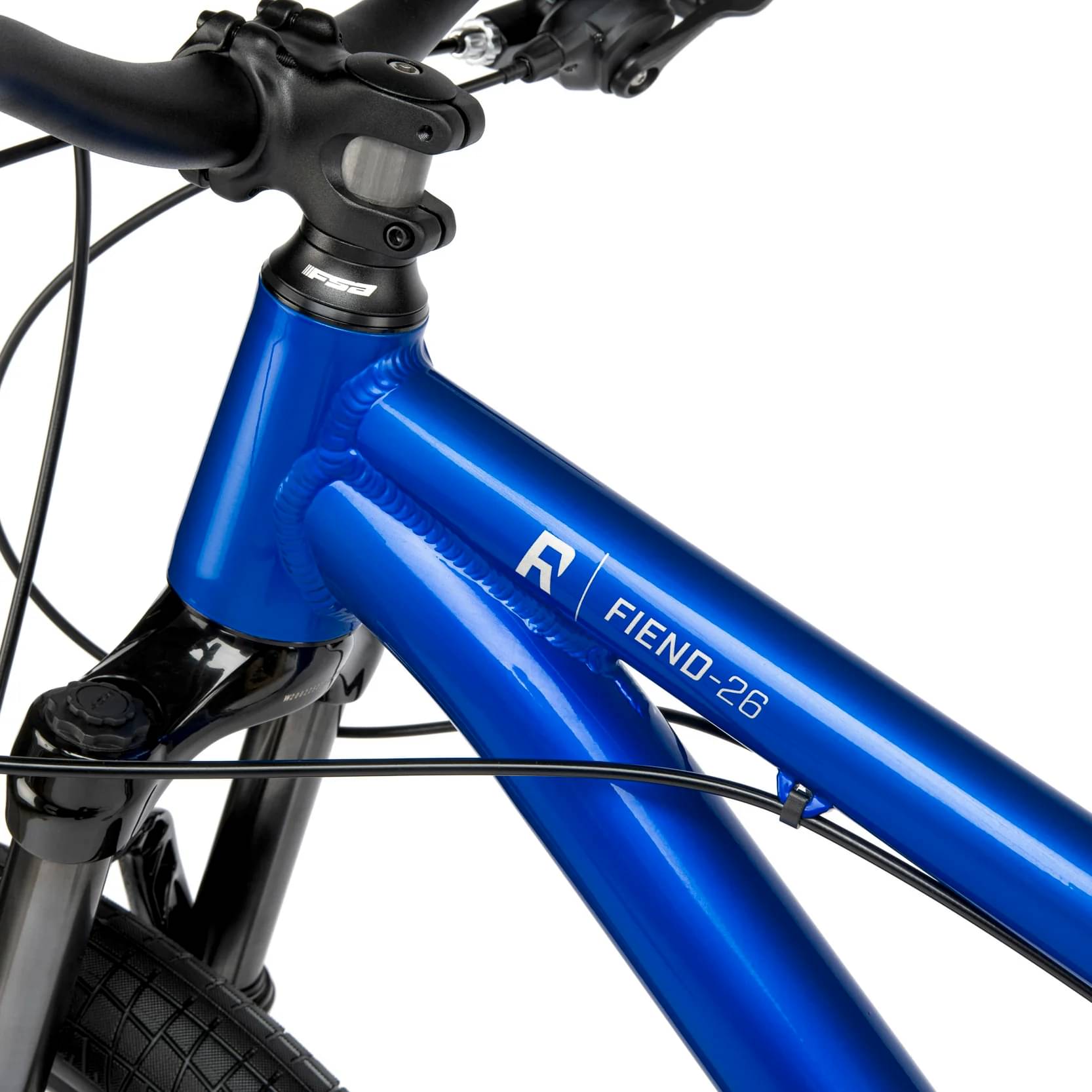

Radio “FIEND” frame 6061-T6 alloy w/ tapered head tube
Suspension Fork

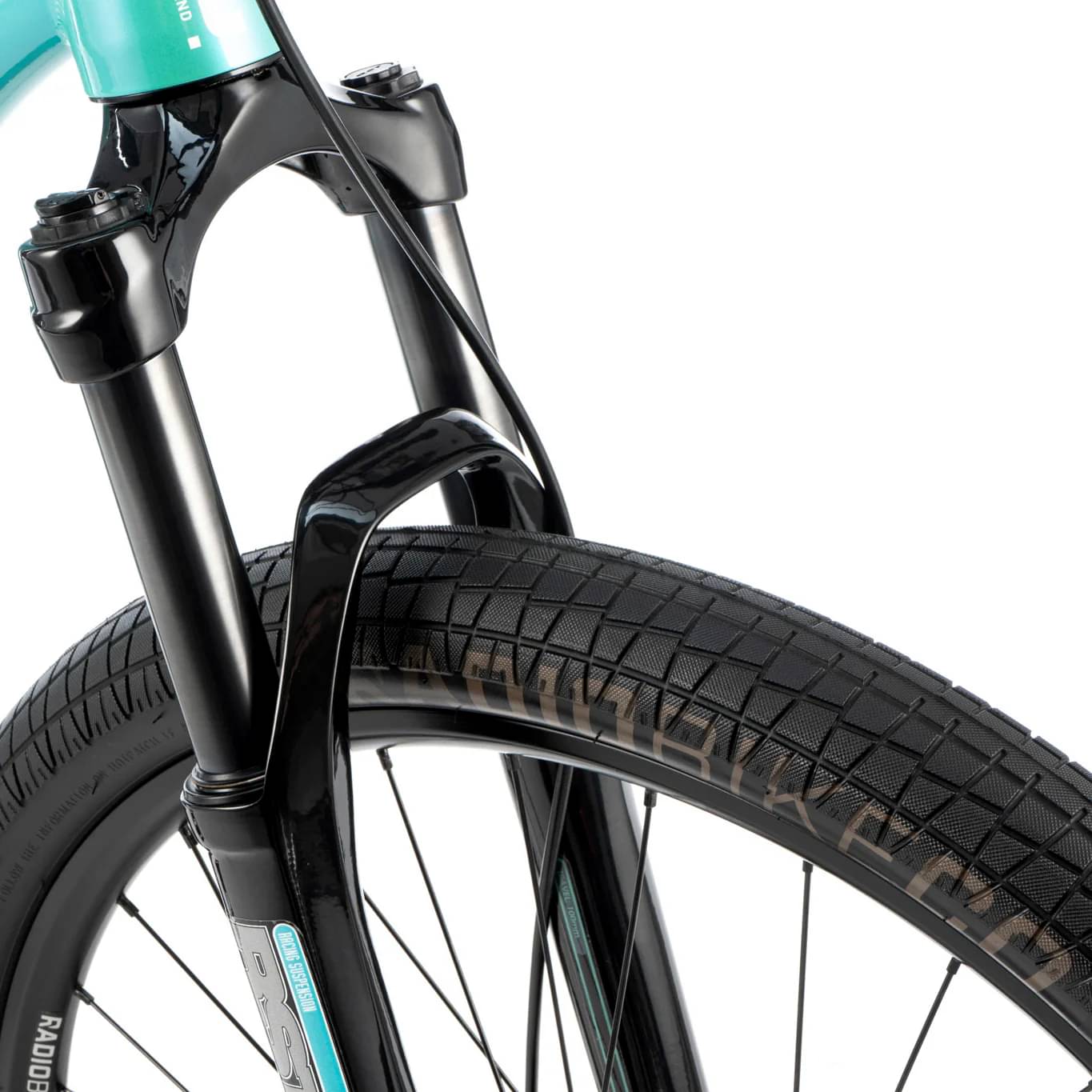

RST “OMEGA T26” fork 100mm travel
Drivetrain

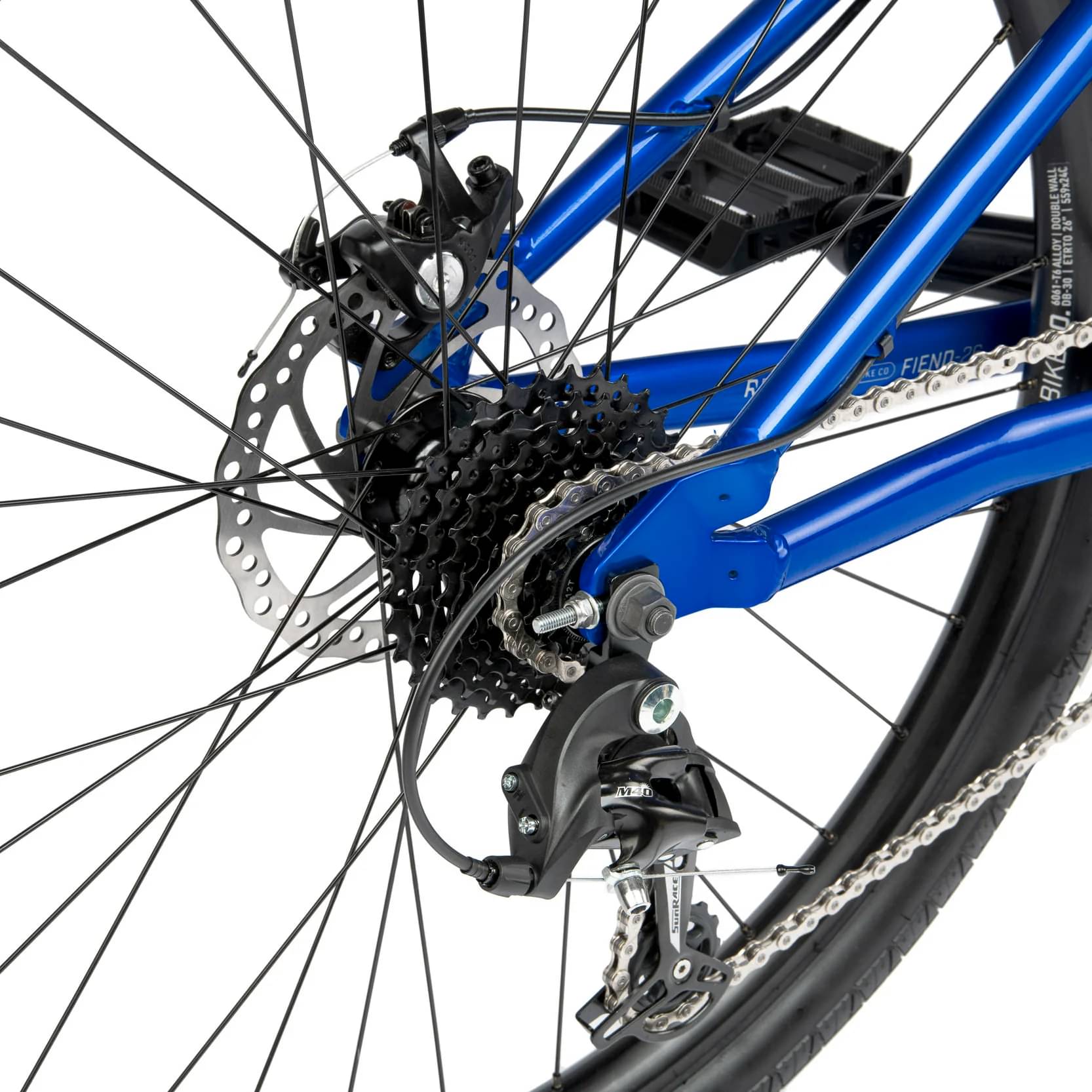

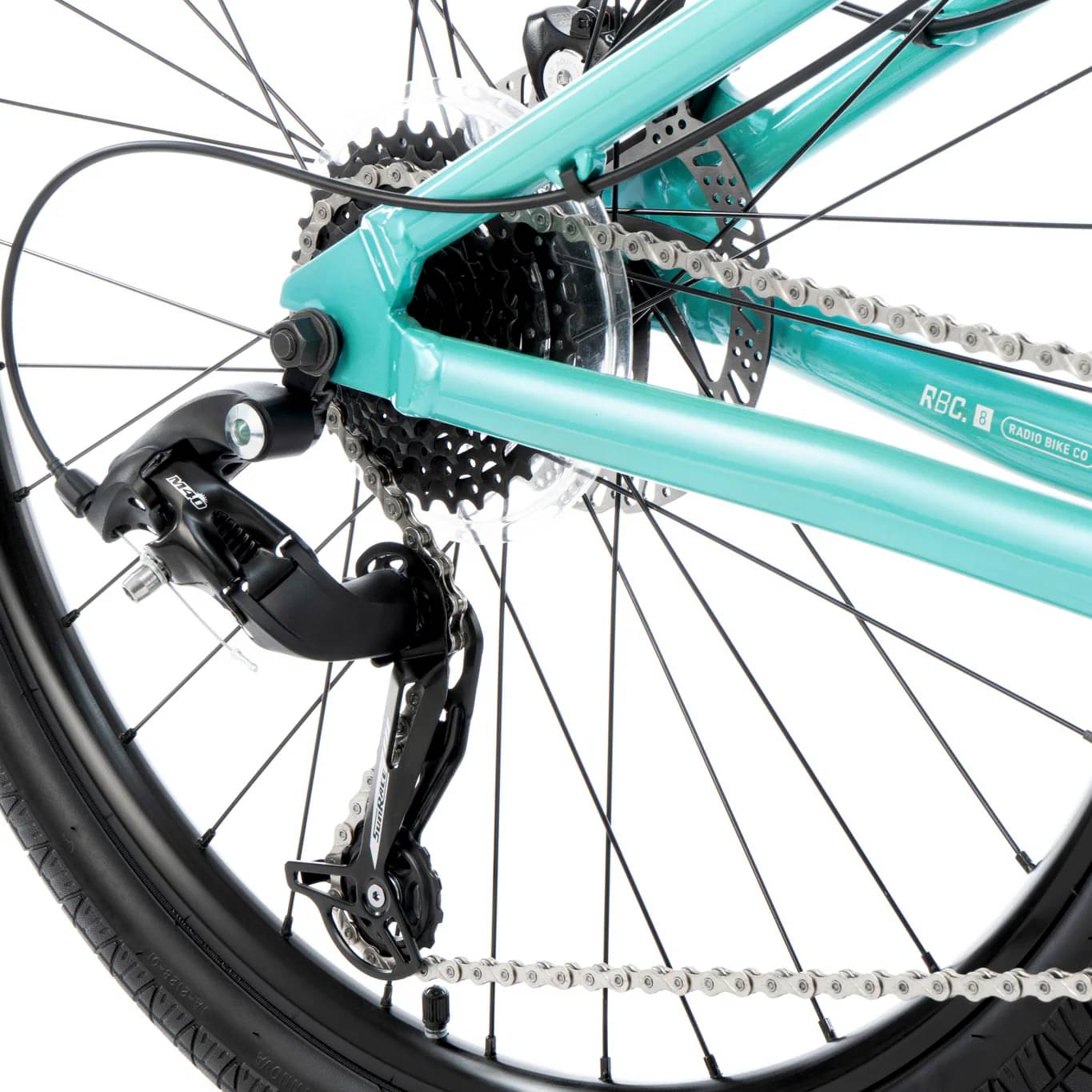

Rear Derailleur
Sun Race M40 Long Cage 8spd
Shift Levers
Sun Race 8spd
Cassette
Radio “AM” steel sprocket 32T

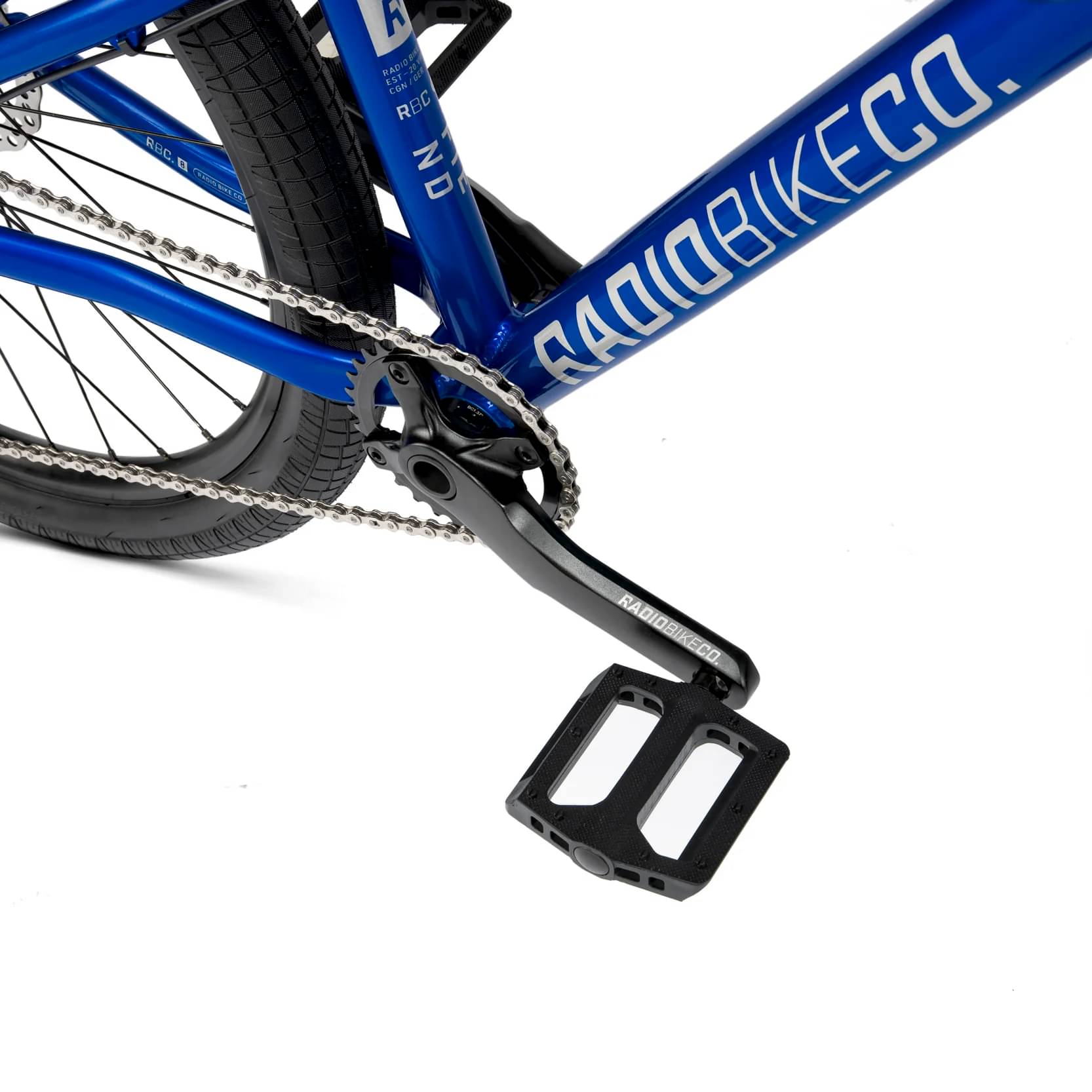

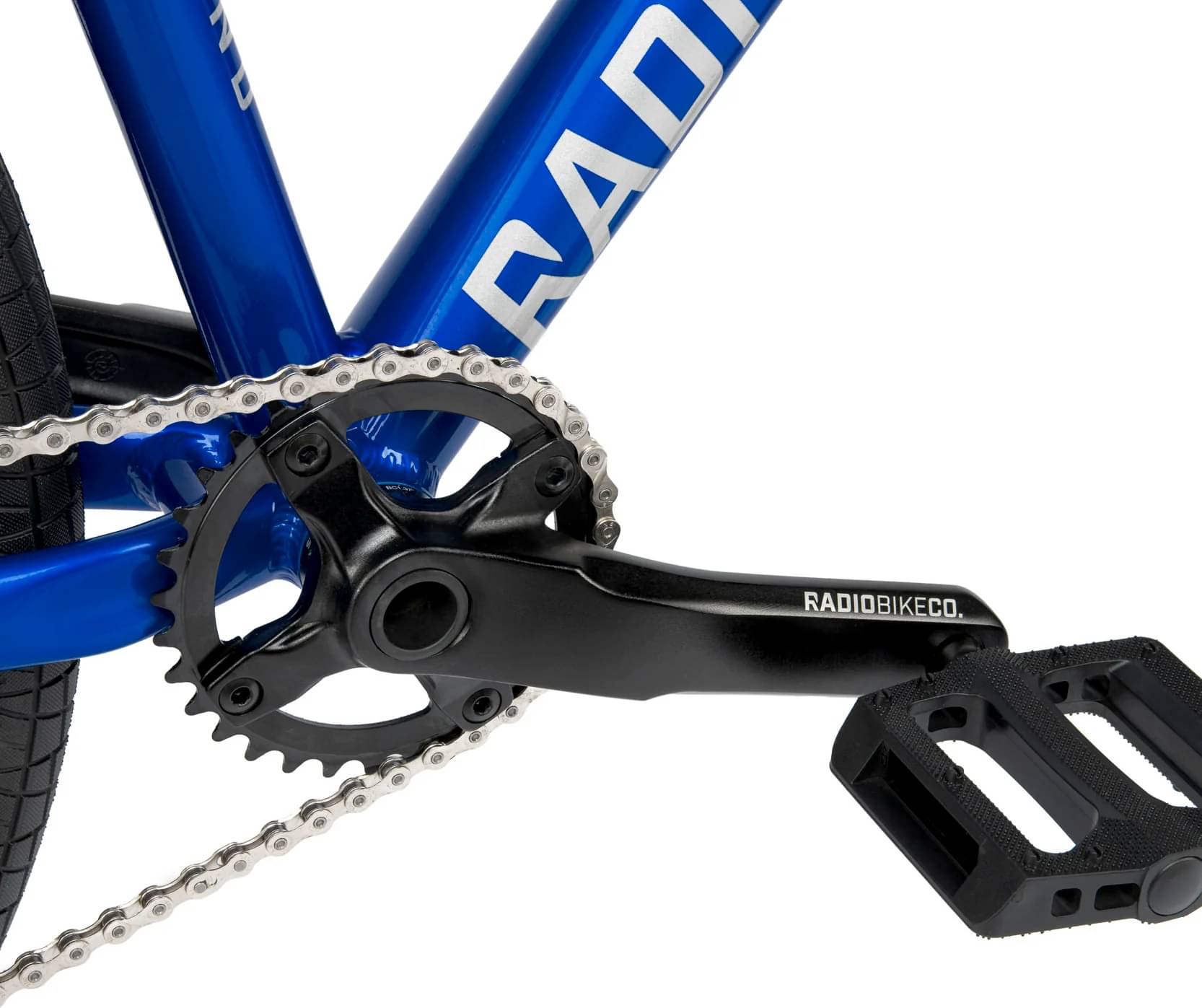

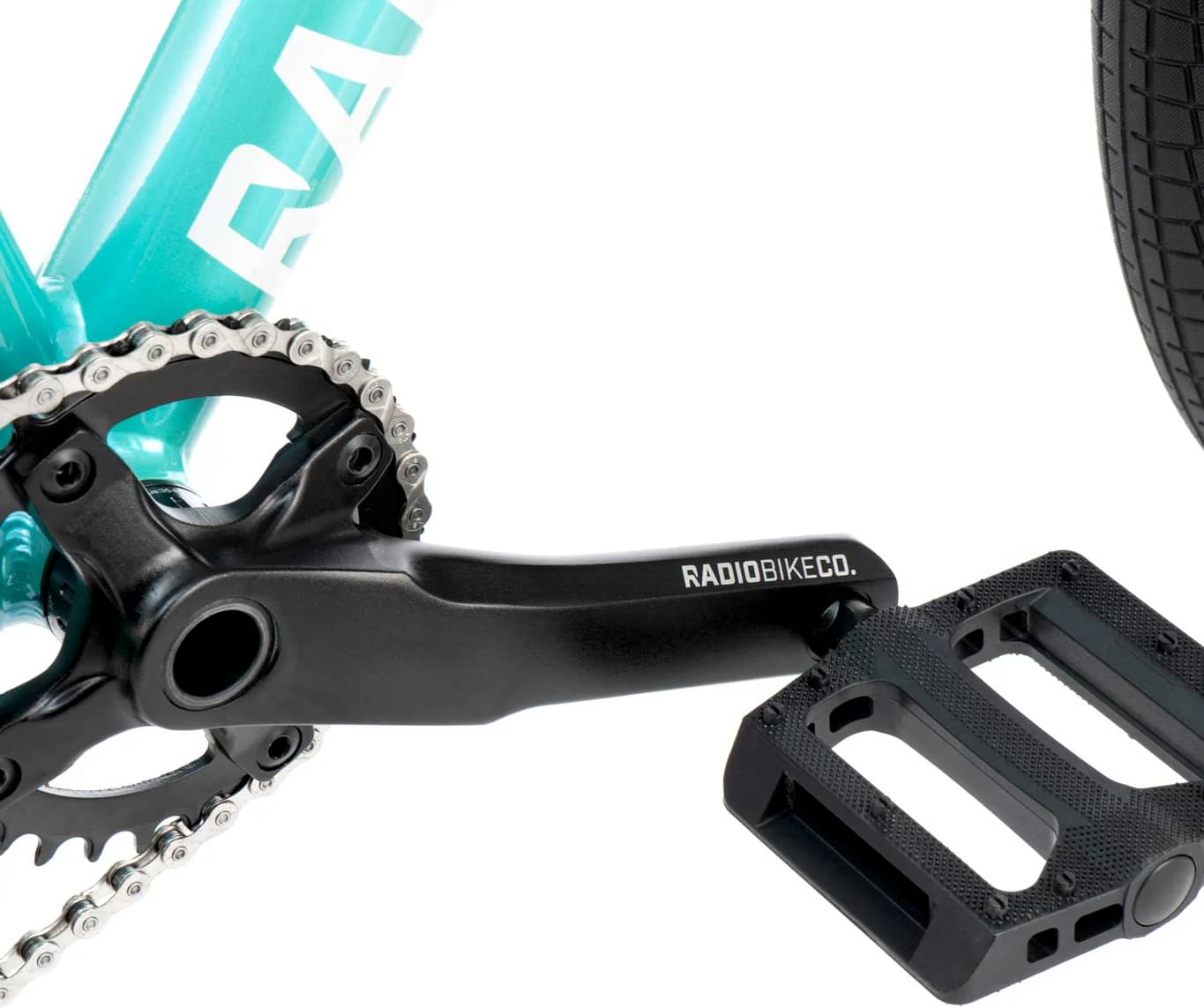

Crank

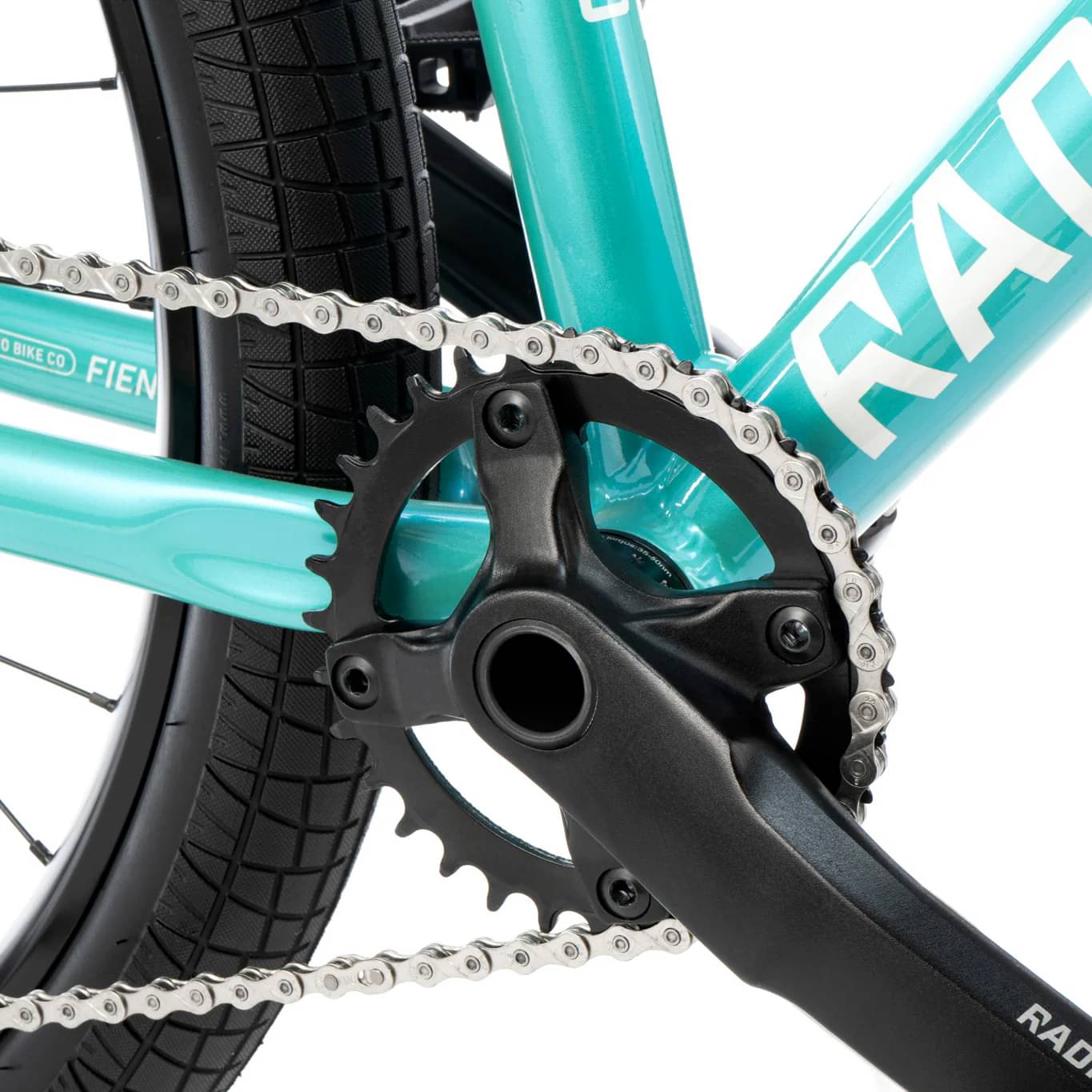

Radio “PRO” 2pc crank forged alloy w/ 170mm arms & 24mm spindle

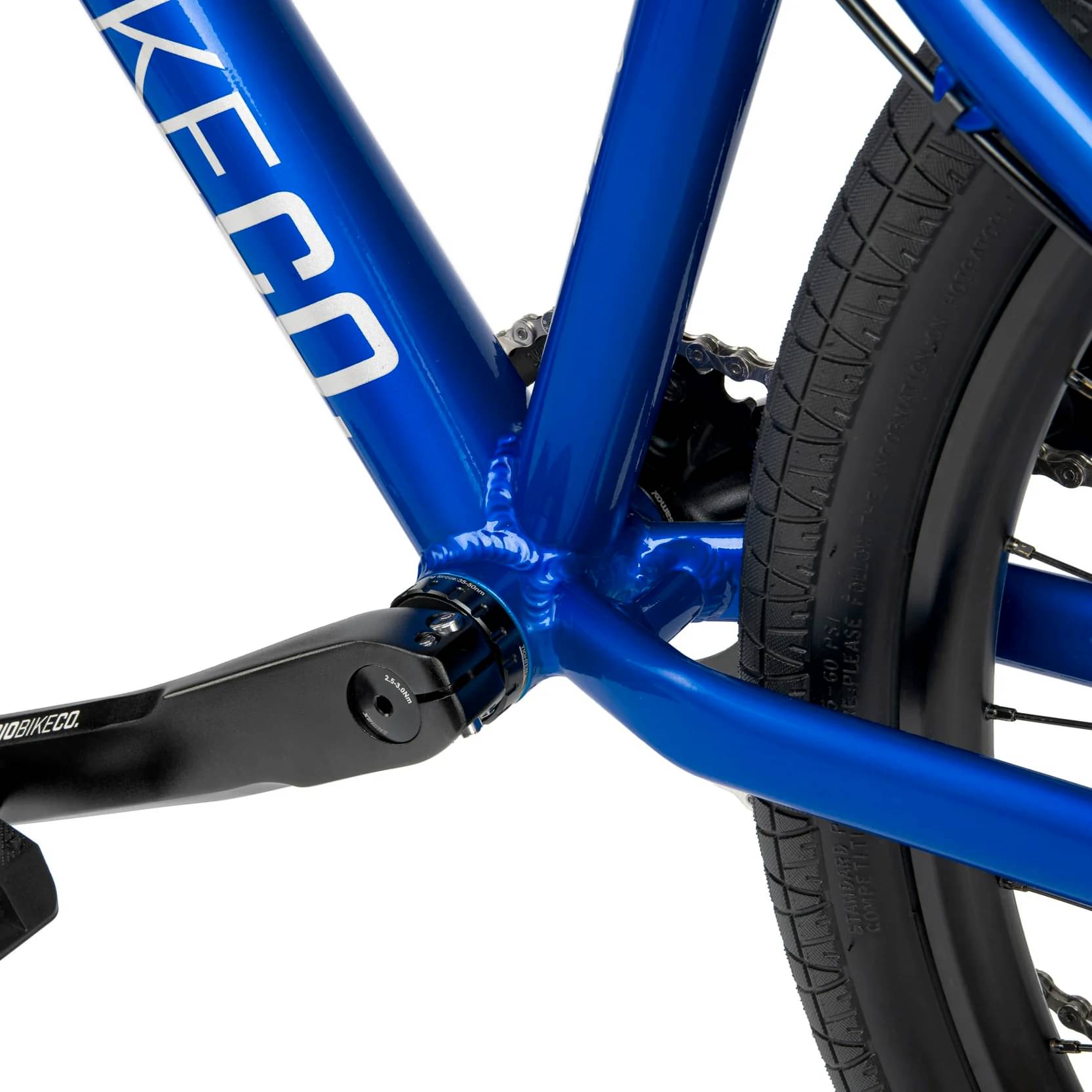

Bottom Bracket
Radio “BSA24” bb set sealed bearing
Chain
KMC “X8” chain
Pedals
Radio “SLIM” pedals nylon/fiberglass
Wheels
Front Hub

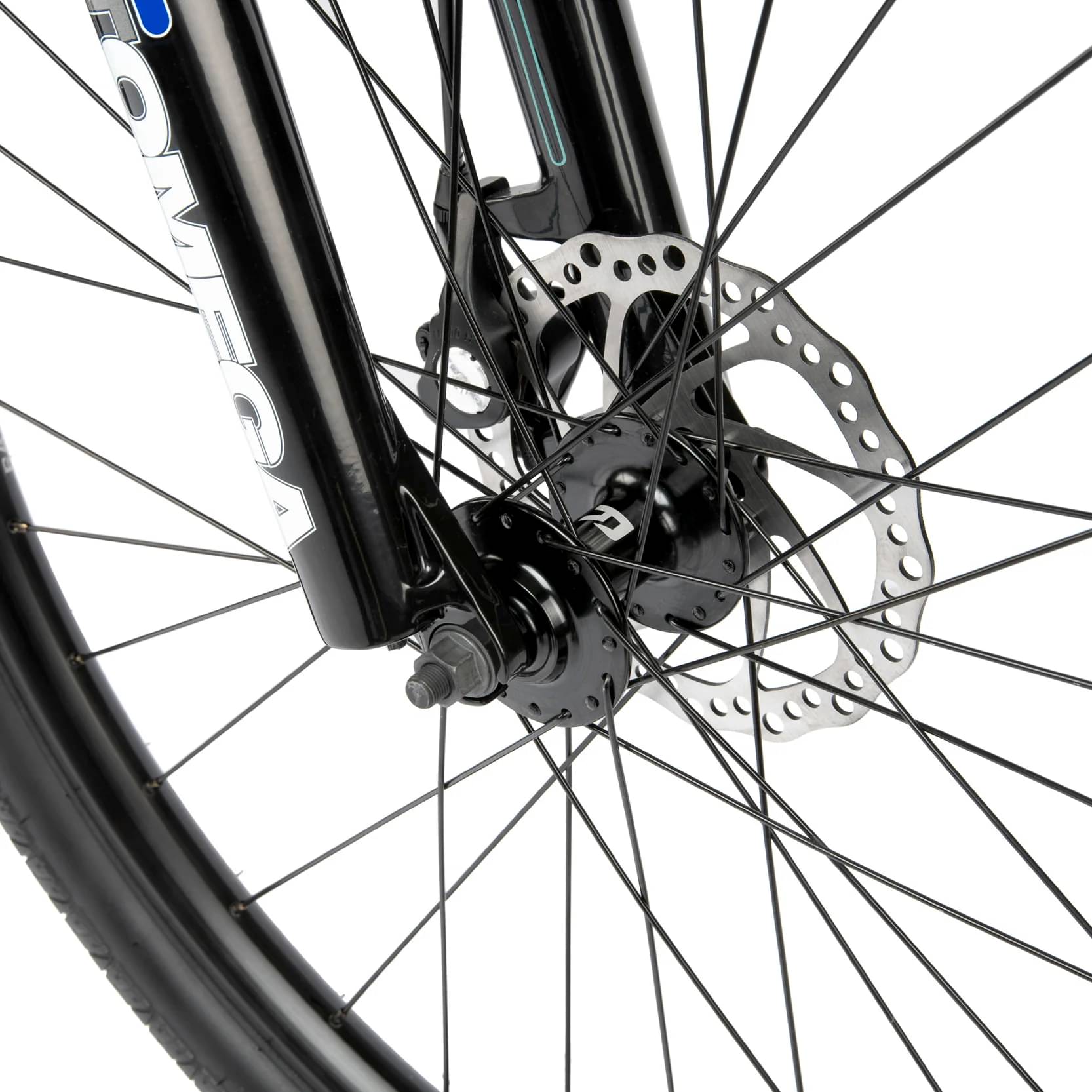

Radio “AM-DJ” 32h disc hub alloy w/ sealed bearing & 3/8?s male axle
Rear Hub
Radio “AM-DJ” 32h disc cassette hub alloy w/ sealed bearing & 3/8" male axle 12-32t cassette
Rims
Front: Radio “DB30” rim, double wall, Rear: Radio “DB30” rim double wall
Tires

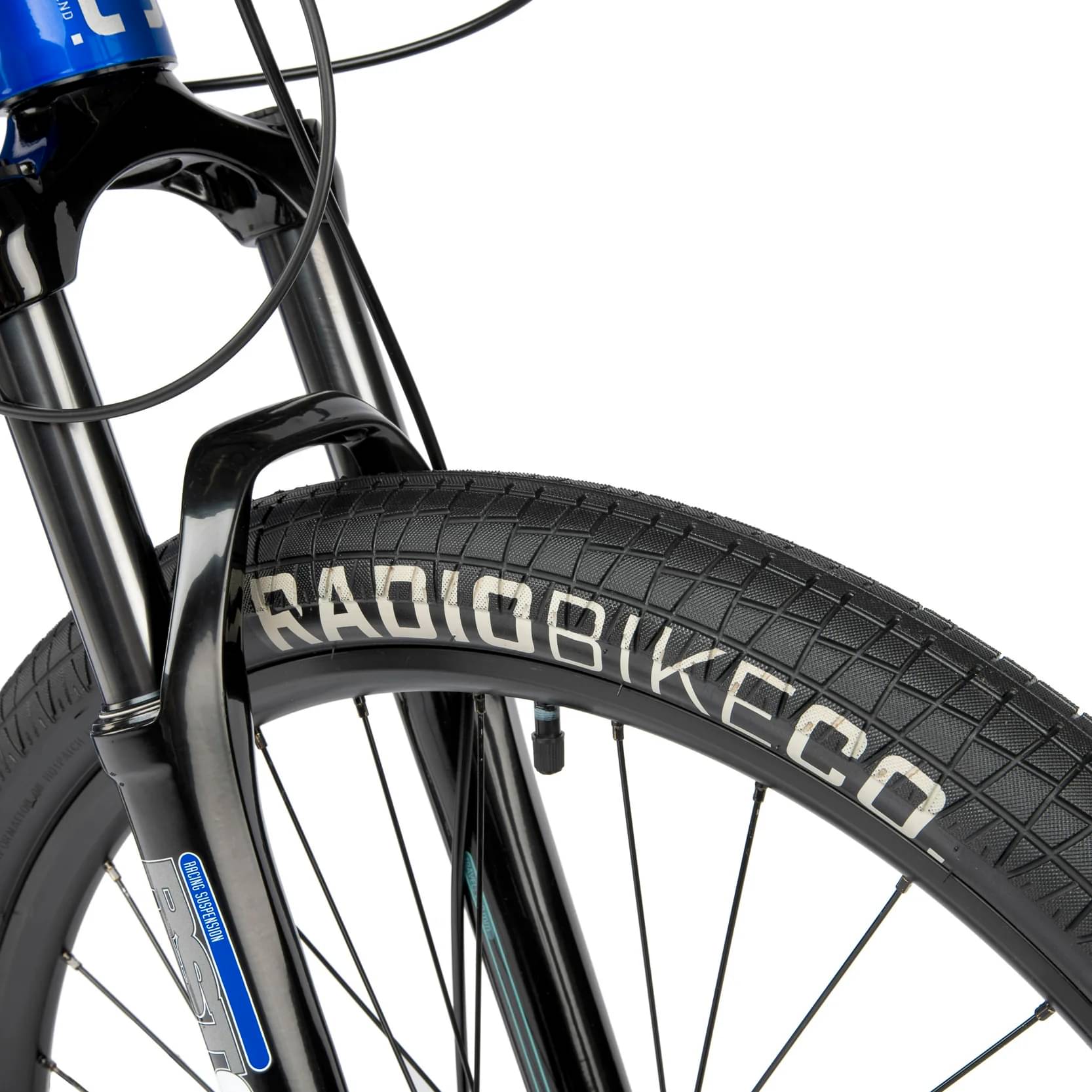

Radio “ROOKIE” tires, 2.2? front & rear
Brakes

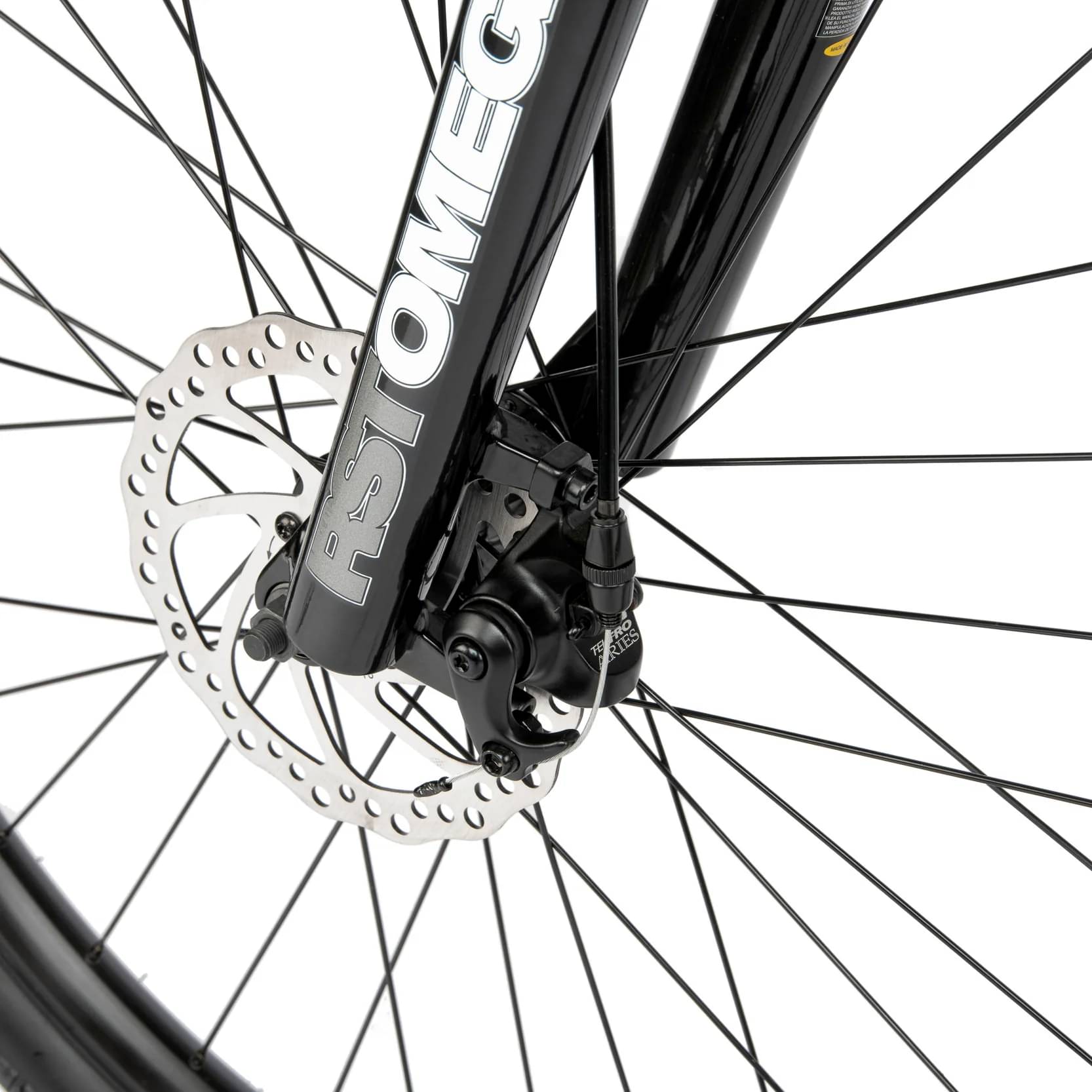

Brakes

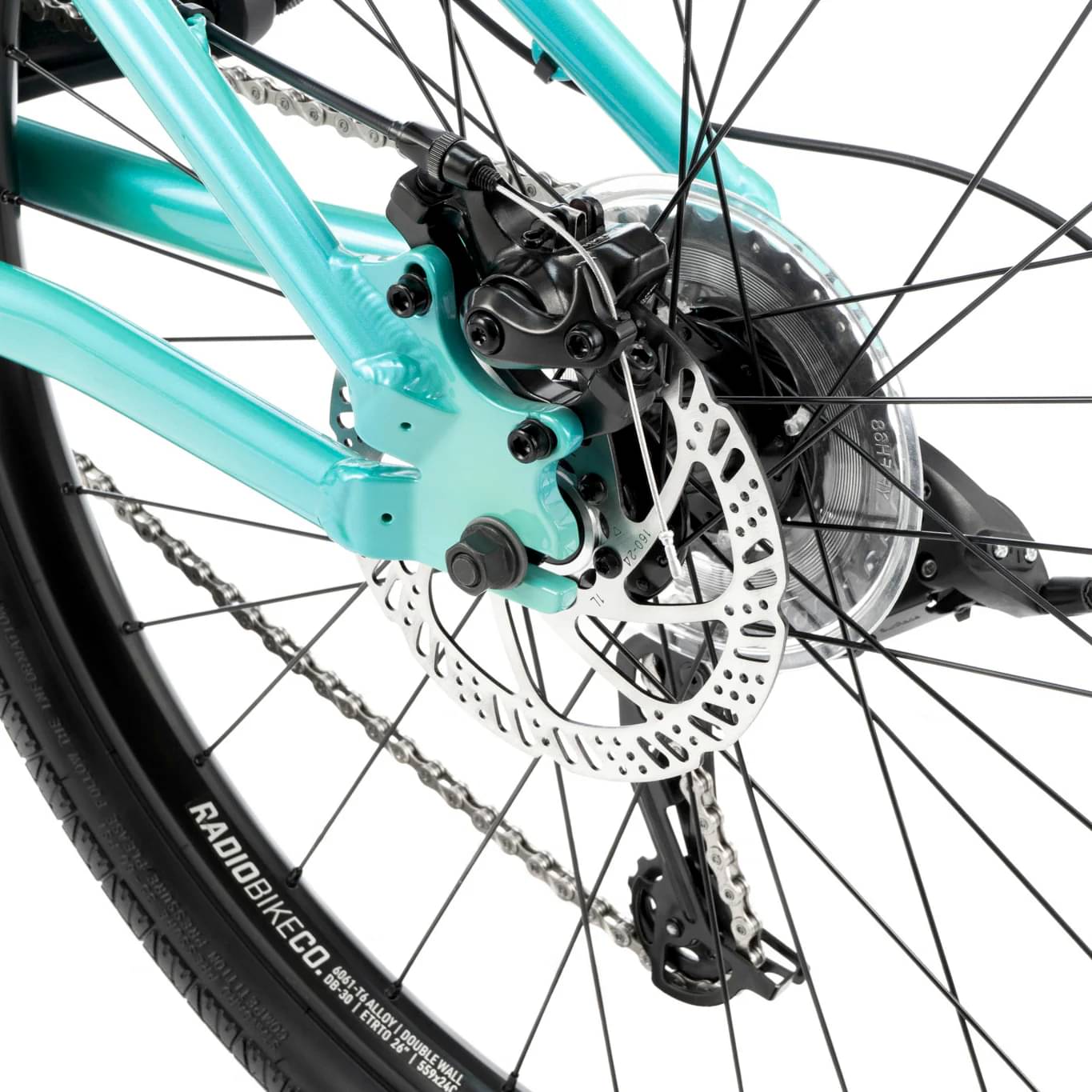

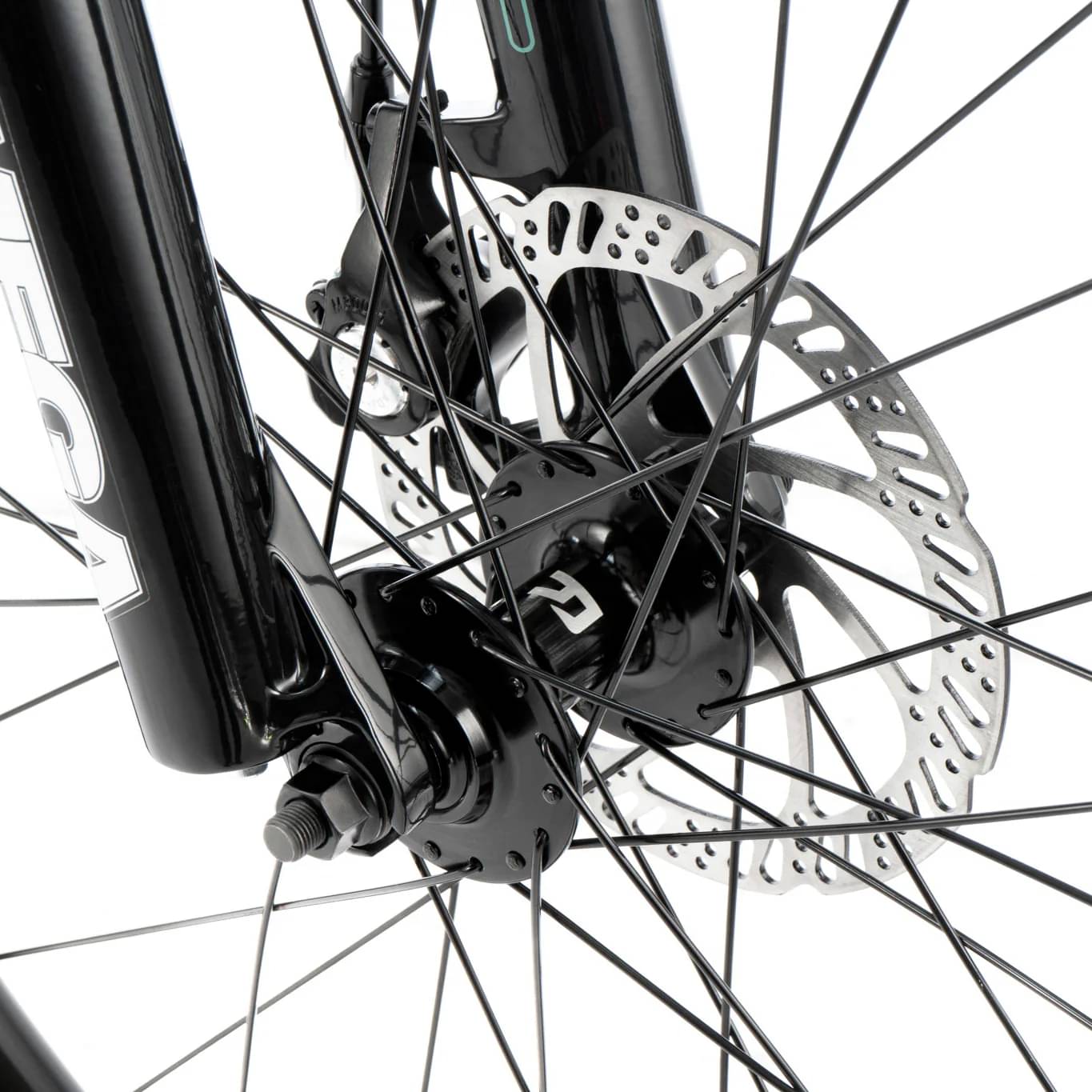

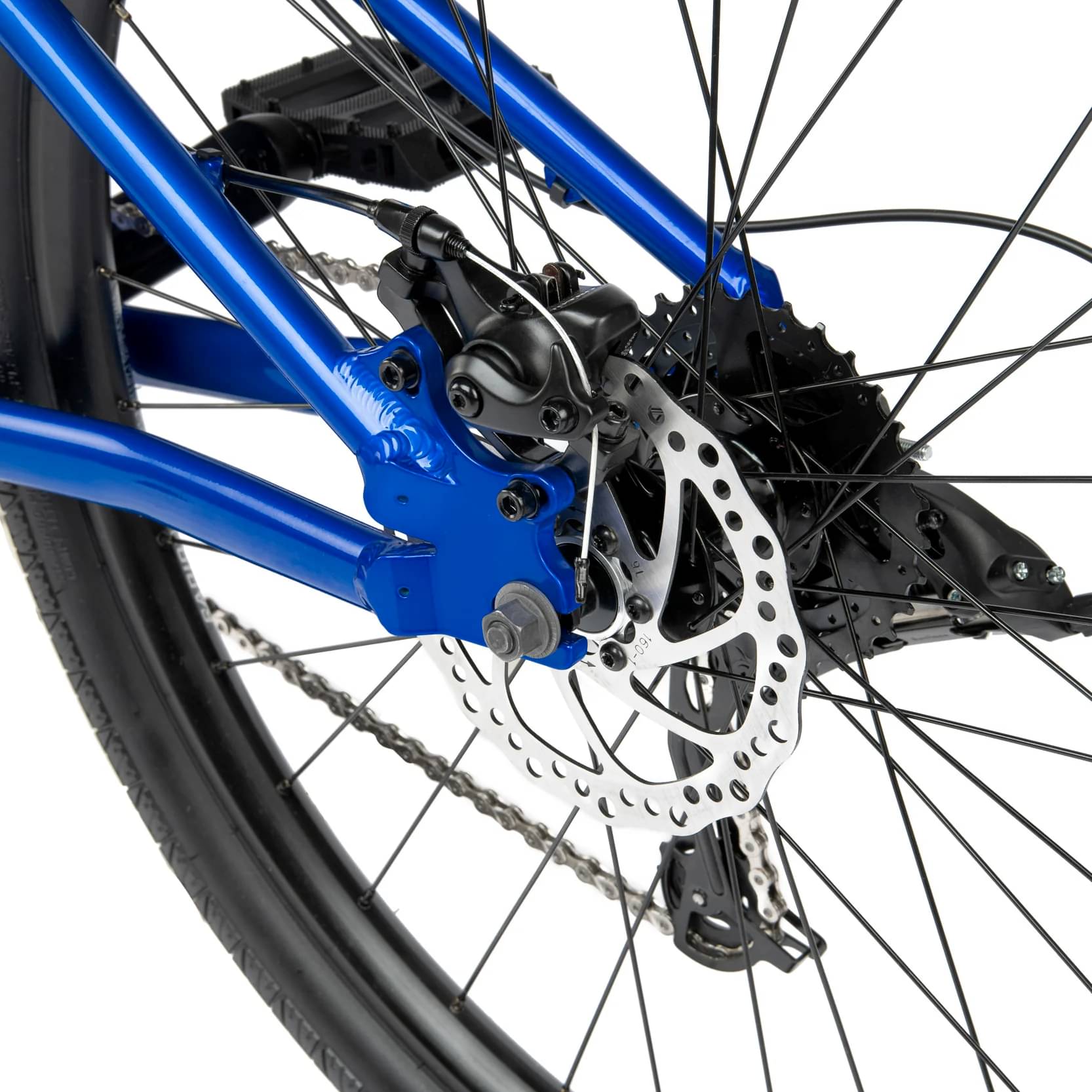

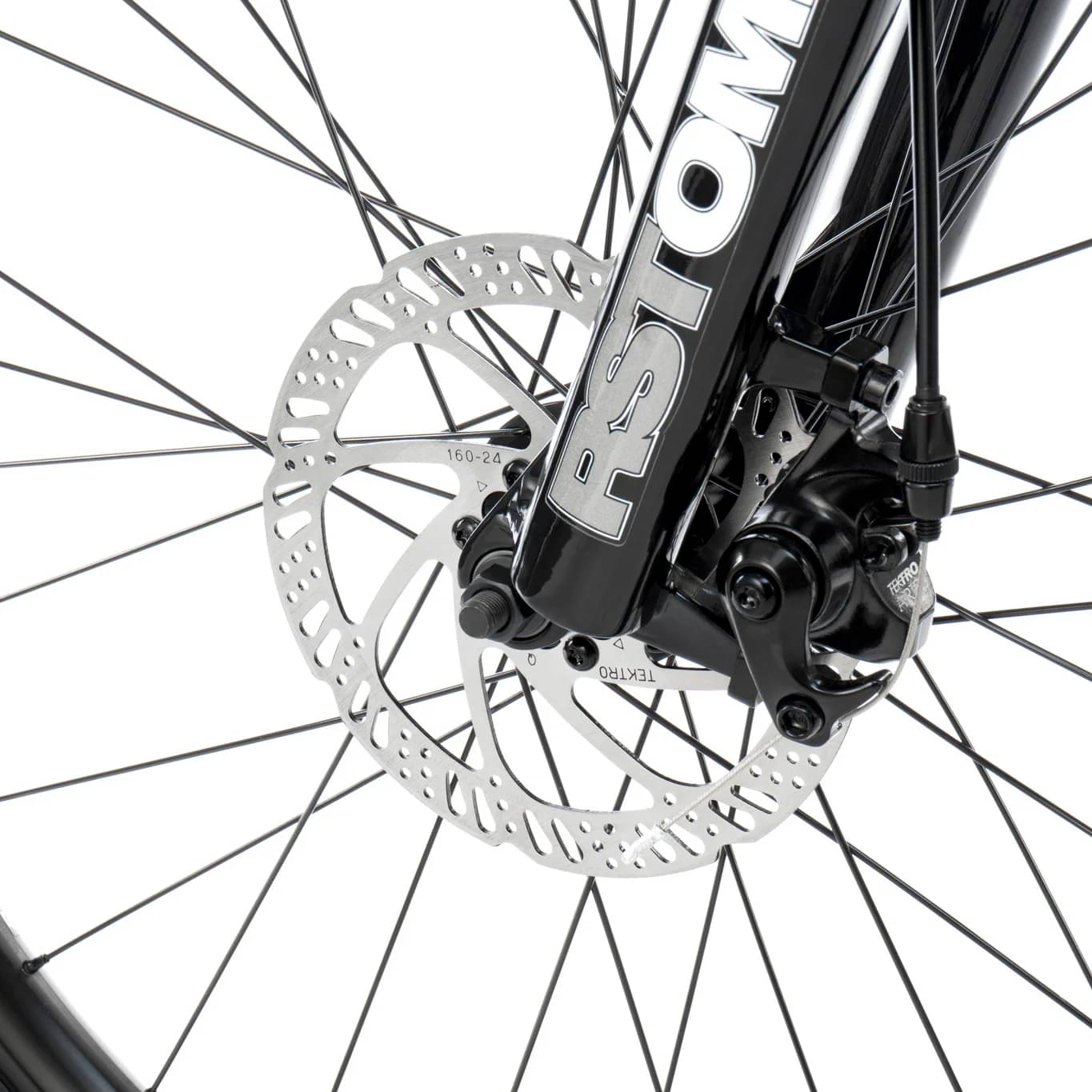

TEKTRO “ARIES” mechanical disc brake 160mm rotor front & rear

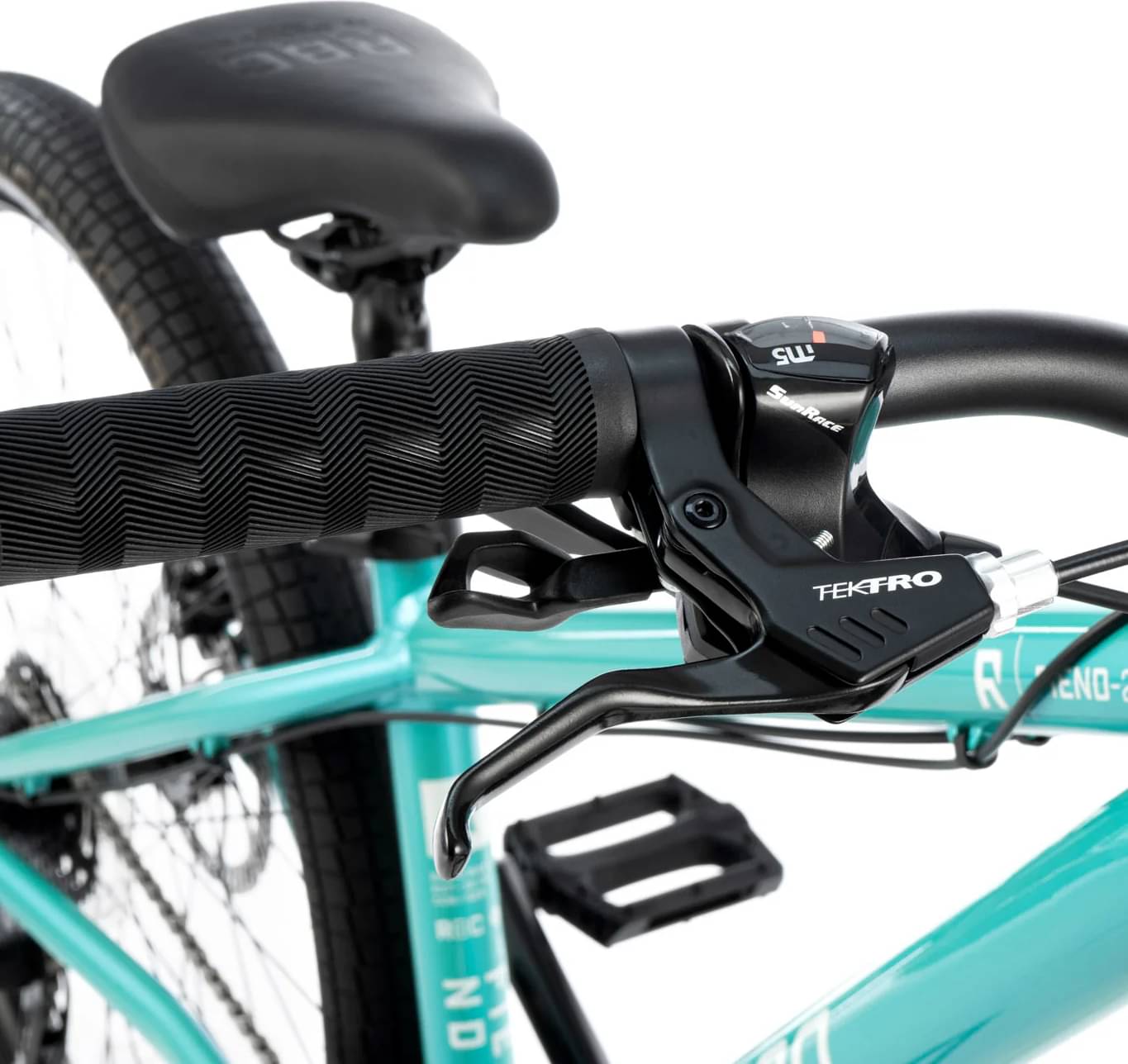

Brake Levers
TEKTRO “RS-360A” lever front & rear

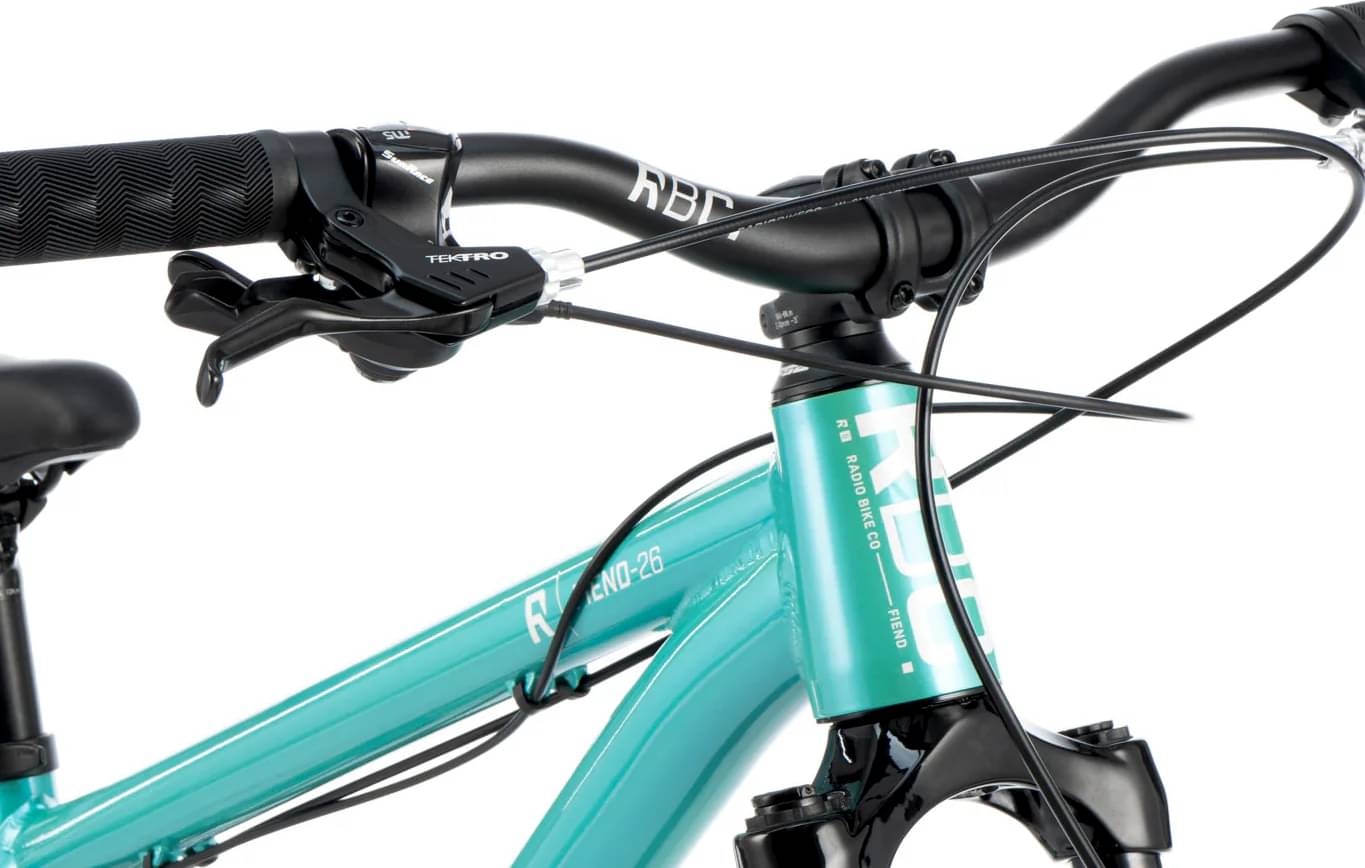

Cockpit
Stem

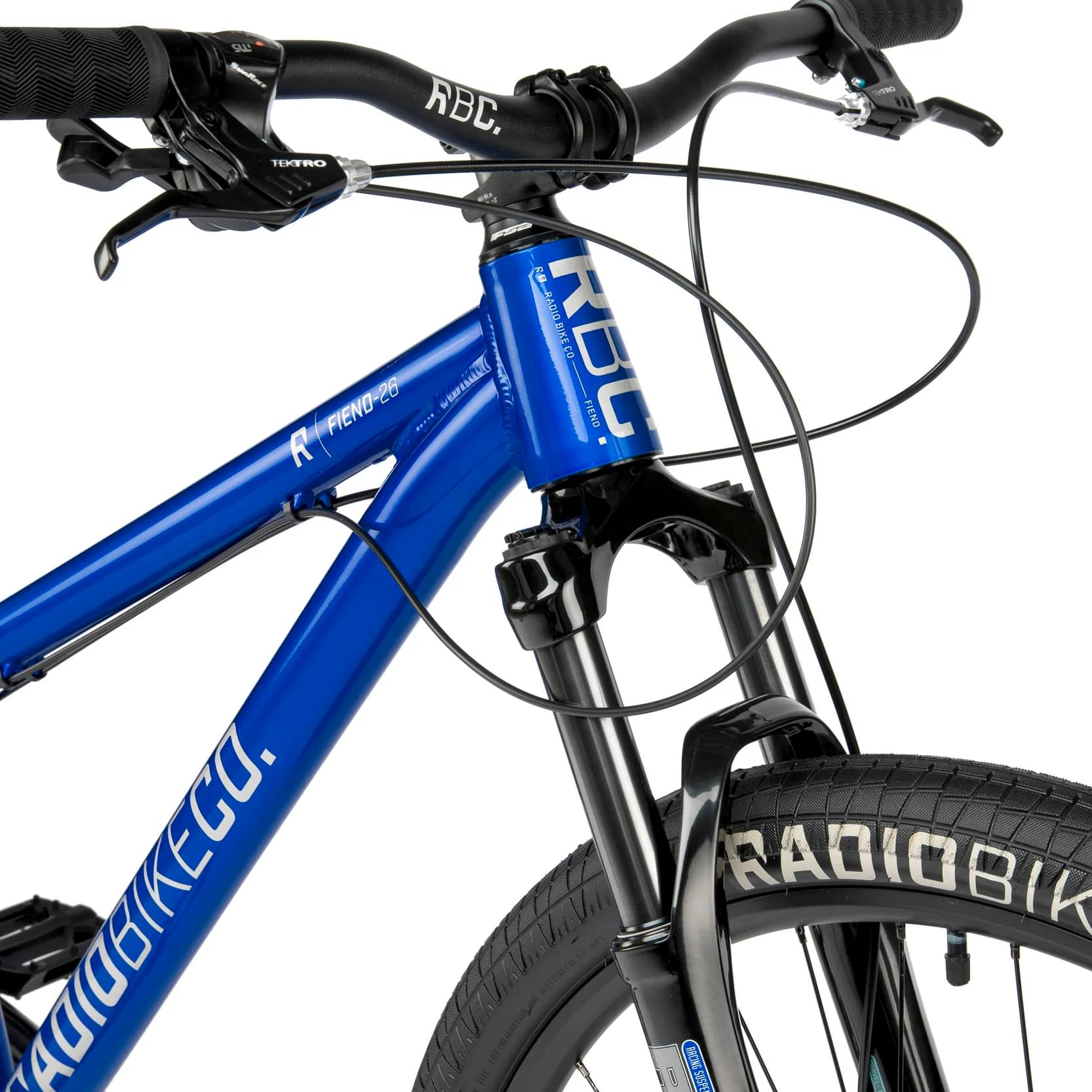

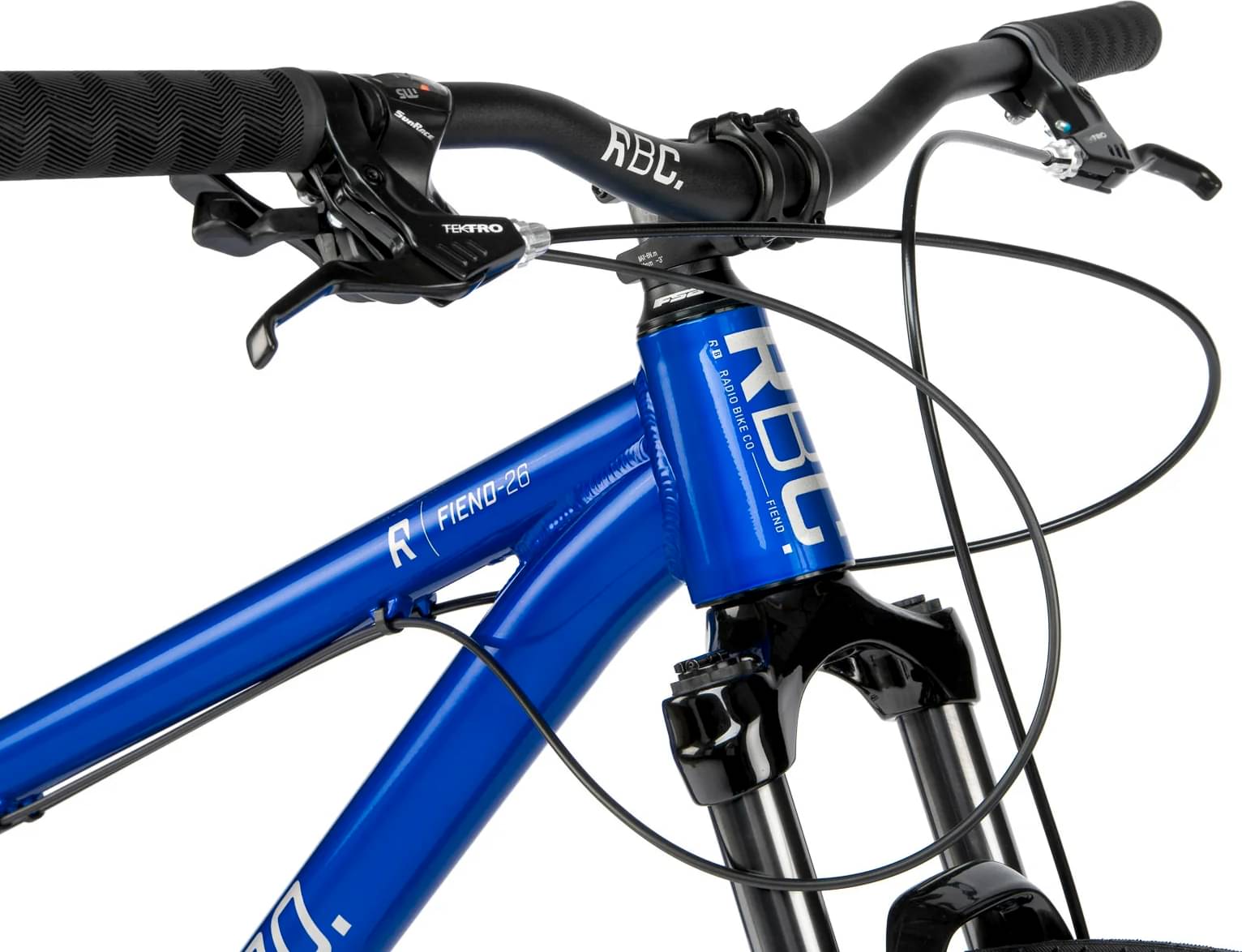

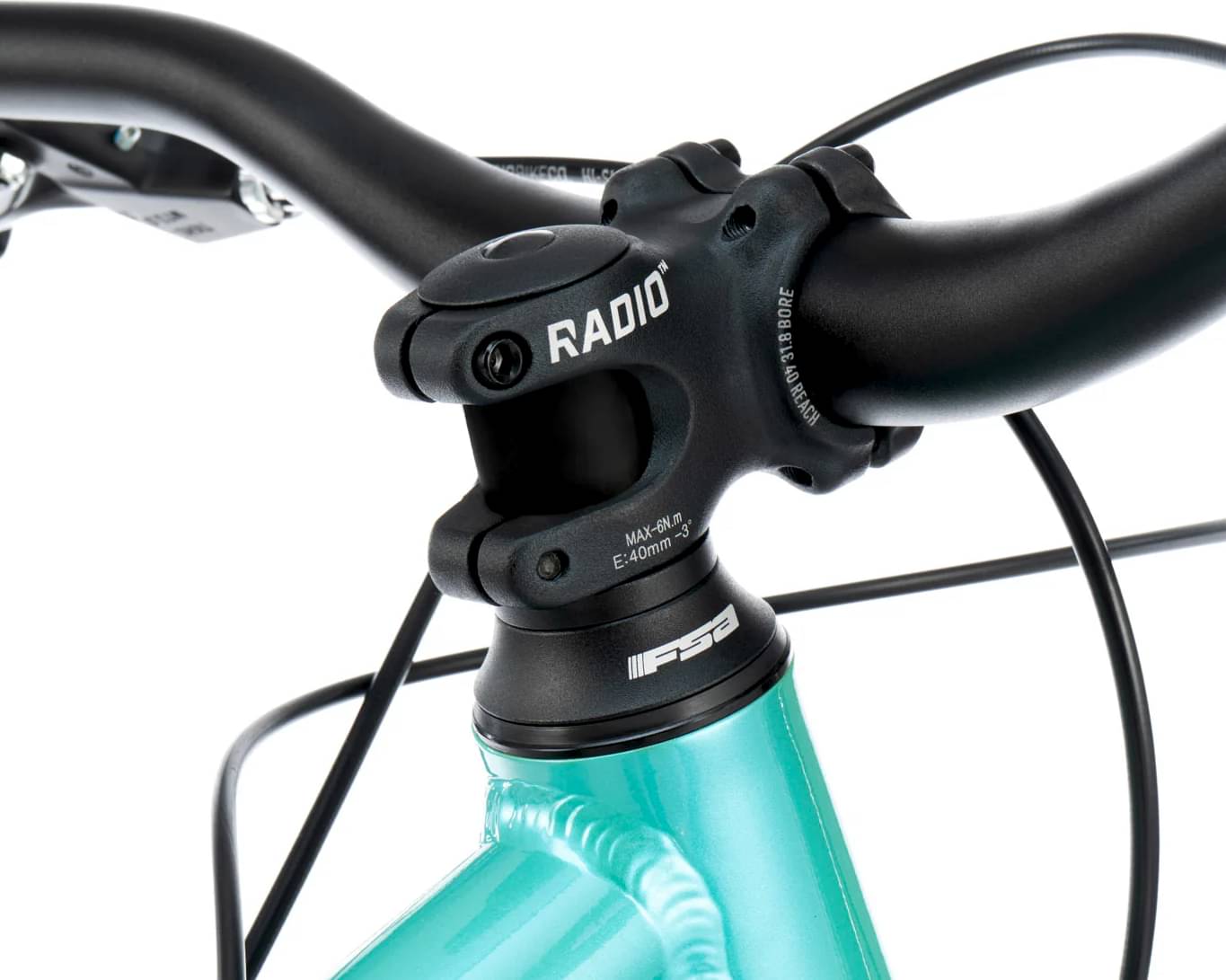

Radio “DJ” frontload stem alloy 40mm reach

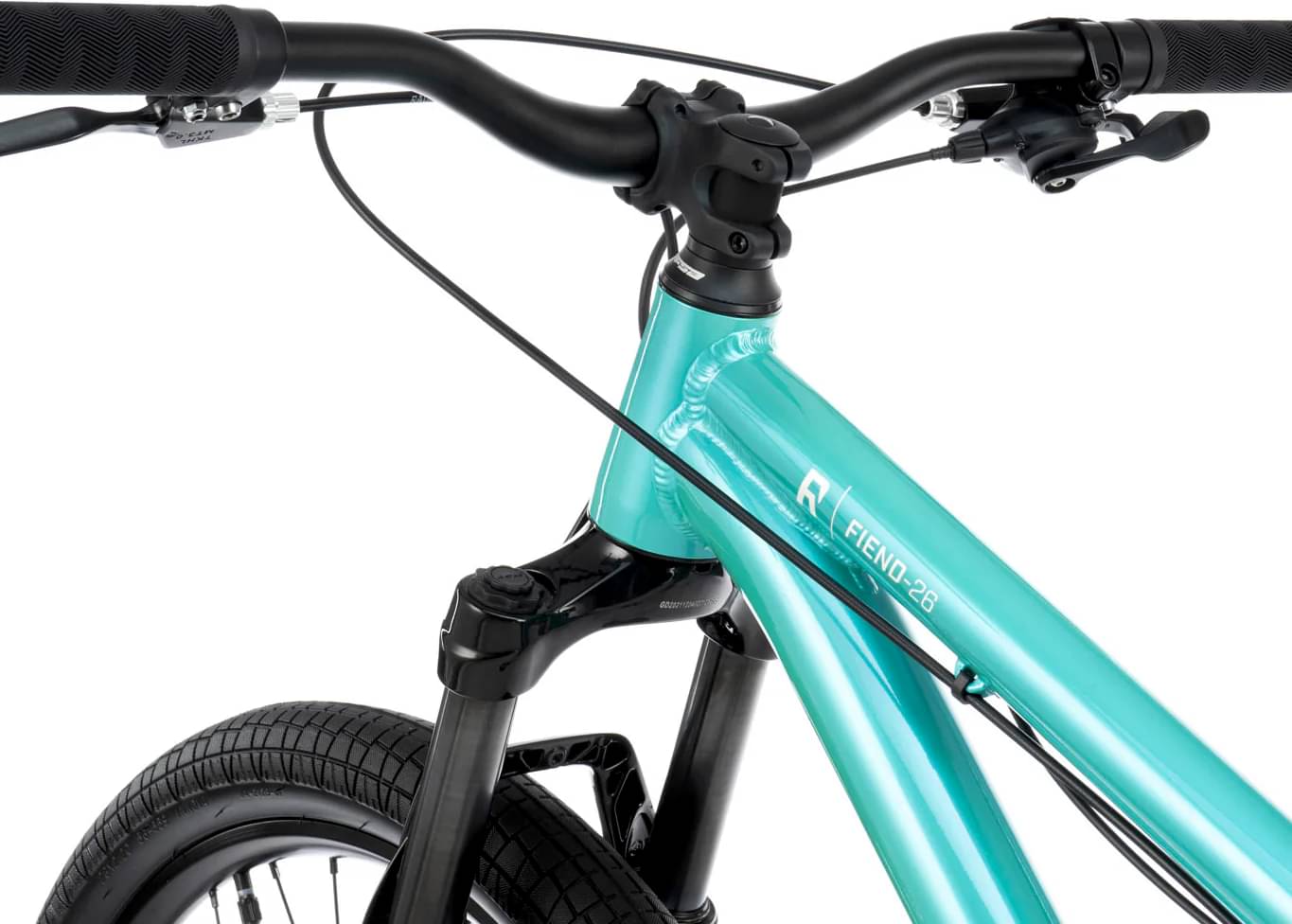

Handlebar
Radio “ASURA” bar 6061-T6 alloy 31.8mm clamping
Grips
Radio “FREQUENCY XL” grips flangeless 160mm length
Headset
FSA “NO.57E” integrated A-headset 1-1/8?-1.5?
Seat

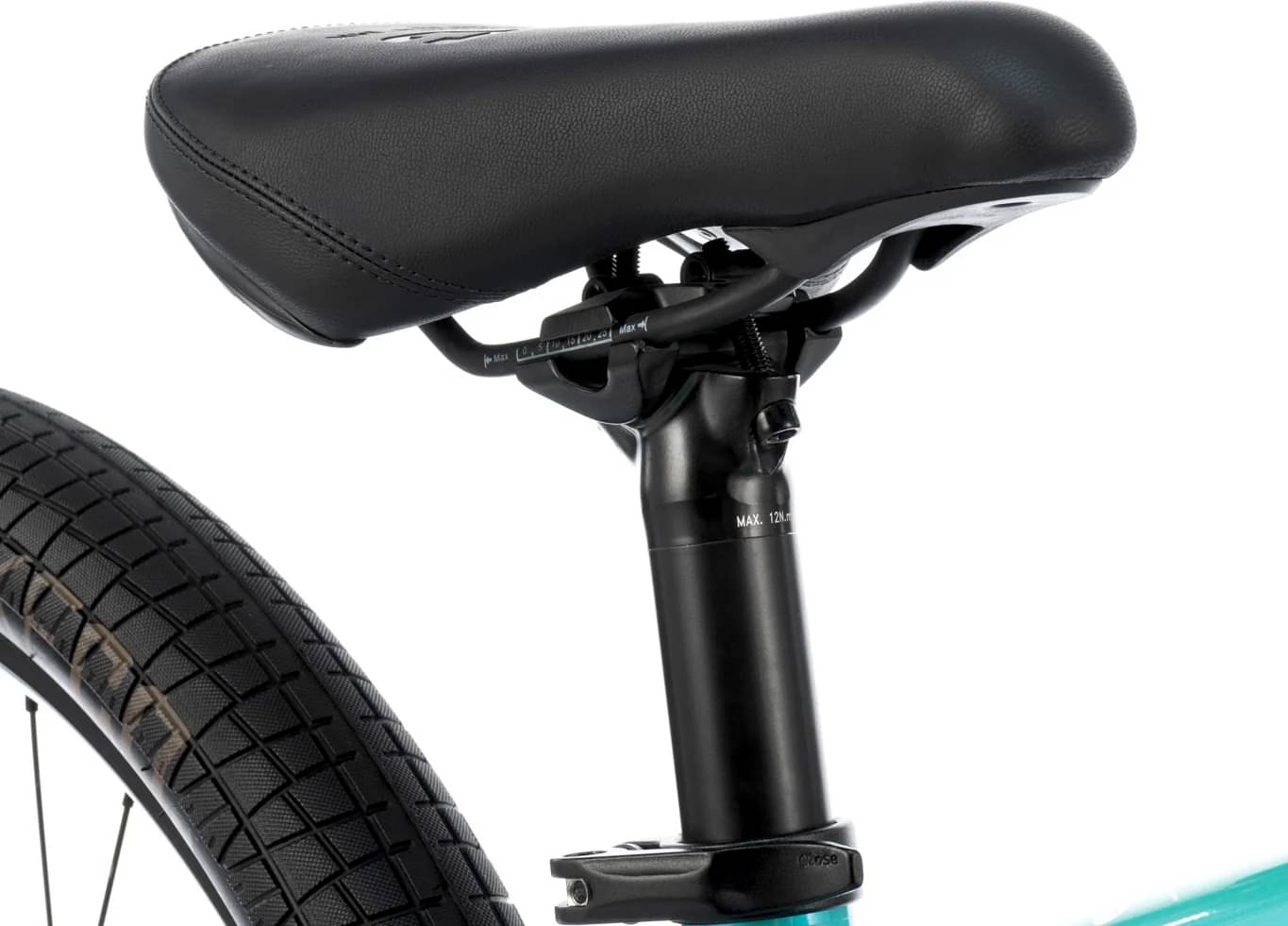

Saddle

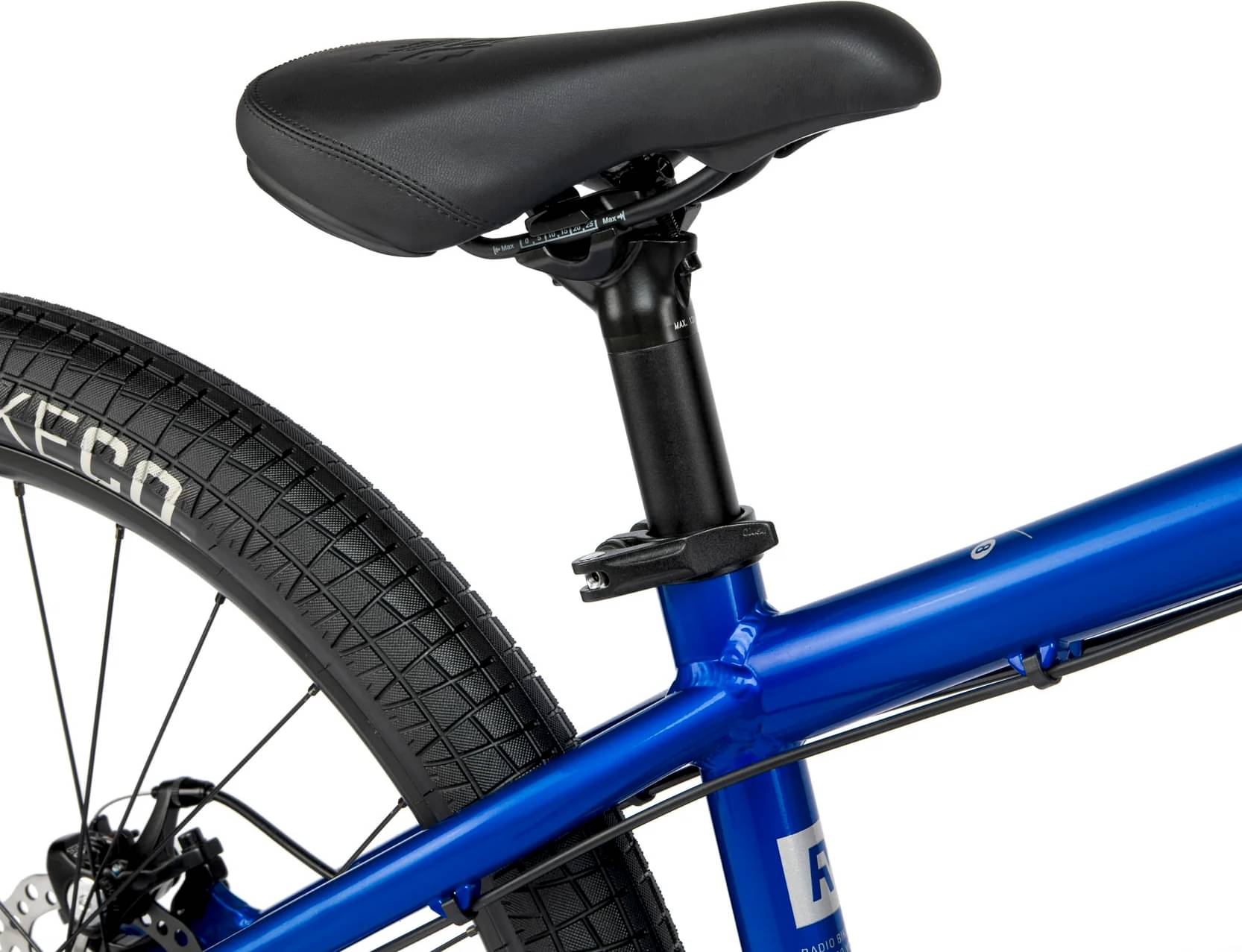

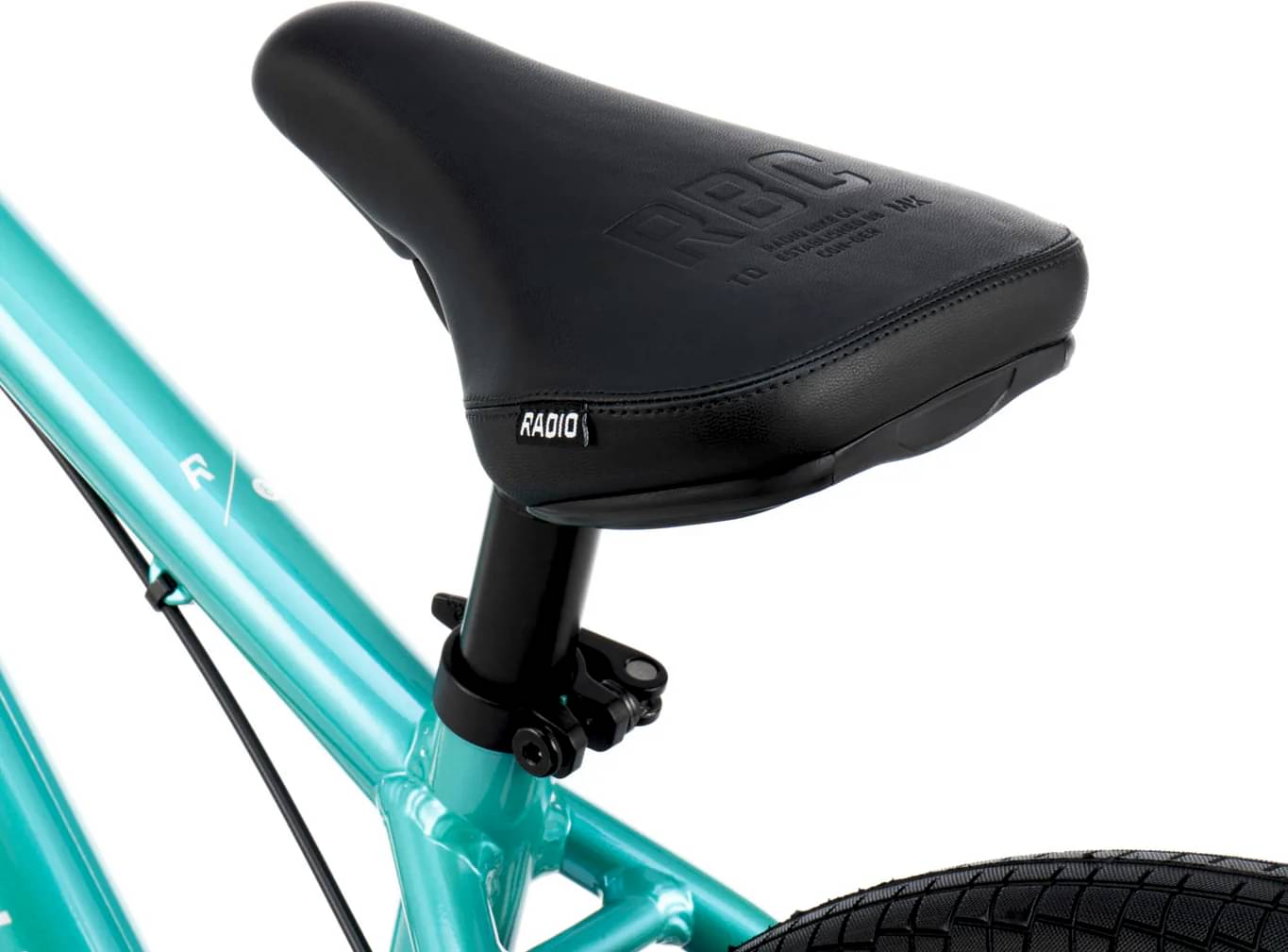

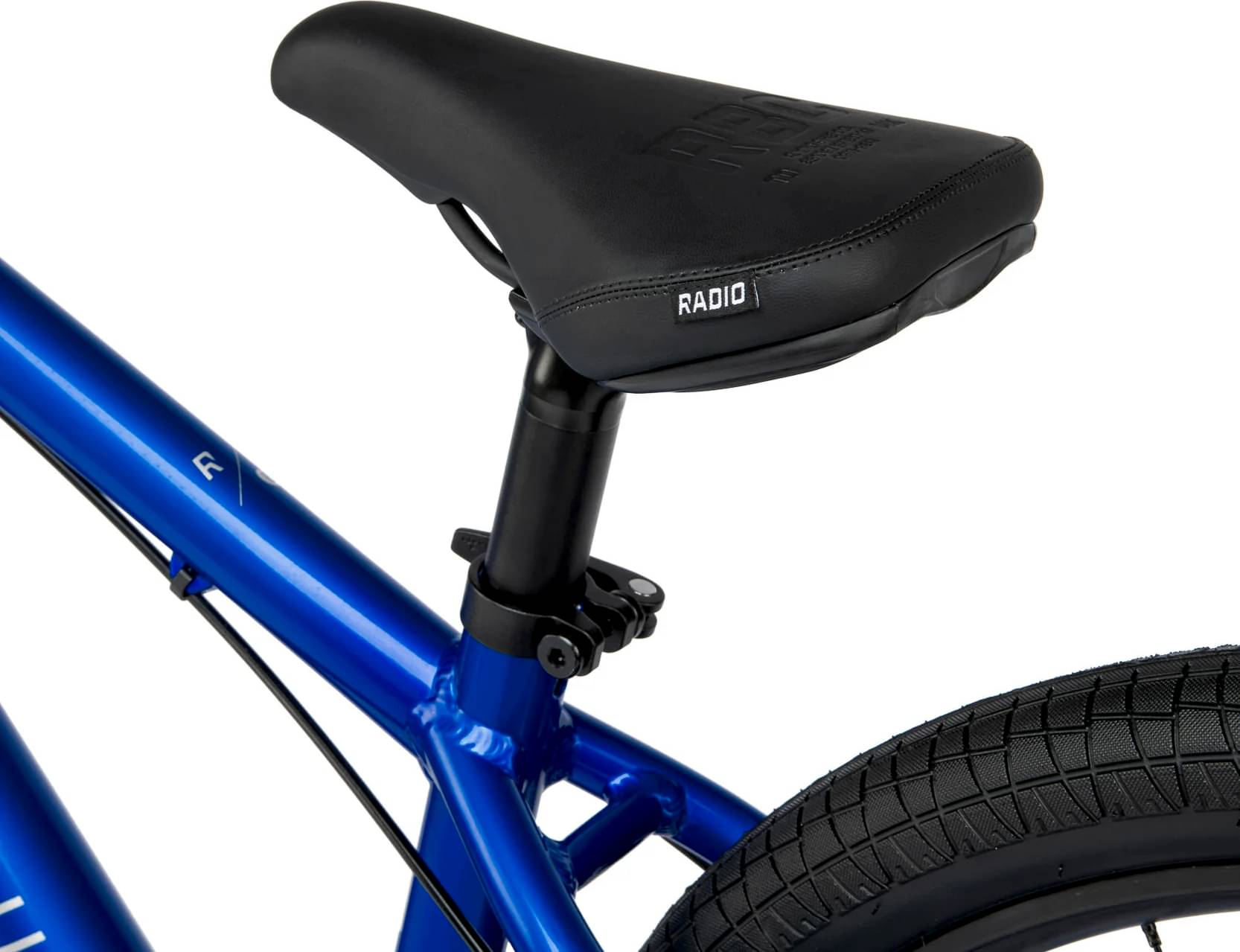

Radio “DJ” railed seat
Seatpost
Radio “SP53” micro-adjust seat post alloy 300mm length
Fit data
Geometry
