Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RST DIRT
-
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

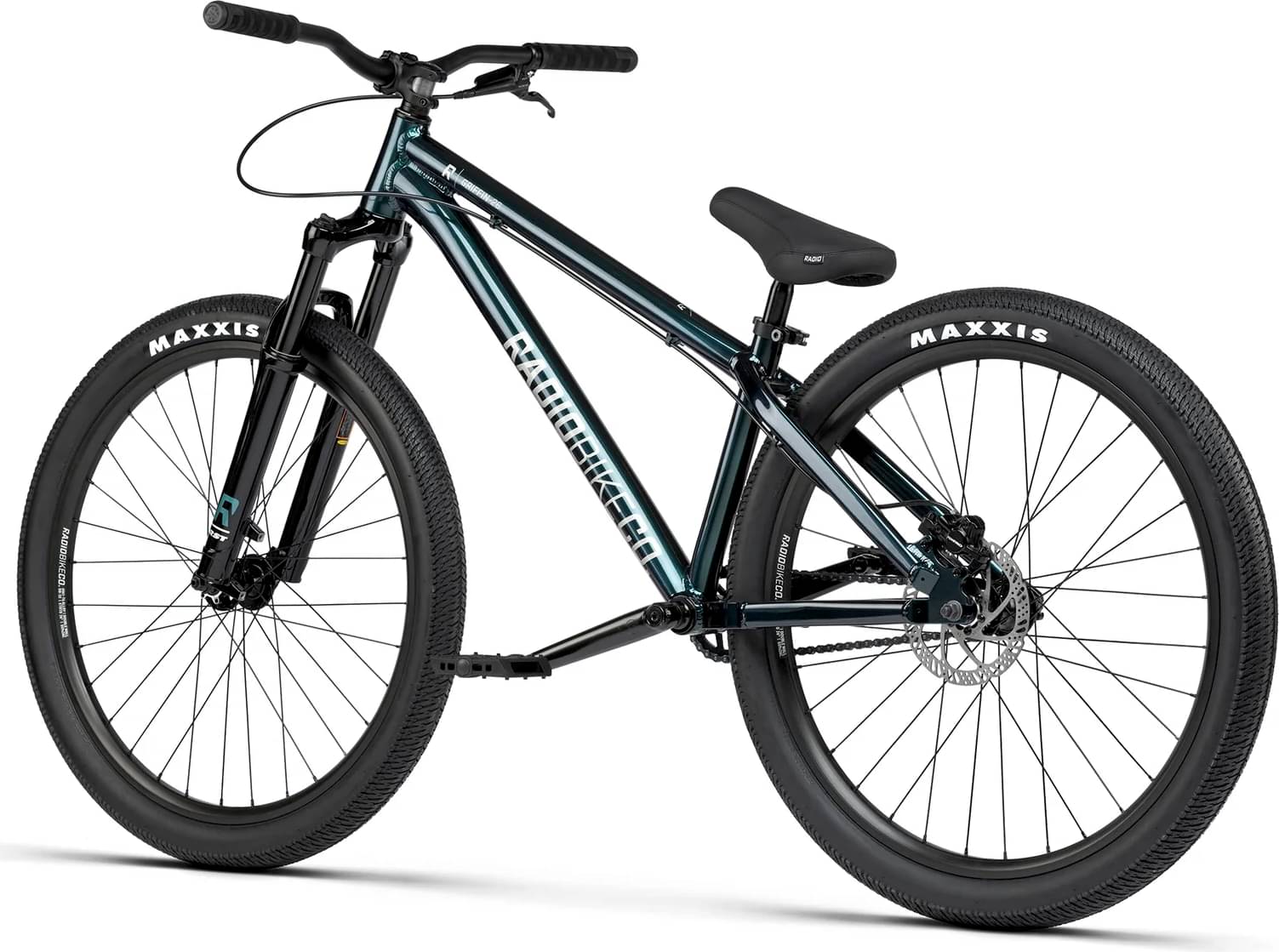

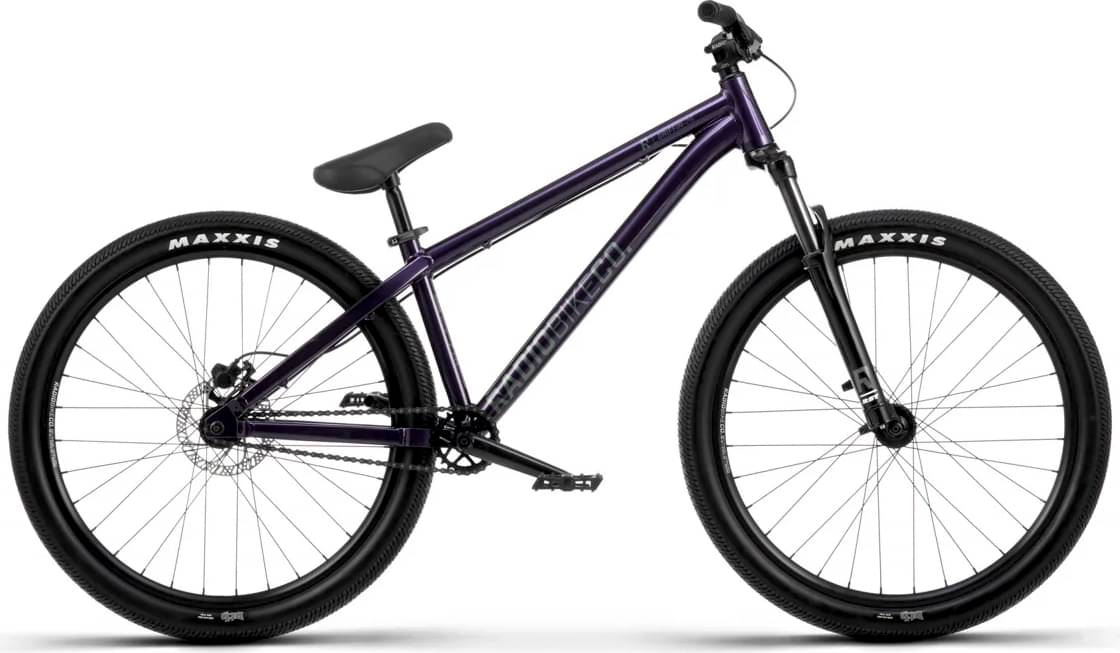

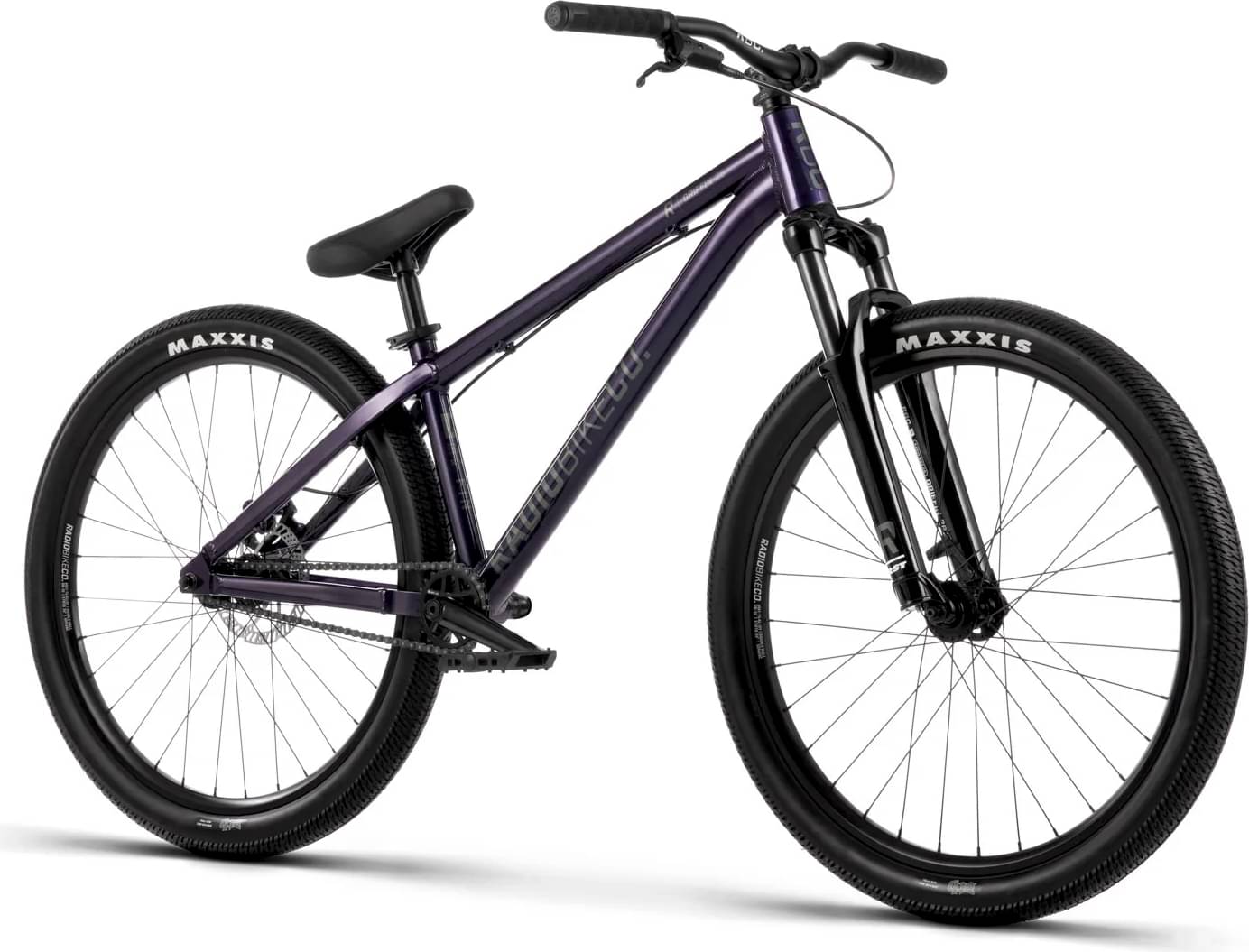

RADIO "GRIFFIN" frame, 6061-T6 alloy, tapered head tube, forged yoke
Suspension Fork

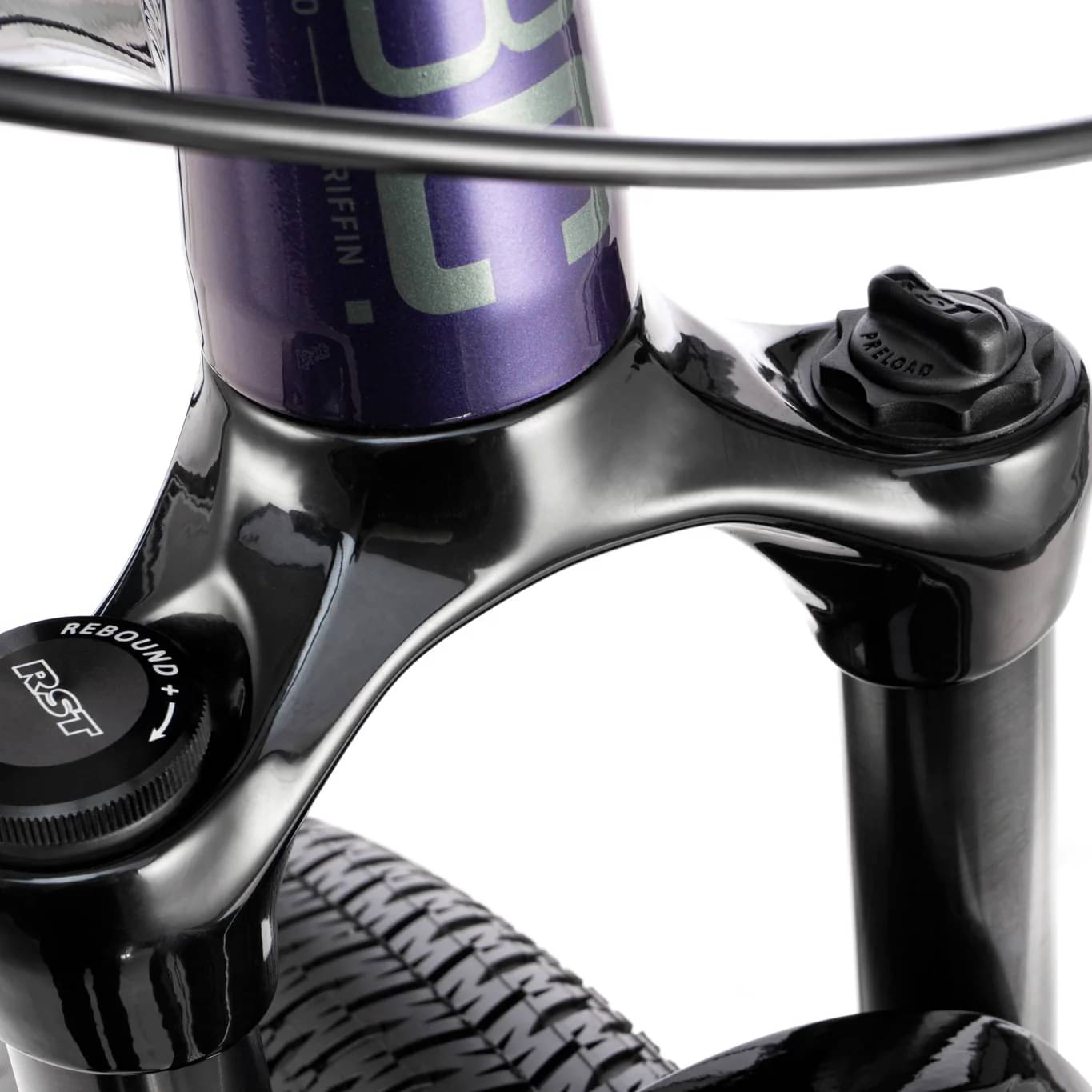

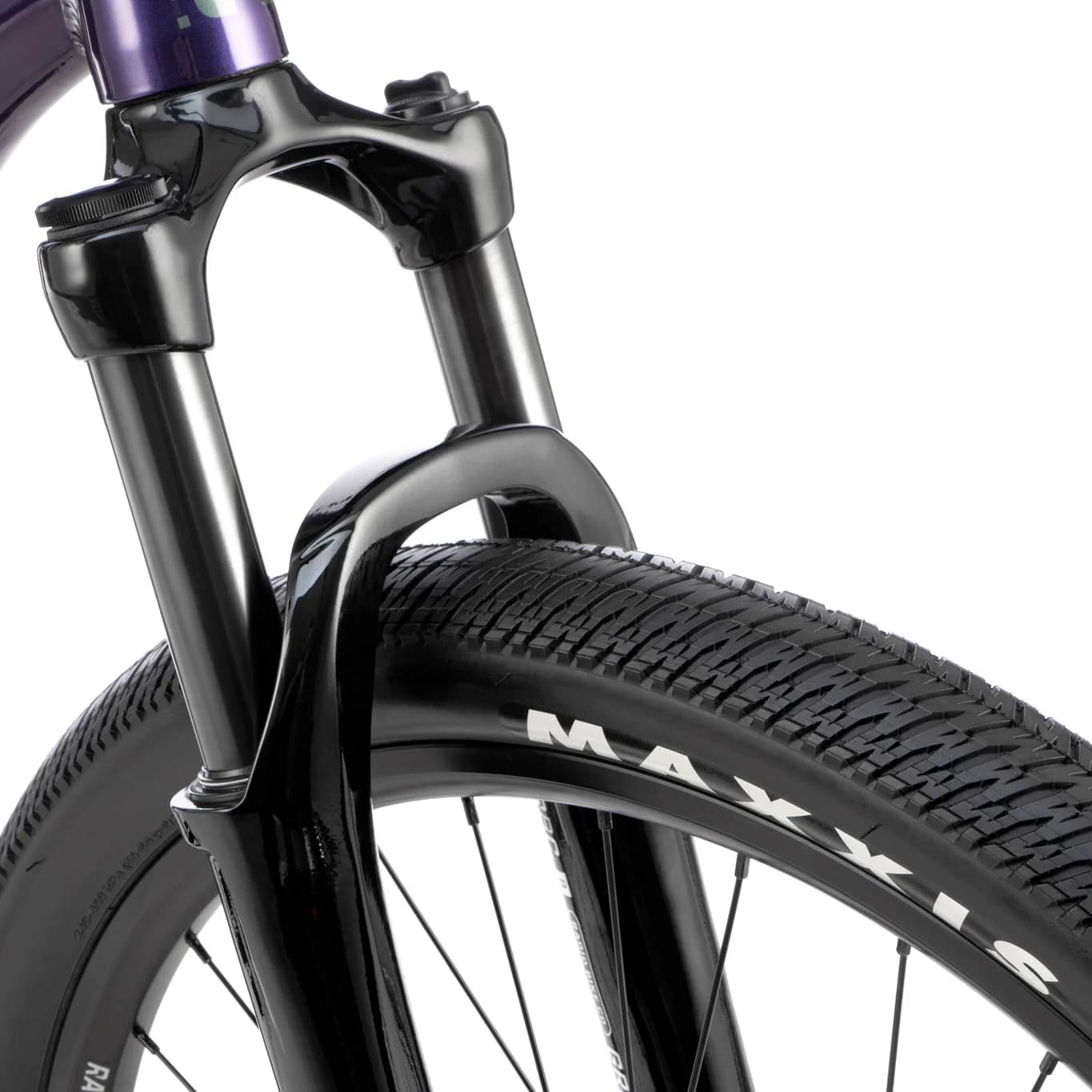

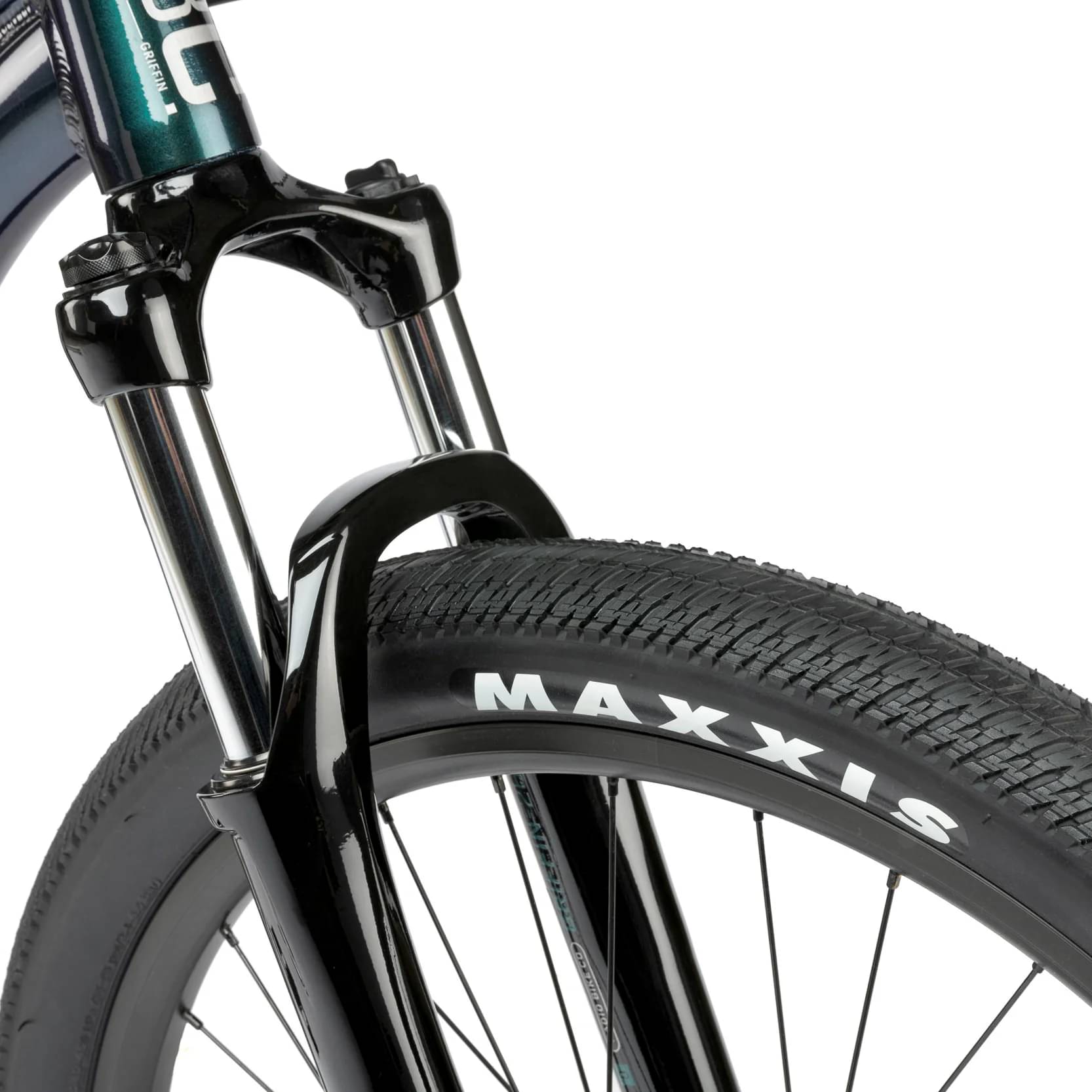

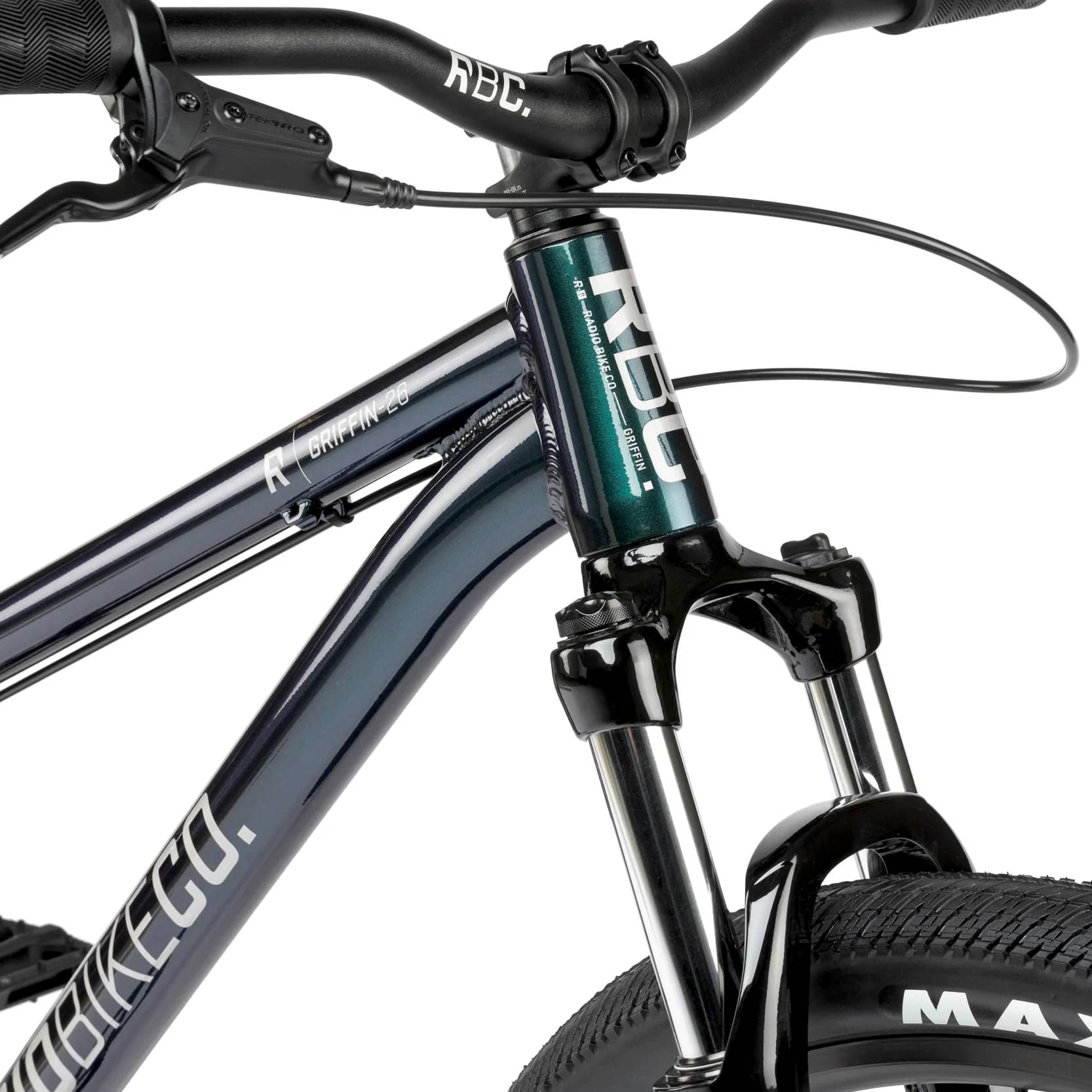

RST "DIRT RA" fork, 100mm travel
Drivetrain

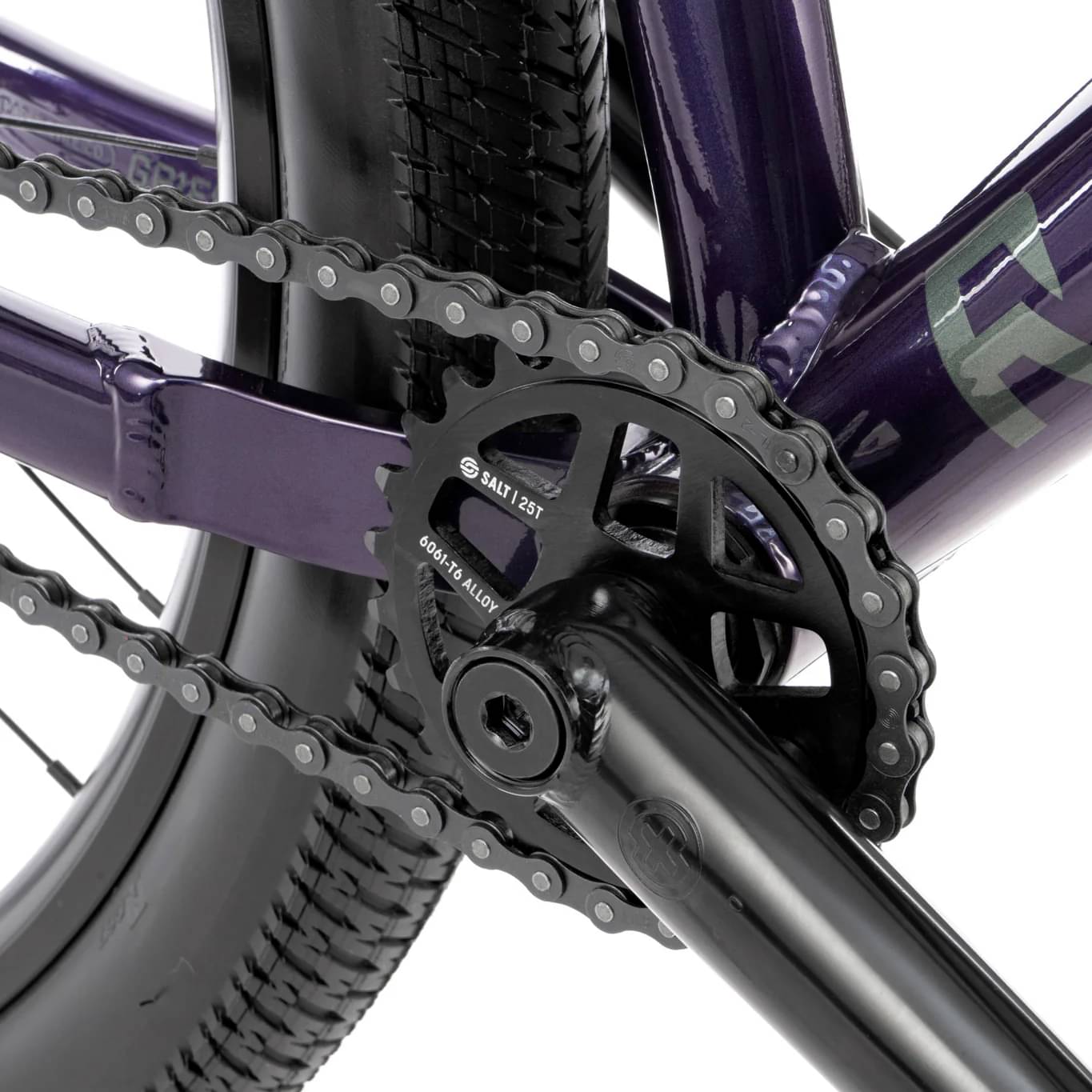

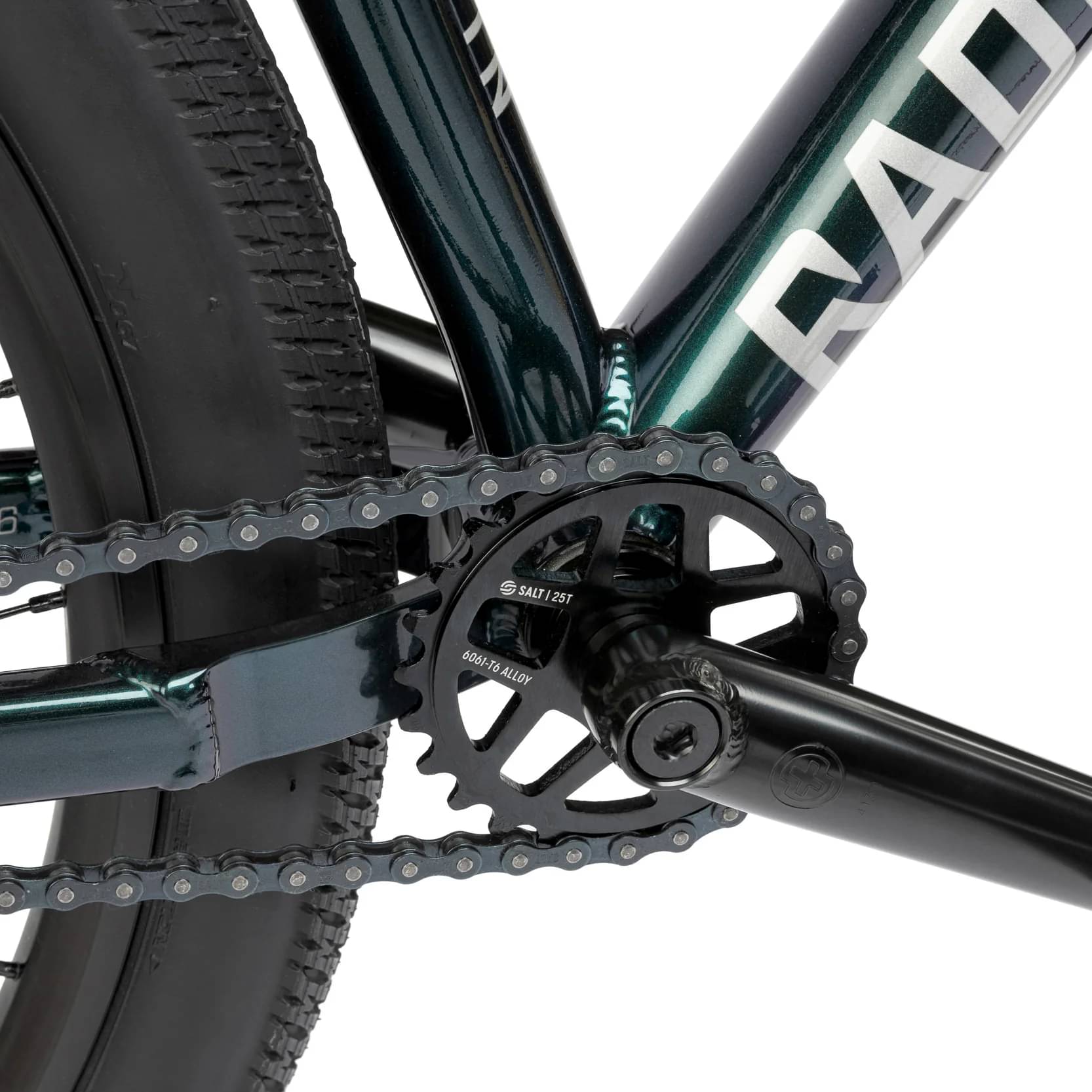

Cassette
SALT "GATEWAY" sprocket, alloy, 25t
Crank

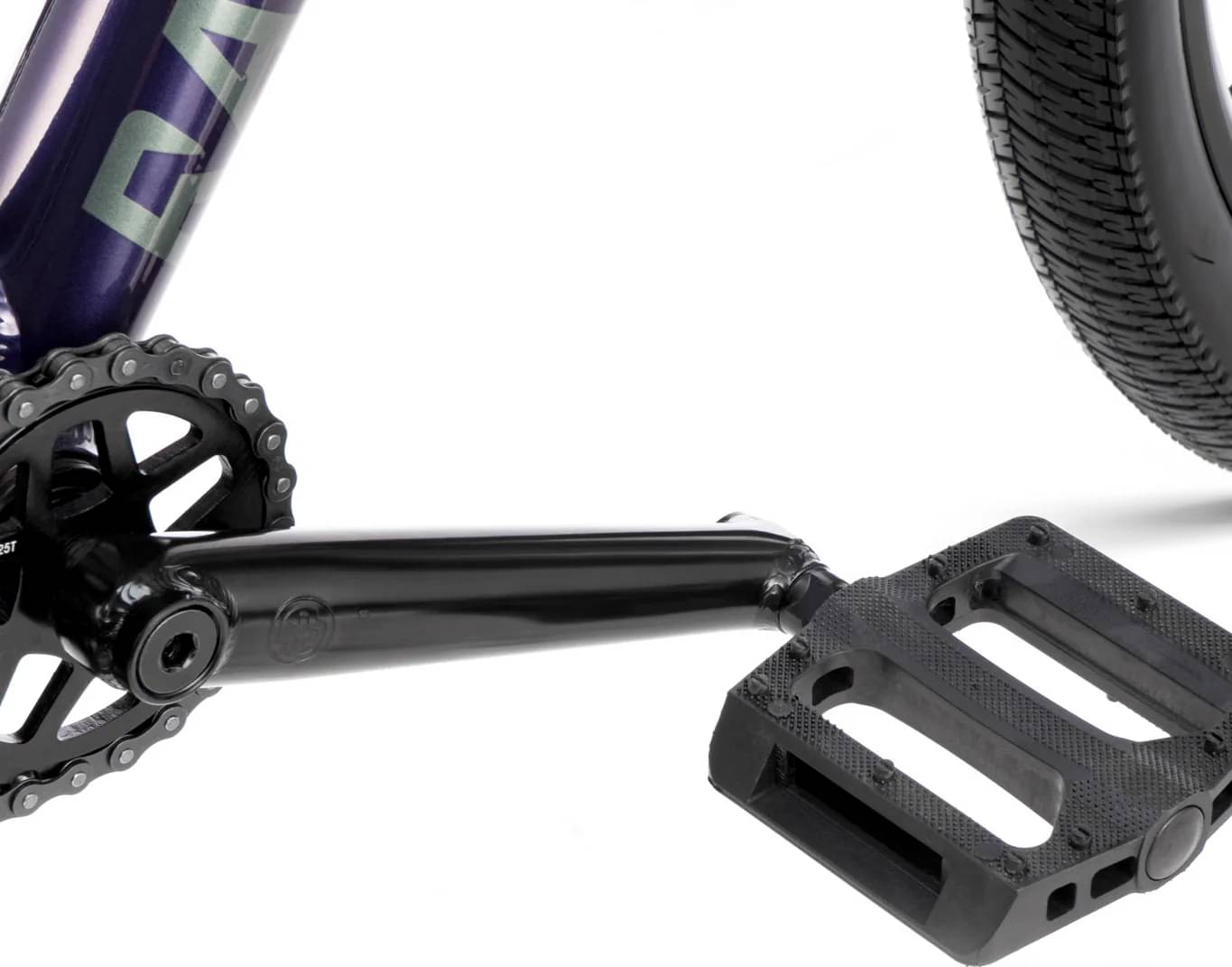

SALTPLUS "ULTRA" 3pc crank, TSS, crmo, 170mm, 8 spline

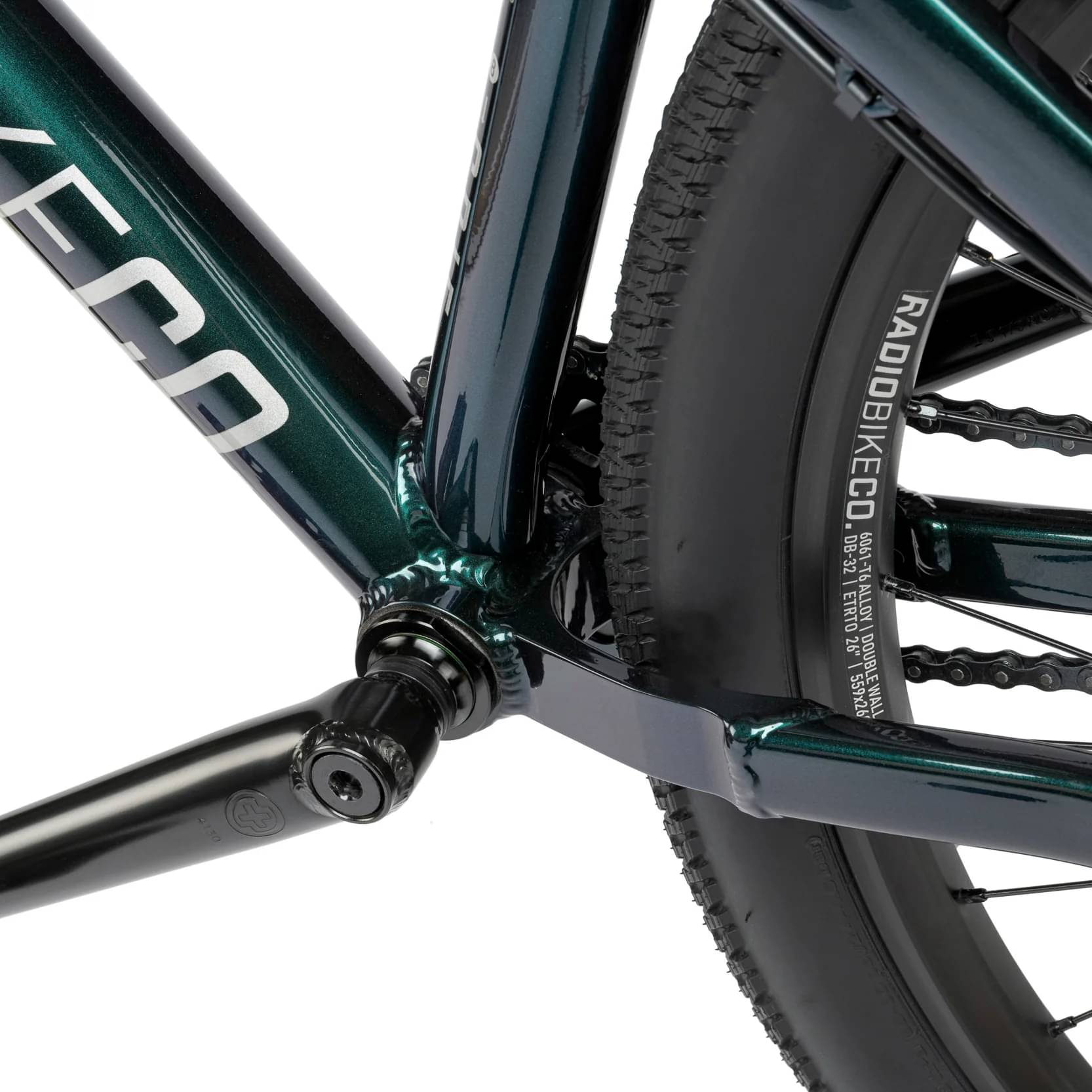

Bottom Bracket
RADIO "BSA19" bb set, sealed bearing
Chain
SALT "AM" chain, WZ1 type
Pedals
RADIO "SLIM" pedals, nylon/fiberglass
Wheels
Front Hub

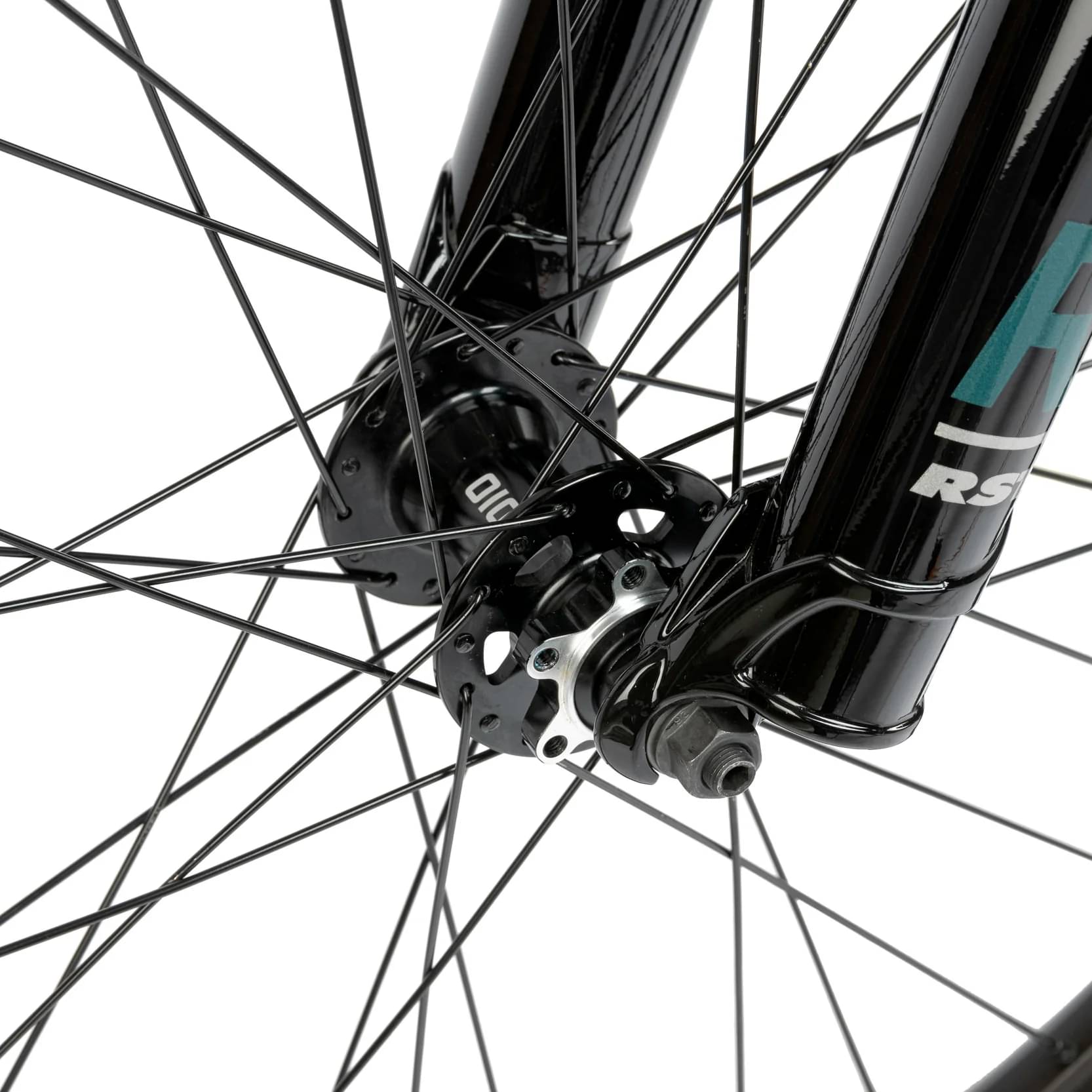

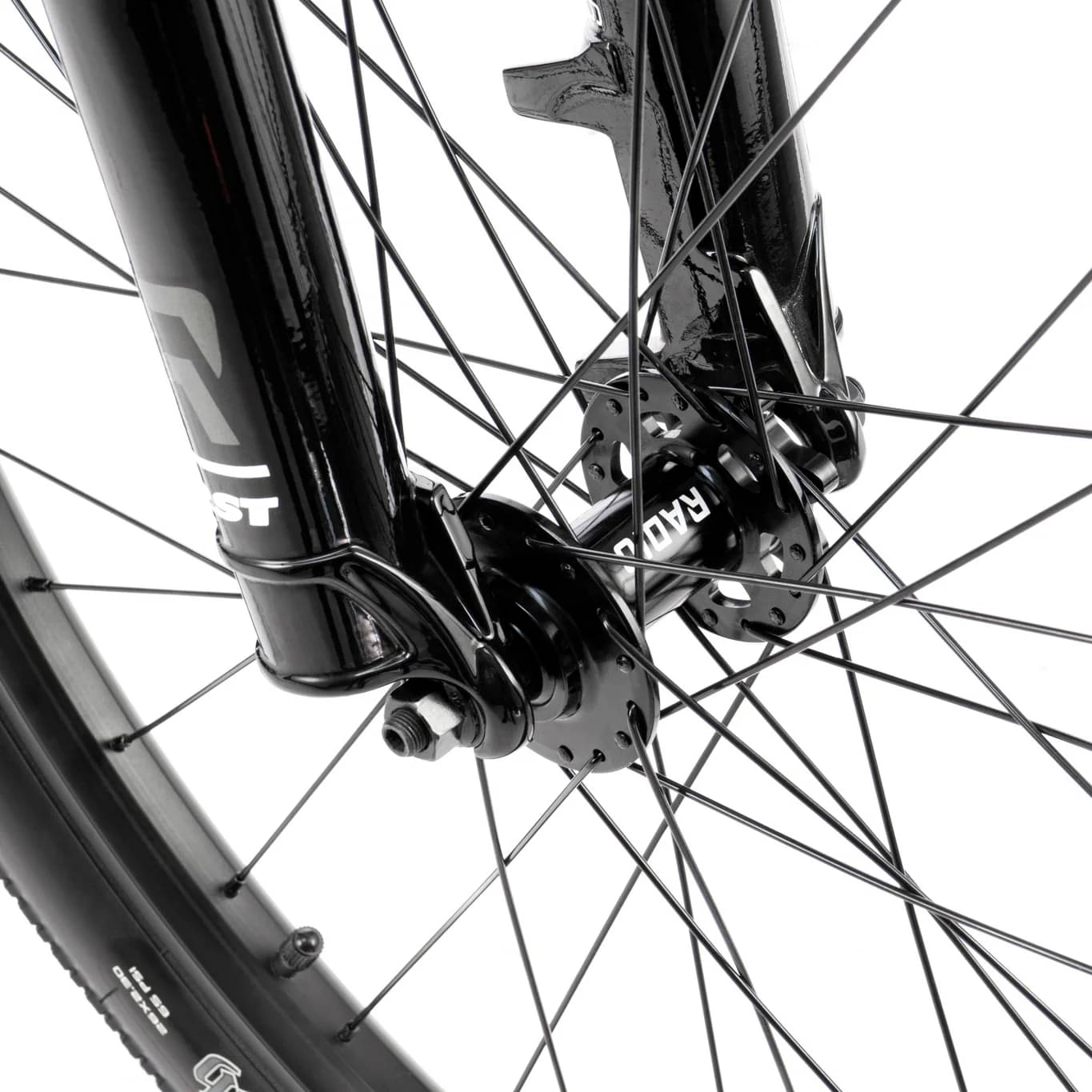

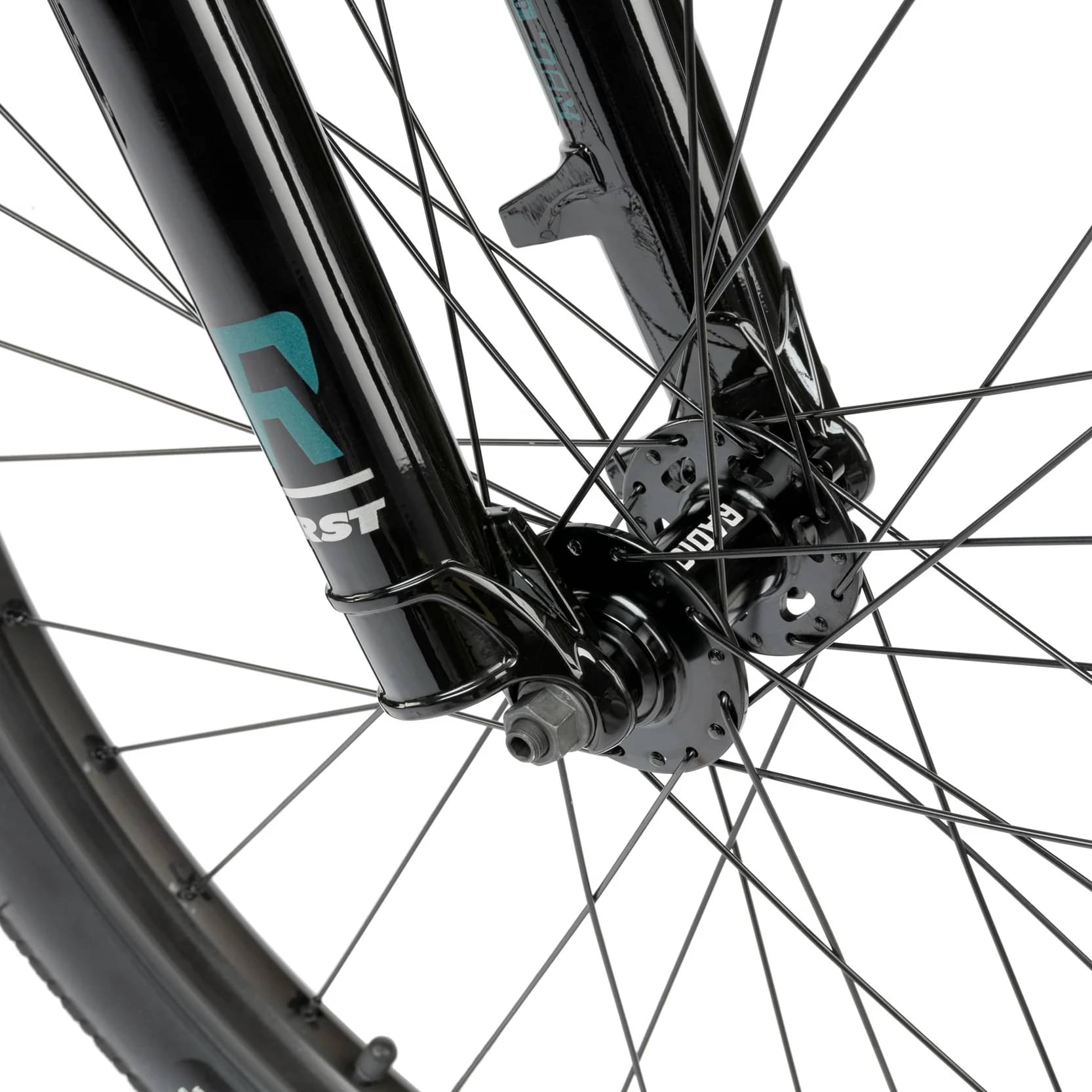

RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s male axle, 32h
Rear Hub

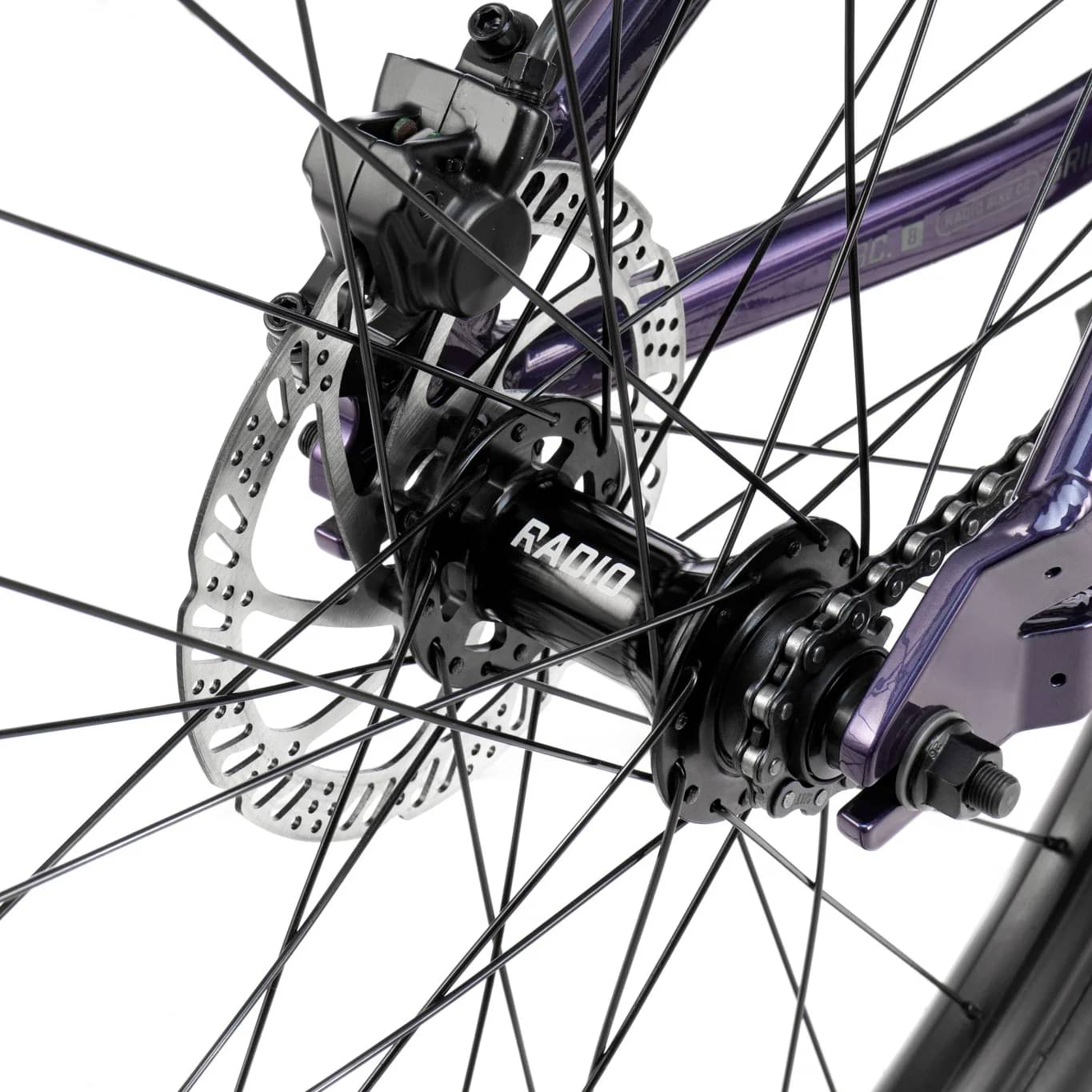

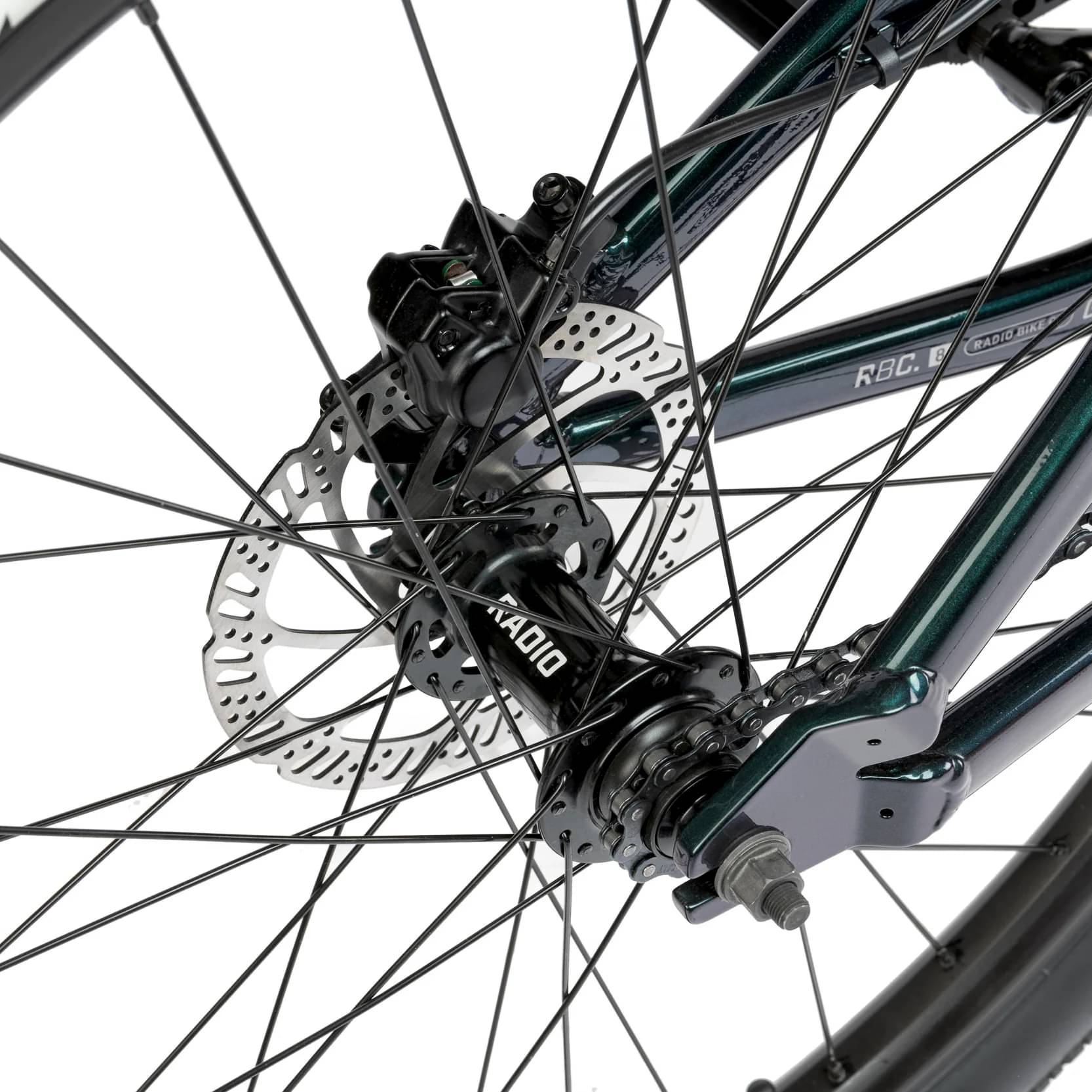

RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s crmo axle, 32h
Rims
RADIO "DB32" rim, double wall
Tires
MAXXIS "DTH" tires, 2.3", front & rear
Brakes
Brakes

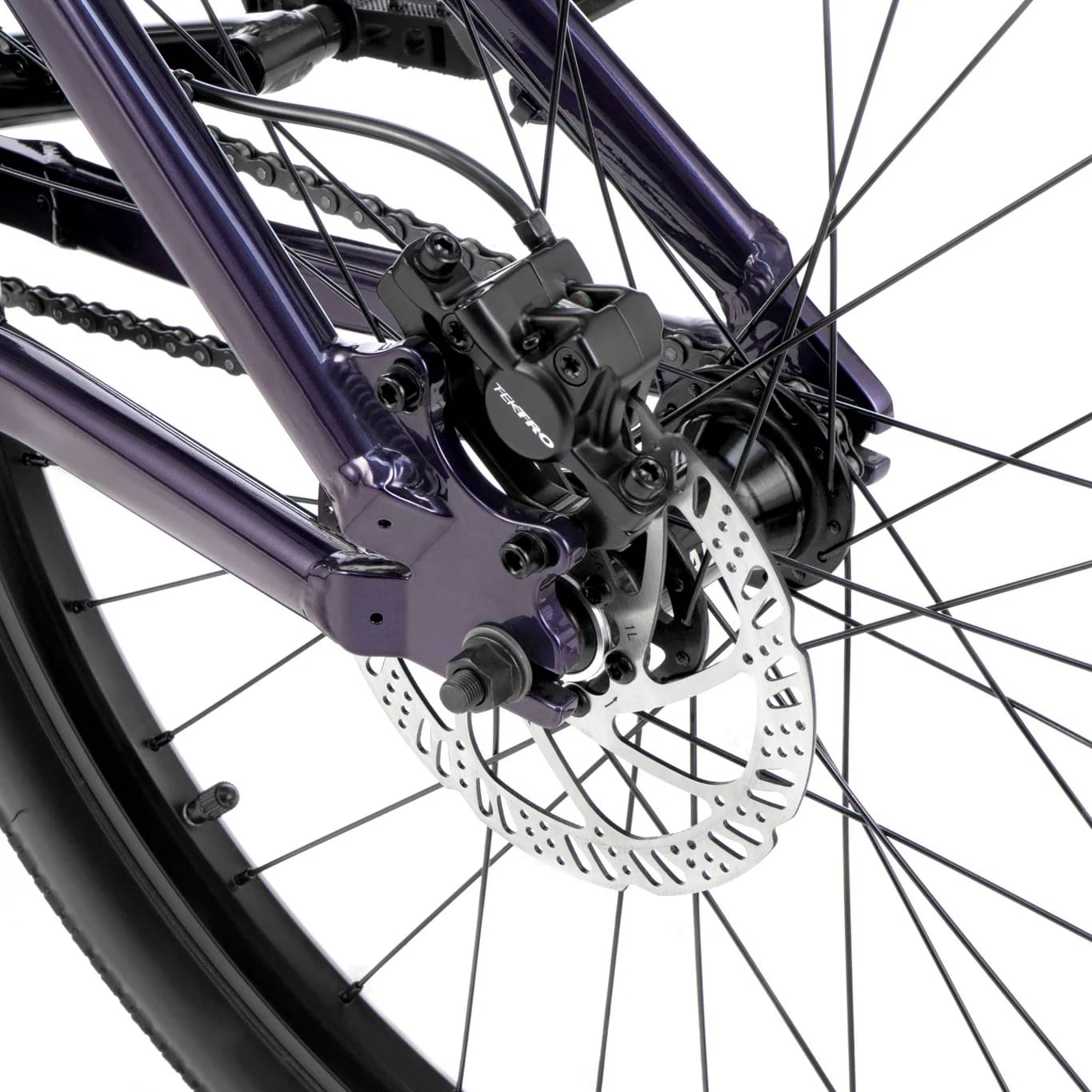

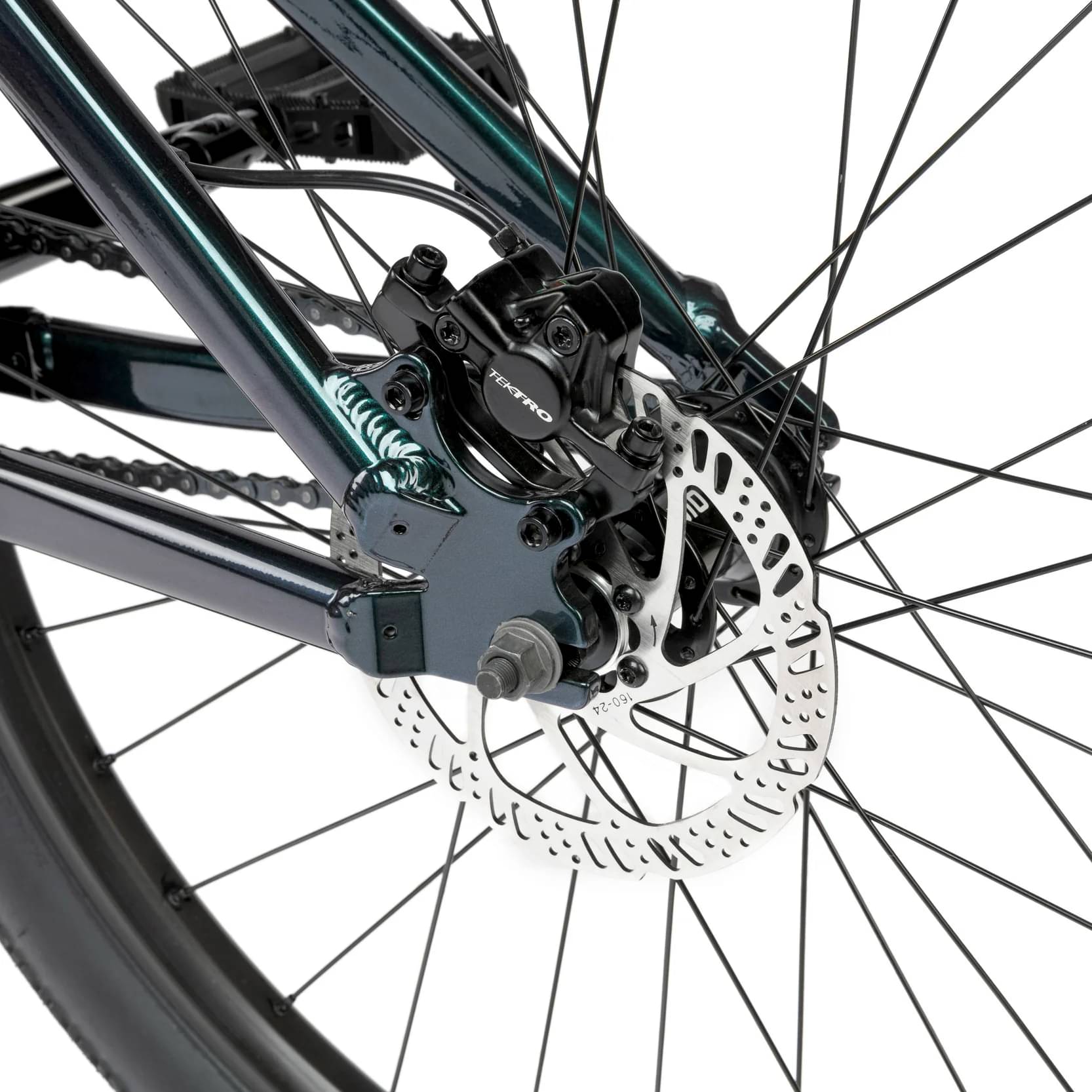

TEKTRO "ARIES" mechanical disc brake, 160mm rotor, front / TEKTRO " HD-M275" hydraulic disc brake, 160mm rotor, rear

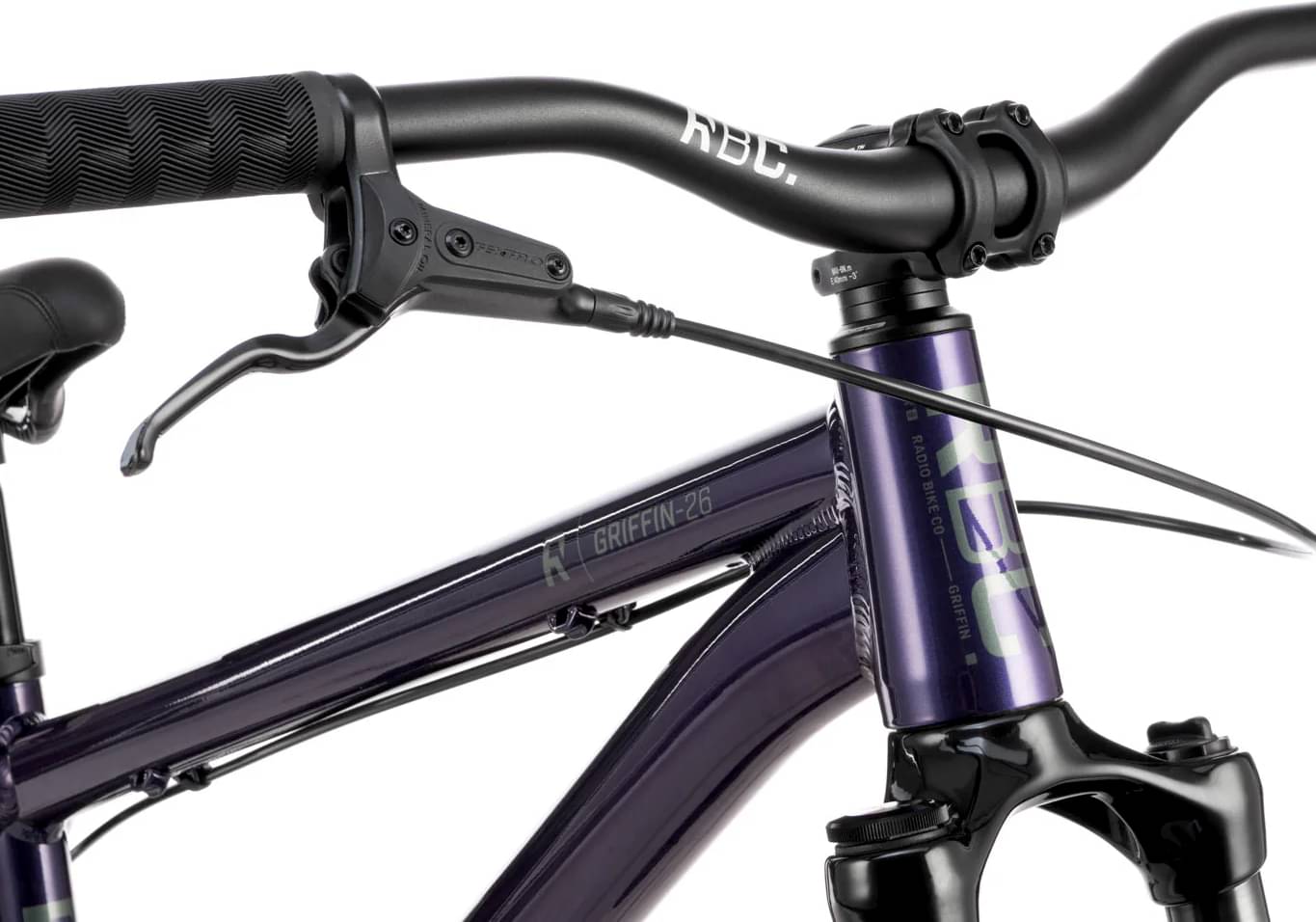

Brake Levers
TEKTRO “RS-360A” front lever / TEKTRO ” HD-M275? rear lever
Cockpit

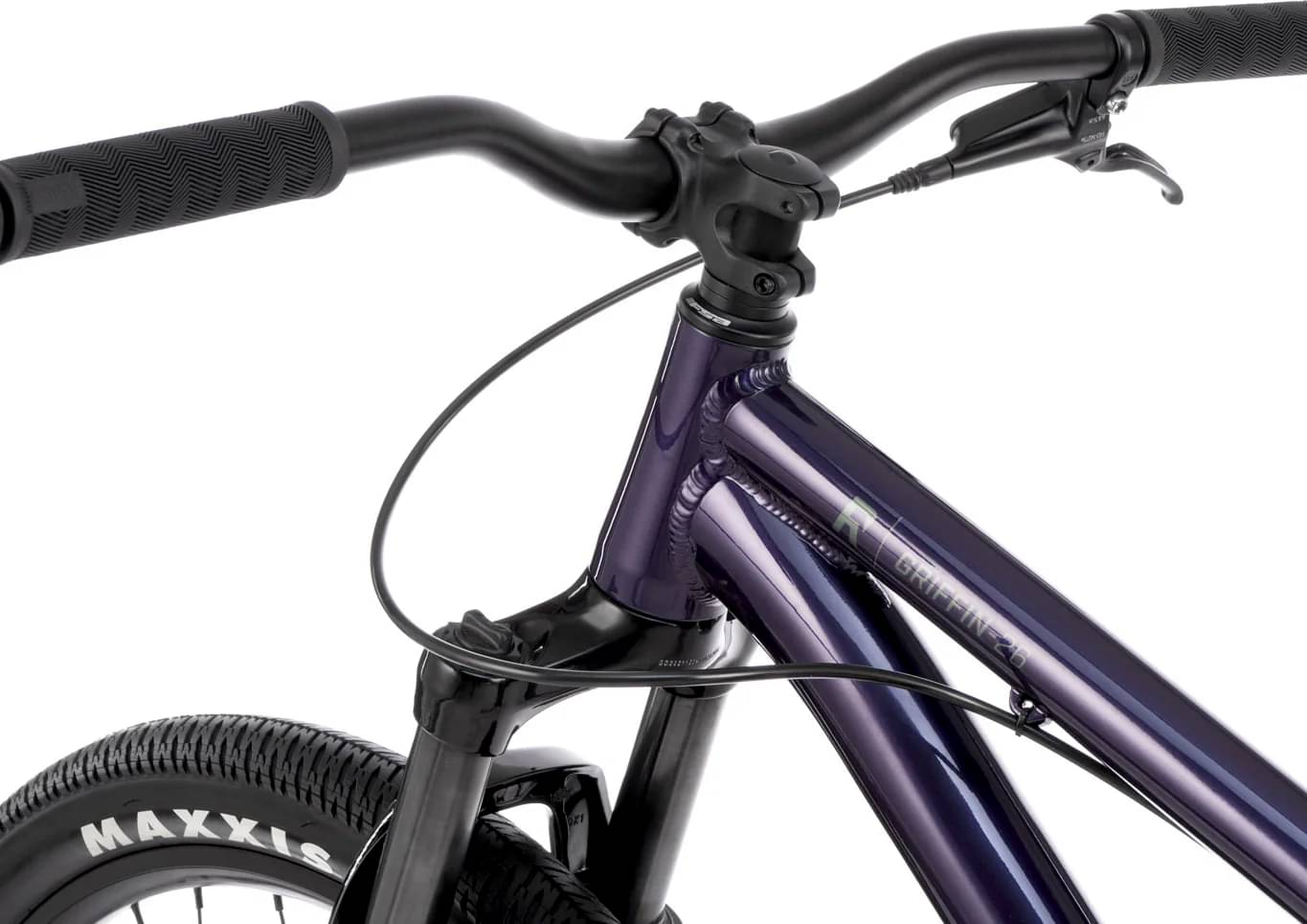

Stem

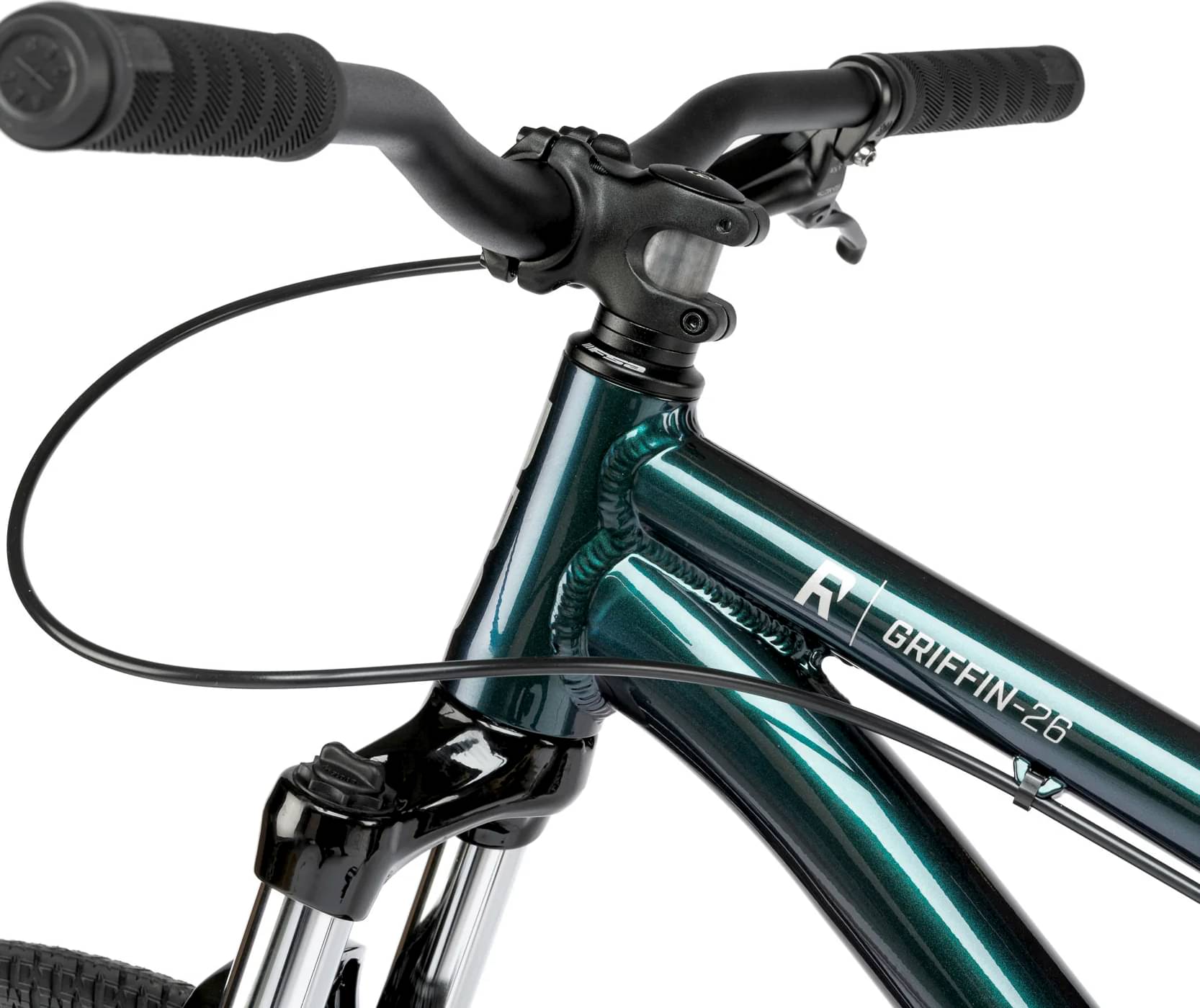

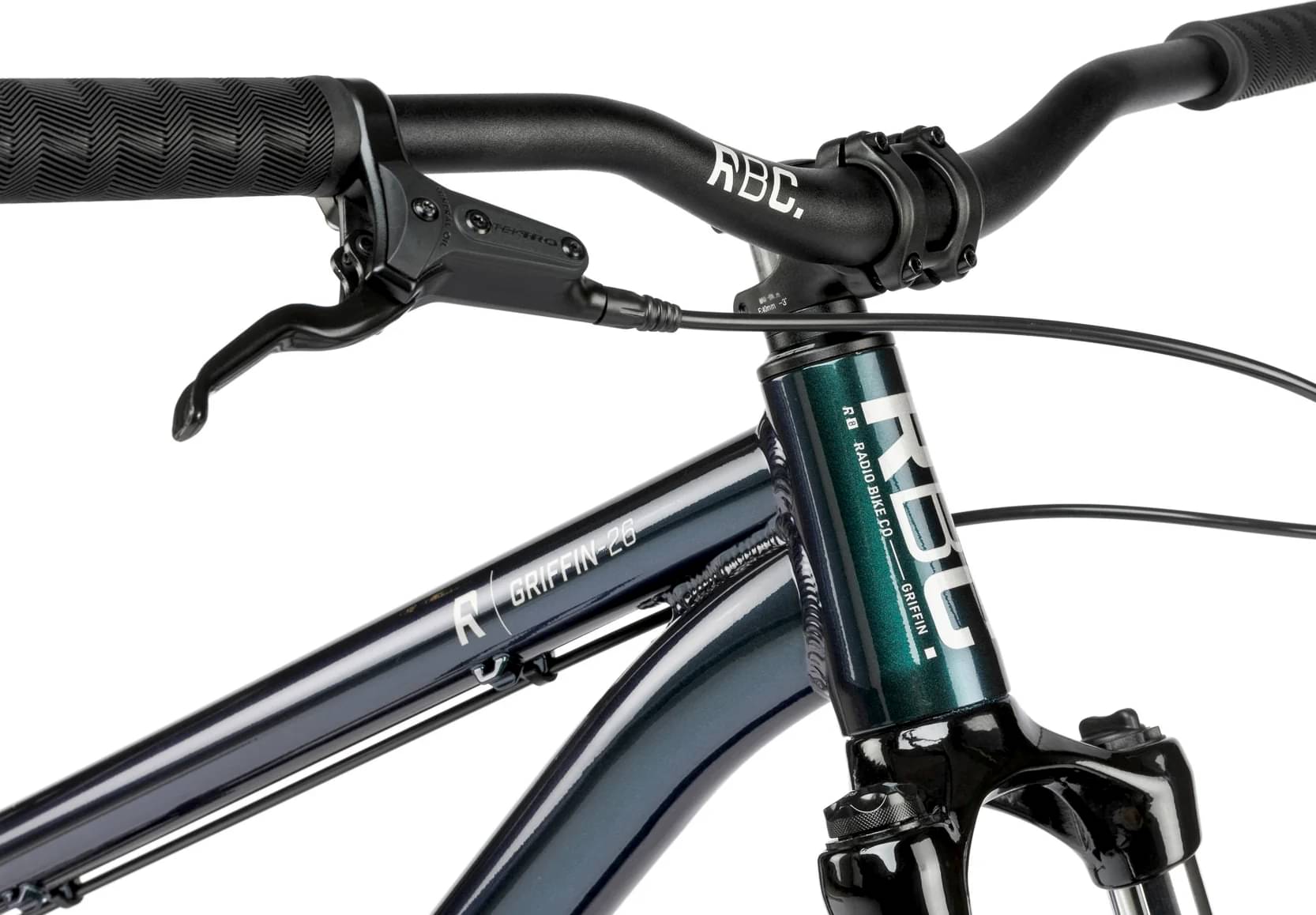

RADIO "ZOOM" frontload stem, alloy, 40mm reach
Handlebar
RADIO "ASURA" bar, 6061-T6 alloy, 31.8mm
Grips
RADIO "FREQUENCY XL" grips, flangeless, 160mm
Headset
FSA "NO.42/ACB-A" integrated A-headset, 1-1/8"-1.5"
Seat

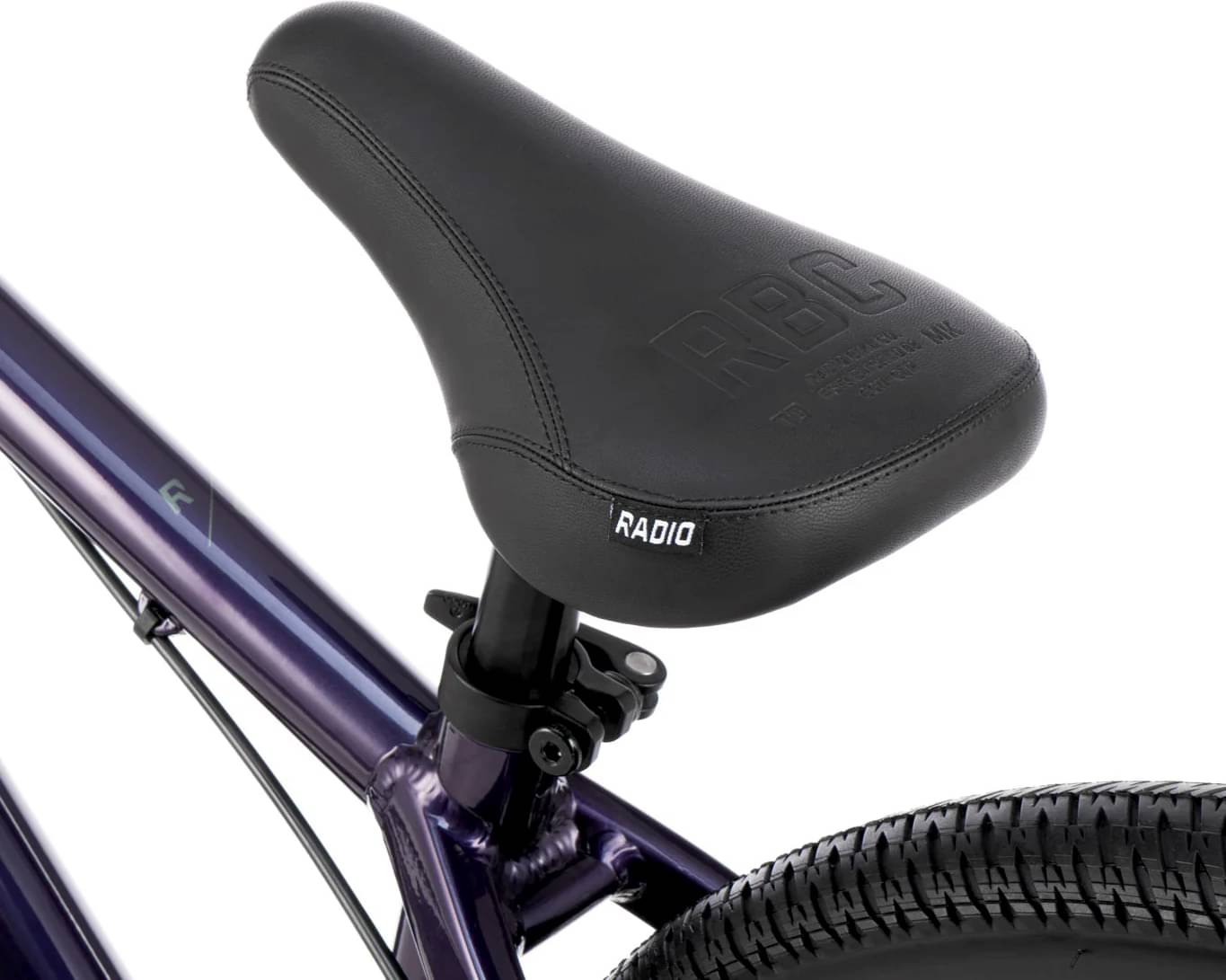

Saddle

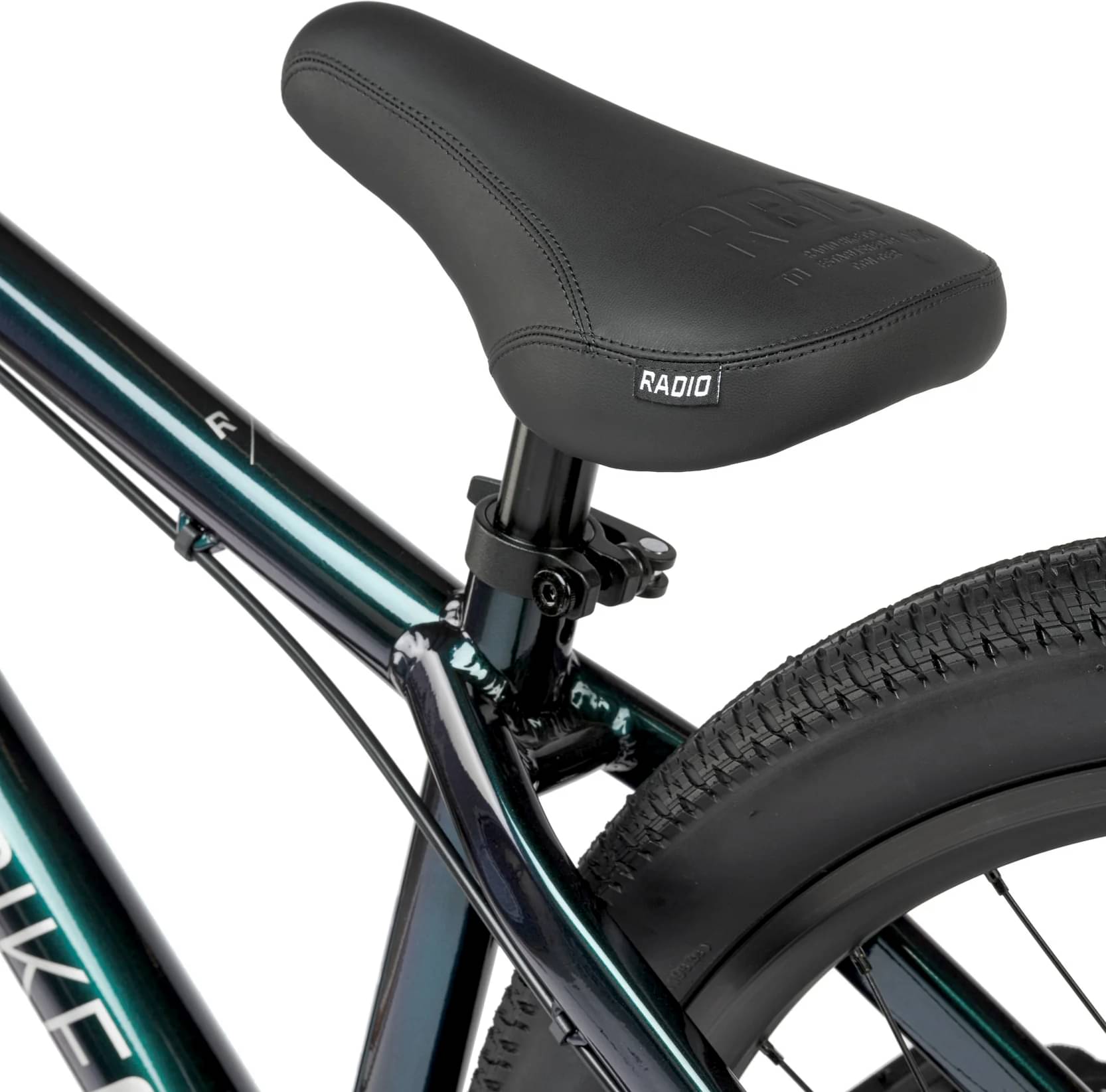

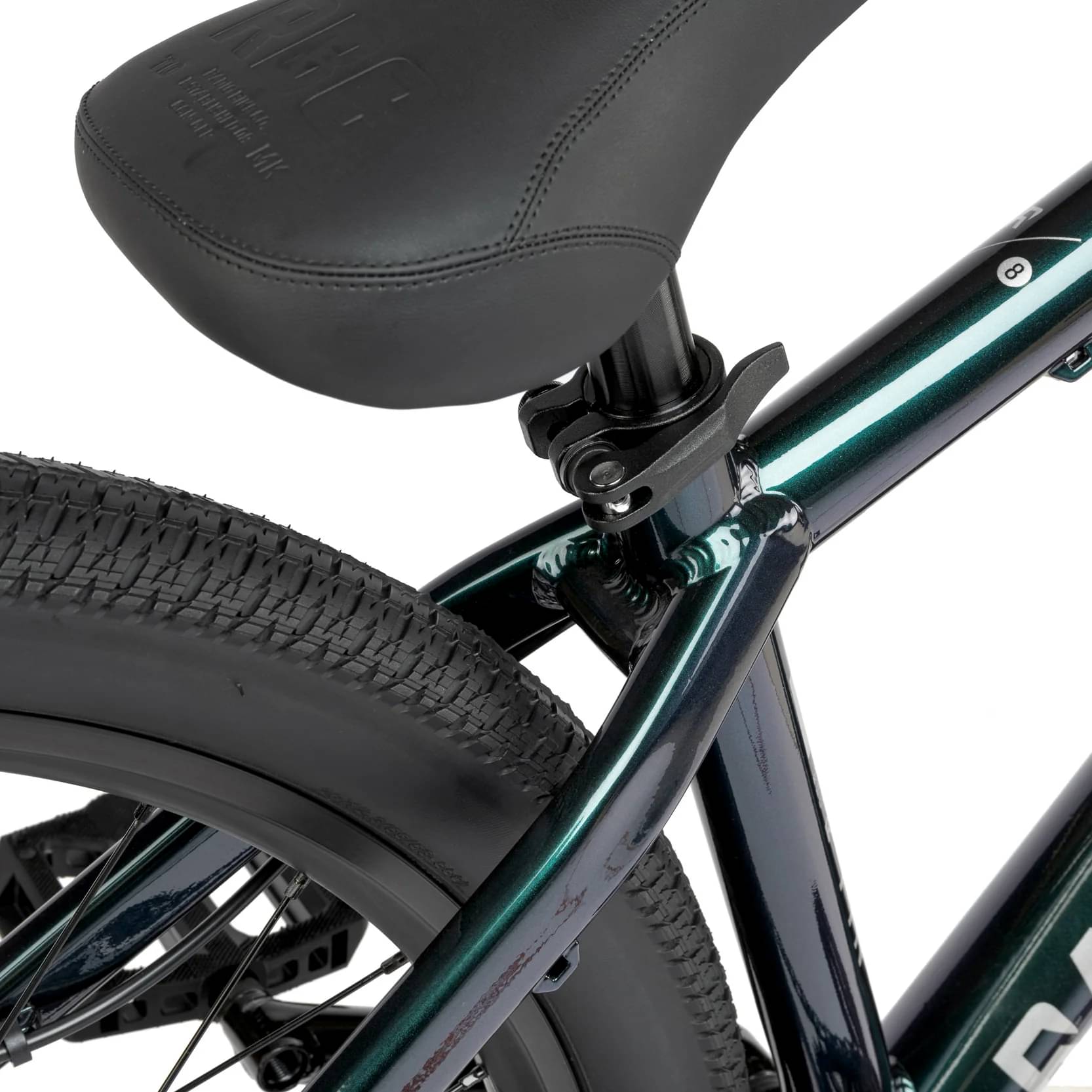

RADIO "DJ" combo seat, medium padded
Seatpost
-
Fit data
Geometry
