Bike details
Overview
Key information split into simple groups.

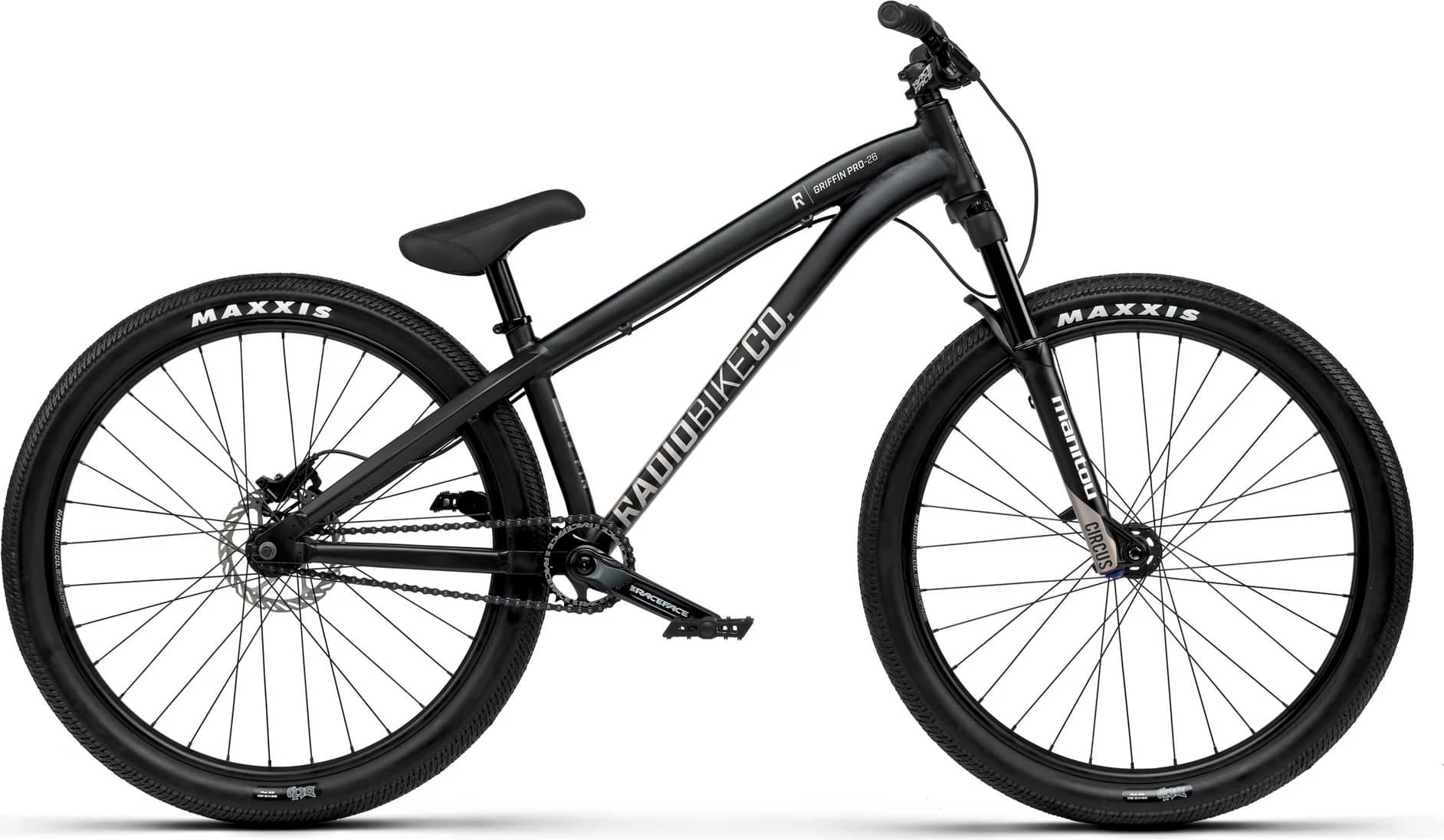

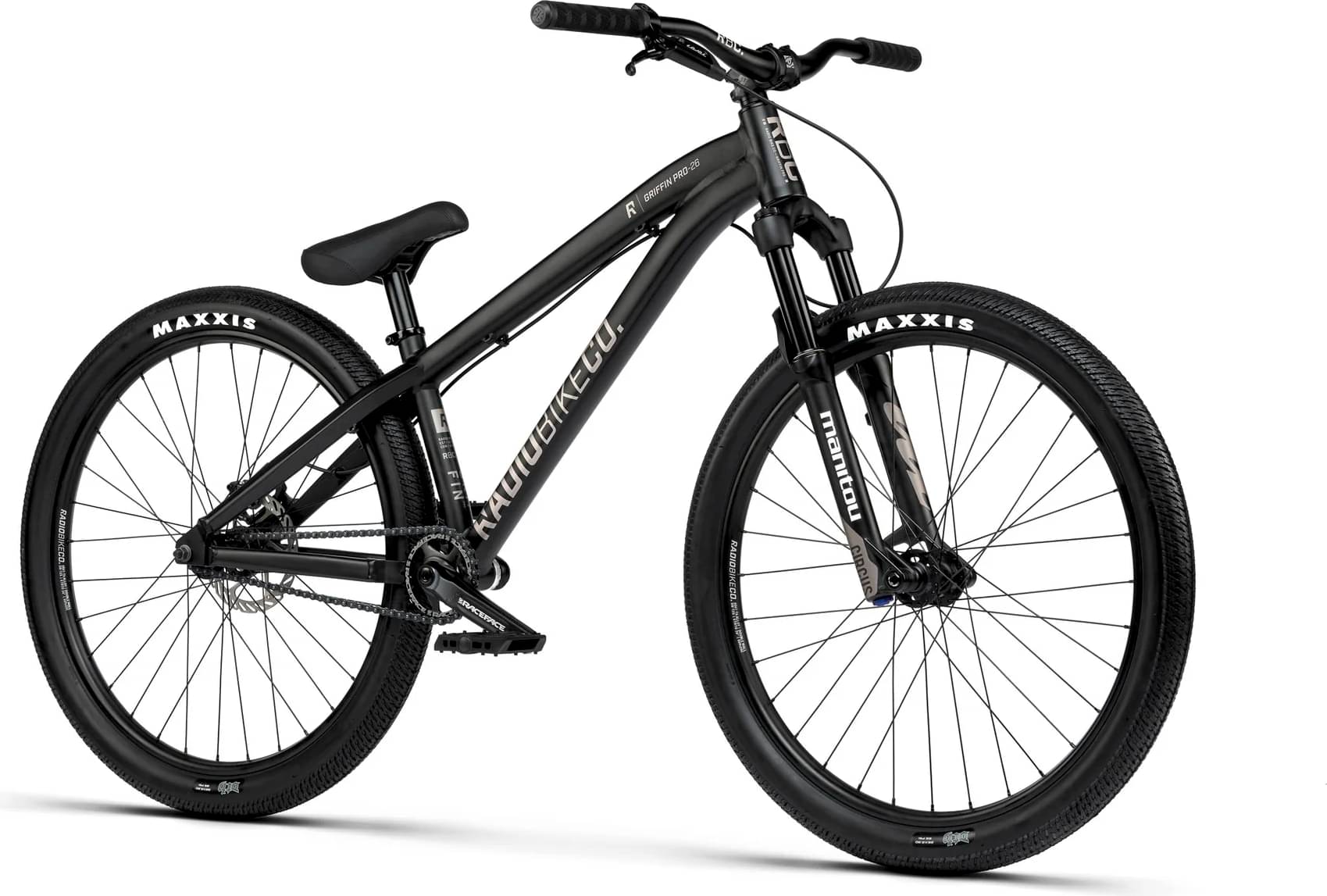

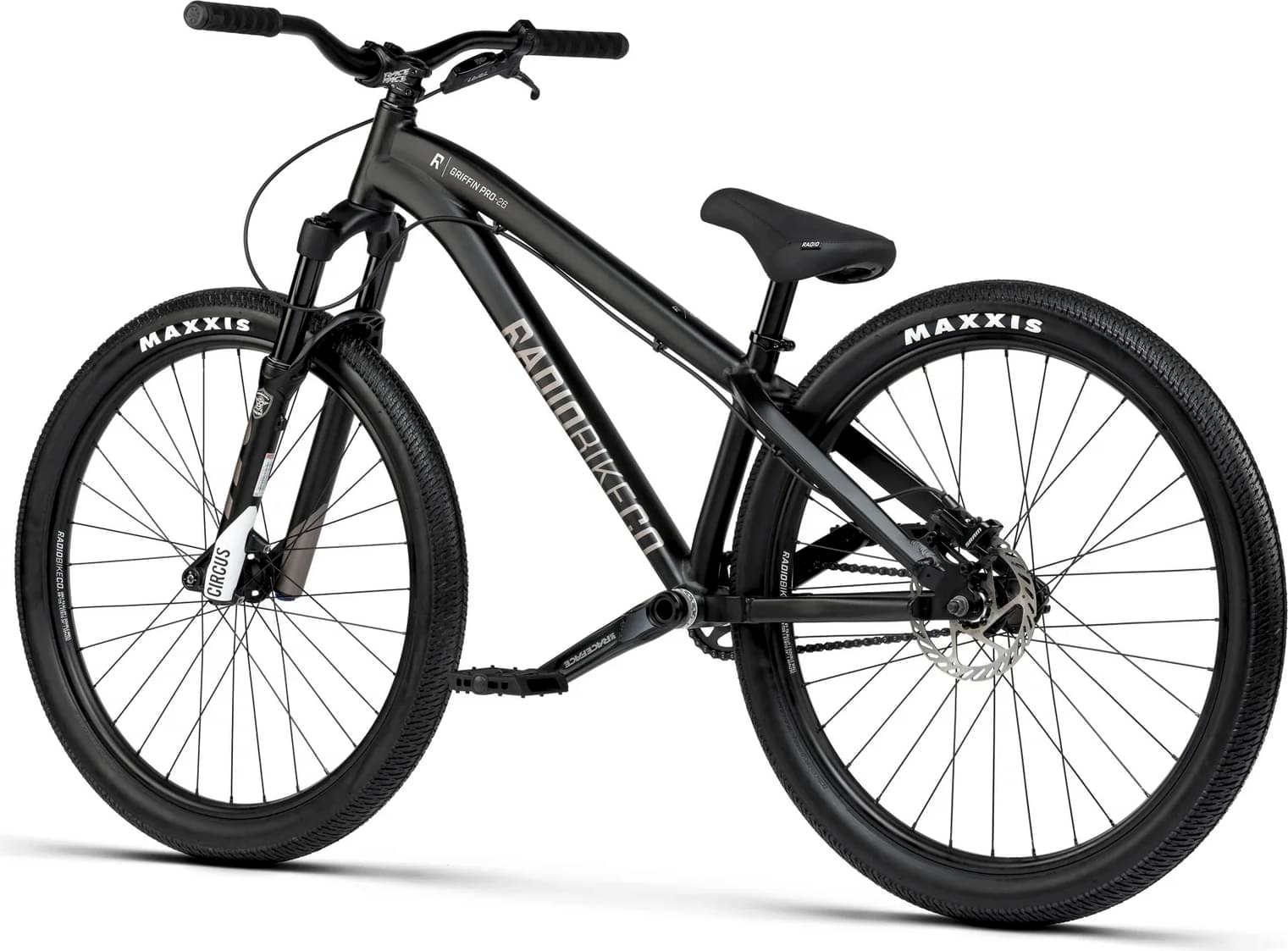

Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Manitou Circus Expert
-
Groupset Race Face -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RADIO "GRIFFIN PRO" frame, 6061-T6 hydroformed & butted alloy, tapered head tube, forged yoke

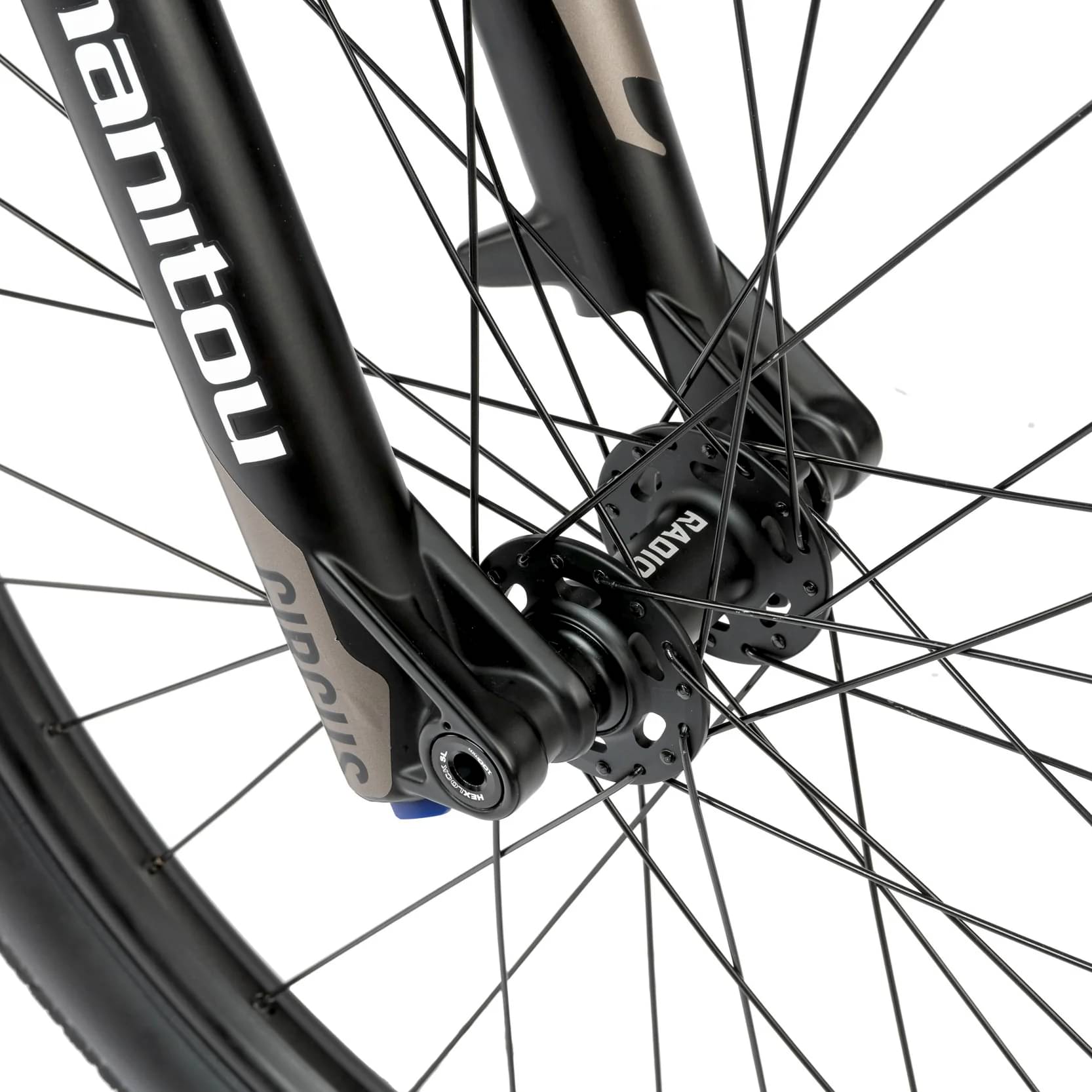

Suspension Fork
MANITOU “CIRCUS EXPERT” 100mm travel
Drivetrain
Cassette
RACE FACE "AEFFECT" sprocket, alloy, 28t

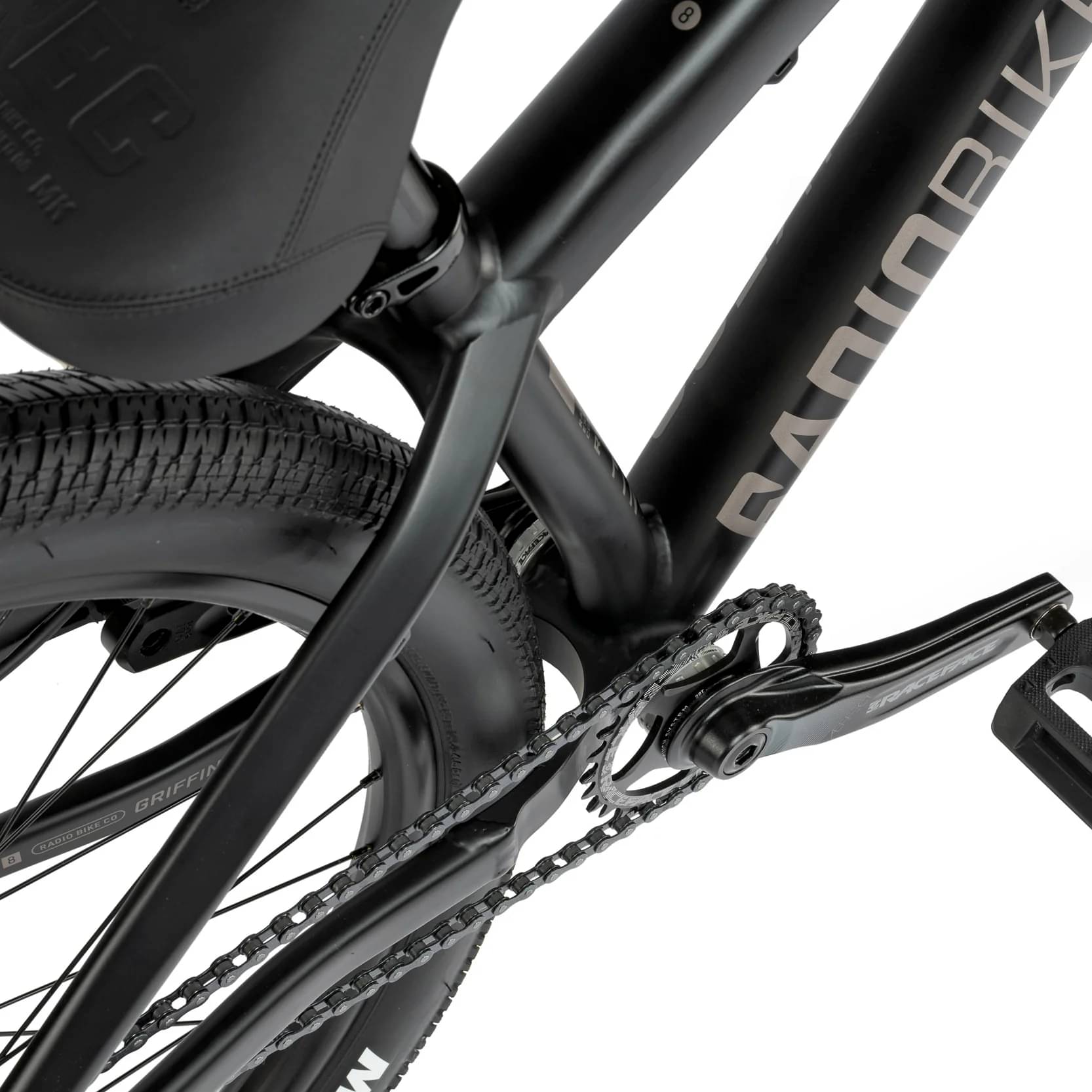

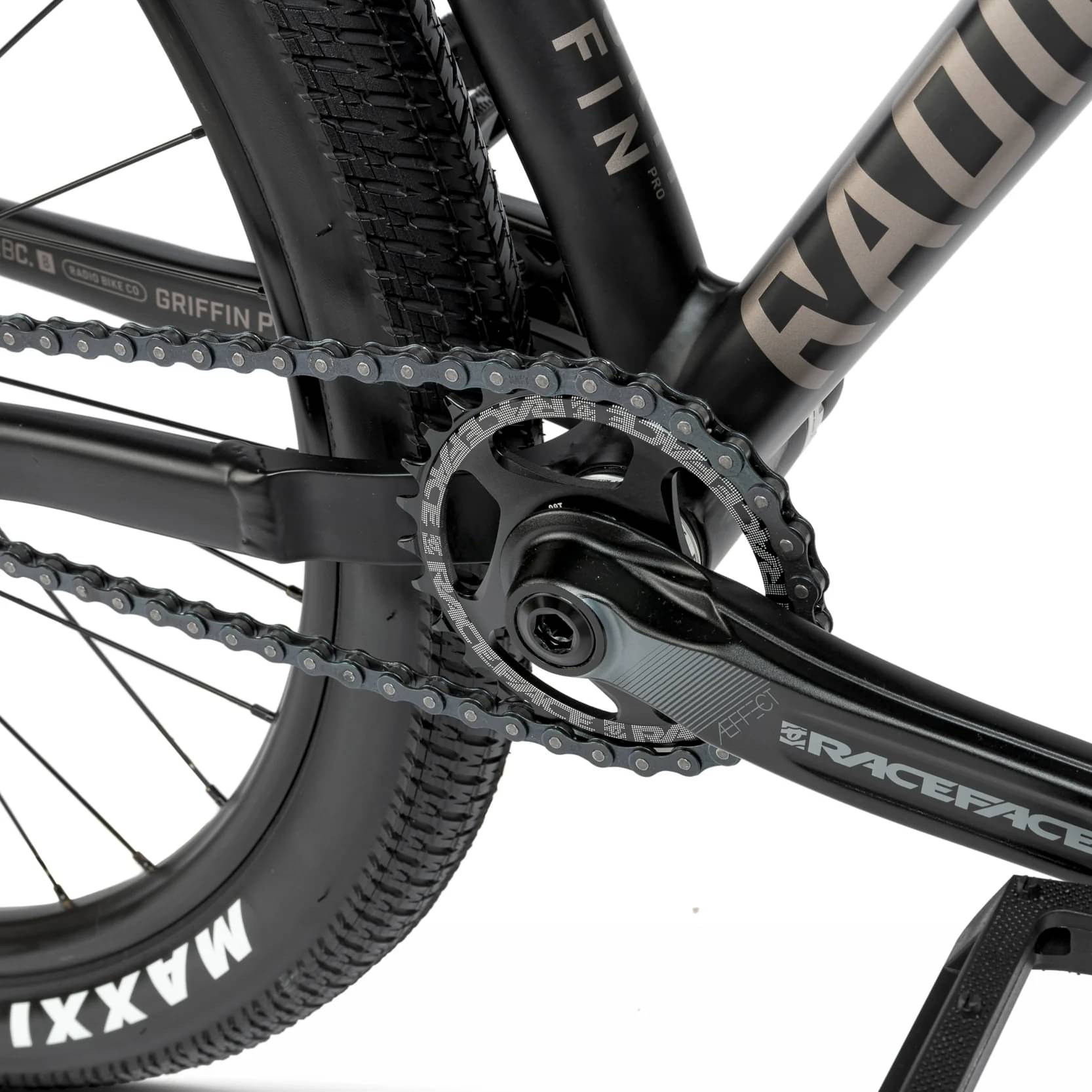

Crank
RACE FACE "AEFFECT" crank, alloy, 170mm

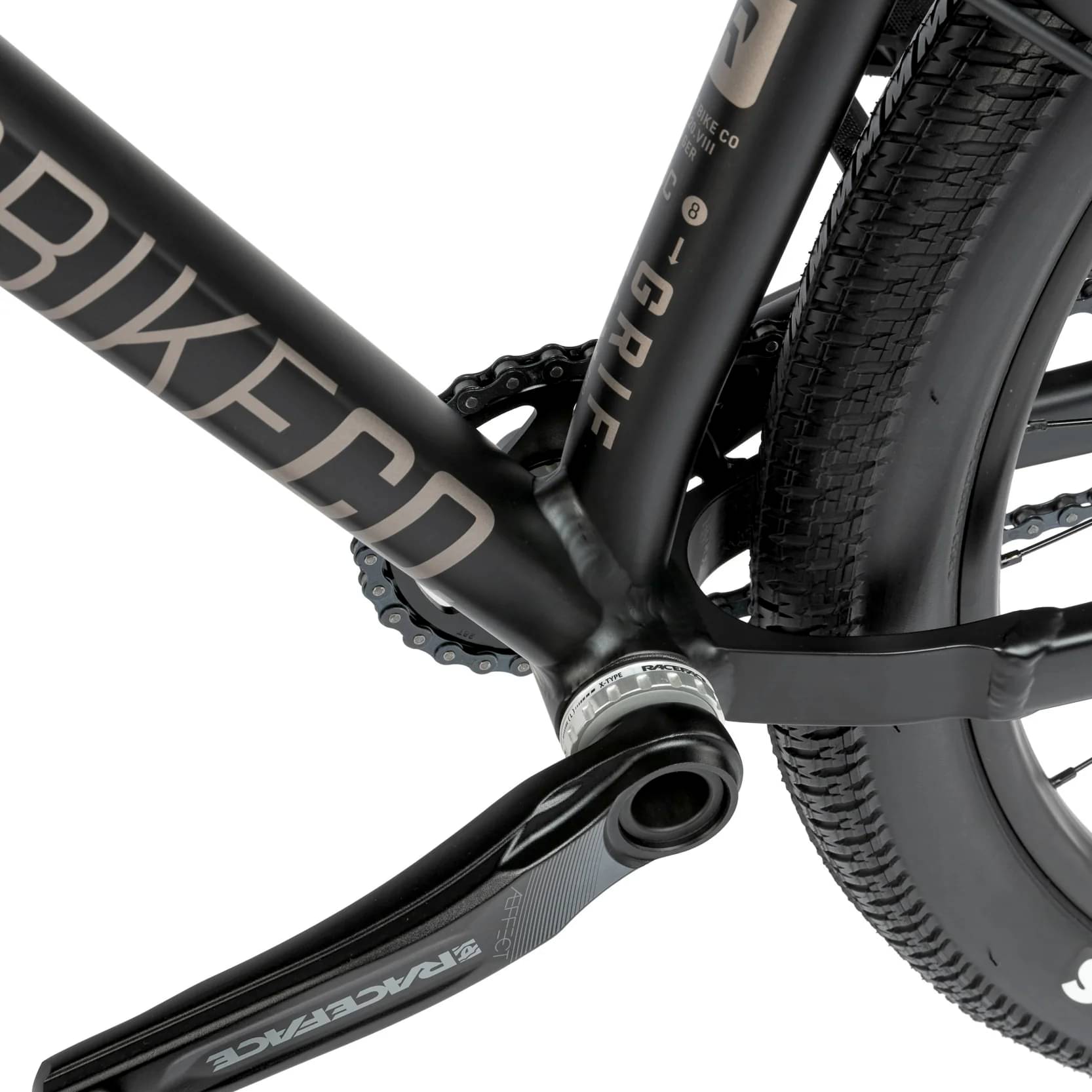

Bottom Bracket
RACE FACE "AEFFECT" BSA bb set, sealed bearing
Chain
SALT "AM" chain, WZ1 type
Pedals
RADIO "SLIM" pedals, nylon/fiberglass
Wheels
Front Hub

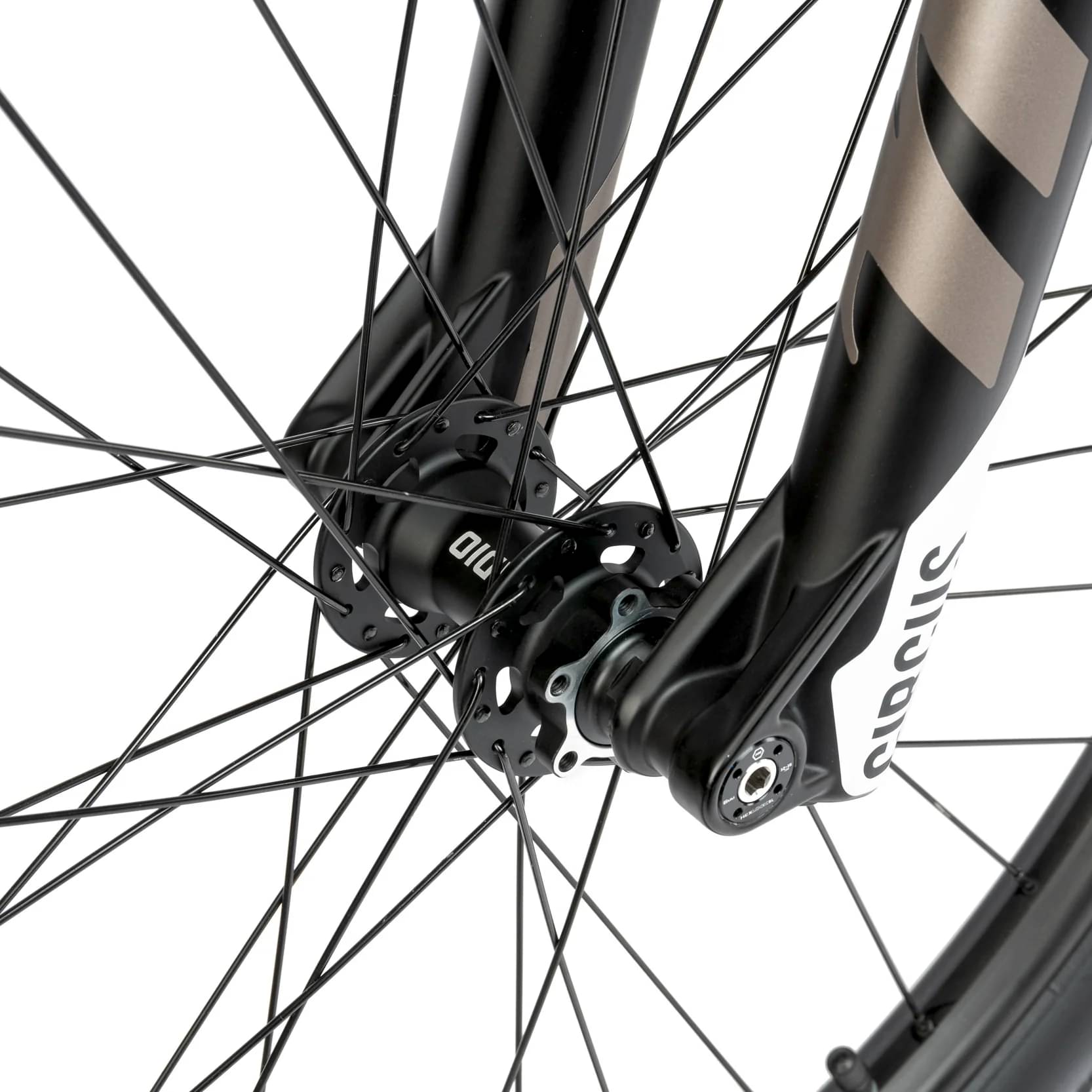

RADIO "PRO-DJ" disc hub, alloy, sealed, 15mm alloy through axle, 32h

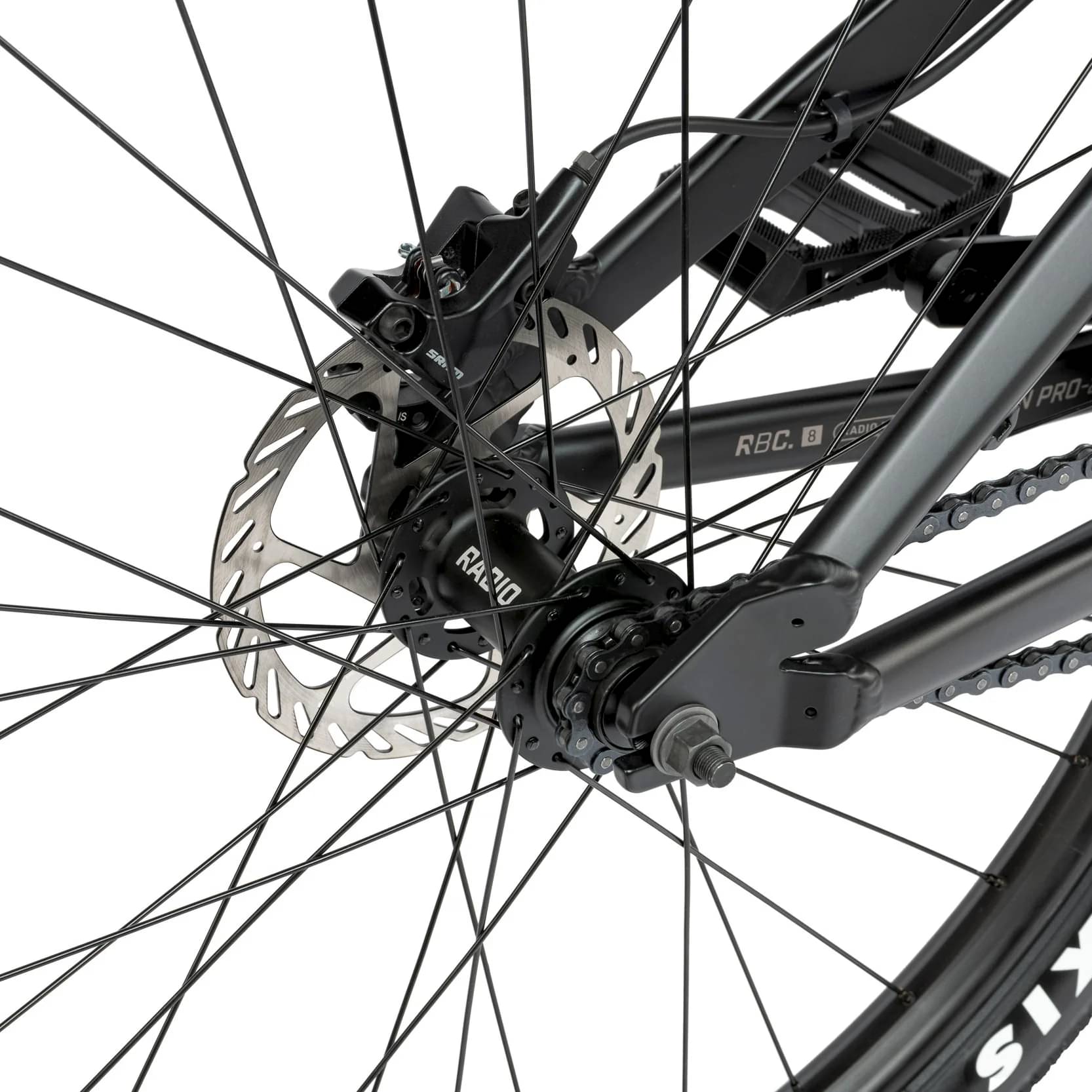

Rear Hub
RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s crmo axle, 32h
Rims
RADIO "DB-T25" rim, double wall, sleeved
Tires
MAXXIS "DTH" tires, 2.3", front & rear
Brakes
Brakes

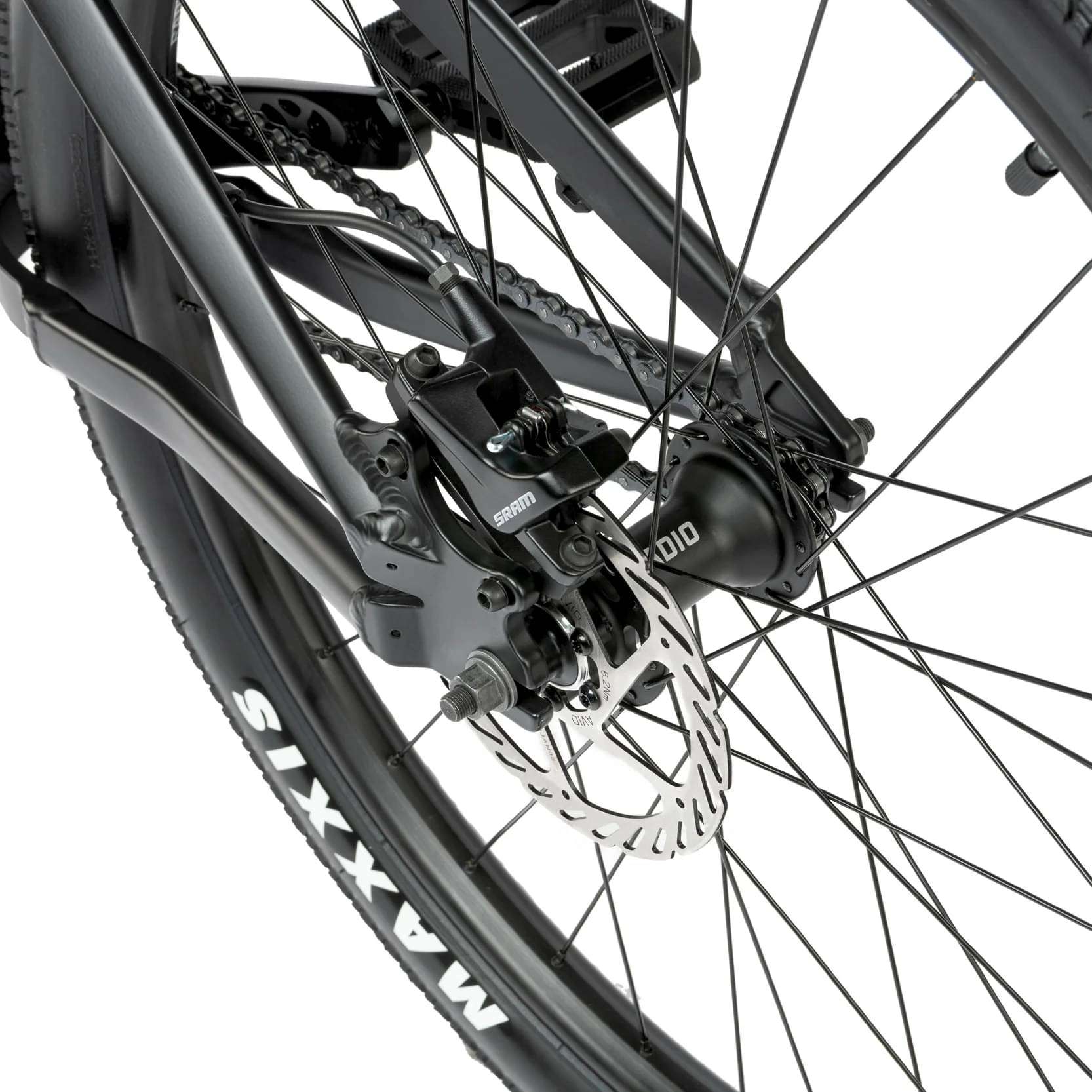

TEKTRO "ARIES" mechanical disc brake, 160mm rotor, front / SRAM "DB-LVL-A1" hydraulic disc brake, 160mm rotor, rear
Cockpit

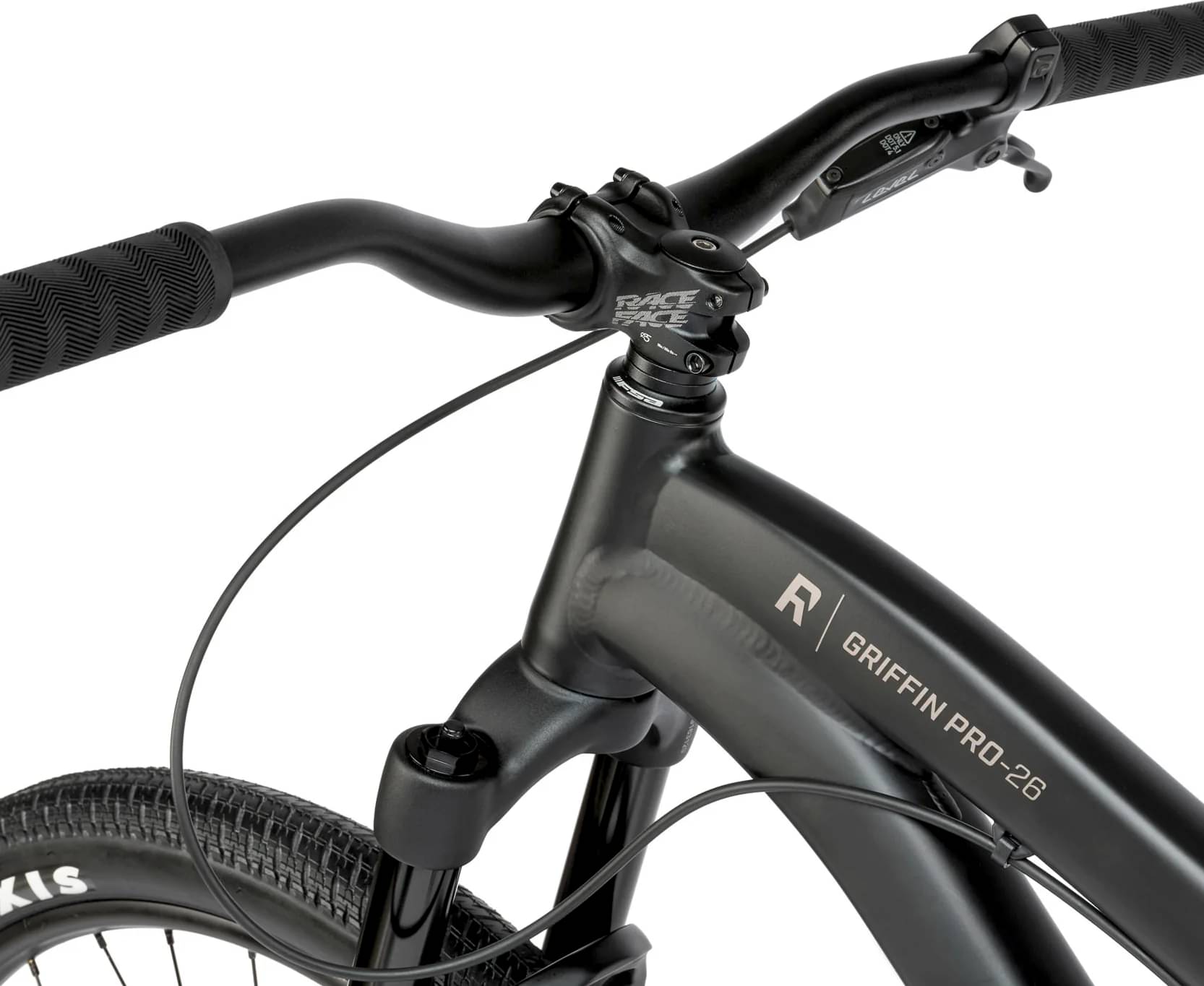

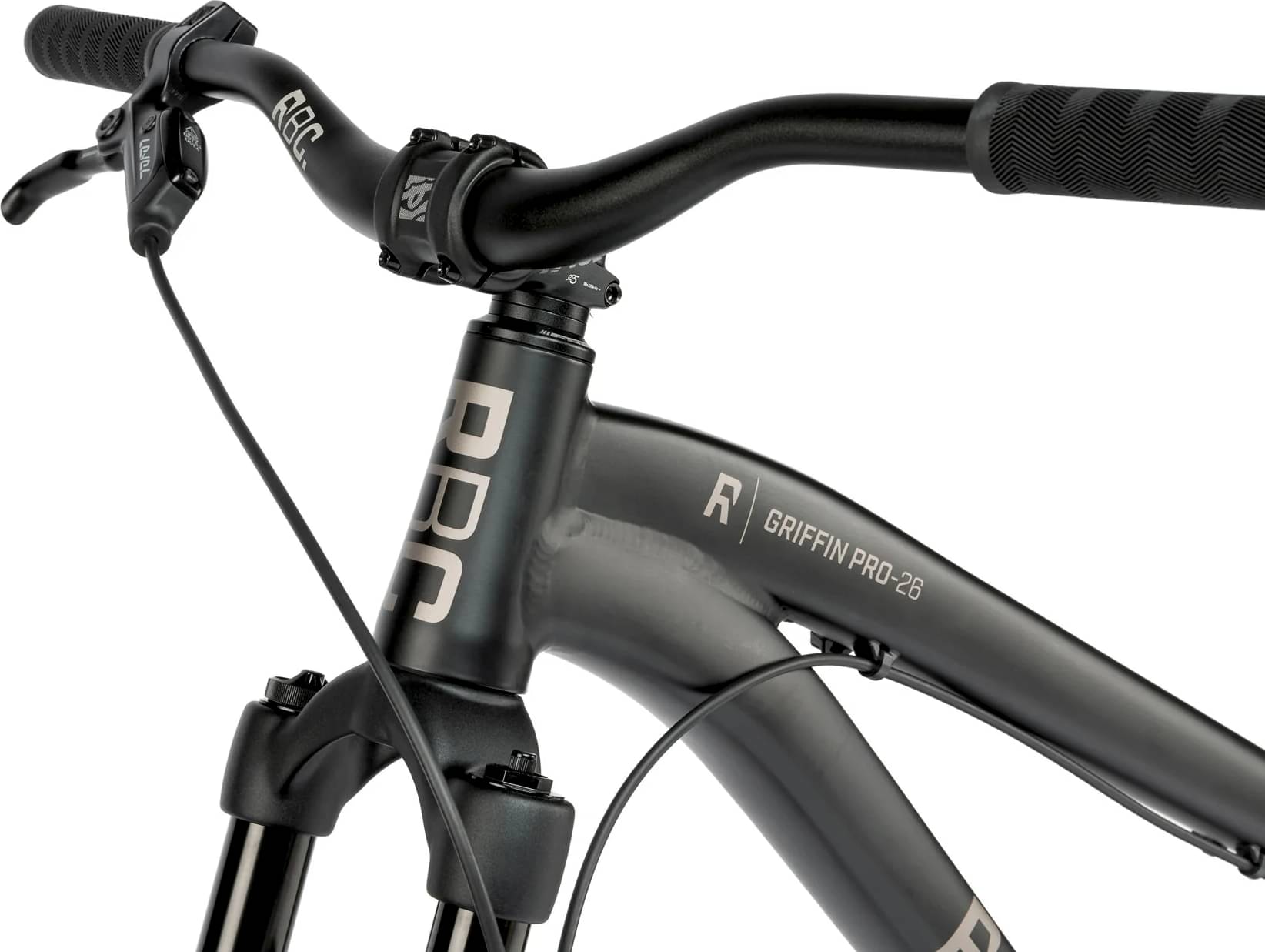

Stem
RACE FACE "CHESTER 35" frontload stem, alloy, 40mm reach
Handlebar
RADIO "GRIFFIN" bar, 6061-T6 alloy, 35mm

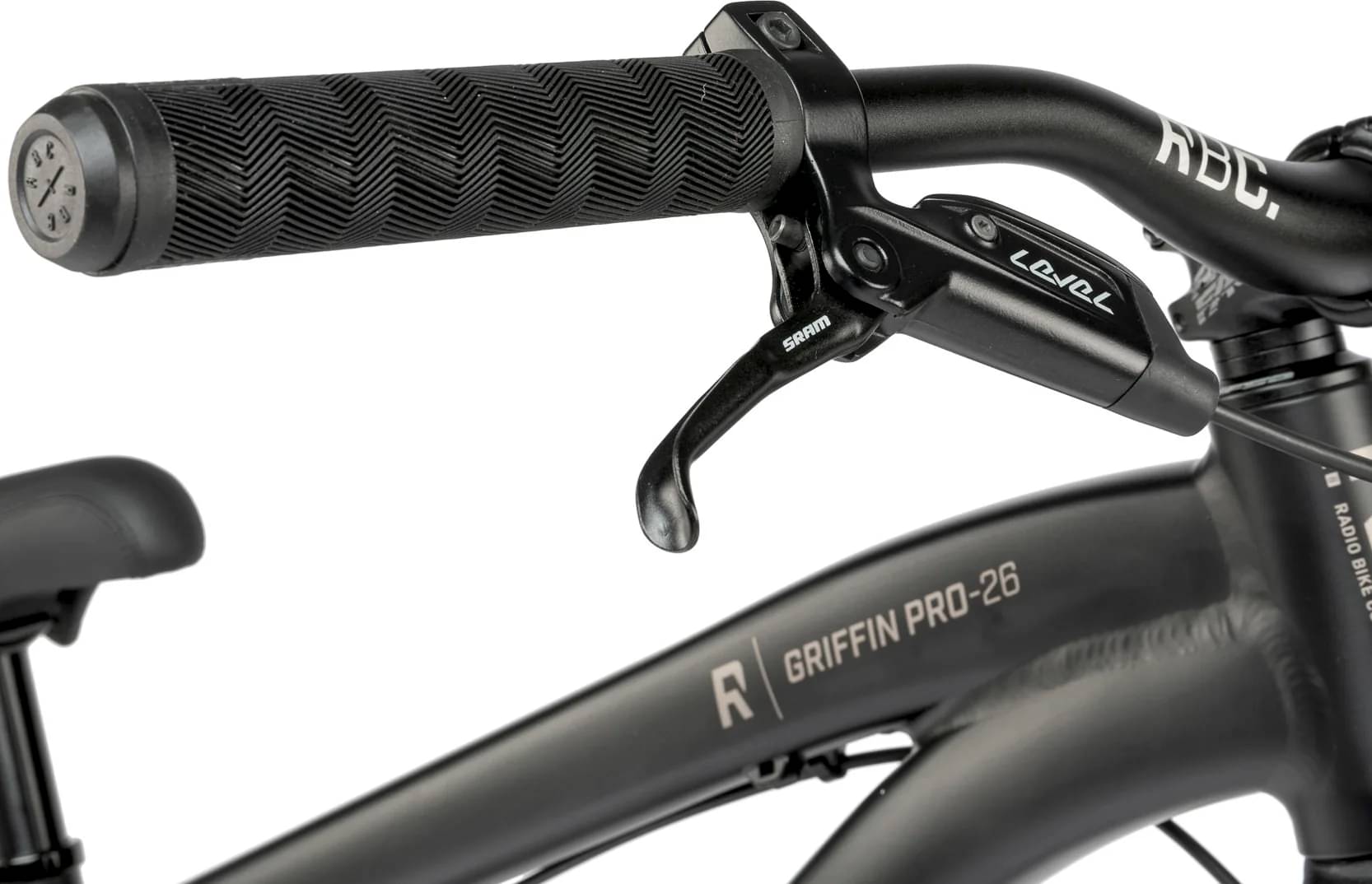

Grips
RADIO "FREQUENCY XL" grips, flangeless, 160mm
Headset
FSA "NO.42/ACB-A" integrated A-headset, 1-1/8"-1.5"
Seat
Saddle
RADIO “CENTURY” pivotal seat, fat padded

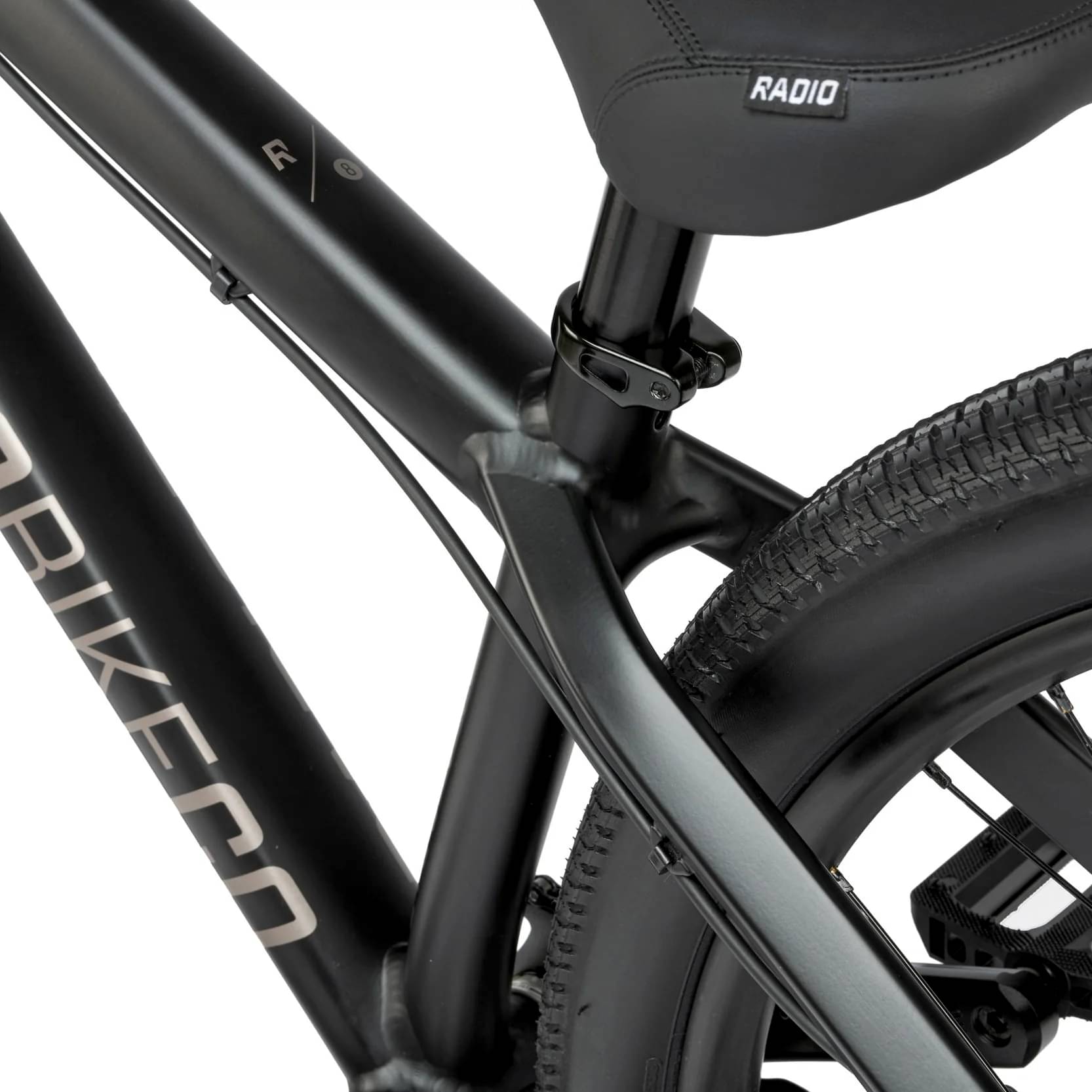

Seatpost
RADIO "PIVOTAL" seat post, alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Wheels | 26" |
