Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Suspension Rigid -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Radio “LEGION 26” frame 6061-T6 alloy
Suspension Fork
Radio “LEGION 26” full crmo fork 30mm offset

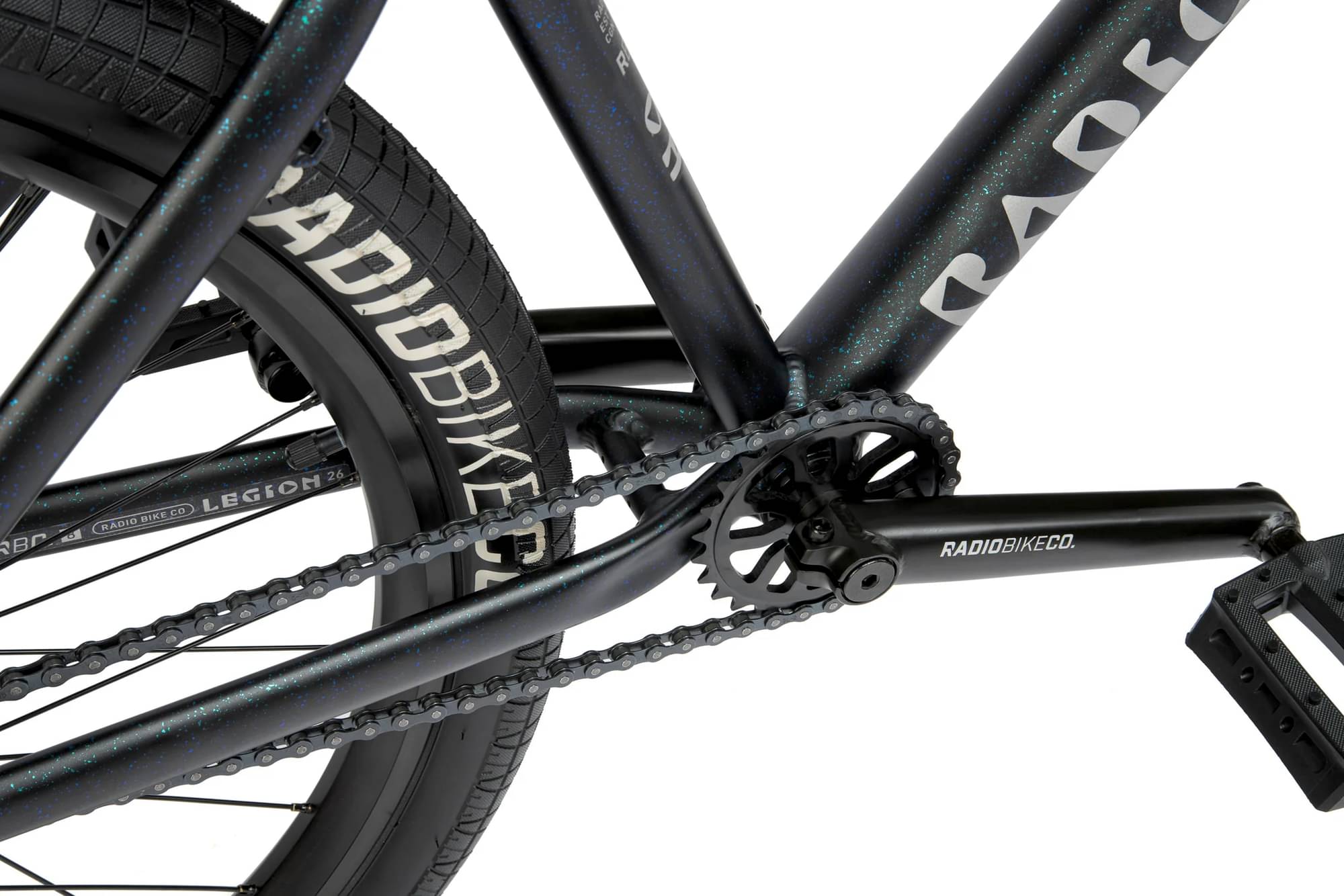

Drivetrain
Cassette
Radio “LEGION” sprocket alloy 26t

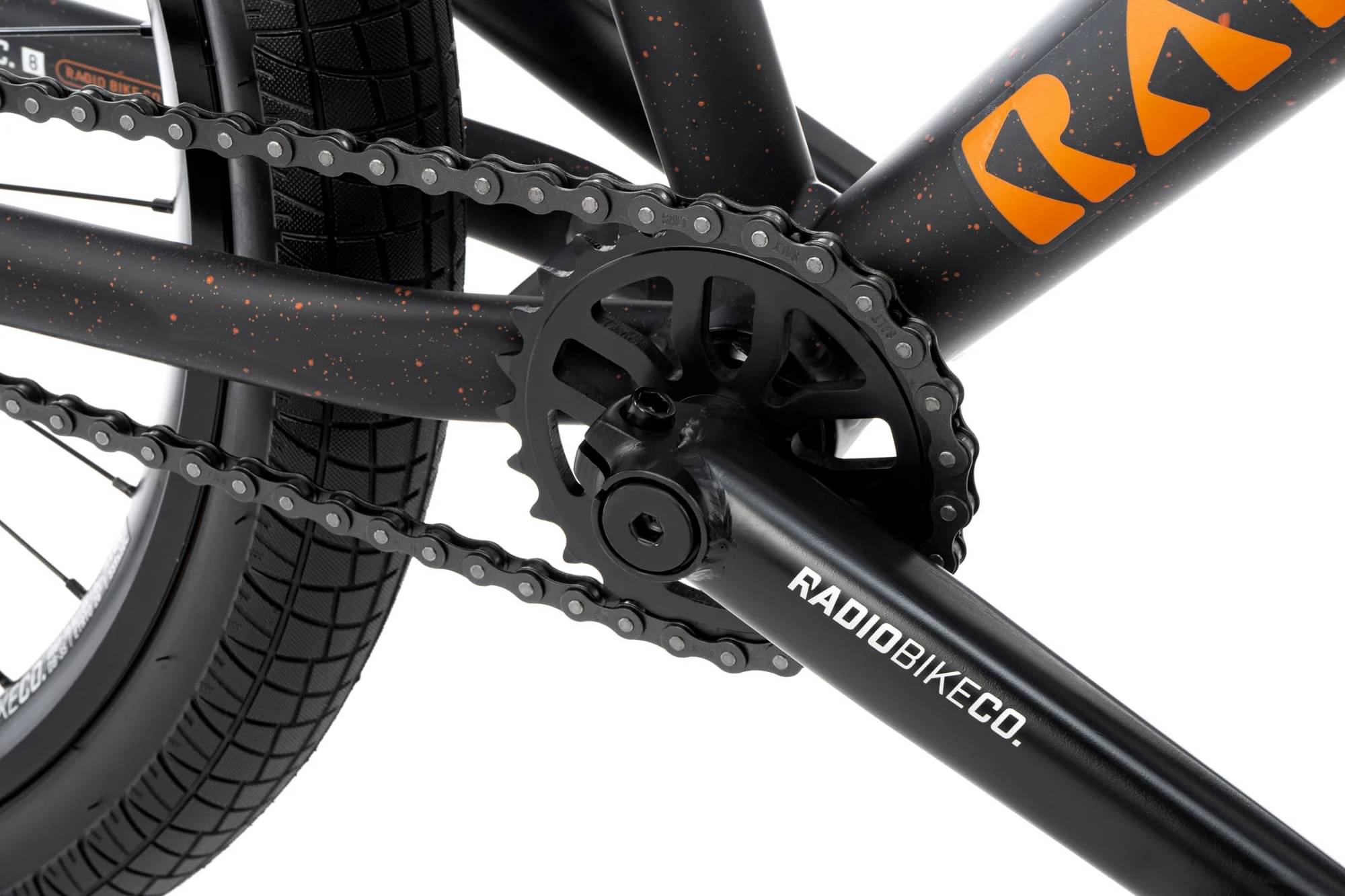

Crank

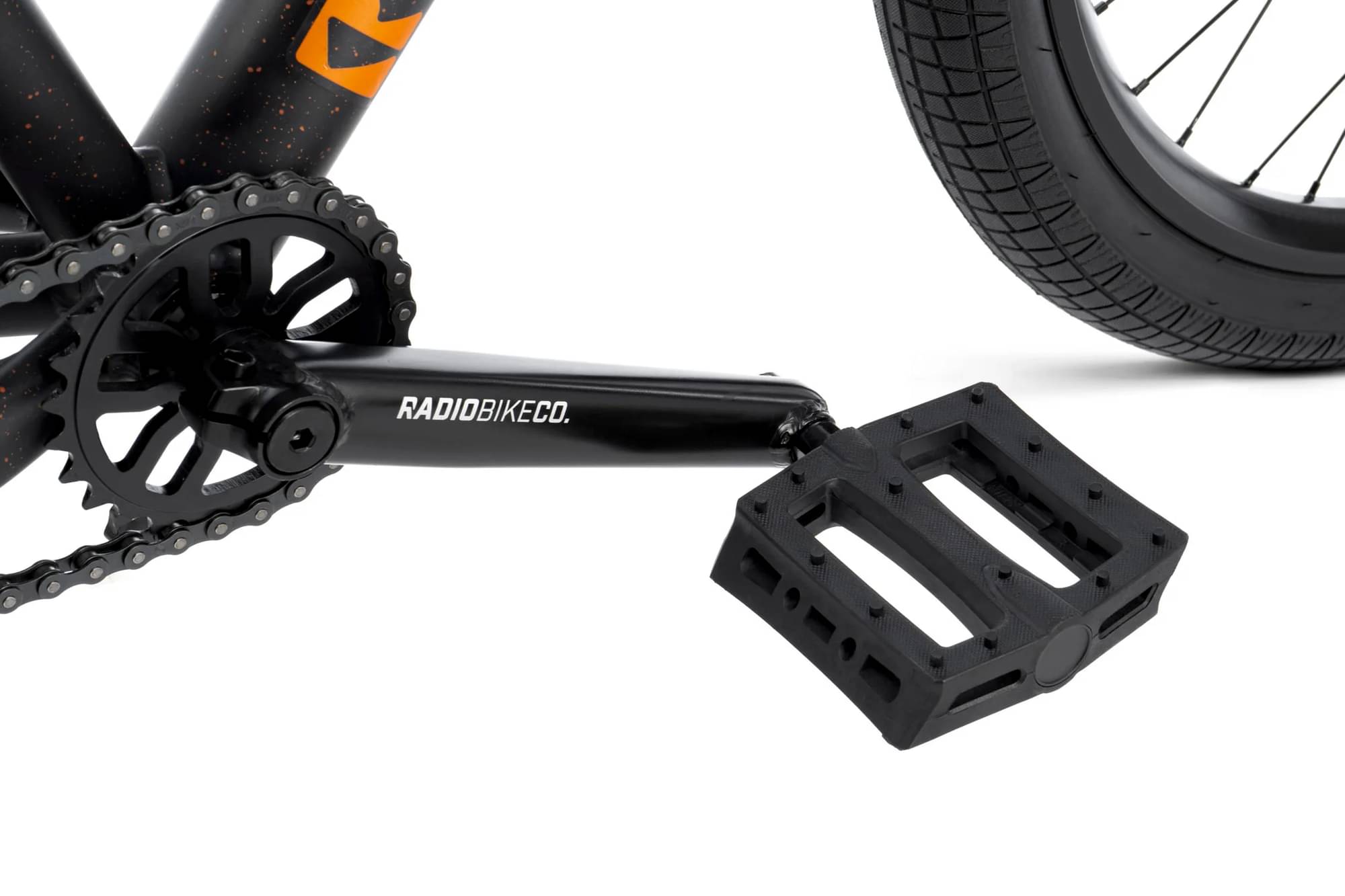

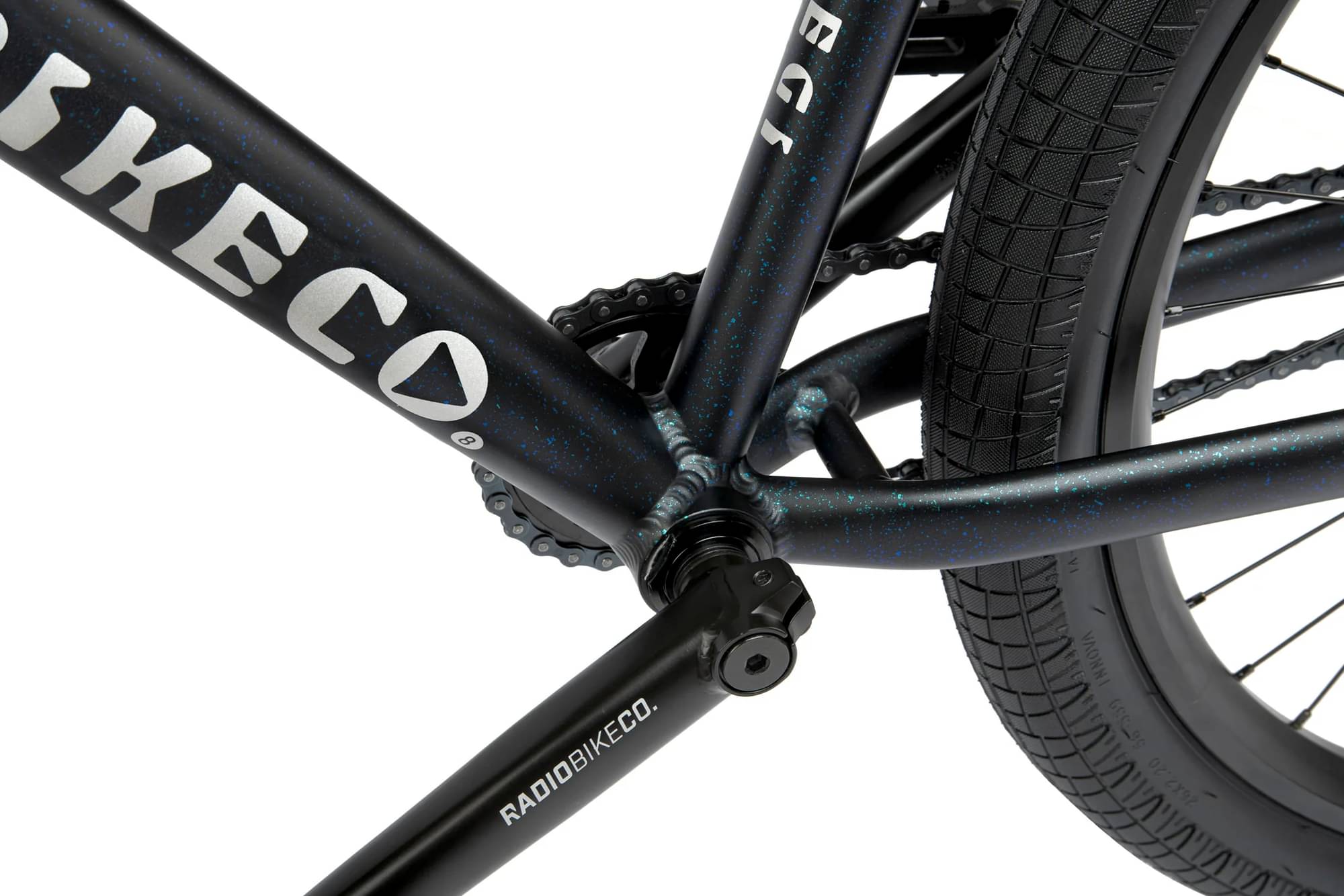

Radio “PRO” tubular 3pc crank crmo w/ 170mm arms & 8 spline spindle
Bottom Bracket
Radio “BSA19” sealed bearing
Chain
Salt “AM” chain WZ1 type

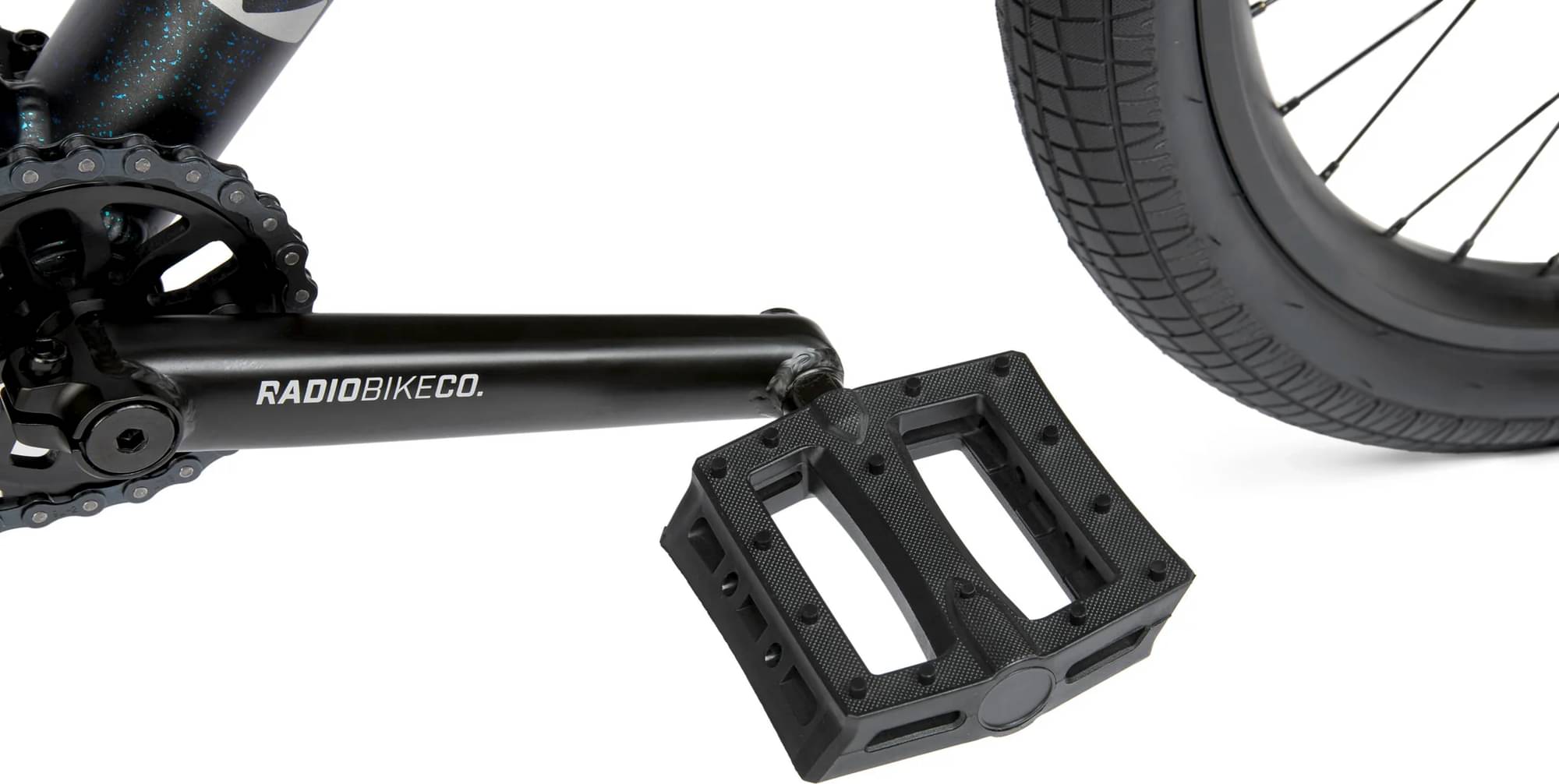

Pedals
Radio “PRO” Nylon Fibreglass Pedals
Wheels
Front Hub

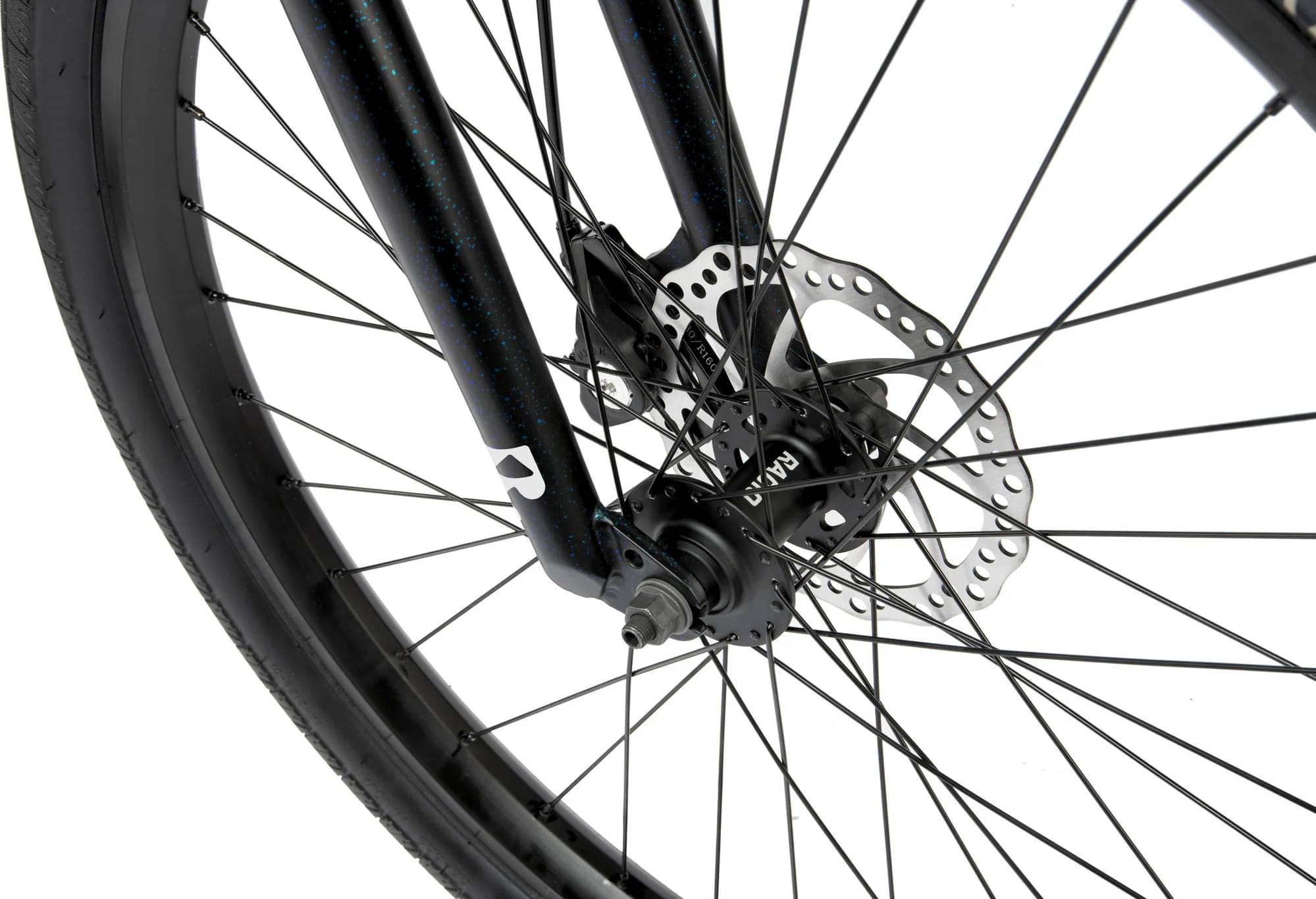

Radio “PRO-DJ” 36h disc hub alloy sealed w/ 3/8?s crmo axle
Rear Hub
Radio “PRO” 36h disc hub alloy sealed w/ 12t driver & 3/8?s axle
Rims
Front: Radio “DB35” rim double wall, Rear: Radio “DB35” rim double wall
Tires

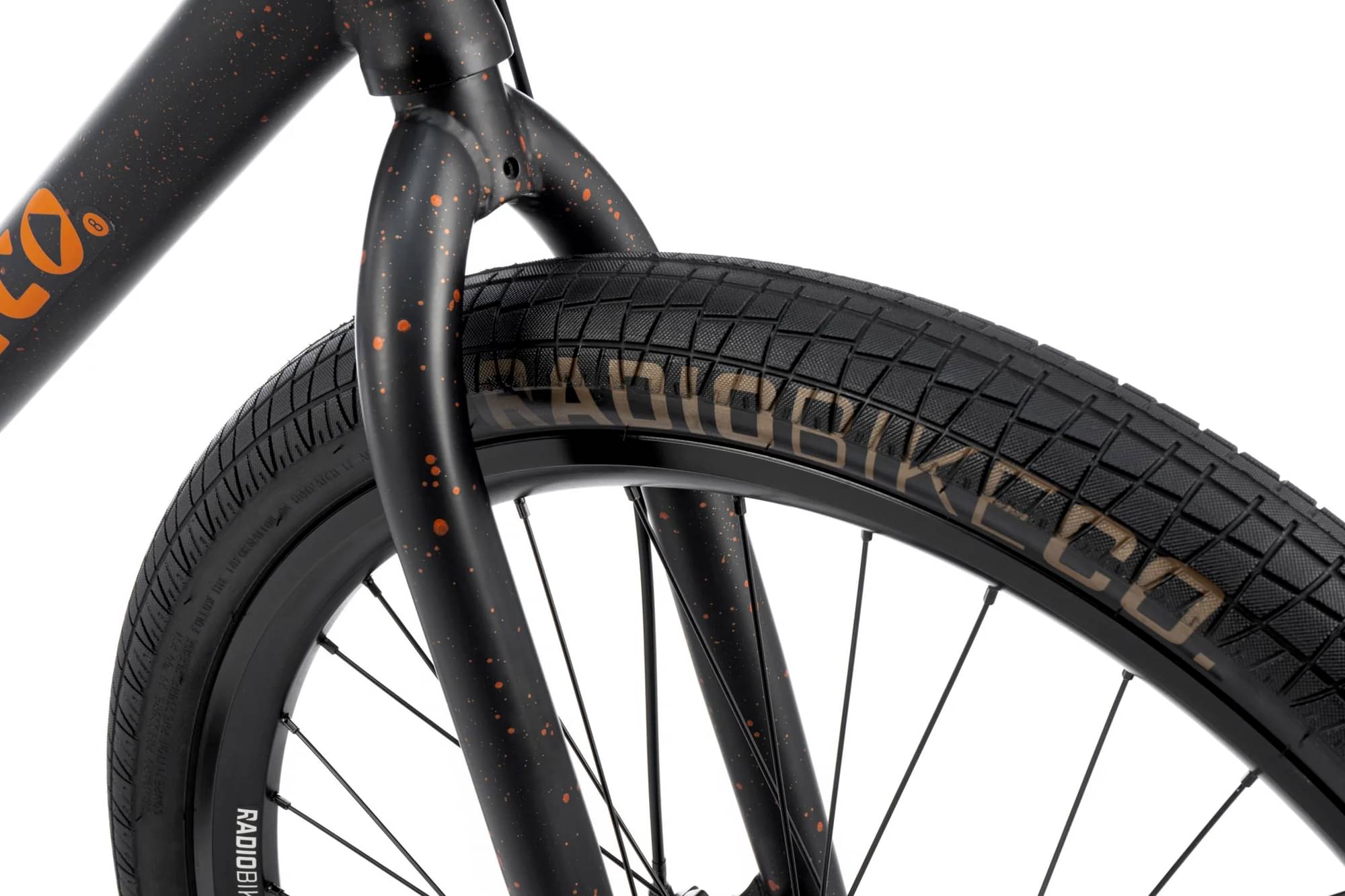

Radio “LEGION 26? tires 2.2” front & rear
Brakes

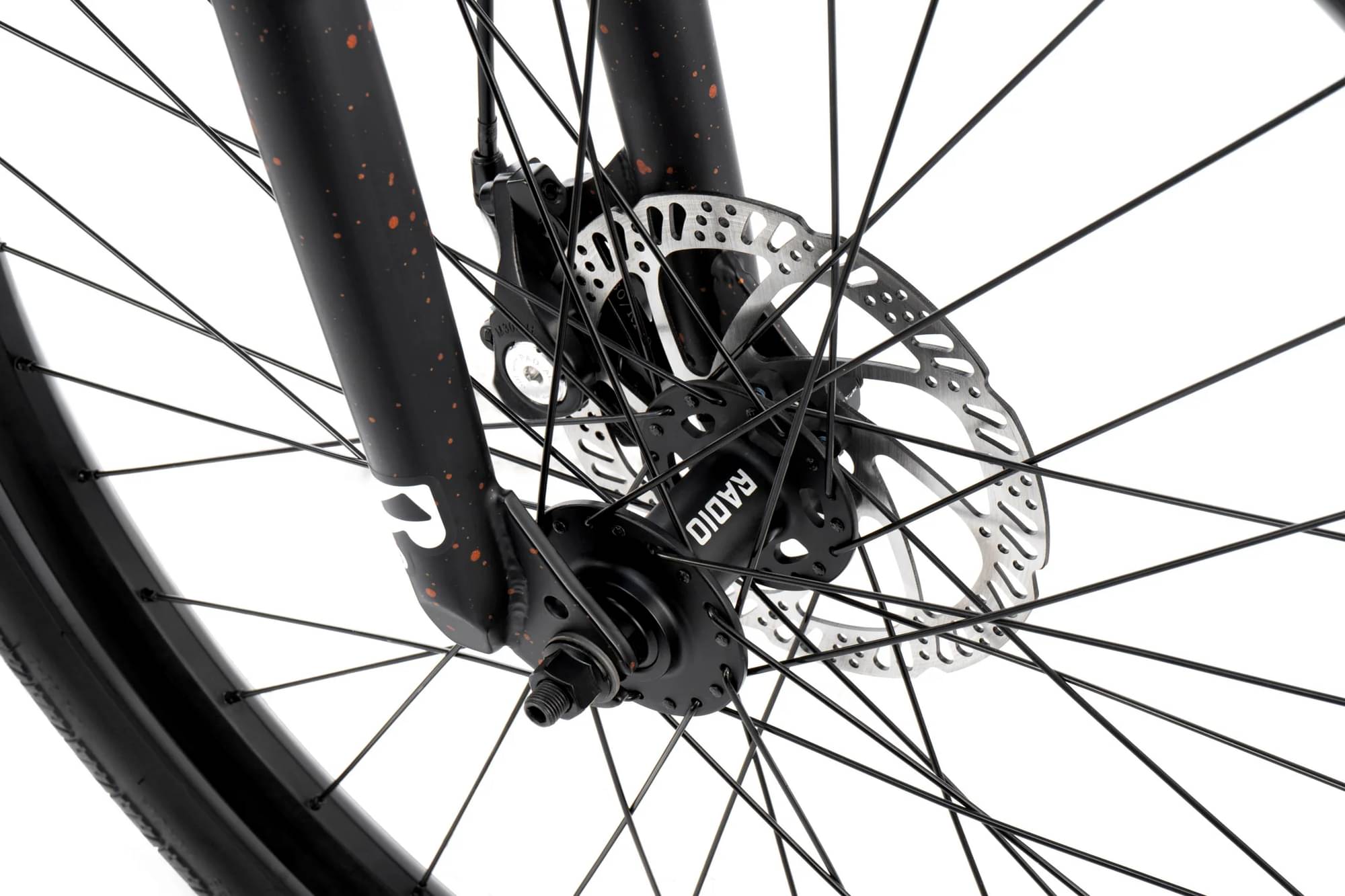

Brakes

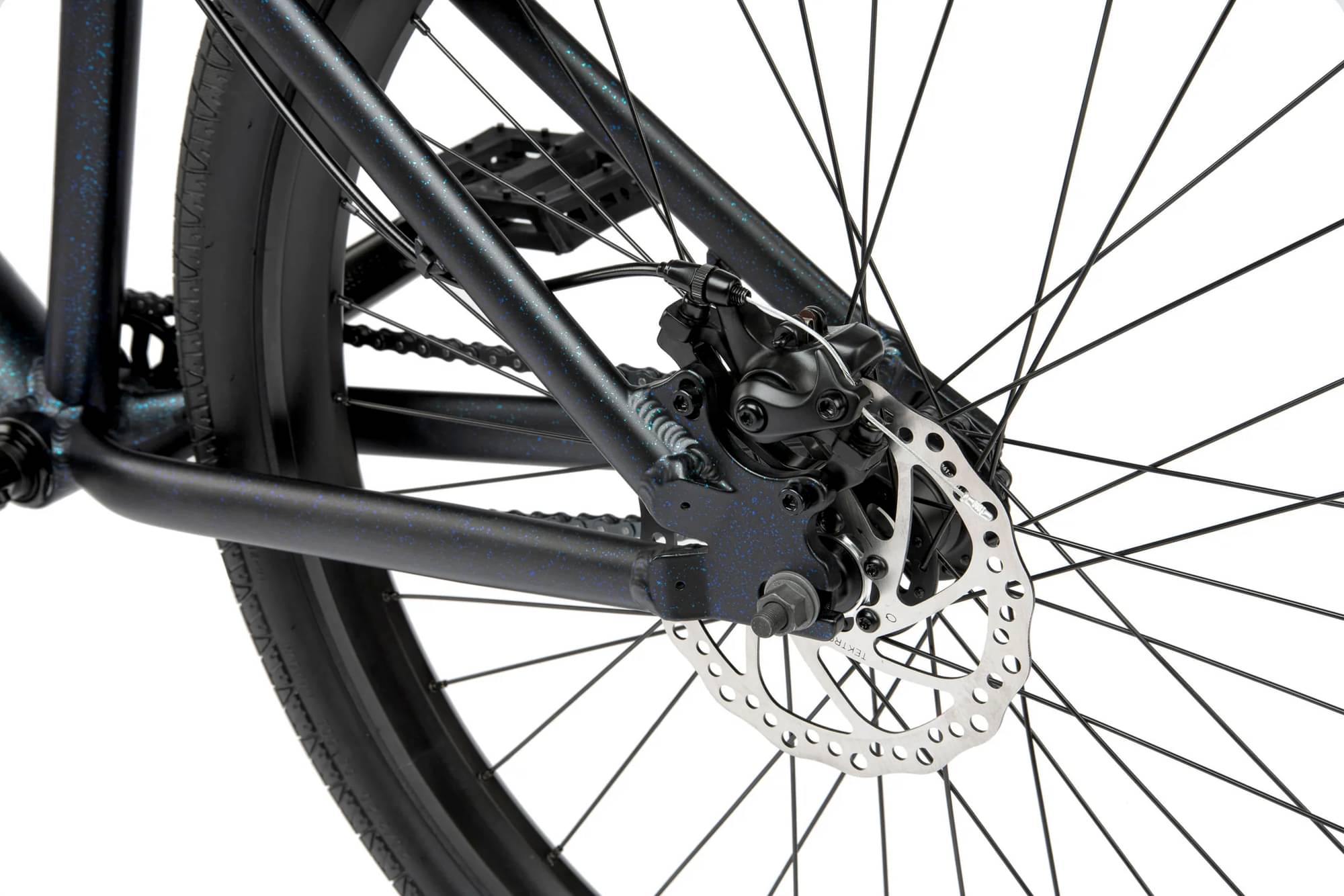

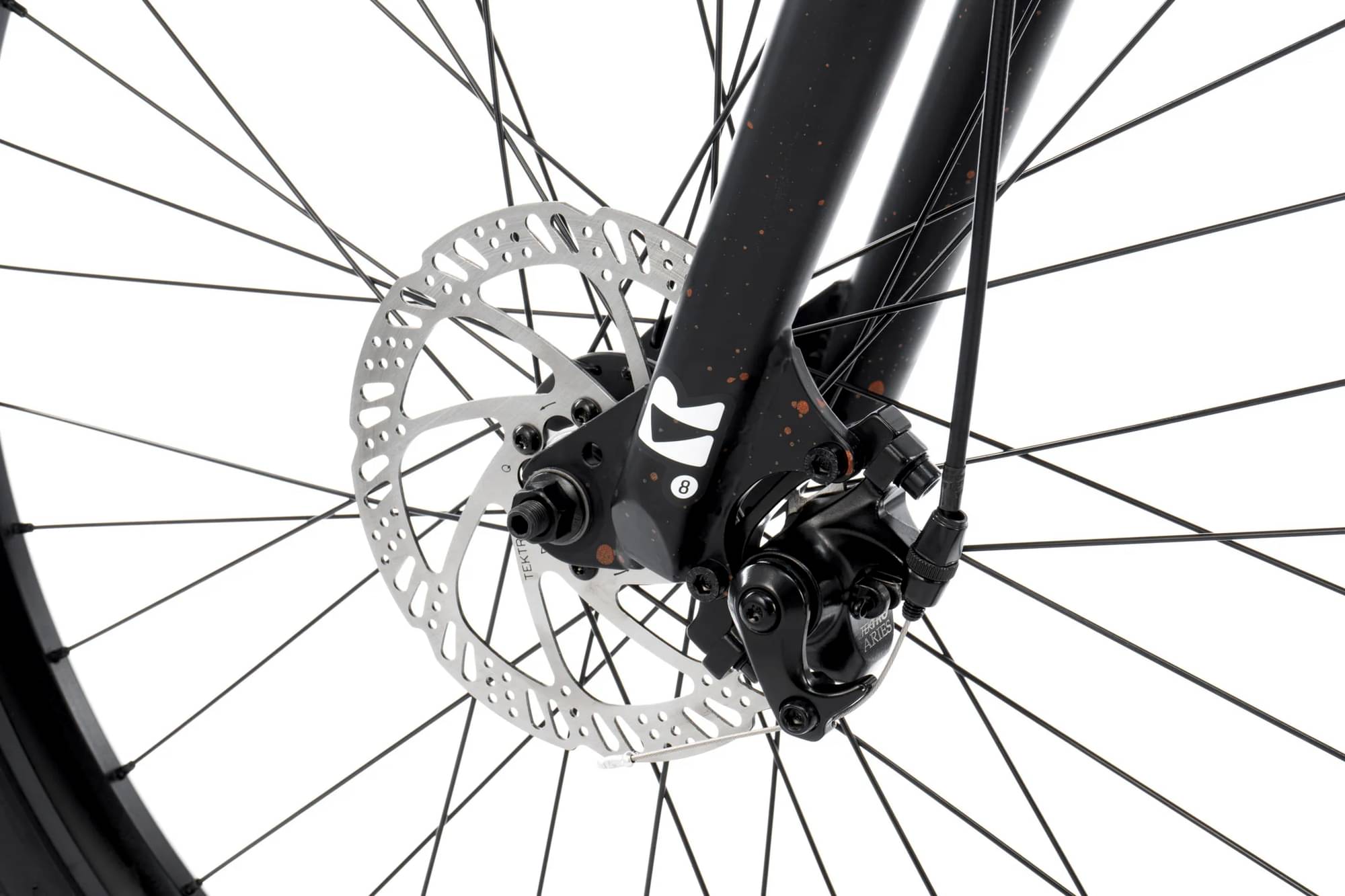

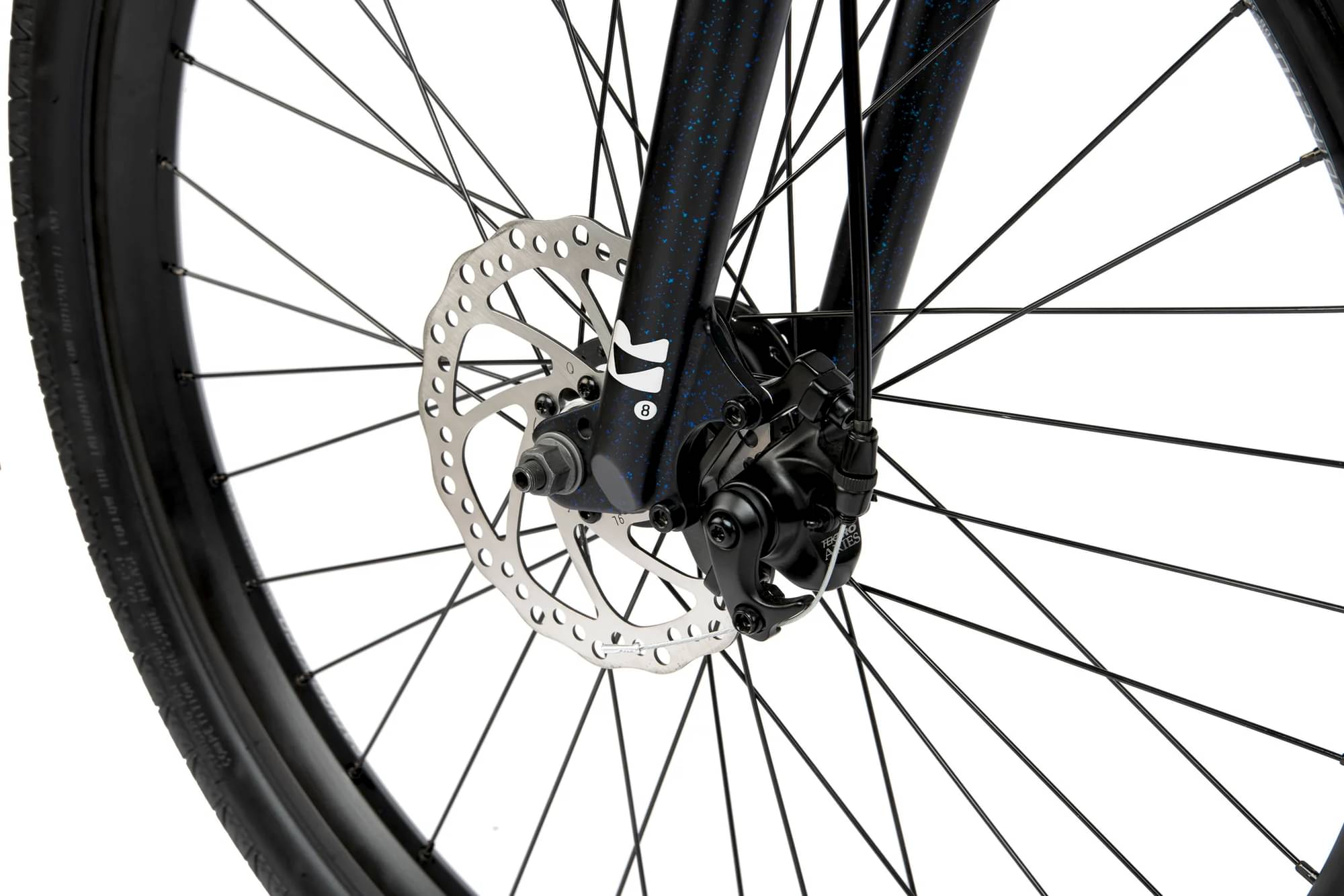

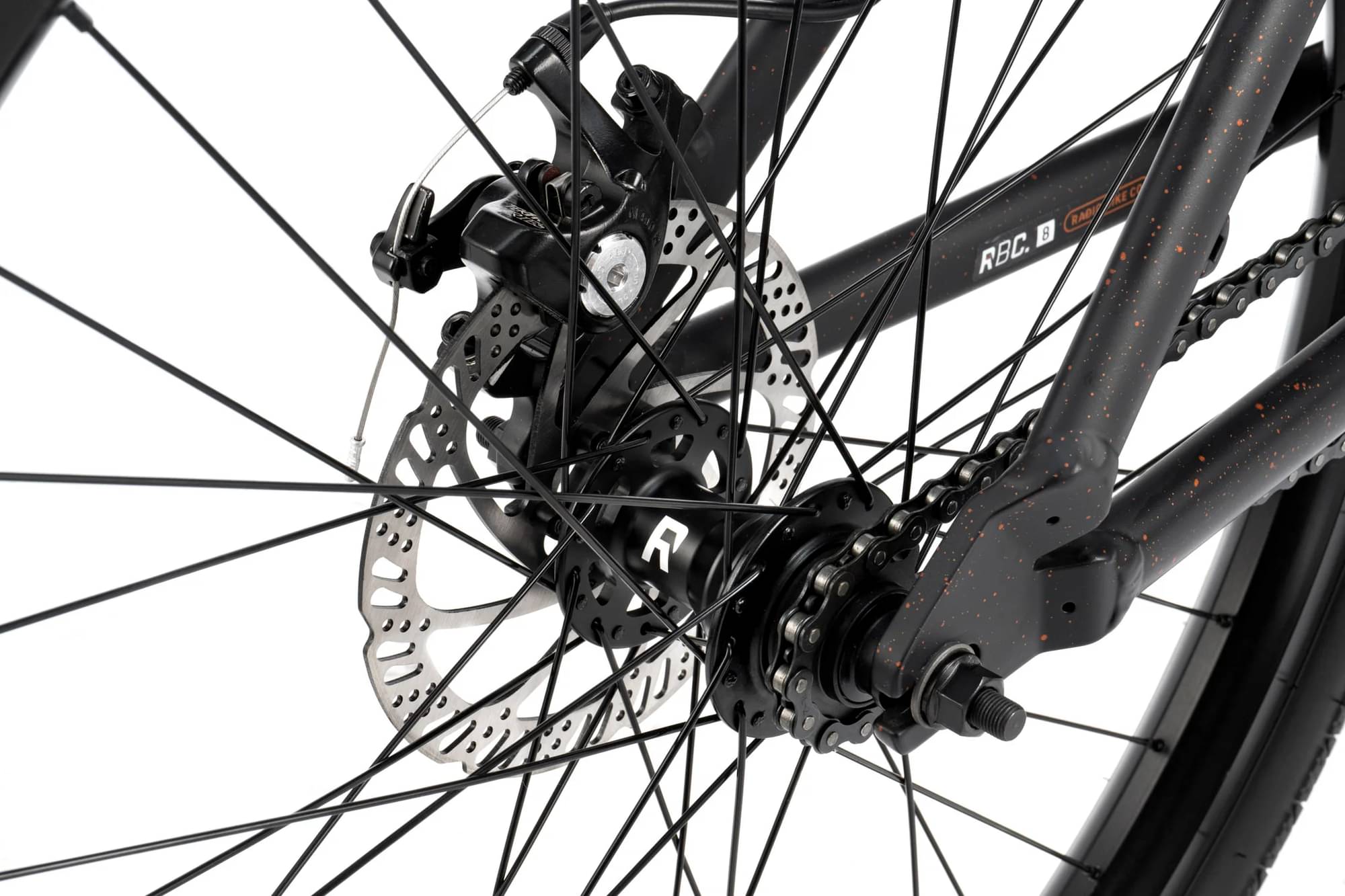

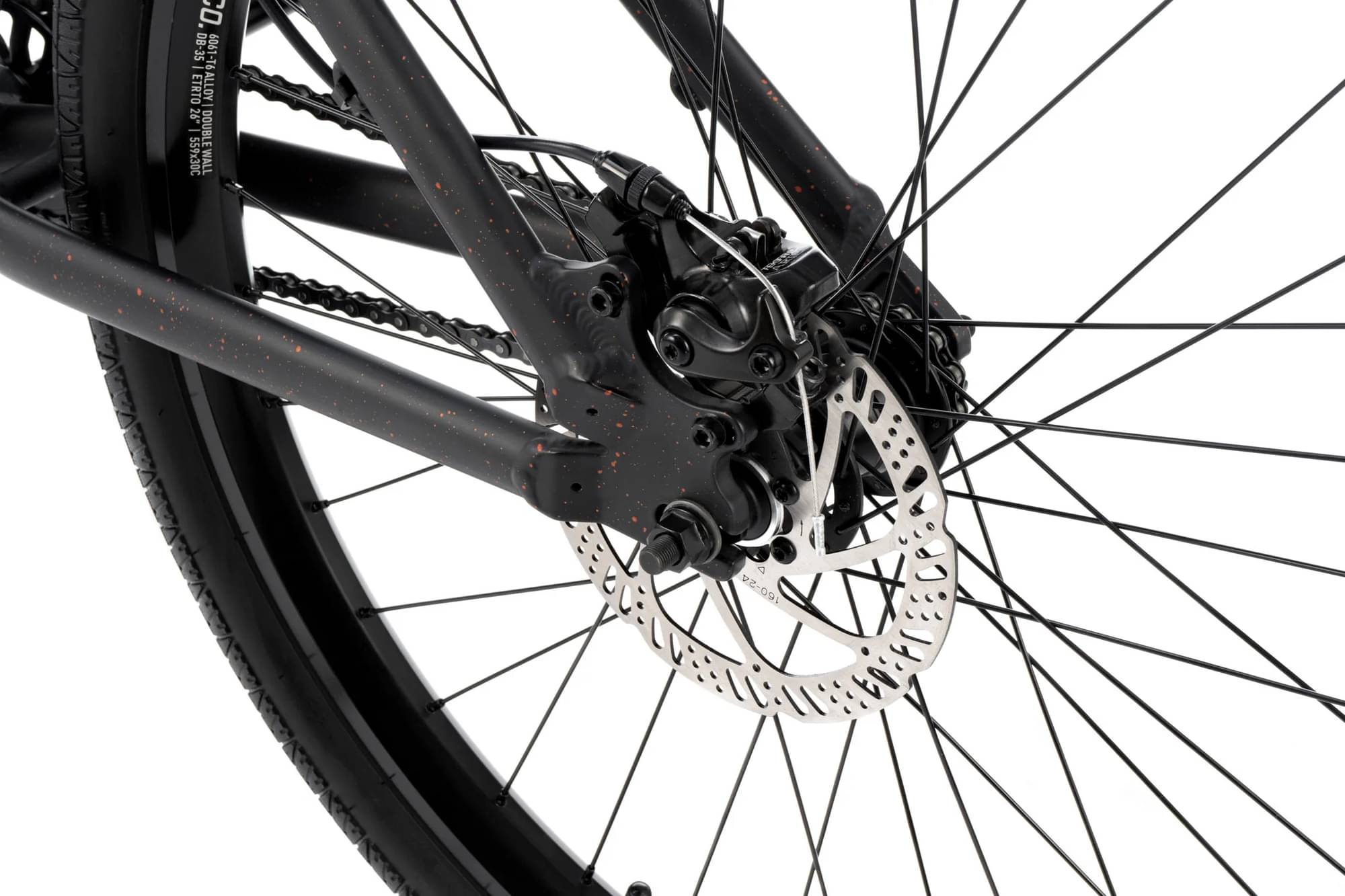

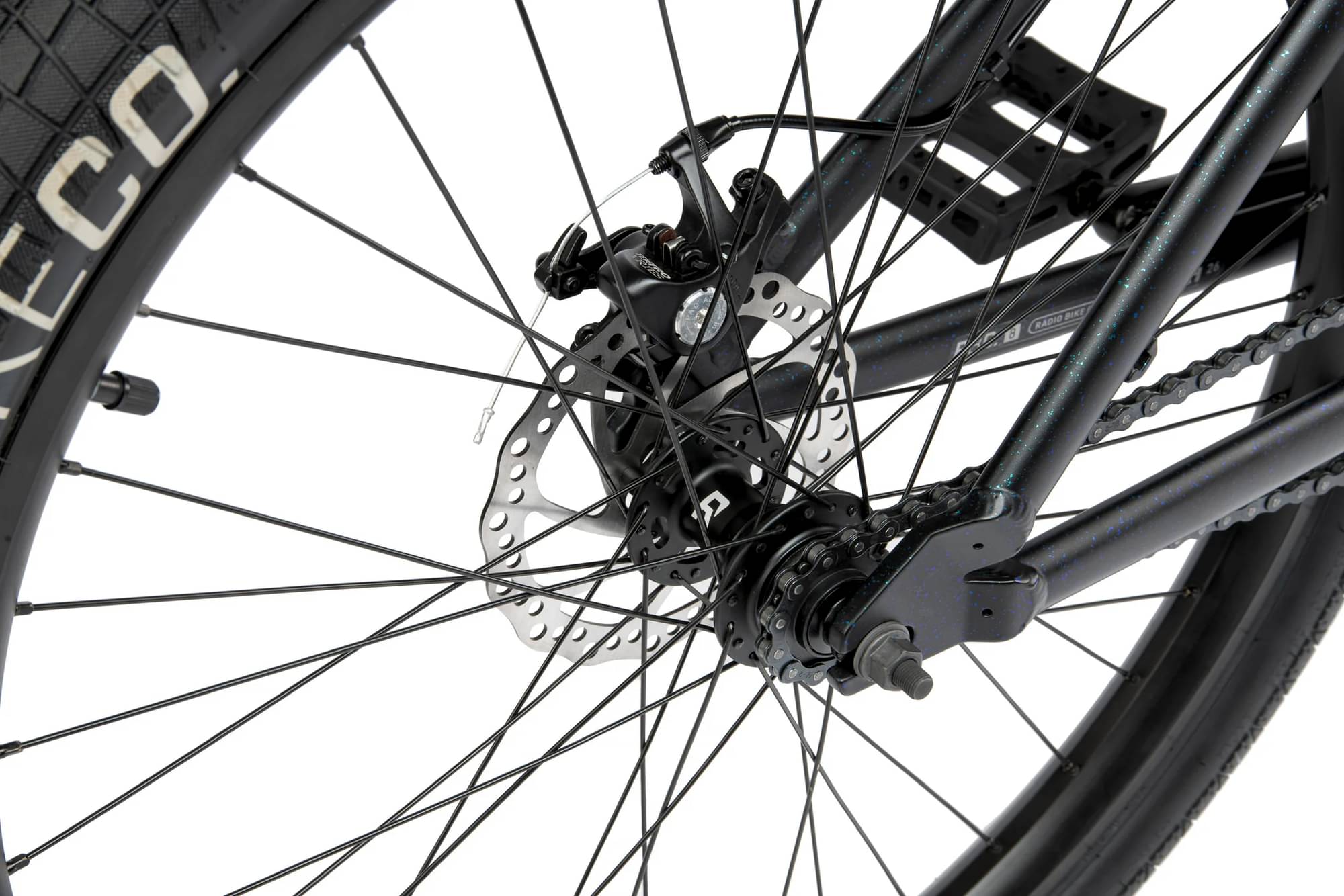

TEKTRO “ARIES” mechanical disc brake 160mm rotor front & rear
Brake Levers
TEKTRO “RS-360A” front & rear
Cockpit

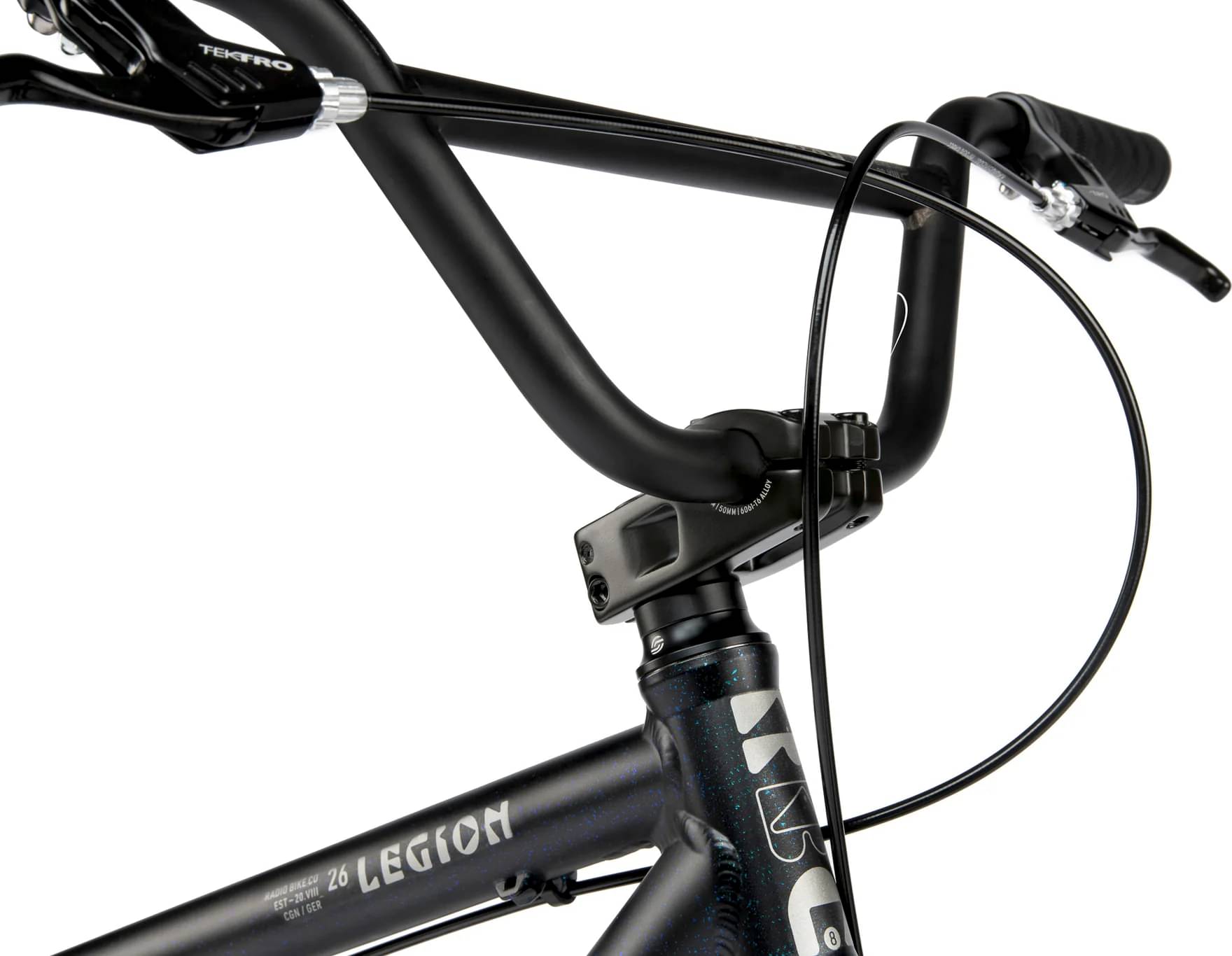

Stem

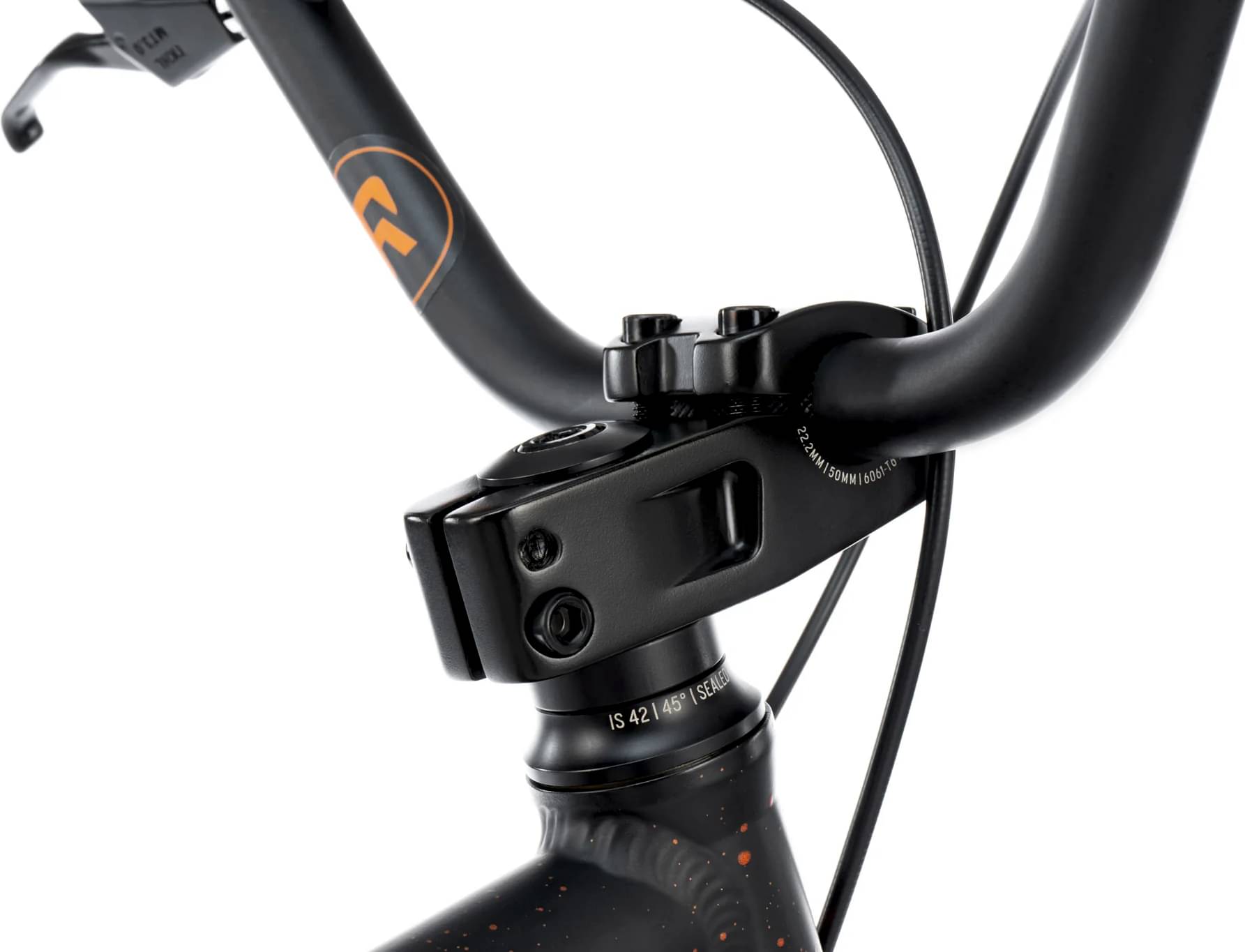

Salt “COMP” top load stem 50mm reach

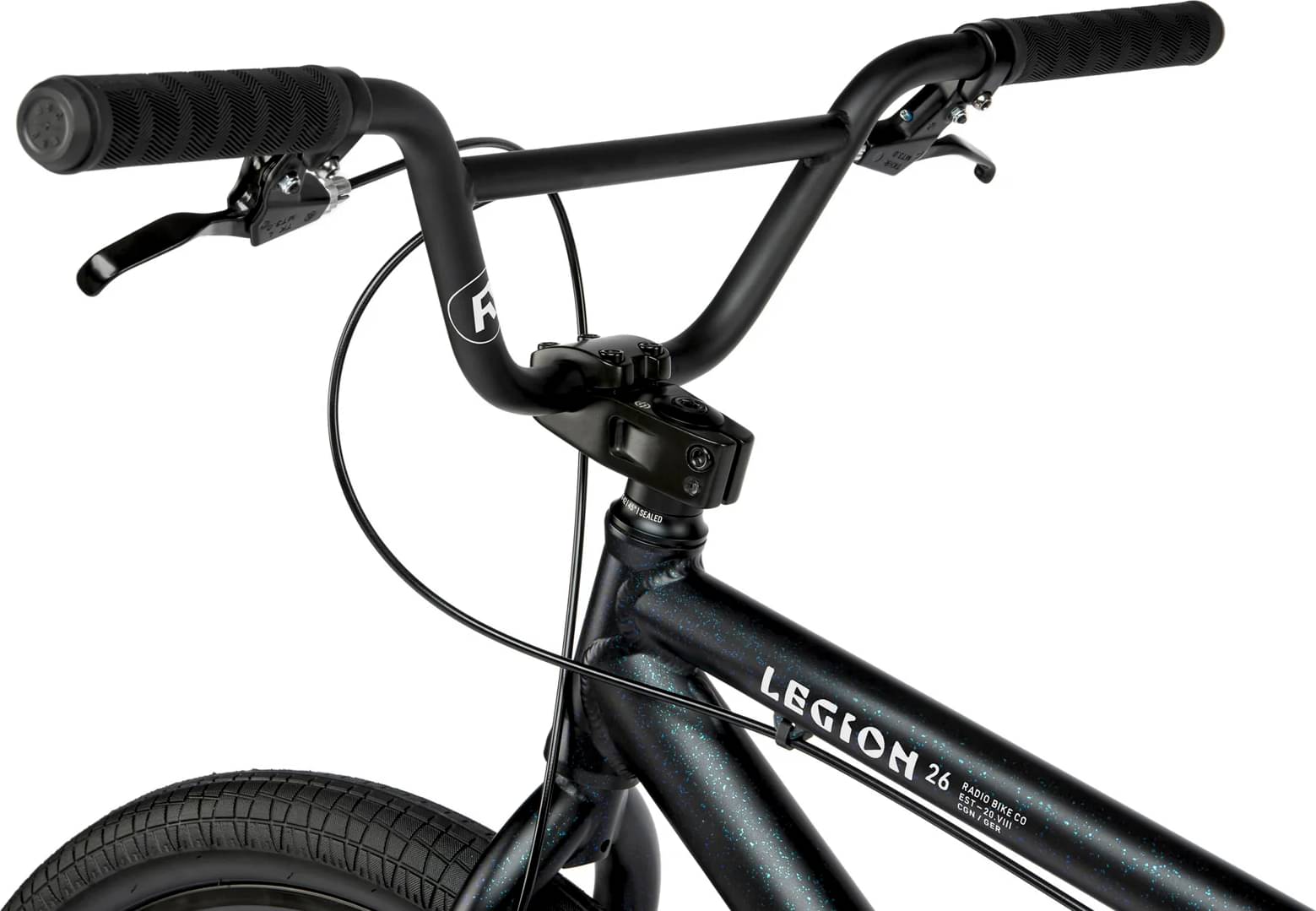

Handlebar

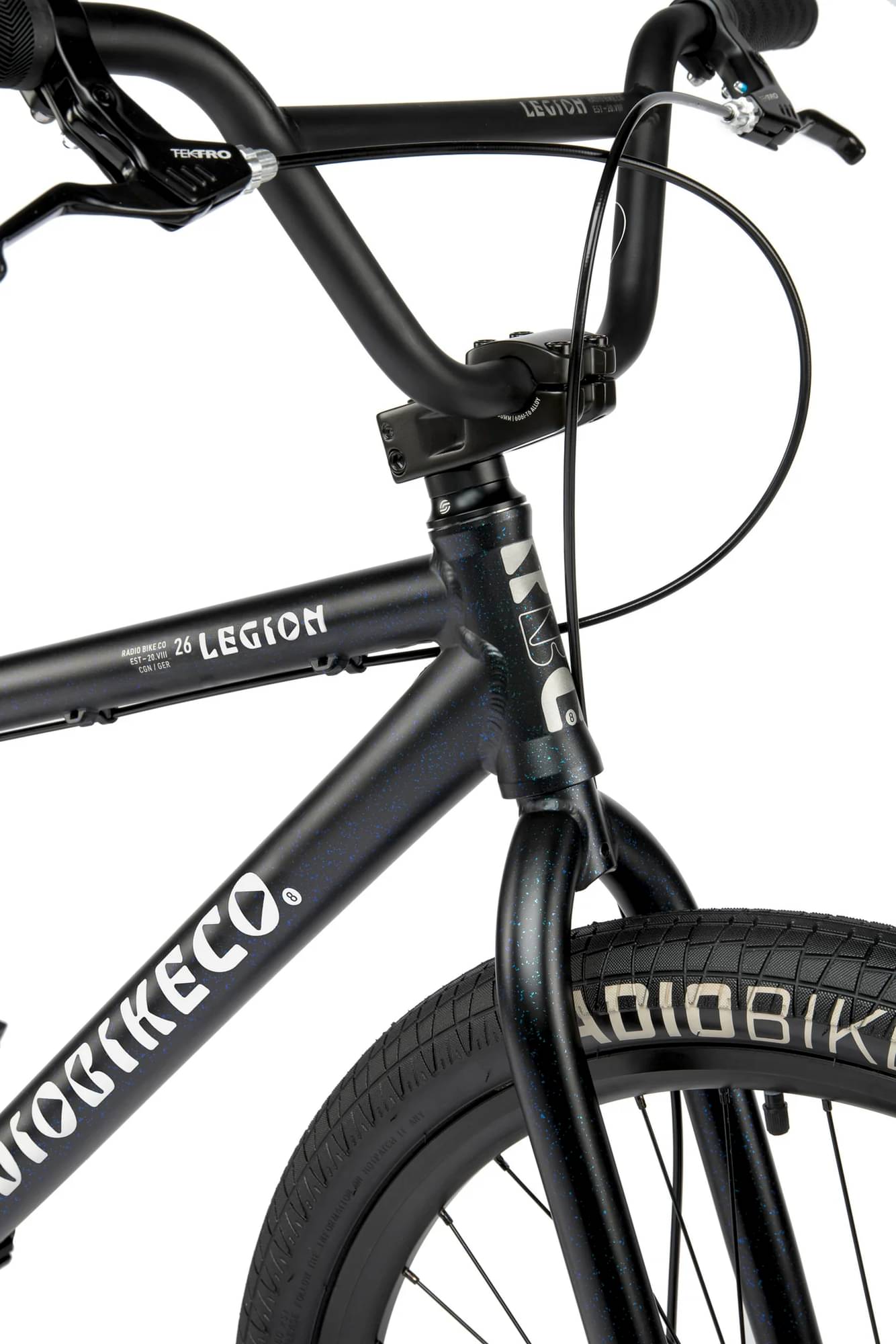

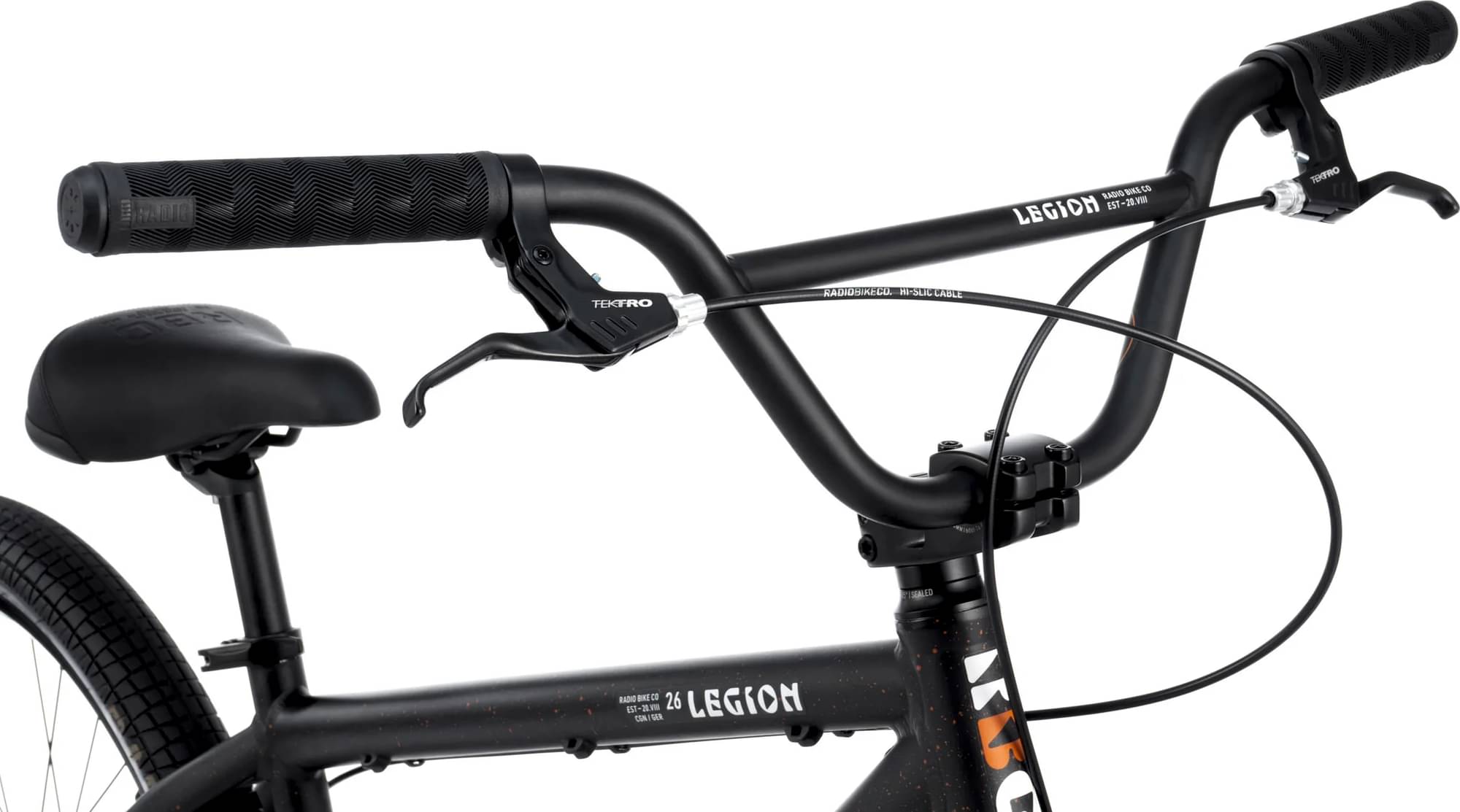

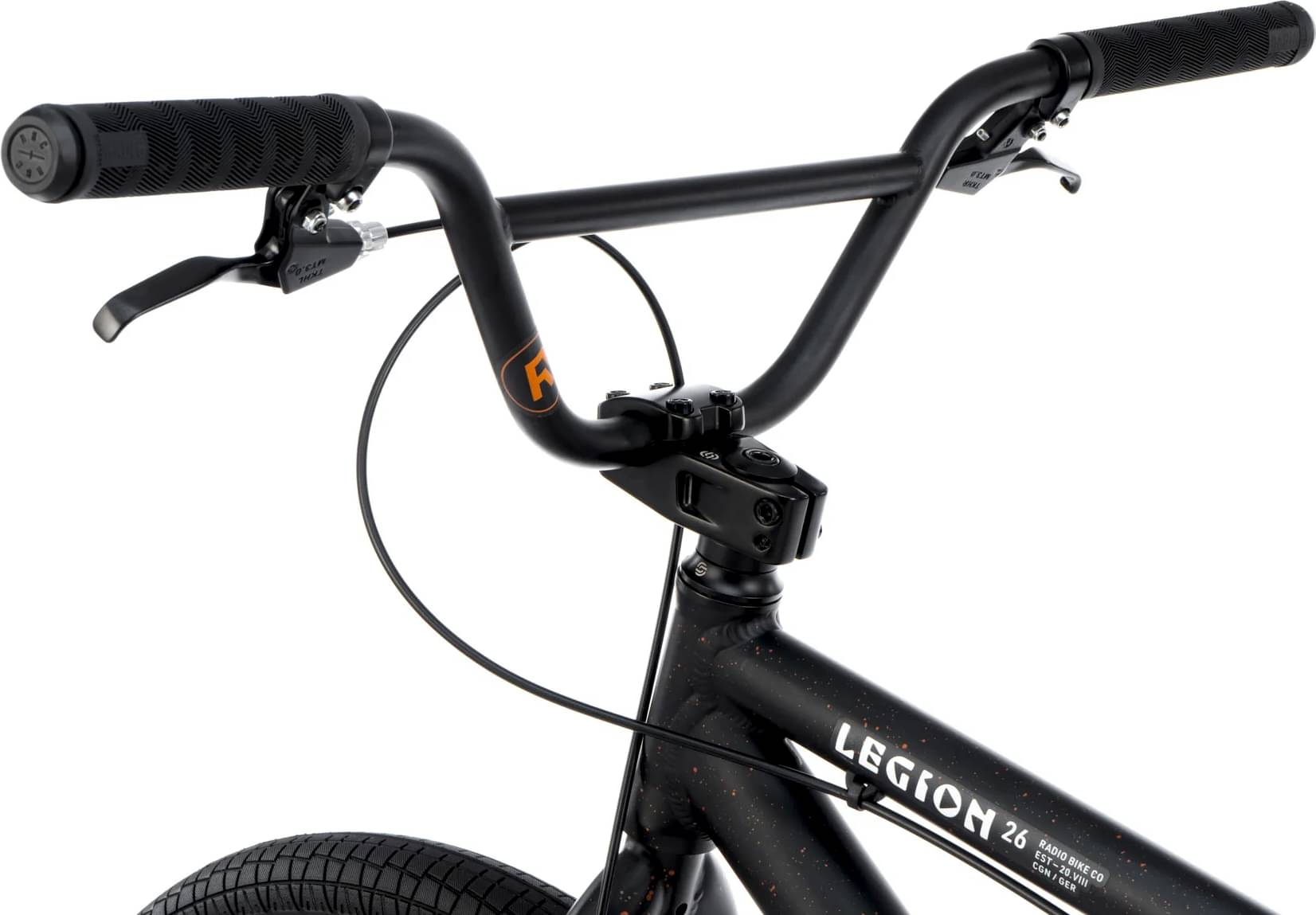

Radio “LEGION” full 4130 crmo bar
Grips
Radio “FREQUENCY XL” grips flangeless 160mm length
Headset
SALT “PRO” integrated headset, sealed bearing
Seat

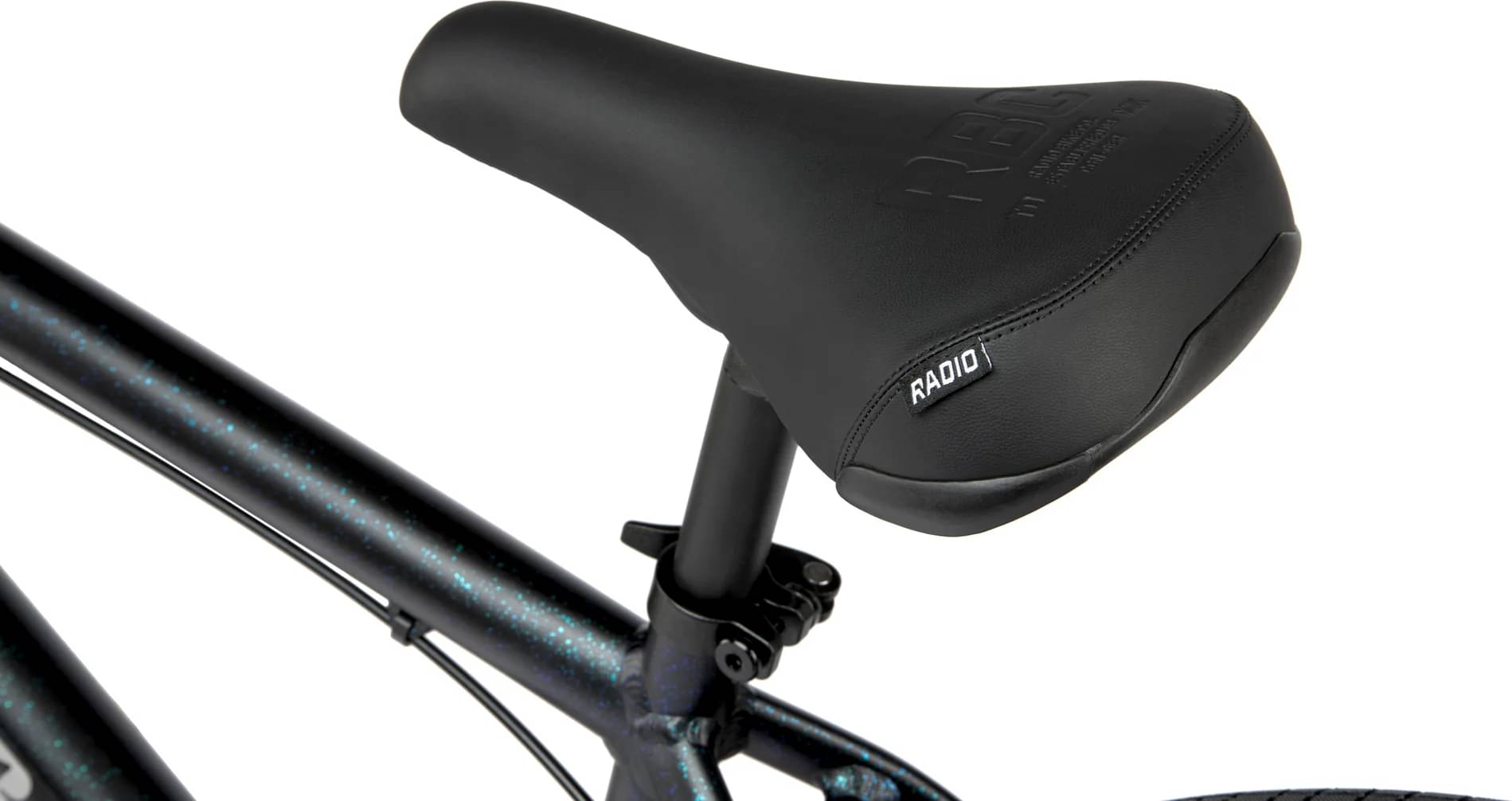

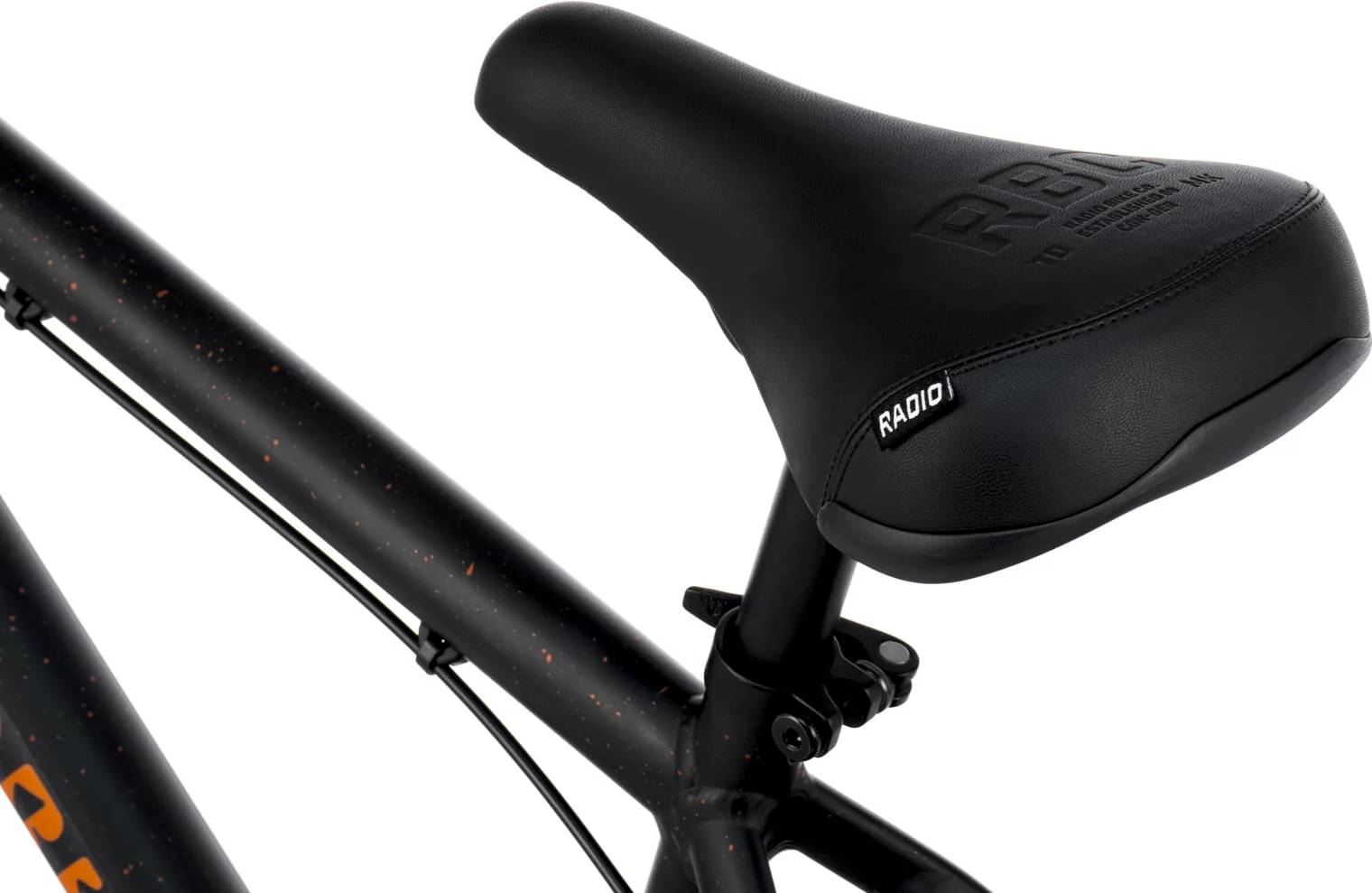

Saddle
Radio “LEGION” railed seat
Seatpost
Radio “SP228” micro-adjust seat post alloy
Fit data
Geometry
