Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Suspension Rigid -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

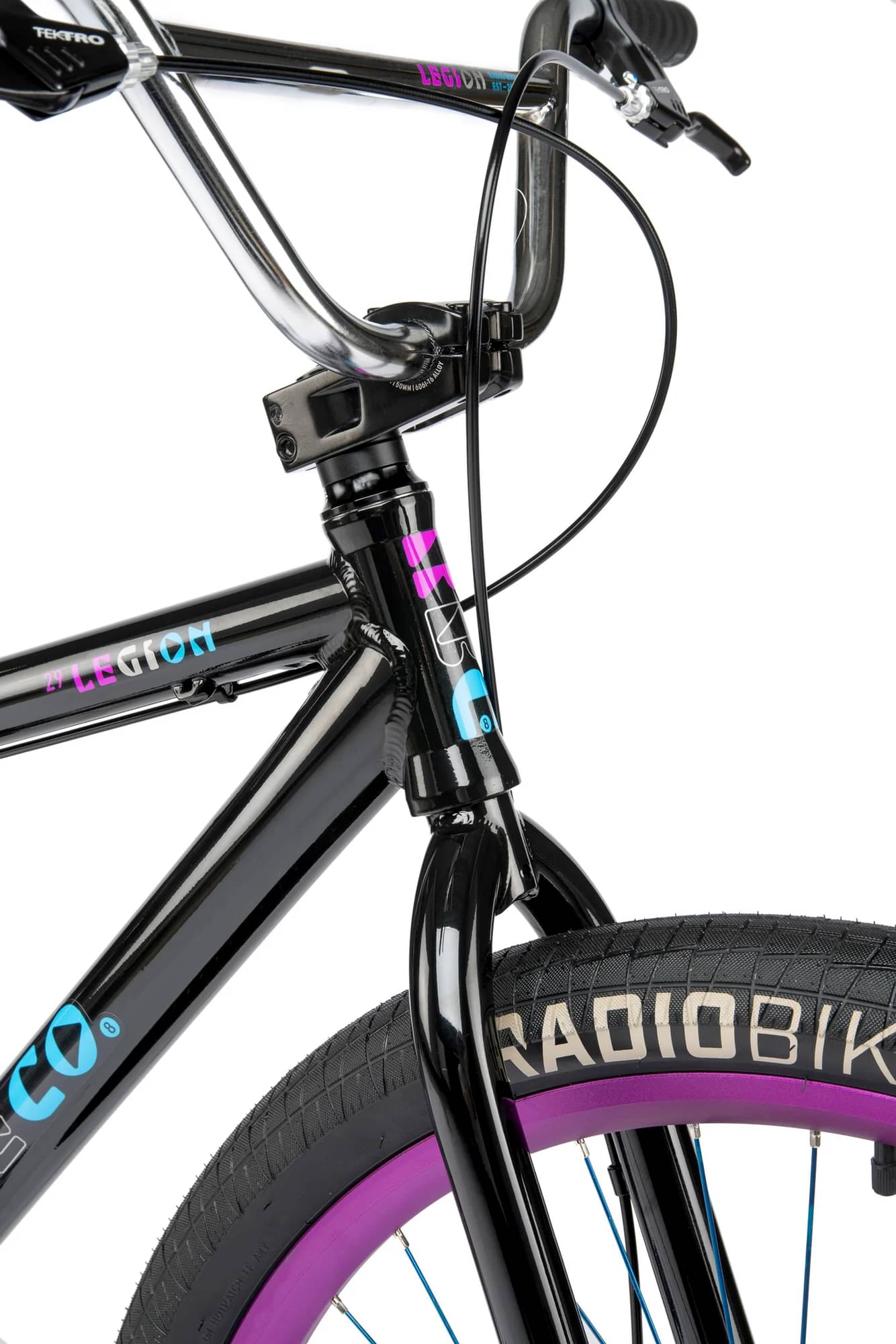

Radio “LEGION 29” frame 6061-T6 alloy
Suspension Fork

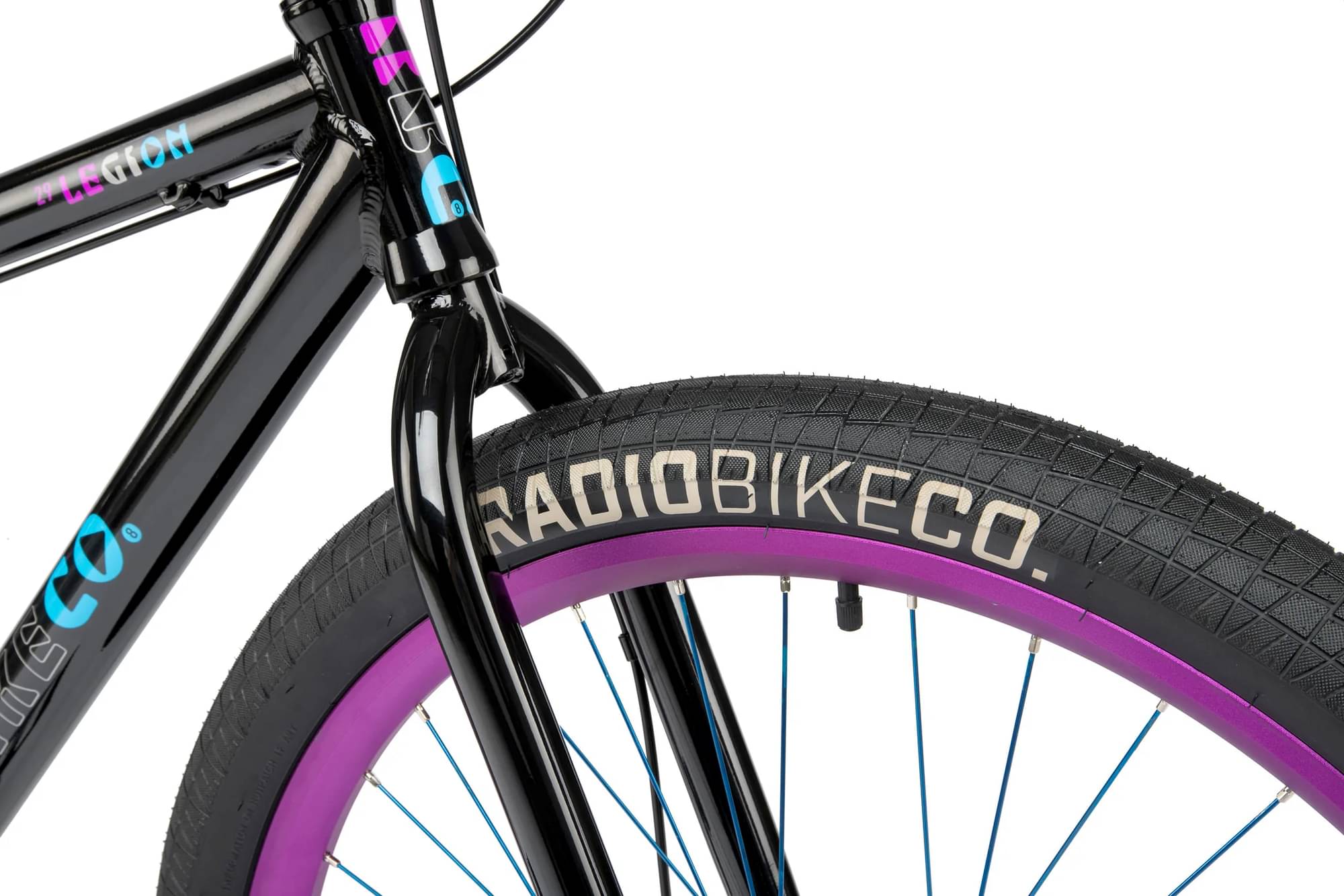

Radio “LEGION 29” full crmo fork 30mm offset
Drivetrain
Cassette
Radio “LEGION” sprocket alloy 26t

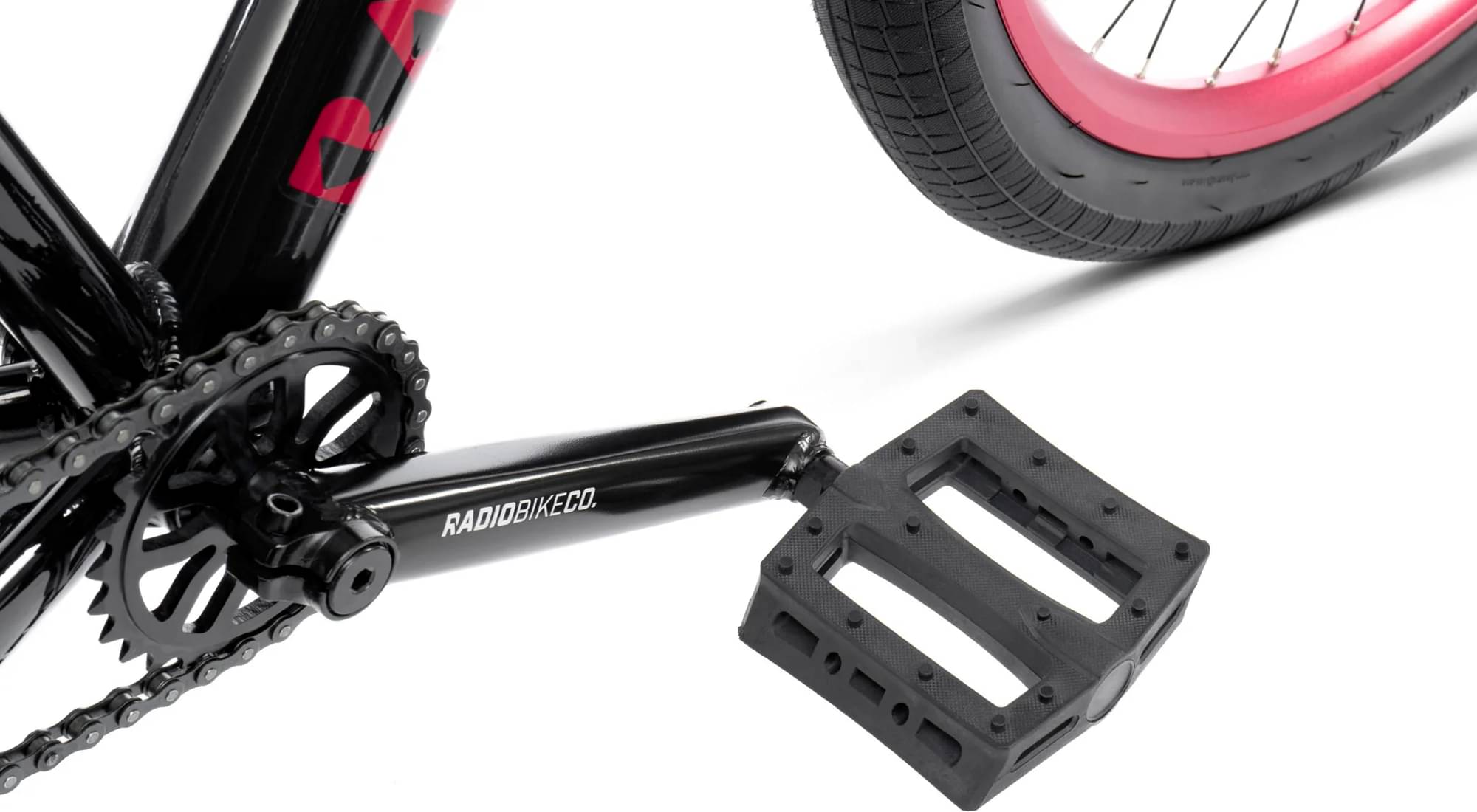

Crank

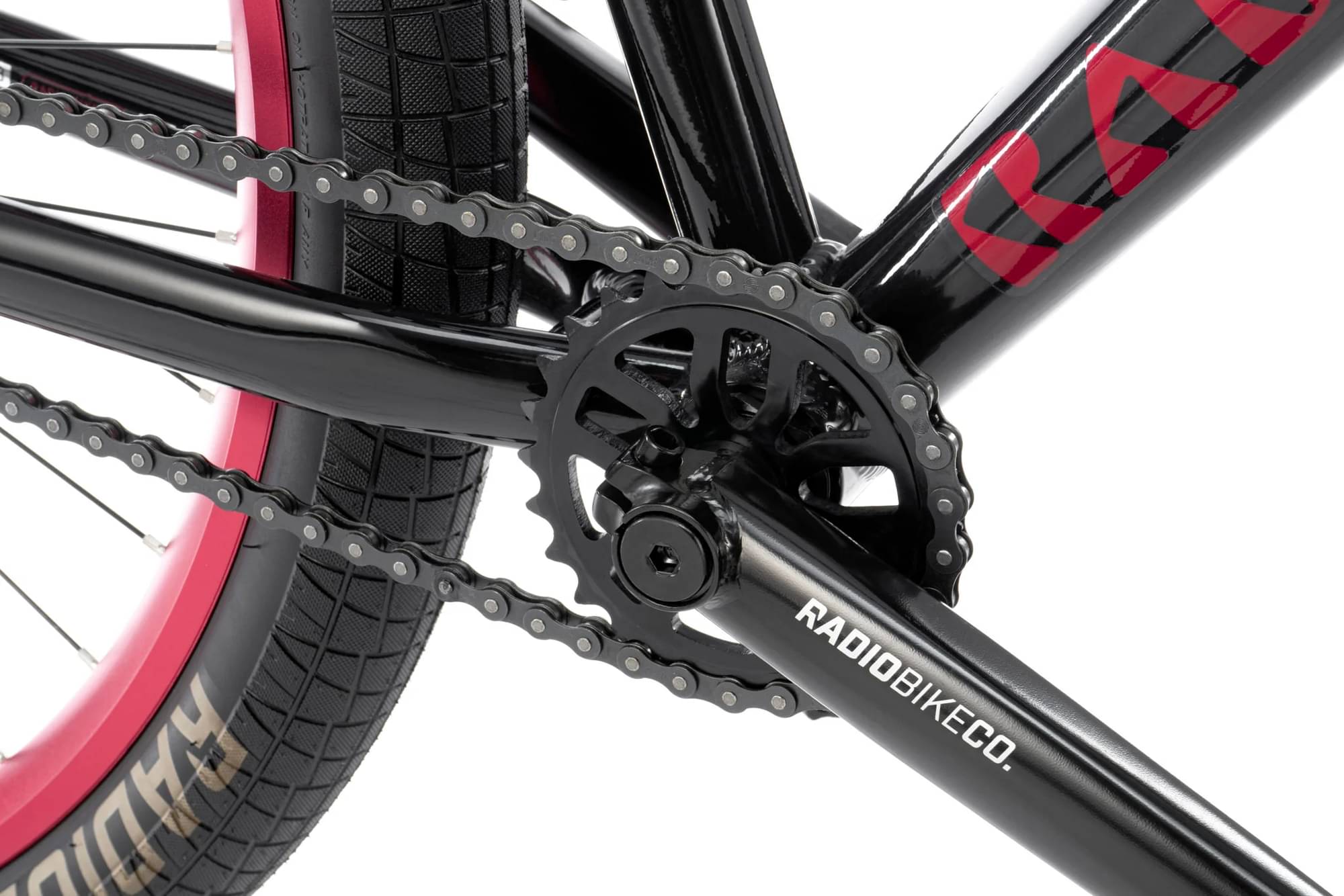

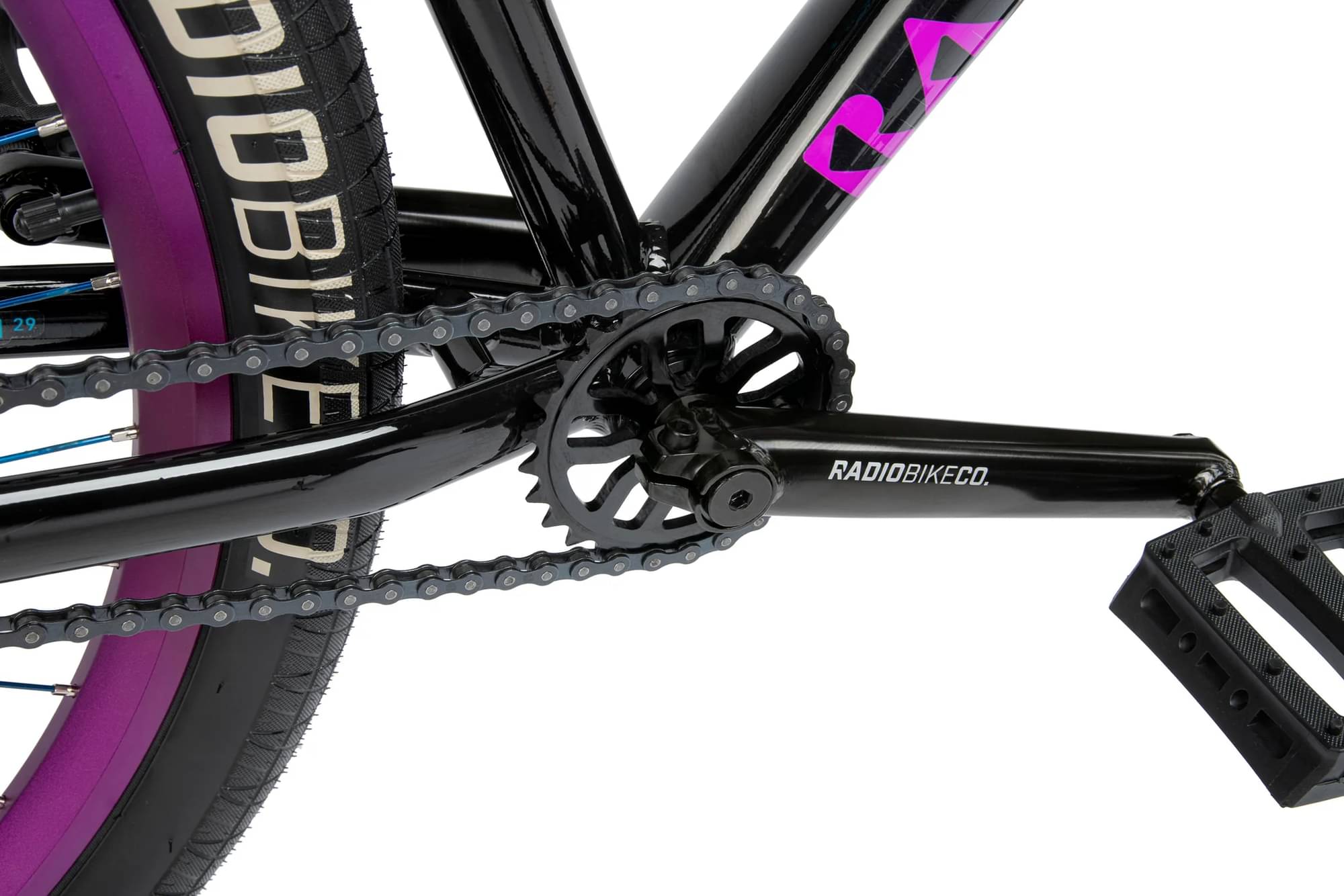

Radio “PRO” tubular 3pc crank crmo w/ 170mm arms & 8 spline spindle
Bottom Bracket
Radio “BSA19” sealed bearing
Chain
Salt “AM” chain WZ1 type
Pedals
Radio “PRO” Nylon Fibreglass Pedals
Wheels

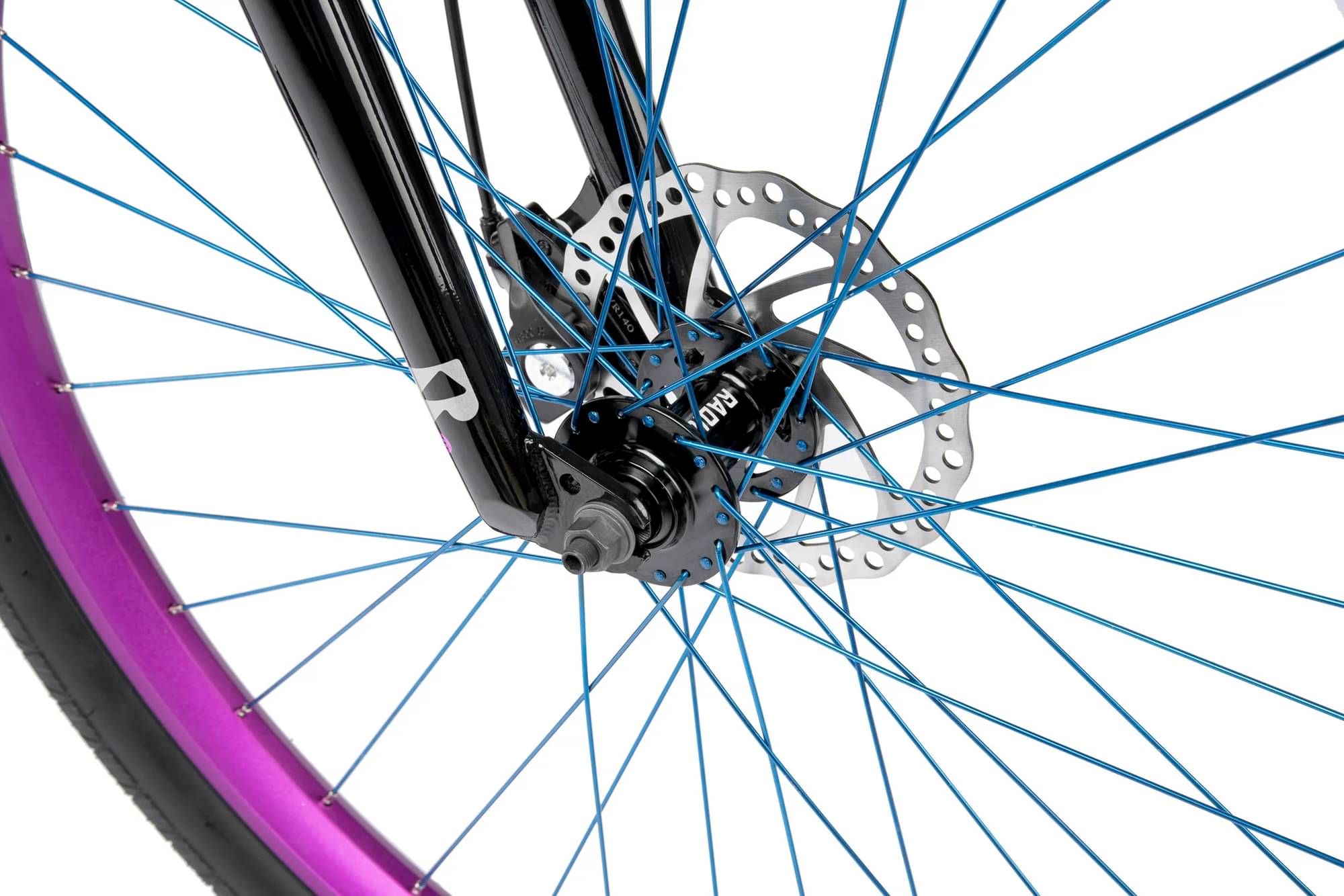

Front Hub

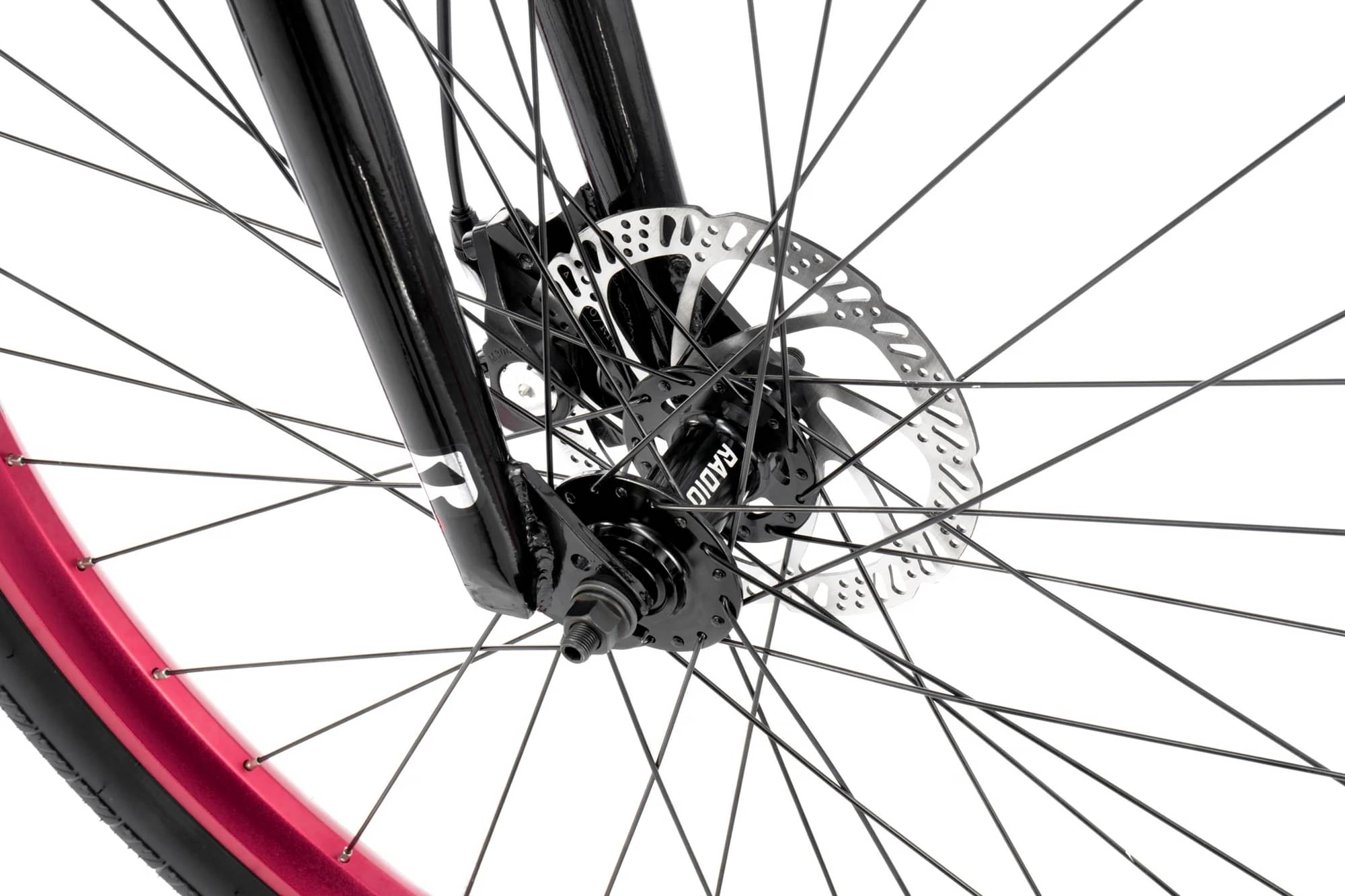

Radio “PRO-DJ” 36h disc hub alloy sealed w/ 3/8?s crmo axle
Rear Hub
Radio “PRO” 36h disc hub alloy sealed w/ 12t driver & 3/8?s axle
Rims
Front: Radio “DB35” rim double wall, Rear: Radio “DB35” rim double wall
Tires

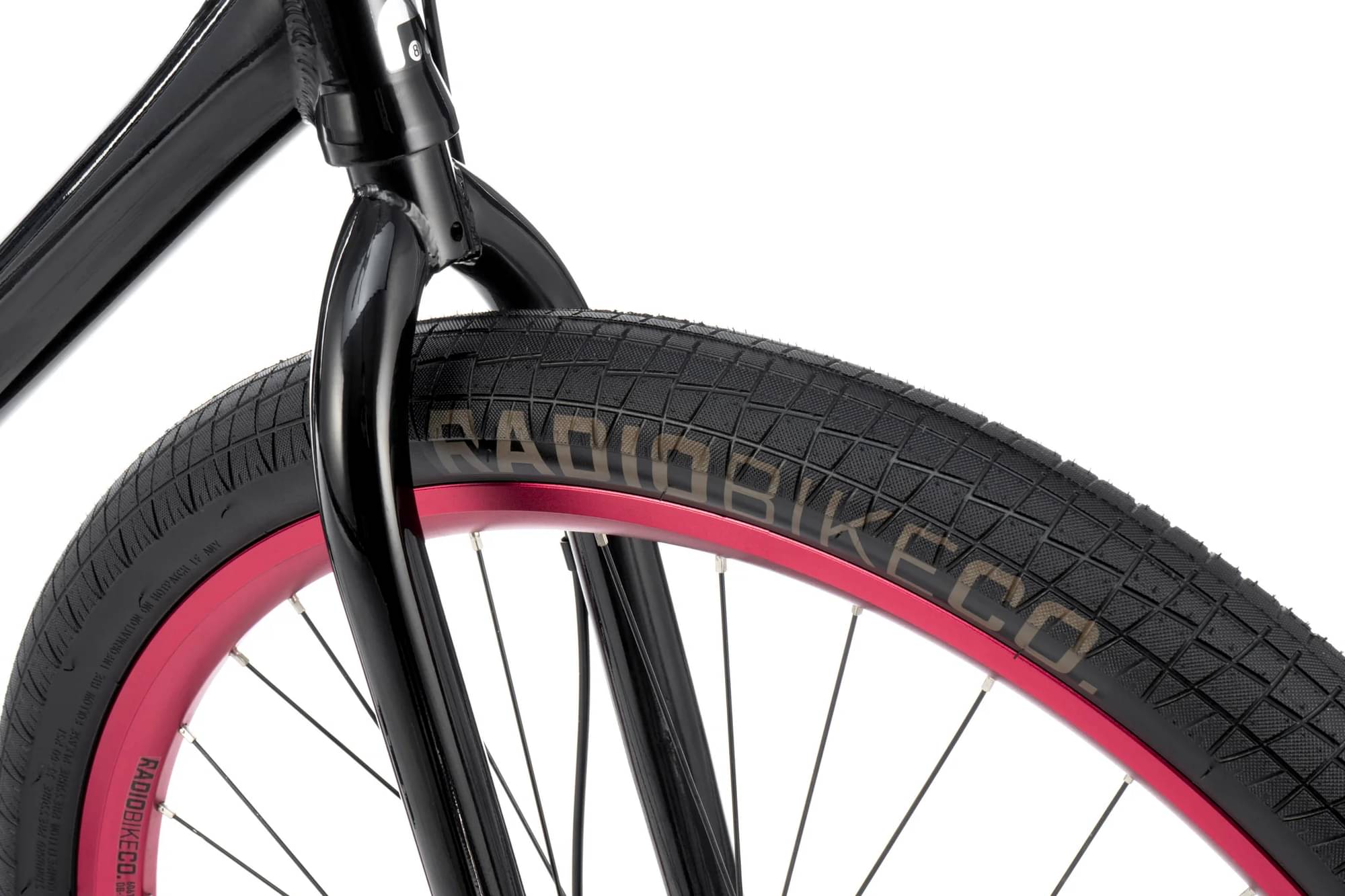

Radio “LEGION 29? tires 2.3” front & rear
Brakes

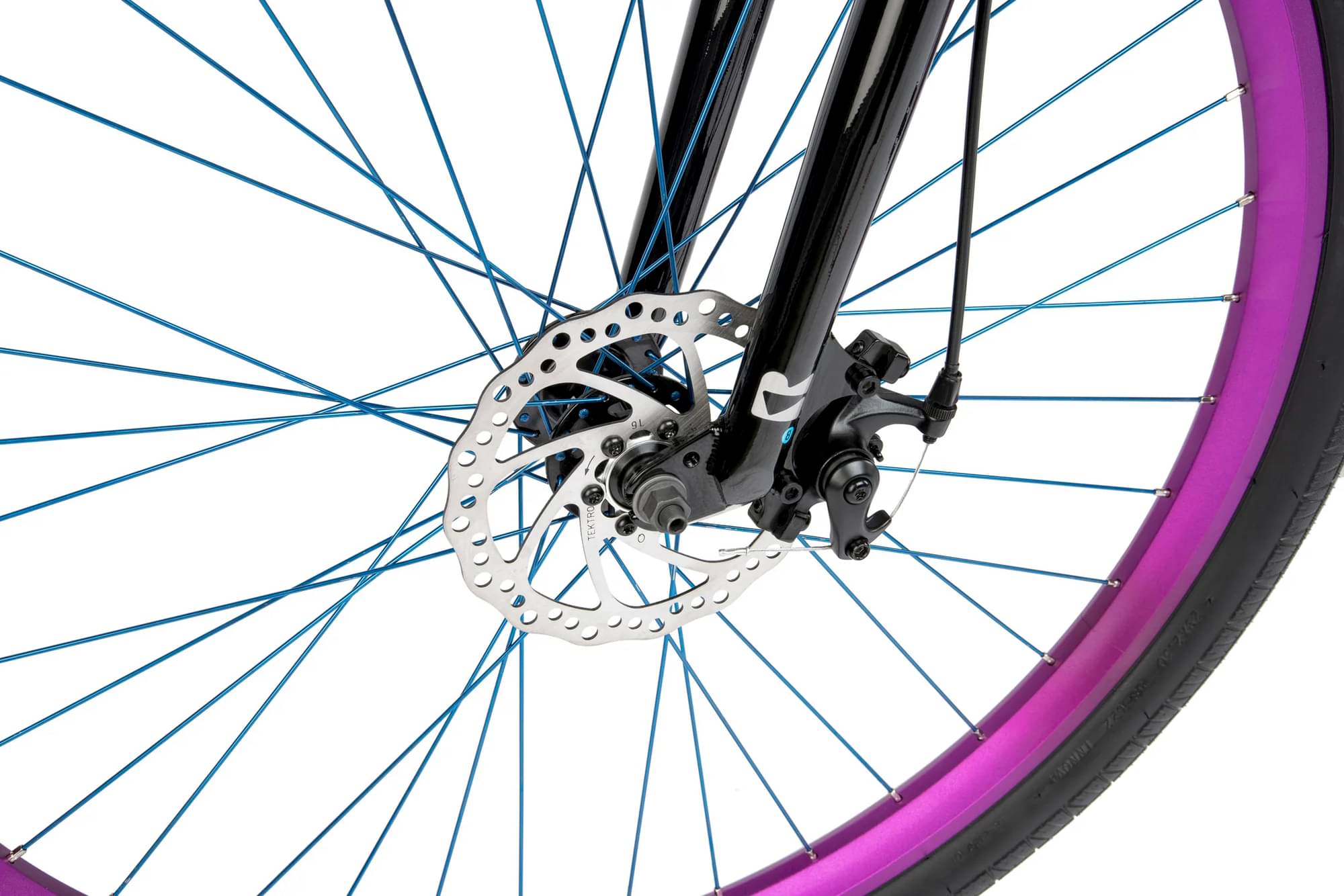

Brakes

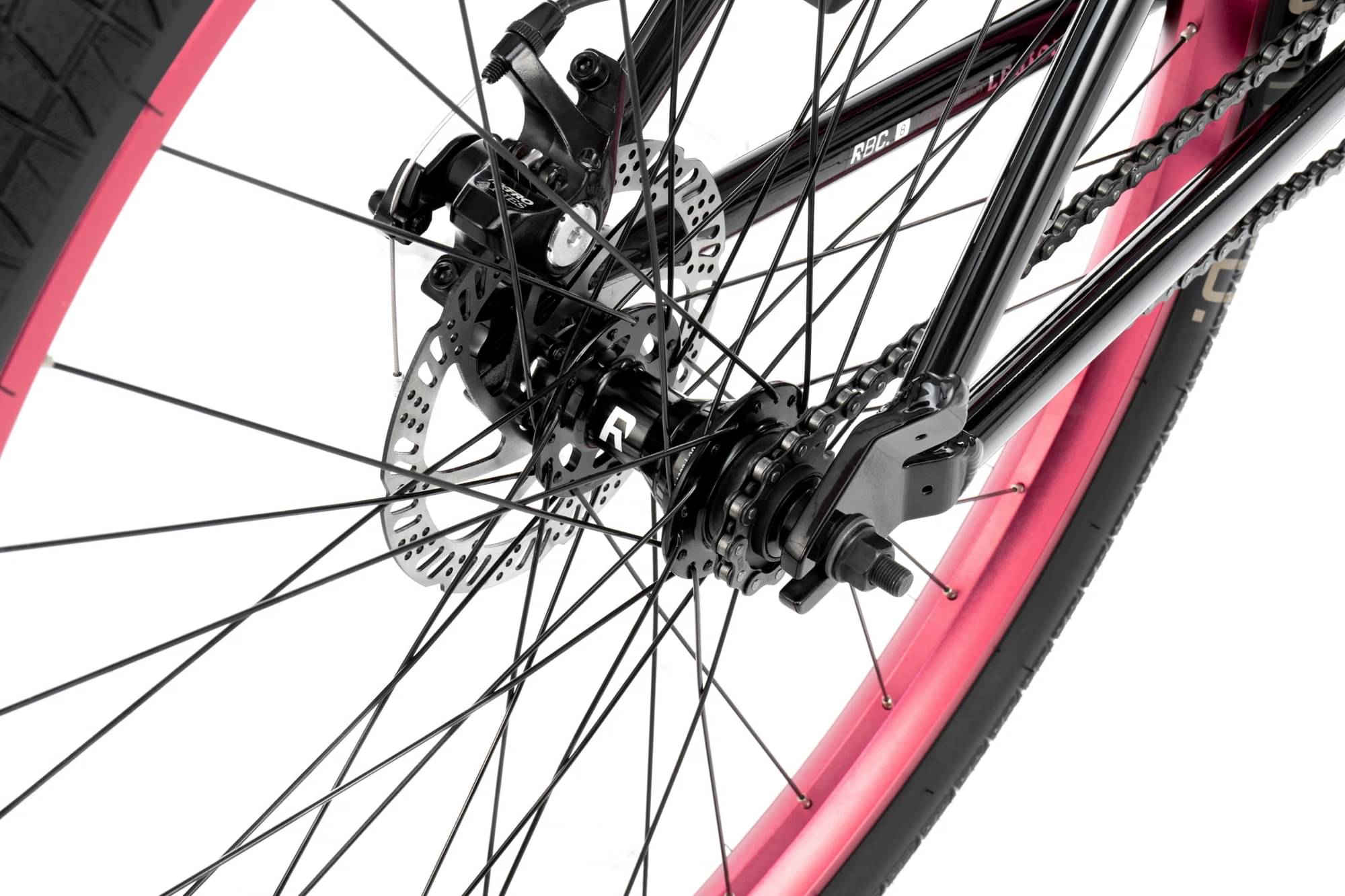

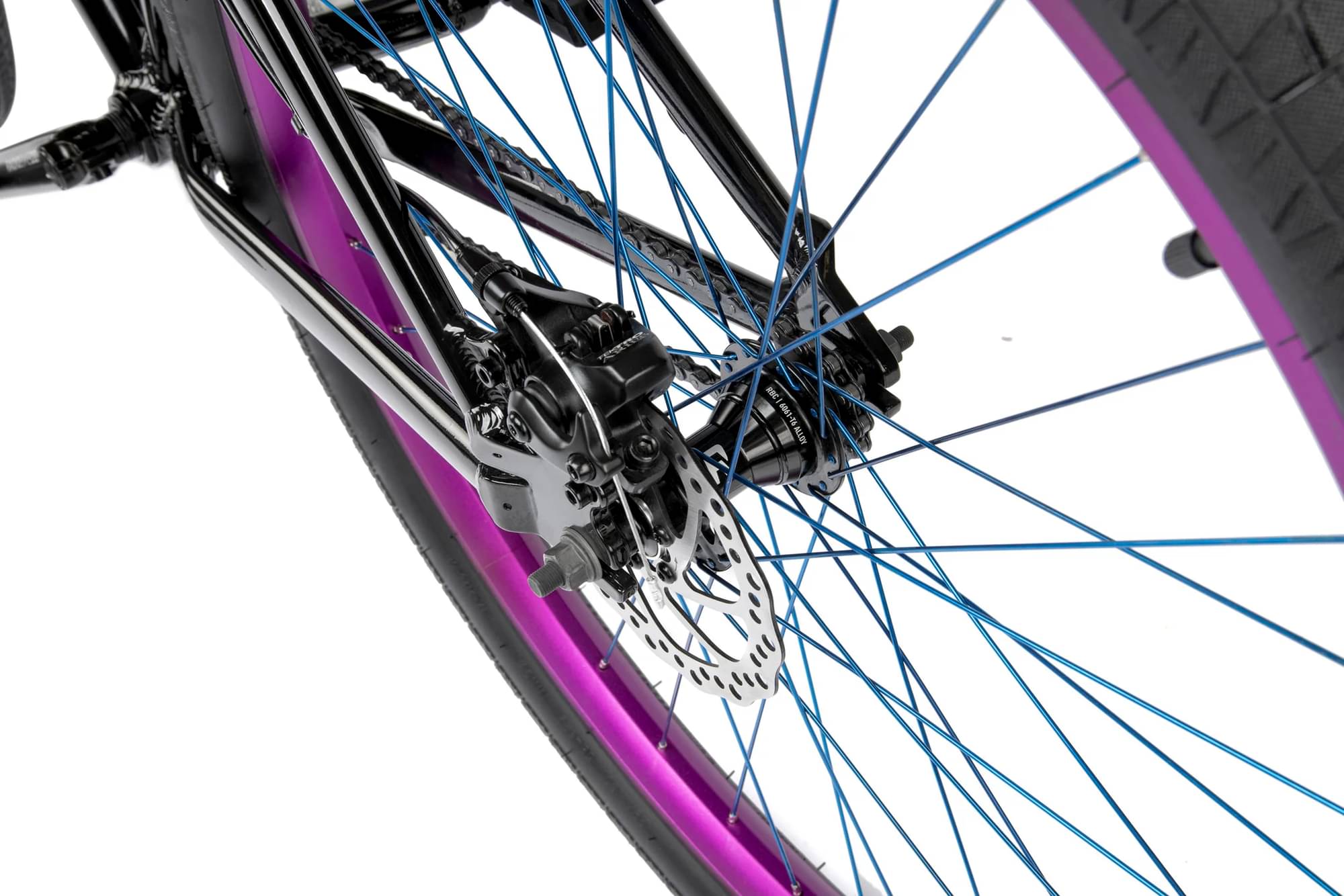

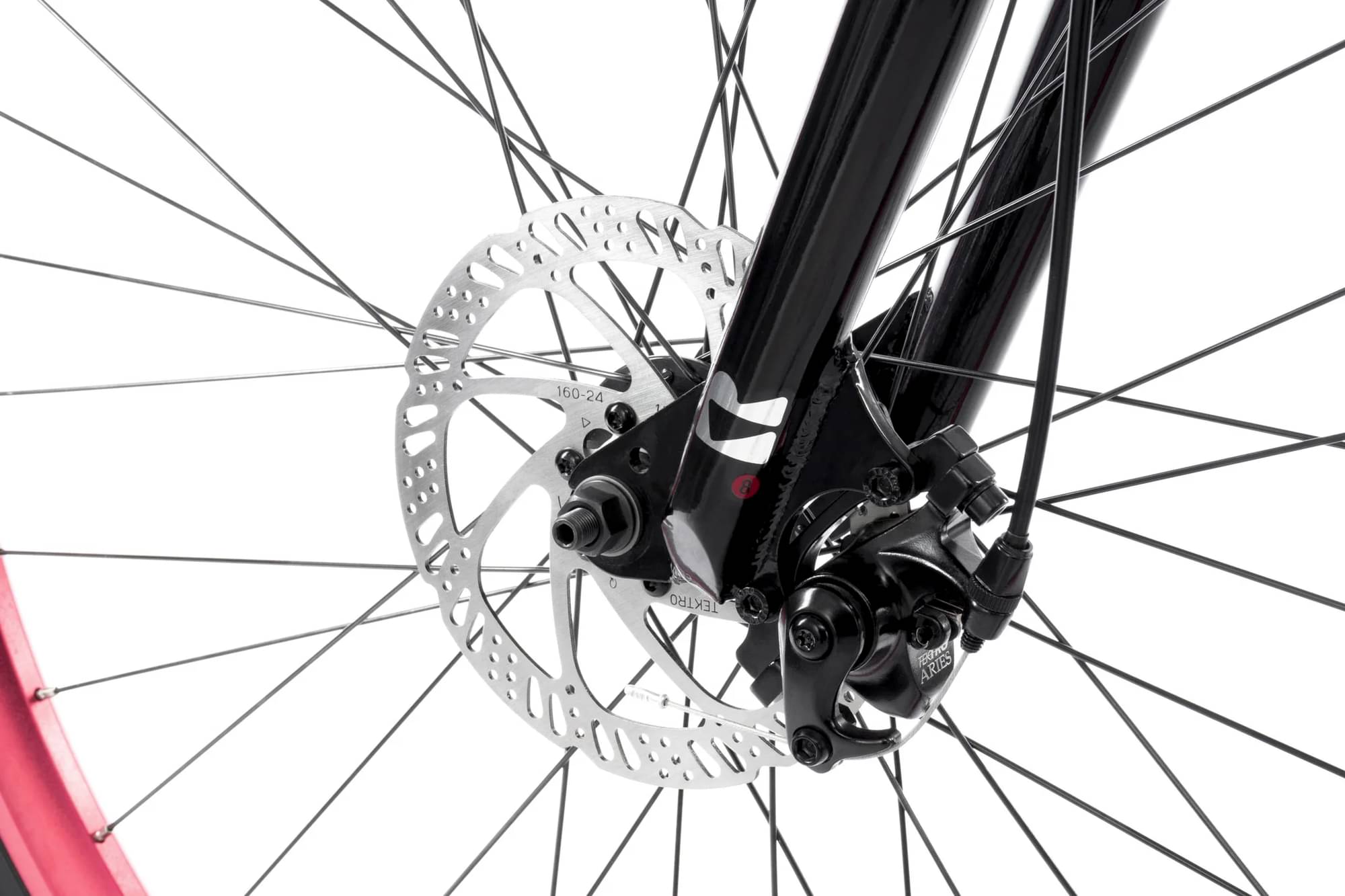

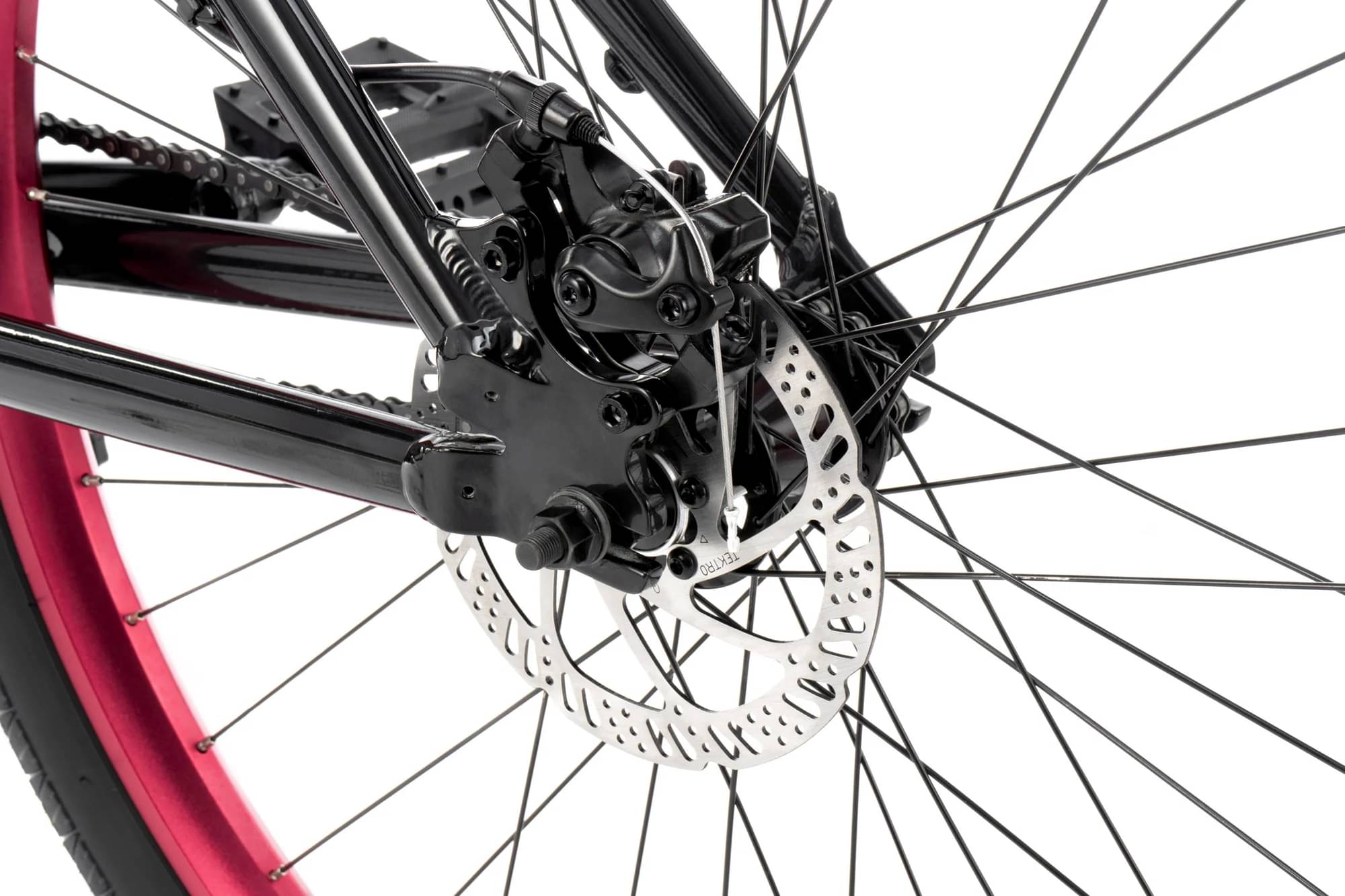

TEKTRO “ARIES” mechanical disc brake 160mm rotor front & rear

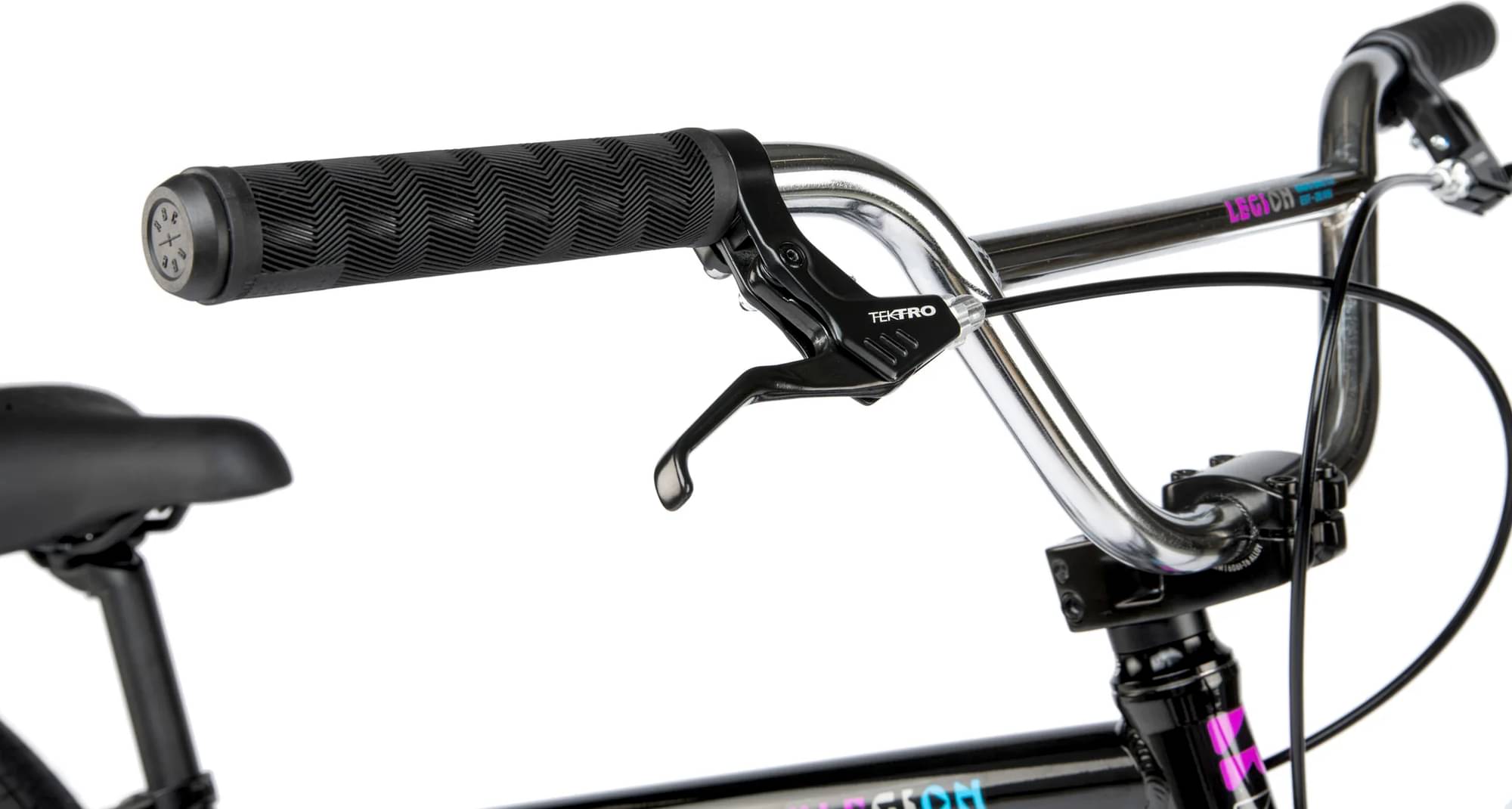

Brake Levers
TEKTRO “RS-360A” front & rear
Cockpit
Stem
Salt “COMP” top load stem 50mm reach

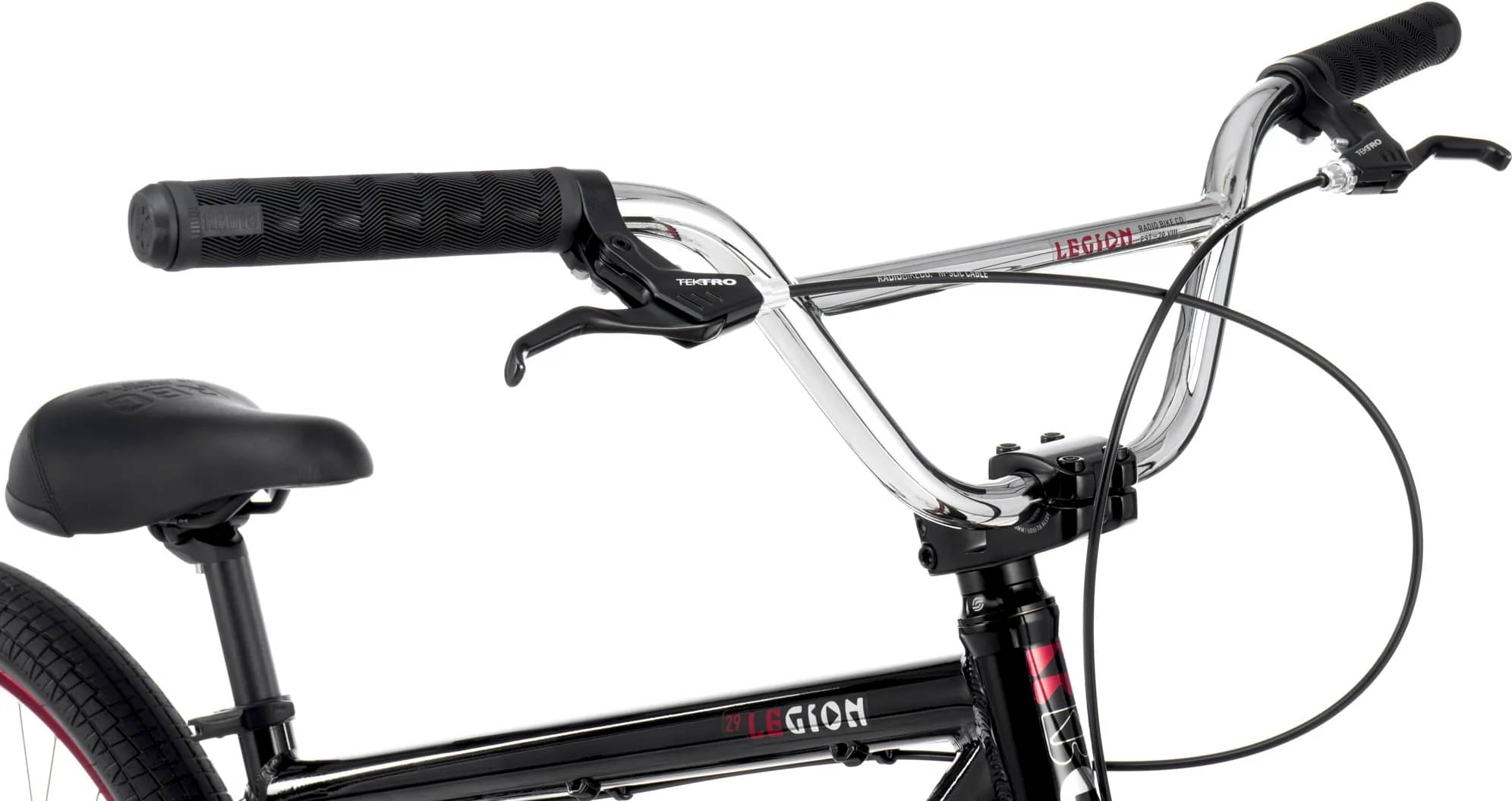

Handlebar

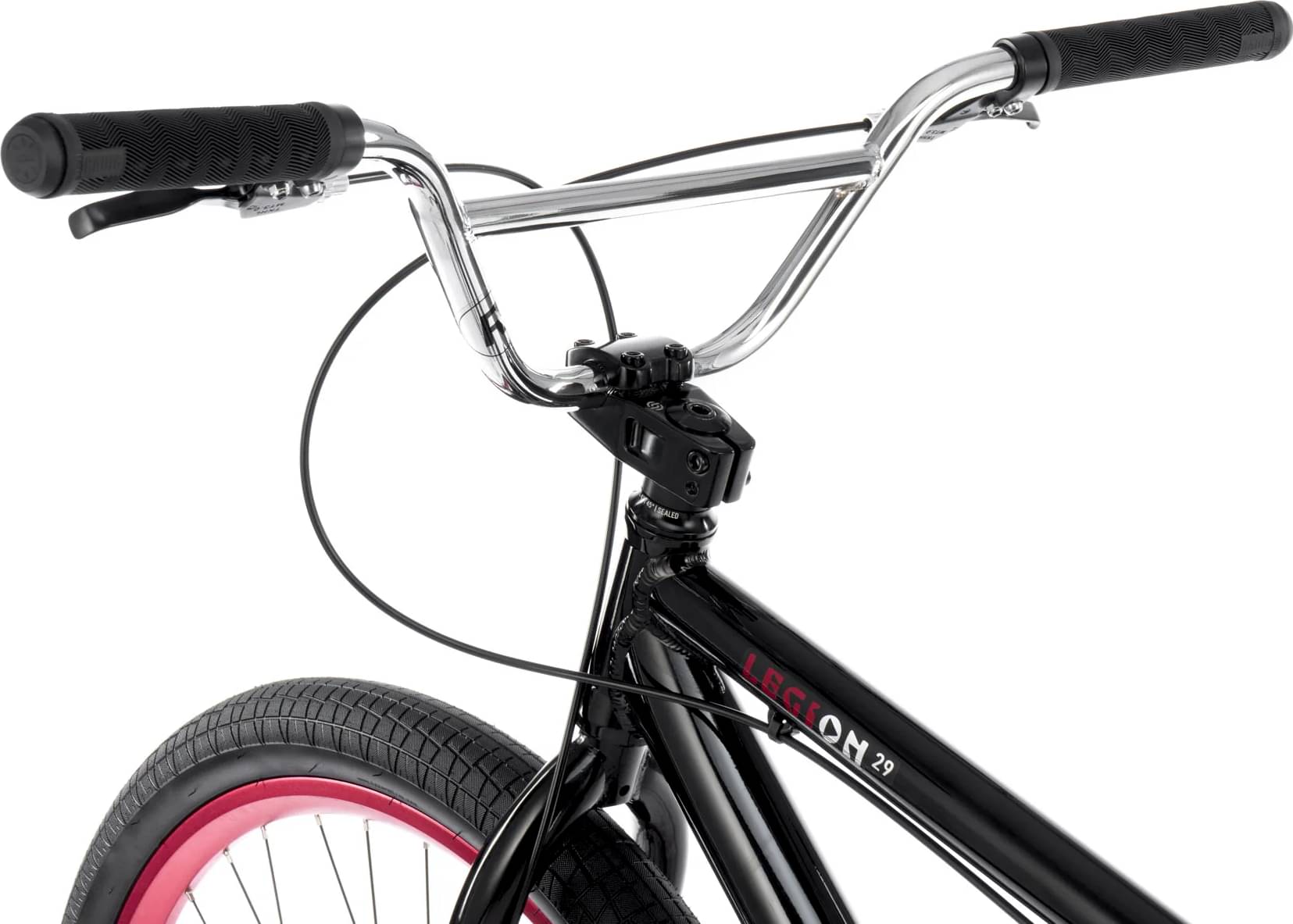

Radio “LEGION” full 4130 crmo bar
Grips
Radio “FREQUENCY XL” grips flangeless 160mm length
Headset
FSA “NO.28” a-headset
Seat
Saddle

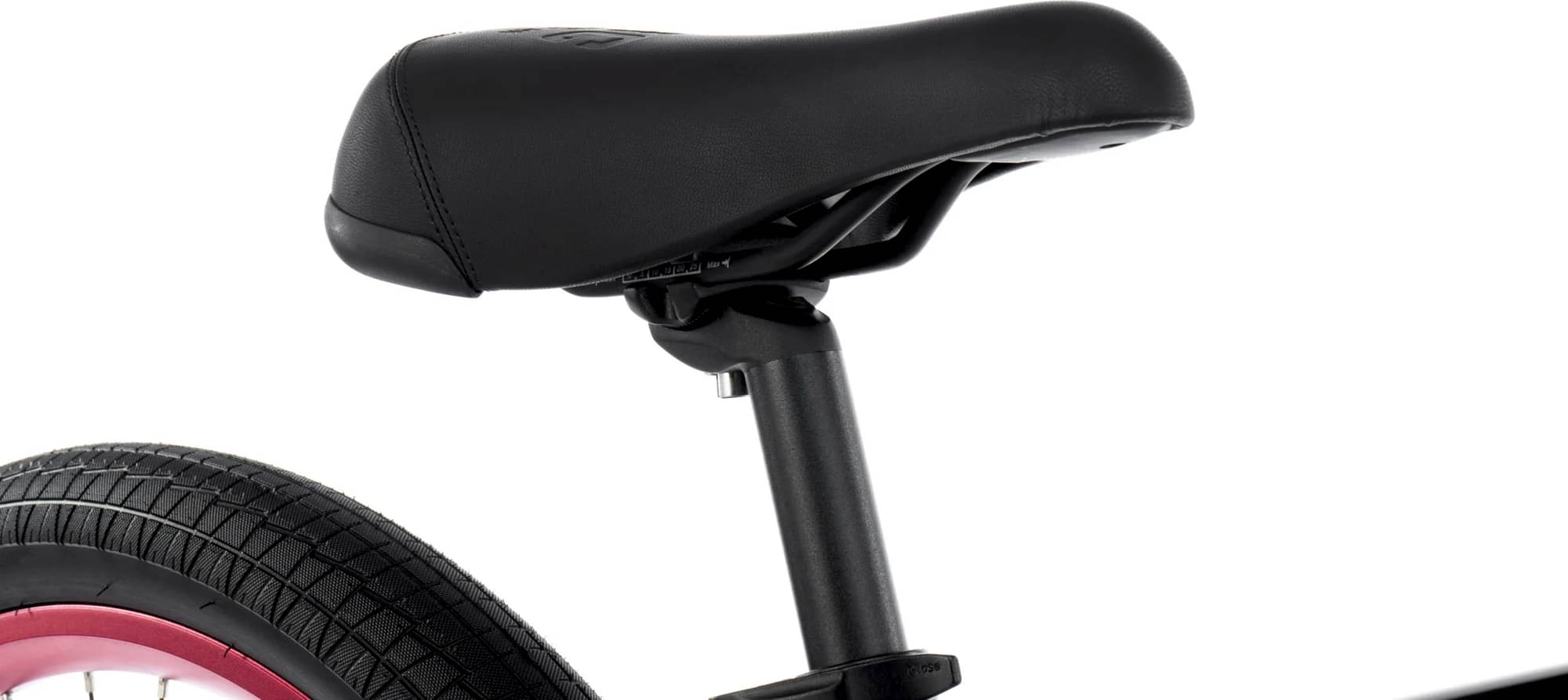

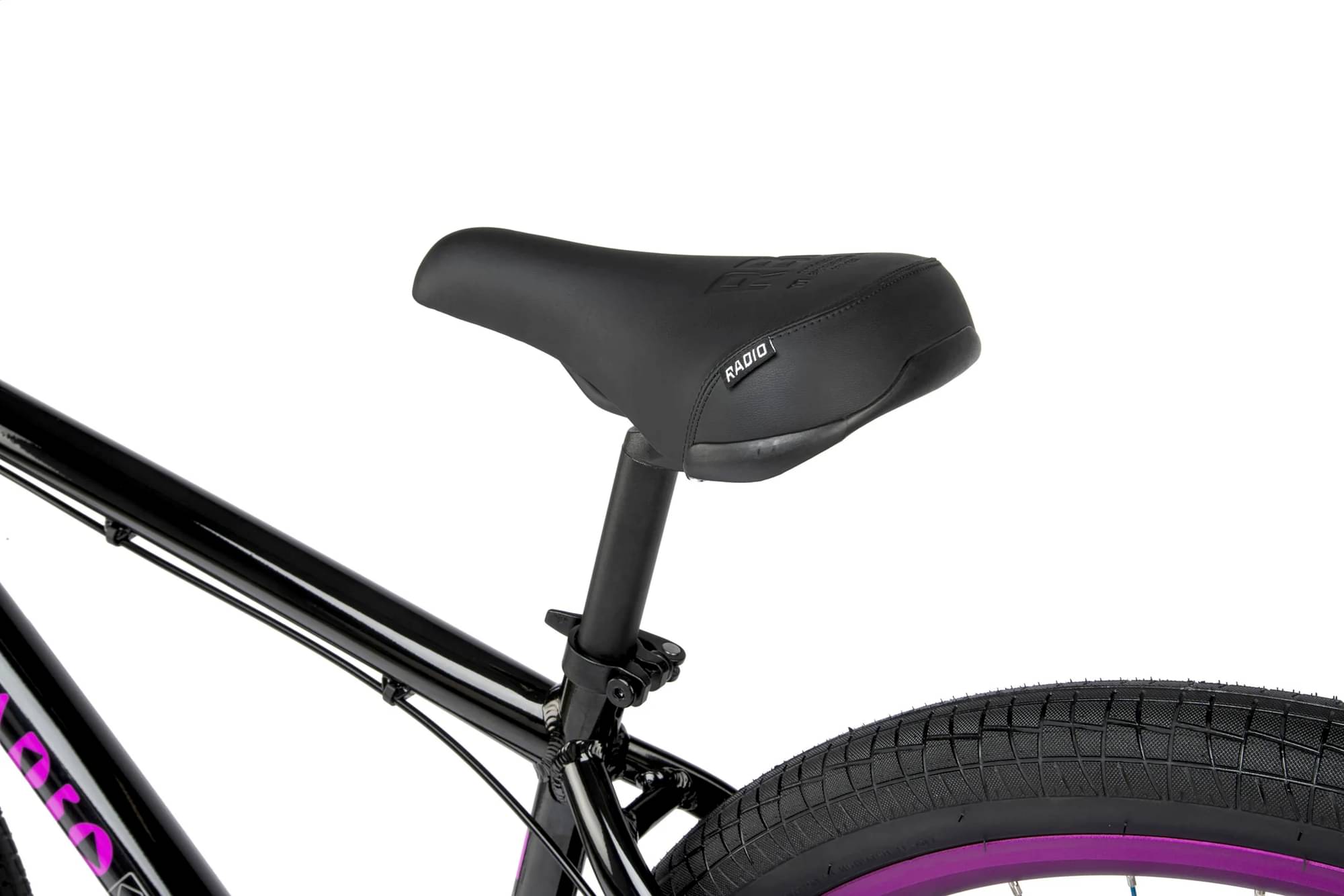

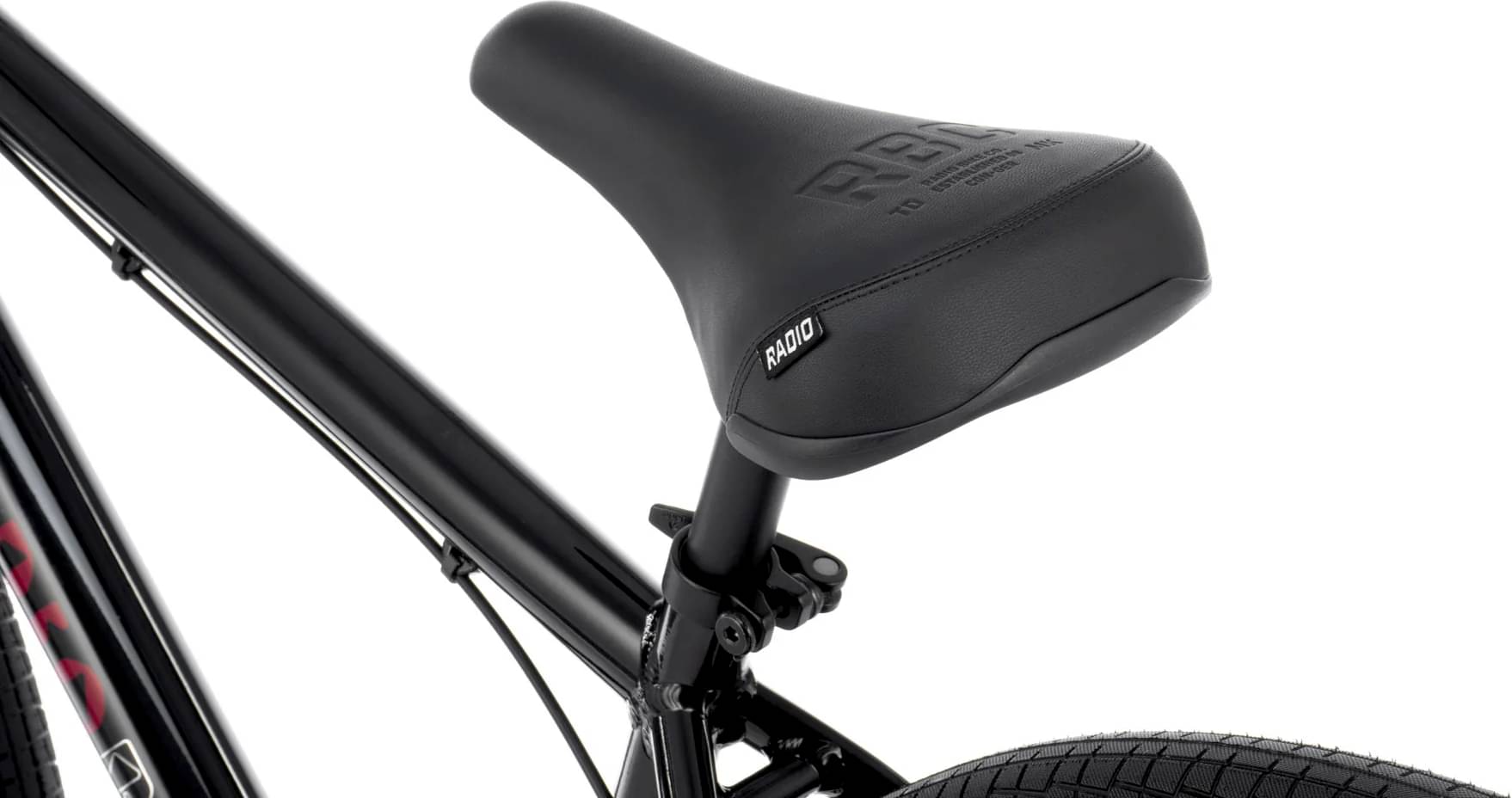

Radio “LEGION” railed seat
Seatpost

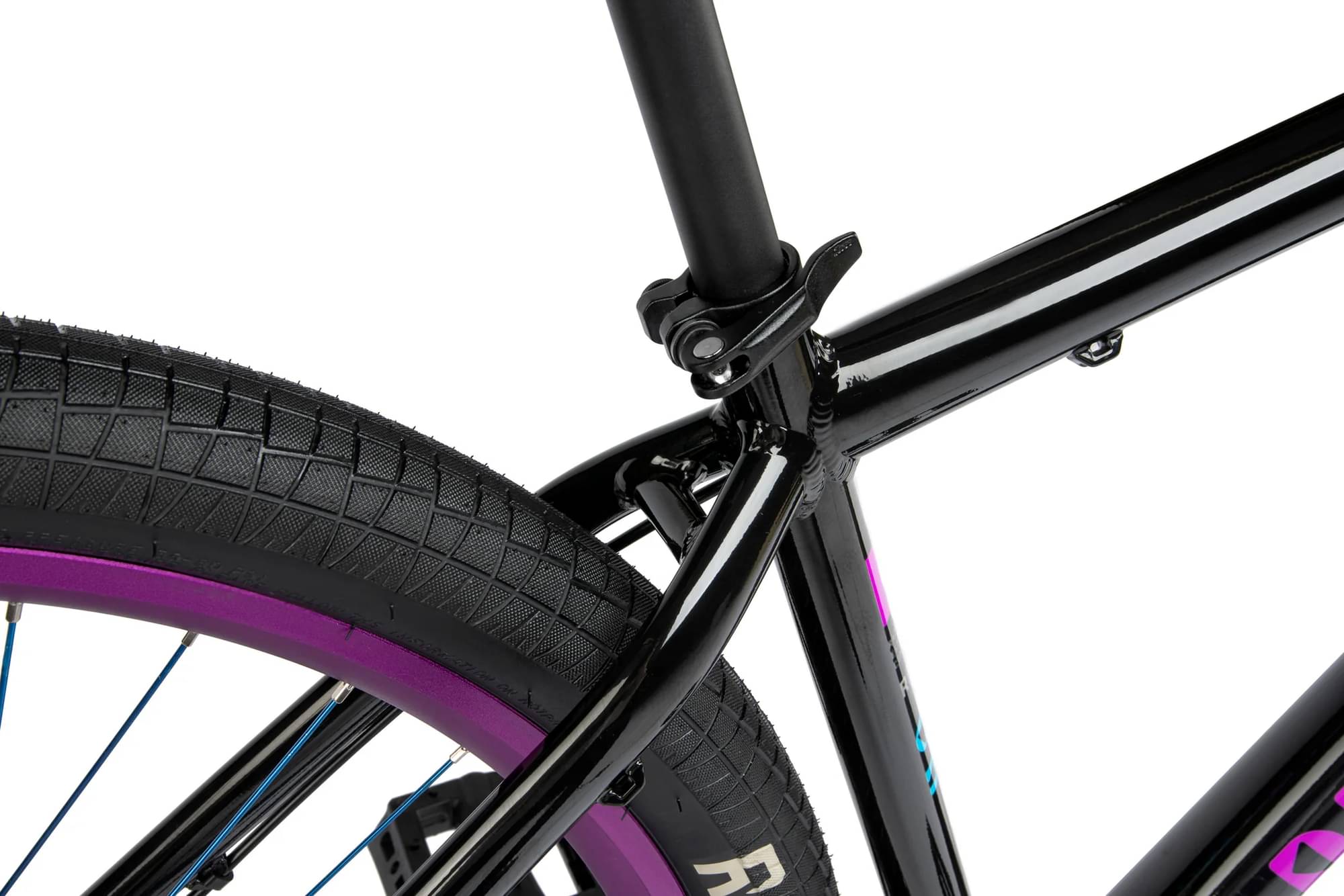

Radio “SP228” micro-adjust seat post alloy
Fit data
Geometry
