Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

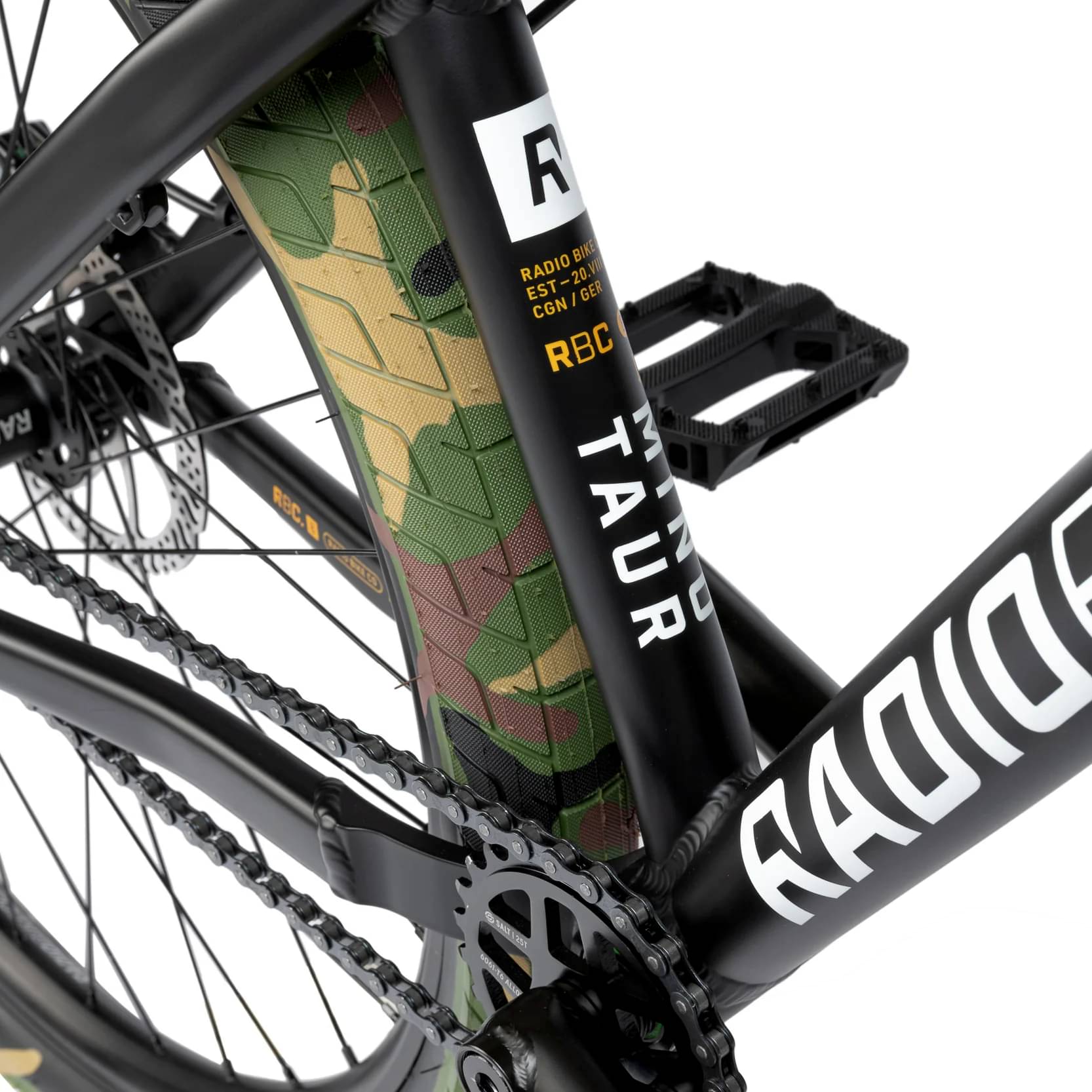

Frame
Frame

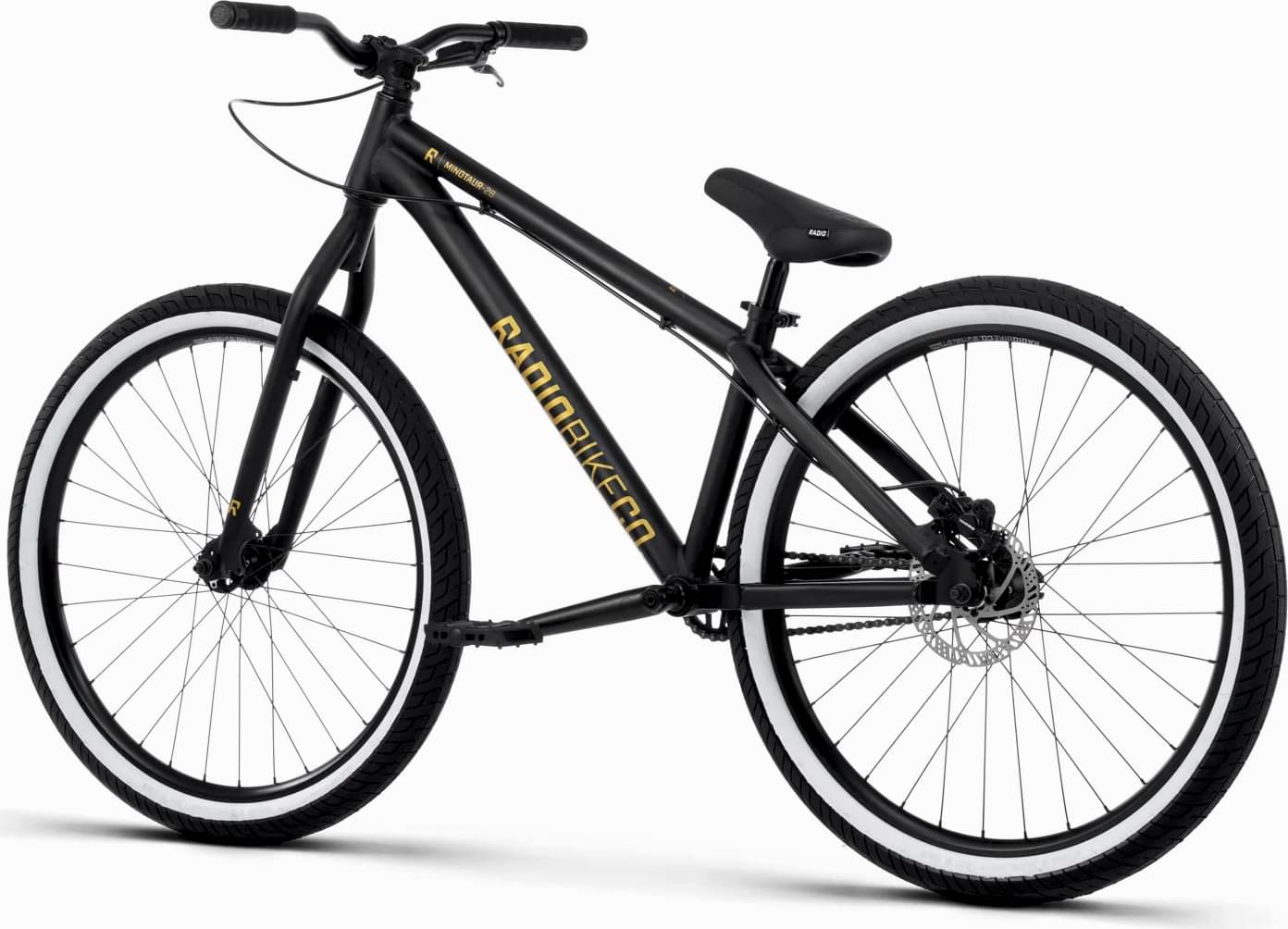

RADIO "MINOTAUR" frame, 6061-T6 alloy, tapered head tube, forged yoke
Suspension Fork
RADIO "MINOTOUR" fork, full crmo, tapered crmo steerer, 28mm offset
Drivetrain
Cassette

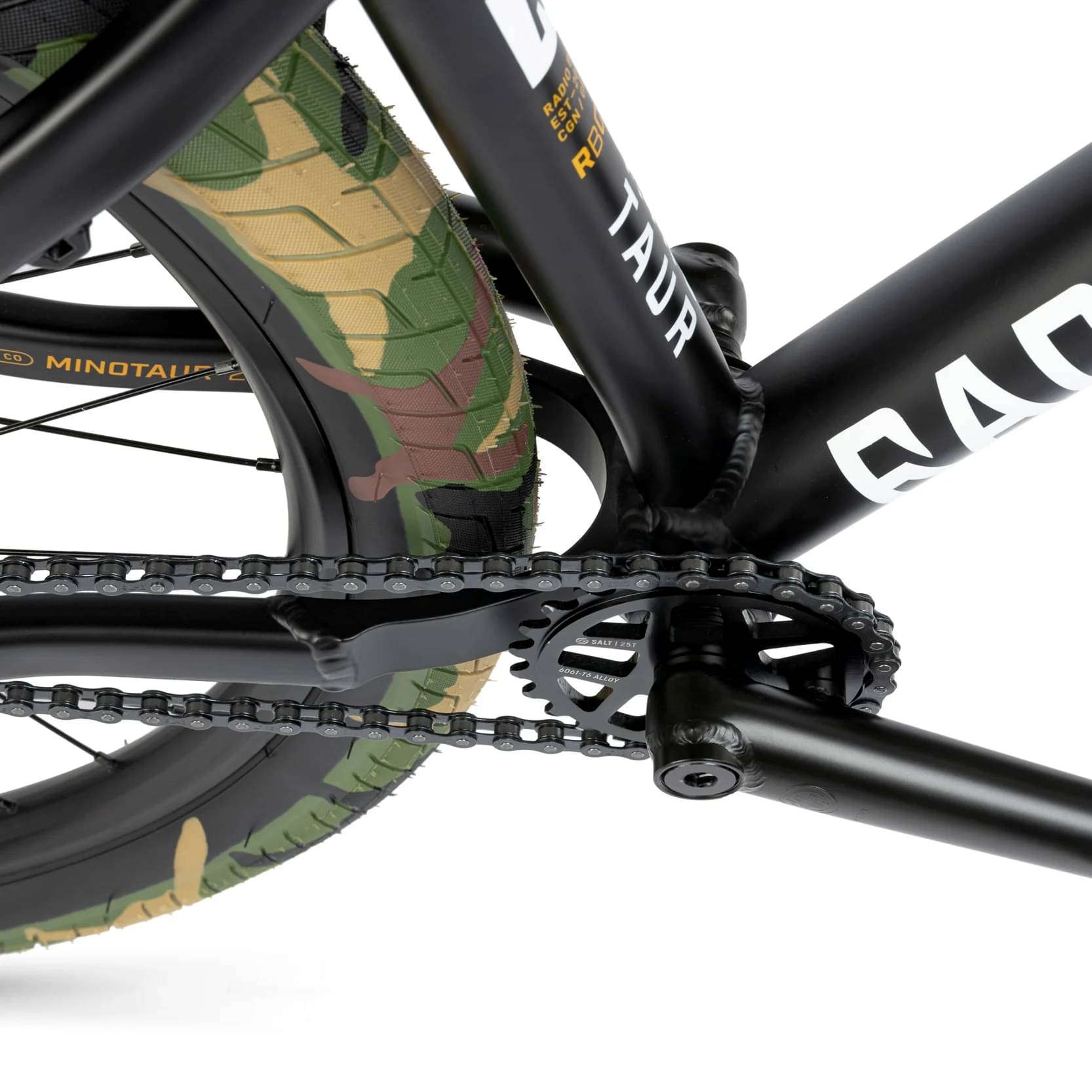

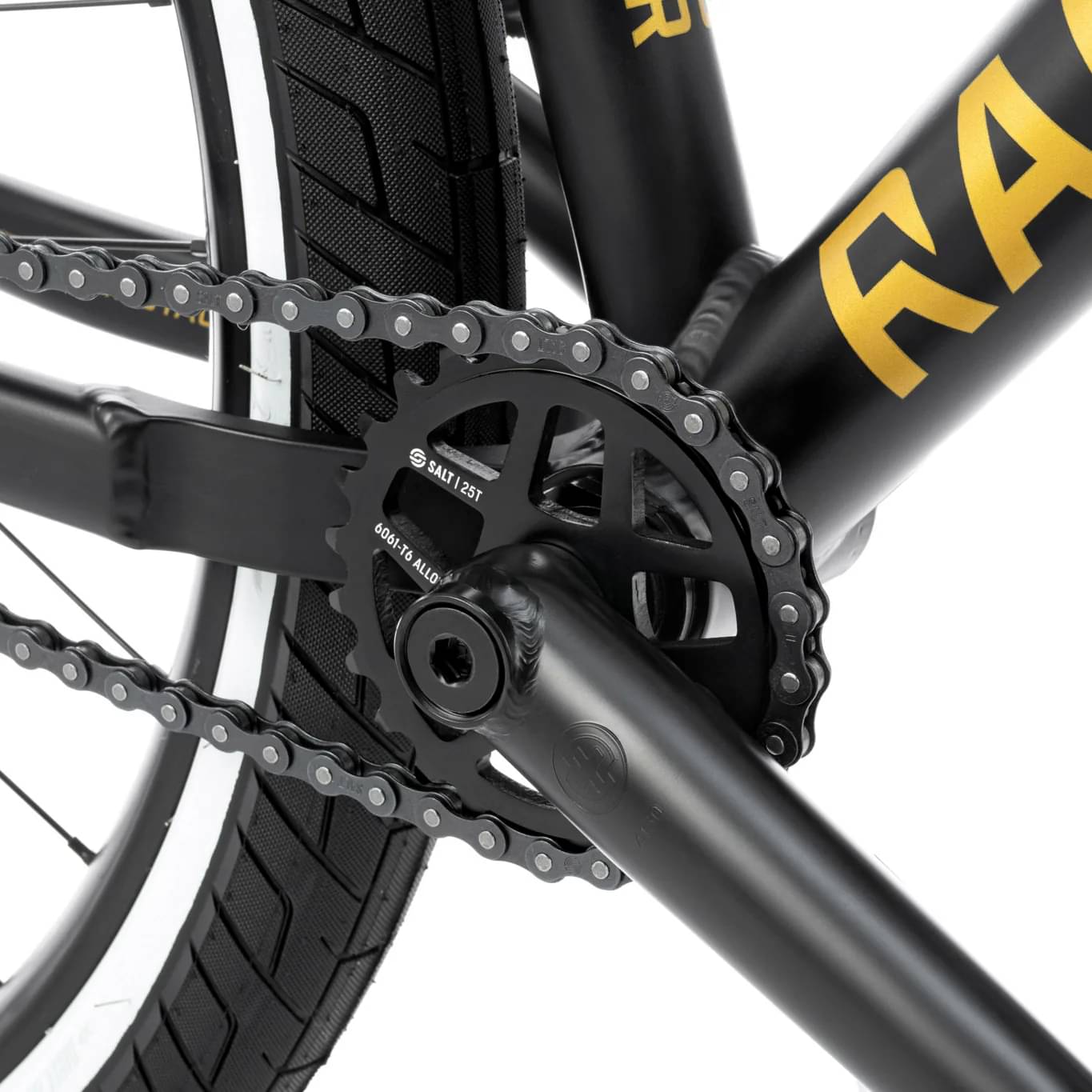

SALT "GATEWAY" sprocket, alloy, 25t
Crank
SALTPLUS "ULTRA" 3pc crank, TSS, crmo, 170mm, 8 spline
Bottom Bracket
RADIO "BSA19" bb set, sealed bearing
Chain
SALT "AM" chain, WZ1 type
Pedals

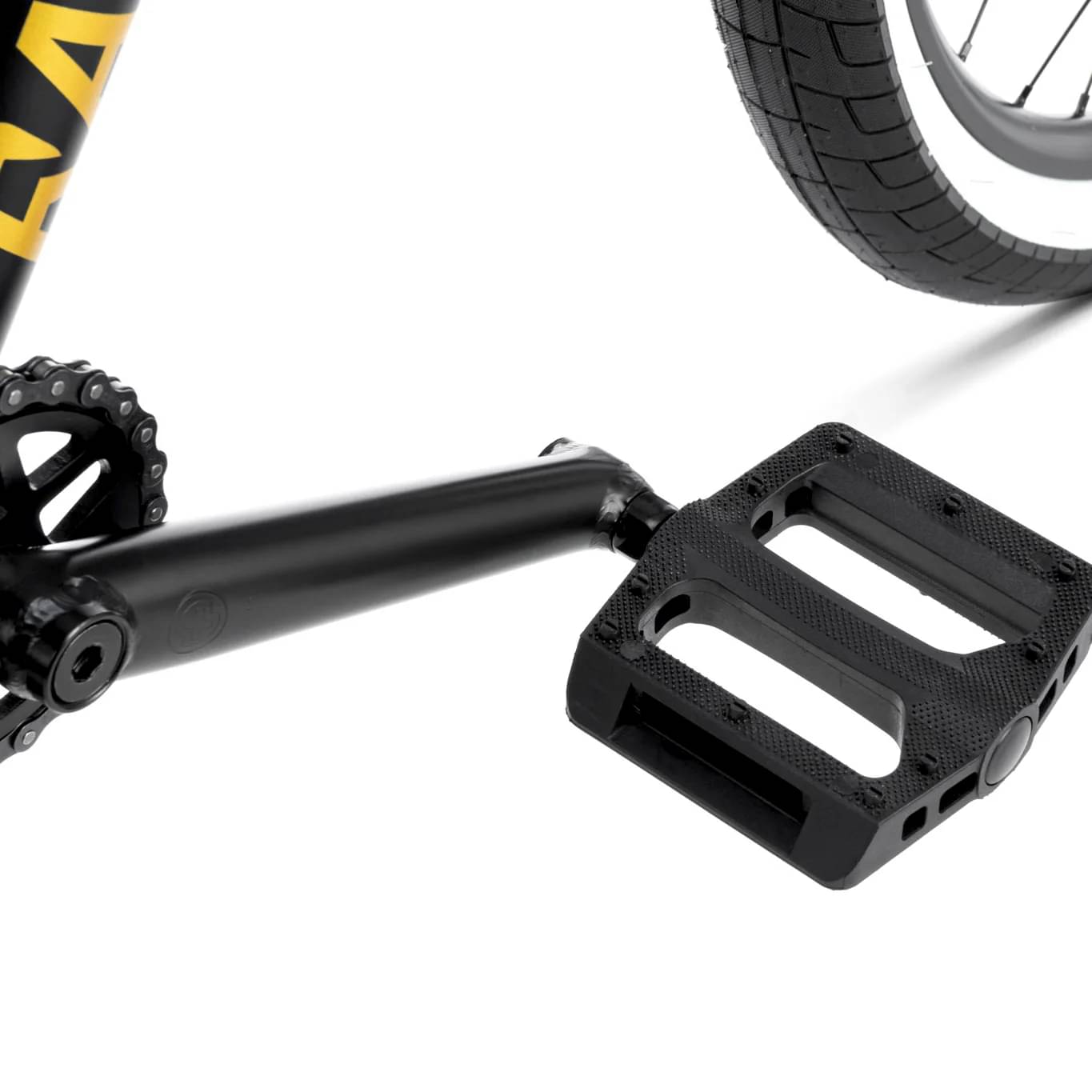

RADIO "SLIM" pedals, nylon/fiberglass
Wheels

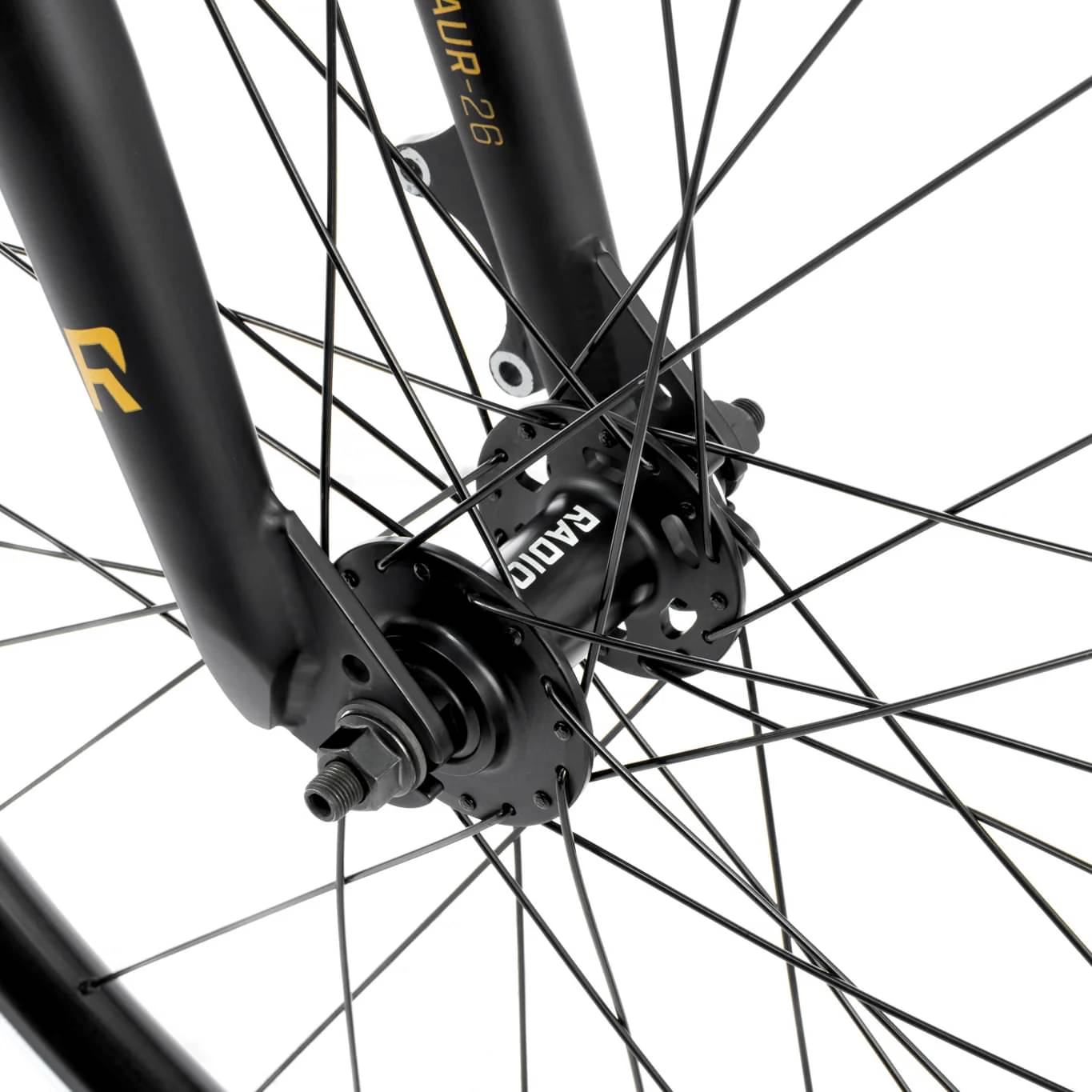

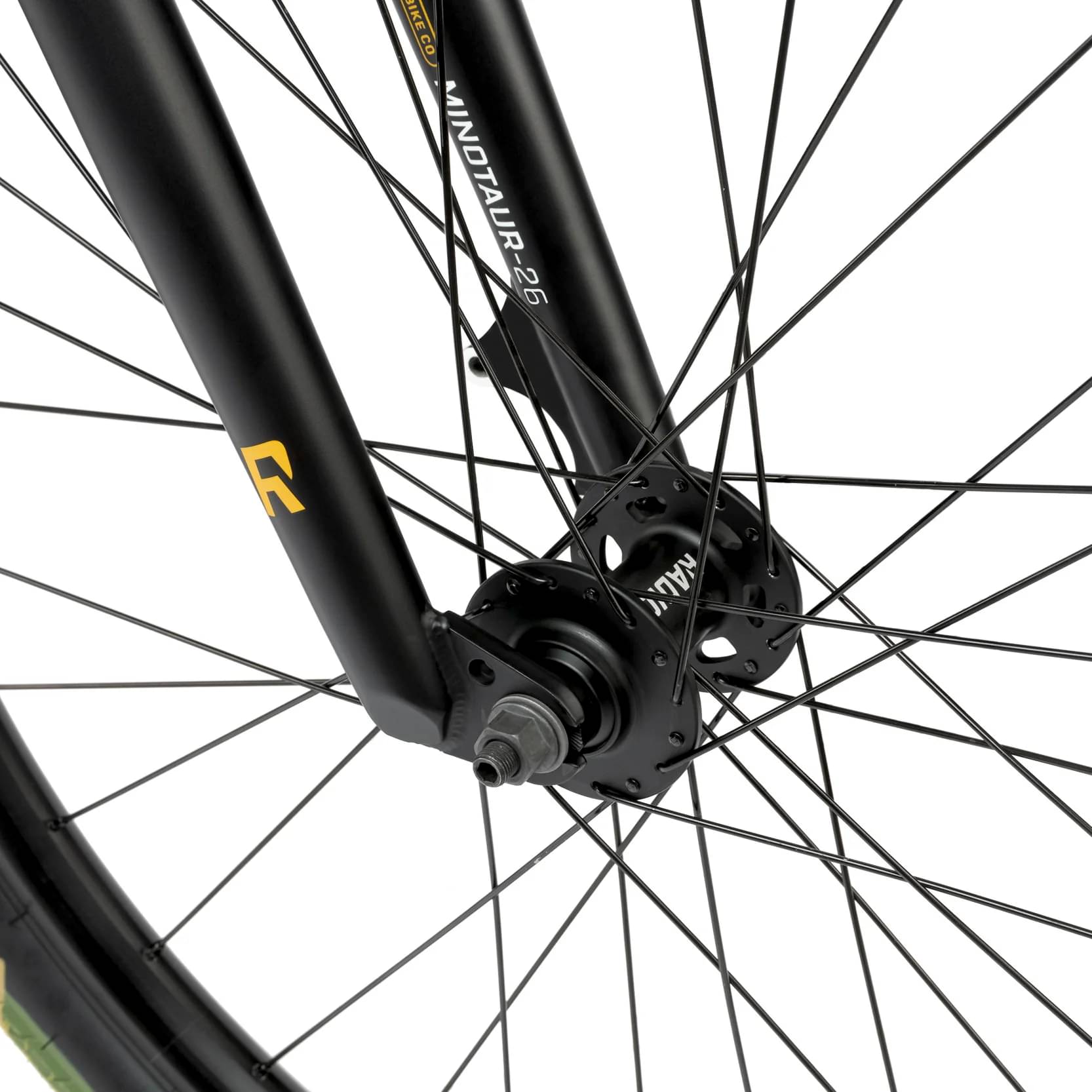

Front Hub
RADIO "AM-DJ" disc hub, alloy, sealed, 3/8"s male axle, 32h

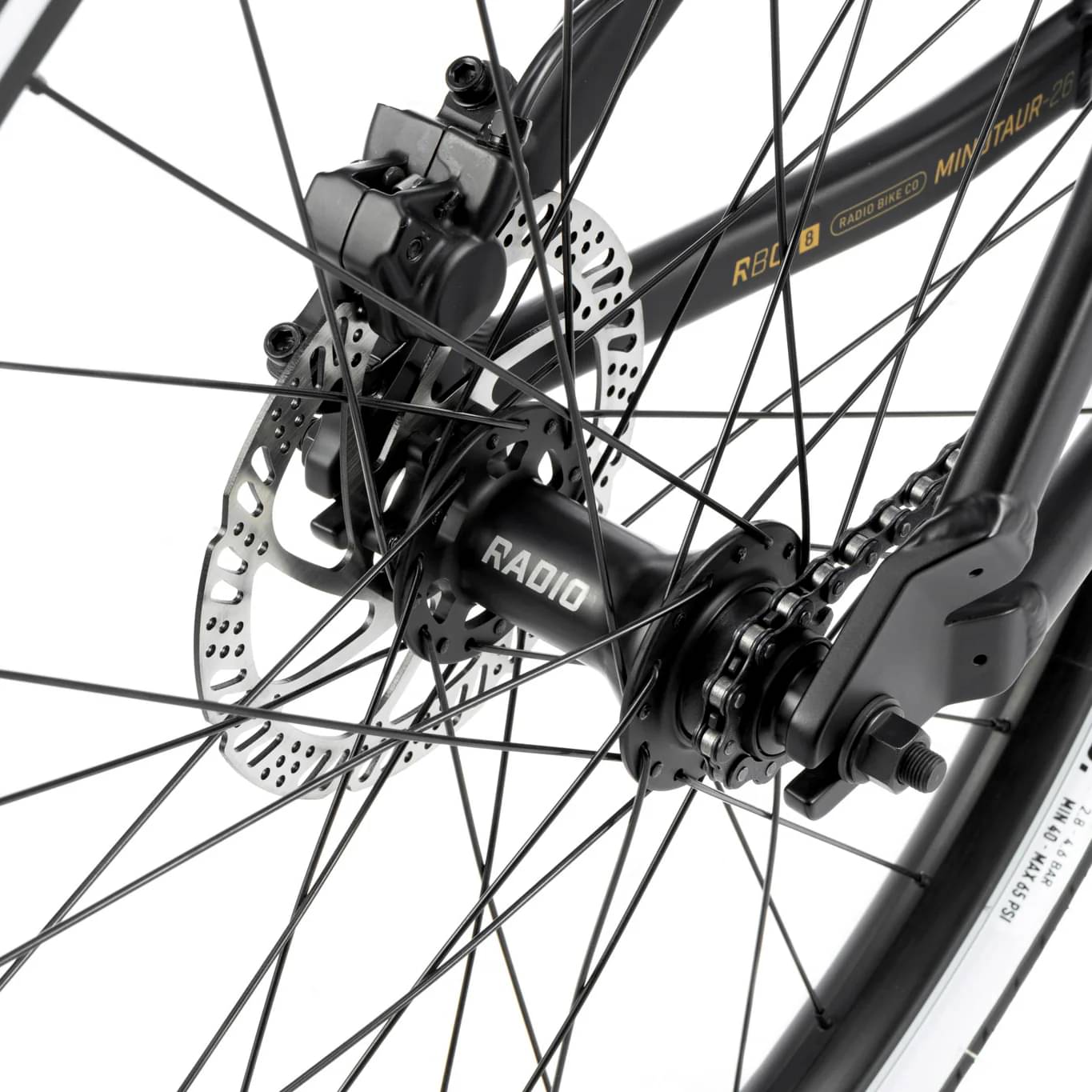

Rear Hub

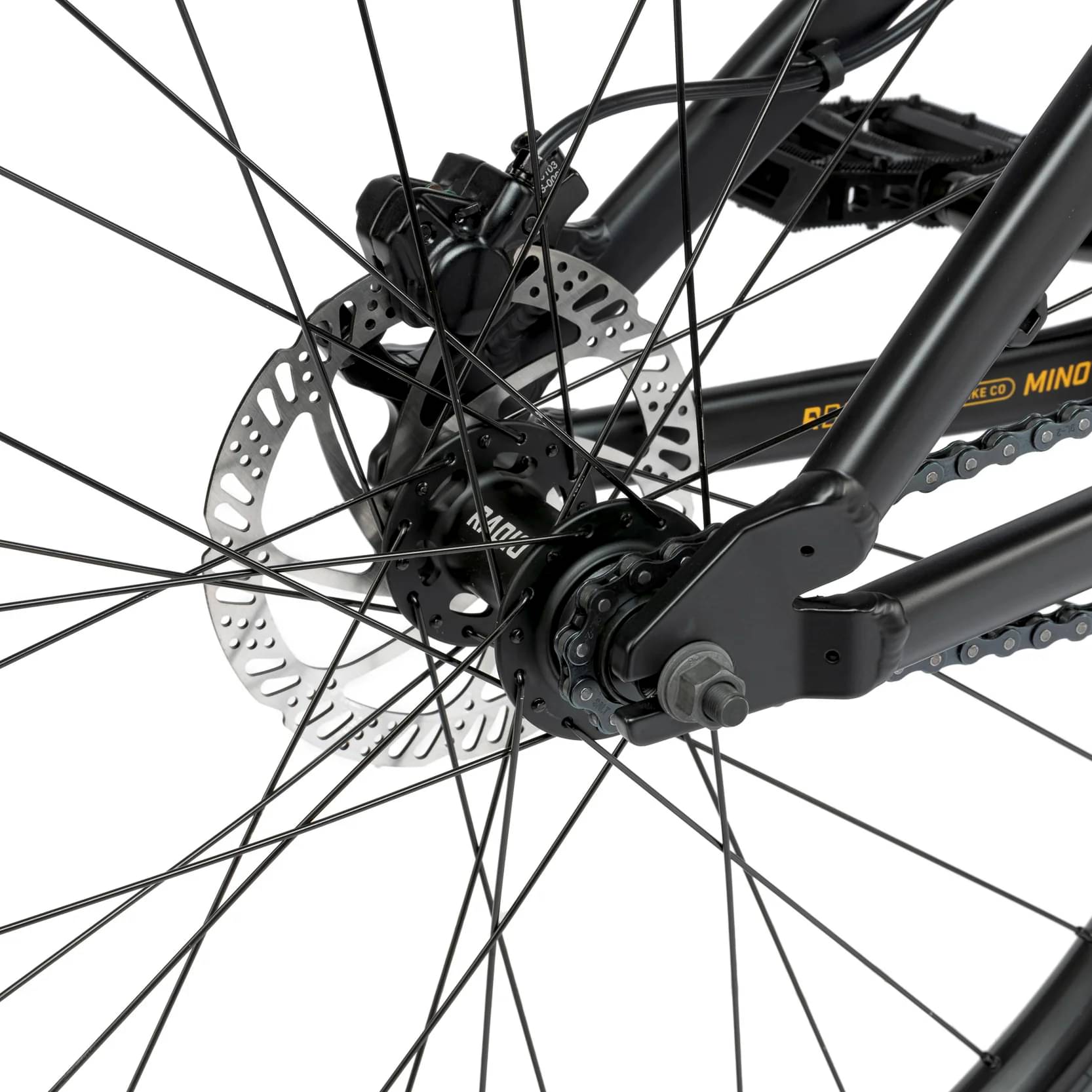

RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s male axle, 32h
Rims
RADIO "DB30" rim, double wall

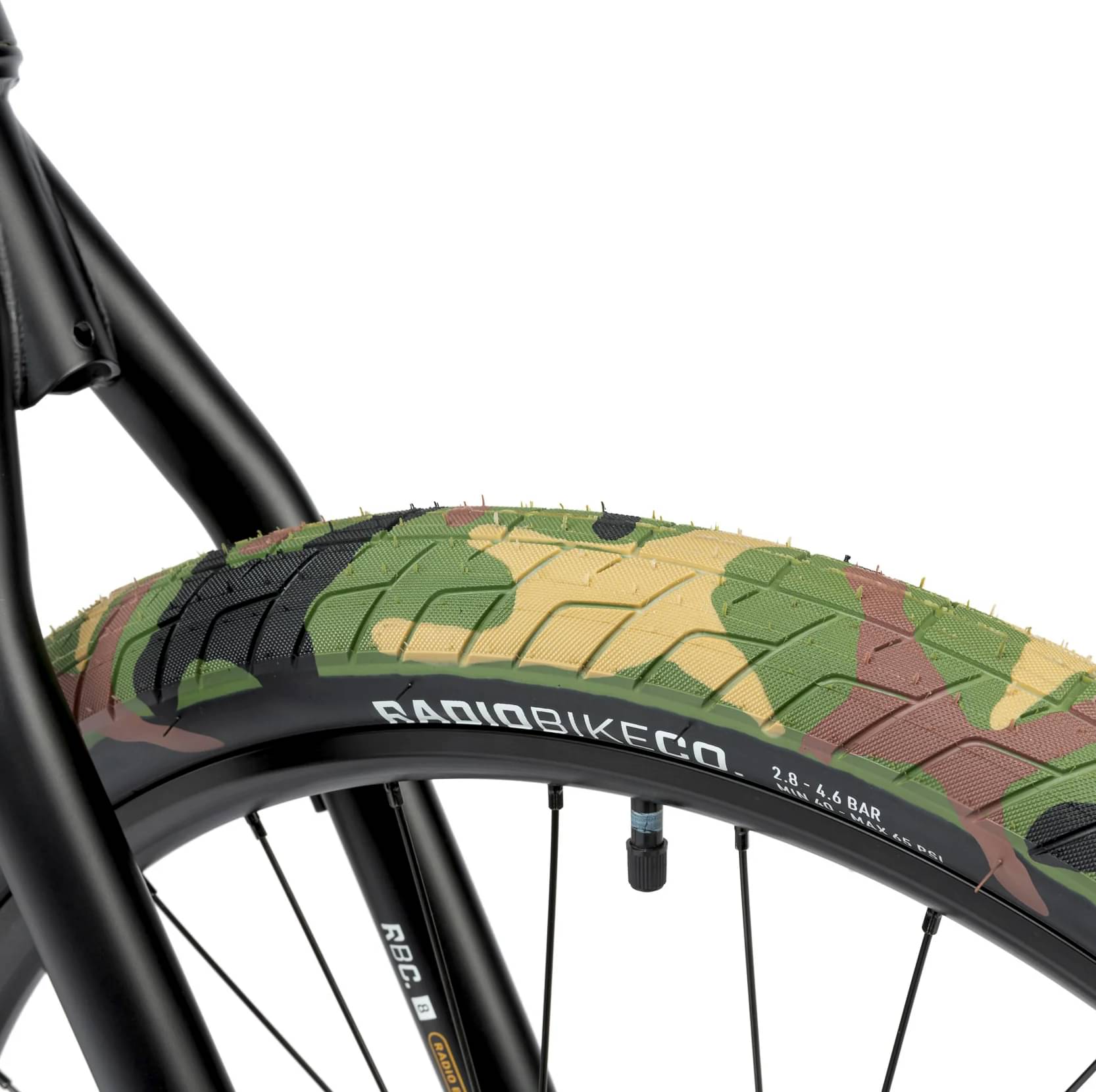

Tires

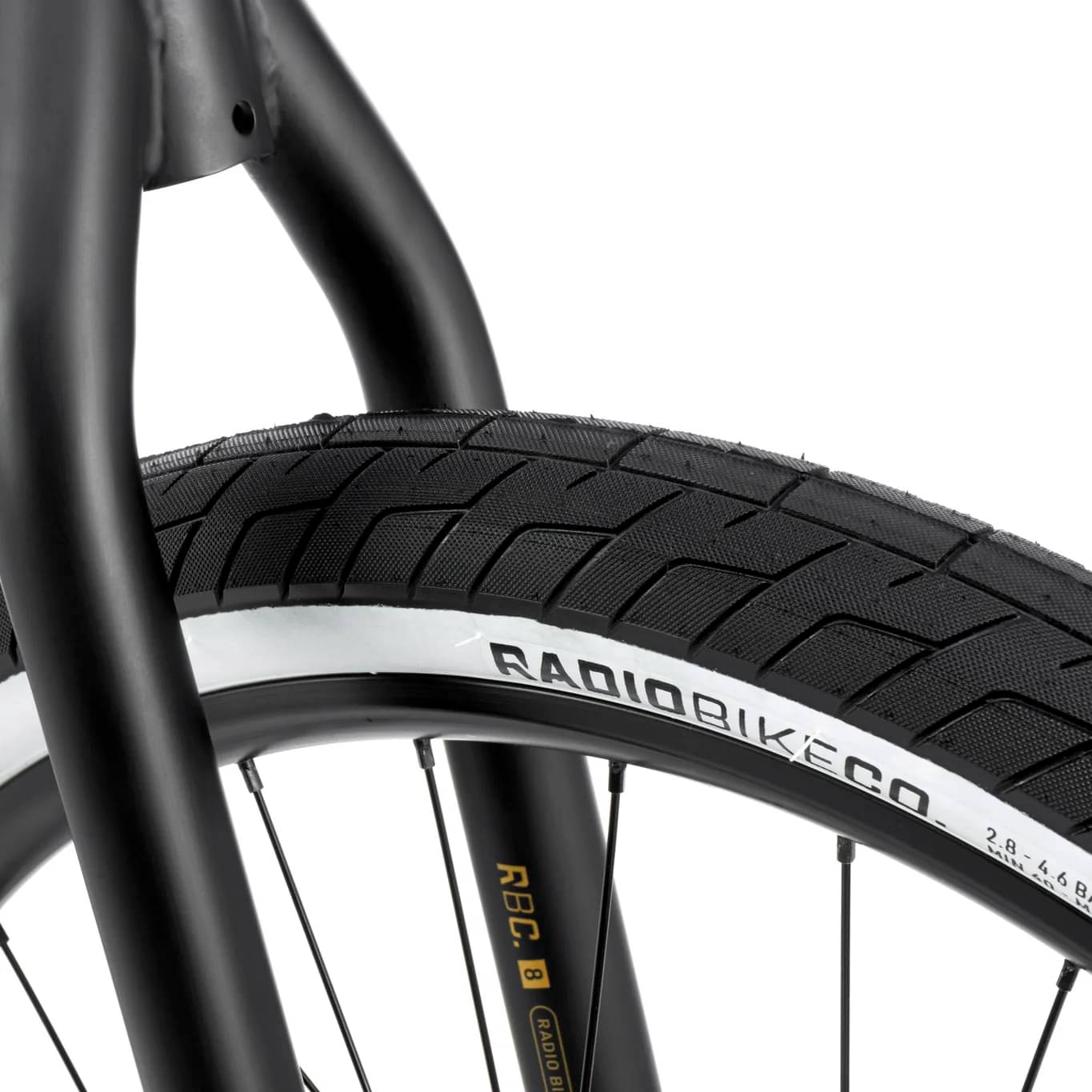

RADIO “Stratus” tires, 2.3?, front & rear
Brakes
Brakes

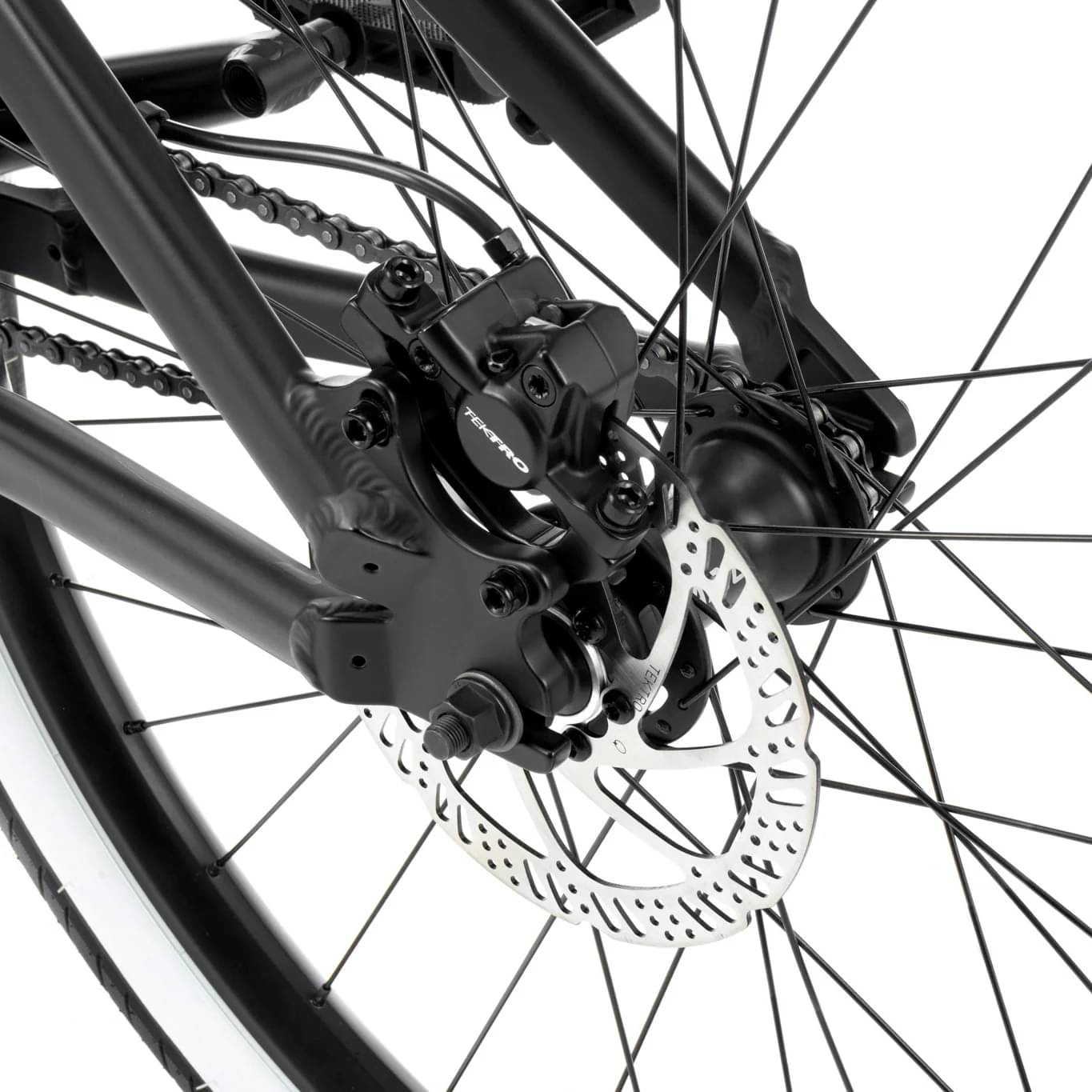

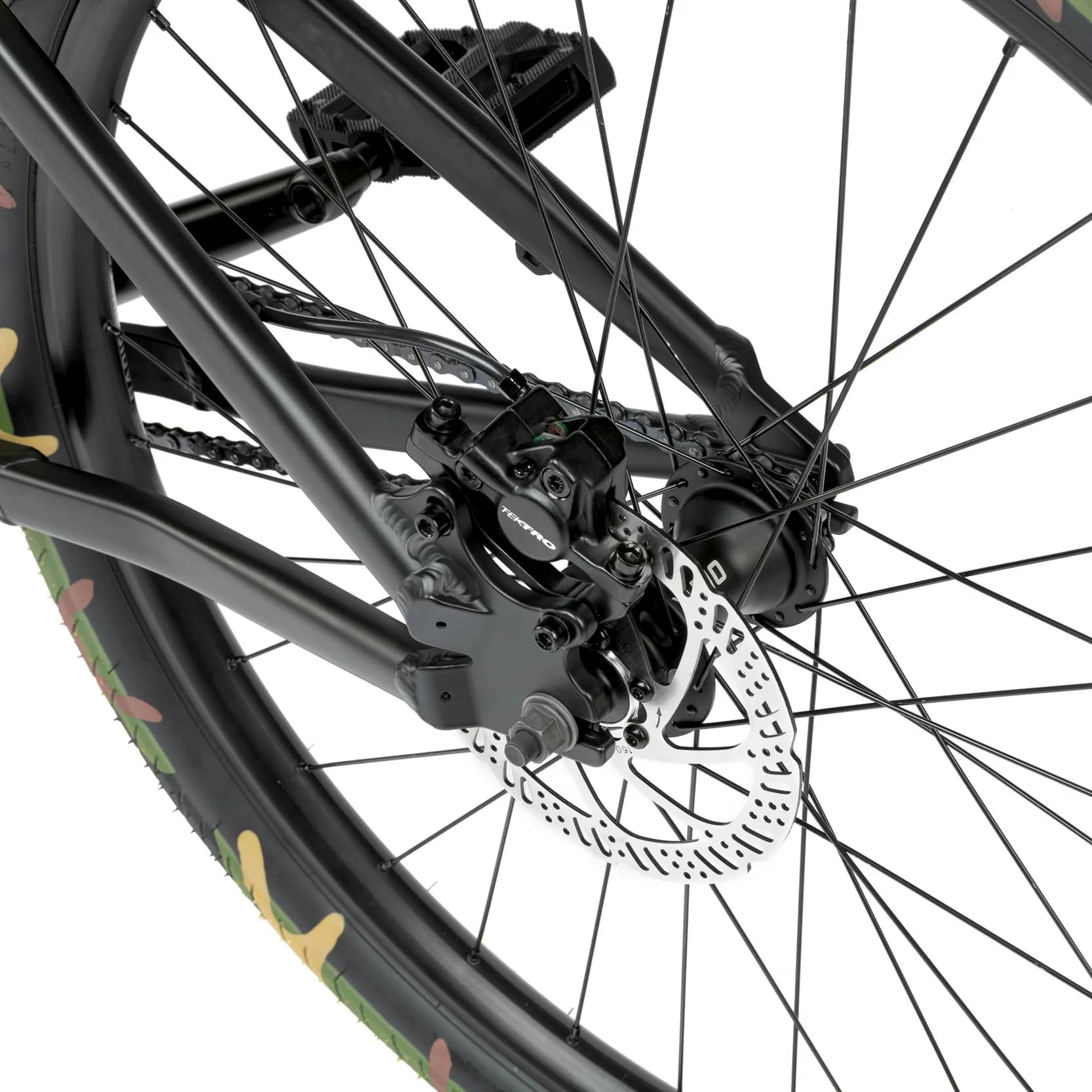

TEKTRO "ARIES" mechanical disc brake, 160mm rotor, front / TEKTRO " HD-M275" hydraulic disc brake, 160mm rotor, rear
Brake Levers

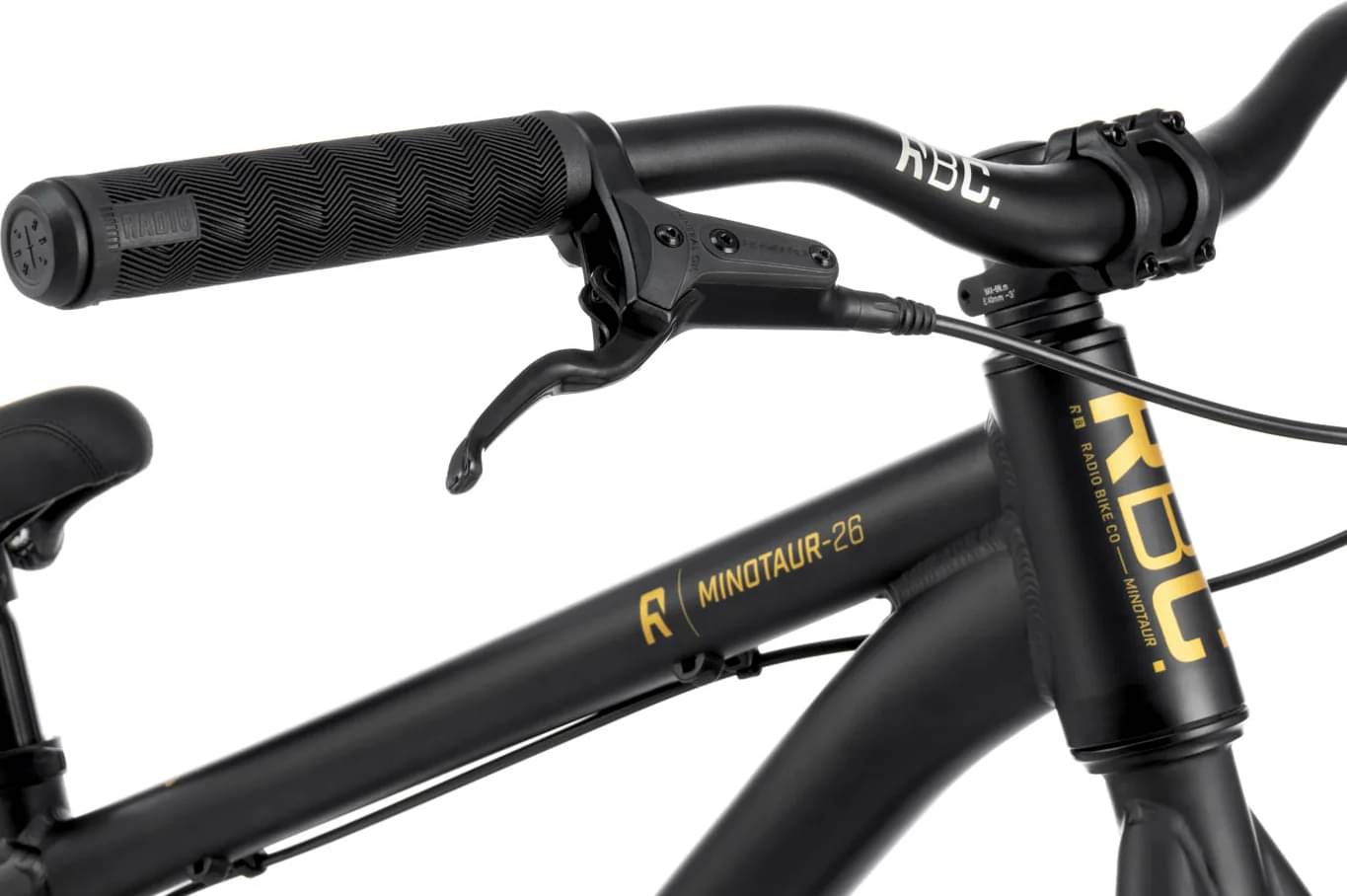

TEKTRO “RS-360A” front lever / TEKTRO ” HD-M275? rear lever
Cockpit

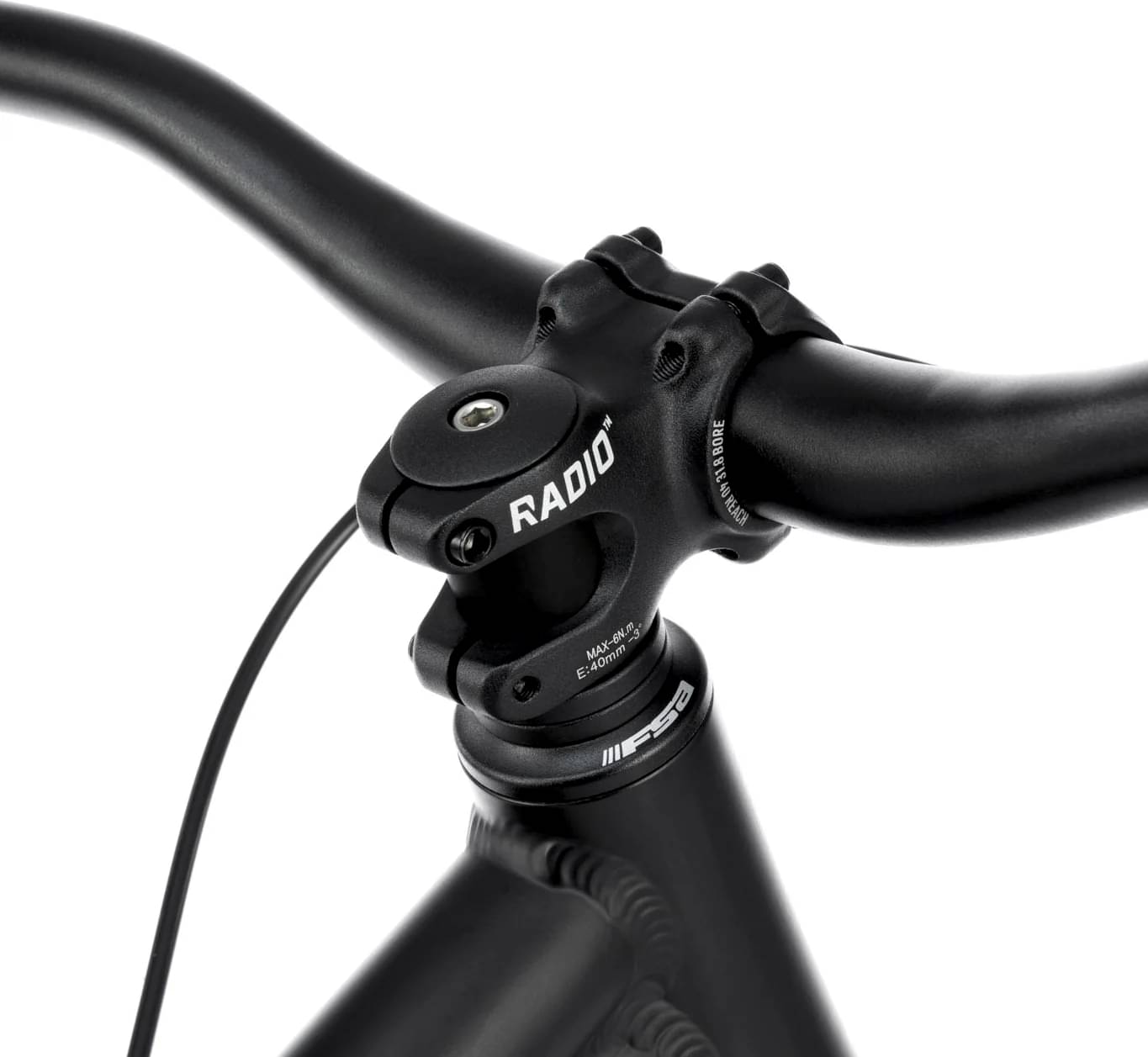

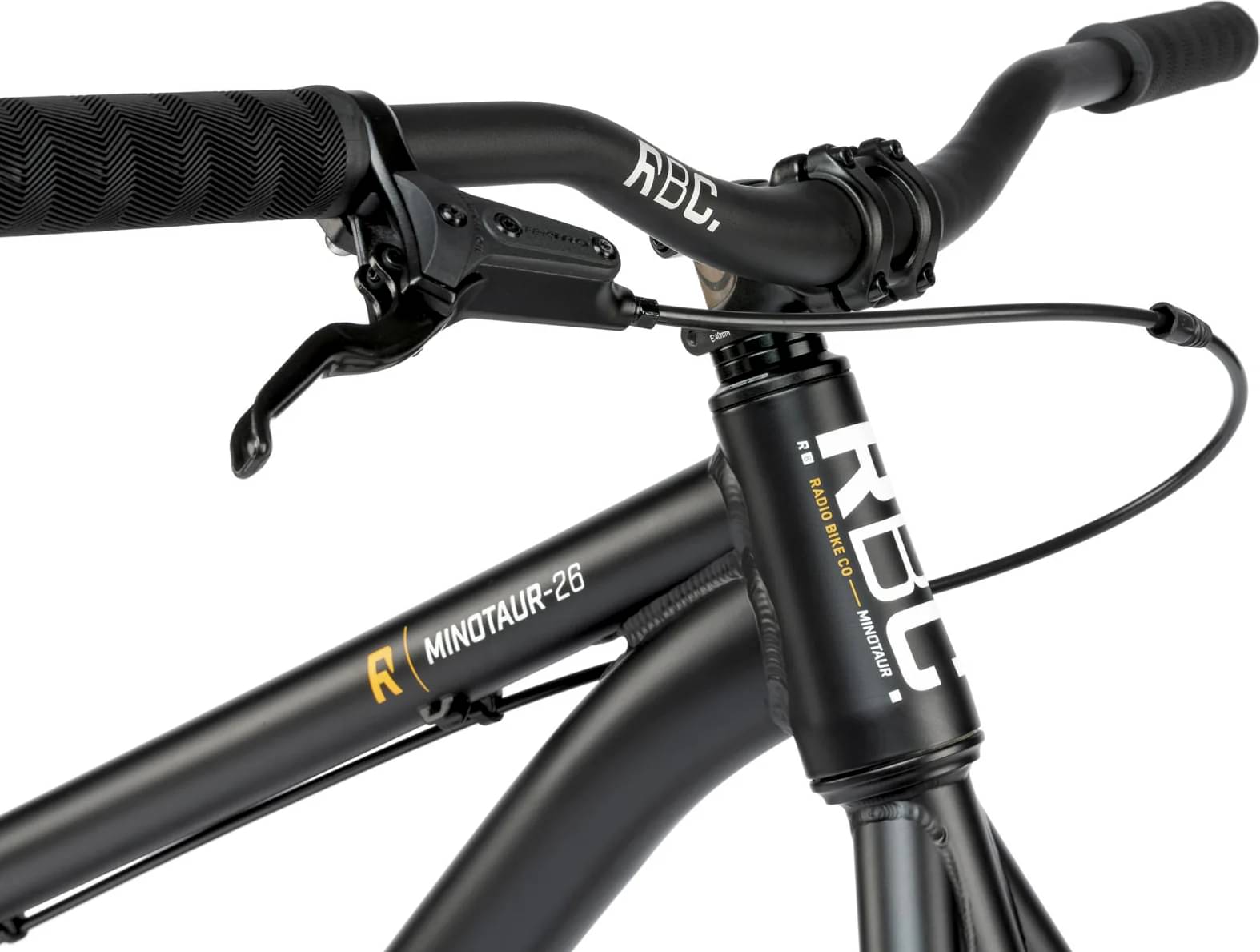

Stem

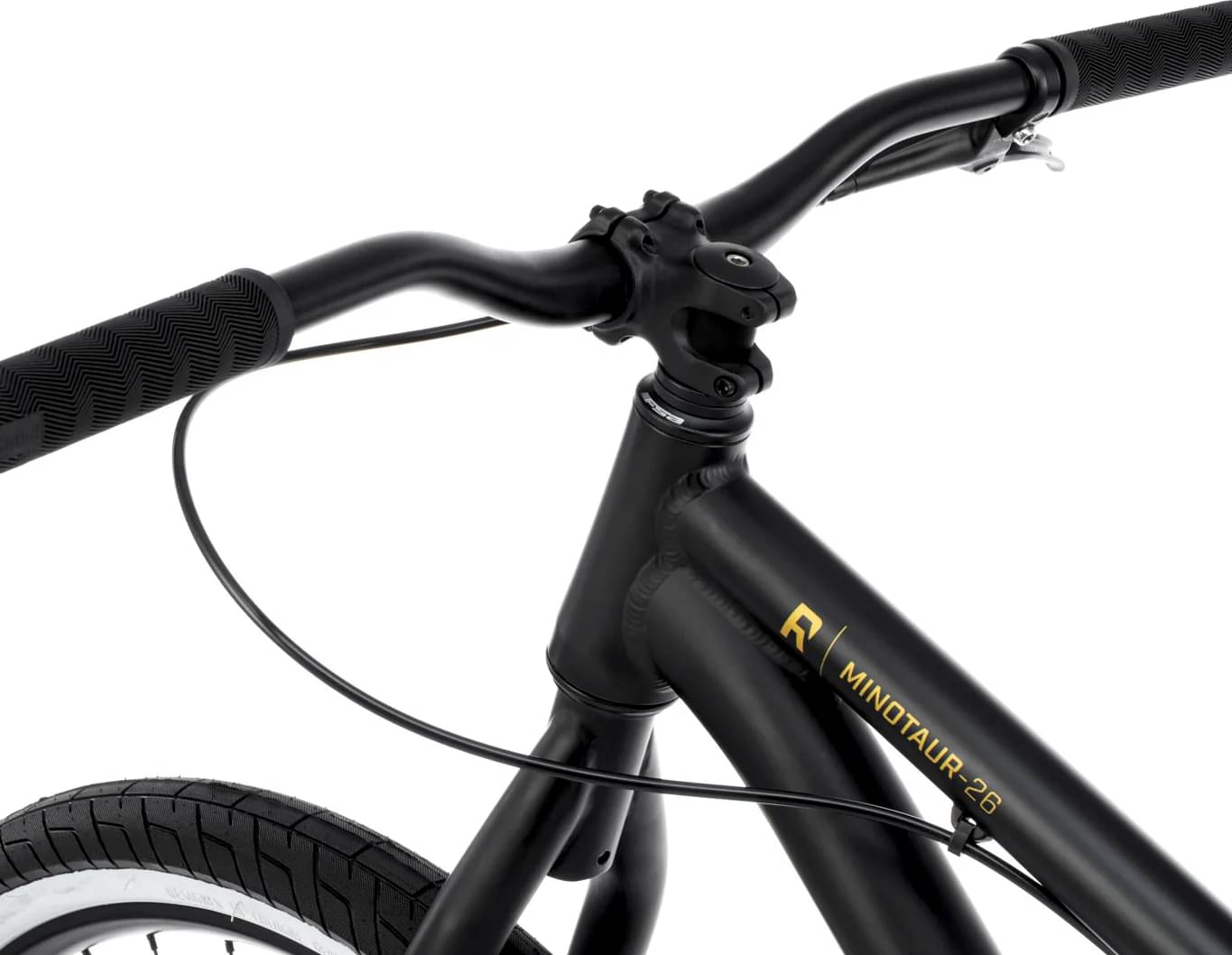

RADIO "ZOOM" frontload stem, alloy, 40mm reach
Handlebar
RADIO "ASURA" bar, 6061-T6 alloy, 31.8mm
Grips
RADIO "FREQUENCY XL" grips, flangeless, 160mm

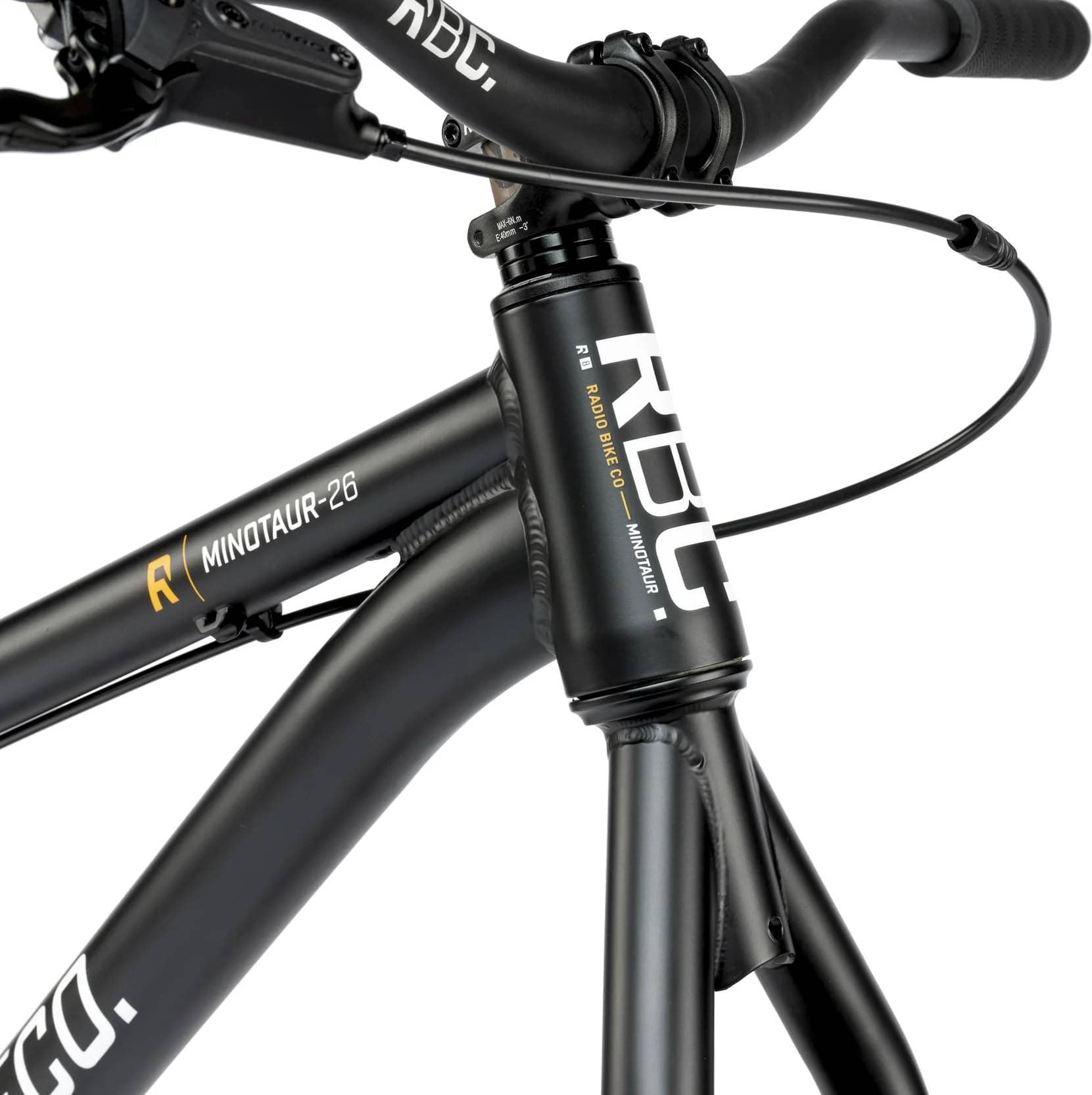

Headset
FSA "NO.57E" integrated A-headset, 1-1/8"-1.5"
Seat
Saddle

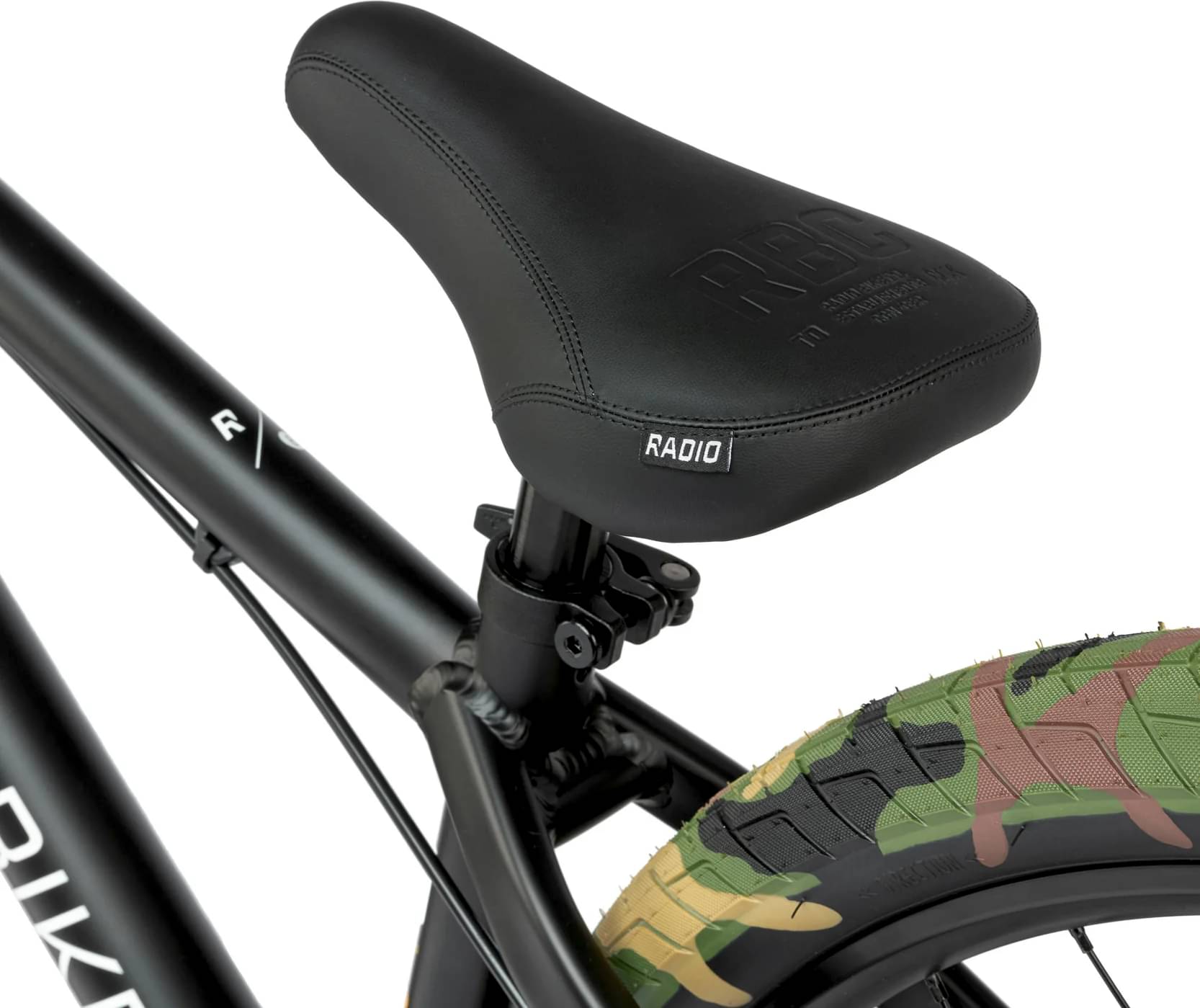

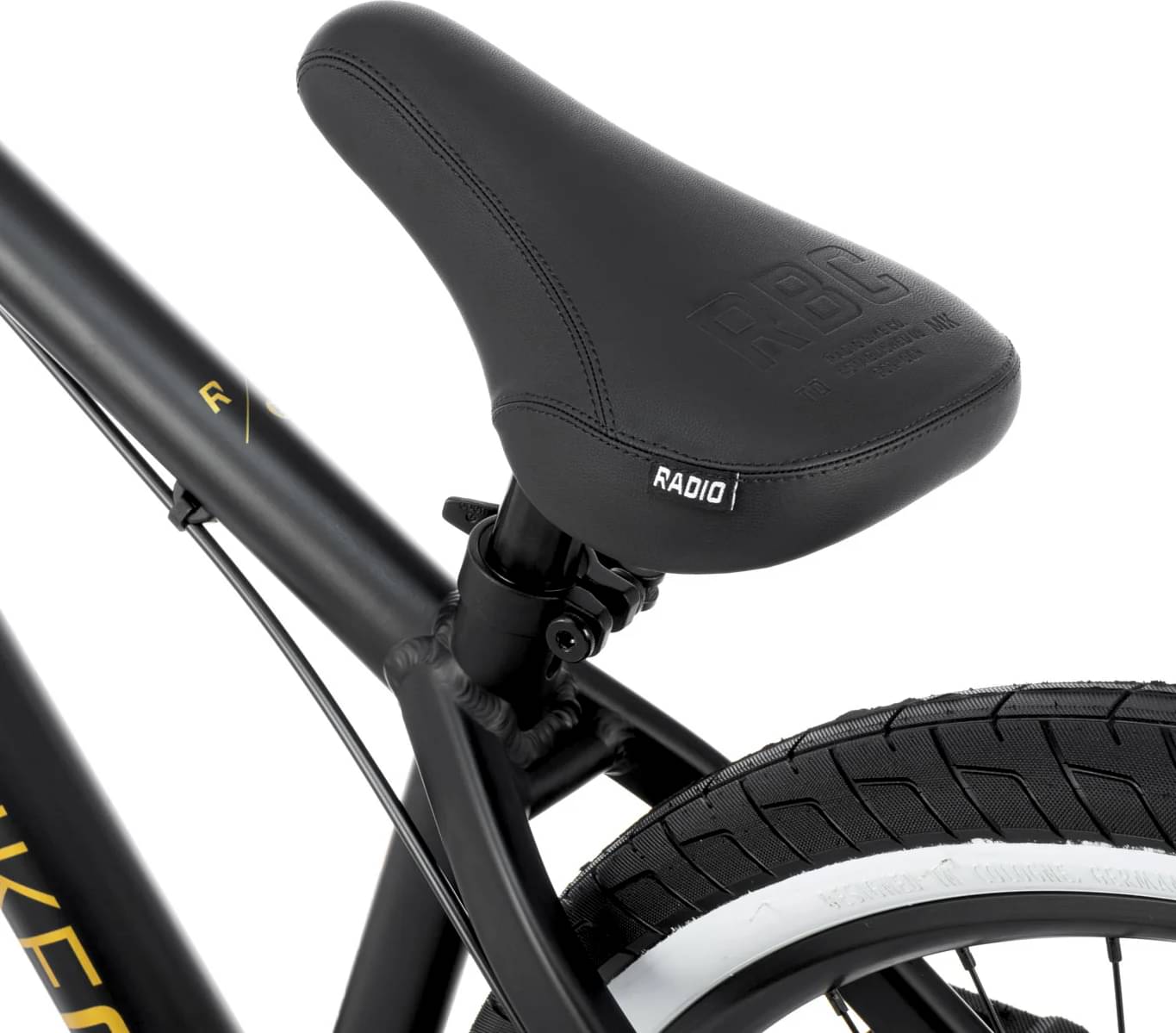

RADIO "DJ" combo seat, medium padded

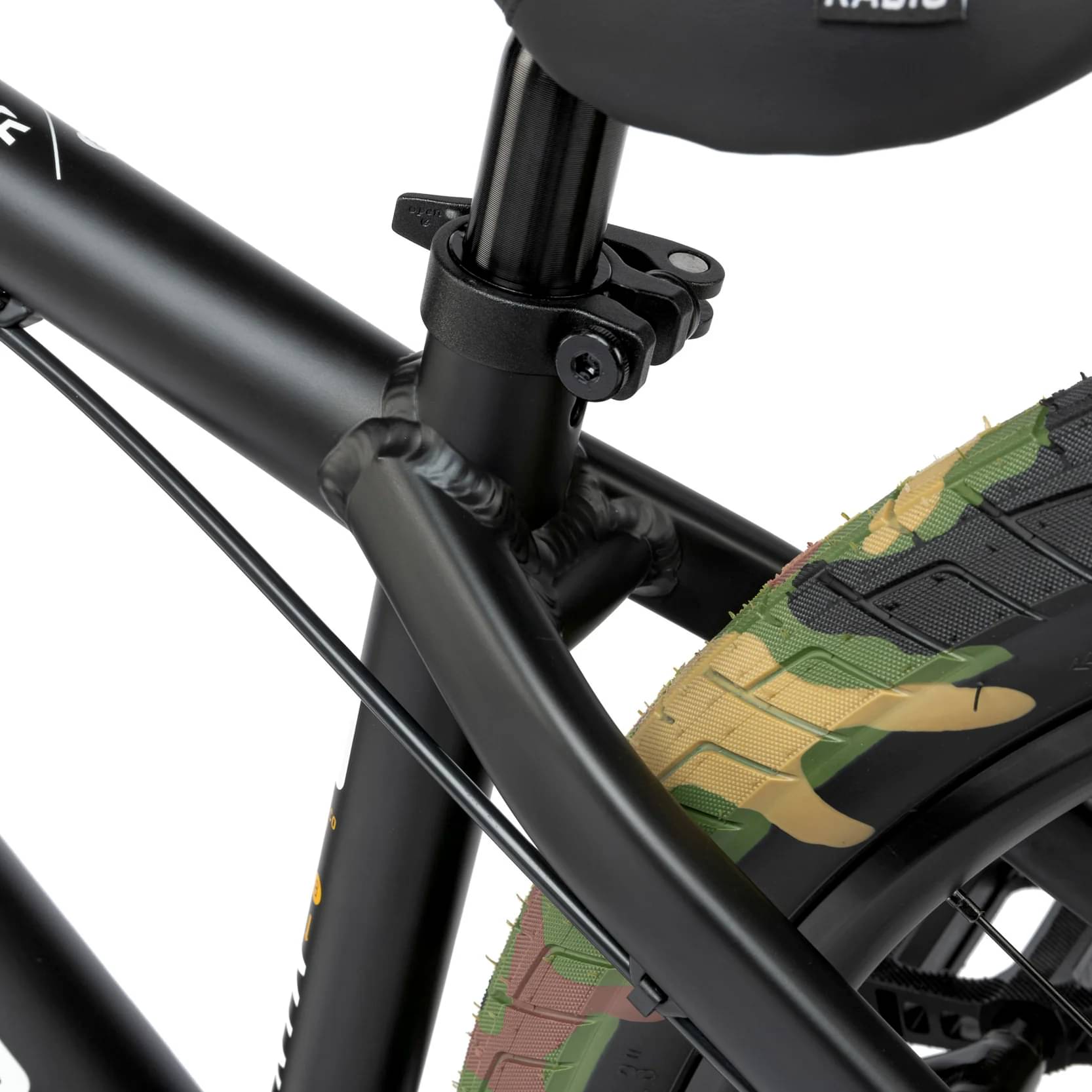

Seatpost
-
Fit data
Geometry
