Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

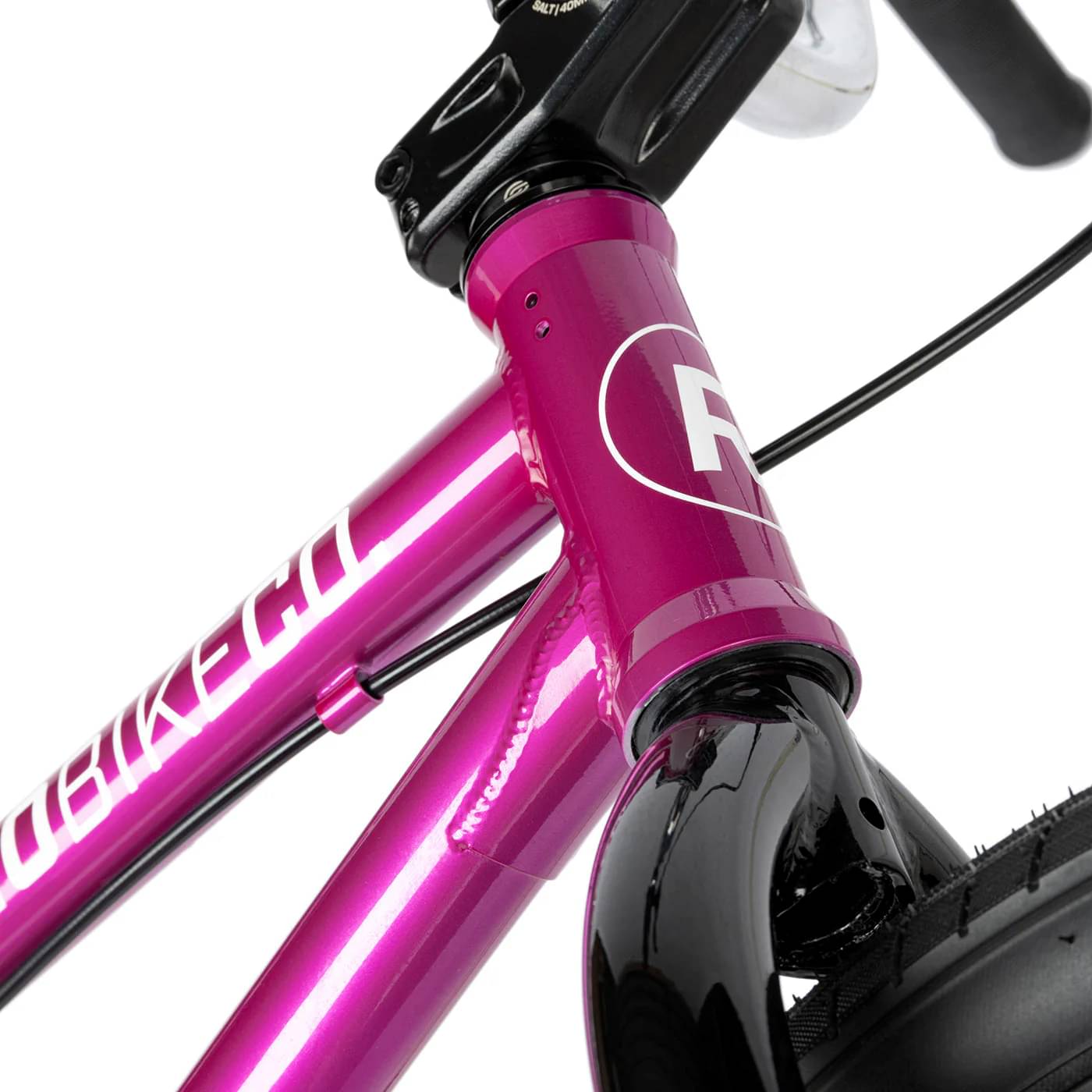

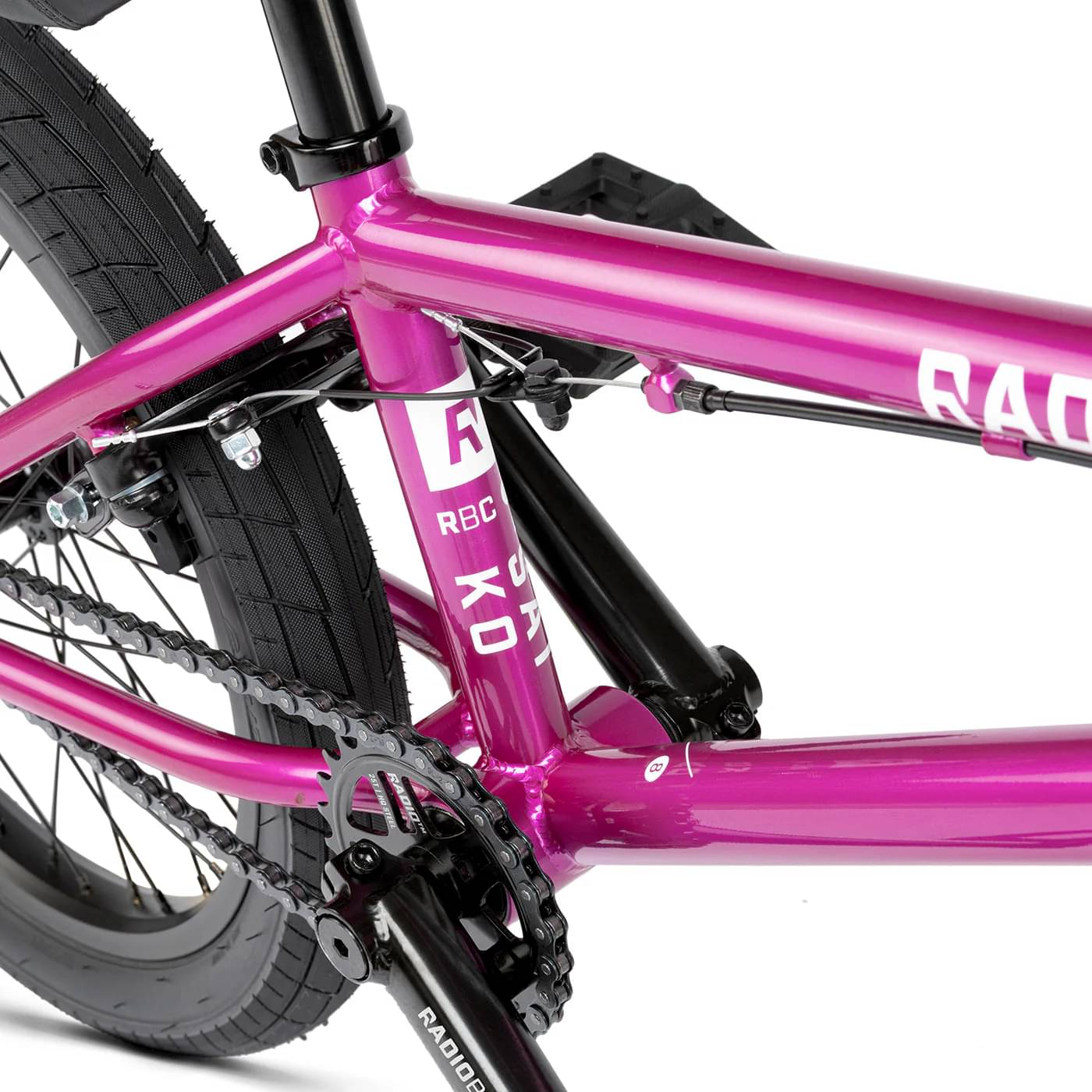

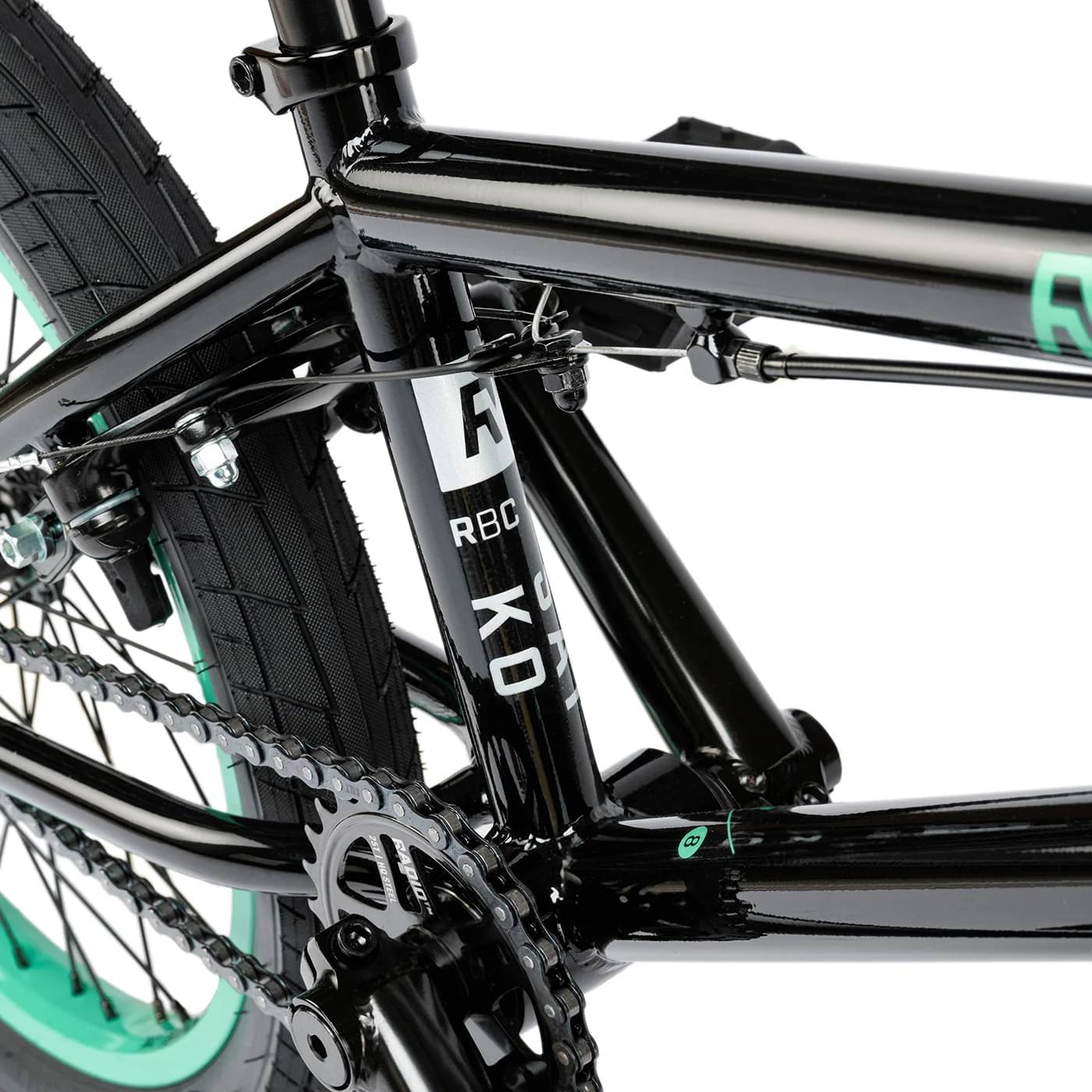

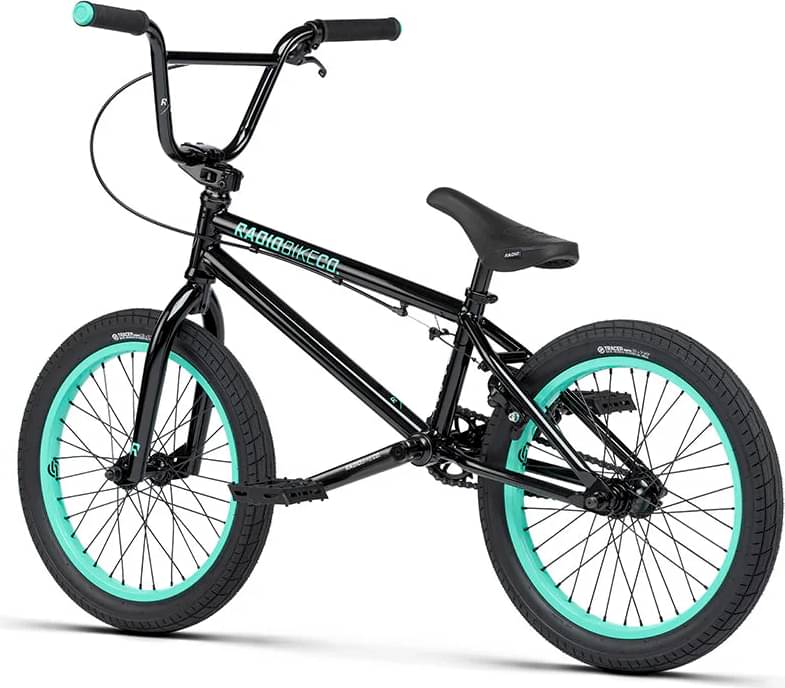

RADIO “SAIKO 18” frame, crmo down tube, 1020 hi-ten
Suspension Fork
RADIO “SAIKO 18” fork, 1020 hi-ten, crmo steerer, tapered legs
Drivetrain
Cassette
RADIO “VISION” steel 25t sprocket

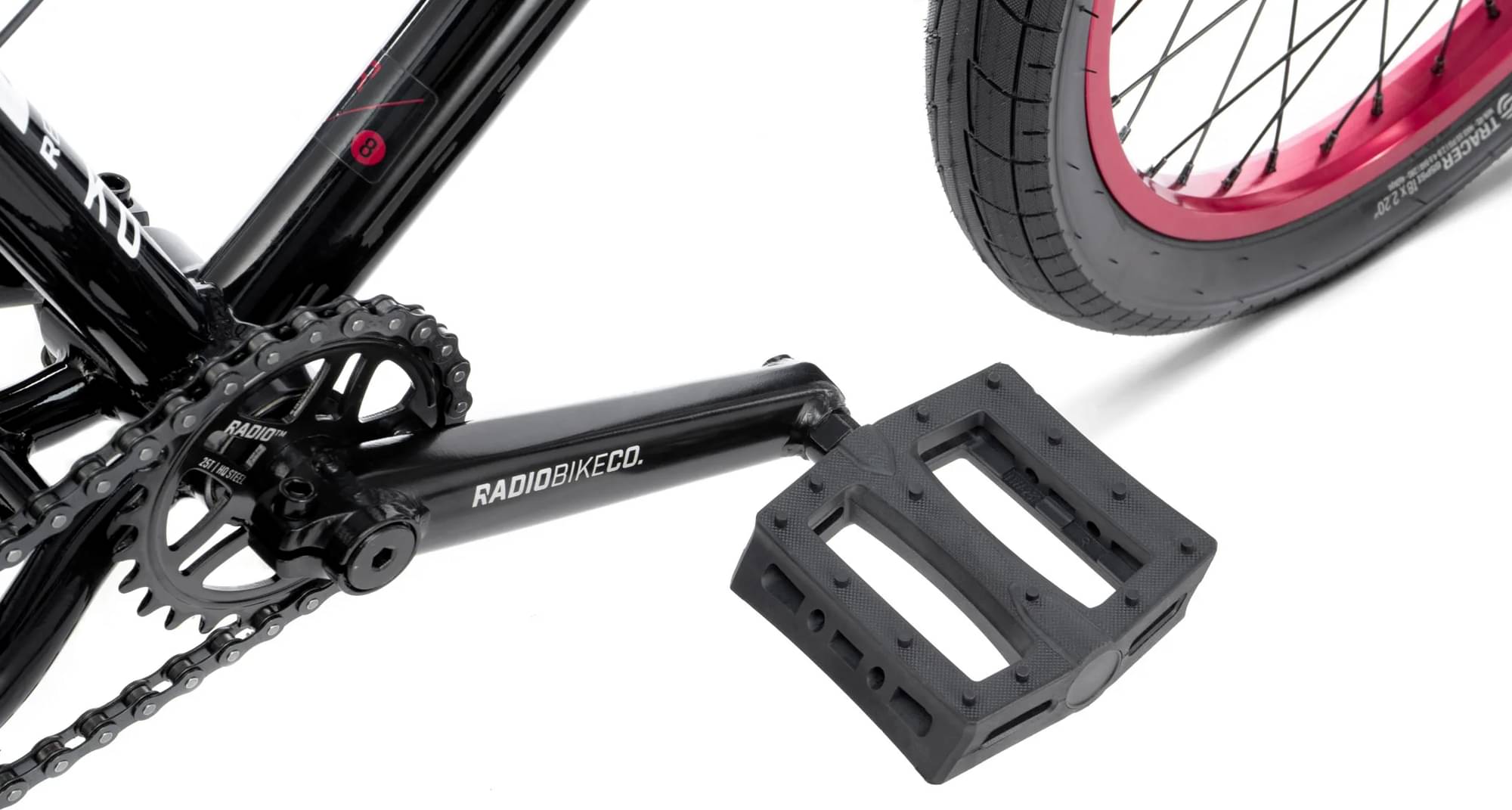

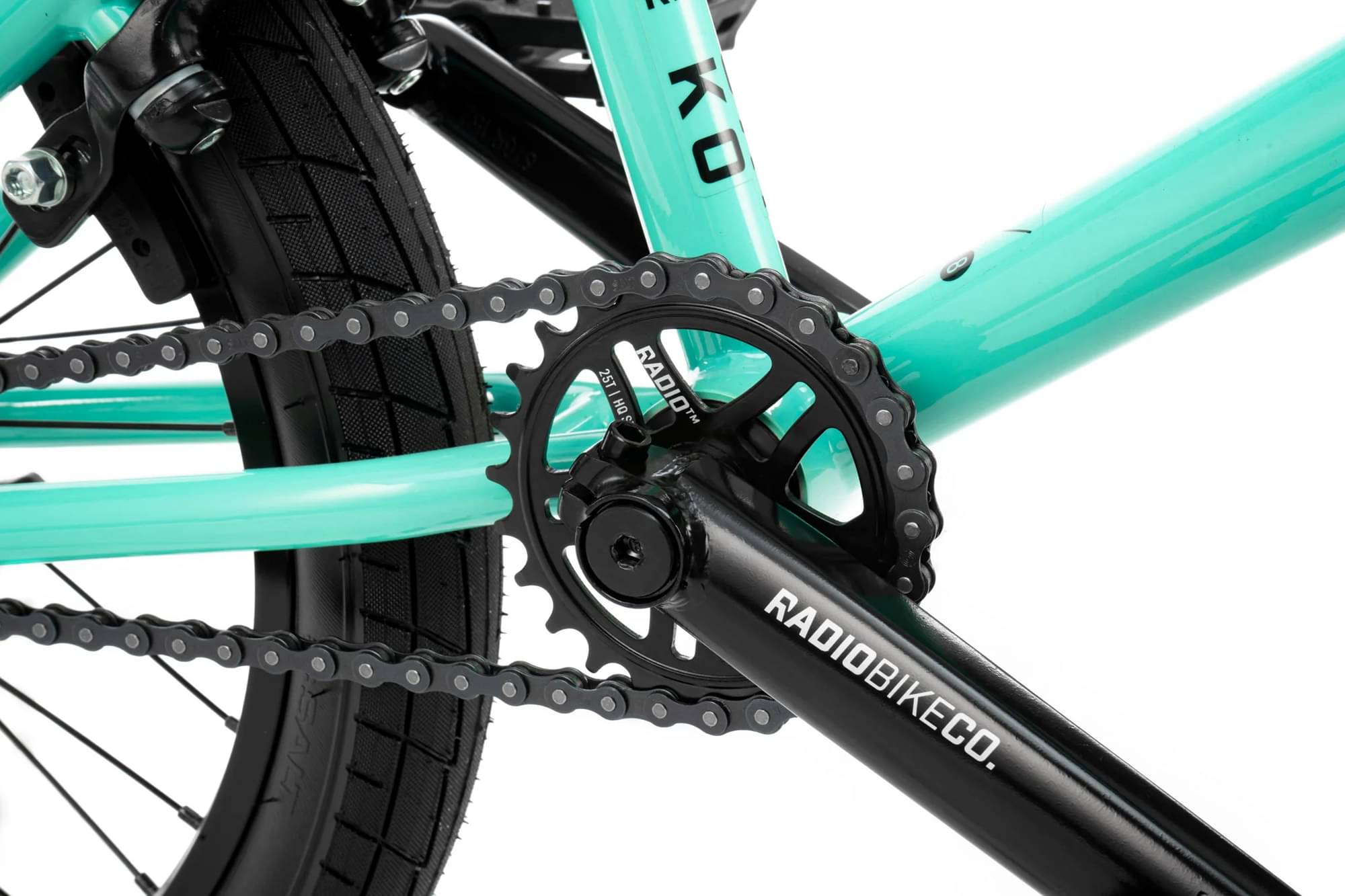

Crank

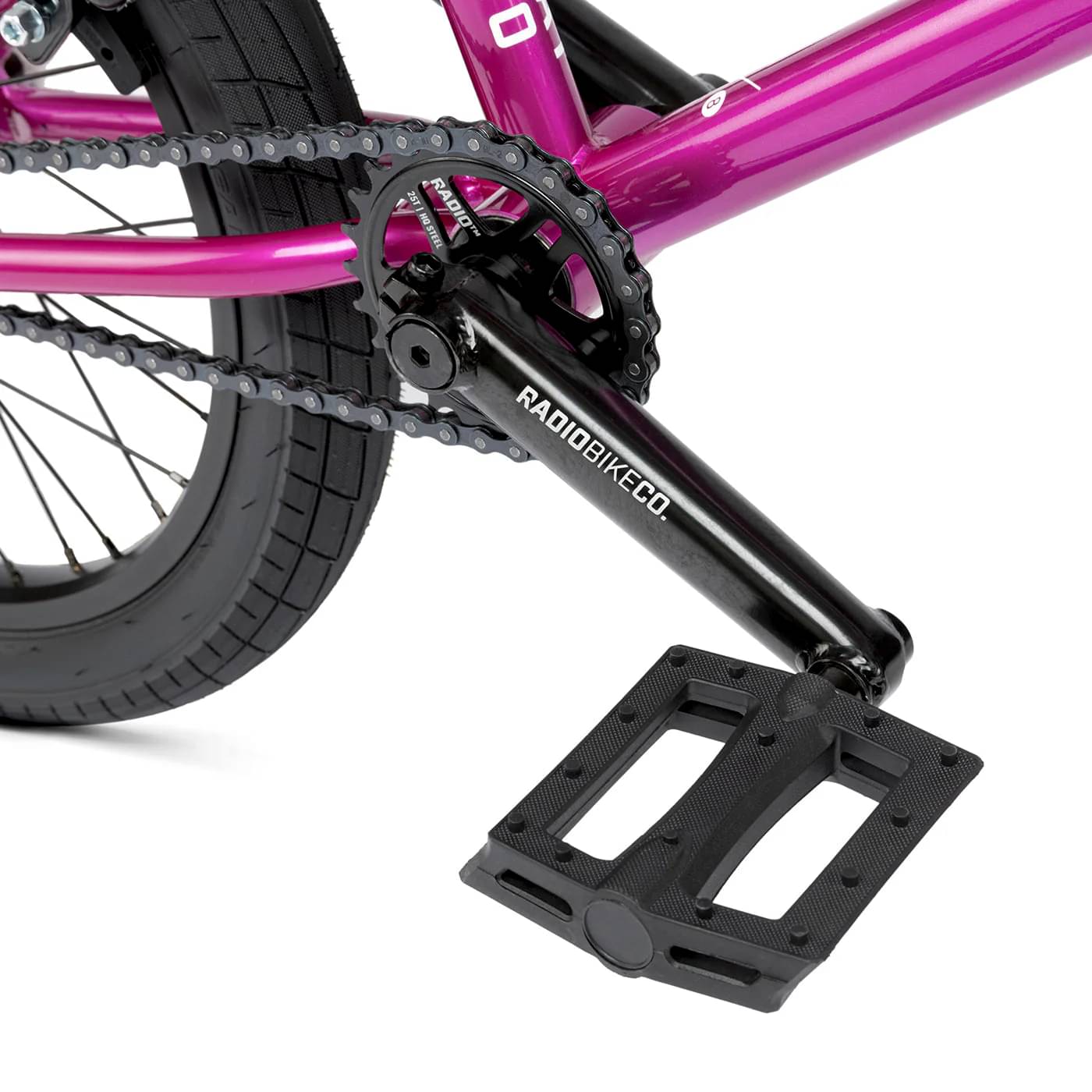

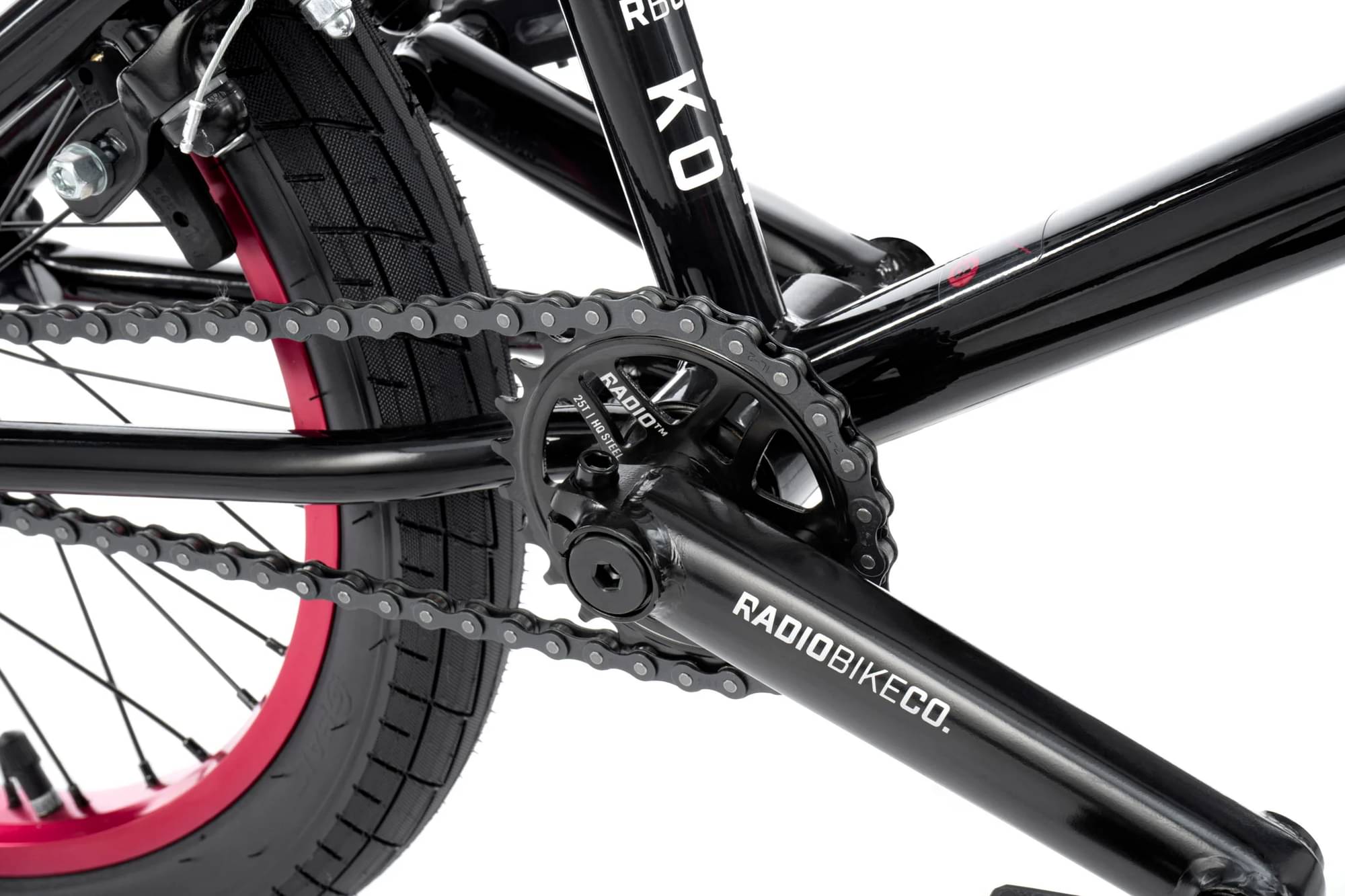

RADIO “AM” 3pc crank, tubular, crmo, 152mm, 8 spline
Bottom Bracket
Mid size, press fit, sealed bearing
Chain
SALT “AM” chain, WZ1 type
Pedals

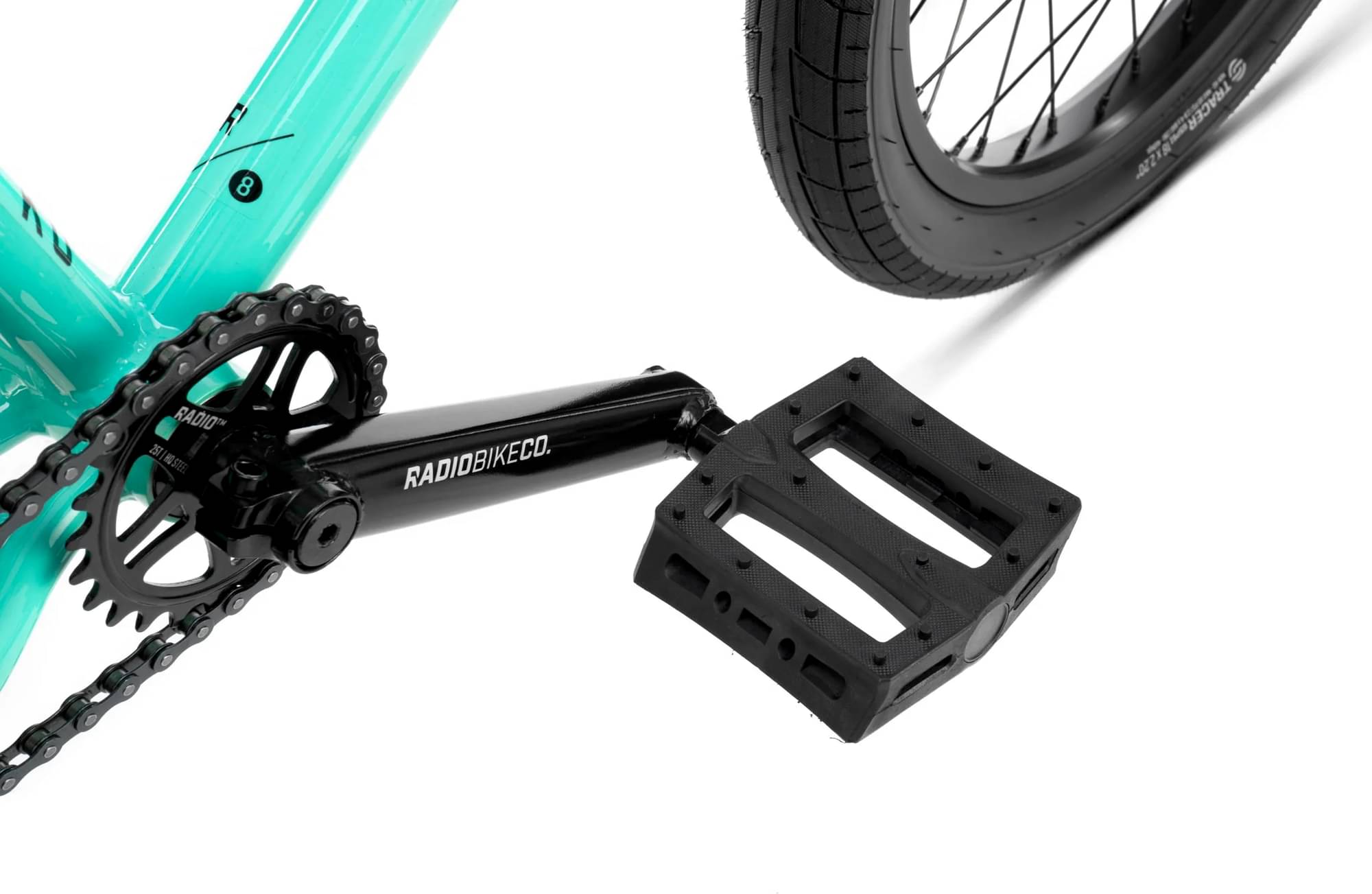

RADIO “PRO” Nylon Fibreglass Pedals
Wheels

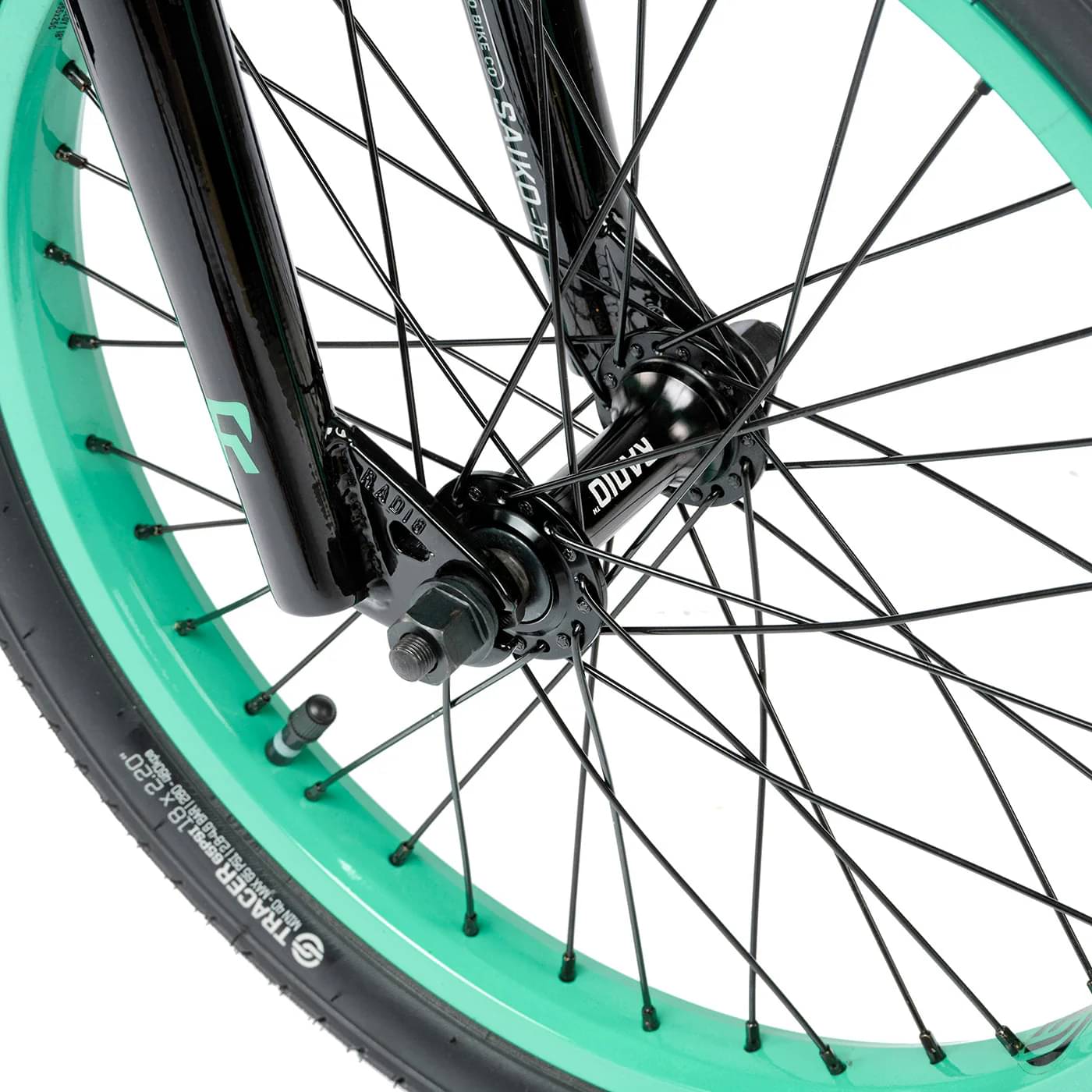

Front Hub

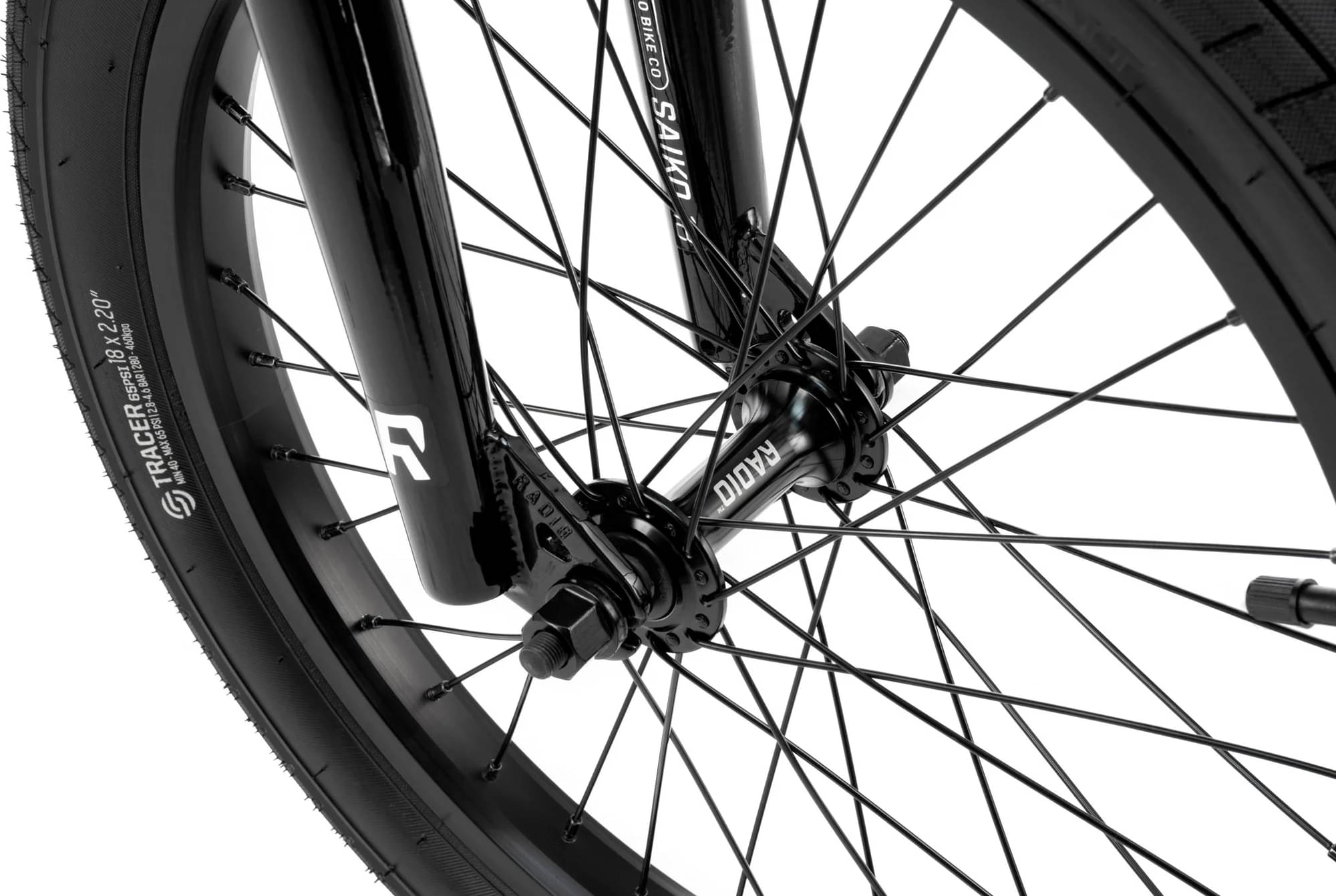

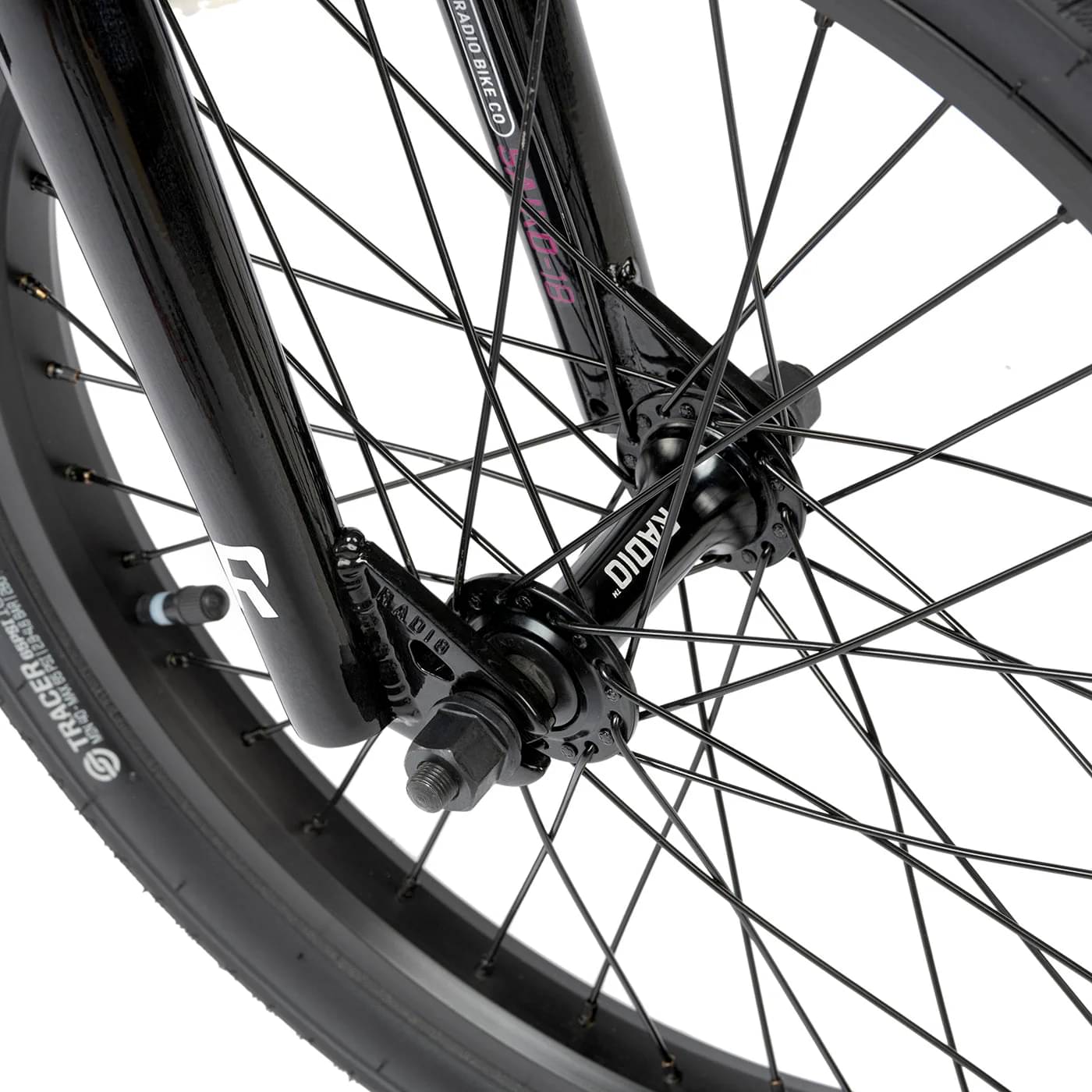

RADIO “AM” hub, alloy, loose ball, 3/8?s male axle, 36h

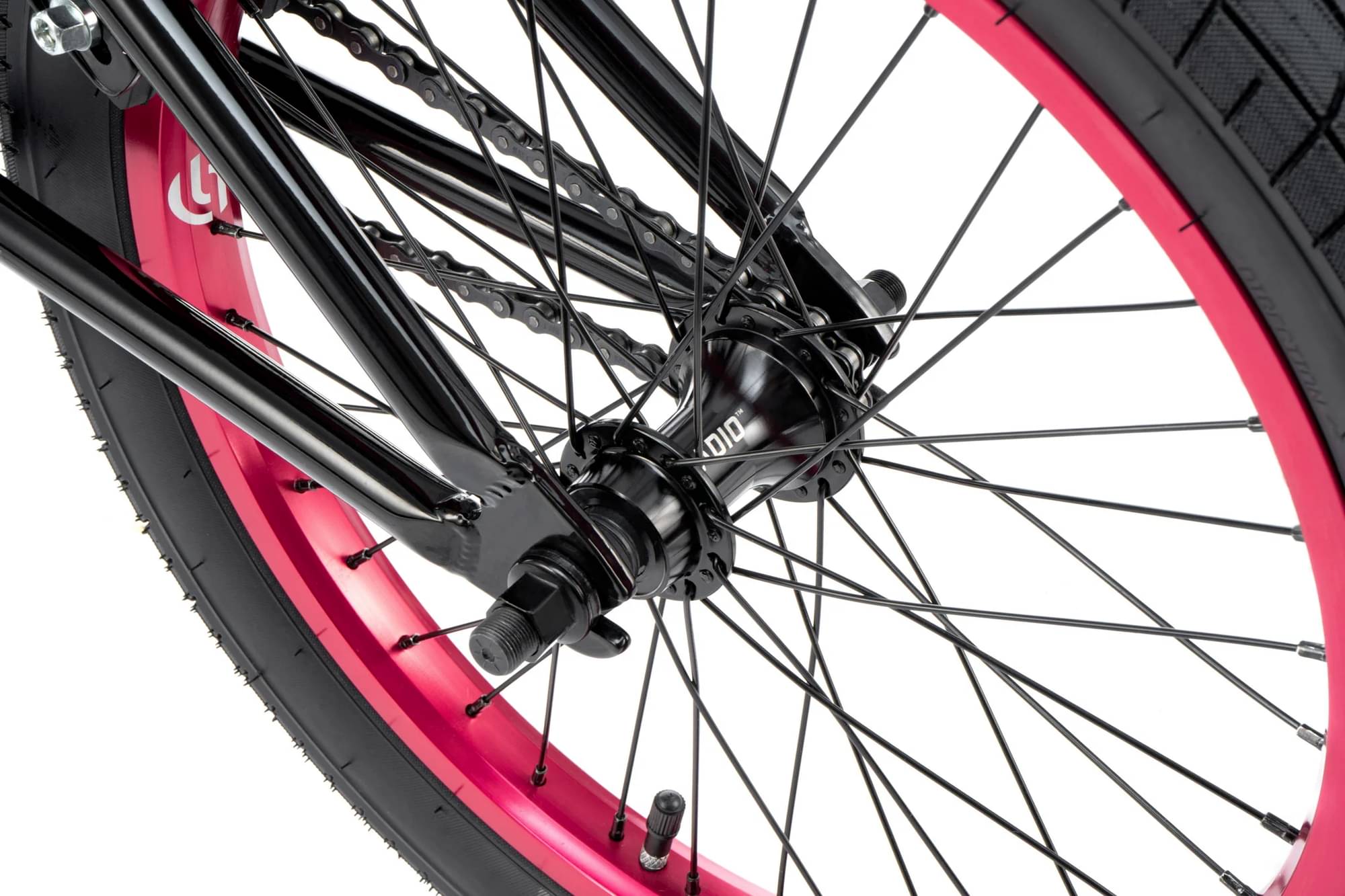

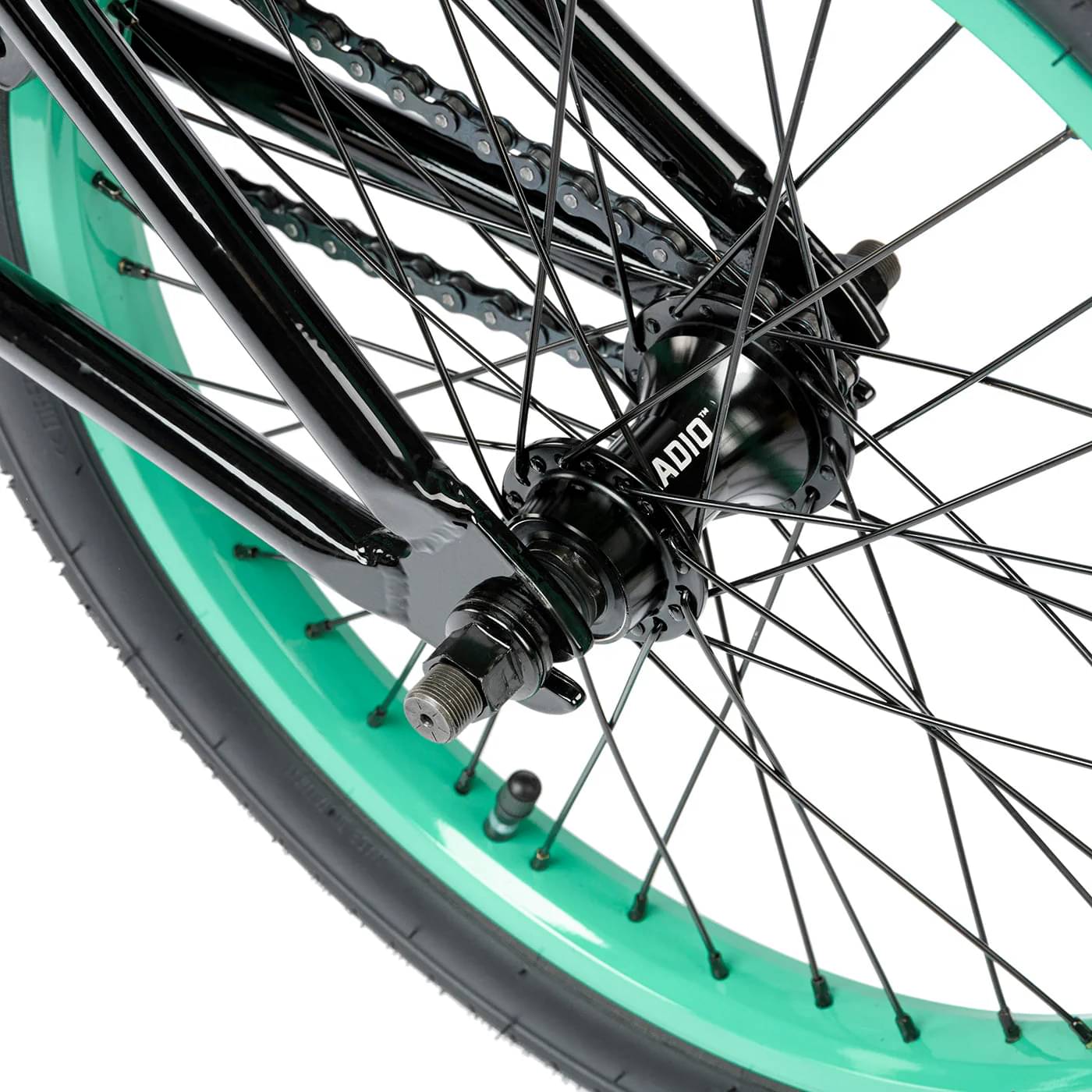

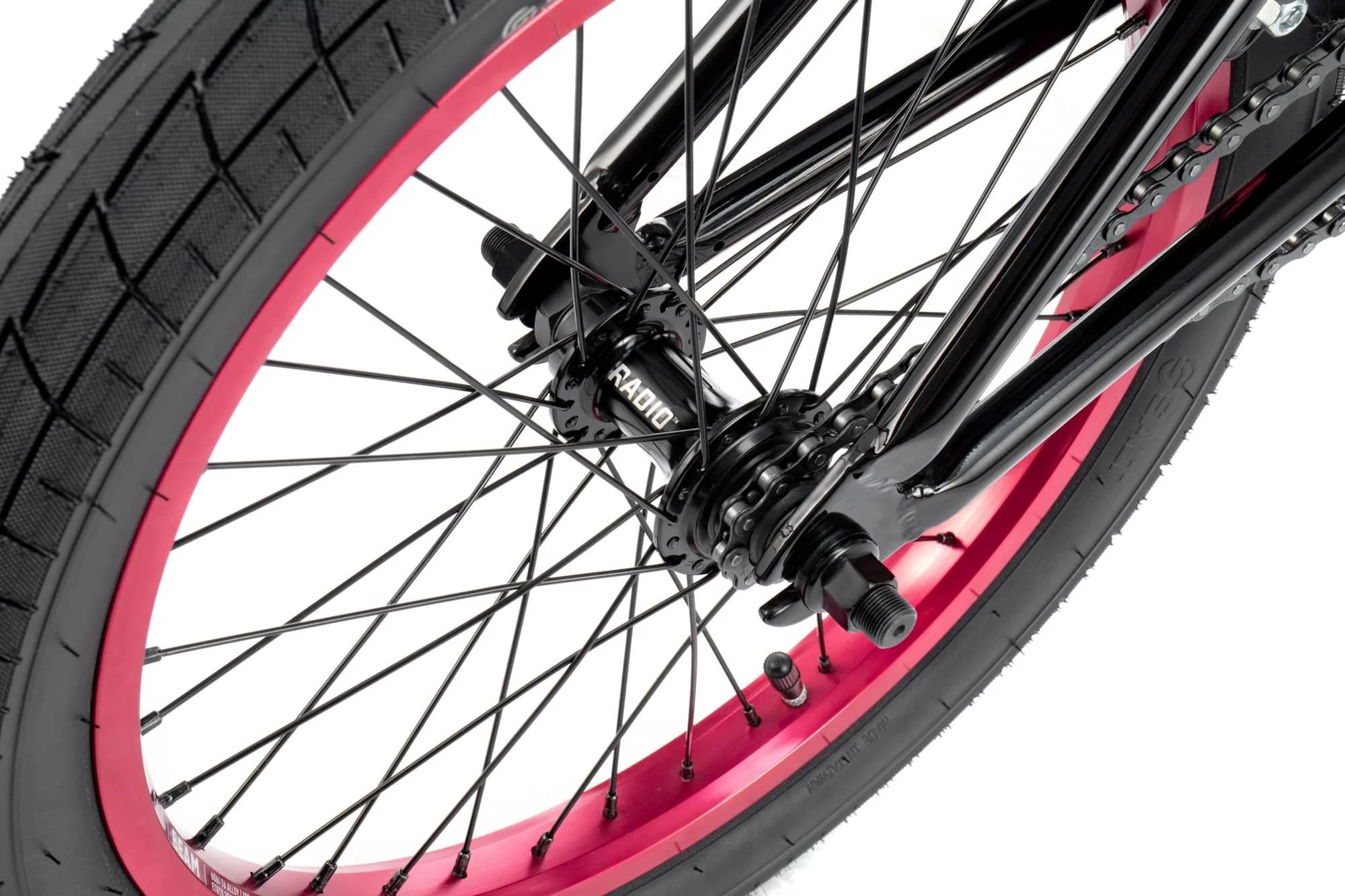

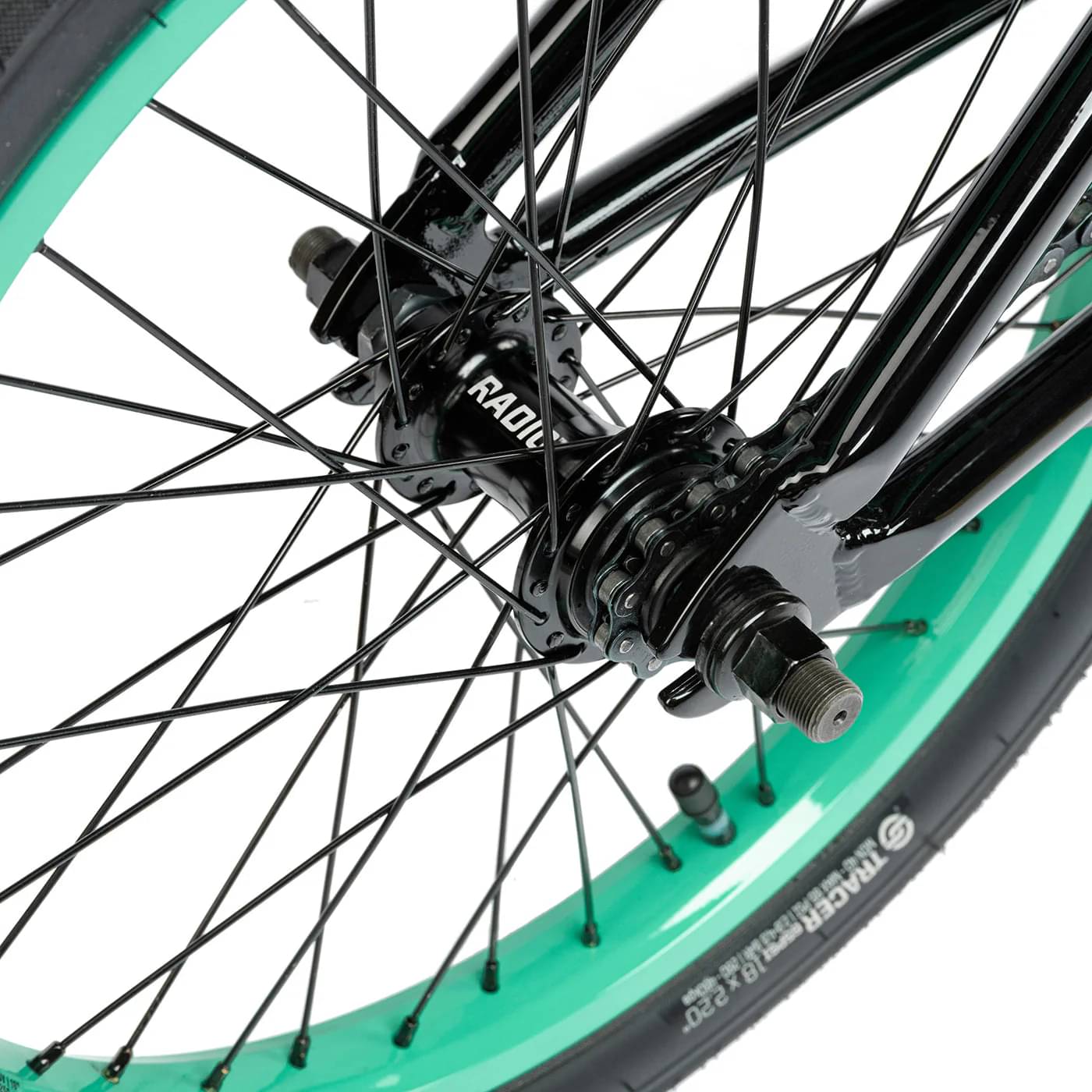

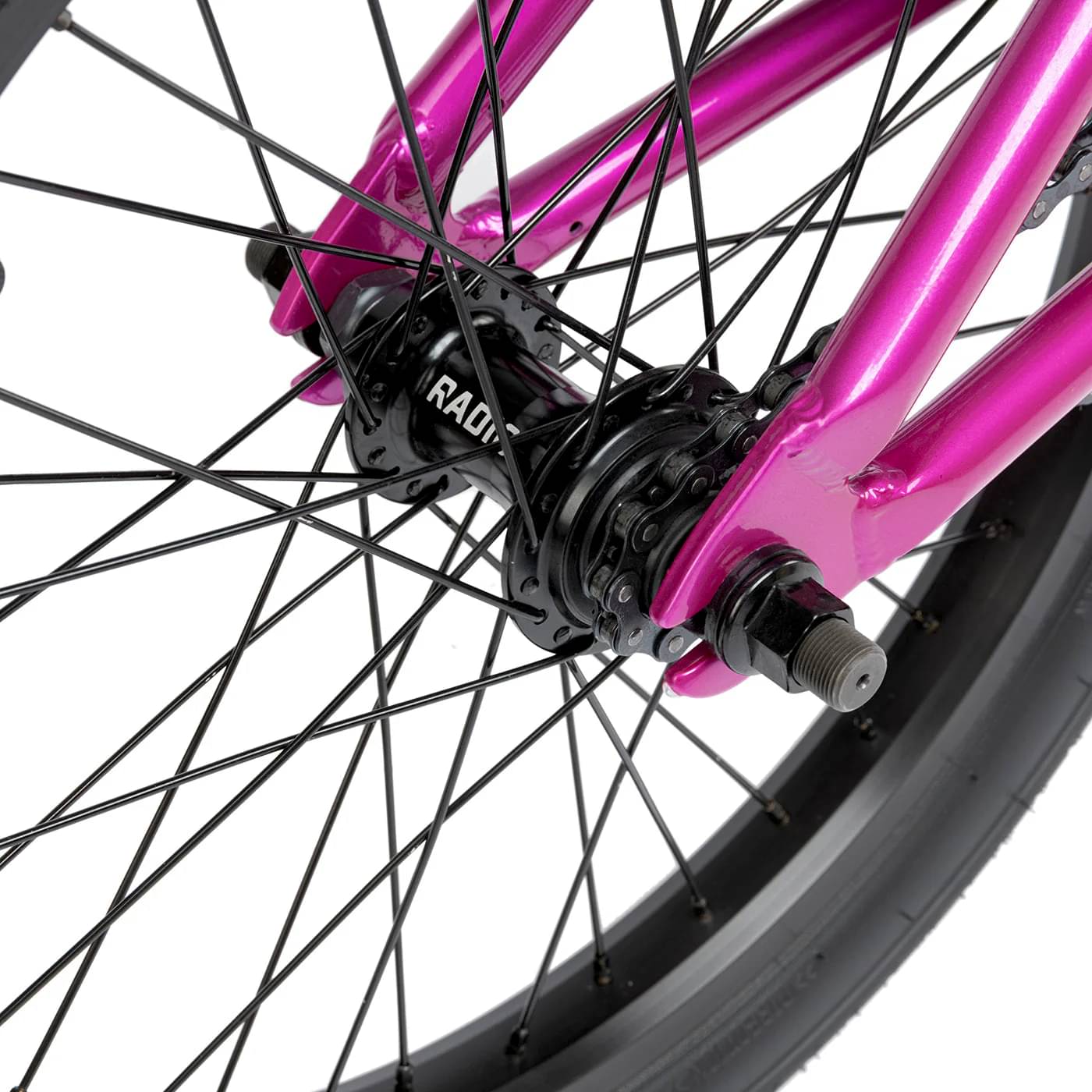

Rear Hub

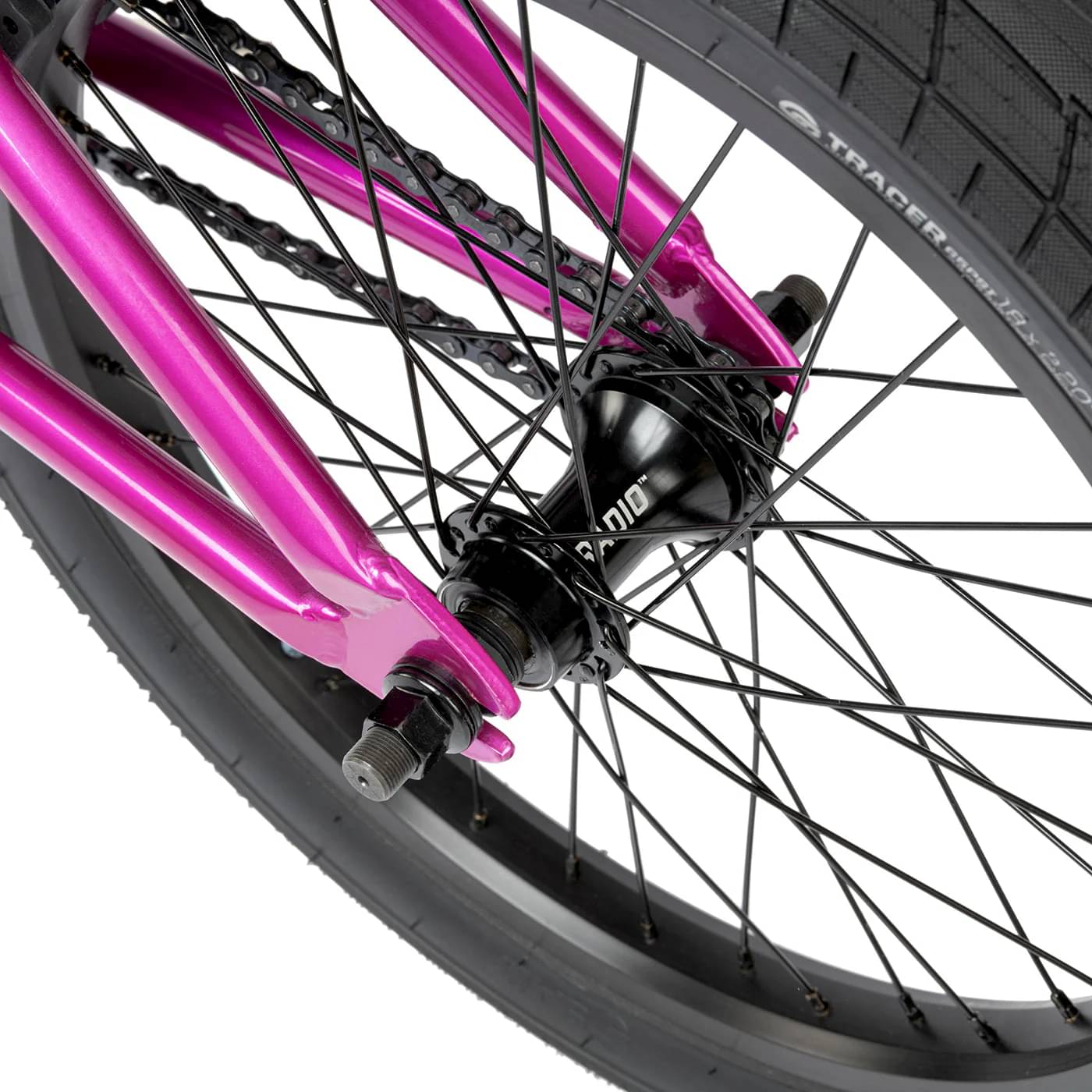

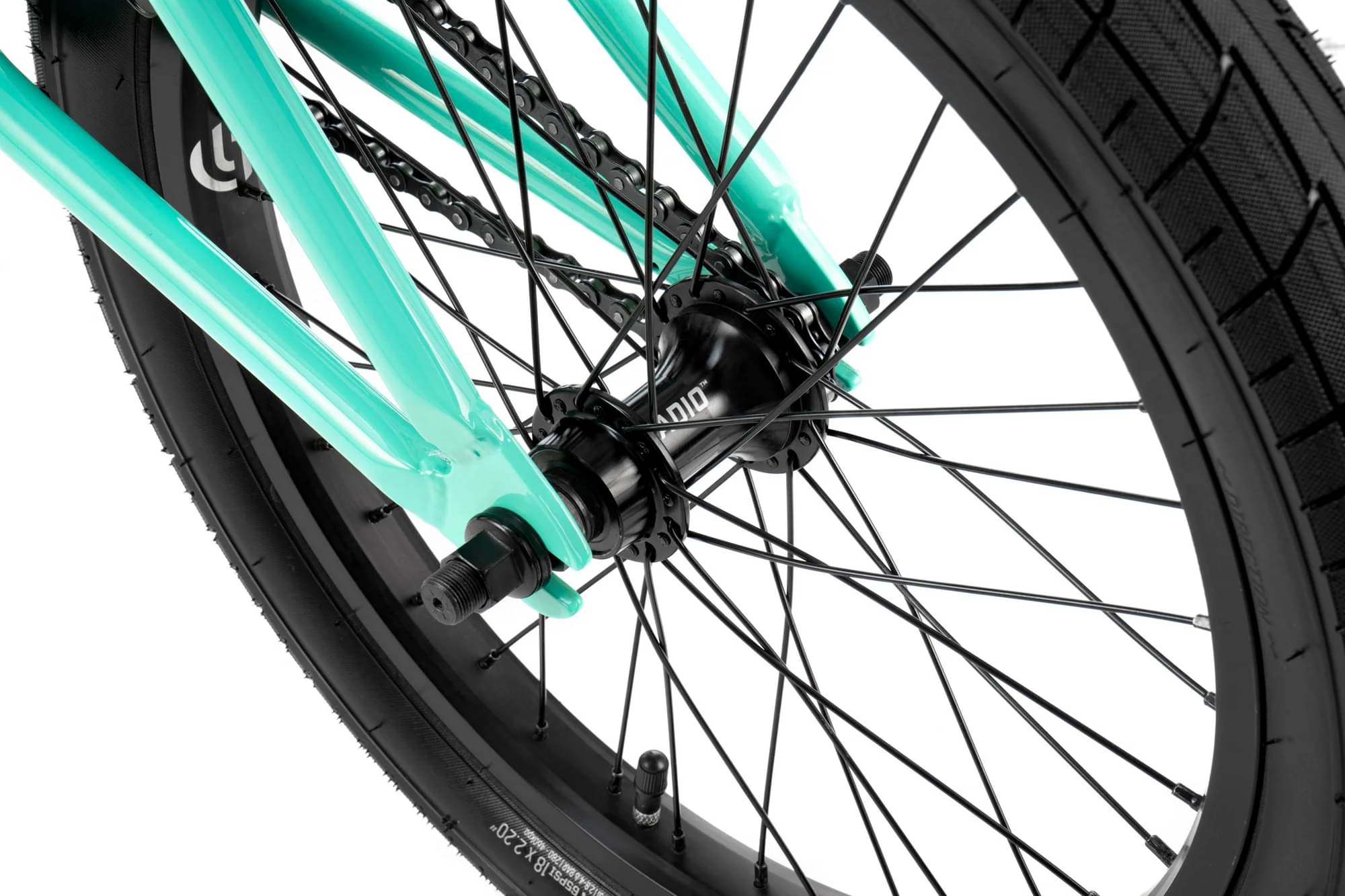

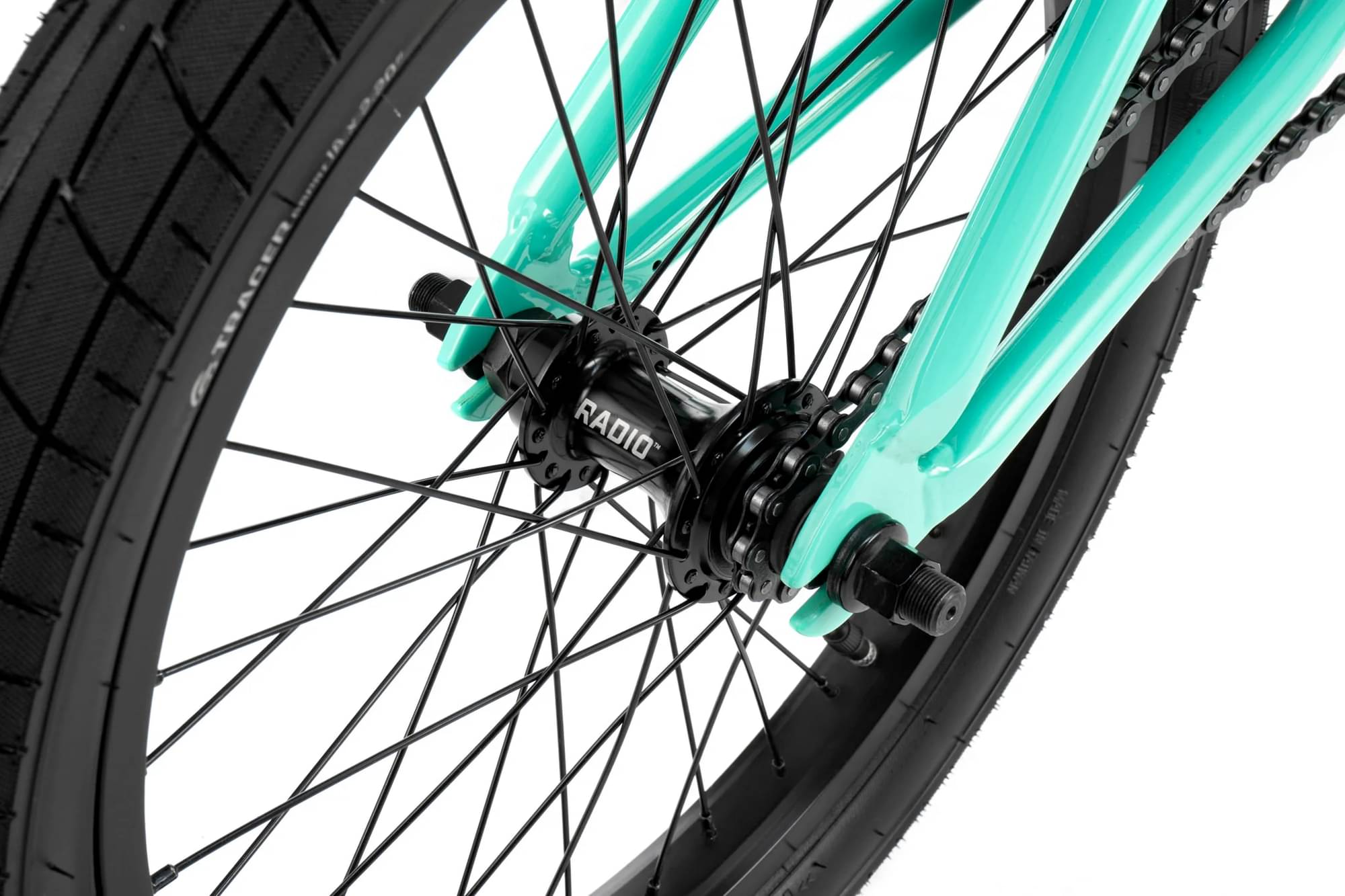

RADIO “AM” cassette hub, alloy, semi-sealed, 9t, 14mm axle, 36h
Rims
Front: RADIO “AM” rim, single wall, Rear: RADIO “AM” rim, single wall

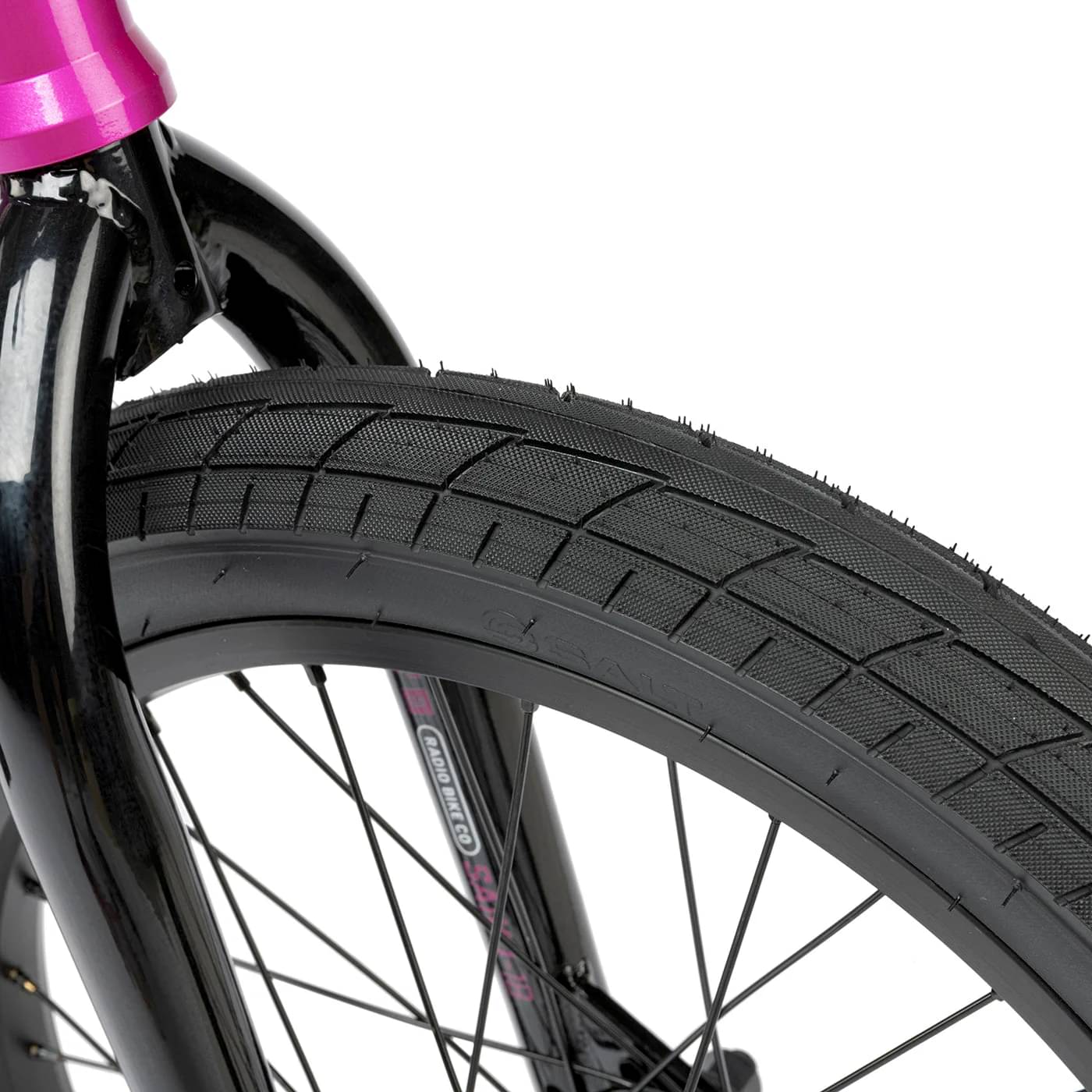

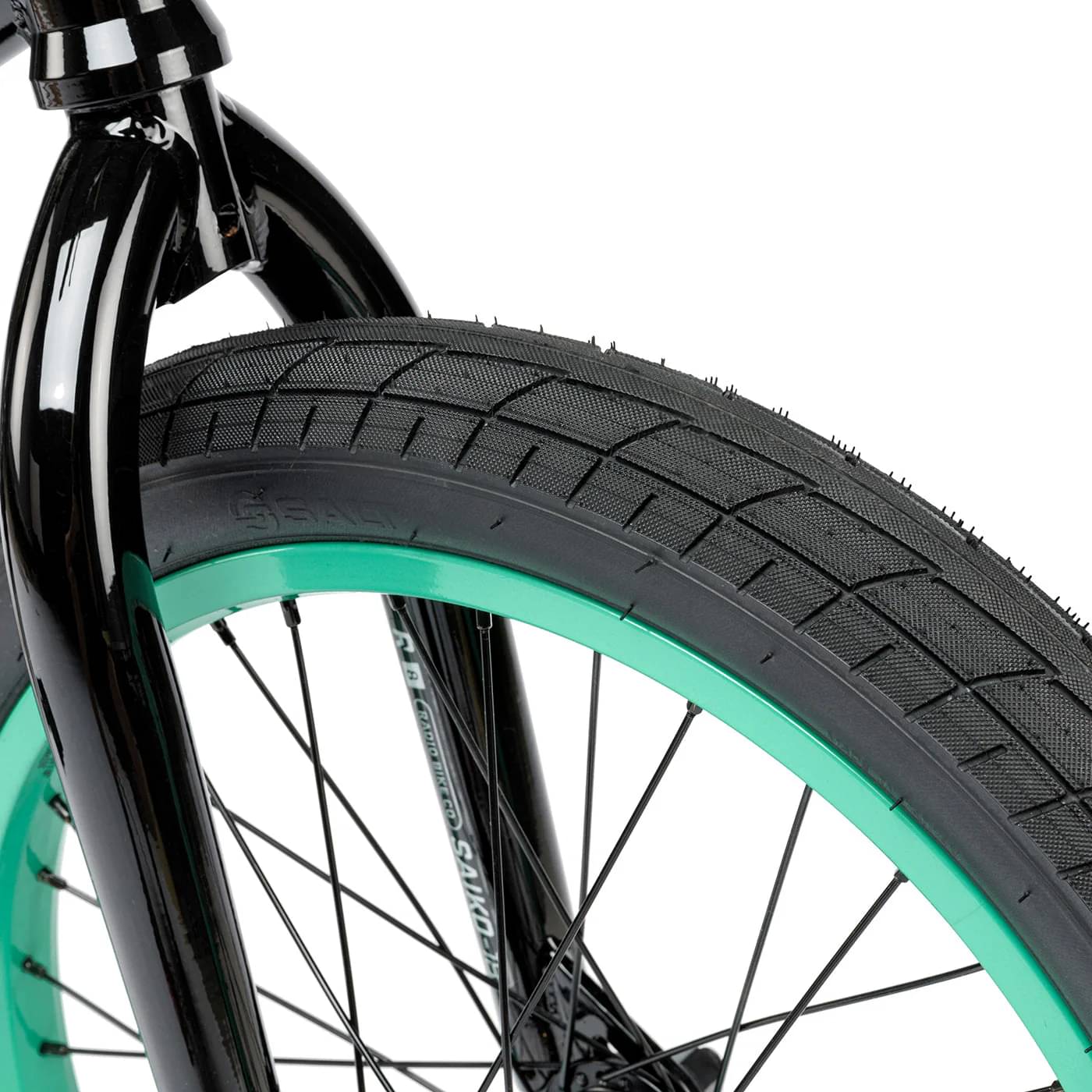

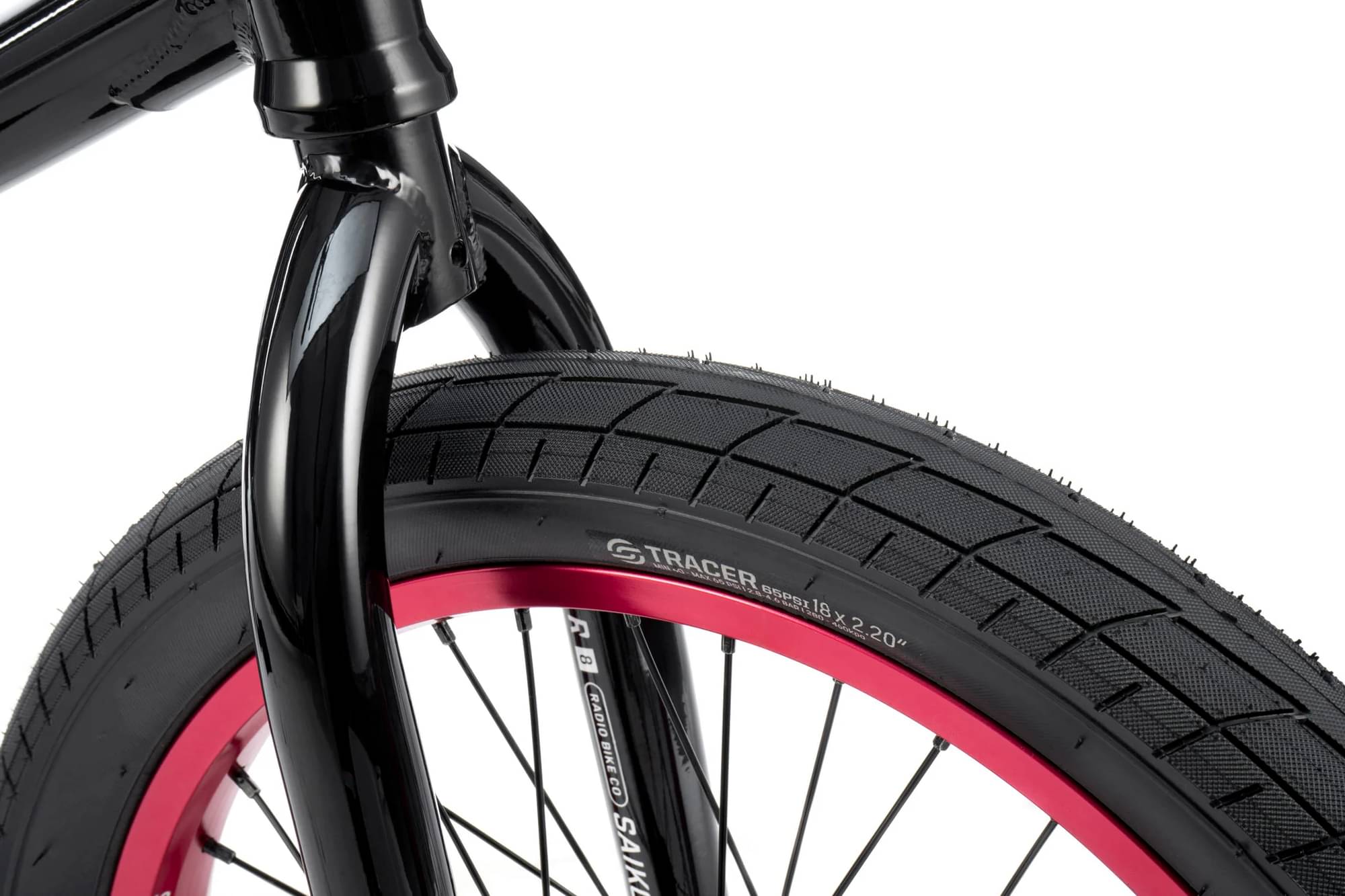

Tires
SALT “TRACER” tires, 2.2? front & rear
Brakes
Brakes
RADIO “AM” alloy u-brake rear
Brake Levers

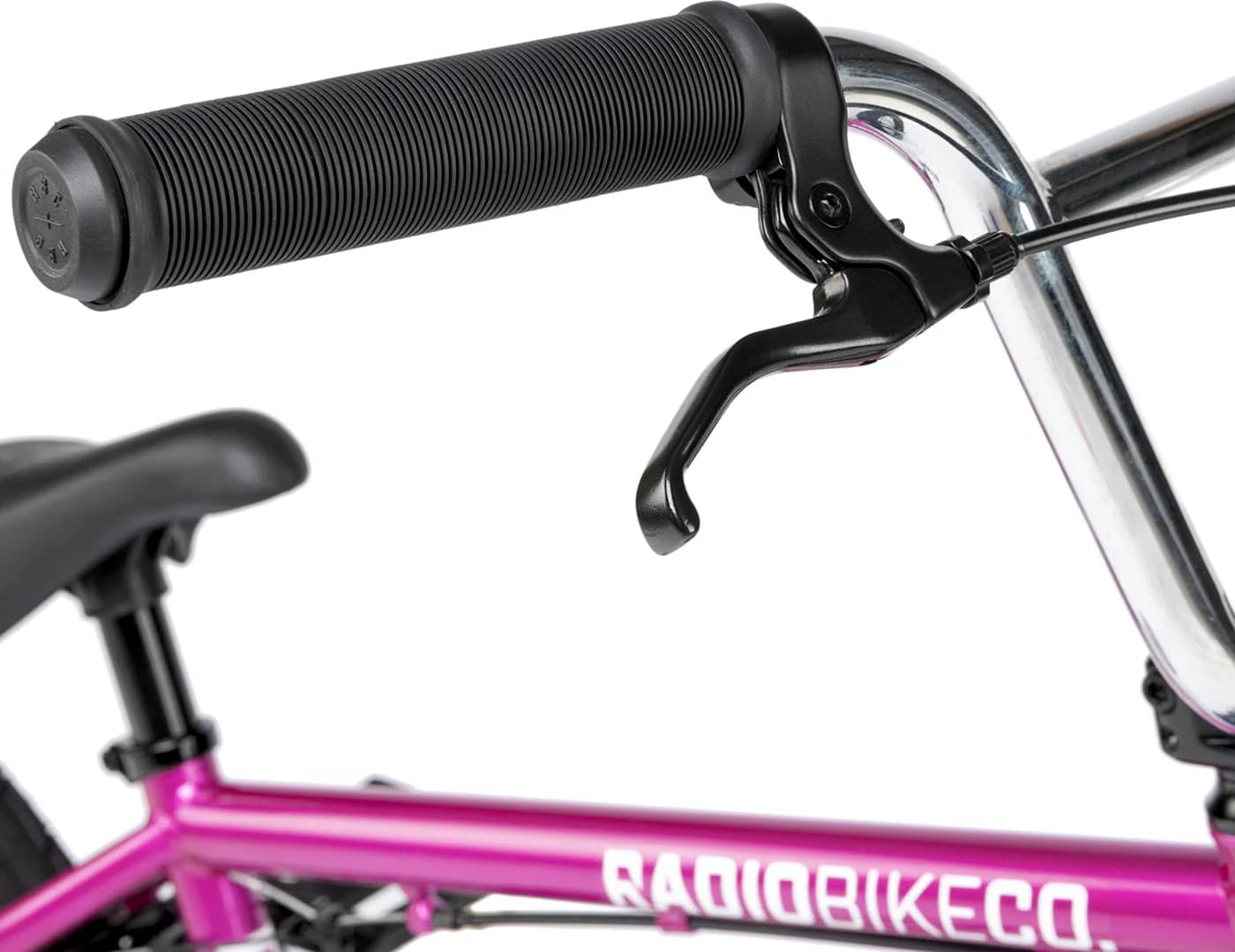

RADIO “AM” alloy brake lever
Cockpit

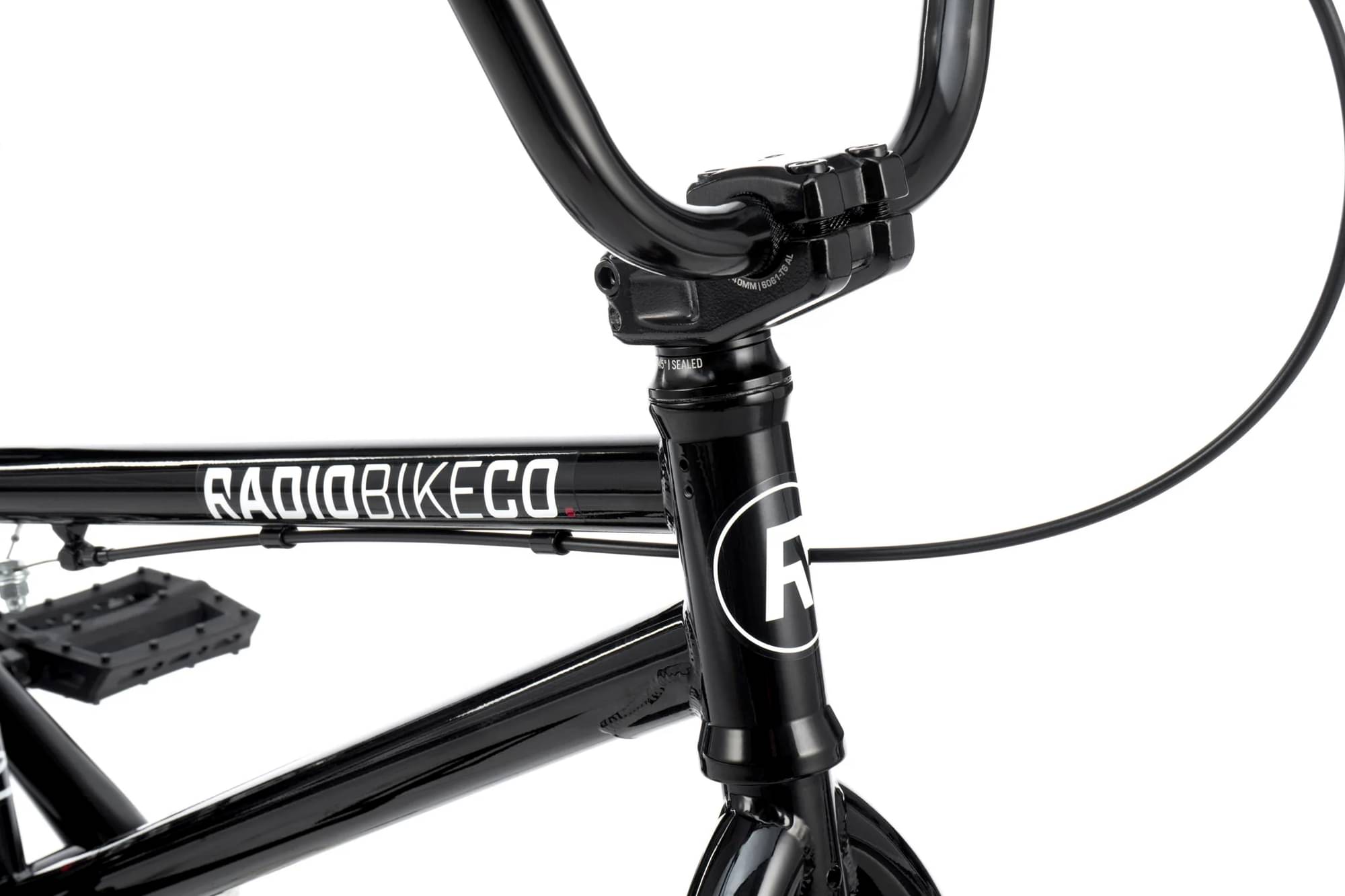

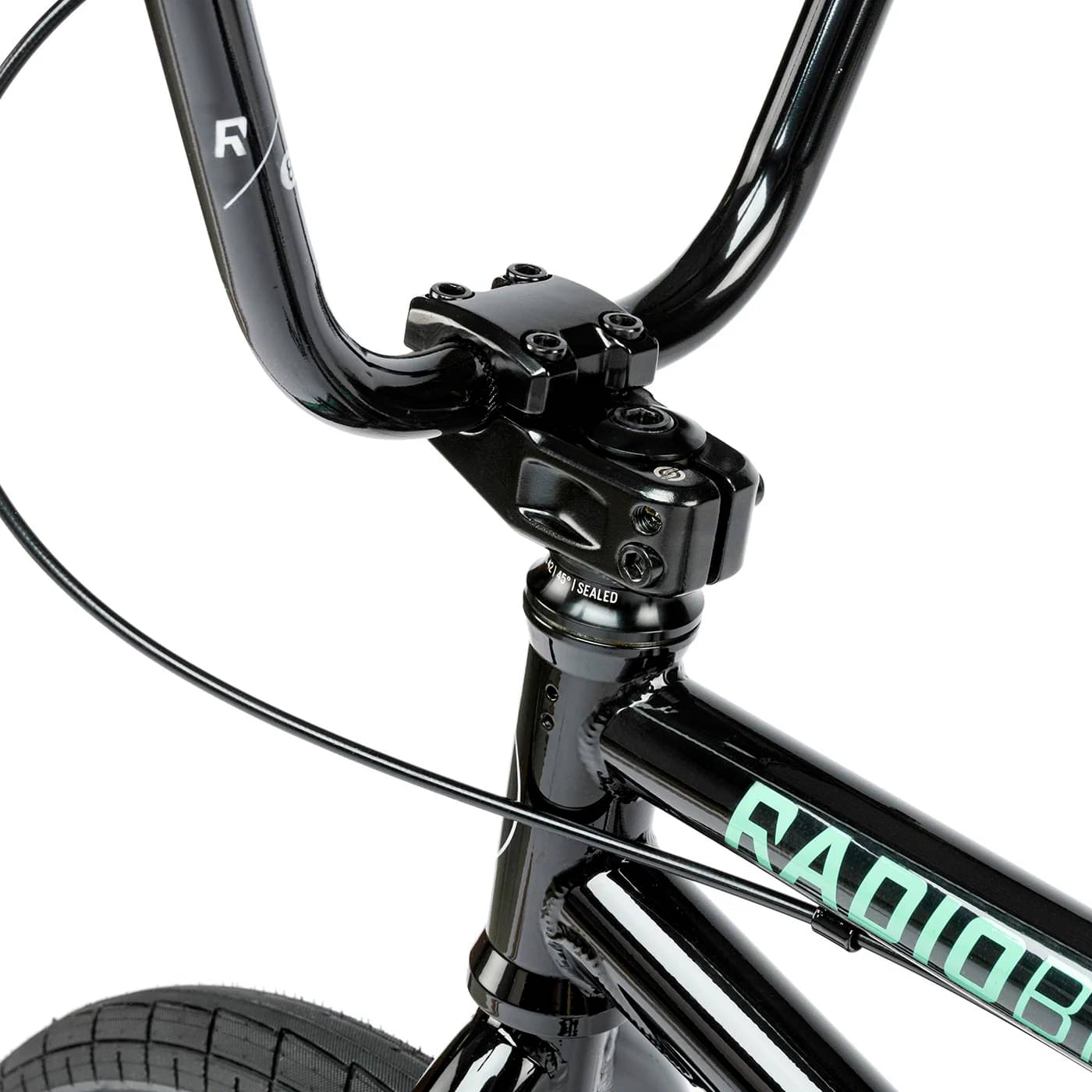

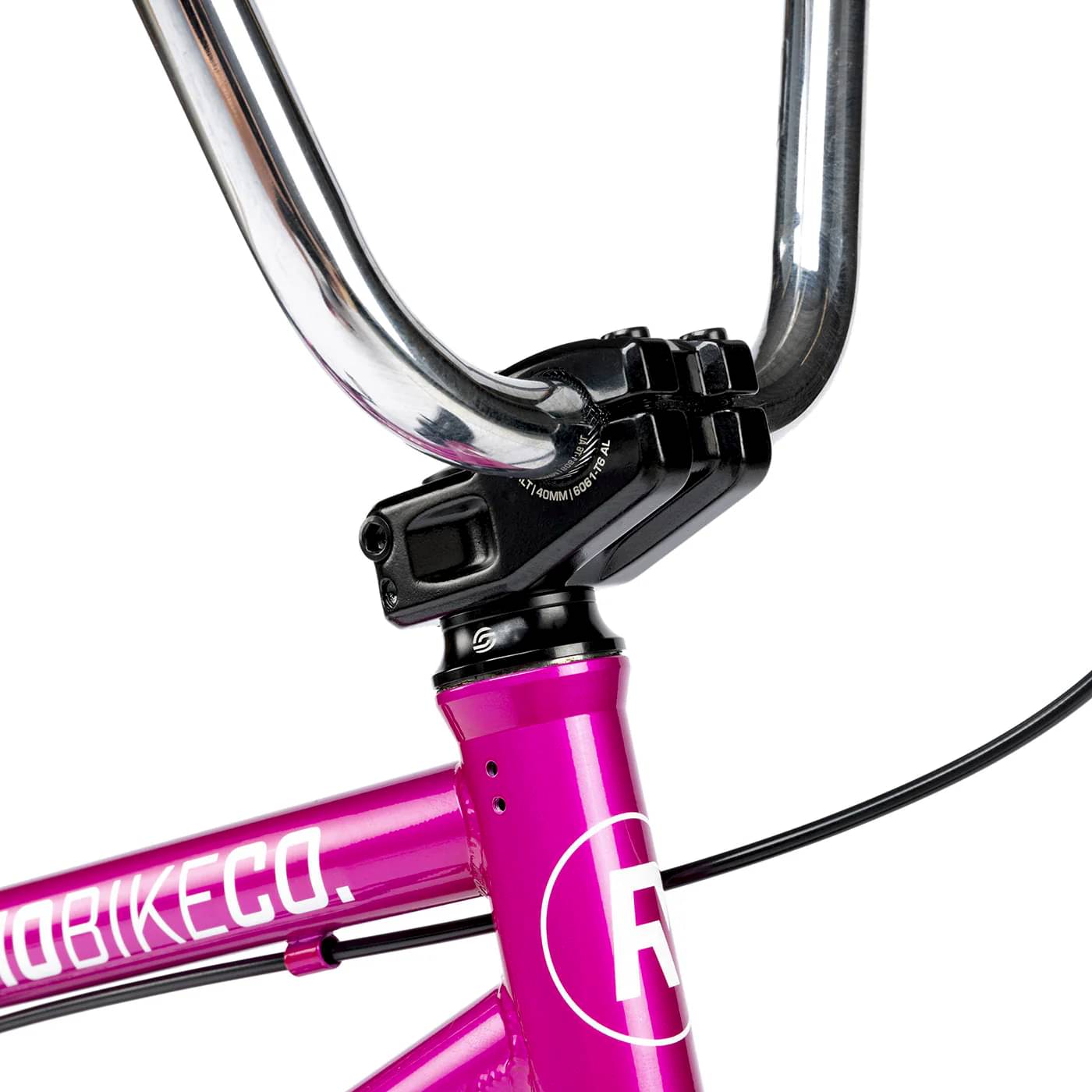

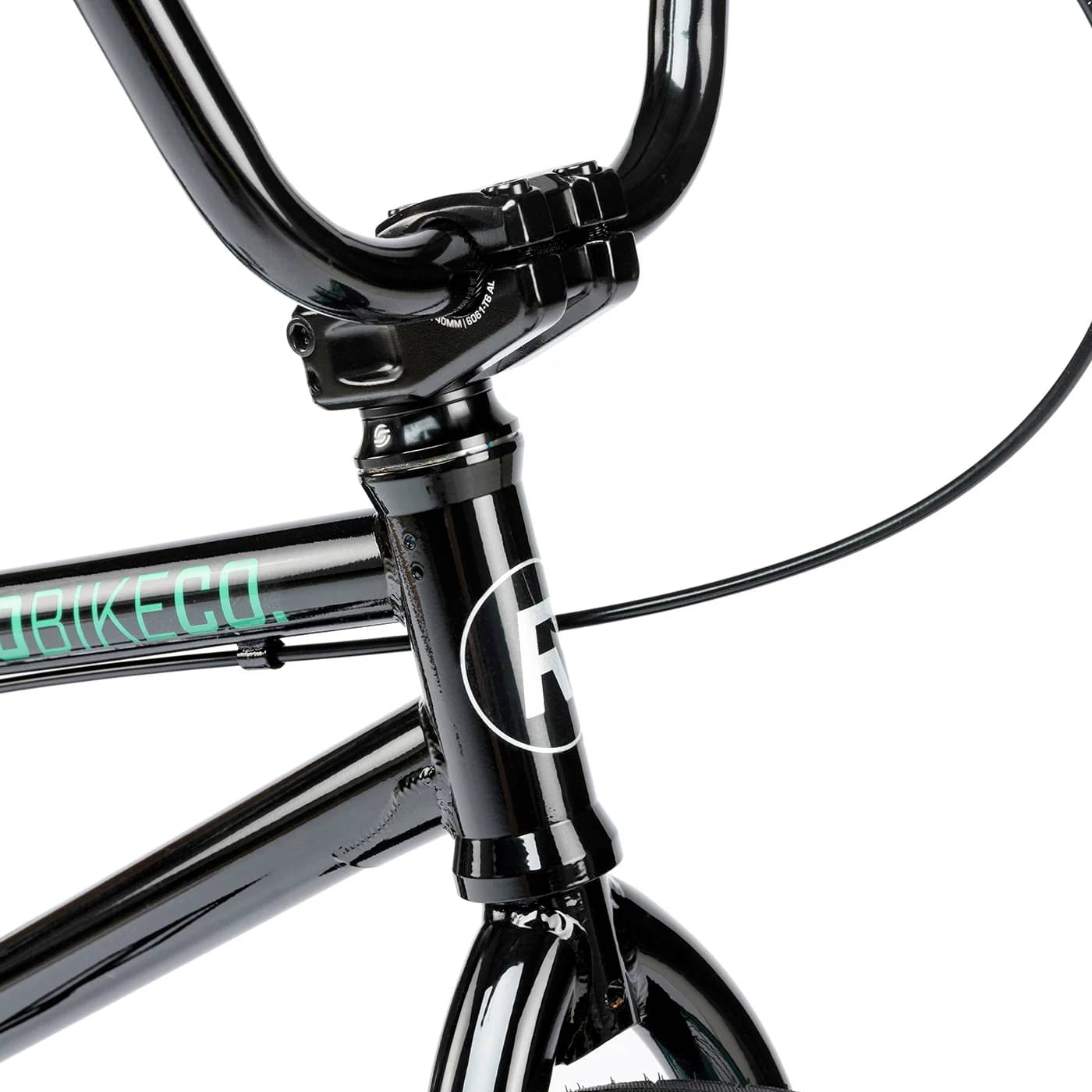

Stem

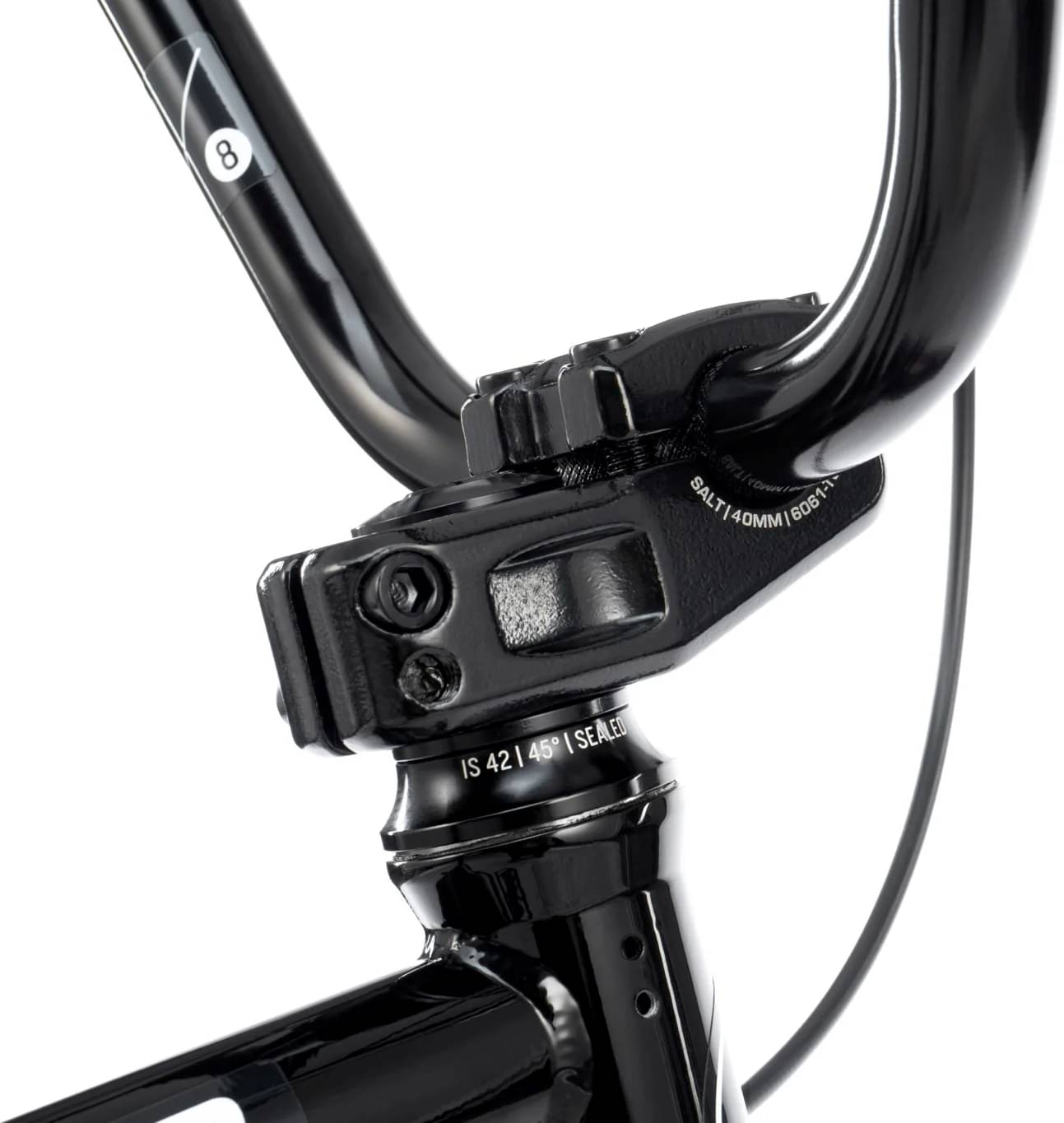

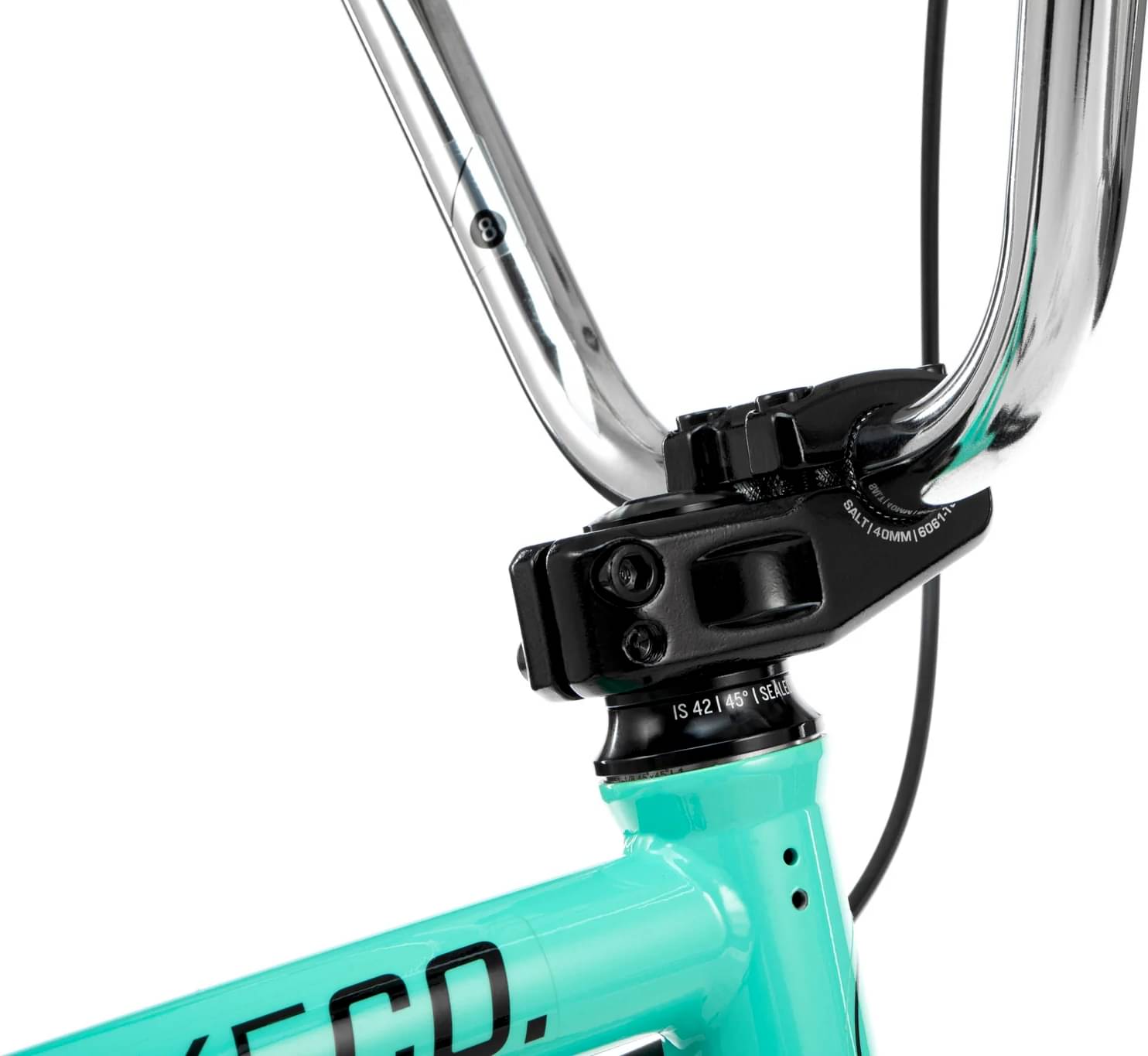

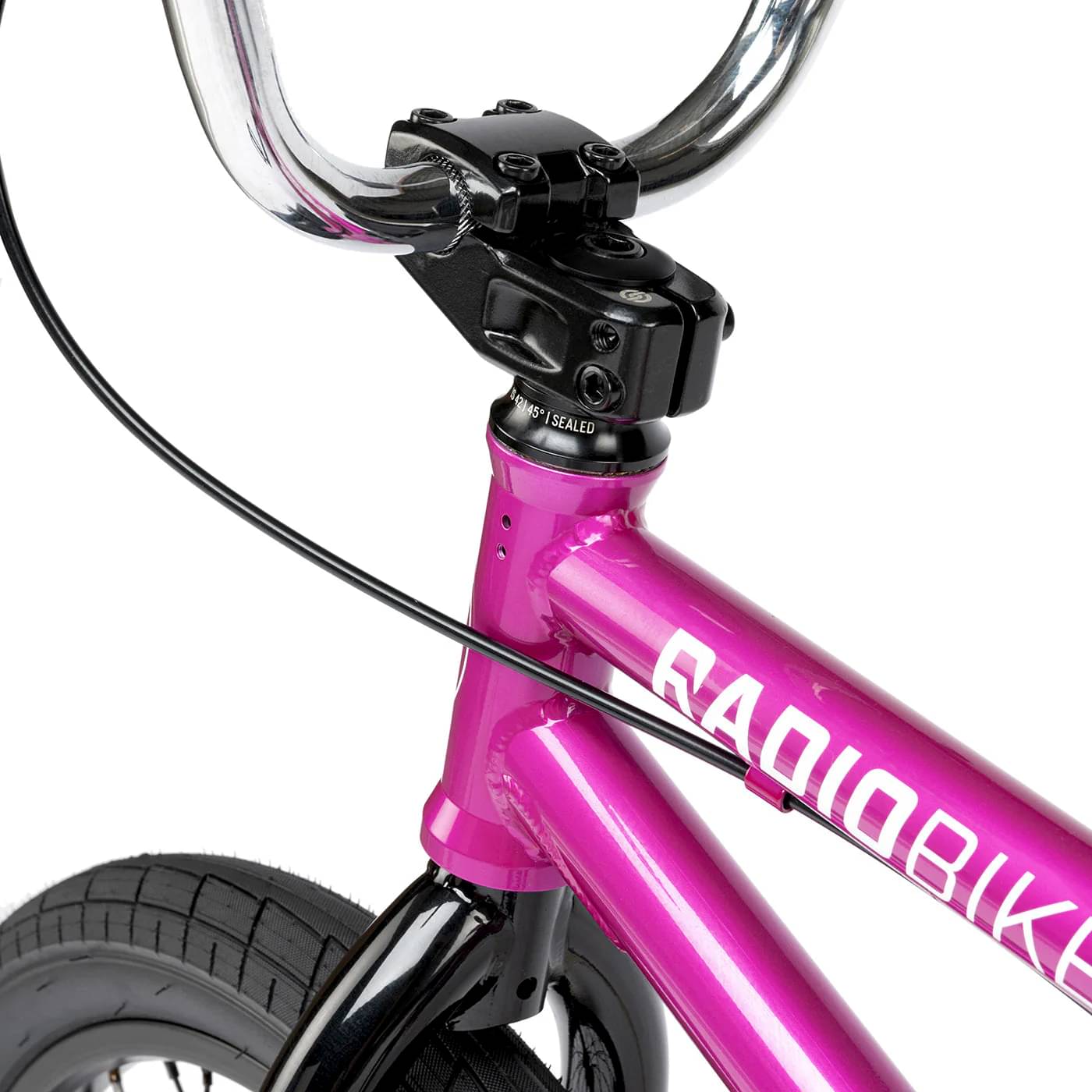

SALT “JUNIOR” top loading stem, 40mm reach

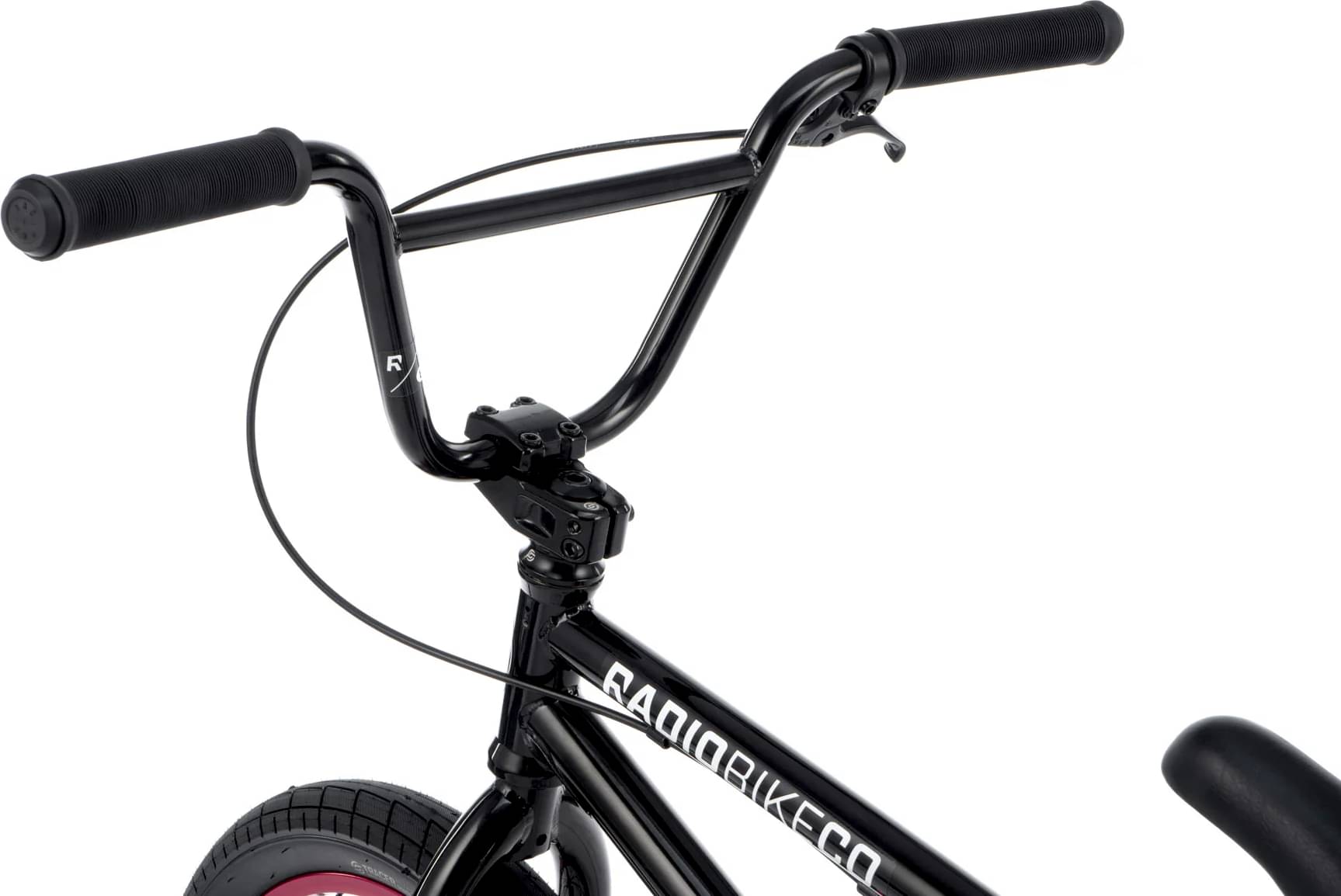

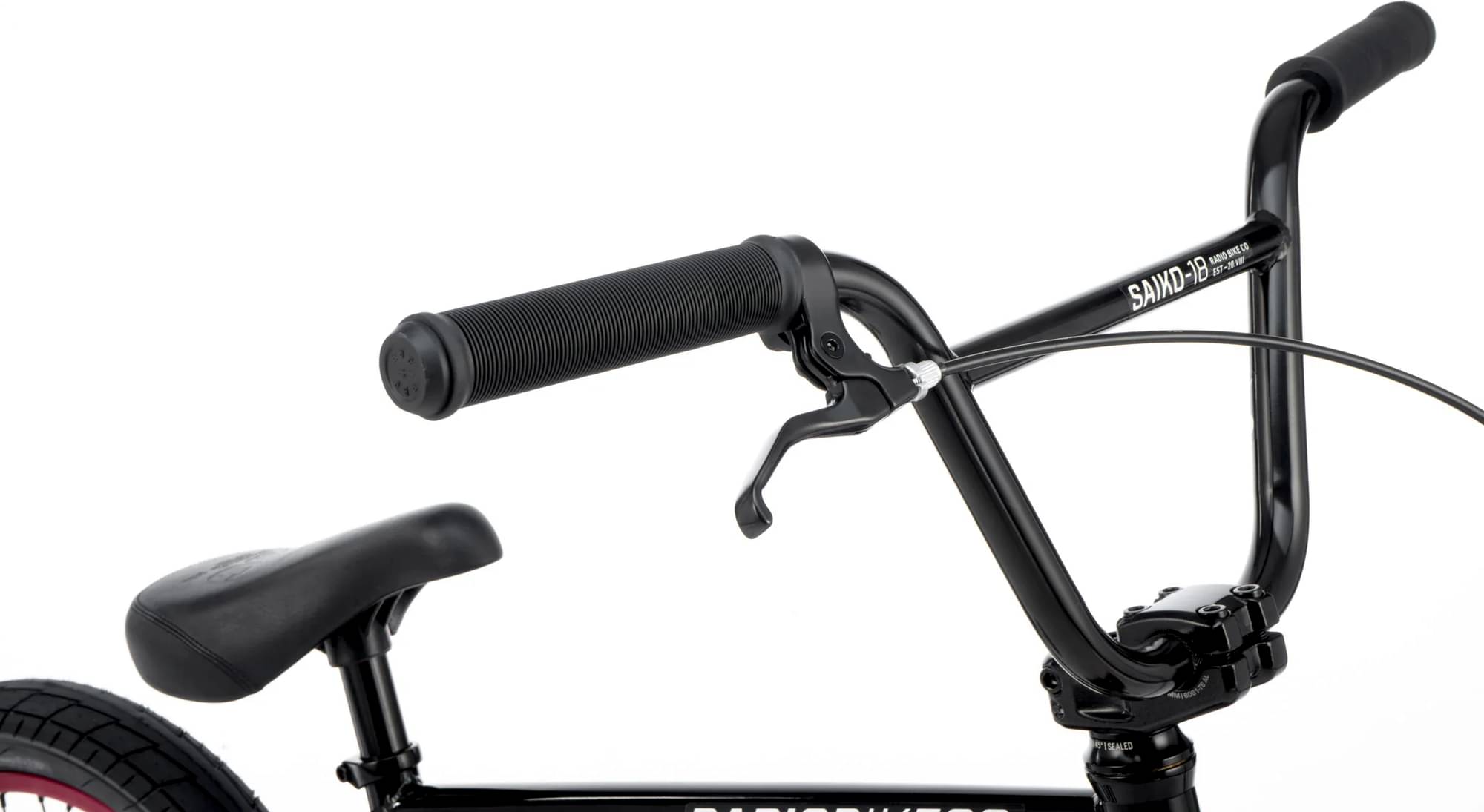

Handlebar

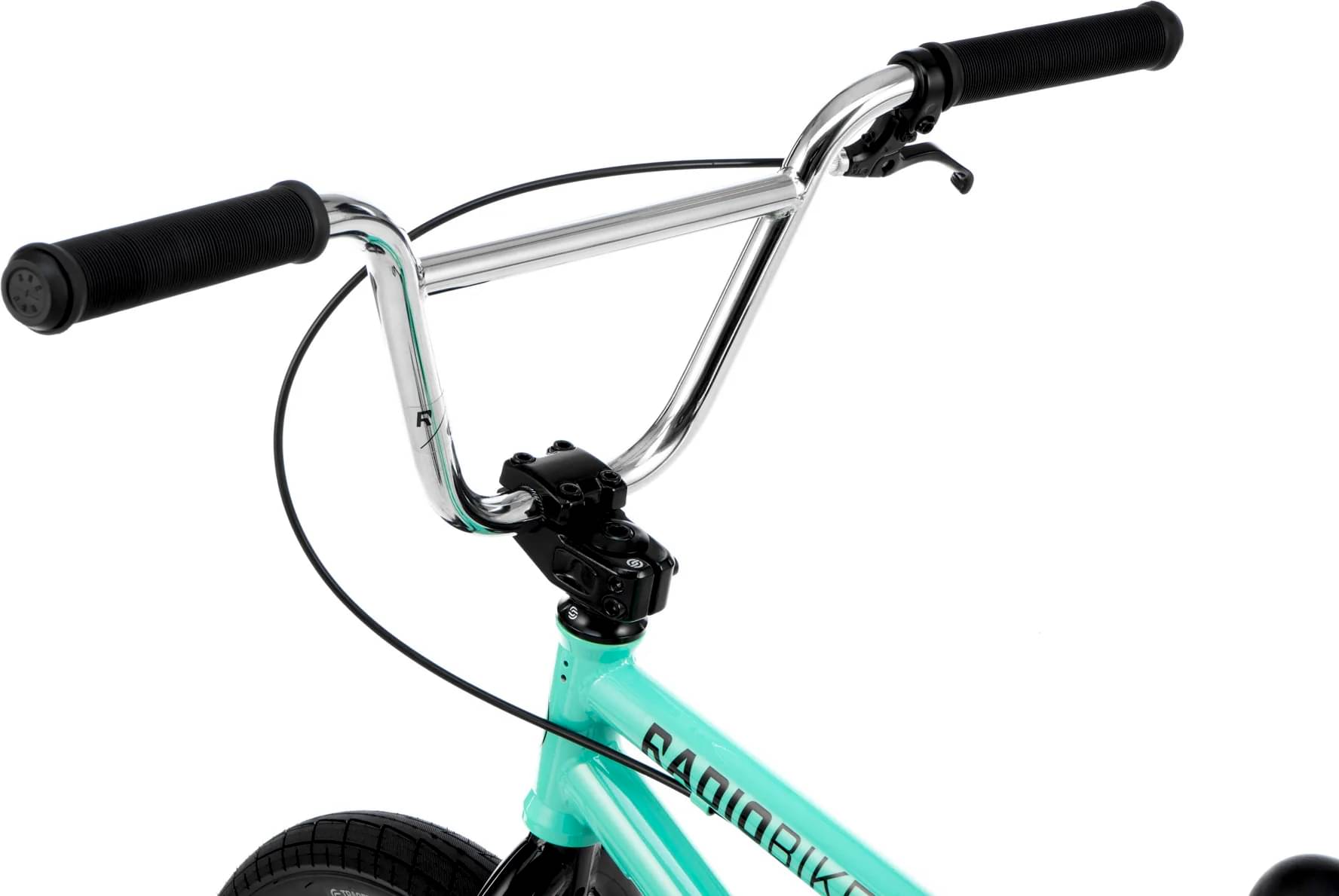

RADIO “AM 18” bar, 1020 hi-ten
Grips
RADIO “AM” grips, flangless, 150mm
Headset

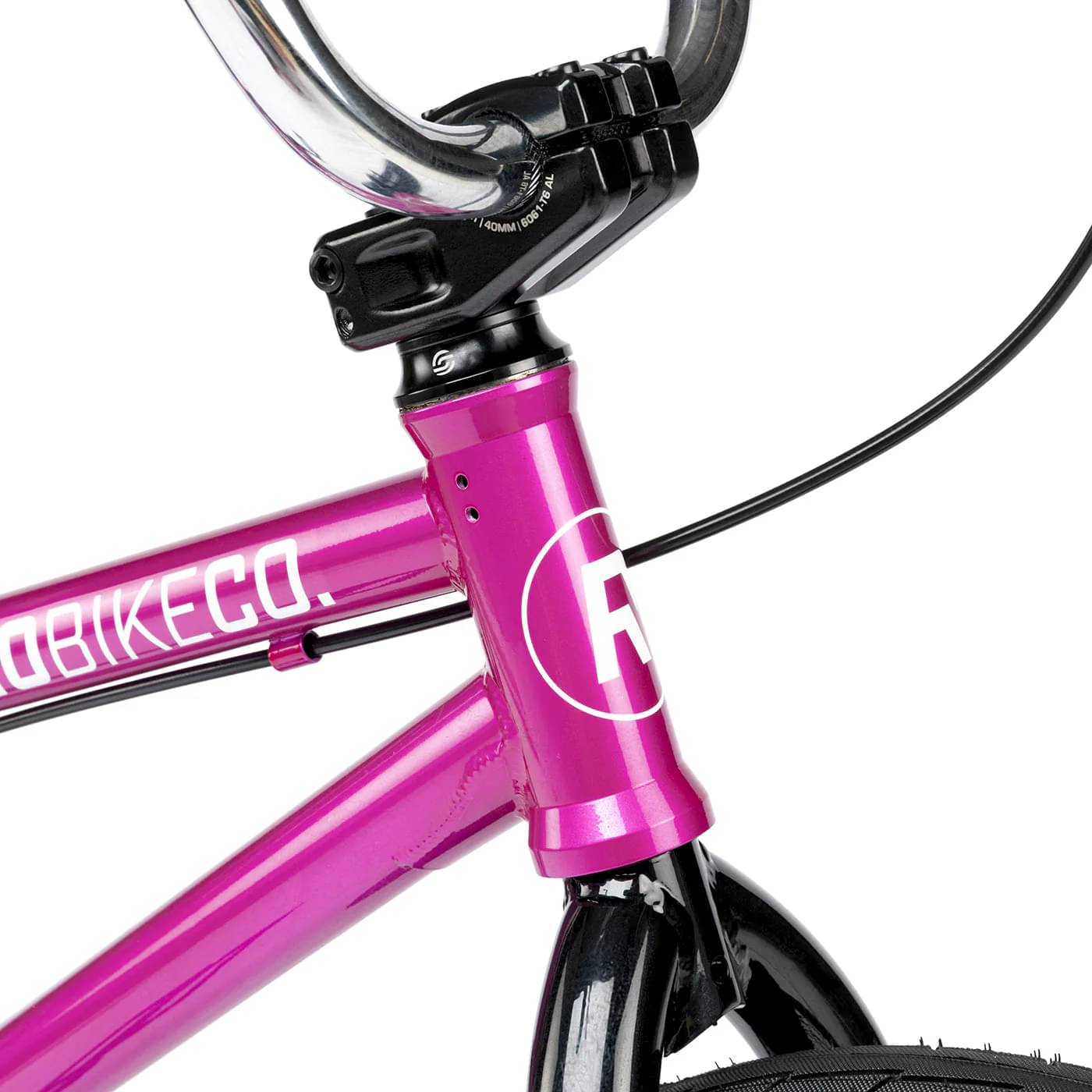

SALT “PRO” int. headset, sealed bearing
Seat

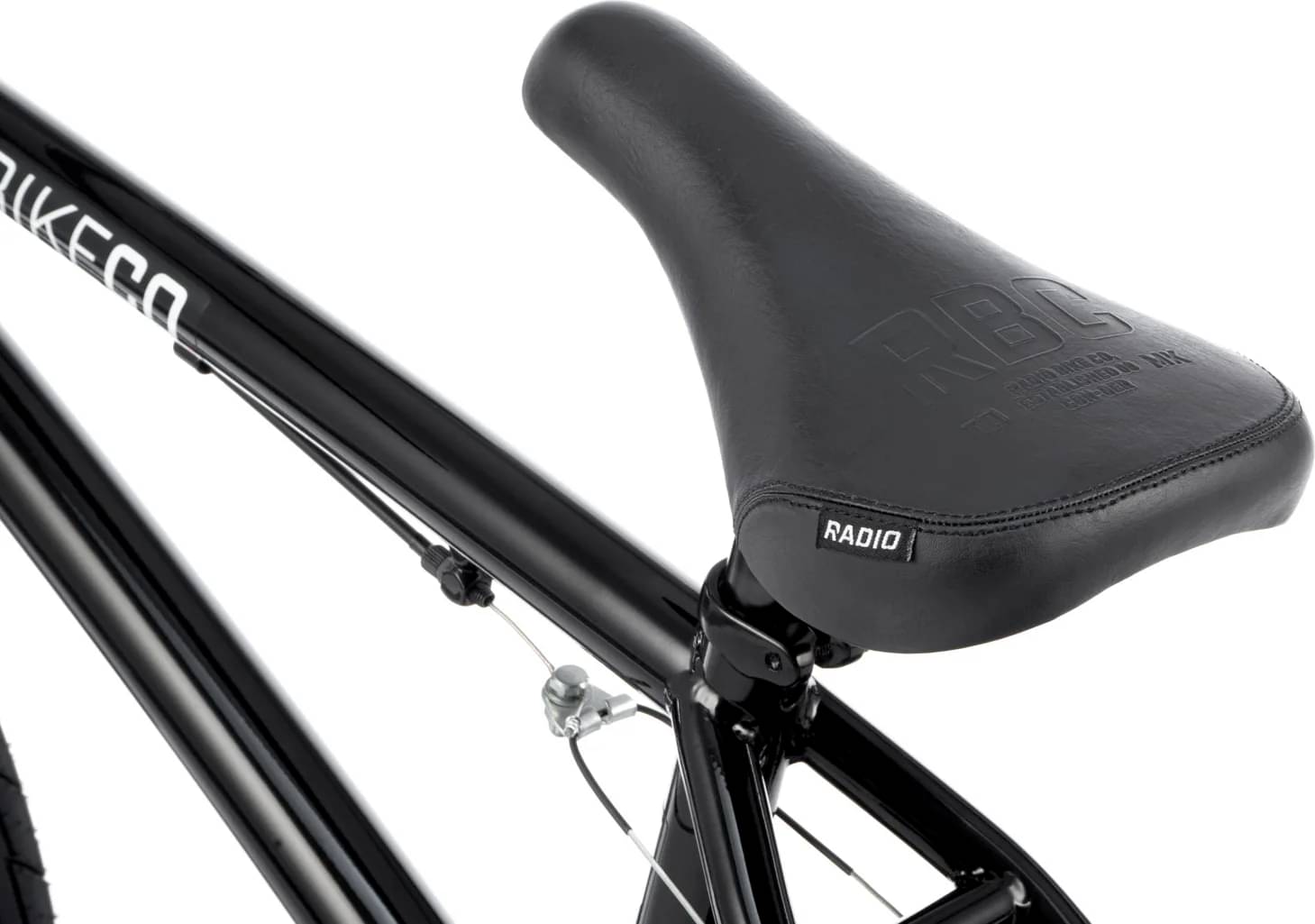

Saddle

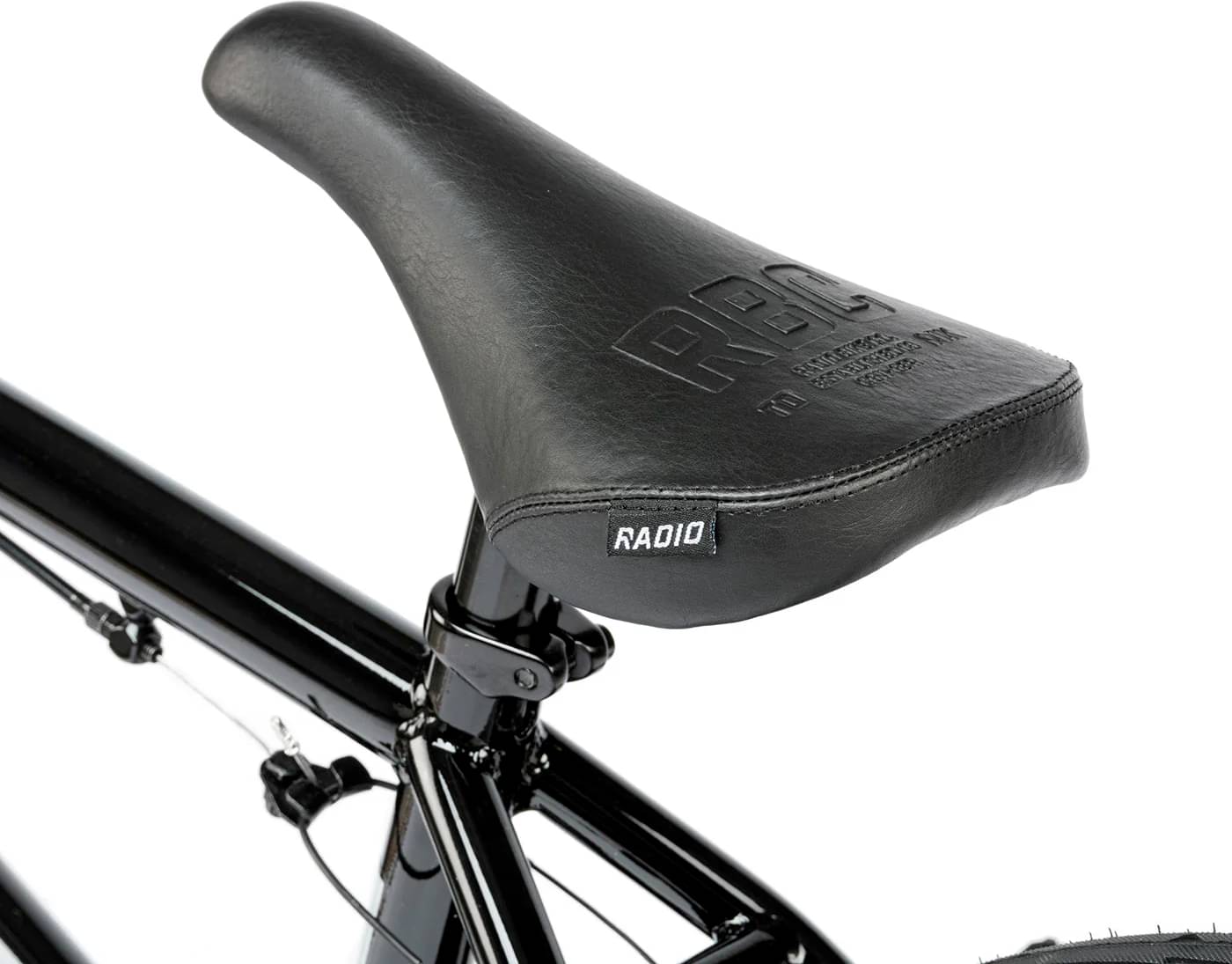

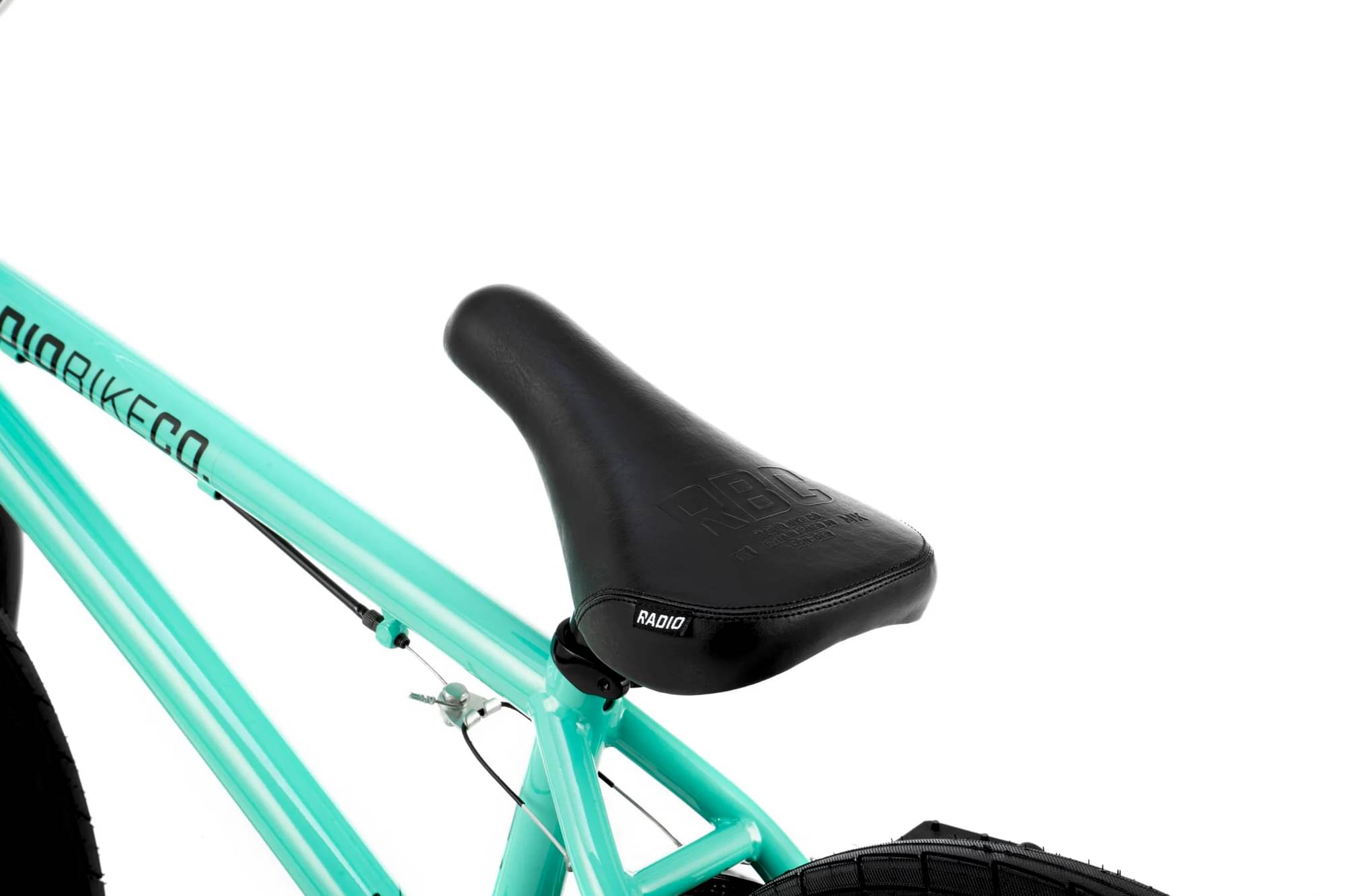

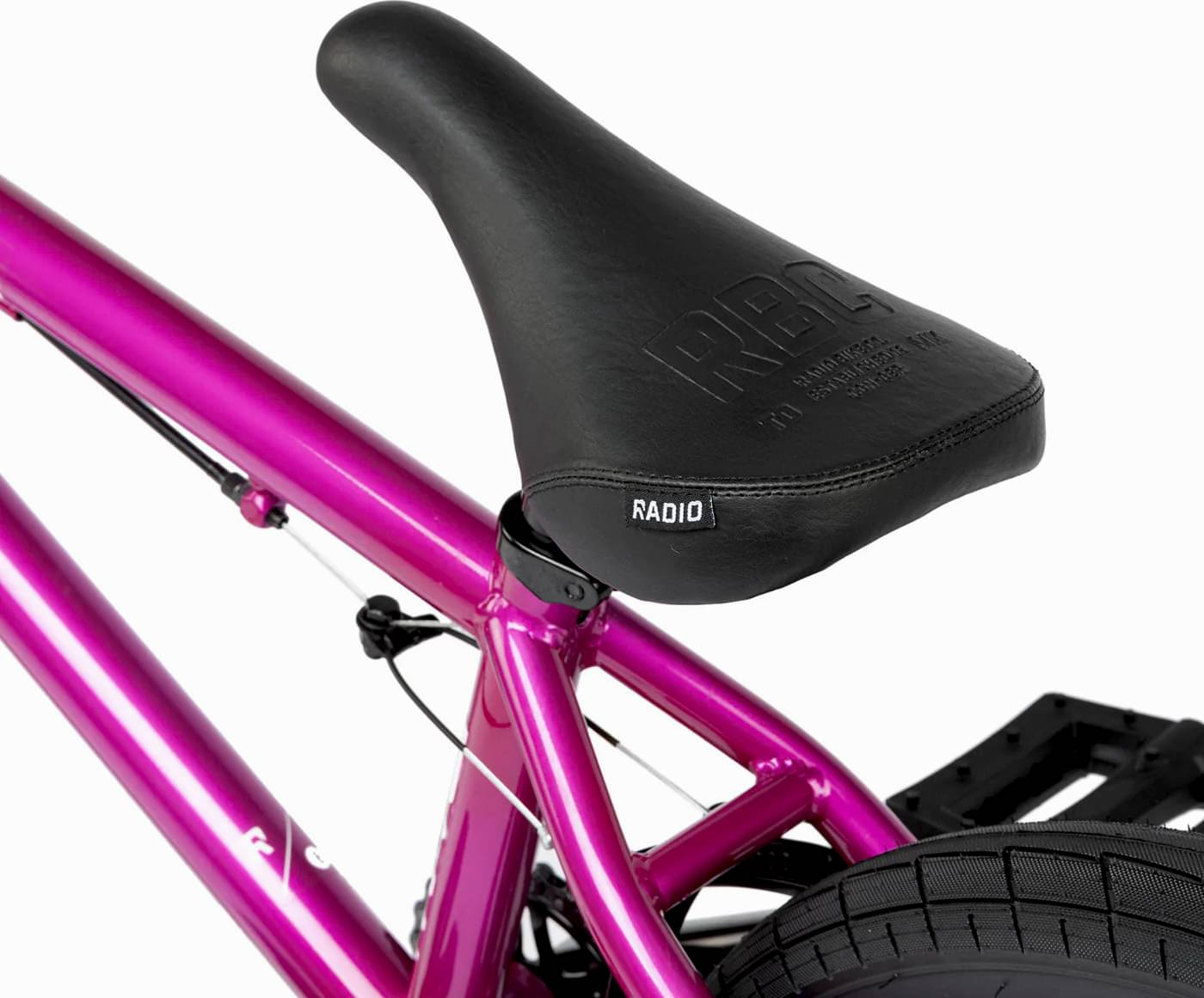

RADIO “CENTURY” slim padded combo seat
Seatpost
–
Fit data
Geometry
