Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox Pike DJ
-
Groupset Race Face -
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

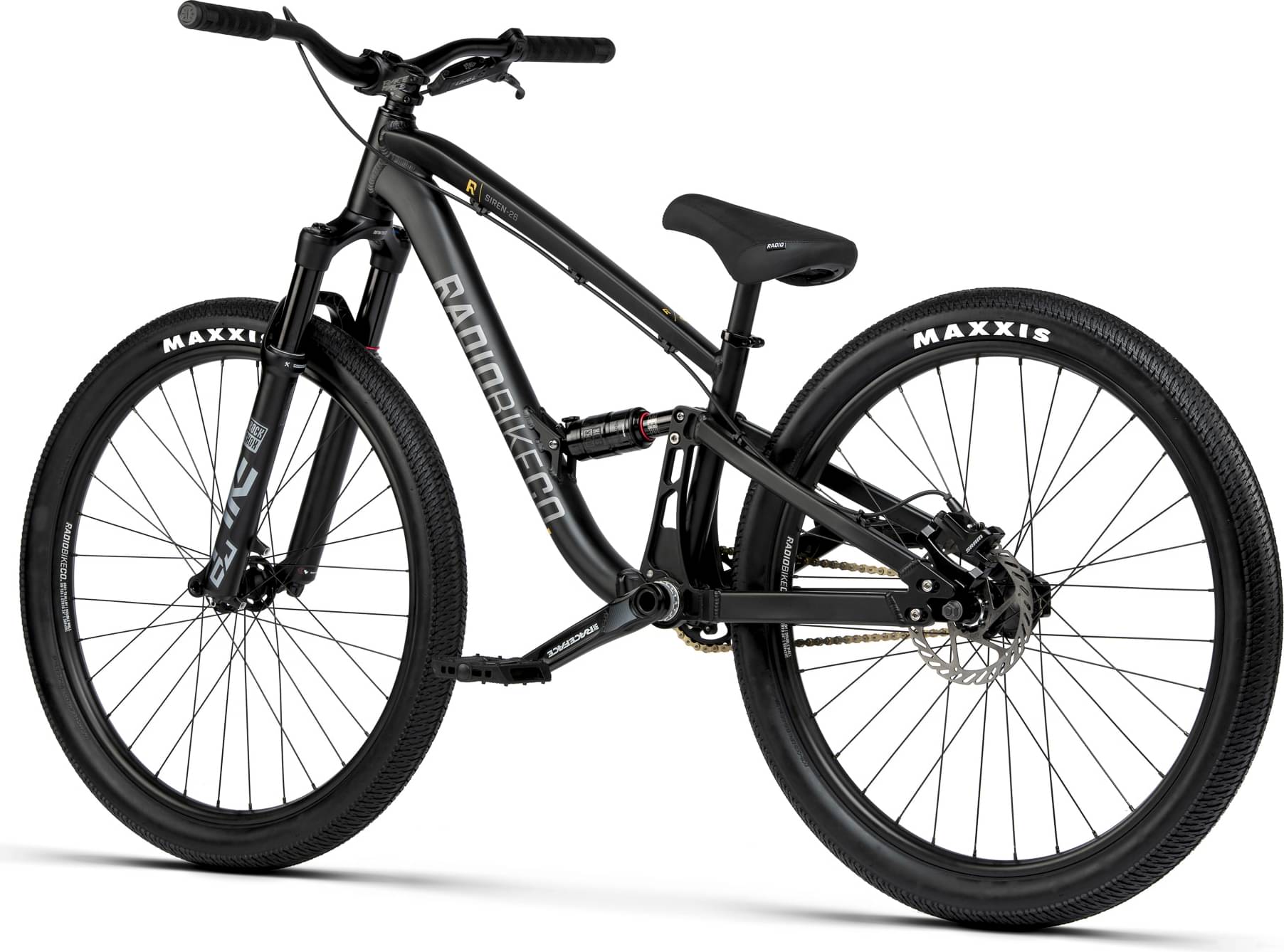

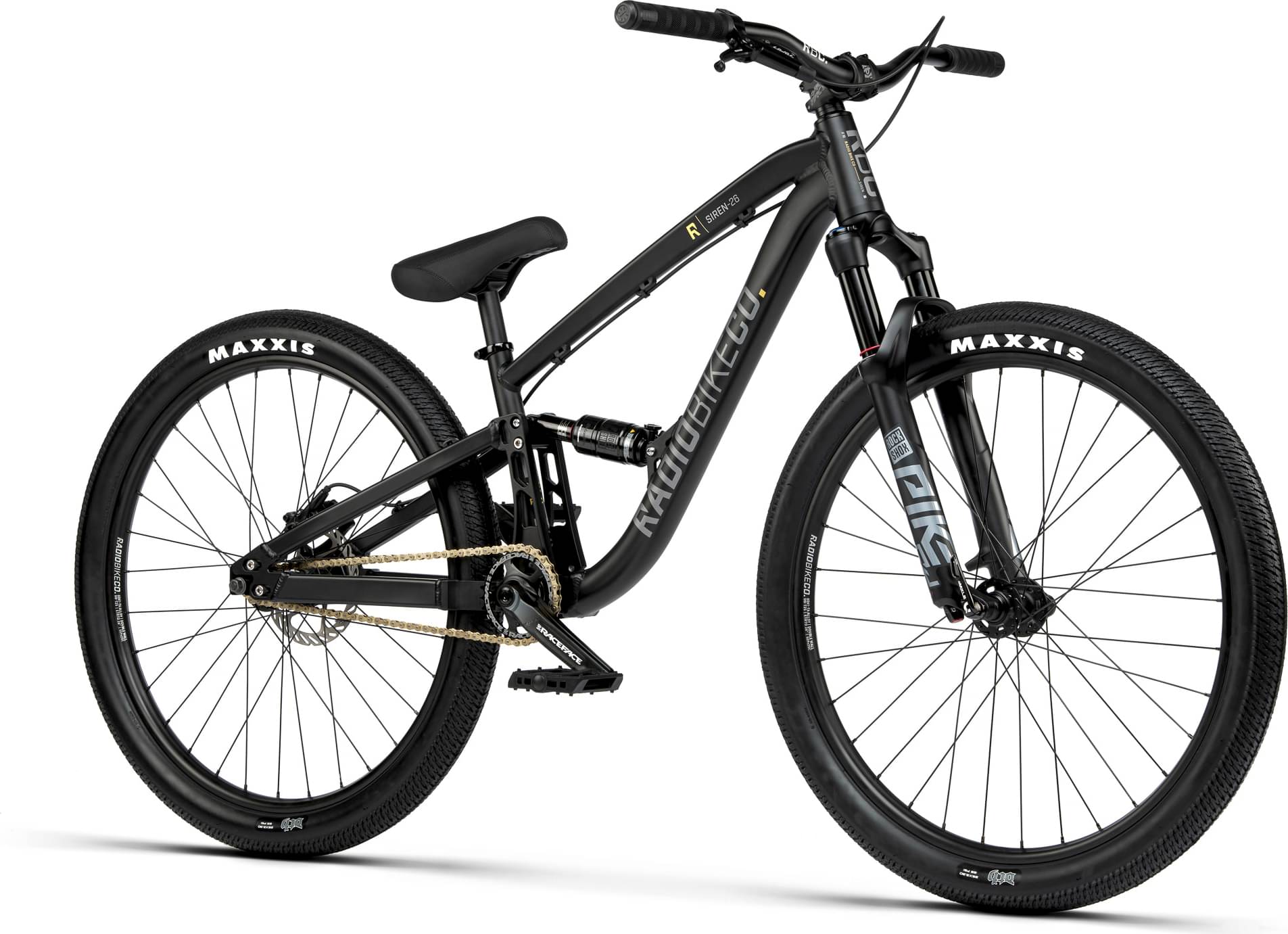

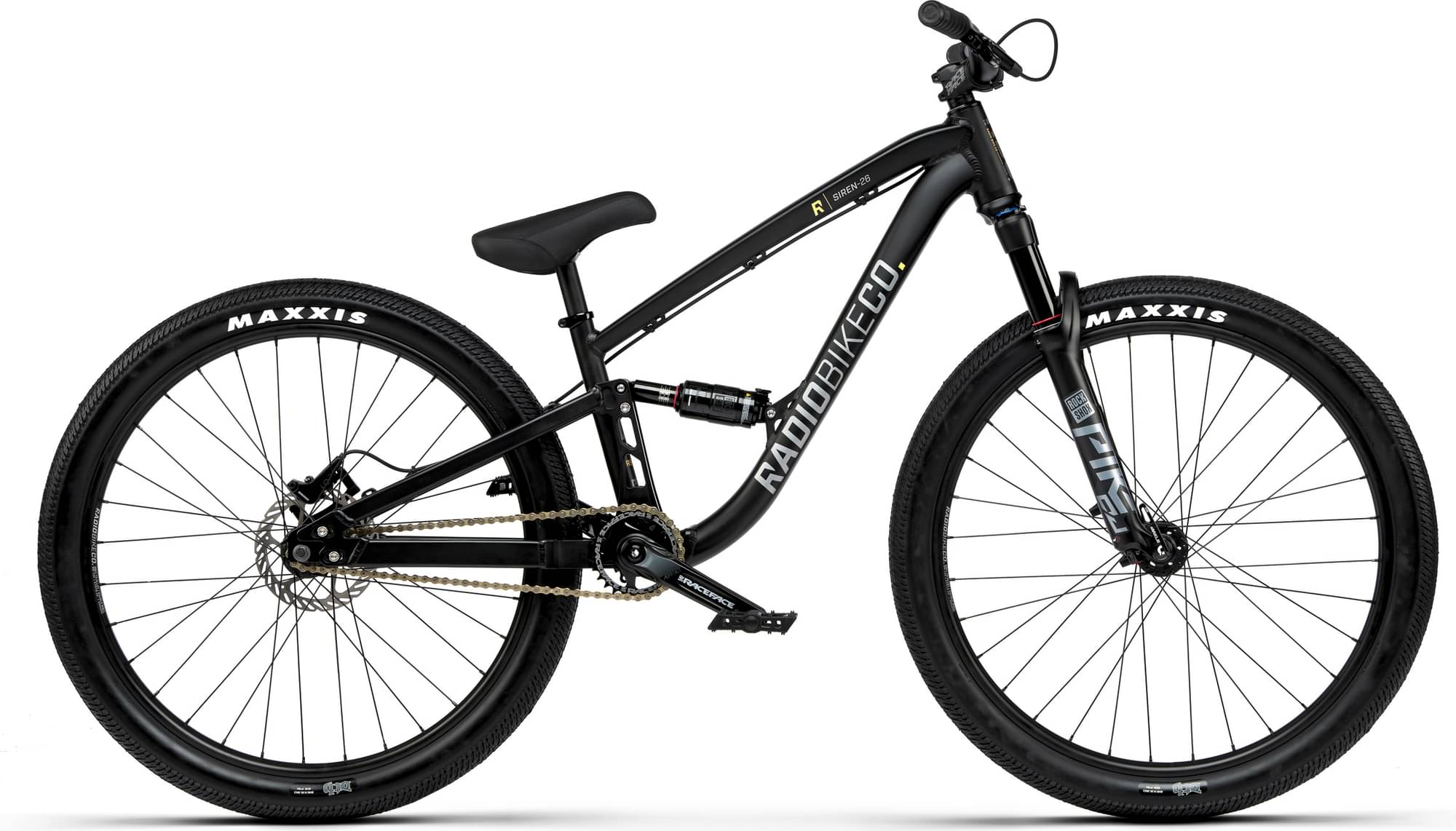

RADIO “SIREN” frame, 6061-T6 hydroformed & butted alloy, tapered head tube, 100mm travel
Suspension Fork
ROCKSHOX “PIKE DJ” fork, 100mm travel
Rear Shock

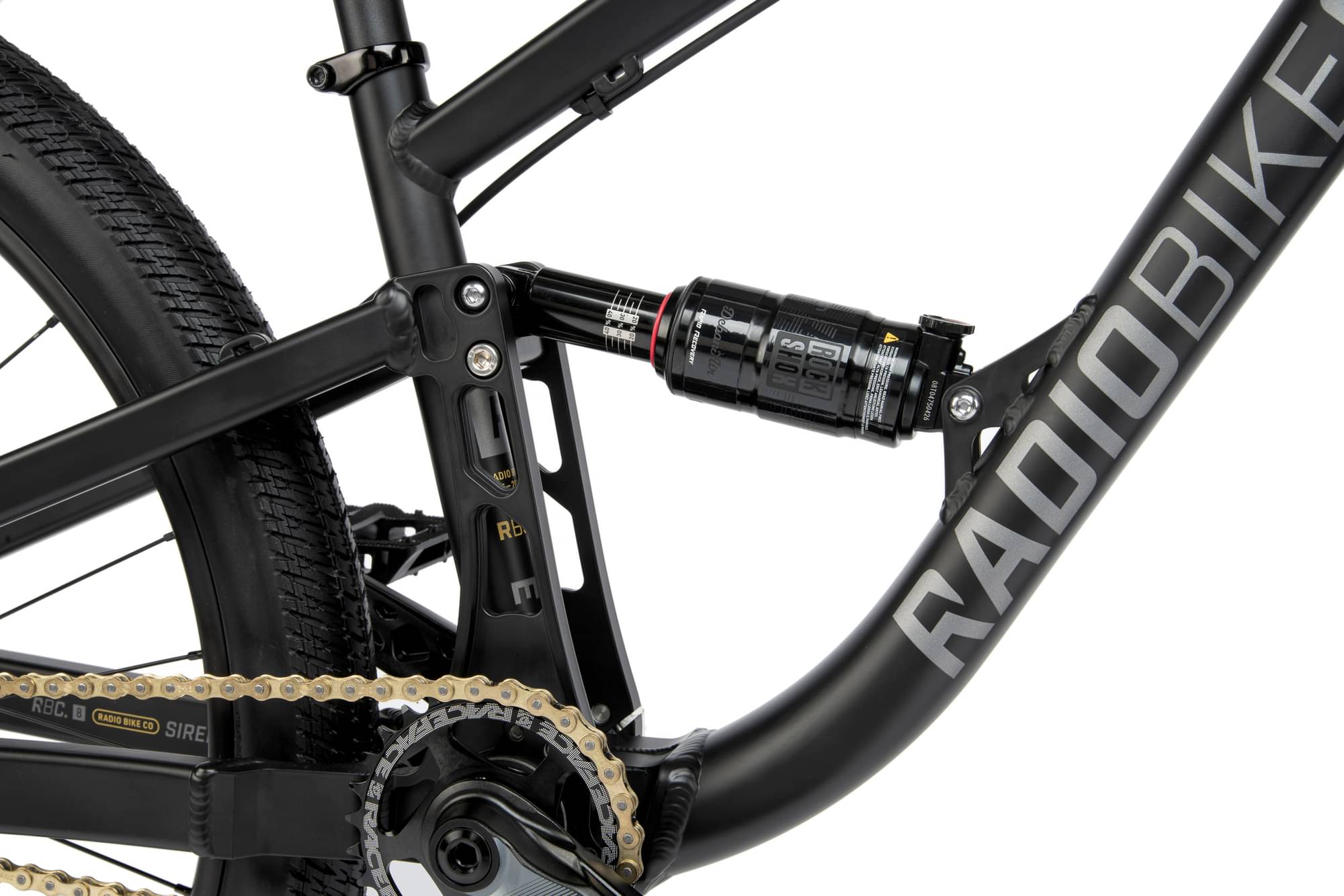

ROCK SHOX “RS-MONARCH R” 190×51
Drivetrain
Cassette

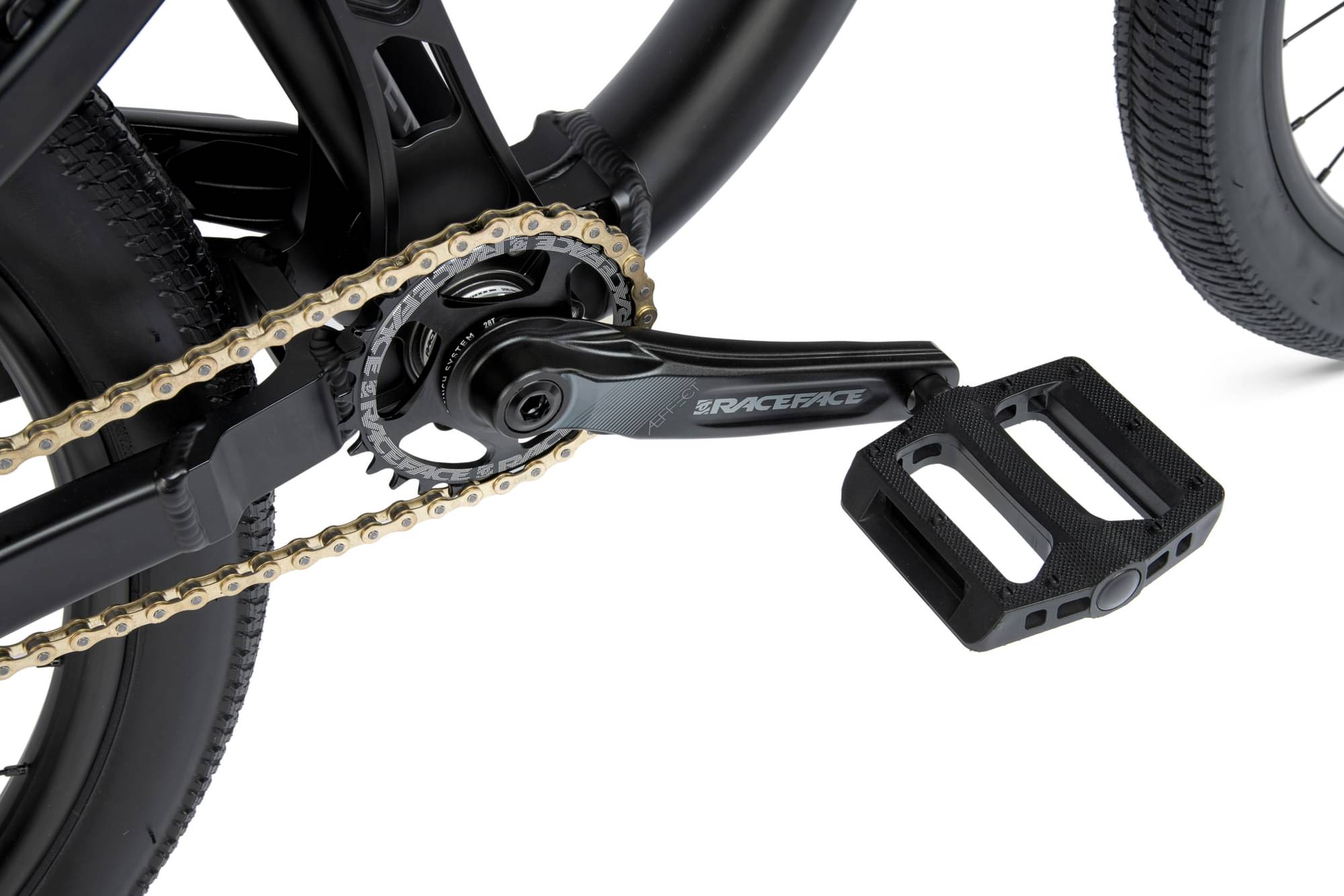

RACE FACE “AEFFECT” alloy sprocket 28T

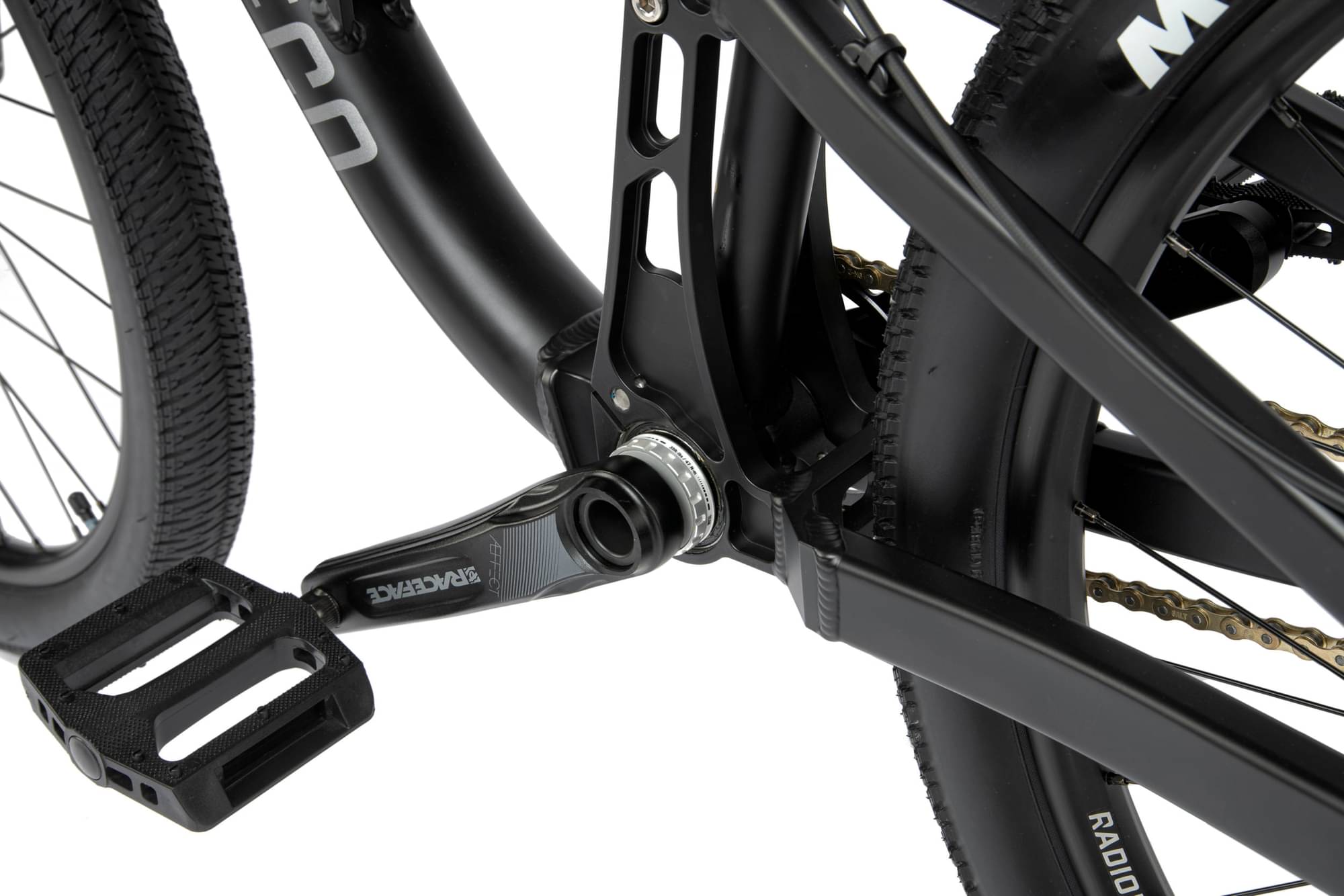

Crank
RACE FACE “AEFFECT” crank alloy, 170mm
Bottom Bracket
RACE FACE “AEFFECT” BSA, sealed bearing
Chain
SALT “AM” chain, WZ1 type
Pedals
RADIO “SLIM” nylon/fiberglass pedals
Wheels
Front Hub
RADIO “PRO-DJ” disc hub, sealed, 15mm alloy through axle, 32h
Rear Hub
RADIO “PRO-DJ” disc hub, sealed, 3/8?s crmo axle, 32h
Rims
Front: RADIO “DB-T25” rim, double wall, sleeved, Rear: RADIO “DB-T25” rim, double wall, sleeved
Tires
MAXXIS “DTH” tires, 2.3? front & rear
Brakes
Brakes

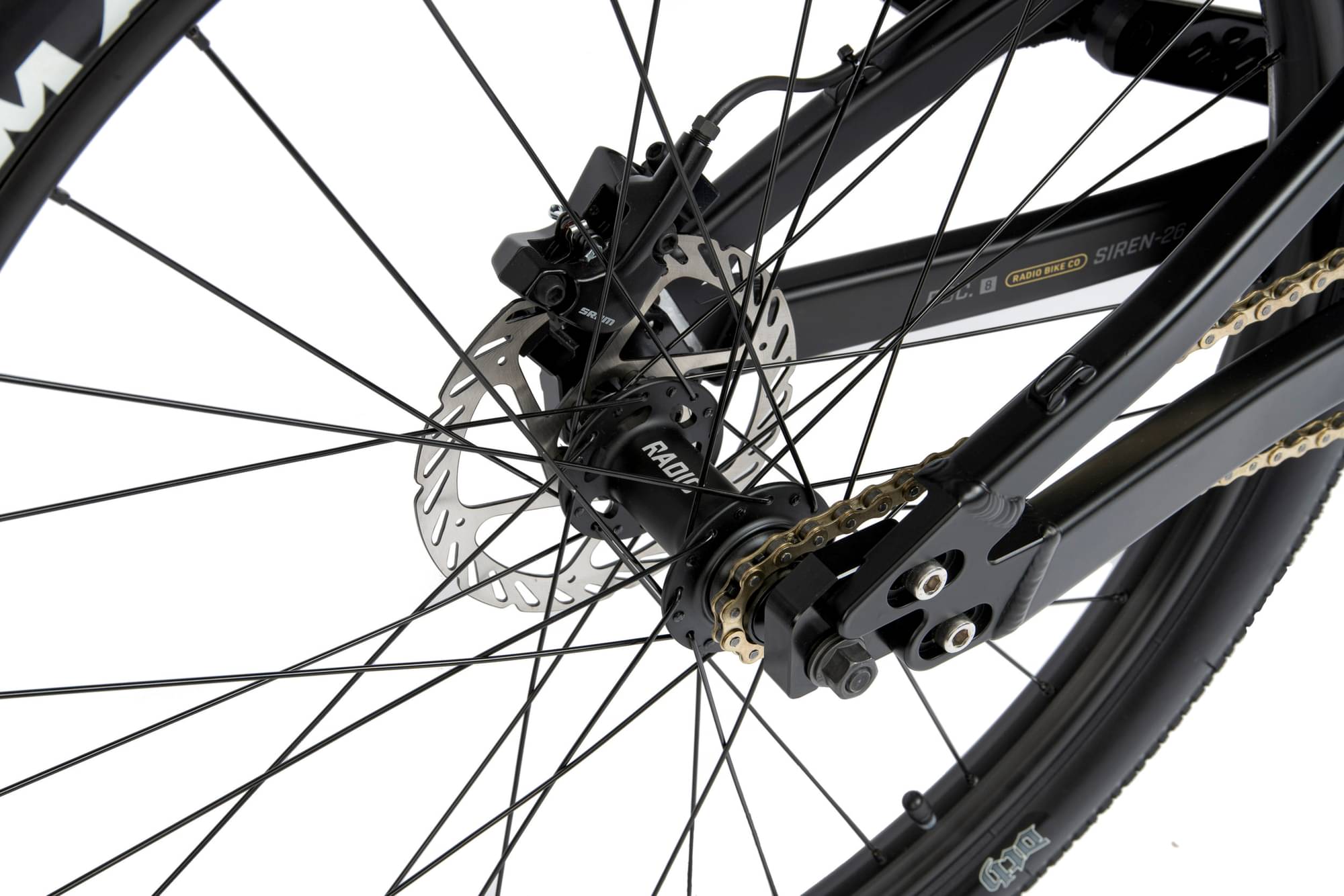

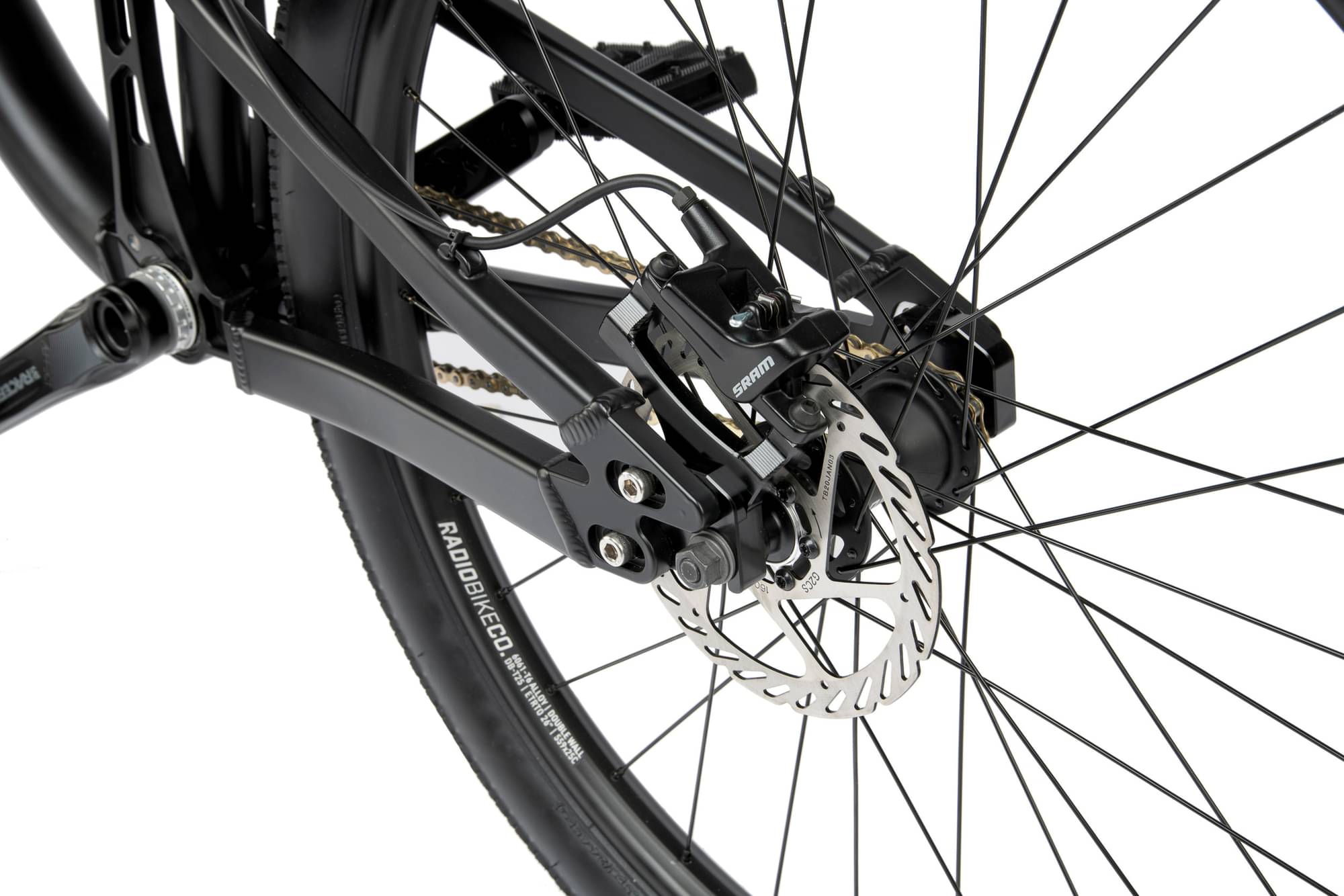

TEKTRO “ARIES” mechanical disc brake front, 160mm rotor/ SRAM “DB-LVL-A1” hydraulic disc brake rear, 160mm rotor
Brake Levers
TEKTRO “RS-360A” front, SRAM “DB-LVL-A1” rear

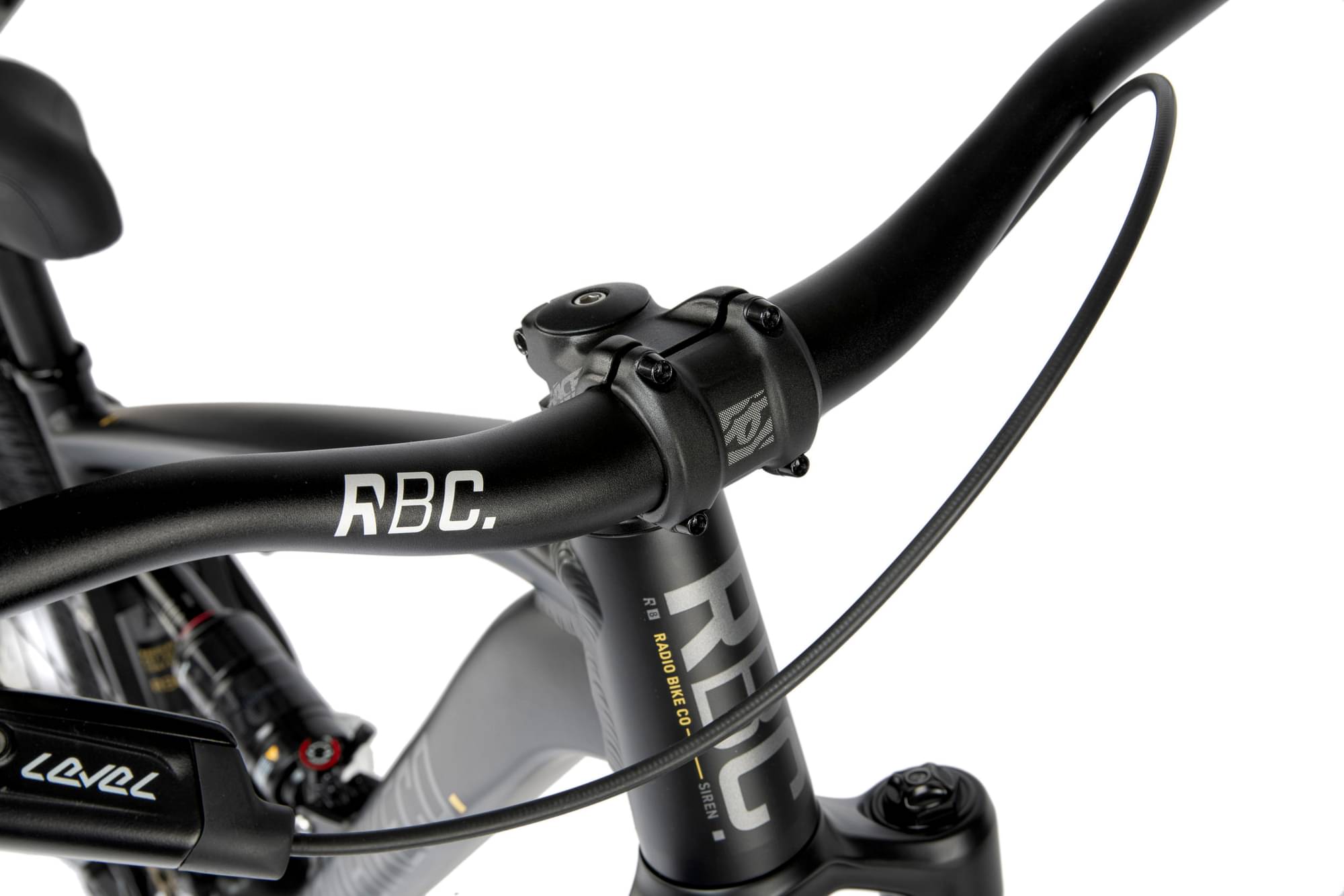

Cockpit
Stem
RACE FACE “CHESTER 35” front load stem, alloy, 40mm reach
Handlebar
RADIO “GRIFFIN” bar, 6061-T6 alloy, 35mm
Grips
RADIO “FREQUENCY XL” grips, flangeless, 160mm
Headset
FSA “NO.42/ACB-A” integrated a-headset, 1-1/8?-1.5?
Seat
Saddle
RADIO “Century” Pivotal seat fat padded
Seatpost
RADIO 27.2mm alloy Pivotal
