Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Suspension Rigid -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
hydroformed 6061 T6 alloy, forged & disc brake mount ready dropouts
Suspension Fork
cr-mo, 1? butted steerer tube, cr-mo fork legs, 23mm offset
Drivetrain
Cassette
Radio alloy, 38t sprocket

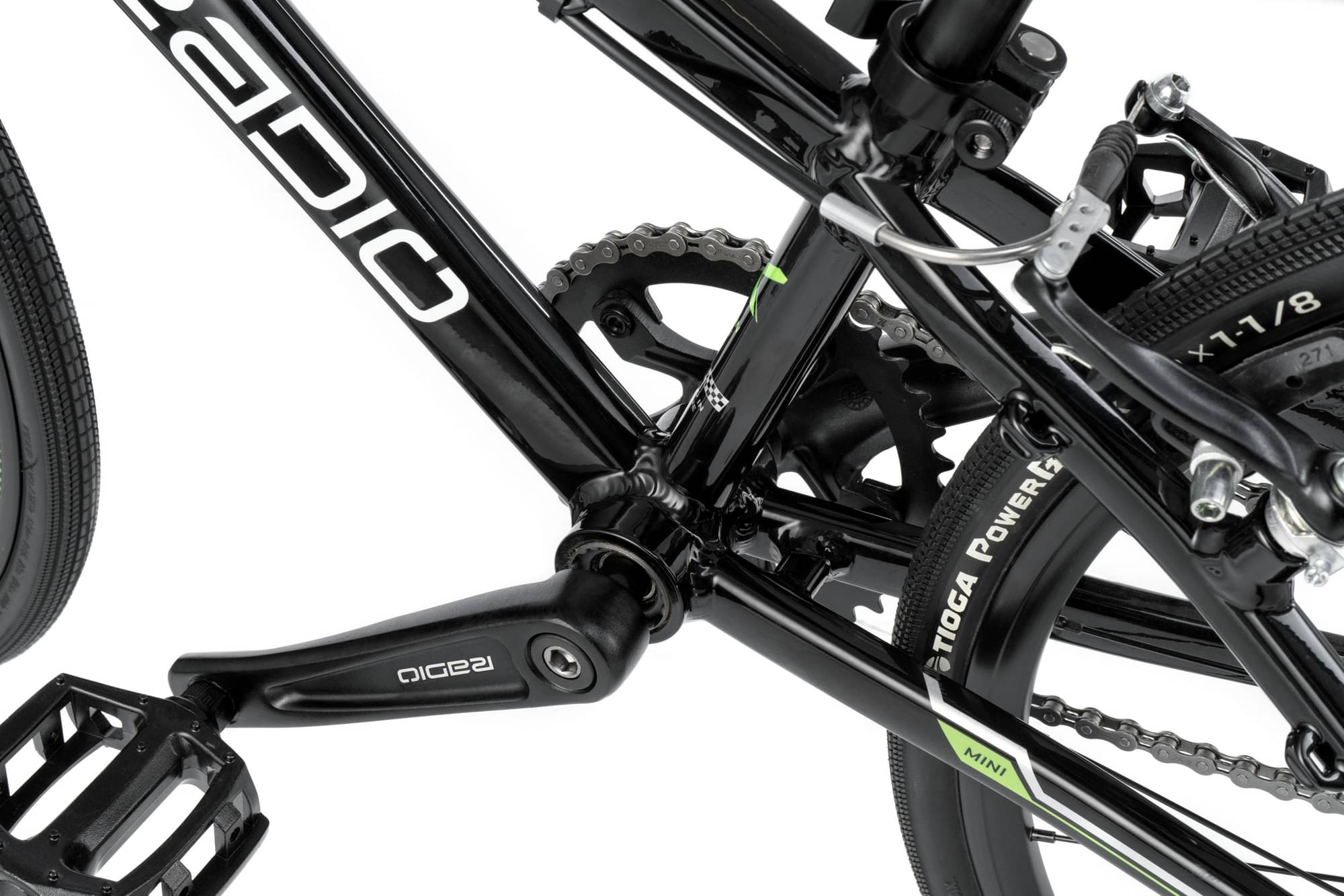

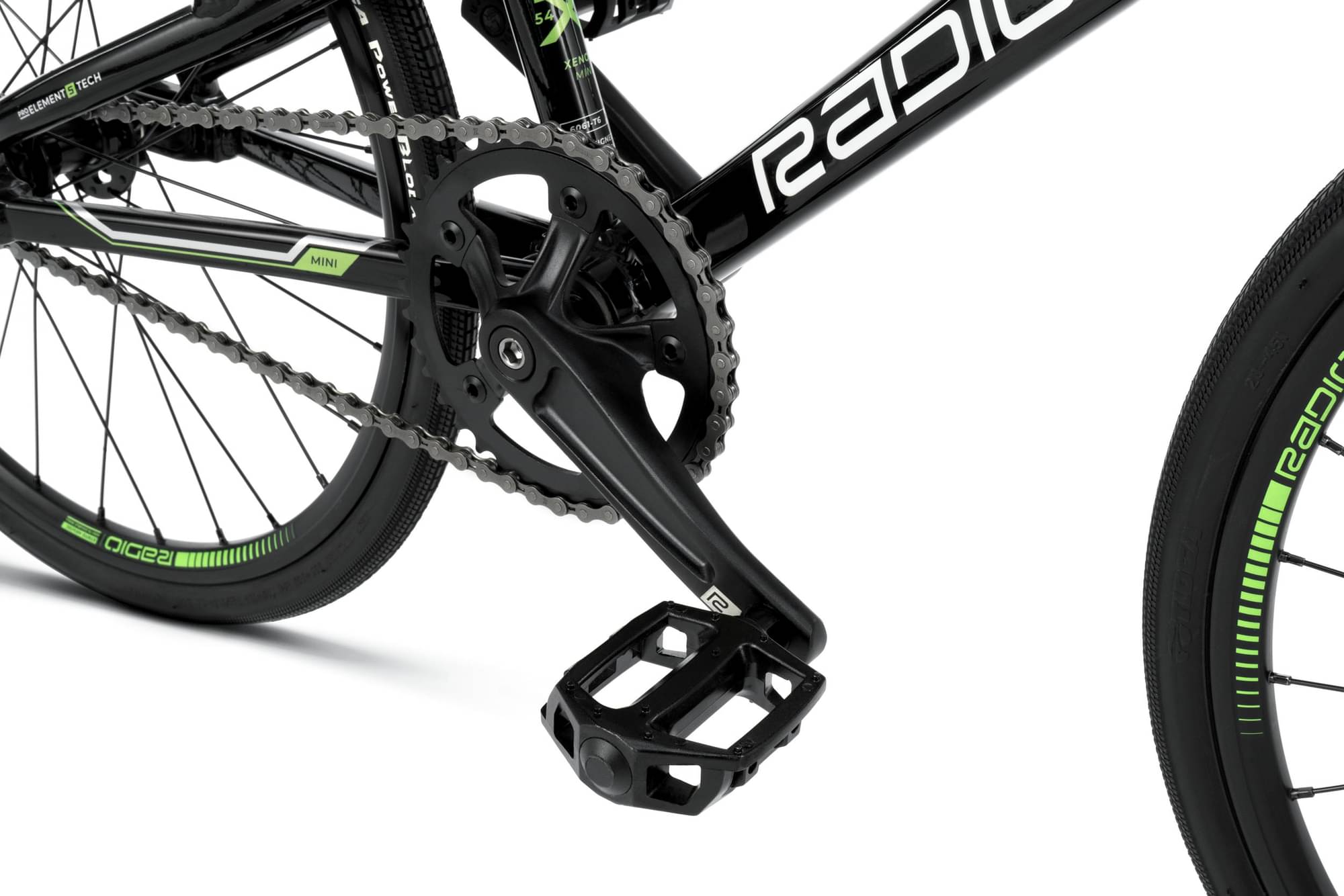

Crank
Radio, Xenon 3pc crank, forged/cnc, alloy crank, 140mm length
Bottom Bracket
Radio, BSA square taper, sealed
Chain
KMC, Z6, 1/2? x 3/32?
Pedals
Radio, Xenon Junior, alloy
Wheels
Front Hub
Radio, Xenon, alloy cnc, fully sealed, 28T, 3/8? cr-mo axle

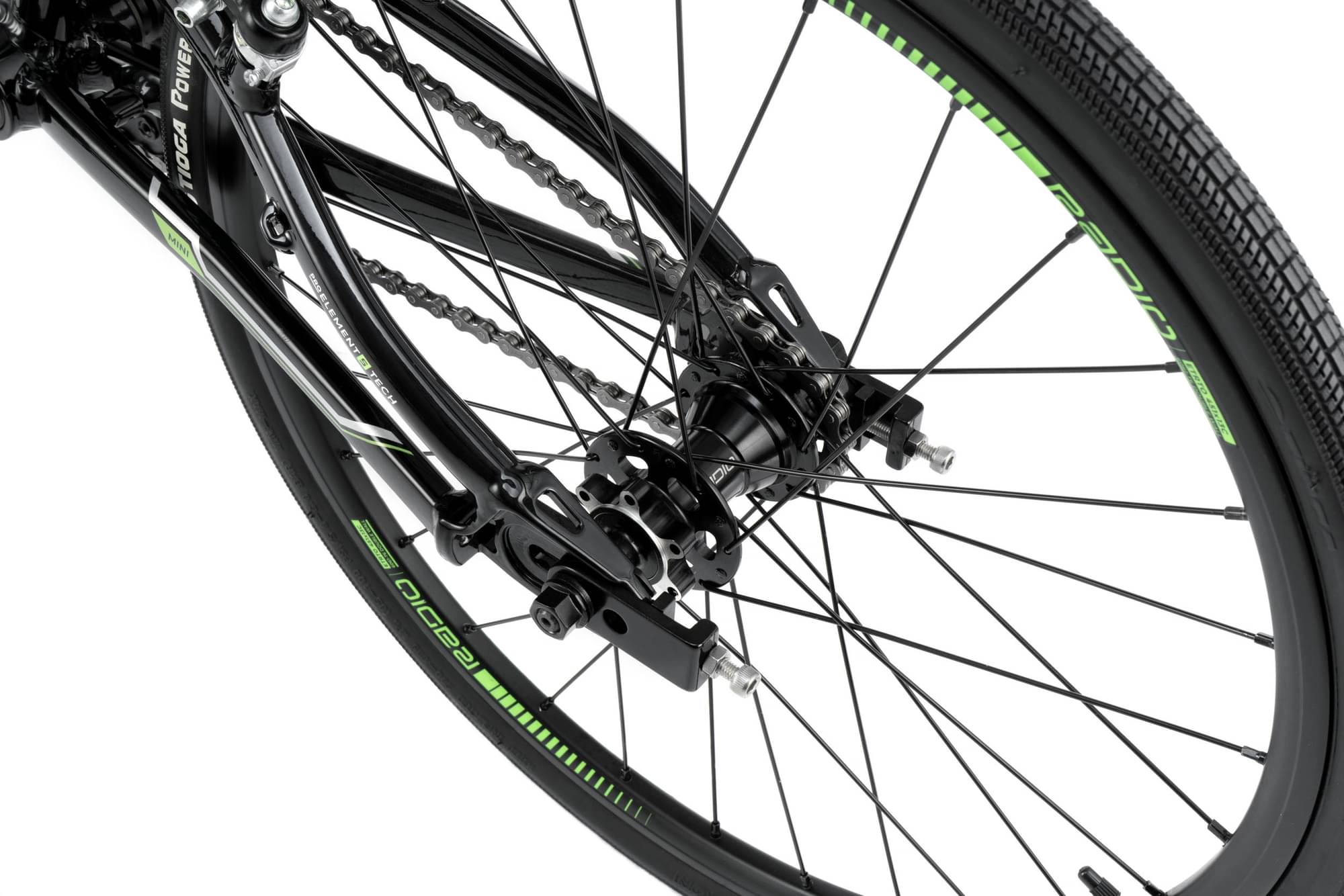

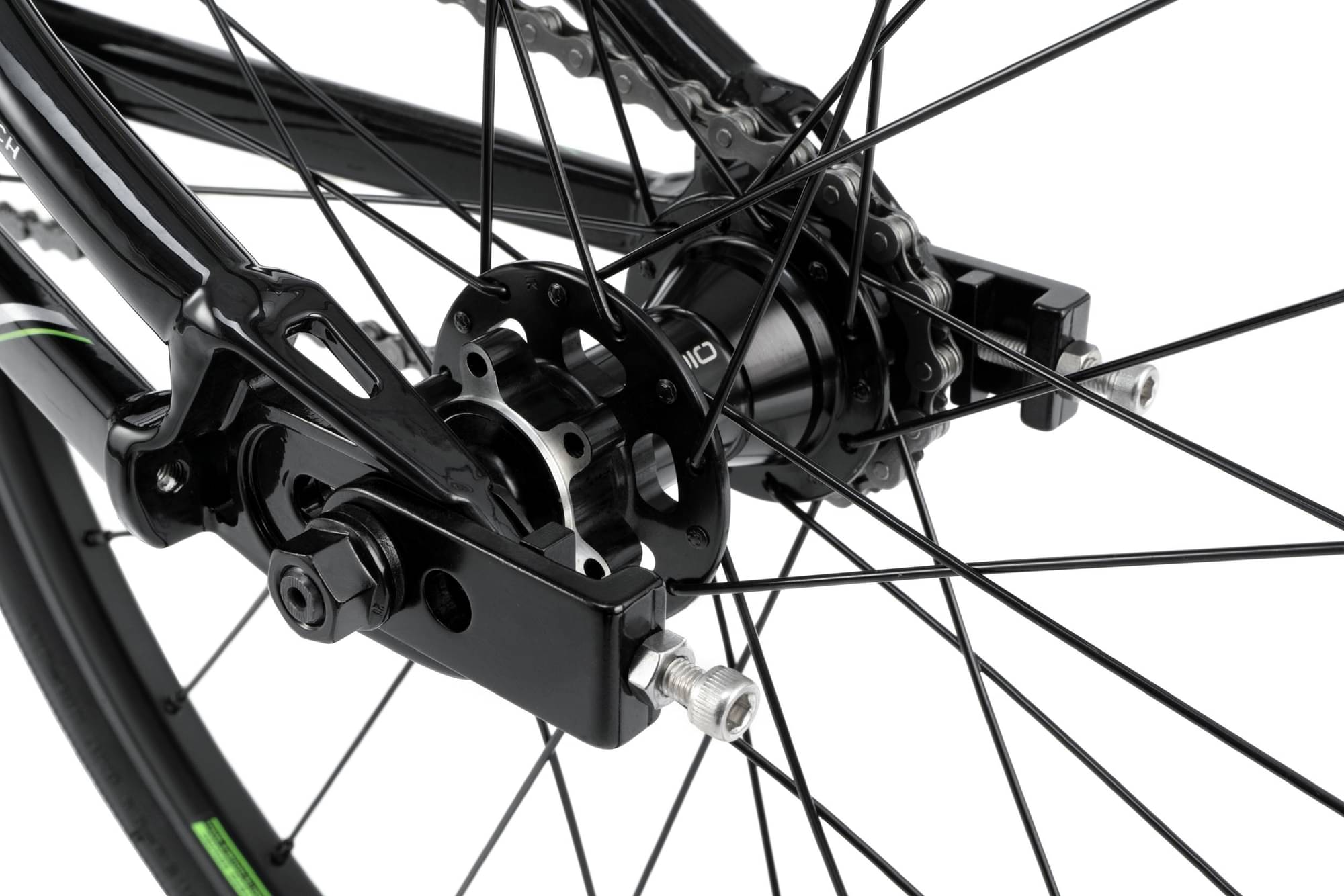

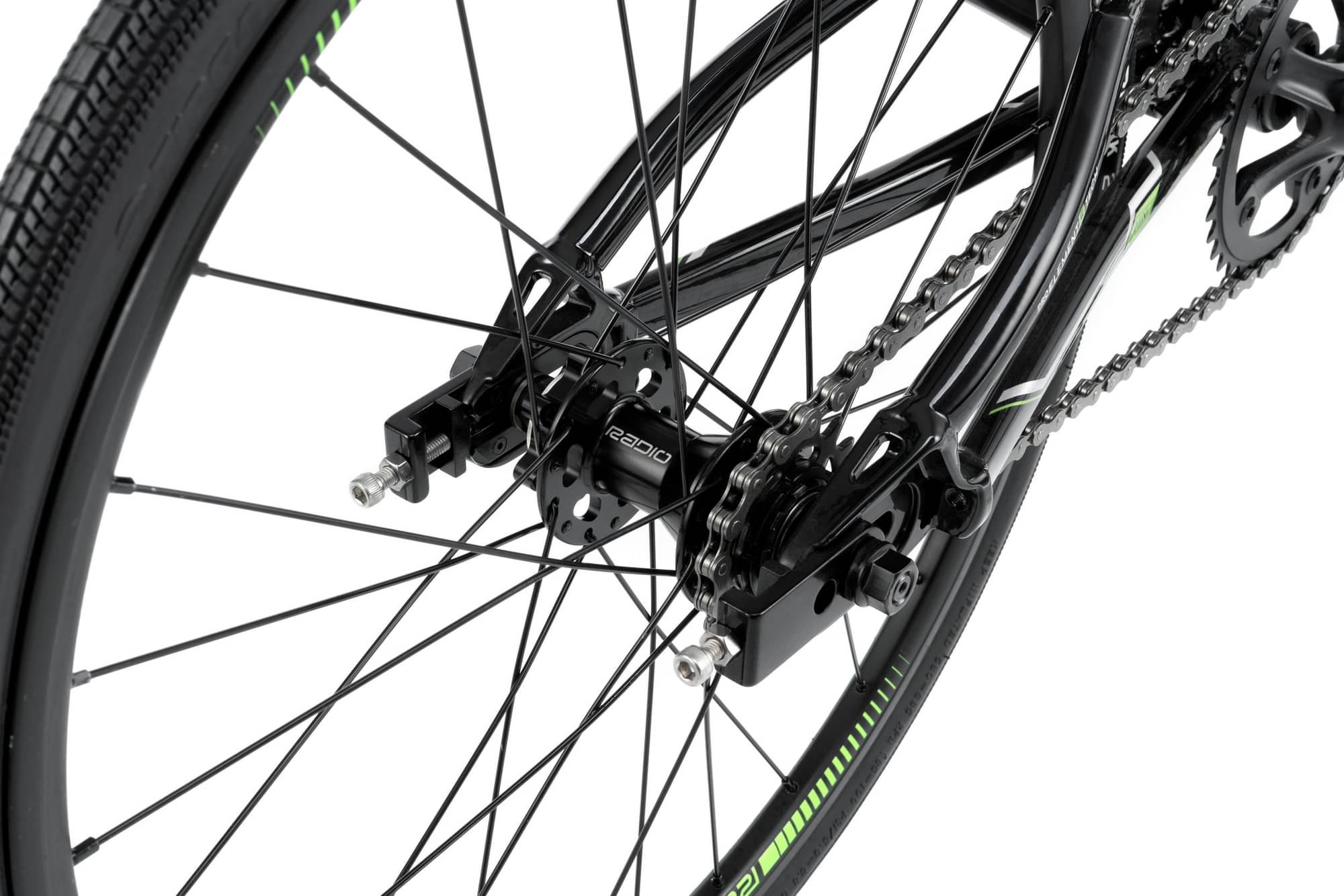

Rear Hub
Radio, Xenon, alloy cnc, fully sealed, 28T, disc brake cassette, 3/8? cr-mo axle
Rims
Radio, Clipper Junior, 28H, alloy, sleeved joint

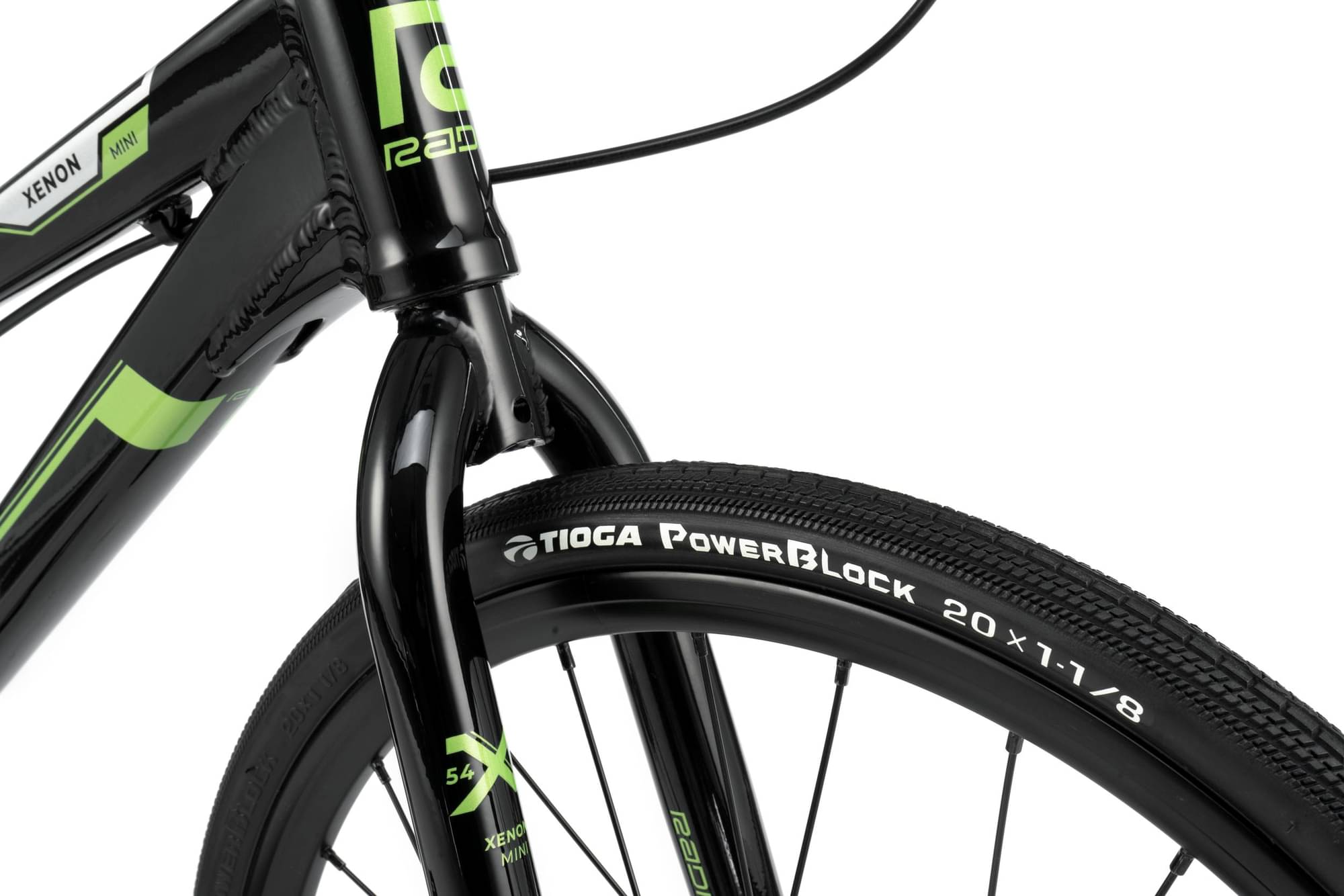

Tires
Tioga, Power-Block, 20?x 1-1/8?
Brakes
Brakes
PROMAX “MV-85” alloy brake rear
Brake Levers
PROMAX “XL-378” alloy brake rear

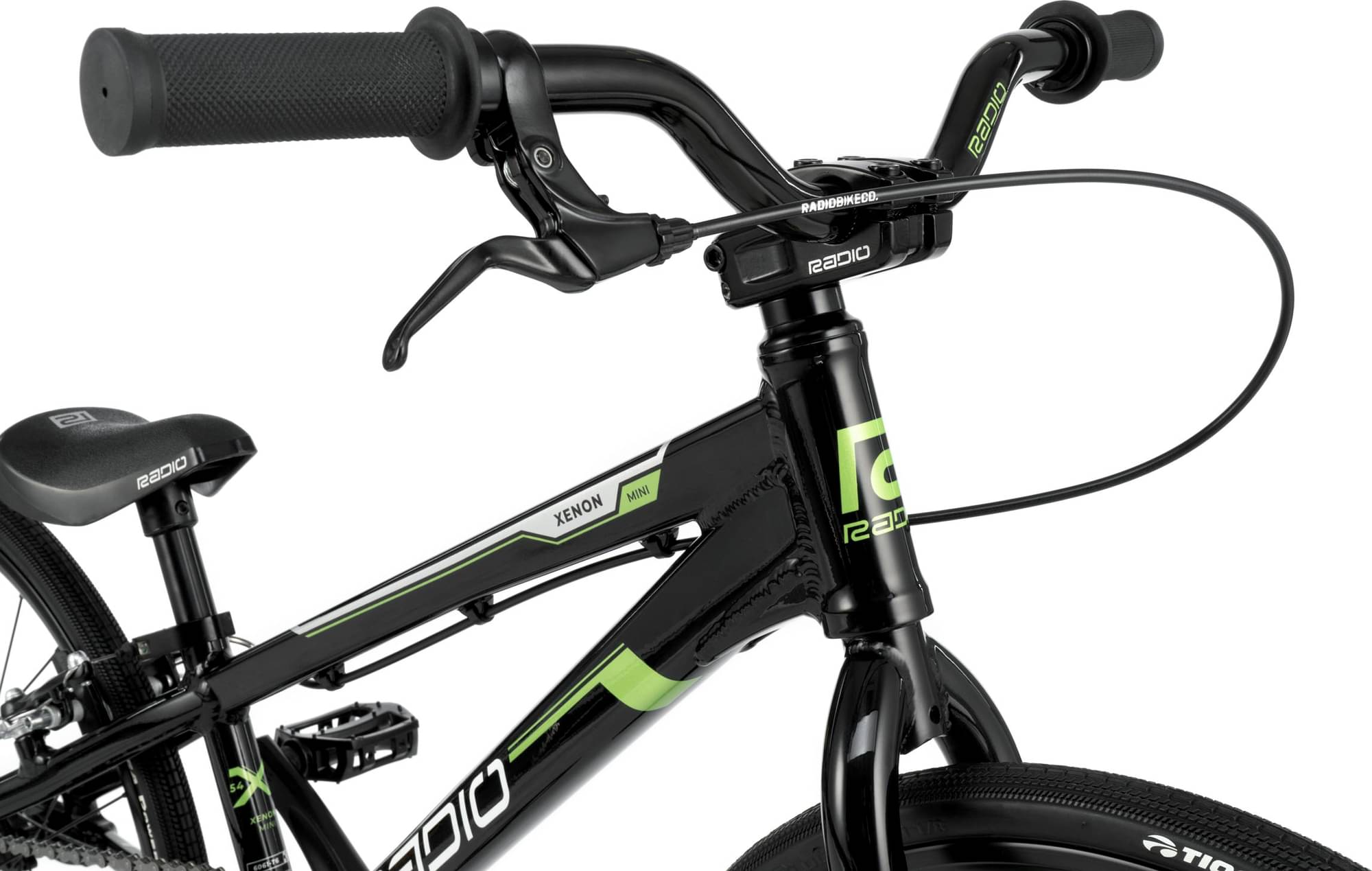

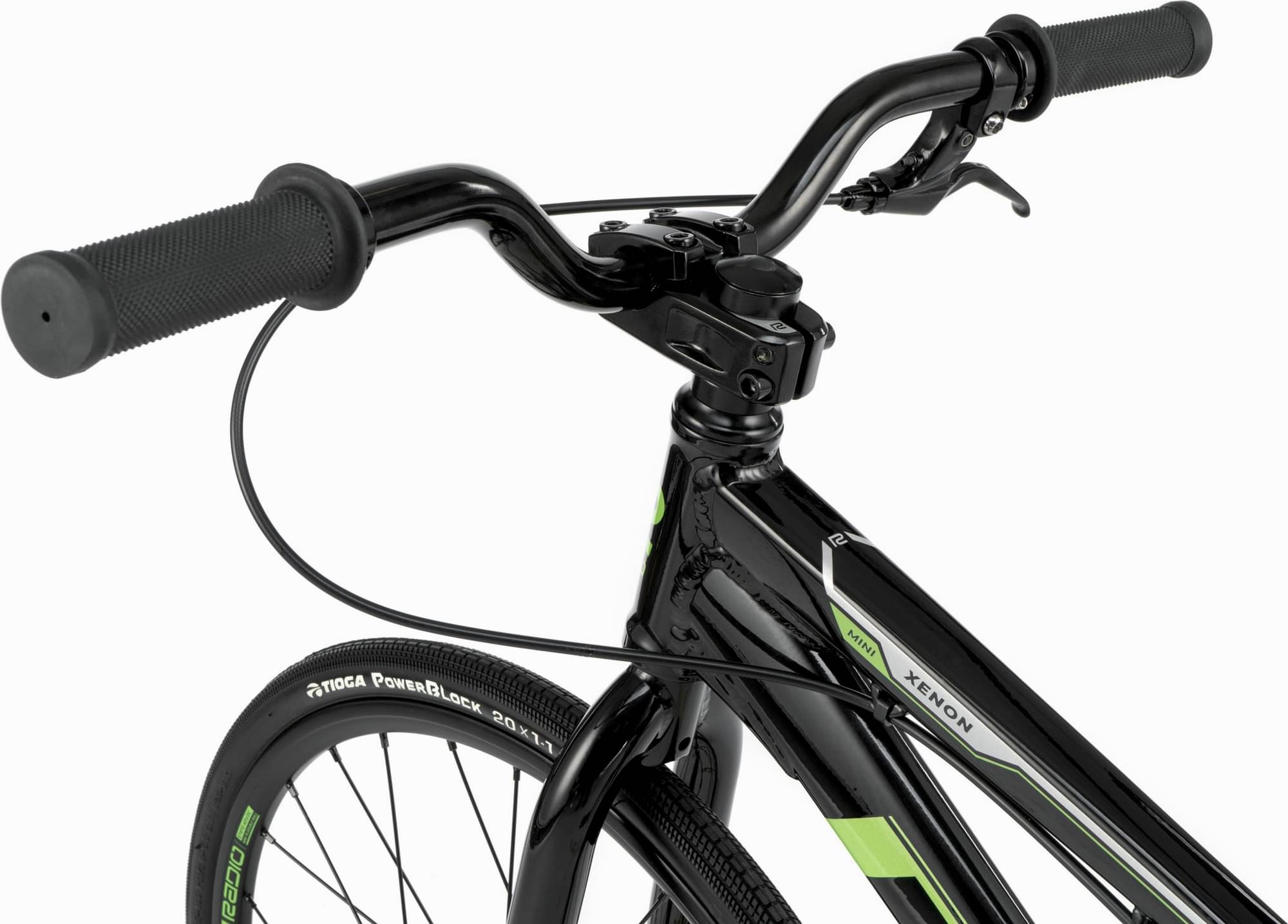

Cockpit
Stem
Radio, Cobalt-toploader, ext. 40mm, alloy
Handlebar
6061-T6 alloy
Grips
Radio, Xenon, diamond knurling, clamp on grip, 115mm length
Headset
Radio, integrated headset, sealed, 1?
Seat

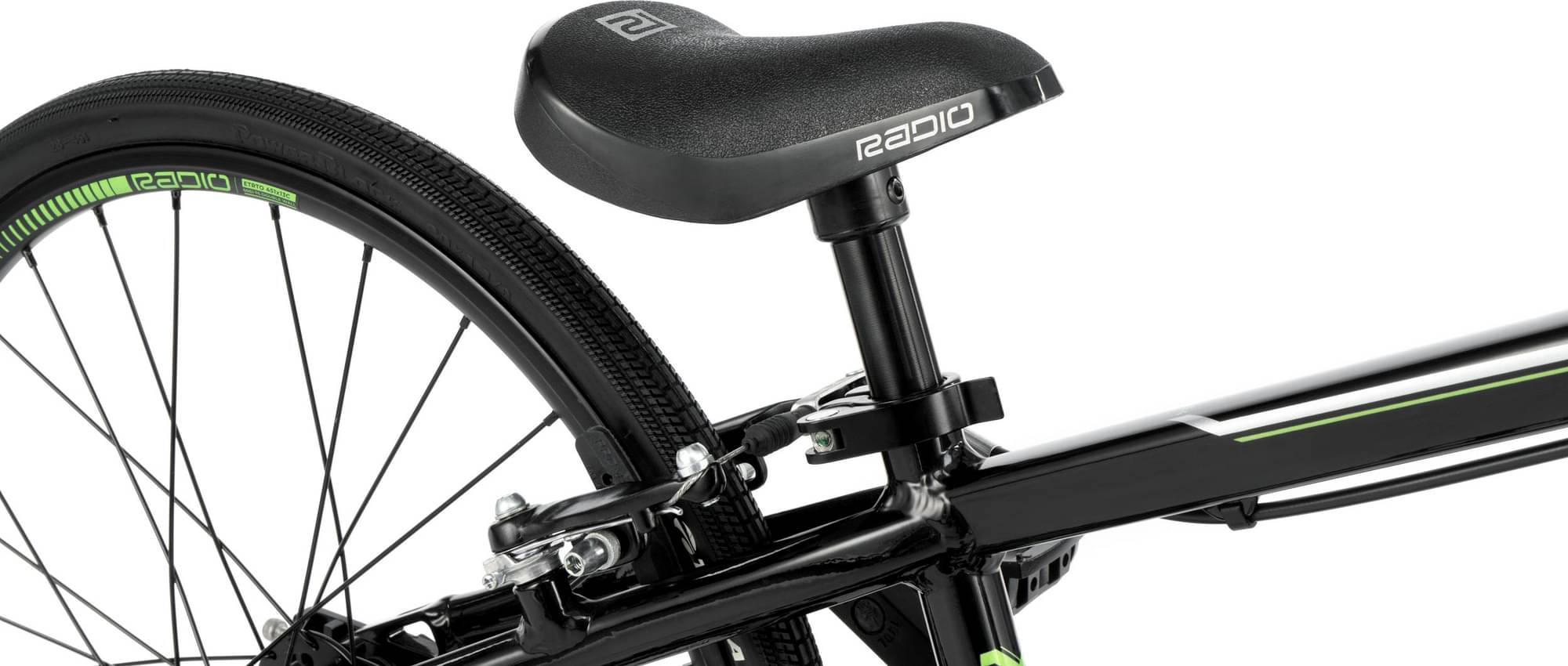

Saddle
RADIO “Mini” combo seat
Seatpost
22.2mm alloy
Fit data
Geometry
