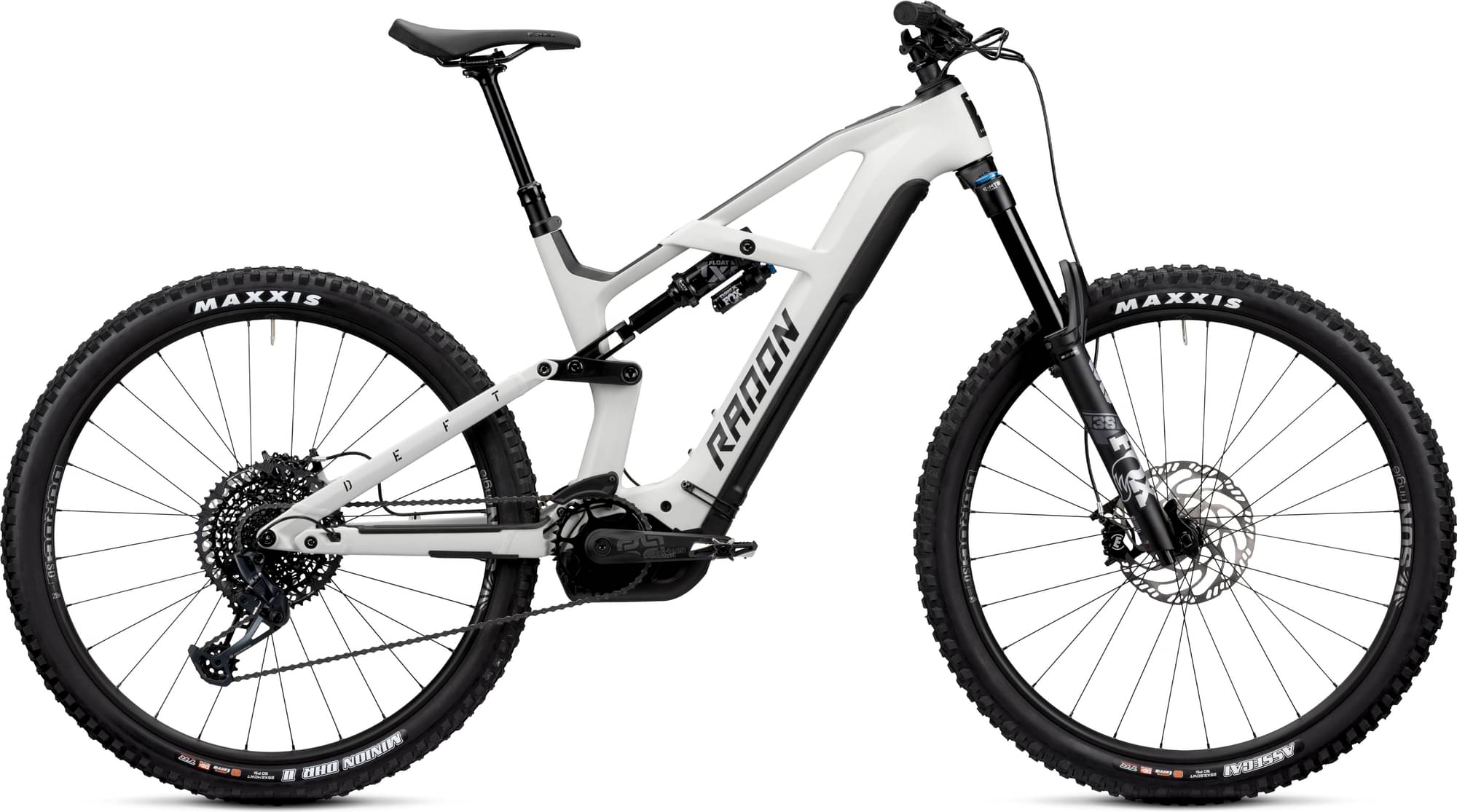

Radon DEFT 9.0 750 MS 2023

2023 E-bike
Estimate price | 7,110$
Weight | 24.6 kg
E-bike
Open compare Use advisor
Radon Deft 9.0 750 Ms 2023

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Carbon
  • Wheels 29"
  • Travel Front 170mm
  • Travel Rear 170mm
  • Fork Fox Performance Elite Float 38
  • Groupset GX Eagle, NX Eagle
  • Suspension Full
  • Motor Bosch 250W 85Nm mid-drive
  • Battery Bosch Powertube 750Wh
  • Drivetrain 1 × 12
  • Brakes Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

DEFT; Material: Carbon main frame / Aluminium rear triangle, Max. width tire: 2.6", Powertube Capacity: 750 Wh horizontal, Hanger: UDH

Suspension Fork

Fox 38 Performance Elite, FIT GRIP2, E-Tuned, Boost; Rake: 44mm

Rear Shock

Fox Float X Performance Elite, 2-Pos. EVOL LV; Size: 205 x 65mm, Bushing size: top: Trunnion, bottom: DU-Bushing 12.7mm

Drivetrain

Rear Derailleur

SRAM GX Eagle, 12-speed

Shift Levers

SRAM NX Eagle, single click, Shiftmix

Cassette

SRAM GX Eagle XG-1275, 10-52

Crank

e*thirteen e*spec Plus, 165mm, SRAM Eagle Chainring X-SYNC 2, 34T

Chain

SRAM NX Eagle

Chain Guide

Reverse Components Flip-Guide, direct mount

Pedals

not included

Wheels

Rims

SUNringlé Düroc SD37 Expert, 32mm, 110/148mm

Tires

Front: Maxxis Assegai, 3C, MaxxTerra, EXO+, TR, 29" x 2.5" WT, Rear: Maxxis Minion DHR II, 3C, MaxxTerra, EXO+, TR, 29" x 2.4" WT

Brakes

Brakes

Magura MT5

Cockpit

Stem

Race Face Turbine R, Ø35mm; M: 40mm, L: 40mm, XL: 60mm

Handlebar

Race Face Turbine R, 35 x 780mm, 35mm rise

Grips

SDG Thrice

Headset

Acros Block-Lock, ZS56/ZS56; Internal cable routing

Seat

Saddle

SDG Bel Air V3 Max

Seatpost

RADON Competition Dropper, Ø31.6mm; M: 125mm travel, L: 150mm travel, XL: 150mm travel

Motor & Battery

Motor

Bosch Performance Line CX Gen4 Smart System

Battery

Bosch Powertube 750Wh

Charger

Bosch Standard Charger 4A
