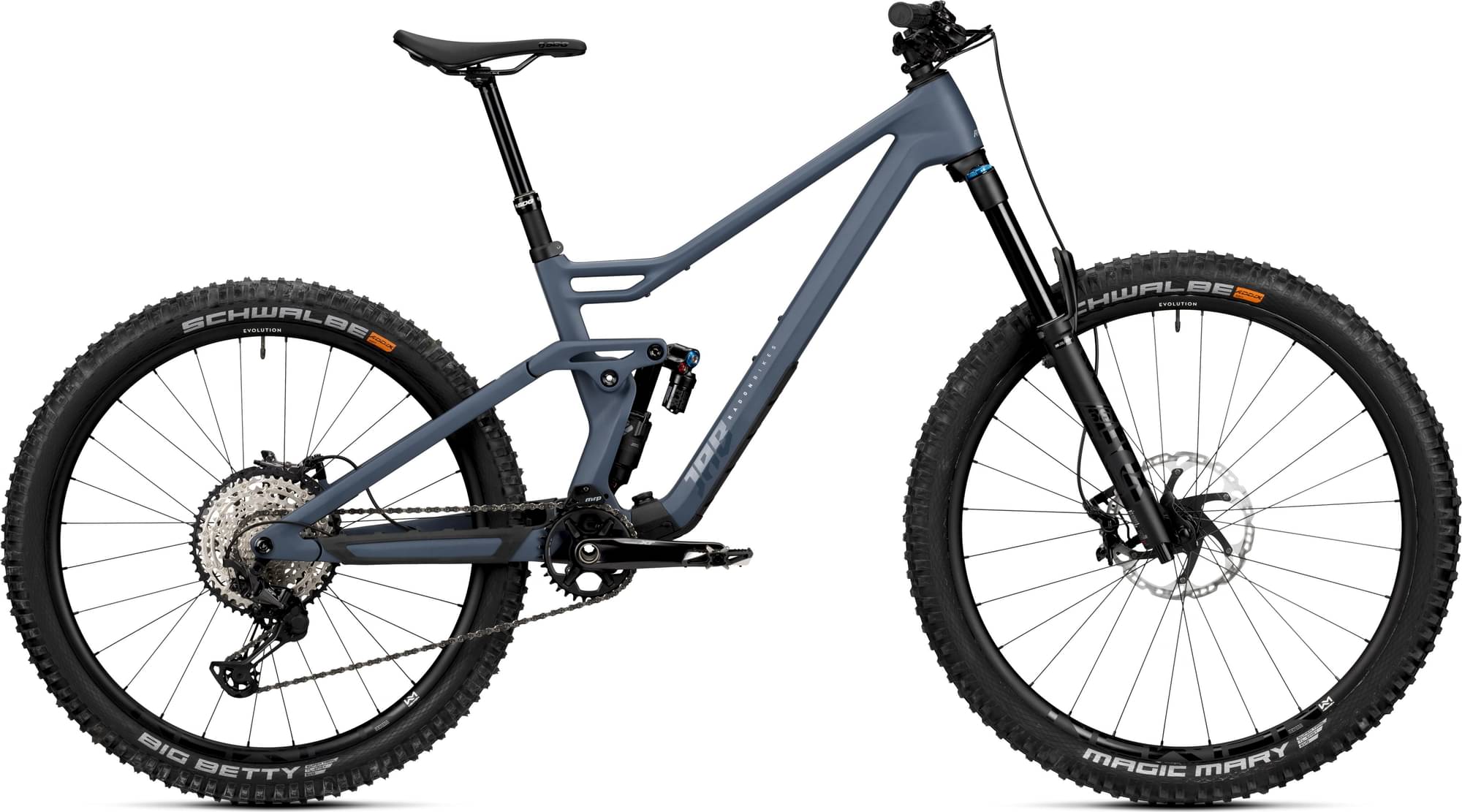

Radon JAB MX 10.0 2024
2024 Mountain
Estimate price |
5,583$
Weight | 14.15 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Elite Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JAB MX; Material: Full Carbon mainframe and rear triangle, Max. width tire: 27.5", 2.4", Angle headset for geometry adjusting, Hanger: UDH
Suspension Fork
Fox 36 Performance Elite, FIT GRIP2, Boost; Rake: 44mm
Rear Shock
Fox Float X2 Performance Elite, 2-Pos. EVOL LV; Size: 205 x 60mm, Bushing size: top: Trunnion, bottom: 8 x 30mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, 12-speed
Shift Levers
Shimano XT SL-M8100-IR, I-Spec EV
Cassette
Shimano SLX CS-M7100, 10-51
Crank
Shimano XT FC-M8100-1, 32T, 170mm
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano SLX CN-M7100
Chain Guide
MRP 1X, ISCG05
Pedals
not included
Wheels
Rims
Newmen Evolution SL A.30, 110/148mm; Inner width: 30mm, Tubeless ready: ?, Tubeless valves: not included, Tubeless tape: 32-33mm, not included, Tubeless milk: not included
Tires
Front: Schwalbe Magic Mary, Addix-Soft, Super Trail, TLE, 29" x 2.4", Rear: Schwalbe Big Betty, Addix-Soft, Super Trail, TLE, 27.5" x 2.4"
Brakes
Brakes
Shimano XT BR-M8120
Cockpit
Stem
Race Face Turbine R, Ø35mm; S: 40mm, M: 40mm, L: 50mm, XL: 50mm
Handlebar
Race Face Turbine R, 35 x 800mm, 35mm rise
Grips
SDG Thrice
Headset
Acros Angleset, ZS56/ZS56; Internal cable routing
Seat
Saddle
SDG Bel Air V3
Seatpost
SDG Tellis V2, Ø30.9mm; S: 105-125mm travel, M: 130-150mm travel, L: 130-150mm travel, XL: 150-170mm travel
