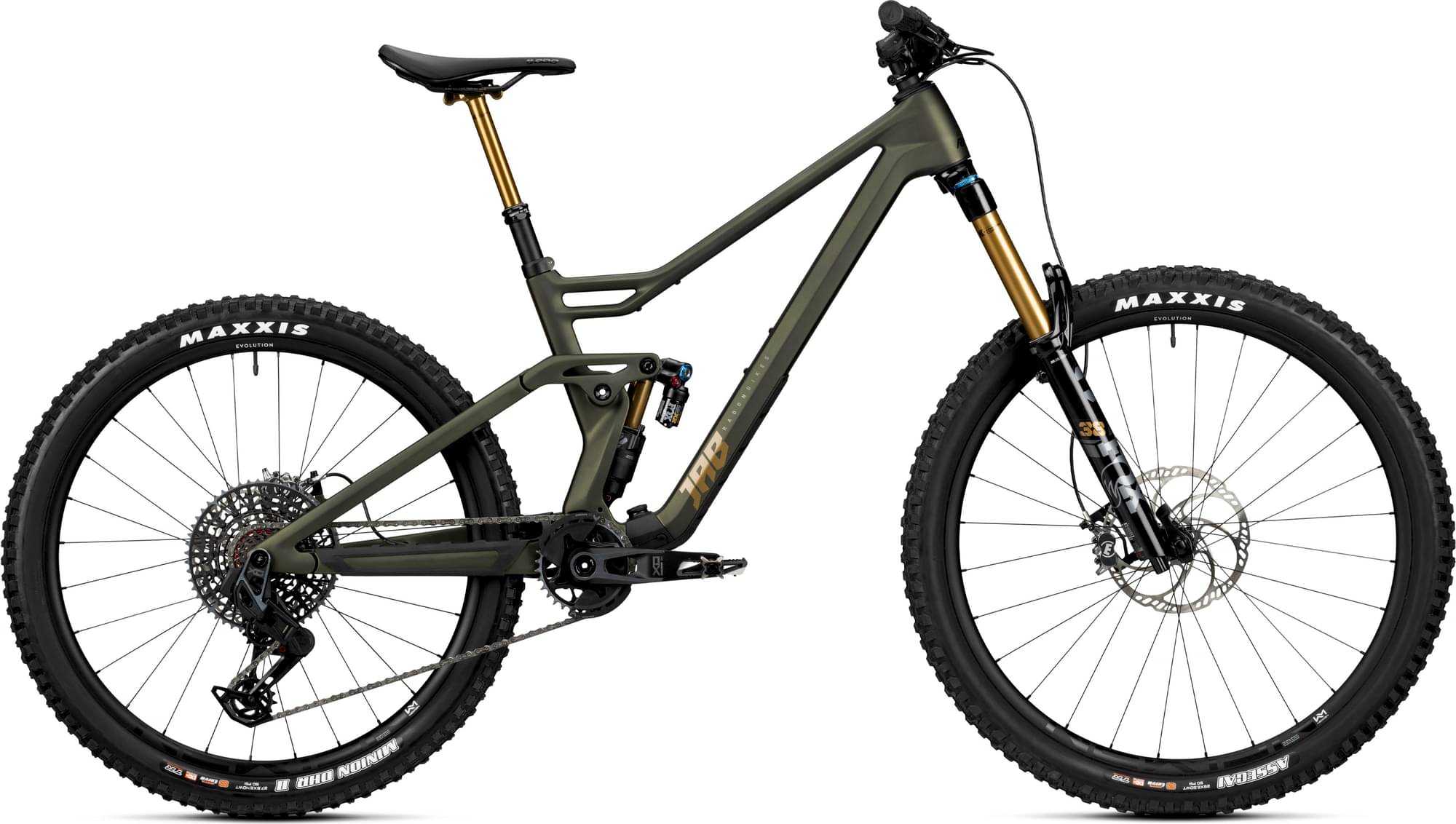

Radon JAB MX 10.0 HD 2024
2024 Mountain
Estimate price |
6,397$
Weight | 14.25 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JAB MX; Material: Full Carbon mainframe and rear triangle, Max. width tire: 27.5", 2.4", Angle headset for geometry adjusting, Hanger: UDH
Suspension Fork
Fox 38 Factory, FIT GRIP2, Kashima, Boost; Rake: 44mm
Rear Shock
Fox Float X2 Factory, 2-Pos. EVOL LV, Kashima; Size: 205 x 60mm, Bushing size: top: Trunnion, bottom: 8 x 30mm
Drivetrain
Rear Derailleur
SRAM X0 Eagle Transmission, 12-speed
Shift Levers
SRAM AXS POD Controller, Shiftmix
Cassette
SRAM GX Eagle Transmission XS-1275, 10-52
Crank
SRAM X0 Eagle Transmission, DUB, 32T, Boost, 170mm; 2 Composite Guards
Chain
SRAM GX Eagle Transmission Flattop
Chain Guide
MRP 1X, ISCG05
Pedals
not included
Wheels
Rims
Newmen Evolution SL A.30, 110/148mm; Inner width: 30mm, Tubeless ready: ?, Tubeless valves: not included, Tubeless tape: 32-33mm, not included, Tubeless milk: not included
Tires
Front: Maxxis Assegai 3C, MaxxTerra, EXO+, TR, 29" x 2.5" WT, Rear: Maxxis Minion DHR II 3C, MaxxTerra, EXO+, TR, 27.5" x 2.4" WT
Brakes
Brakes
Magura MT7
Cockpit
Stem
Race Face Turbine R, Ø35mm; S: 40mm, M: 40mm, L: 50mm, XL: 50mm
Handlebar
Race Face Turbine R, 35 x 800mm, 35mm rise
Grips
SDG Thrice
Headset
Acros Angleset, ZS56/ZS56; Internal cable routing
Seat
Saddle
SDG Bel Air V3, Lux alloy
Seatpost
Fox Transfer Factory, Kashima, Ø30.9mm; S: 125mm travel, M: 150mm travel, L: 150mm travel, XL: 150mm travel
