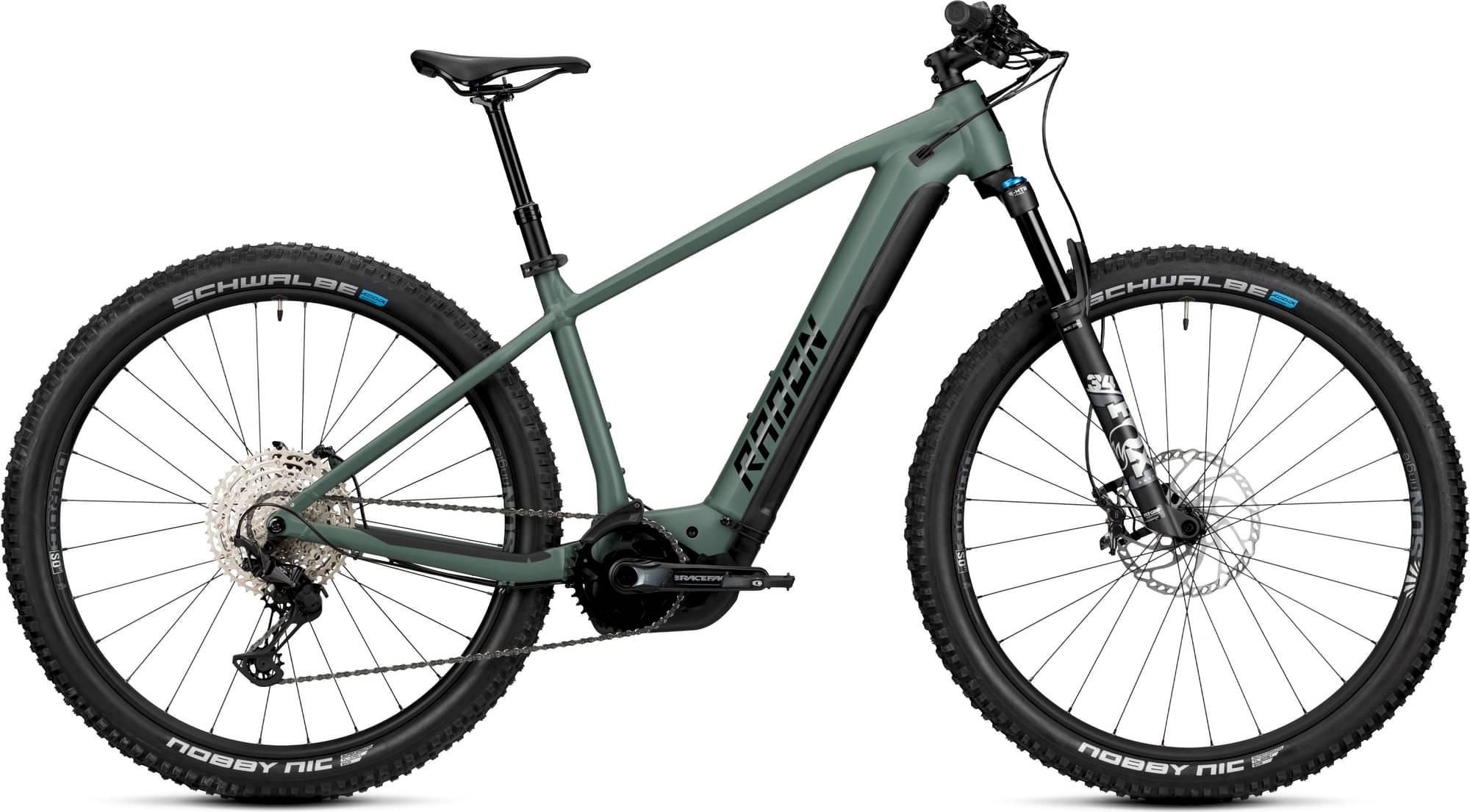

Radon JEALOUS HYBRID 10.0 750 2024
2024 E-bike
Estimate price |
4,816$
Weight | 23.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Fox Rhythm Float 34
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Powertube 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JEALOUS HYBRID 750; Material: Aluminium, Max. tire width: 2.6", Powertube battery 750Wh horizontal, Hanger: UDH
Suspension Fork
Fox 34 Rhythm, GRIP, Sweep-Adjust, E-Tuned, Boost; Rake: 51mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, 12-speed
Shift Levers
Shimano DEORE SL-M6100-IR, I-Spec EV
Cassette
Shimano DEORE CS-M6100, 10-51
Crank
Race Face Æffect E-Bike, 175mm, Samox chainring, 38T
Chain
Shimano DEORE CN-M6100
Chain Guide
Reverse Components Flip-Guide, direct mount
Pedals
not included
Wheels
Rims
SUNringlé Düroc SD37 Expert, 110/148mm; Rim height: 17mm, Inner width: 32mm, Tubeless ready: ?, Tubeless valves: not included, Tubeless tape: ?, Tubeless milk: not included
Tires
Schwalbe Nobby Nic, Addix-Speedgrip, Super Ground, TLE, 29" x 2.6"
Brakes
Brakes
Shimano XT BR-M8120
Cockpit
Stem
LEVELNINE Race, Ø31.8mm; 16": 60mm, 18": 75mm, 20": 75mm, 22": 90mm
Handlebar
LEVELNINE Race, 31.8 x 740mm
Grips
ACID React Pro
Headset
Acros Block-Lock, ZS56/ZS56
Seat
Saddle
Natural Fit Venec
Seatpost
Radon Dropper, Ø30.9mm; 16": 130mm, 18": 130mm, 20": 130mm, 22": 130mm
Motor & Battery
Motor
Bosch Performance Line CX Gen4 Smart System
Battery
Bosch Powertube 750Wh
Charger
Bosch Charger 4A
