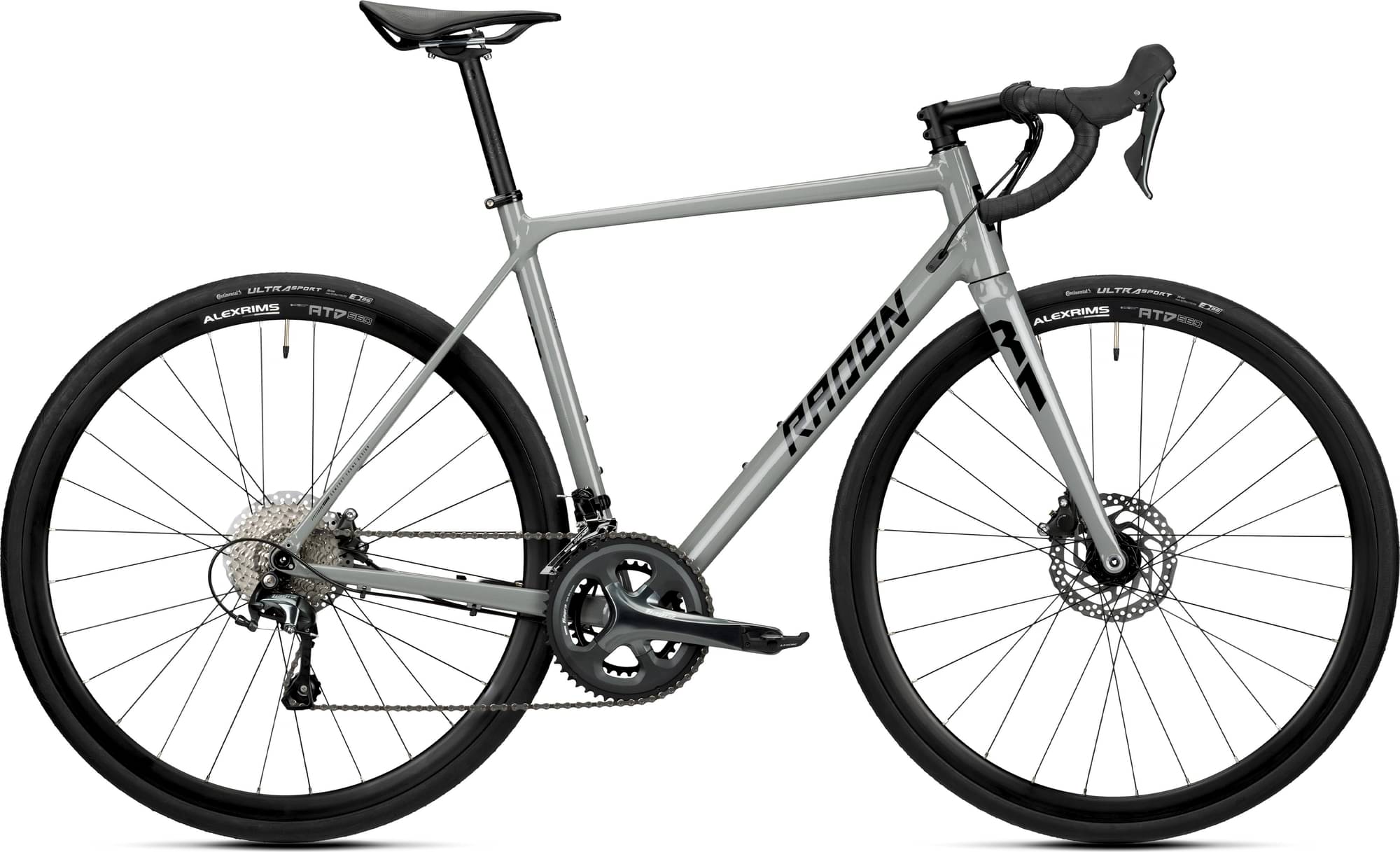

Radon R1 Tiagra 2024
2024 Road
Estimate price |
1,511$
Weight | 9.85 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset 105, Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
R1; Material: Aluminium, Max. width tire: 28mm, Hanger: #10240
Suspension Fork
R1 Full Carbon
Drivetrain
Rear Derailleur
Shimano Tiagra RD-4700-GS, 10-speed
Front Derailleur
Shimano 105 FD-R7000, clamp-on
Shift Levers
Shimano Tiagra ST-4720, 2x10
Cassette
Shimano CS-HG500-10, 11-34
Crank
Shimano Tiagra FC-4700, 50/34T; 50cm: 170mm, 53cm: 172,5mm, 56cm: 172,5mm, 58cm: 175mm, 60cm: 175mm, 63cm: 175mm
Chain
Shimano CN-HG54
Pedals
not included
Wheels
Front Hub
Joytech Disc D981 12/100mm, 6-bolt
Rear Hub
Joytech Disc D982TSE 12/142mm, 6-bolt
Rims
Alexrims ATD560; Rim height: 30mm, Inner width: 19mm, Tubeless ready: ?, Tubeless valves: not included, Tubeless tape: 21-22mm, not included, Tubeless milk: not included
Spokes
Pillar CDB1415 ED black
Tires
Continental Ultra Sport 3, wired, 28" x 28mm
Brakes
Brakes
Shimano Tiagra BR-R4770, flat-mount
Cockpit
Stem
LEVELNINE Race, 31.8mm; 50cm: 90mm, 53cm: 90mm, 56cm: 100mm, 58cm: 100mm, 60cm: 120mm, 63cm: 120mm
Handlebar
LEVELNINE Wing Race, 31.8mm; 50cm: 400mm, 53cm: 420mm, 56cm: 440mm, 58cm: 440mm, 60cm: 460mm, 63cm: 460mm
Grips
RADON performance tape
Headset
VP, IS42/IS52; Bearing dimensions:, Upper: MH-P08, 41.8x6.5mm, 45/45°, Lower: MH-P16, 52x7mm, 45/45°
Seat
Saddle
Selle Italia Model X Superflow
Seatpost
LEVELNINE Race, 27.2 x 350mm
