Radon RELATE 8.0 750 2024

2024 E-bike
Estimate price | 4,303$
Weight | 25.95 kg
E-bike
Open compare Use advisor

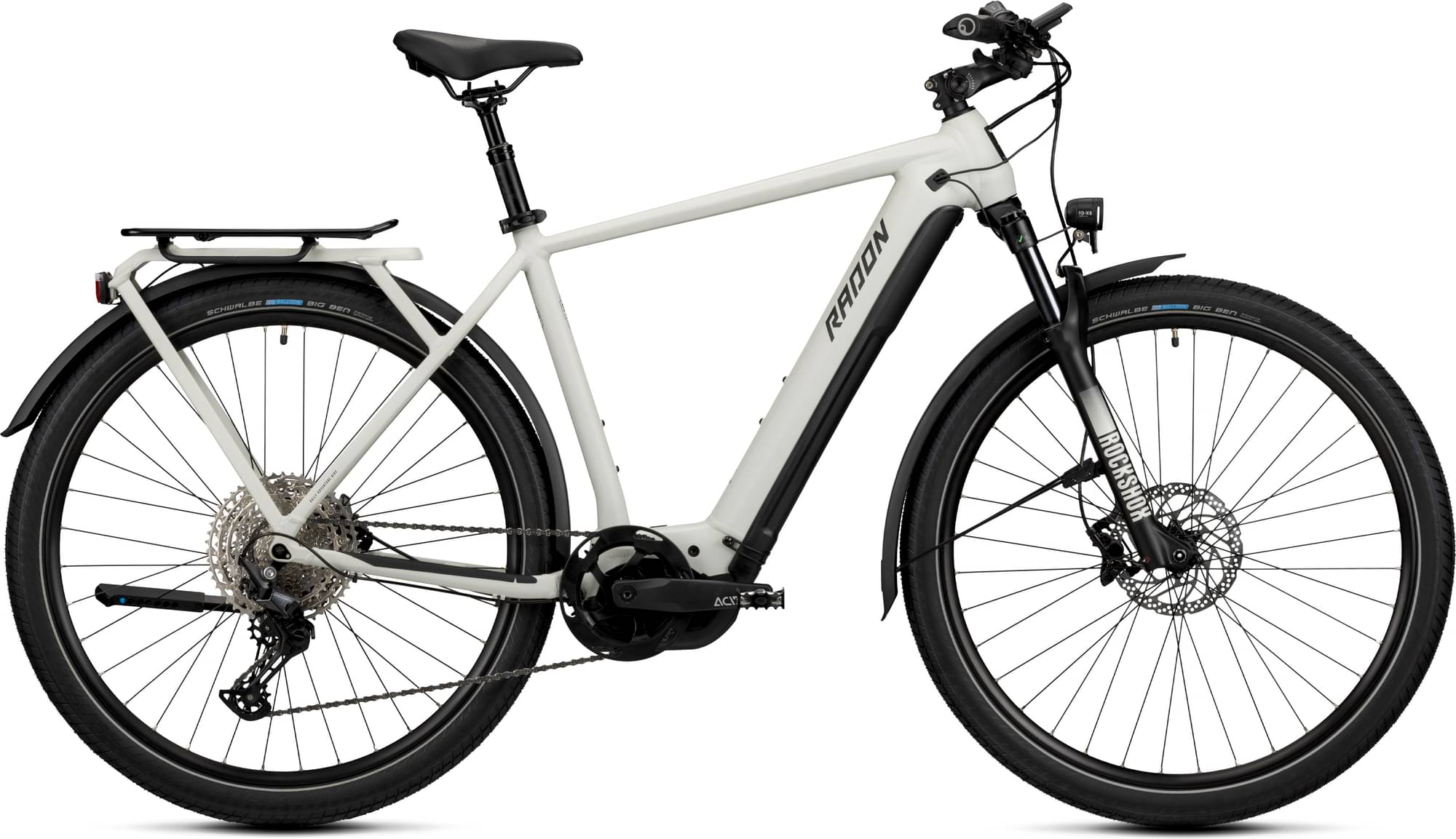

Radon Relate 8.0 750 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Travel Front 100mm
  • Fork RockShox Recon Silver RL
  • Groupset Deore
  • Suspension Hardtail
  • Motor Bosch 600W 85Nm mid-drive
  • Battery Bosch Powertube 750Wh
  • Drivetrain 1 × 12
  • Brakes Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

RELATE 750; Material: Aluminium, Powertube battery 750Wh horizontal, Hanger: #8651

Suspension Fork

RockShox Recon Silver RL, Air, Boost; Rake: 42mm

Drivetrain

Rear Derailleur

Shimano DEORE RD-M6100-SGS, 12-speed

Shift Levers

Shimano DEORE SL-M6100-IR, I-Spec-EV

Cassette

Shimano DEORE CS-M6100, 10-51

Crank

Acid E-Crank, 175mm, KMC chainring, 38T

Chain

Shimano DEORE CN-M6100

Pedals

not included

Wheels

Front Hub

Shimano HB-TC500-15-B, 36h, 110mm

Rear Hub

Shimano FH-TC500-MS-B, 36h, 148mm

Rims

Alexrims MD23; Rim height: 19mm, Inner width: 23mm, Tubeless ready: ?, Tubeless valves: not included, Tubeless tape: 25-26mm, not included, Tubeless milk: not included

Spokes

Pillar C14 ED black

Tires

Schwalbe Big Ben, PerfL, wired, Reflex, 28" x 55mm

Brakes

Brakes

Shimano BR-MT420/BR-MT410

Cockpit

Stem

Humpert Swell-R Eco adjust, Ø31.8mm; 54cm: 100mm, 58cm: 100mm, 62cm: 120mm

Handlebar

RADON Comfort Trail Bar, 31.8 x 680mm

Grips

Ergon GP10-L

Headset

Acros Block-Lock, ZS44/ZS56

Seat

Saddle

Ergon ST10

Seatpost

RADON suspension seatpost, Ø30.9 x 350mm

Motor & Battery

Motor

Bosch Performance Line CX Gen4 Smart System

Battery

Bosch Powertube 750Wh
