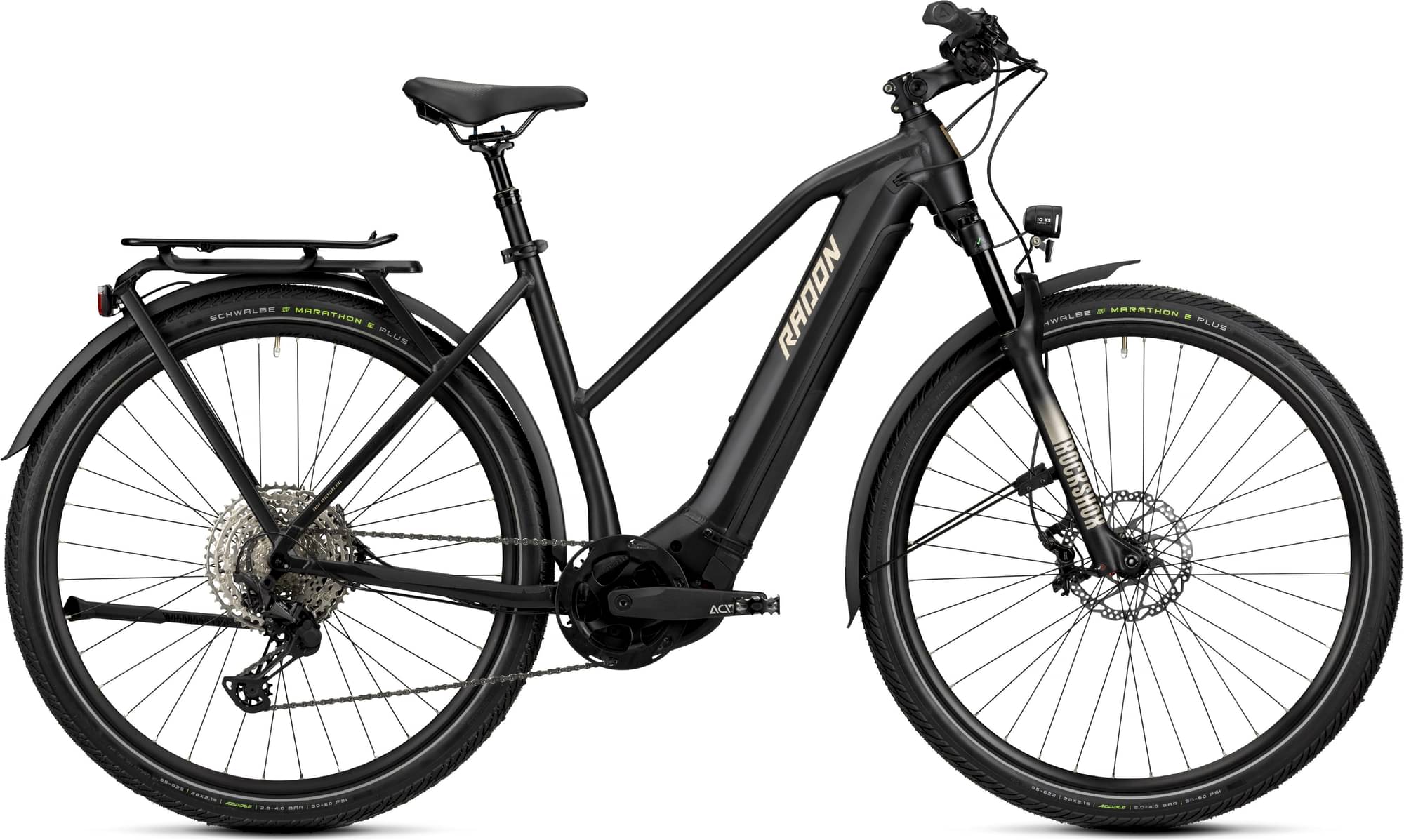

Radon RELATE 9.0 625 Lady 2024
2024 E-bike
Estimate price |
4,420$
Weight | 25.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Recon Gold RL
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Powertube 625Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RELATE 625; Material: Aluminium, Powertube battery 625Wh horizontal, Hanger: #8651
Suspension Fork
RockShox Recon Gold RL, Air, Boost; Rake: 42mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, 12-speed
Shift Levers
Shimano XT SL-M8100-IR, I-Spec EV
Cassette
Shimano DEORE CS-M6100, 10-51
Crank
Acid E-Crank, KMC chainring, 38T, 175mm
Chain
Shimano DEORE CN-M6100
Pedals
not included
Wheels
Front Hub
Shimano HB-TC500-15-B, 36h, 110mm
Rear Hub
Shimano FH-TC500-MS-B, 36h, 148mm
Rims
Alexrims MD23; Rim height: 19mm, Inner width: 23mm, Tubeless ready: ?, Tubeless valves: not included, Tubeless tape: 25-26mm, not included, Tubeless milk: not included
Spokes
Pillar C14 ED black
Tires
Schwalbe Big Ben, PerfL, wired, Reflex, 28" x 55mm
Brakes
Brakes
Shimano XT BR-M8120/BR-M8100
Cockpit
Stem
Humpert Swell-R Eco adjust, Ø31.8mm; Lady 46cm: 100mm, Lady 50cm: 100mm, Lady 54cm: 100mm
Handlebar
RADON Comfort Trail Bar, Ø31.8 x 680mm
Grips
ACID Hybrid Tour
Headset
Acros Block-Lock, ZS44/ZS56
Seat
Saddle
Natural Fit Sequence
Seatpost
RADON suspension seatpost, 30.9 x 350mm
Motor & Battery
Motor
Bosch Performance Line CX Gen4
Battery
Bosch Powertube 625Wh
