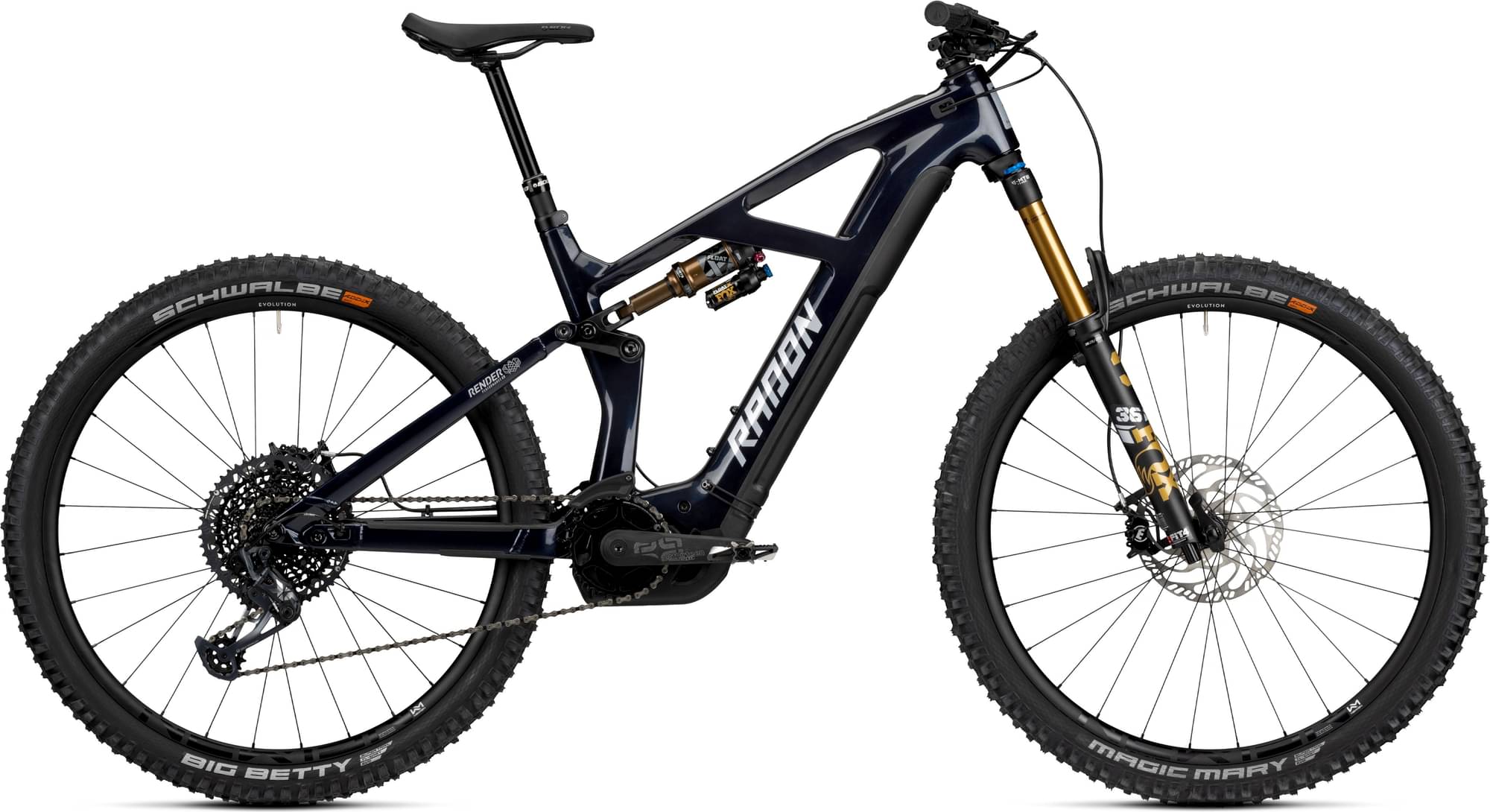

Radon RENDER 10.0 750 2024
2024 E-bike
Estimate price |
7,561$
Weight | 23.45 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Powertube 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RENDER 750; Material: Carbon main frame / Aluminium rear triangle, Max. width tire: 2.6", Powertube battery 750Wh horizontal, Hanger: UDH
Suspension Fork
Fox 36 Factory, FIT4 3-Pos. Kashima, E-Tuned, Boost; Rake: 44mm
Rear Shock
Fox Float X Factory, 2-Pos. EVOL LV; Size: 210 x 55mm, Bushing Size: top: 8 x 30mm, bottom: DU-Bushing 12.7mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Shift Levers
SRAM GX Eagle, single click, Shiftmix
Cassette
SRAM GX Eagle XG-1275, 10-52
Crank
e*thirteen e*spec Plus, 165mm, SRAM Eagle Chainring, 34T
Chain
SRAM GX Eagle
Chain Guide
Reverse Components Flip-Guide, direct mount
Pedals
not included
Wheels
Rims
Newmen Evolution SL E.G.30, 110/148mm; Inner width: 30mm, Tubeless ready: ?, Tubeless valves: not included, Tubeless tape: 32-33mm, not included, Tubeless milk: not included
Tires
Front: Schwalbe Magic Mary, Addix-Soft, Super Trail, TLE, 29" x 2.4", Rear: Schwalbe Big Betty, Addix-Soft, Super Trail, TLE, 29" x 2.4"
Brakes
Brakes
Magura MT5
Cockpit
Stem
Race Face Turbine R, Ø35mm; M: 40mm, L: 40mm, XL: 50mm
Handlebar
Race Face Turbine R, 35 x 780mm, 20mm rise
Grips
SDG Thrice
Headset
Acros Block-Lock, ZS56/ZS56
Seat
Saddle
SDG Bel Air V3 MAX, Lux alloy
Seatpost
SDG Tellis V2, Ø31.6mm; M: 105-125mm travel, L: 130-150mm travel, XL: 150-170mm travel
Motor & Battery
Motor
Bosch Performance Line CX Gen4 Smart System
Battery
Bosch Powertube 750Wh
Charger
Bosch Charger 4A
