Radon RENDER AL 7.0 750 2024

2024 E-bike
Estimate price | 4,769$
Weight | 25.85 kg
E-bike
Open compare Use advisor

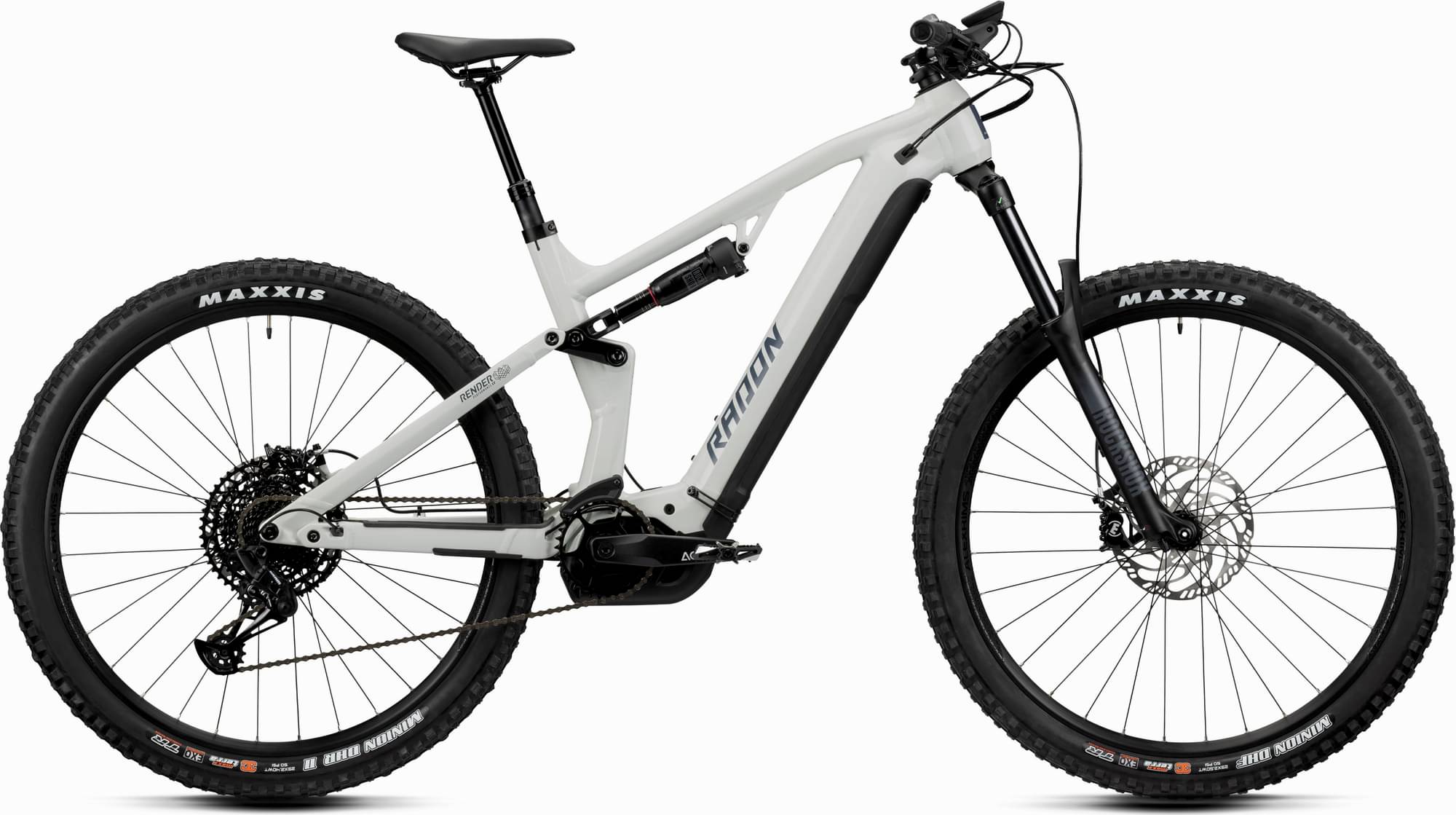

Radon Render Al 7.0 750 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Travel Front 160mm
  • Travel Rear 140mm
  • Fork RockShox 35 Silver
  • Groupset SX Eagle
  • Suspension Full
  • Motor Bosch 600W 85Nm mid-drive
  • Battery Bosch Powertube 750Wh
  • Drivetrain 1 × 12
  • Brakes Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

RENDER AL; Material: Alloy main frame / Aluminium rear triangle, Max. width tire: 2.6", Powertube Capacity: 750Wh, Hanger: UDH

Suspension Fork

RockShox 35 Silver R, Coil, Boost; Rake: 44mm

Rear Shock

RockShox Deluxe Select, Debonir+; Size: 210 x 55mm, Bushing Size: body: 8 x 20mm, shaft: DU-Bushing 12.7mm

Drivetrain

Rear Derailleur

SRAM SX Eagle, 12-speed

Shift Levers

SRAM SX Eagle, Single-Click

Cassette

SRAM PG-1210 Eagle, 11-50

Crank

Acid E-Crank, 165mm, SRAM Eagle X-SYNC 2 Chainring, 34T

Chain

SRAM SX Eagle

Chain Guide

Reverse Components Flip-Guide, direct mount

Pedals

not included

Wheels

Front Hub

Shimano Alivio HB-MT400-B, 110mm

Rear Hub

Shimano Alivio FH-MT400-B, 148mm

Rims

Alexrims MD30, 30mm

Spokes

DT Swiss Factory

Tires

Front: Maxxis Minion DHF, 3C, Maxterra, EXO, TR, 29" x 2.5" WT, Rear: Maxxis Minion DHR II, 3C, Maxterra, EXO, TR, 29" x 2.4" WT

Brakes

Brakes

Magura MT5 Thirty

Cockpit

Stem

Race Face Ride, Ø35mm; M: 50mm, L: 50mm, XL: 60mm

Handlebar

Race Face Chester, 35 x 780mm, 20mm rise

Grips

ACID React Pro

Headset

Acros Block-Lock, ZS56/ZS56

Seat

Saddle

Natural Fit Venec Lite

Seatpost

Radon Dropper, Ø31.6mm; M: 130mm travel, L: 130mm travel, XL: 130mm travel

Motor & Battery

Motor

Bosch Performance Line CX Gen4 Smart System

Battery

Bosch Powertube 750Wh

Charger

Bosch Standard Charger 4A
