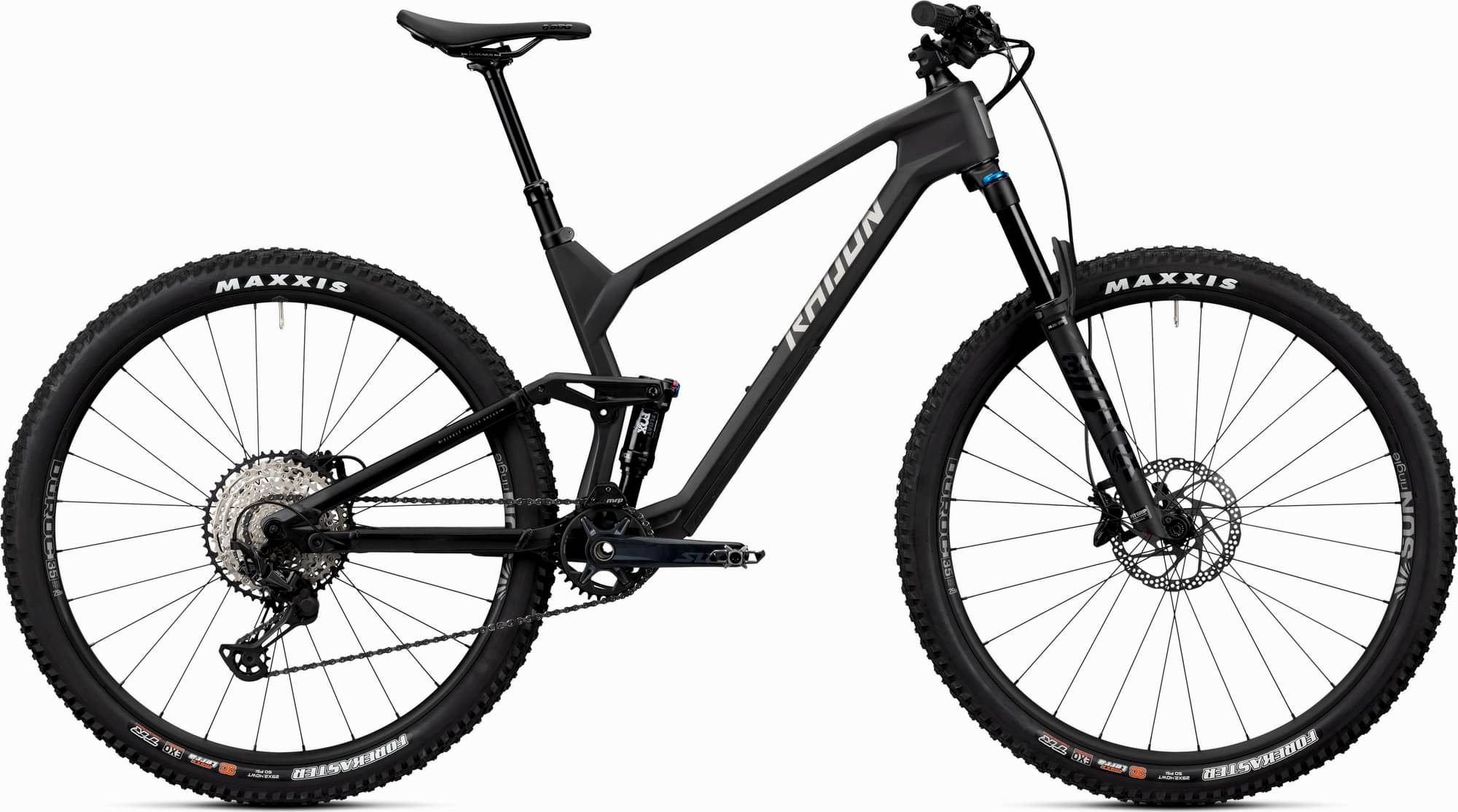

Radon SKEEN TRAIL 9.0 2024
2024 Mountain
Estimate price |
3,489$
Weight | 13.85 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Performance Float 34
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SKEEN TRAIL; Material: Carbon mainframe, alloy rear triangle, Max. width tire: 2.4", Hanger: #10240
Suspension Fork
Fox 34 Performance, FIT GRIP 3-Pos. Boost; Rake: 44mm
Rear Shock
Fox Float Performance, 2-Pos. EVOL LV; Size: 185 x 47.5mm, Bushing size: top: Trunnion, bottom: 8 x 22.2mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, 12-speed
Shift Levers
Shimano SLX SL-M7100-R
Cassette
Shimano SLX CS-M7100, 10-51
Crank
Shimano SLX FC-M7100-1, 32T, 175mm
Chain
Shimano SLX CN-M7100
Chain Guide
MRP 1X, ISCG05
Pedals
not included
Wheels
Rims
SUNringlé Düroc 35 Expert, 110/148mm; Rim height: 17mm, Inner width: 31mm, Tubeless ready: ?, Tubeless valves: not included, Tubeless tape: ?, Tubeless milk: not included
Tires
Maxxis Forecaster 3C, MaxxTerra, Exo, TR, 29" x 2.4" WT
Brakes
Brakes
Shimano BR-MT520/500
Cockpit
Stem
Race Face Æffect R, Ø35mm; 16": 60mm, 18": 60mm, 20": 60mm, 22": 70mm
Handlebar
Race Face Turbine, 35 x 760mm, 20mm rise
Grips
SDG Thrice
Headset
VP, ZS44/ZS56; Bearing dimensions:, Upper: MH-P03, 41x6.5mm, 45/45°, Lower: MH-P16, 52x7mm, 45/45°
Seat
Saddle
SDG Bel Air V3
Seatpost
Radon Competition Dropper, Ø31.6mm; 16": 125mm travel, 18": 150mm travel, 20": 150mm travel, 22": 150mm travel
