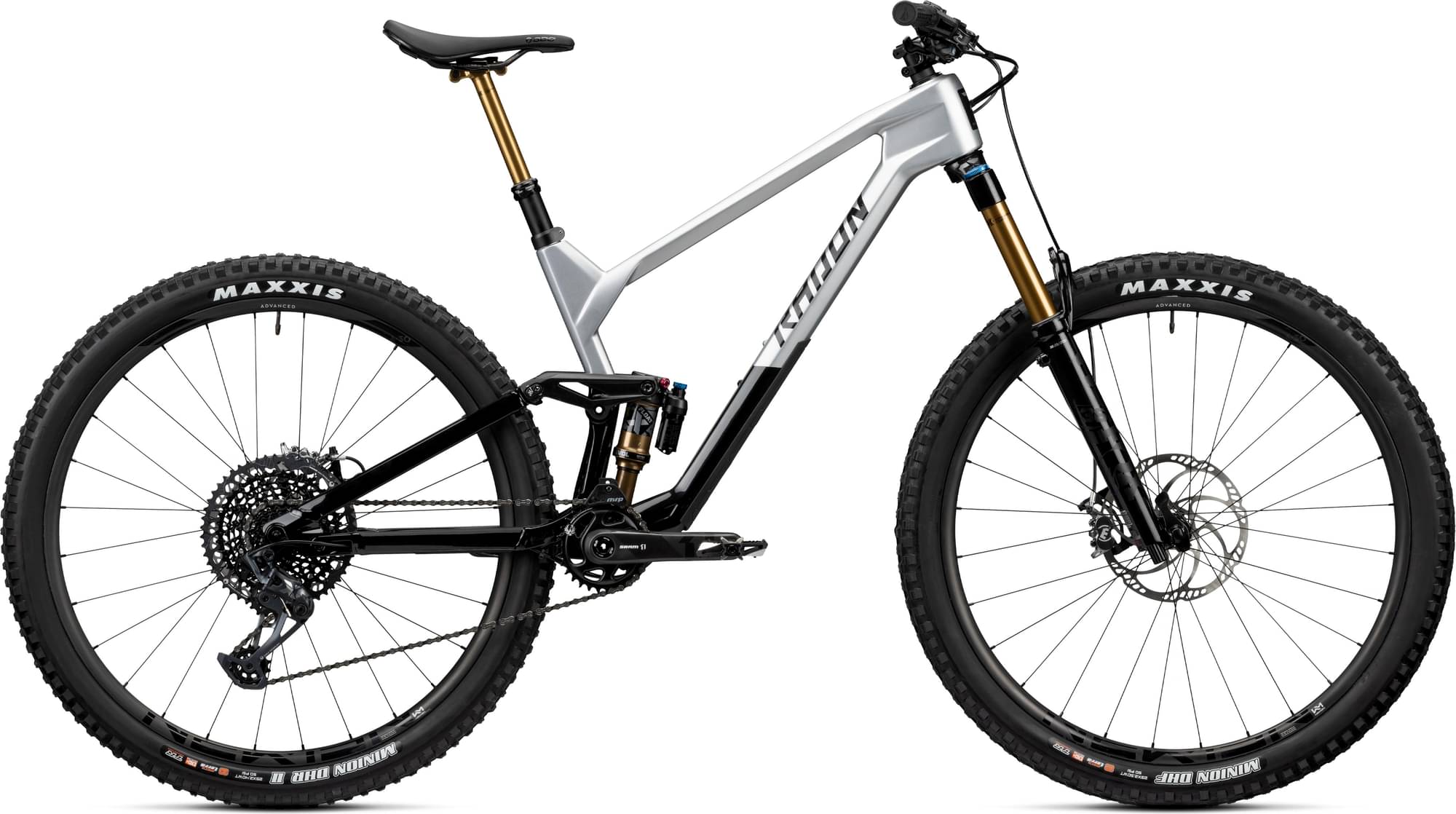

Radon SLIDE TRAIL 10.0 HD 2024
2024 Mountain
Estimate price |
6,048$
Weight | 13.95 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SLIDE TRAIL; Material: Carbon mainframe, alloy rear triangle, Max. width tire: 2.4", Flip Chip for geometry adjusting, Hanger: #10240
Suspension Fork
Fox 36 Factory, FIT GRIP2, Kashima, Boost; Rake: 44mm
Rear Shock
Fox Float X Factory, 2-Pos. EVOL LV, Kashima; Size: 185 x 55mm, Bushing size: top: Trunnion, bottom: 8 x 22.2mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Shift Levers
SRAM GX Eagle, Shiftmix
Cassette
SRAM GX Eagle XG-1275, 10-52
Crank
SRAM X1 Eagle Carbon, DUB, 30T, Boost, 170mm
Chain
SRAM GX Eagle
Chain Guide
MRP 1X, ISCG05
Pedals
not included
Wheels
Rims
Newmen Advanced SL A.30 Carbon, 110/148mm; Inner width: 30mm, Tubeless ready: ?, Tubeless valves: not included, Tubeless tape: 32-33mm, not included, Tubeless milk: not included
Tires
Front: Maxxis Minion DHF 3C, MaxxTerra, EXO+, TR, 29" x 2.5" WT, Rear: Maxxis Minion DHR II 3C, MaxxTerra, EXO+, TR, 29" x 2.4" WT
Brakes
Brakes
Magura MT7
Cockpit
Stem
Race Face Turbine R, Ø35; 16": 50mm, 18": 50mm, 20": 50mm, 22": 50mm
Handlebar
Race Face Turbine R, 35 x 780mm, 35mm rise
Grips
SDG Thrice
Headset
Acros AzX, ZS44/ZS56
Seat
Saddle
SDG Bel Air V3, Lux Alloy
Seatpost
Fox Transfer Factory, Kashima, Ø31.6mm; 16": 125mm, 18": 150mm, 20": 150mm, 22": 150mm
