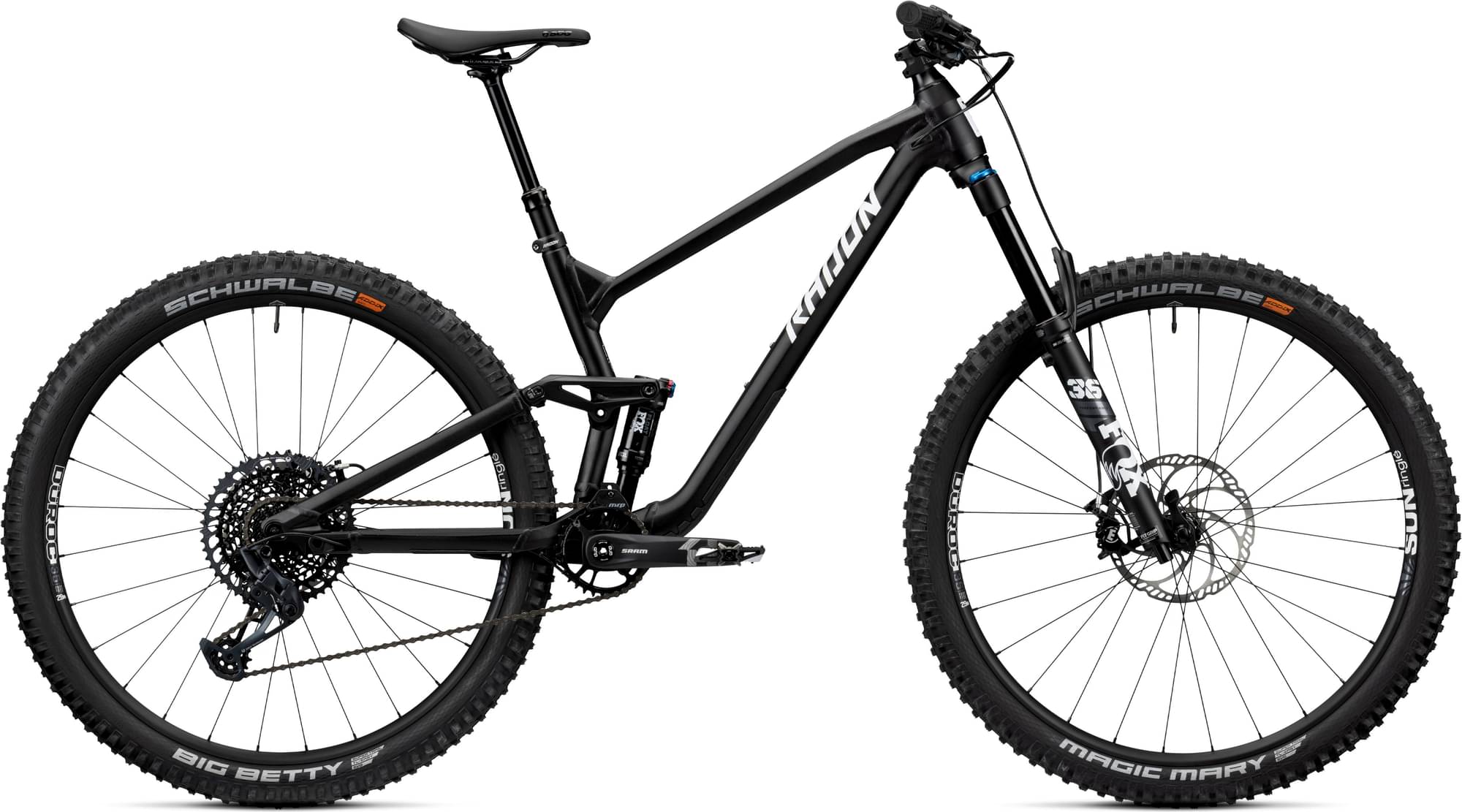

Radon SLIDE TRAIL AL 8.0 2024
2024 Mountain
Estimate price |
3,440$
Weight | 14.95 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset X1, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SLIDE TRAIL AL; Material: Alloy, Max. width tire: 2.4", Flip Chip for geometry adjusting, Hanger: #10240
Suspension Fork
Fox 36 Performance, FIT GRIP 3-Pos. Boost; Rake: 44mm
Rear Shock
Fox Float Performance, 2-Pos. EVOL LV; Size: 185 x 55mm, Bushing size: top: Trunnion, bottom: 8 x 22.2mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Shift Levers
SRAM GX Eagle, Shiftmix
Cassette
SRAM GX Eagle XG-1275, 10-52
Crank
SRAM X1 1000 Eagle, DUB, 30T, Boost, 170mm
Chain
SRAM SX Eagle
Chain Guide
MRP1X, ISCG05
Pedals
not included
Wheels
Rims
SUNringlé Düroc 35 Expert, 110/148mm; Rim height: 17mm, Inner width: 31mm, Tubeless ready: ?, Tubeless valves: not included, Tubeless tape: ?, Tubeless milk: not included
Tires
Front: Schwalbe Magic Mary, Addix-Soft, Super Trail, TLE, 29" x 2.4", Rear: Schwalbe Big Betty, Addix-Soft, Super Trail, TLE, 29" x 2.4"
Brakes
Brakes
Magura MT5
Cockpit
Stem
Race Face Æffect R, Ø35mm; 16": 40mm, 18": 50mm, 20": 50mm, 22": 50mm
Handlebar
Race Face Æffect R, 35 x 780mm, 20mm rise
Grips
SDG Thrice
Headset
VP, ZS44/ZS56; Bearing dimensions:, Upper: MH-P03, 41x6.5mm, 45/45°, Lower: MH-P16, 52x7mm, 45/45°
Seat
Saddle
SDG Bel Air V3
Seatpost
Radon Competition Dropper, Ø31.6mm; 16": 125mm travel, 18": 150mm travel, 20": 150mm travel, 22": 150mm travel
