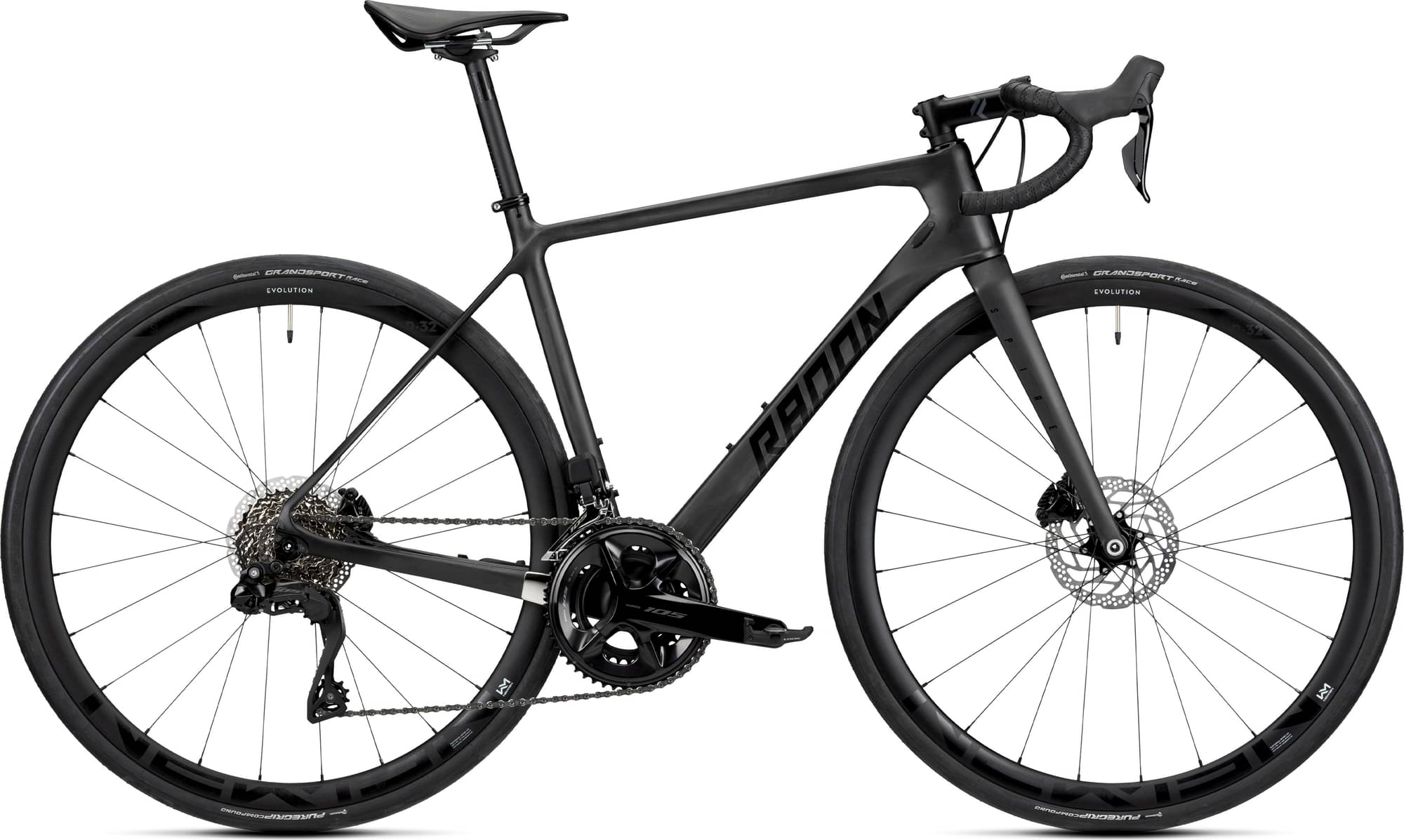

Radon SPIRE 8.0 2024
2024 Road
Estimate price |
3,024$
Weight | 8.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SPIRE; Material: Carbon, Max. width tire: 28mm, Hanger: Road X12 Standard (#3200)
Suspension Fork
SPIRE Full Carbon
Drivetrain
Rear Derailleur
Shimano 105 Di2 RD-R7150, 12-speed
Front Derailleur
Shimano 105 Di2 FD-R7150, braze-on
Shift Levers
Shimano 105 Di2 ST-R7170, 2x12
Cassette
Shimano 105 CS-R7101-12, 11-34
Crank
Shimano 105 FC-R7100, 50/34T; 48cm: 170mm, 51cm: 172,5mm, 54cm: 172,5mm, 57cm: 172,5mm, 60cm: 175mm, 63cm: 175mm
Bottom Bracket
BSA, 68mm, threaded
Chain
Shimano DEORE CN-M6100
Pedals
not included
Wheels
Rims
Newmen Evolution SL R.32, 100/142mm; Rim height: 32mm, Inner width: 19mm, Tubeless ready: ?, Tubeless valves: not included, Tubeless tape: 21-22mm, not included, Tubeless milk: not included
Tires
Continental Grand Sport Race, foldable, 28" x 28mm
Brakes
Brakes
Shimano 105 BR-R7170, flat mount
Cockpit
Stem
Newmen Evolution 318.4, Ø31.8mm; 48cm: 90mm, 51cm: 100mm, 54cm: 100mm, 57cm: 100mm, 60cm: 110mm, 63cm: 120mm
Handlebar
Newmen Evolution Wing Bar, Ø31.8mm; 48cm: 400mm, 51cm: 400mm, 54cm: 420mm, 57cm: 420mm, 60cm: 440mm, 63cm: 460mm
Grips
RADON performance tape
Headset
VP, IS42/IS52; Bearing dimensions:, Upper: MH-P08, 41.8x6.5mm, 45/45°, Lower: MH-P16, 52x7mm, 45/45°
Seat
Saddle
Selle Italia Model X Superflow
Seatpost
Newmen Evolution, 27.2 x 350mm
