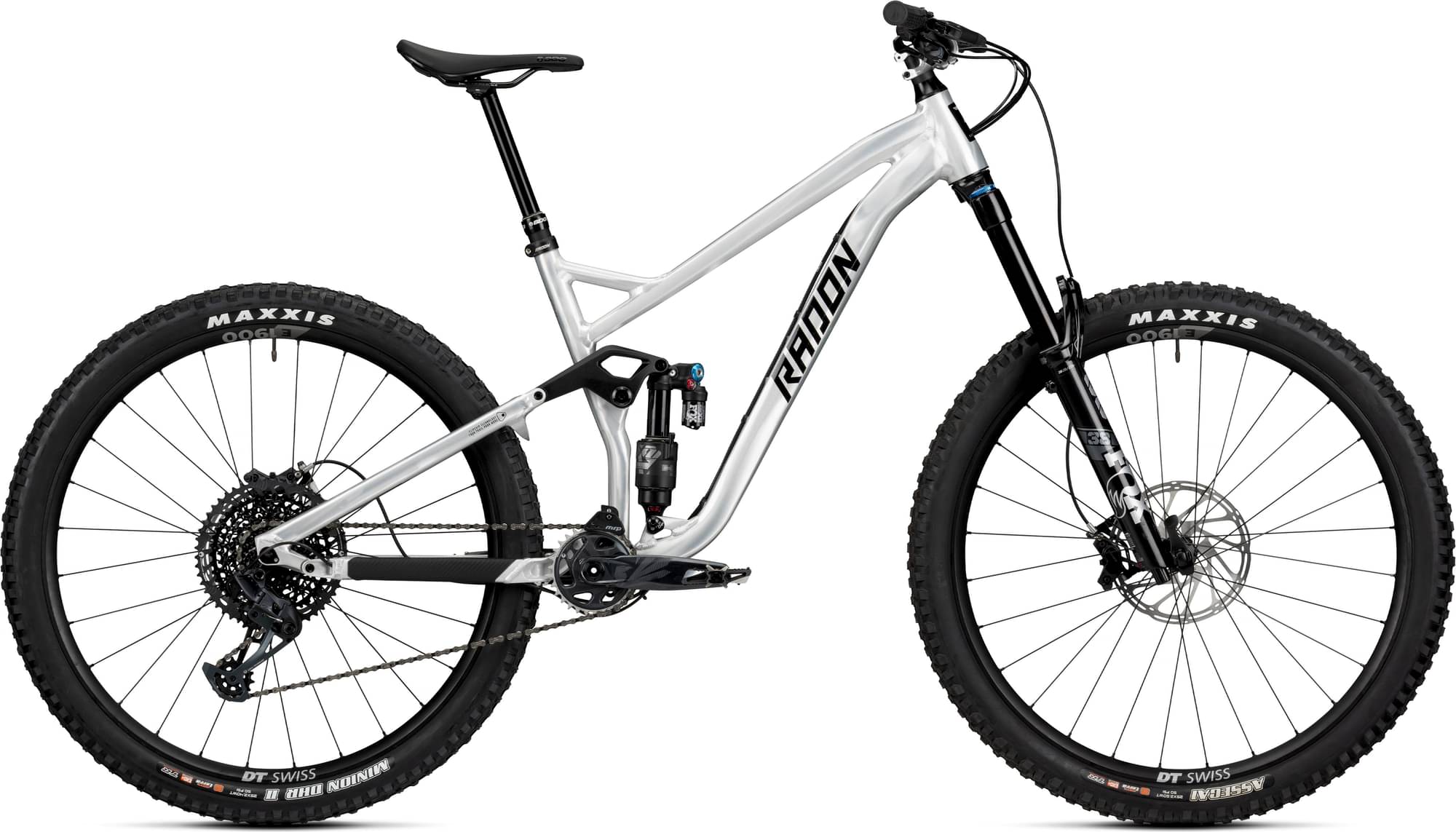

Radon SWOOP AL 9.0 2024
2024 Mountain
Estimate price |
4,587$
Weight | 15.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Performance Elite Float 38
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SWOOP AL; Material: Aluminium, Max. width tire: 2.4", Flip Chip for geometry adjusting, Hanger: #10240
Suspension Fork
Fox 38 Performance Elite, FIT GRIP2, Boost; Rake: 44mm
Rear Shock
Fox Float X2 Performance Elite, 2-Pos. EVOL LV; Size: 216 x 63mm, Bushing size: top: 8 x 22.2mm, bottom: 8 x 42.2mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Shift Levers
SRAM GX Eagle, Matchmaker X
Cassette
SRAM GX Eagle XG-1275, 10-52
Crank
SRAM GX Eagle, DUB, 30T, Boost, 170mm
Chain
SRAM GX Eagle
Chain Guide
MRP 1X, ISCG05
Pedals
not included
Wheels
Rims
DT Swiss E1900 Spline, 110/148mm; Rim height: 20mm, Inner width: 30mm, Tubeless ready: ?, Tubeless valves: ?, Tubeless tape: ?, Tubeless milk: not included
Tires
Front: Maxxis Assegai 3C, MaxxTerra, EXO+, TR, 29" x 2.5" WT, Rear: Maxxis Minion DHR II 3C, MaxxTerra, EXO+, TR, 29" x 2.4" WT
Brakes
Brakes
SRAM Code R
Cockpit
Stem
Race Face Turbine R, Ø35; M: 40mm, L: 40mm, XL: 50mm
Handlebar
Race Face Turbine R, 35 x 800mm, 35mm rise
Grips
SDG Thrice
Headset
VP, ZS44/ZS56; Bearing dimensions:, Upper: MH-P03, 41x6.5mm, 45/45°, Lower: MH-P16, 52x7mm, 45/45°
Seat
Saddle
SDG Bel Air V3
Seatpost
SDG Tellis V2, Ø31.6mm; M: 130-150mm travel, L: 150-170mm travel, XL: 150-170mm travel
