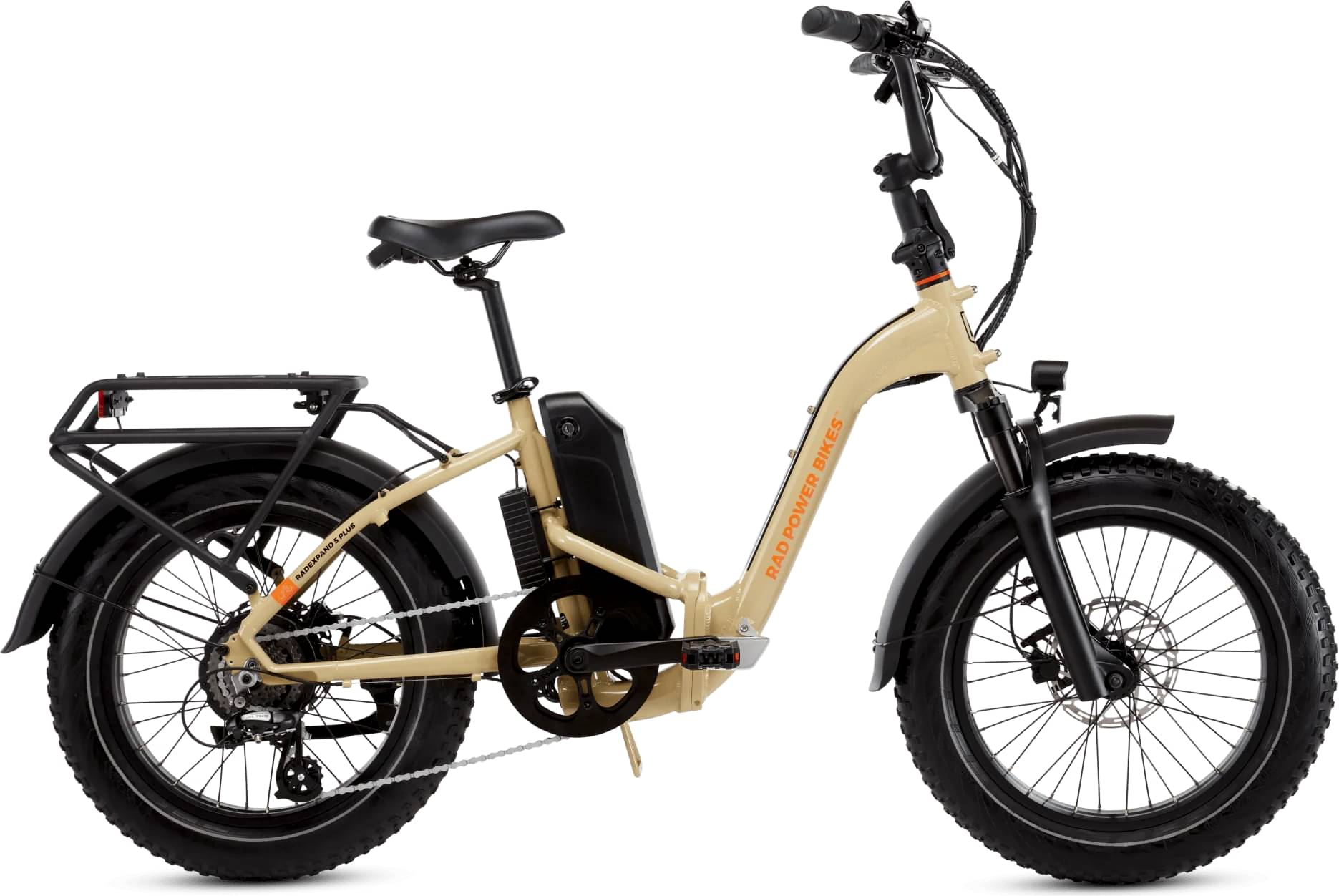

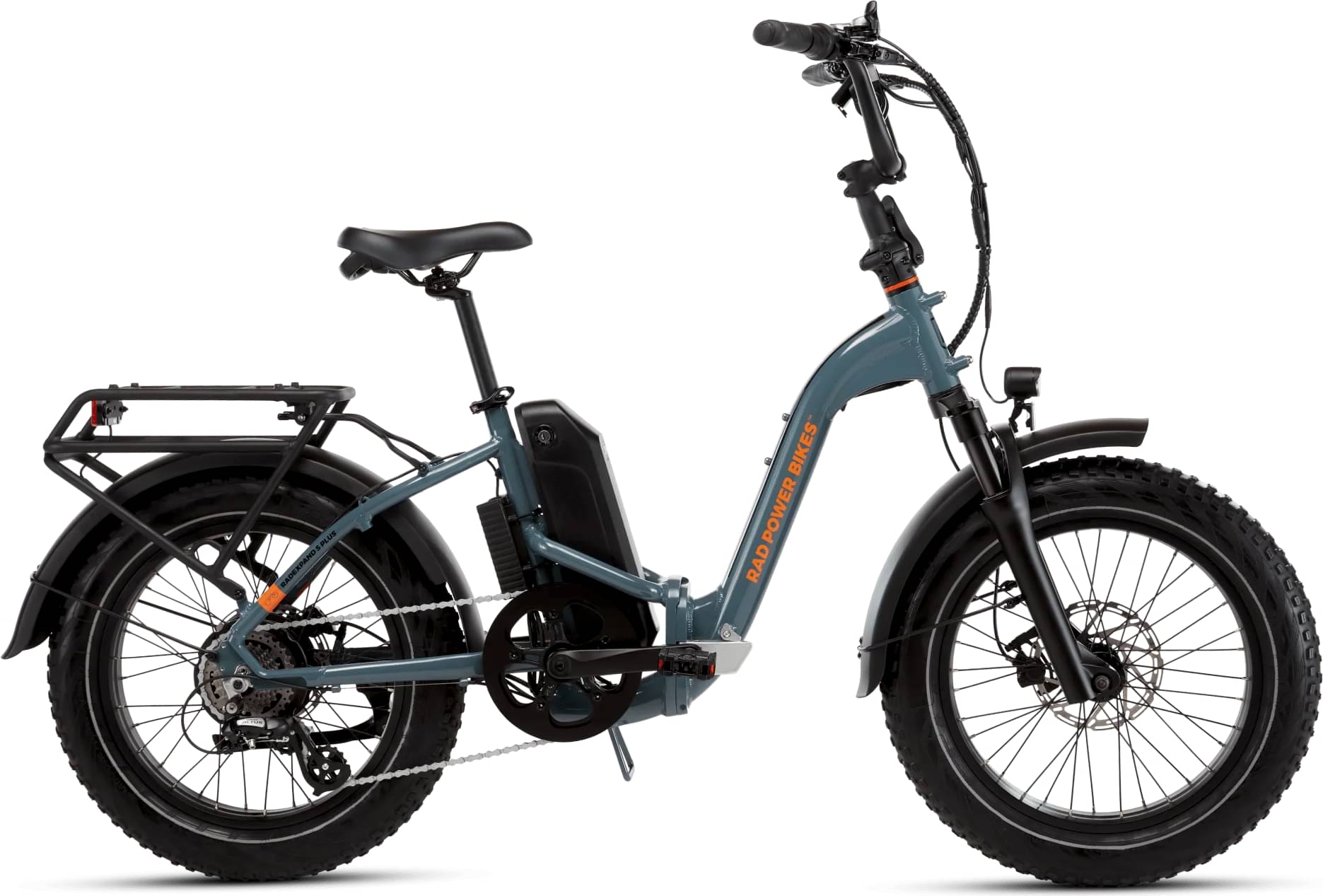

Rad Power Bikes RadExpand 5 Plus 2025
2025 E-bike
Estimate price |
1,899$
Weight | 32.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Groupset Shimano -
Suspension Hardtail -
Motor 750W 64Nm hub-drive -
Battery 15Ah 720 Wh 15Ah Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL certified to UL-2271 -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
One Size
147cm - 178cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Exsho STRONG-C hydraulic suspension fork, 50mm travel, bolt-on axle
Drivetrain
Rear Derailleur
7-Speed Shimano
Shift Levers
Shimano 7-speed thumb shifter
Cassette
7-speed freewheel, 14-32T
Crank
48T with dual sided chain ring cover, 170mm crank arms
Pedals
Composite platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading, folding
Wheels
Tires
CST BFT 20" x 4.0", e-bike rated with puncture-resistant liner and reflective strip
Brakes
Brakes
Hydraulic Disc, Gemma GA-1000B
Cockpit
Stem
Folding stem raiser with 45mm A-Head stem
Handlebar
Aluminum, 680 mm wide
Grips
Ergonomic rubber comfort grips
Seat
Saddle
Padded flat touring saddle with shallow anatomic cut-out, wide contoured sides
Seatpost
390 mm x 27.2 mm
Motor & Battery
Motor
Rear hub 750W, 64 Nm torque, Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions.
Battery
15Ah 720 Wh 15Ah Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL certified to UL-2271
Charger
48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets
Fit data
Geometry
