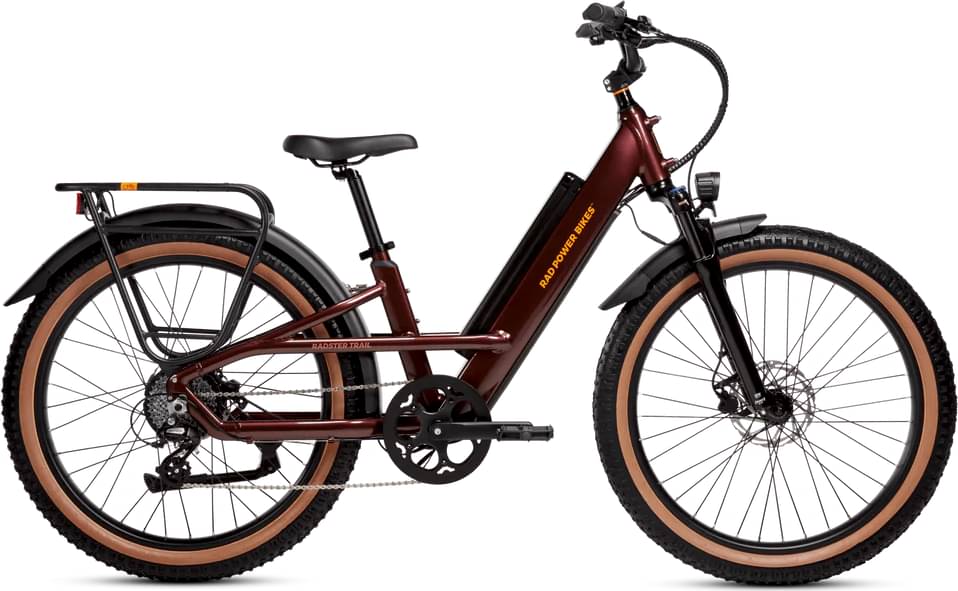

Rad Power Bikes Radster Trail 2024
2024 E-bike
Estimate price |
1,999$
Weight | 35.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour
-
Groupset Shimano -
Suspension Hardtail -
Motor 750W 100Nm hub-drive -
Battery 15Ah 720 Wh Safe Shield Advanced Semi-Integrated Battery, Samsung 50GB or LG M50LT cells, UL Certified to UL-2271 -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
One Size
170cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
SR Suntour hydraulic suspension fork, 80mm travel, tapered steerer tube, thru axle
Drivetrain
Rear Derailleur
Shimano 8-speed
Shift Levers
Shimano 8-speed thumb shifter
Cassette
8-speed freewheel 11-34T
Crank
50T with dual sided chain ring cover, 170mm crank arms
Pedals
Alloy Platform, Boron axle with reflectors, standard 9/16" X 20 TPI threading
Wheels
Tires
Kenda Havok 27.5" X 3.0" with puncture protection and tan sidewall
Brakes
Brakes
Tektro Hydraulic Disc E350
Cockpit
Stem
40mm A-head
Handlebar
Aluminum, 710mm wide
Grips
Ergonomic rubber comfort grips
Seat
Saddle
Padded sport saddle with shallow anatomic cut-out and contoured sides
Seatpost
Regular: 350 mm x 31.6 mm, Large: 400 mm x 31.6 mm
Motor & Battery
Motor
Rear hub 750W, 100 Nm torque, Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions.
Battery
15Ah 720 Wh Safe Shield Advanced Semi-Integrated Battery, Samsung 50GB or LG M50LT cells, UL Certified to UL-2271
Charger
48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets
Fit data
Geometry
