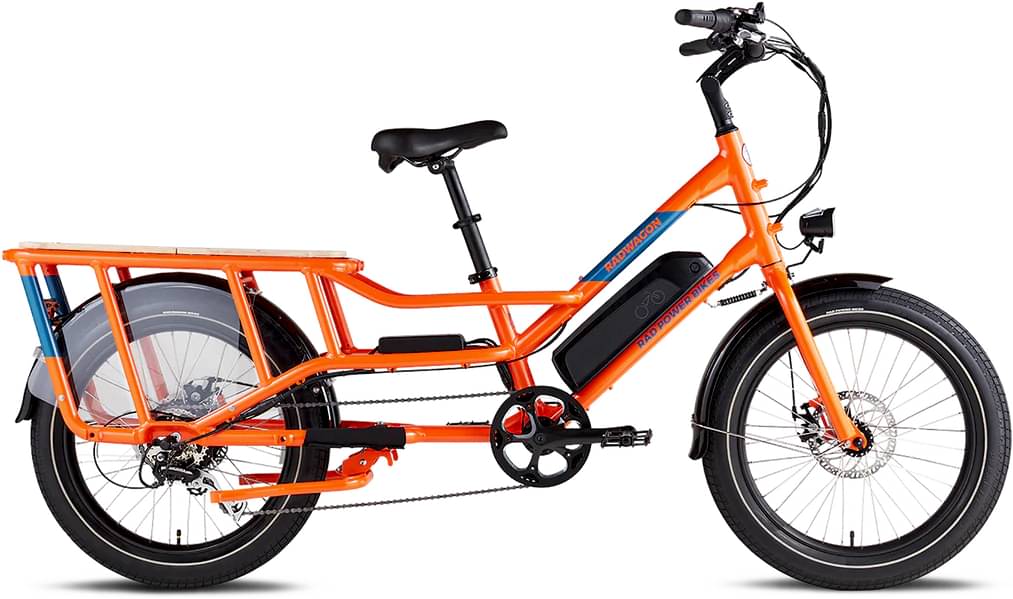

Rad Power Bikes RadWagon 4 2024
2024 E-bike
Estimate price |
1,799$
Weight | 34.79 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Groupset Shimano -
Suspension Rigid -
Motor 750W hub-drive -
Battery 14 Ah 672 Wh external battery, tested by ACT compliant to UL 2271 -
Drivetrain 1 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
One Size
154cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Rigid steel fork for 22" wheel
Drivetrain
Rear Derailleur
7-speed Shimano
Shift Levers
Shimano, 7-speed thumb shifter
Cassette
7-speed freewheel, 11-34T
Crank
46T with dual sided chain ring cover, 170 mm crank arms
Bottom Bracket
84 mm
Chain
Z7, 160 Link
Pedals
forged aluminum platform with reflectors, standard 9/16" x 20 TPI threading
Wheels
Rims
Shinning DB-X50, alloy, double wall, black powder coated, 36 hole
Spokes
12 gauge, stainless steel
Tires
Rad Power Bikes, custom 22" x 3"
Brakes
Brakes
Tektro Aries (MD-M300)
Brake Levers
Aluminum alloy comfort grip levers with motor cutoff switch
Cockpit
Stem
Satori EZ3 AHS toolless adjustable handlebar stem with built in top cap bolt. Reach, height (stack), and handlebar angle adjustment (80 degrees) with press of a button/lever lift.
Handlebar
Swept-back, RPB custom
Grips
Ergonomic rubber comfort grips
Headset
Semi-integrated, 1-1/8" straight steerer tube
Seat
Saddle
Plush with lifting handle
Seatpost
Telescoping, max length = 375 mm x 34.9 mm
Motor & Battery
Motor
Rear hub 750W, Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions.
Battery
14 Ah 672 Wh external battery, tested by ACT compliant to UL 2271
Charger
48V, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets
Fit data
Geometry
