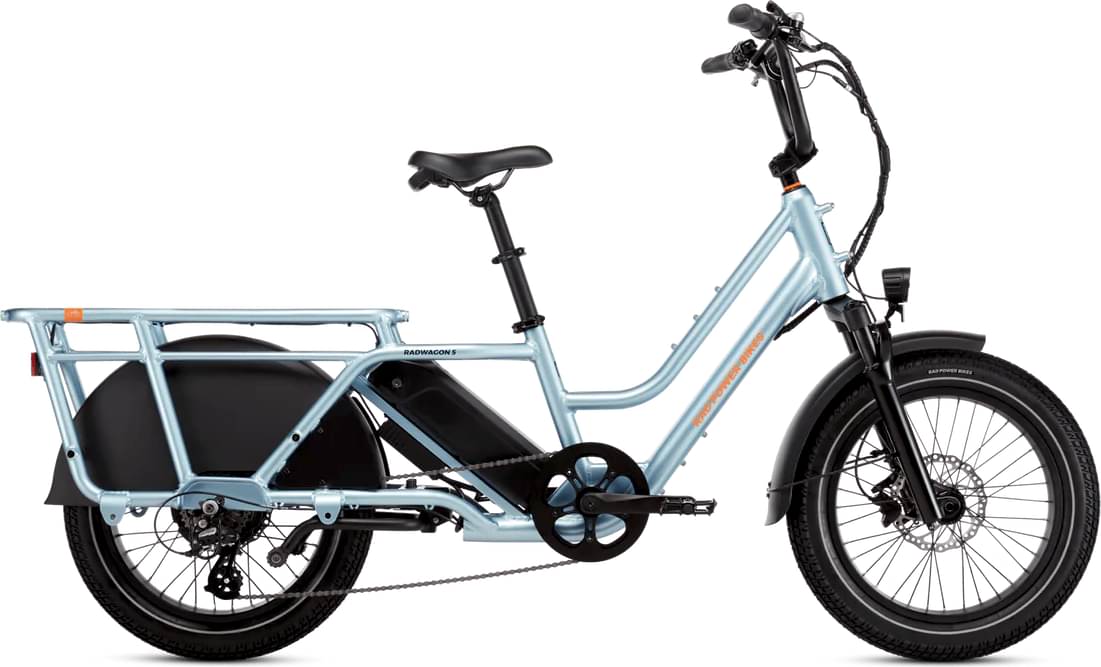

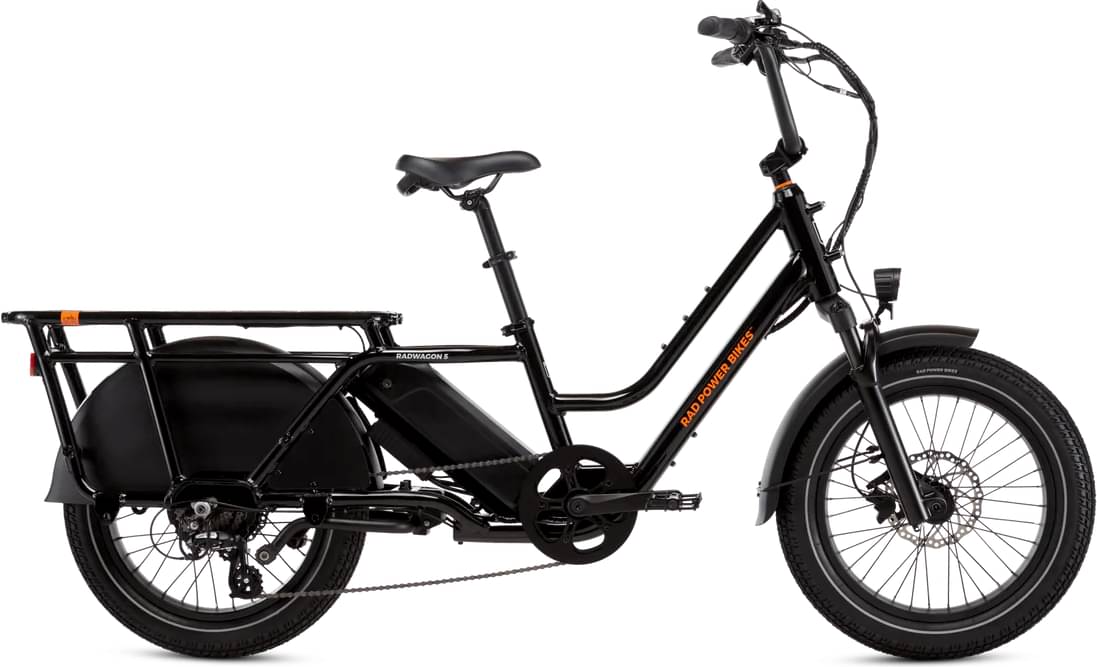

Rad Power Bikes RadWagon 5 2024
2024 E-bike
Estimate price |
2,199$
Weight | 39 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 20" -
Travel Front 45mm -
Fork RST GUIDE
-
Groupset Shimano -
Suspension Hardtail -
Motor 750W 90Nm hub-drive -
Battery 15Ah 720 Wh Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL Certified to UL-2271 -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
One Size
150cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RST Guide suspension fork, 45mm travel, tapered steerer tube, thru axle
Drivetrain
Rear Derailleur
7-speed Shimano
Shift Levers
Shimano, 7-speed thumb shifter
Cassette
7-speed freewheel, 11-34T
Crank
50T with dual sided chain ring cover, 170mm crank arms
Pedals
Composite platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading
Wheels
Tires
Kenda 20" x 3.3"
Brakes
Brakes
Tektro Hydraulic Disc HD-E395
Cockpit
Stem
35mm A-head
Handlebar
Aluminum, 680 mm wide
Grips
Ergonomic rubber comfort grips
Seat
Saddle
Padded flat touring saddle with shallow anatomic cut-out, wide contoured sides
Seatpost
390 mm x 27.2 mm
Motor & Battery
Motor
Rear hub 750W, 90 Nm, Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions.
Battery
15Ah 720 Wh Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL Certified to UL-2271
Charger
48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets
Fit data
Geometry
