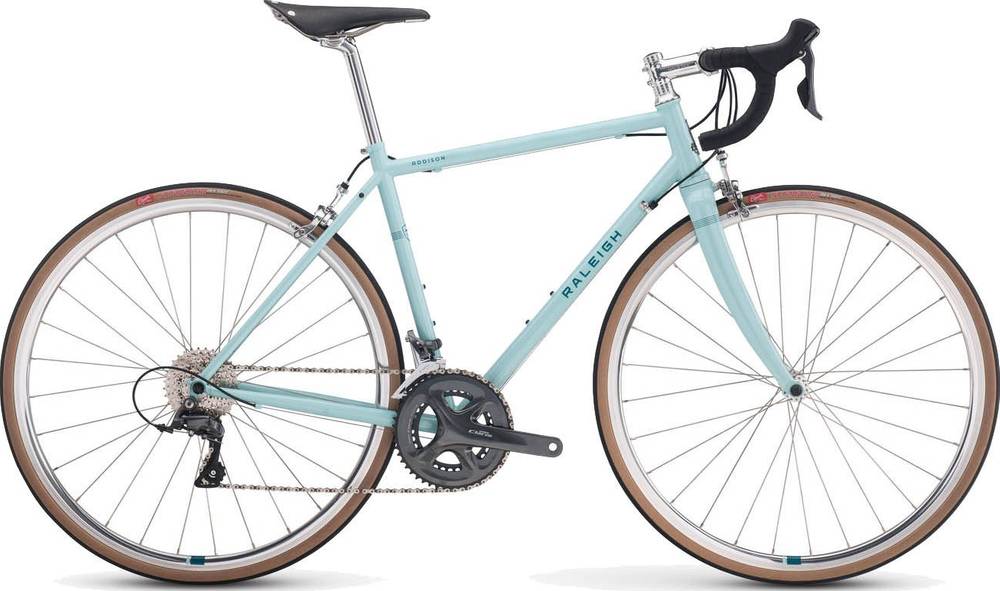

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
4129 Chromoly, Tapered Head Tube
Suspension Fork
Custom Alloy SPF Road, 1-1/8" to 1-1/2" Taper
Drivetrain
Rear Derailleur
Shimano Claris
Front Derailleur
Shimano Claris
Shift Levers
Shimano Claris 8 Speed
Cassette
Shimano 8 Speed, 11-30
Crank
Shimano Claris Compact 34/50
Bottom Bracket
Shimano Octalink
Chain
KMC Z82
Pedals
Alloy Body with Alloy Cage
Wheels
Front Hub
Alloy, Quick Release 28 Hole
Rear Hub
Alloy, Cassette, Quick Release, 28 Hole
Rims
Alloy,Double Wall, 23mm Wide
Spokes
14g Stainless Steel
Tires
Clement Strada LGG 60TPI, 700x28c
Brakes
Brake Levers
Shimano Claris STI
Cockpit
Stem
Alloy, 3D Forged, 31.8, 7 Degree +/-, 80/90/100mm
Handlebar
Alloy Road, 31.8 Short Drop, Polished, 38/40cm
Headset
Sealed Cartridge Bearings, Integrated
Seat
Saddle
Brooks Cambium C17 Women's
Seatpost
Alloy Micro Adjust, 27.2x300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50cm | 52cm | 54cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.5 mm | 1.54 mm | 1.56 mm |
| Bottom Bracket Height | 256 mm | 266 mm | 261 mm | 263 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 530 mm | 540 mm | 555 mm | 569 mm |
| Reach | 363 mm | 359 mm | 360 mm | 365 mm |
| Top Tube Length | 494 mm | 509 mm | 514 mm | 534 mm |
| Seat Tube Angle | 76 ° | 74.5 ° | 74.5 ° | 73.5 ° |
| Seat Tube Length | 450 mm | 475 mm | 500 mm | 525 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 150 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Bottom Bracket Drop | 80 mm | 70 mm | 75 mm | 72 mm |
| Standover Height | 695 mm | 717 mm | 745 mm | 771 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
Addison is part of the Raleigh Addison model. 2 bikes variations carry this model name so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Raleigh released this model in 2018, its price was 799$. Doing a quick comparison, we notice that Addison price is 193.62% smaller than the average cost of an Endurance bike.
Addison components
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The Addison 2018 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Addison comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
