Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hi-Ten Steel With Removable Cable Guides
Suspension Fork
Hi-Ten Steel With Die-Cast Drop Outs
Drivetrain
Cassette
42t
Crank
170mm Alloy Track (Large and X-Large = 175mm)
Bottom Bracket
Sealed Cartridge
Chain
KMC Z410
Pedals
PC Platform
Wheels
Front Hub
Alloy High Flange, 32 hole
Rear Hub
Alloy High Flange, Fixed / Free (Flip-Flop), 32 hole
Rims
Alloy, 40mm High Profile
Spokes
14g Stainless, Brass Nipples
Tires
Kenda 193, 700x32c
Brakes
Brakes
Alloy Dual Pivot Caliper
Brake Levers
Alloy
Cockpit
Stem
Alloy, 31.8, 7 Deg Rise, 105mm Extension (90mm for Small)
Handlebar
Alloy, 31.8mm Clamp Diameter, 620mm Wide, 45mm Rise, 6 Deg Backsweep, 6 Deg Upsweep
Grips
Flangeless, 130mm
Headset
Sealed 1 1/8"
Seat
Saddle
Raleigh Classic Road
Seatpost
Alloy Micro Ajust, 27.2 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 57cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 0.76 mm | 0.74 mm | 0.74 mm | 0.75 mm |
| Front Center | 590 mm | 592 mm | 607 mm | 632 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 150 mm | 158 mm | 161 mm | 161 mm |
| Stack | 394 mm | 397 mm | 411 mm | 431 mm |
| Reach | 516 mm | 538 mm | 559 mm | 578 mm |
| Top Tube Length | 526 mm | 551 mm | 571 mm | 596 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 72 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 401 mm | 401 mm | 401 mm | 401 mm |
| Wheelbase | 983 mm | 985 mm | 1001 mm | 1026 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 751 mm | 781 mm | 796 mm | 816 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview

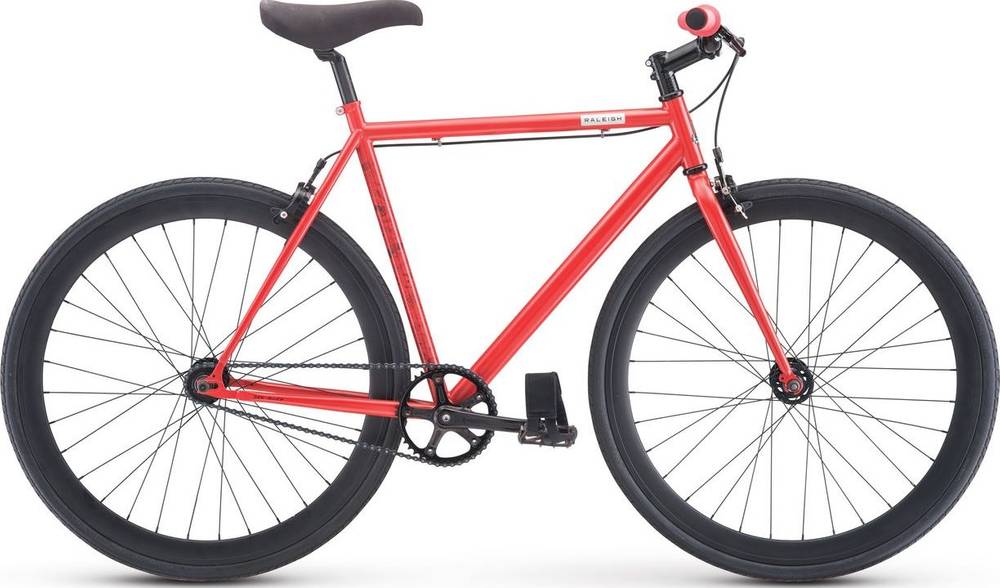

Back Alley belongs to the Raleigh Back model. Raleigh launched 2 bikes of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hipster bikes
According to our calculations, the average cost of a Hipster bike that is reliable is 612$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hipster bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2018 for 399$. If we compare this with the average Hipster bike cost we notice that the price is 53.38% smaller.
Back Alley components
Fork material
When it comes to the fork, this bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
When it comes to wheels, the Back Alley bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Back Alley has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
