Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Fork SunTour -
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Women's Geometry AL-6061 SL Custom Butted Aluminum, Formed Downtube, CNC Machined Headtube
Suspension Fork
SR Suntour M3030, 27.5"
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano TX-50
Shift Levers
Shimano Revo Shift
Cassette
Shimano MF-TZ21 7spd (14-28t)
Crank
SR Suntour XCC 42/34/24t
Bottom Bracket
Sealed Mech 2pc 68x122.5
Chain
KMC Z51
Pedals
Test Ride Pedals
Wheels
Front Hub
Joytech Alloy QR 32h
Rear Hub
Joytech Alloy QR 32h
Rims
Weinmann XRD28, 32h, 27.5", Double Wall
Spokes
14g Stainless Steel, w/ Brass Nipples
Tires
Kenda Slant Six, 27.5x1.95
Brakes
Brakes
Promax Alloy V-Brake
Brake Levers
Tektro Women-Specific
Cockpit
Stem
Alloy Ahead 4-Bolt 20°
Handlebar
Steel 25mm Rise x 700mm, 25.4
Grips
Women-Specific Small Diamond
Headset
Ahead 1-1/8"
Seat
Saddle
Raleigh Women's Mountain Plush Saddle
Seatpost
Alloy Micro Adjust 30.9x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 310 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Top Tube Length | 531 mm | 551 mm | 571 mm | 586 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 350 mm | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 45 mm |
| Standover Height | 741 mm | 761 mm | 791 mm | 821 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview

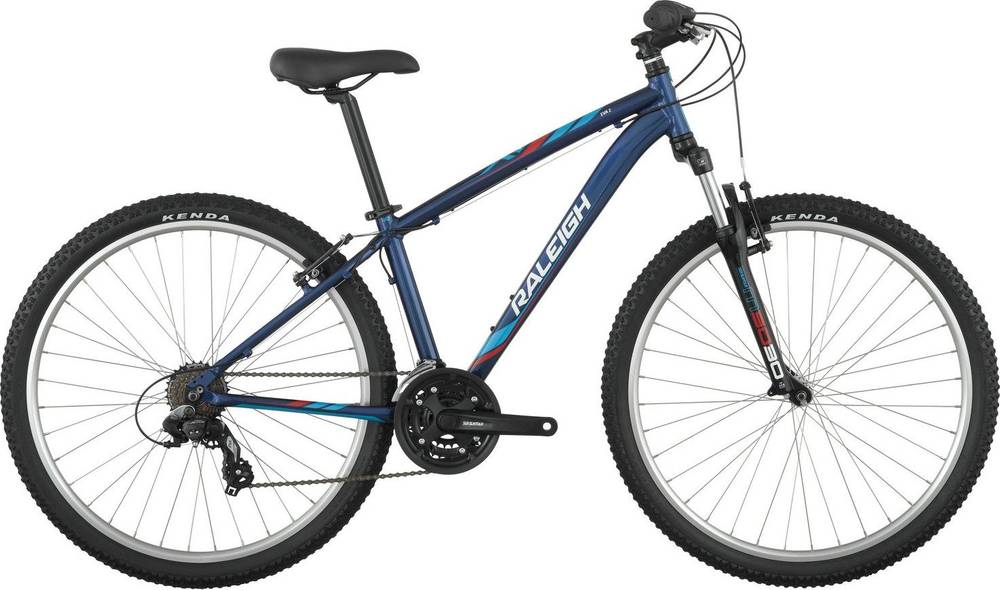

Eva 2 (2016) belongs to the Raleigh Eva model. Raleigh launched 18 bikes of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Raleigh Eva 2 (2016) price was 449$. Comparing this to the average Crosscountry bike price, we see that the price is 324.28% smaller.
Overview of components
Fork
The SunTour is included from the factory. It has a travel distance of mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the Eva 2 (2016) model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Eva 2 (2016) has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Eva 2 (2016) comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
