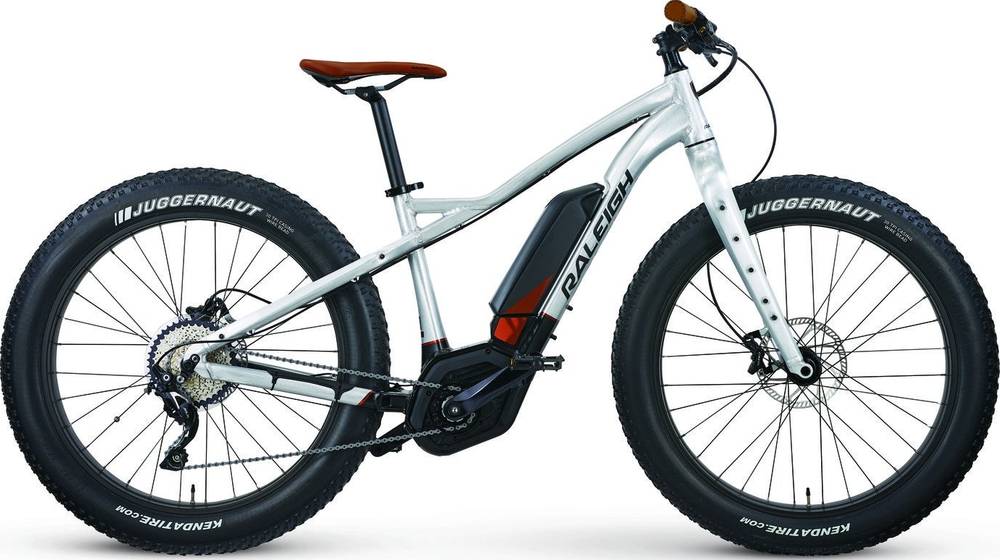

Raleigh Magnus iE eMTB 2018
2018 E-bike
Estimate price |
3,749$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Groupset SLX -
Suspension Rigid -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch Powerpack 400Wh, DT Mount. -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hydroformed Aluminum Alloy 6061 T6, Trail Performance Geometry
Suspension Fork
SPF technical formed alloy, 6061 T6, Multi Cargo Mounts
Drivetrain
Rear Derailleur
Shimano SLX M670, SGS
Shift Levers
Shimano SLX M670, 10 Speed
Cassette
Forged Spider, 18tooth w/ chainguard, steel
Crank
Forged Alloy for Bosch System
Bottom Bracket
Bosch, press-fit
Chain
KMC x10ePT Ebike Specific
Pedals
Alloy, sealed bearing
Wheels
Front Hub
Formula, Sealed Bearing, 150mm
Rear Hub
Formula, Sealed Bearing, 197mm
Rims
26",75 mm ID, Disc Specific
Spokes
Stainless
Tires
Kenda K-1151, 26X4.0"
Brakes
Brake Levers
Tektro M735 2 Finger
Cockpit
Stem
Raleigh Aluminum Alloy, 3d forged
Handlebar
Raleigh Aluminum Alloy
Grips
Raleigh Ergo Comfort Control
Headset
Integrated, Sealed Bearing
Seat
Saddle
Raleigh Custom Ergo Performance
Seatpost
Raleigh Aluminum Alloy, forged head
Motor & Battery
Motor
Bosch Performance CX, 250W, 20MPH, Made in EU.
Battery
Bosch Powerpack 400Wh, DT Mount.
Remote
Bosch Purion, Compact Type
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.52 mm |
| Bottom Bracket Height | 283 mm | 283 mm |
| Front Center | 701 mm | 721 mm |
| Rake | 52 mm | 52 mm |
| Trail | 66 mm | 66 mm |
| Stack | 644 mm | 644 mm |
| Reach | 404 mm | 424 mm |
| Top Tube Length | 596 mm | 616 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 480 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 140 mm |
| Chainstay Length | 496 mm | 496 mm |
| Wheelbase | 1191 mm | 1211 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Standover Height | 720 mm | 733 mm |
| Wheels | 26" | 26" |
About this model
Magnus iE eMTB is a Raleigh E Magnus model. Raleigh released 1 e-bike variation of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fatbike e-bikes
If you want to purchase a solid Fatbike e-bike, it is important to know that the average cost is 2033$. However, this doesn’t mean that if you spend less money on a Fatbike e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Raleigh Magnus iE eMTB price was 3749$. Doing a quick comparison, we notice that Magnus iE eMTB price is 84.41% more expensive than the average cost of a Fatbike e-bike.
Magnus iE eMTB components
Fork material
Magnus iE eMTB has an aluminum fork, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
The wheels on Magnus iE eMTB are the 26″ aluminum type. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
