Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 700c -
Groupset Sora -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full Reynolds 520 Butted Chromoly Tubing
Suspension Fork
4130 Chromoly
Drivetrain
Rear Derailleur
Shimano Sora
Front Derailleur
Shimano Sora
Shift Levers
Shimano Sora 9spd, Rapid Fire
Cassette
Double 50/34
Crank
Forged Alloy
Bottom Bracket
Sealed Cartridge
Chain
KMC Z99
Pedals
City Pedal, Alloy Body with Alloy Cage
Wheels
Front Hub
Formula Alloy Quick Release 28 Hole
Rear Hub
Formula Alloy Quick Release 28 Hole, Cassette
Rims
Double Wall with CNC Braking Surface
Spokes
14g Stainless Steel
Tires
Kenda K1067, 700x32c
Brakes
Brakes
Tektro CR710 Cantilever
Brake Levers
Promax XL-102 with Hidden Bar Clamp Bolt
Cockpit
Stem
6061 3D Forged Alloy, 25.4 Bar Bore, 8 Degree Rise
Handlebar
Alloy, 66mm Rise, 43 Degree Back Sweep
Grips
Wrap Style Lock-On
Headset
FSA Orbit DL 1-1/8" Threadless
Seat
Saddle
Raleigh Classic Road with Satin Steel Rails
Seatpost
Alloy Micro Adjust, 27.2x300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 55cm | 57cm | 59cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.48 mm | 1.5 mm | 1.49 mm |
| Front Center | 595 mm | 595 mm | 591 mm | 606 mm | 626 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 64 mm | 61 mm | 61 mm | 61 mm |
| Stack | 543 mm | 552 mm | 563 mm | 582 mm | 601 mm |
| Reach | 386 mm | 383 mm | 380 mm | 389 mm | 403 mm |
| Top Tube Length | 525 mm | 535 mm | 545 mm | 565 mm | 585 mm |
| Seat Tube Angle | 75.5 ° | 74.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 500 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1027 mm | 1027 mm | 1023 mm | 1038 mm | 1058 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 775 mm | 785 mm | 805 mm | 825 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

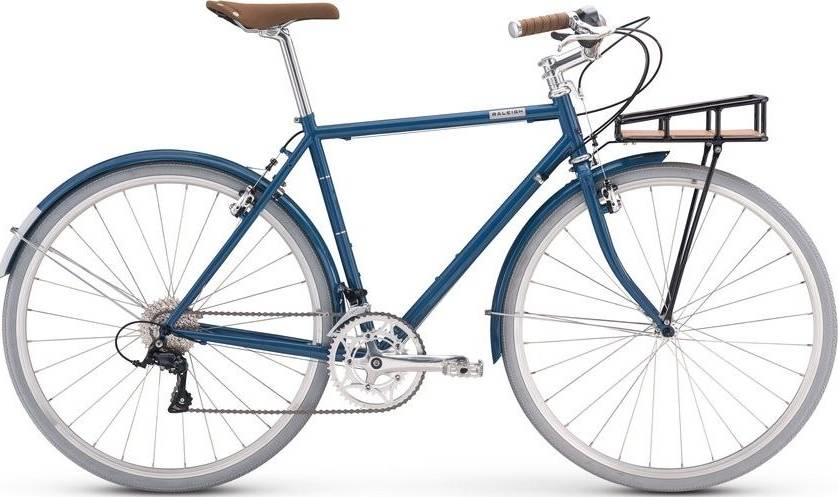

Port Townsend belongs to the Raleigh Port model. Raleigh launched 3 bikes of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for General Urban bikes
If you want to purchase a solid General Urban bike, it is important to know that the average cost is 499$. However, this doesn’t mean that if you spend less money on a General Urban bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2018 for 749$. Comparing the average cost of a General Urban bike to this one, you will see that Port Townsend price is 50.1% higher.
Port Townsend components
Fork material
Port Townsend has a steel fork, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels
As for the wheels, Raleigh Port Townsend 2018, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Raleigh Port Townsend is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
