Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Groupset Deore, FSA -
Suspension Full -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch Powerpack 500Wh, DT Mount -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Formed 6061 T6 Oversize Aluminum Alloy, Thru Axle Dropout, Disc Brake Specific, Semi Integrated Battery
Suspension Fork
Formed 6061 T6 w/ Integrated Crown, Disc Brake, Thru Axle
Rear Shock
*
Drivetrain
Rear Derailleur
Shimano Deore M610, SGS
Front Derailleur
*
Shift Levers
Shimano Deore SL-M6000, 10 Speed
Cassette
FSA Forged Spider, 20 tooth w/chainguard, steel
Crank
FSA Forged Alloy for Bosch System
Bottom Bracket
*
Chain
KMC x10e EPT, Ebike Specific
Pedals
Shoe Friendly Urban Design, Resin Body
Wheels
Front Hub
Formula, Sealed Bearing, Thru Axle
Rear Hub
Formula, Sealed Bearing, Thru Axle
Rims
Aluminium 27.5", Black Annodized, 25mm ID, Disc Specific, 32 Hole
Spokes
Black w/Silver Nipples
Tires
27.5" x 2.4" Schwalbe Super Moto
Brakes
Brakes
Tektro M735, 4 Piston Front 180mm Rotor, 2 Piston Rear 160mm Rotor
Brake Levers
Tektro M735, 2 Finger Lever
Cockpit
Stem
Raleigh Aluminum Alloy, 3d Forged
Handlebar
Raleigh Aluminum Alloy
Grips
Raleigh Ergo Comfort Control
Headset
Integrated, Sealed Bearing
Seat
Saddle
Raleigh Custom Ergo Performance
Seatpost
Raleigh Aluminum Alloy, Forged Head, 350mm
Motor & Battery
Motor
Bosch Performance Speed, 350W, 28MPH, Made in EU
Battery
Bosch Powerpack 500Wh, DT Mount
Remote
Bosch Kiox On-Board Computer
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.45 mm |
| Bottom Bracket Height | 290 mm | 290 mm |
| Front Center | 664 mm | 664 mm |
| Rake | 43 mm | 43 mm |
| Trail | 52 mm | 52 mm |
| Stack | 614 mm | 614 mm |
| Reach | 422 mm | 422 mm |
| Top Tube Length | 611 mm | 611 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° |
| Head Tube Length | 175 mm | 175 mm |
| Chainstay Length | 476 mm | 476 mm |
| Wheelbase | 1132 mm | 1132 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Standover Height | 690 mm | 724 mm |
| Wheels | 27" | 27" |
Model Overview

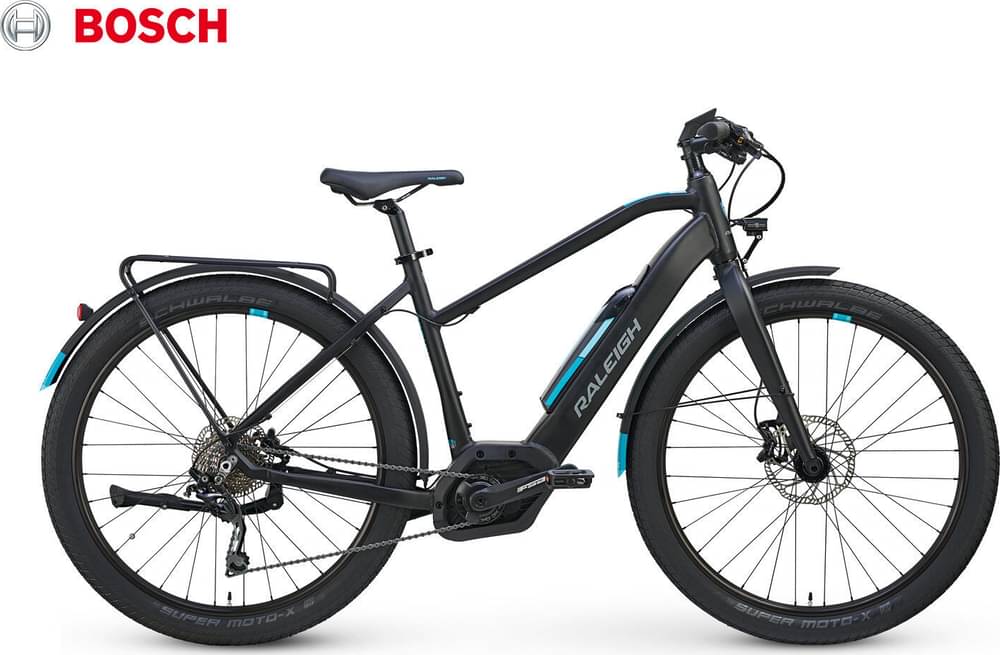

Redux iE completes the Raleigh E Redux model. Raleigh released 6 e-bikes variations of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry e-bikes average price
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Raleigh released this model in 2021, its price was 3499$. Comparing this to the average Crosscountry e-bike price, we see that the price is 42.64% more expensive.
Redux iE components
Fork material
When it comes to the fork, this e-bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When leaving the production line, the Redux iE model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
