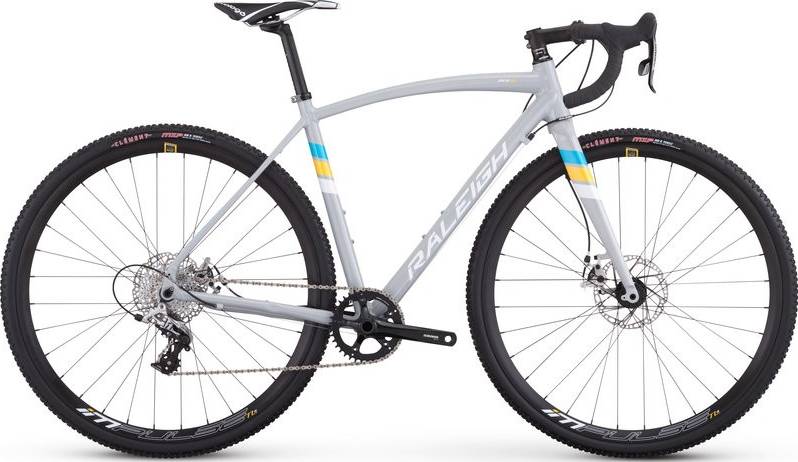

Raleigh RXW 2017
2017 Road
Estimate price |
1,399$
Weight | 9.47 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Rival, Rival 22 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Superlight Butted 6061 Alloy, Women-Specific Geometry, w/PF30, Tapered Headtube, canti Specific
Suspension Fork
Carbon/Alloy Tapered Steer, Cross Disc Post Mount, 15mm Thru Axles
Drivetrain
Rear Derailleur
SRAM Rival Medium cage
Shift Levers
SRAM Rival 22
Cassette
SRAM PG1130 11spd (11-32t)
Crank
SRAM FC-S350 GXP, XSYNC 38t Ring
Bottom Bracket
SRAM GXP
Chain
SRAM PC1130 11spd
Pedals
Test Ride Pedals
Wheels
Front Hub
Novatec 15mm Thru Axle, Disc Alloy, Sealed Bearing, 32h
Rear Hub
Novatec 142X12 Thru Axle, Disc Alloy, Sealed Bearing, 32h
Rims
Weinmann Impulse TL, Double Wall 32h, 23mm wide
Spokes
14/15g Stainless Butted MAC w/Brass Nipples
Tires
Clement MXP, 700x33, Folding
Brakes
Brakes
TRP Spyre dual actuated mechanical disc brakes, w/160mm rotors
Brake Levers
SRAM Rival
Cockpit
Stem
Raleigh 3D Forged, 31.8, Lengths:80/80/90/90/100/100mm
Handlebar
Raleigh 200 Series 31.8 Women's Short Drop, Widths:38/38/38/40/40/42cm
Headset
FSA Integrated Cartridge Bearings
Seat
Saddle
Prologo Kappa Evo Dea Women-Specific, 147mm wide
Seatpost
Raleigh 200 Series Alloy Dual Bolt 27.2x300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50cm | 52cm | 54cm | 56cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.42 mm | 1.46 mm | 1.5 mm | 1.54 mm |
| Bottom Bracket Height | 266 mm | 268 mm | 268 mm | 271 mm | 271 mm |
| Front Center | 595 mm | 596 mm | 597 mm | 599 mm | 604 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 66 mm | 63 mm | 61 mm | 57 mm | 53 mm |
| Stack | 525 mm | 529 mm | 545 mm | 559 mm | 580 mm |
| Reach | 368 mm | 372 mm | 373 mm | 373 mm | 376 mm |
| Top Tube Length | 499 mm | 514 mm | 524 mm | 539 mm | 554 mm |
| Seat Tube Angle | 76 ° | 75 ° | 74.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 450 mm | 475 mm | 500 mm | 525 mm | 550 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 105 mm | 110 mm | 125 mm | 140 mm | 160 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 999 mm | 1001 mm | 1002 mm | 1004 mm | 1009 mm |
| Bottom Bracket Drop | 70 mm | 67 mm | 67 mm | 65 mm | 65 mm |
| Standover Height | 744 mm | 759 mm | 774 mm | 799 mm | 824 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
RXW completes the Raleigh Rxw model. Raleigh launched 1 bike of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Cyclocross bikes
According to our math, the average price for a trustworthy Cyclocross bike is 2012$. However, even if your budget is less than the average, you might still be able to get a top-quality Cyclocross bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2017 for 1399$. Comparing this to the average Cyclocross bike price, we see that the price is 43.82% lower.
Cyclocross bikes average weight
If we make a quick analysis of the average weight of a Cyclocross bike, we get 8.79 kg (19.38 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Raleigh RXW it’s weighing 9.47 kg (20.88 lbs). At this weight, is a bit heavier than average. To sum up, it’s 7.74% heavier than the average weight of Cyclocross bikes.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Raleigh RXW 2017, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
