Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 700c -
Suspension Rigid -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Classic Steel, Eccentric BB, Disc Tabs
Suspension Fork
Classic Steel, Disc
Drivetrain
Shift Levers
Sturmey Archer Rotary 3 Speed Twist Shift
Cassette
Raleigh Heron 42 Tooth
Crank
Forged Alloy, 170mm
Bottom Bracket
Sealed Cartridge
Chain
KMC Z410
Pedals
VP Classic
Wheels
Front Hub
Alloy, 32 Hole Nutted, Disc
Rear Hub
Sturmey Archer Rotary 3 Speed, 32 Hole, Nutted, Disc
Rims
Alloy, Double Wall, 700c, 32 Hole
Spokes
14g
Tires
Kenda Bitumen, 700x45c, Urban Brown
Brakes
Brakes
Tektro Cable Acuated Mechanical Disc
Brake Levers
Promax Alloy
Cockpit
Stem
Alloy, Silver Anodized Quill, 90mm Extension, 35 Degree Rise
Handlebar
Steel Classic City Bar, Copper Finish
Grips
Comfort Lock-On
Headset
Silver, 1-1/8" Threaded
Seat
Saddle
Raleigh Vintage Leather with Classic Springs
Seatpost
Alloy, 25.6x300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.35 mm | 1.35 mm |
| Front Center | 613 mm | 629 mm | 653 mm |
| Rake | 60 mm | 60 mm | 60 mm |
| Trail | 54 mm | 62 mm | 57 mm |
| Stack | 521 mm | 542 mm | 560 mm |
| Reach | 384 mm | 401 mm | 414 mm |
| Top Tube Length | 547 mm | 567 mm | 587 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 550 mm | 570 mm | 590 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 110 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1054 mm | 1070 mm | 1094 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Standover Height | 788 mm | 808 mm | 826 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

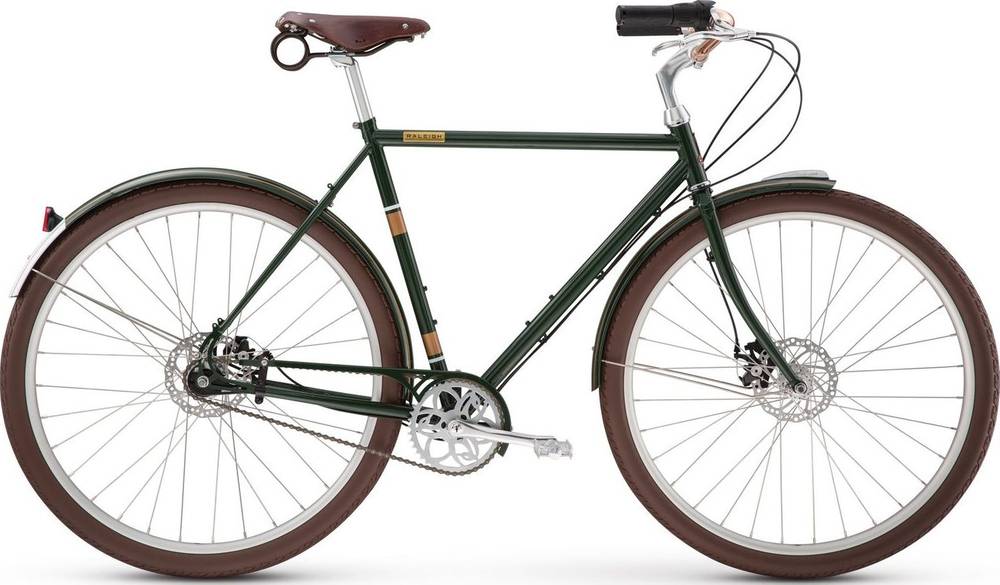

Tourist is a Raleigh Tourist model. Raleigh released 1 bike variation of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for General Urban bikes
According to our math, the average price for a trustworthy General Urban bike is 499$. However, you could also get a good General Urban bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Raleigh released this model in 2018, its price was 649$. Comparing this to the average General Urban bike price, we see that the price is 30.06% higher.
Tourist components
Fork material
Tourist has a steel fork, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels size
The wheels on Tourist are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Tourist comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Raleigh Tourist bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
