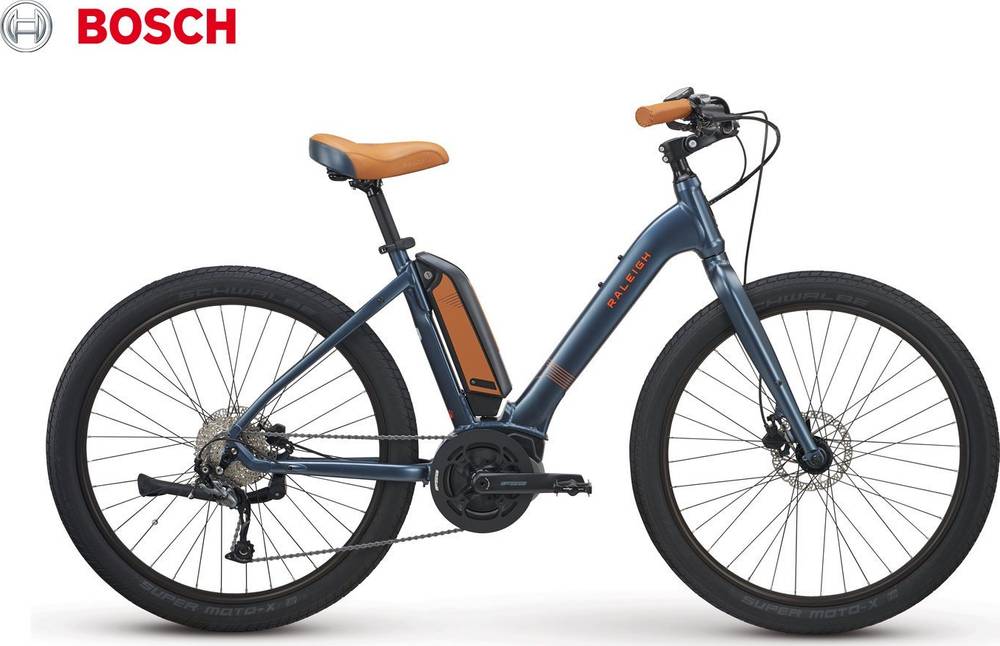

Raleigh Venture 2.0 iE Step Thru 2019
2019 E-bike
Estimate price |
2,599$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Groupset Alivio, FSA -
Suspension Rigid -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch Powerpack 500 Wh, DT Mount -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fully Formed Lightweight Aluminum Alloy 6061 T6, Nested ST Battery
Suspension Fork
Aluminum Alloy Oversize Blades, Disc Brake Mounts
Drivetrain
Rear Derailleur
Shimano Alivio SGS, 9 Speed
Shift Levers
Shimano Alivo, Rapidfire Plus, 9 Speed
Cassette
FSA 42 Tooth w/Chainguard
Crank
FSA Cast Alloy, 170mm
Chain
KMC x9ePT Ebike Specific
Pedals
Urban Style, Steel Cage w/Resin Body
Wheels
Front Hub
Formula, Sealed Bearing, w/QR 36 Hole
Rear Hub
Formula, Sealed Bearing, w/QR 36 Hole
Rims
Alloy Double Wall, 36 Hole
Spokes
Black w/Silver Nipples
Tires
Schwalbe Supermoto-X 27.5x2.40
Brakes
Brakes
Tektro Hydraulic Disc 160mm
Brake Levers
Tektro Hydraulic Ergo 4 Finger
Cockpit
Stem
Alloy Adjustable Height, Comfort Stem
Handlebar
Raleigh Aluminum Alloy
Grips
Raleigh Ergo Comfort Control
Headset
Integrated, Sealed Mechanism
Seat
Saddle
Raleigh Custom Ergo Comfort
Seatpost
Raleigh Aluminum Alloy, Forged Head
Motor & Battery
Motor
Bosch Active Line Plus, 250 Watts (418 Max), 50Nm Torque
Battery
Bosch Powerpack 500 Wh, DT Mount
Remote
Bosch Purion, Compact Type
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.48 mm | 1.48 mm |
| Front Center | 632 mm | 642 mm | 652 mm |
| Rake | 55 mm | 45 mm | 45 mm |
| Trail | 68 mm | 78 mm | 78 mm |
| Stack | 543 mm | 570 mm | 579 mm |
| Reach | 374 mm | 384 mm | 391 mm |
| Top Tube Length | 595 mm | 605 mm | 615 mm |
| Seat Tube Angle | 69 ° | 69 ° | 69 ° |
| Seat Tube Length | 480 mm | 500 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 150 mm | 160 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1103 mm | 1113 mm | 1123 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm |
| Standover Height | 495 mm | 495 mm | 495 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Venture 2.0 iE Step Thru belongs to the Raleigh E Venture model. There are 3 e-bikes that carry this model name.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Comfort e-bikes average price
If you want an acceptable Comfort e-bike you should know that the average price is 1957$. However, this doesn’t mean that if you spend less money on a Comfort e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 2599$. In conclusion, this e-bike price is 32.81% higher than the price of the average Comfort e-bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
As for the wheels, Raleigh Venture 2.0 iE Step Thru 2019, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Raleigh Venture 2.0 iE Step Thru has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Venture 2.0 iE Step Thru comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
