Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset X4, SRAM -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminum with hydroformed downtube and forged drop-outs w/ replaceable derailleur hanger
Suspension Fork
SR Suntour XCM with 100mm travel and hydrulic lockout
Drivetrain
Rear Derailleur
SRAM X4 long cage
Front Derailleur
SRAM FD 3.0, 31. 8 Clamp
Shift Levers
SRAM X4 w/ Promax DSK-717 brake levers
Cassette
Shimano CS-HG31 8spd, 11-32
Crank
SRAM 200 42/32/22T
Bottom Bracket
Square tapered 68mm, 113L
Chain
KMC Z8
Wheels
Rims
Alex TD-26 double wall 29" - 32H, pin joint, Alloy loose ball QR front and rear hubs
Tires
CST Critter 29" x 2.10"
Brakes
Brakes
Promax DSK-717 with 160mm rotors
Cockpit
Stem
XLC Alloy with 4 bolt clamp - 25.4mm
Handlebar
XLC alloy riser, 25.4mm X 680mm width
Grips
Dual compound 125mm width
Headset
FSA ZS-4, 1 1/8" Zero stack integrated
Seat
Saddle
Standard padding,Steel rail
Seatpost
XLC alloy 27.2mm, 350mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 645 mm | 649 mm | 658 mm | 678 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Top Tube Length | 573 mm | 593 mm | 613 mm | 633 mm |
| Seat Tube Angle | 74.25 ° | 73.25 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 430 mm | 475 mm | 530 mm |
| Head Tube Angle | 71 ° | 71.25 ° | 72 ° | 72 ° |
| Head Tube Length | 90 mm | 95 mm | 100 mm | 105 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1085 mm | 1089 mm | 1098 mm | 1118 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 748 mm | 780 mm | 807 mm | 838 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview

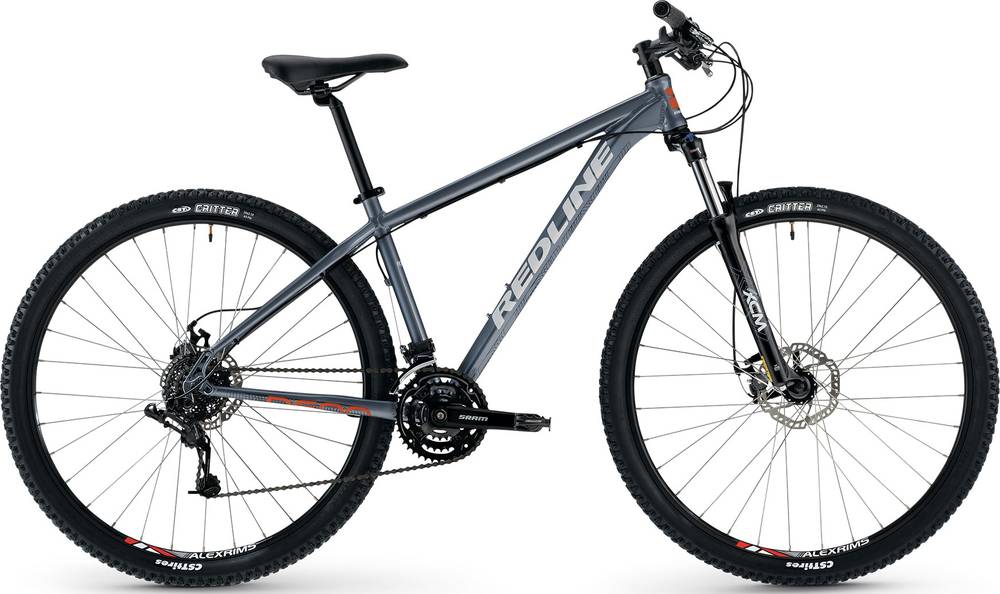

D600 is part of the Redline D600 model. 2 bikes variations carry this model name so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
D600 components
Fork
Redline D600 2014 bike is equipped with the SunTour XCM fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on D600 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Redline D600 has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
