Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox 30 Silver TK
-
Groupset X5, SRAM -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminum with hydroformed downtube and forged drop-outs with replaceable derailleur hanger
Suspension Fork
RockShox XC 30, 29er with 100mm travel
Drivetrain
Rear Derailleur
SRAM X5 long cage
Front Derailleur
SRAM X5
Shift Levers
SRAM X5
Cassette
SRAM PG-950 9spd 11-34
Crank
SRAM 5D 44/32/22T
Bottom Bracket
FSA square taper 68mm
Chain
KMC Z99
Wheels
Rims
Alex DP-20 double wall 29" 32H, 9 Spd cassette, QR hubs
Tires
WTB Prowler SL Comp 29 X 2.1"
Brakes
Brakes
Tektro hydrolic disc, 160mm rotors
Cockpit
Stem
Kore XCD threadless with 4 bolt clamp OD31.8mm
Handlebar
Kore XCD flat, 31.8mm X 710mm width
Grips
Dual compound 125mm width
Headset
FSA ZS-4, 1 1/8" Zero stack integrated
Seat
Saddle
Kore Faser IE, steel rail, std. foam
Seatpost
Kore twin bolt alloy 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 645 mm | 649 mm | 658 mm | 678 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Top Tube Length | 573 mm | 593 mm | 613 mm | 633 mm |
| Seat Tube Angle | 74.25 ° | 73.25 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 430 mm | 475 mm | 530 mm |
| Head Tube Angle | 71 ° | 71.25 ° | 72 ° | 72 ° |
| Head Tube Length | 90 mm | 95 mm | 100 mm | 105 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1085 mm | 1089 mm | 1098 mm | 1118 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 748 mm | 780 mm | 807 mm | 838 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model

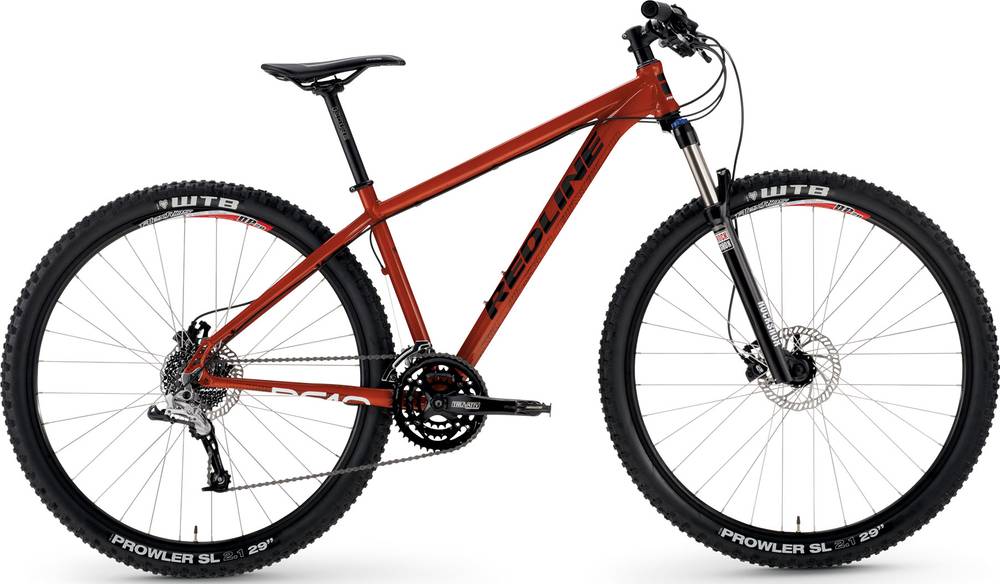

D610 belongs to the Redline D610 model. 2 bikes variations carry this model name so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
D610 components
Fork
Redline D610 2014 bike is equipped with the RockShox 30 Silver TK fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The D610 2014 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
