Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox 30 Silver TK
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminum with Butted Hydroformed Top and Downtube and forged drop-outs with replaceable derailleur hanger
Suspension Fork
RockShox 30 Gold TK 100mm 29"
Drivetrain
Rear Derailleur
Shimano Deore 10 speed Shadow Plus, GS
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore 2X10 speed
Cassette
Shimano HG62-10, 11-34t
Crank
Shimano Deore 38X26t, 10 speed
Bottom Bracket
Shimano
Chain
KMC X10
Wheels
Rims
WTB SX-19 29" - 32H, Formula sealed bearing hubs
Tires
WTB Bronson comp 29 x 2.1", wire bead
Brakes
Brakes
Avid DB3 hydrolic disc with 160mm rotors
Cockpit
Stem
Kore threadless with 4 bolt clamp OD31.8mm
Handlebar
Kore XCD flat, OD31.8mm X W710mm
Grips
Redline Flight flangeless lock-on
Headset
1 1/8" FSA Orbit Z
Seat
Saddle
Kore Fazer SL
Seatpost
Kore XCD, Alloy twin bolt - 350 X 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 642 mm | 652 mm | 662 mm | 672 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Top Tube Length | 581 mm | 591 mm | 601 mm | 611 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1087 mm | 1097 mm | 1107 mm | 1117 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 748 mm | 780 mm | 807 mm | 838 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model

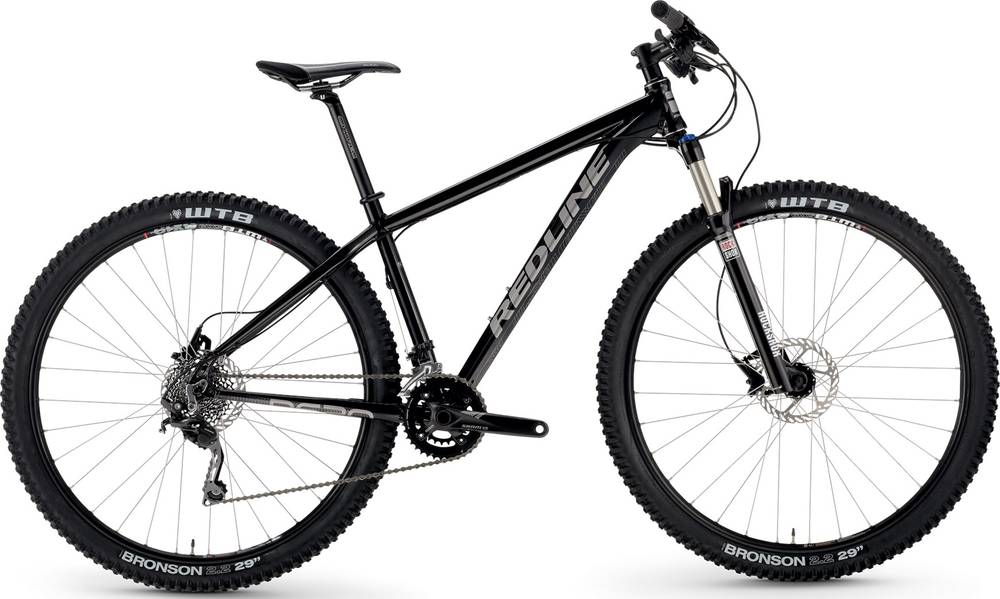

D620 completes the Redline D620 model. Redline released 2 bikes variations of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
D620 components
Fork
The fork installed on this bike is the RockShox 30 Silver TK model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Redline D620 2014, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Redline D620 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
