Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox 30 Silver TK
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminum with Butted Hydroformed Top and Downtube and forged drop-outs with replaceable derailleur hanger
Suspension Fork
RockShox 30 Gold TK 100mm 29"
Drivetrain
Rear Derailleur
Shimano Deore 10 speed Shadow Plus, SGS
Front Derailleur
Shimano Deore, DS/DP, clamp type
Shift Levers
Shimano Deore 2X10 speed, Shimano hydraulic levers
Cassette
Shimano HG50-10, 11-36t
Crank
Shimano Deore 38X26t, 10 speed
Bottom Bracket
Shimano
Chain
KMC X10
Wheels
Rims
WTB SX-19 29" - 32H, Formula sealed bearing hubs
Tires
Kenda Slant Six, 29 X 2.2" 60tpi
Brakes
Brakes
Shimano M445 hydraulic disc, 160mm rotors
Cockpit
Stem
XLC Pro, 31.8mm, 7 degree
Handlebar
XLC Pro, 31.8mm, 720mm width
Grips
Redline Flight flangeless lock-on
Headset
1 1/8" FSA Zs 4
Seat
Saddle
Fizik Nisene MG
Seatpost
XLC Pro 27.2 X 350mm, alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 642 mm | 652 mm | 662 mm | 672 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Top Tube Length | 581 mm | 591 mm | 601 mm | 611 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1087 mm | 1097 mm | 1107 mm | 1117 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 748 mm | 780 mm | 807 mm | 838 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model

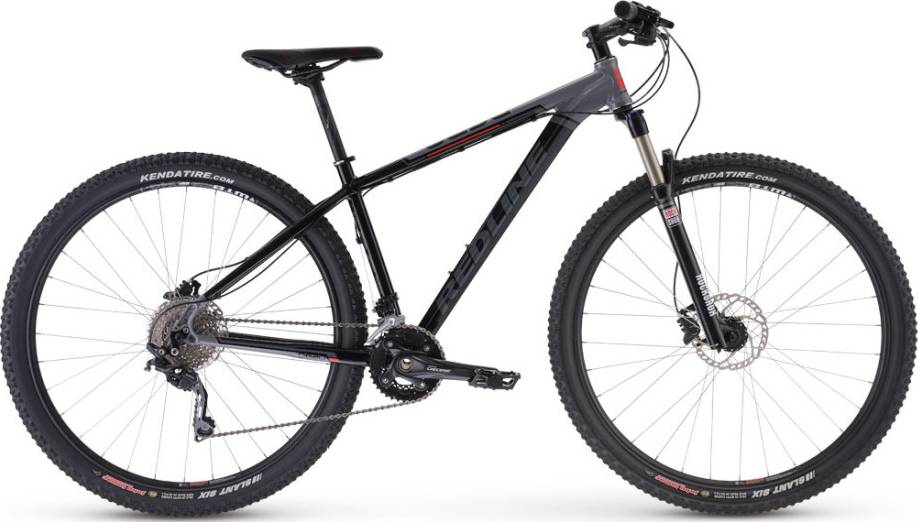

D620 completes the Redline D620 model. Redline released 2 bikes variations of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
Redline D620 2015 bike is equipped with the RockShox 30 Silver TK fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, Redline D620 2015, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Redline D620 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
