Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Float 32
-
Groupset XT, SLX -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full Carbon Fiber utilizing RCT Monocoque construction, internal cable routing, BB92 Press Fit bottom bracket, tapered headtube and 12 x 142mm rear spacing
Suspension Fork
Fox 32 Float 29 FIT 100MM travel with CTD 15MM thru axle, tapered steerer
Drivetrain
Rear Derailleur
Shimano XT Shadow plus
Front Derailleur
Shimano SLX
Shift Levers
Shimano XT
Cassette
Shimano XT
Crank
Shimano XT 38/26
Bottom Bracket
Shimano BB92 Press Fit
Chain
KMC X10L
Wheels
Rims
WTB Frequency Team, SRAM X9 hubs
Tires
Schwalbe Rocket Ron EVO, 29 X 2.25
Brakes
Brakes
Shimano XT Ice Tech
Cockpit
Stem
FSA Afterburner, 31.8mm clamp, ±6¡ rise
Handlebar
FSA Afterburner, 31.8mm clamp, 680mm width, zero rise
Grips
Redline Flight flangeless lock-on
Seat
Saddle
WTB Shadow V with titanium rails
Seatpost
FSA Afterburner, 27.2MM, 350MM length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.43 mm | 1.41 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm |
| Front Center | 671 mm | 692 mm | 695 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 83 mm | 70 mm | 82 mm |
| Stack | 628 mm | 630 mm | 641 mm |
| Reach | 425 mm | 442 mm | 454 mm |
| Top Tube Length | 611 mm | 632 mm | 647 mm |
| Seat Tube Angle | 73.2 ° | 73.1 ° | 73.1 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1107 mm | 1128 mm | 1131 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm |
| Standover Height | 806 mm | 824 mm | 841 mm |
| Wheels | 29" | 29" | 29" |
About this model

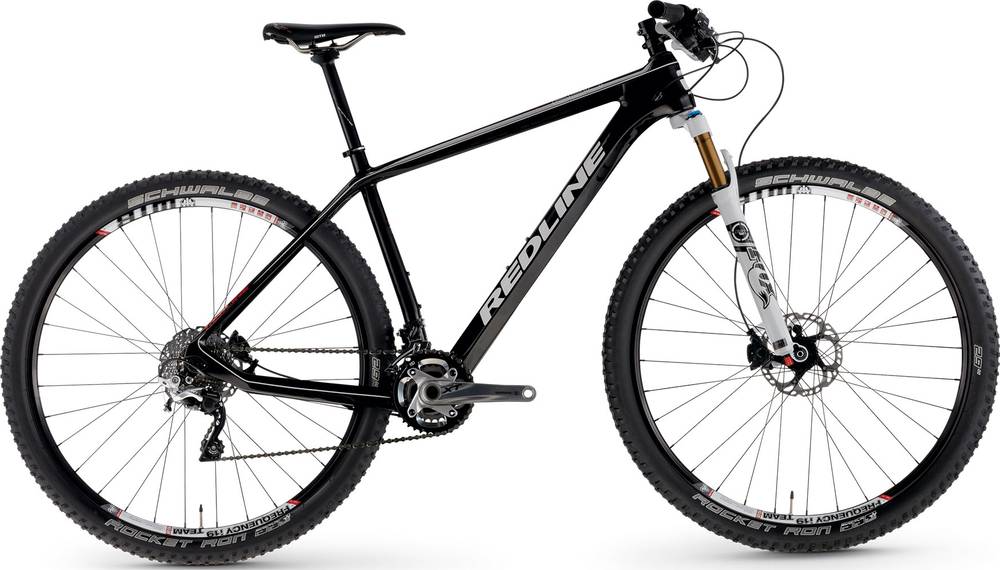

D680 belongs to the Redline D680 model. Redline launched 2 bikes of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
Redline D680 2014 bike is equipped with the Fox Float 32 fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the D680 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
