Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Travel Rear 110mm -
Fork RockShox Reba
-
Groupset SLX -
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Redline alloy, 110mm rear wheel travel, 142mm rear spacing, tapered headtube
Suspension Fork
Rockshox Reba RLT, 100mm travel, 15mm QR, 1.5 tapered
Rear Shock
Rockshox Monarch RL
Drivetrain
Rear Derailleur
Shimano SLX
Front Derailleur
Shimano SLX 10s
Shift Levers
Shimano SLX 2X10sp, Shimano SLX levers
Cassette
Shimano SLX 10s, 11-34t
Crank
Shimano SLX Hollowtech 2 10sp
Bottom Bracket
FSA press fit bb92
Chain
KMC X10L
Wheels
Rims
WTB Frequency Team rims, SRAM X9 15mm QR front and SRAM X9 12mm QR rear hubs
Tires
Schwalbe Rapid Rob 29X2.25"
Brakes
Brakes
Shimano SLX, with ICE tech 160mm rotors
Cockpit
Stem
Crank brothers Cobalt 1, 31.8mm clamp, ±6¡, black
Handlebar
Crank Brothers Cobalt 2, 31.8mm clamp, 740mm width, 9 degree backsweep, 8mm rise
Grips
Redline Flight flangeless lock-on
Headset
FSA Internal sealed bearing, 1.5 lower, 1 1/8th upper
Seat
Saddle
Fizik Nisene mg
Seatpost
Crank Brothers Cobalt 1, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.419 mm | 1.352 mm | 1.308 mm | 1.241 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 336 mm | 687 mm | 707 mm | 737 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 1090 mm | 93 mm | 89 mm | 80 mm |
| Stack | 599 mm | 603 mm | 603 mm | 608 mm |
| Reach | 422 mm | 446 mm | 461 mm | 490 mm |
| Top Tube Length | 569 mm | 595 mm | 610 mm | 640 mm |
| Seat Tube Angle | 72.25 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 400 mm | 400 mm | 440 mm | 475 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° |
| Head Tube Length | 110 mm | 115 mm | 115 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 722 mm | 735 mm | 775 mm | 800 mm |
| Wheels | 29" | 29" | 29" | 29" |

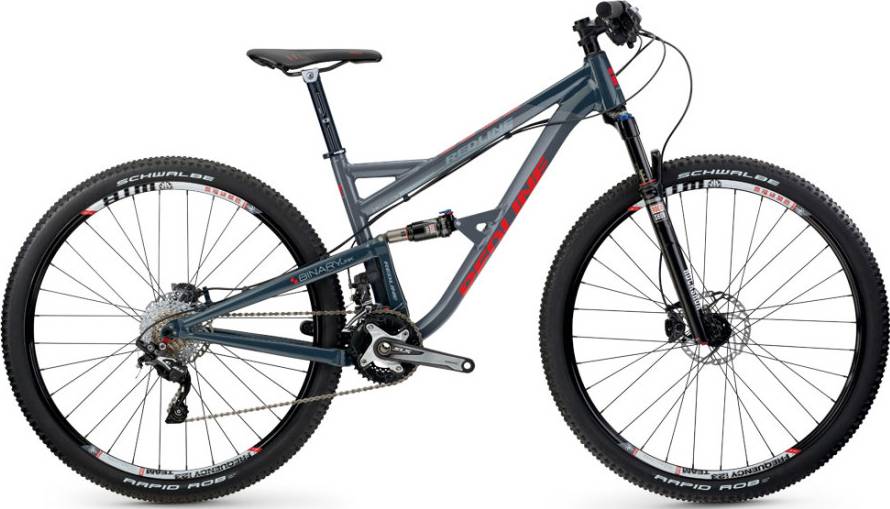

Model Overview
D860 completes the Redline D860 model. Redline released 2 bikes variations of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
D860 components
Fork
The fork installed on this bike is the RockShox Reba model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is Rockshox Monarch RL, with a travel distance of 110mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on D860 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Redline D860 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
